ETSI GR NFV-REL 014 V5.1.1 (2023-10)

Network Functions Virtualisation (NFV) Release 5; Reliability; Report on evaluating reliability for cloud-native VNFs

DGR/NFV-REL014

General Information

• Status: Not Published
• Technical Committee: NFV REL - Reliability & Availability
• Current Stage: 12 - Completion
• Due Date: 30-Oct-2023
• Completion Date: 04-Oct-2023

Standards Content (Sample)

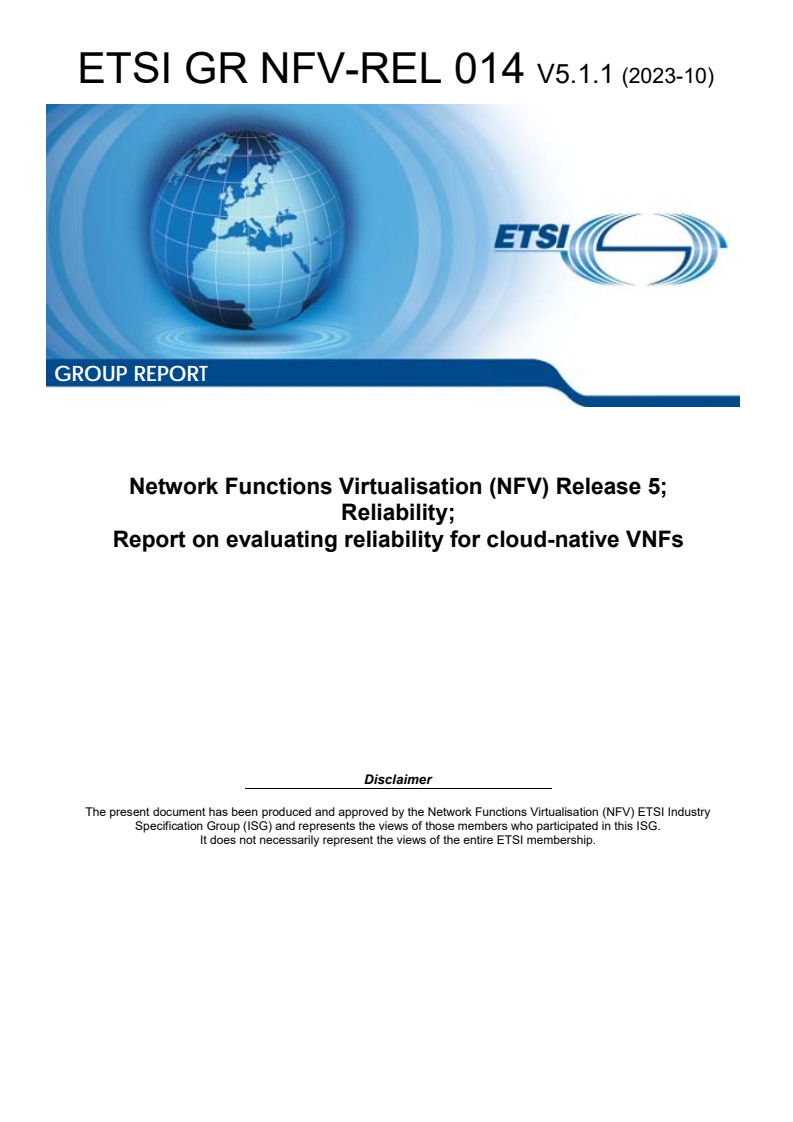

GROUP REPORT
Network Functions Virtualisation (NFV) Release 5;
Reliability;
Report on evaluating reliability for cloud-native VNFs
Disclaimer
The present document has been produced and approved by the Network Functions Virtualisation (NFV) ETSI Industry
Specification Group (ISG) and represents the views of those members who participated in this ISG.
It does not necessarily represent the views of the entire ETSI membership.

2 ETSI GR NFV-REL 014 V5.1.1 (2023-10)

Reference
DGR/NFV-REL014
Keywords
cloud-native, reliability
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
https://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
and/or governmental
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2023.
All rights reserved.
ETSI
3 ETSI GR NFV-REL 014 V5.1.1 (2023-10)

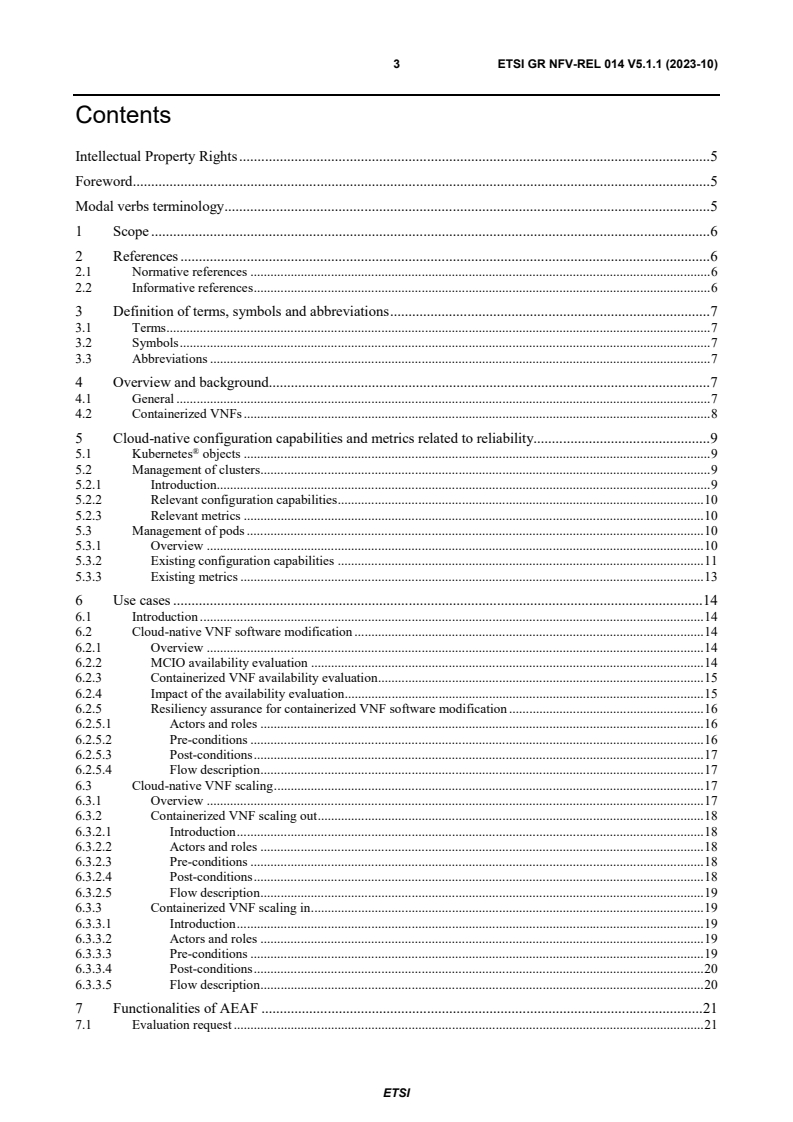

Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definition of terms, symbols and abbreviations . 7
3.1 Terms . 7
3.2 Symbols . 7
3.3 Abbreviations . 7
4 Overview and background . 7
4.1 General . 7
4.2 Containerized VNFs . 8
5 Cloud-native configuration capabilities and metrics related to reliability. 9 ®
5.1 Kubernetes objects . 9
5.2 Management of clusters . 9
5.2.1 Introduction. 9
5.2.2 Relevant configuration capabilities . 10
5.2.3 Relevant metrics . 10
5.3 Management of pods . 10
5.3.1 Overview . 10
5.3.2 Existing configuration capabilities . 11
5.3.3 Existing metrics . 13
6 Use cases . 14
6.1 Introduction . 14
6.2 Cloud-native VNF software modification . 14
6.2.1 Overview . 14
6.2.2 MCIO availability evaluation . 14
6.2.3 Containerized VNF availability eval uatio n . 15
6.2.4 Impact of the availability evaluation . 15
6.2.5 Resiliency assurance for containerized VNF software modification . 16
6.2.5.1 Actors and roles . 16
6.2.5.2 Pre-conditions . 16
6.2.5.3 Post-conditions . 17
6.2.5.4 Flow description . 17
6.3 Cloud-native VNF scaling . 17
6.3.1 Overview . 17
6.3.2 Containerized VNF scaling out . 18
6.3.2.1 Introduction . 18
6.3.2.2 Actors and roles . 18
6.3.2.3 Pre-conditions . 18
6.3.2.4 Post-conditions . 18
6.3.2.5 Flow description . 19
6.3.3 Containerized VNF scaling in . 19
6.3.3.1 Introduction . 19
6.3.3.2 Actors and roles . 19
6.3.3.3 Pre-conditions . 19
6.3.3.4 Post-conditions . 20
6.3.3.5 Flow description . 20
7 Functionalities of AEAF . 21
7.1 Evaluation request . 21
ETSI
4 ETSI GR NFV-REL 014 V5.1.1 (2023-10)
7.2 Evaluation methods . 21
7.2.1 Introduction. 21
7.2.2 Evaluation methods classified by measured object . 21
7.2.2.1 VNF. 21
7.2.2.2 VNFC . 21
7.2.2.3 Pod, Deployment and StatefulSet . 22
7.2.2.4 Node . 24
7.2.2.5 CIS cluster . 25
7.3 Evaluation outputs . 25
7.4 Potential architectural options related to AEAF . 26
8 Recommendations related to AEAF . 26
9 Conclusion . 27 ®
Annex A: Existing pod metrics and configurable attributes in Kubernetes . 28
Annex B: Change History . 30
History . 31

ETSI
5 ETSI GR NFV-REL 014 V5.1.1 (2023-10)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Group Report (GR) has been produced by ETSI Industry Specification Group (ISG) Network Functions
Virtualisation (NFV).
Modal verbs terminology
In the present document "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be
interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
6 ETSI GR NFV-REL 014 V5.1.1 (2023-10)
1 Scope
The present document studies the reliability evaluation for cloud-native VNFs (as defined in ETSI
GS NFV-EVE 011 [i.2]). It identifies key use cases (containerized VNF software modification, containerized VNF
scaling out/in) of cloud-native VNF lifecycle management which may impact reliability. In these use cases, possible ®
new functionalities to support the resiliency assurance of these VNF operations are discussed, using Kubernetes as an
example containerization technology. Then possible solutions are presented related to the new functionalities, together
with the potential architectural options.
2 References
2.1 Normative references
Normative references are not applicable in the present document.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI GR NFV 003: "Network Functions Virtualisation (NFV); Terminology for Main Concepts in
NFV".
[i.2] ETSI GS NFV-EVE 011 "Network Functions Virtualisation (NFV) Release 3; Virtualised
Network Function; Specification of the Classification of Cloud Native VNF implementations".
[i.3] ETSI GS NFV-SEC 023: "Network Functions Virtualisation (NFV) Release 4; Security; Container
Security Specification".
[i.4] ETSI GR NFV-IFA 029: "Network Functions Virtualisation (NFV) Release 3; Architecture;
Report on the Enhancements of the NFV architecture towards "Cloud-native" and "PaaS"".
[i.5] ETSI GS NFV-IFA 010: "Network Functions Virtualisation (NFV) Release 4; Management and
Orchestration; Functional requirements specification".
[i.6] ETSI GS NFV-IFA 040: "Network Functions Virtualisation (NFV) Release 4; Management and
Orchestration; Requirements for service interfaces and object model for OS container management
and orchestration specification".
[i.7] ETSI GS NFV-IFA 036: "Network Functions Virtualisation (NFV) Release 4; Management and
Orchestration; Requirements for service interfaces and object model for container cluster
management and orchestration specification". ®
[i.8] Kubernetes document. ®
[i.9] Kubernetes API conventions document.
[i.10] ETSI GS NFV 006: "Network Functions Virtualisation (NFV) Release 4; Management and
Orchestration; Architectural Framework Specification".
[i.11] ETSI GS NFV-REL 003: " Network Functions Virtualisation (NFV); Reliability; Report on
Models and Features for End-to-End Reliability".
ETSI
7 ETSI GR NFV-REL 014 V5.1.1 (2023-10)
[i.12] ETSI GS NFV-SOL 001: "Network Functions Virtualisation (NFV) Release 4; Protocols and Data
Models; NFV descriptors based on TOSCA specification".
[i.13] ETSI GR NFV-IFA 041: "Network Functions Virtualisation (NFV) Release 4; Management and
Orchestration; Report on enabling autonomous management in NFV-MANO".
[i.14] ETSI GS NFV-IFA 027: "Network Functions Virtualisation (NFV) Release 4; Management and
Orchestration; Performance Measurements Specification".
[i.15] ETSI GS NFV-SOL 018: "Network Functions Virtualisation (NFV) Release 4; Protocols and Data
Models; Profiling specification of protocol and data model solutions for OS Container
management and orchestration".
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms given in ETSI GR NFV 003 [i.1] and the following apply:
NOTE: A term defined in the present document takes precedence over the definition of the same term, if any, in
ETSI GR NFV 003 [i.1].
cloud-native VNF: VNF designed to be deployed and managed in a cloud computing environment for efficient
operation
NOTE: The present document assumes that cloud-native VNFs have (but are not limited to) the following
characteristics:
 dynamic (e.g. with frequent changes);
 scalable;
 fine-granular (e.g. composed of microservices, containerized).
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the abbreviations given in ETSI GR NFV 003 [i.1] apply.
4 Overview and background
4.1 General
The telecom industry is experiencing a transformation towards cloud-native. Cloud-native VNFs may use technologies
such as containerized functions, micro-service based architecture, self-management, scalability, etc. The management of
VNFs following cloud-native principles is bringing profound changes to the operations and maintenance of telecom
cloud-based networks, e.g. the combination of DevOps and Cloud increases the software delivery and efficiency. These
new changes introduce new challenges on managing cloud-native VNFs, especially for the non-functional aspects like
performance, reliability and security.
ETSI
8 ETSI GR NFV-REL 014 V5.1.1 (2023-10)
Reliability for cloud-native VNFs is really challenging because of their highly dynamic nature. Thus, highly dynamic
management is needed due to the nature of cloud-native VNFs. In the scope of ISG NFV, ETSI GS NFV-EVE 011 [i.2]
specifies non-functional aspects for cloud-native VNFs, e.g. resiliency, scaling and composition. ETSI
GS NFV-SEC 023 [i.3] specifies the security and hardening requirements for VNFs running in a containerized
environment. ETSI GR NFV-IFA 029 [i.4] investigates the use cases for application of cloud-native design principles,
but it lacks the use cases analysis and has no recommendations on NFV-MANO functional enhancement derived from
the use cases.
The present document focuses on the study of reliability aspects for supporting the management of cloud-native VNFs.
Clause 5 introduces some cloud-native configuration capabilities and metrics related to reliability. Clause 6 studies a
number of use cases for the purpose of deriving corresponding criteria and their associated configuration capabilities
and metrics to evaluate the reliability for cloud-native VNFs. Clause 7 further elaborates on the identified criteria and
their associated metrics of reliability evaluation. Finally, Clause 8 summarizes the recommendations for normative
work in the future.
4.2 Containerized VNFs
In a cloud-native VNF environment, OS-container becomes the recommended technology for the infrastructure services
in support of the VNFs, even though VM-based virtualisation is still an option for fulfilling cloud-native objectives. The
introduction of OS-containers has an impact on the NFV-MANO architecture, as specified in ETSI
GS NFV-IFA 010 [i.5] and ETSI GS NFV-IFA 040 [i.6], namely the introduction of new managed objects and a
management function related to OS-container management and orchestration, i.e. MCIO and CISM. A Managed
Container Infrastructure Object (MCIO) is a managed object representing the desired and actual state of a containerized
workload for the OS-container management and orchestration. As specified in ETSI GS NFV-IFA 040 [i.6], an MCIO
requesting compute/storage resources can be mapped to a VNFC. ®
Kubernetes , also known as K8s, is an open-source system for automating deployment, scaling, and management of ®
containerized applications. ETSI GS NFV-SOL 018 [i.15] profiles the Kubernetes API as NFV protocol and data
model solution for OS container management and orchestration. As defined in ETSI GR NFV-IFA 029 [i.4] and ETSI ®
GS NFV-IFA 040 [i.6], MCIO could be realized as Pod, Deployment, StatefulSet, etc. in Kubernetes .
Figure 4.2-1 shows the OS-container infrastructure service management architecture, as described in ETSI
GS NFV 006 [i.10]. The Container Infrastructure Service (CIS) is responsible for providing the virtualised
infrastructure as OS-containers. The Container Infrastructure Service Management (CISM) is responsible for the
management of containerized workloads as MCIOs running in the CIS. The Container Cluster Management (CCM) is
responsible for the management of CIS clusters.
ETSI
9 ETSI GR NFV-REL 014 V5.1.1 (2023-10)

Figure 4.2-1: Container-based NFV architectural framework
5 Cloud-native configuration capabilities and metrics
related to reliability ®
5.1 Kubernetes objects ®
Kubernetes objects are persistent managed objects representing the managed container cluster and its different ®
resources such as pods. Kubernetes objects can describe among others which containerized applications are running
(and on which nodes), the resources available to those applications, and the policies applicable to those applications
[i.8]. In the context of NFV, Kubernetes objects are MCIOs. ®
Most importantly, a Kubernetes object includes two fields: the spec field and the status field [i.9]. The spec field is set ®
by the user and characterizes the desired status of the entity represented by the Kubernetes object. The status field
® ®
shows the current status of the entity represented by the Kubernetes object as supplied and updated by Kubernetes . ®
Kubernetes continually and actively manages the actual status of each entity to match its desired status.
5.2 Management of clusters
5.2.1 Introduction
Current industry solutions for OS container management expect that a cluster of machines (running either in virtual
machines or on bare-metal servers) is provided for their use. In the context of NFV, a cluster is called a Container
Infrastructure Service (CIS) cluster and is composed of one or multiple CIS cluster nodes. A CIS cluster node, which
can be realized as a VM or a bare-metal server, is a compute resource that runs a CIS instance or a CISM instance, or
both.
ETSI
10 ETSI GR NFV-REL 014 V5.1.1 (2023-10)
The CCM (CIS Cluster Management) is responsible for the lifecycle management and FCAPS management of the CIS
cluster. The CCM consumer can define the essential cluster information, including the description of the CIS cluster
nodes, the placement constraints and the affinity or anti-affinity rules, etc., in the CIS Cluster Descriptor (CCD) that is
interpreted by the CCM.
The concept of CIS cluster and the functionalities of CCM are detailed in ETSI GS NFV-IFA 036 [i.7].
5.2.2 Relevant configuration capabilities
ETSI GS NFV-IFA 036 [i.7] defines the requirements for CIS cluster management. CCM is responsible for lifecycle
management of the CIS cluster, including applying changes to the CIS cluster configuration, scaling the CIS cluster,
and modification of CIS cluster software.
CIS cluster configuration attributes include CIS cluster nodes to be used in the CIS cluster, number of CIS cluster
nodes, scaling characteristics, placement constraints, cluster networking, and cluster storage. For more details, refer to
clause 4.2.4 of ETSI GS NFV-IFA 036 [i.7].
CCM can construct CISM with high availability. For details of how CISM high availability can be achieved, refer to
clause 4.2.12 of ETSI GS NFV-IFA 036 [i.7].
5.2.3 Relevant metrics
CCM reports information related to the CIS cluster configuration and CIS cluster status as defined in clause 4.2.4 of
ETSI GS NFV-IFA 036 [i.7].
CCM provides performance measurements for CIS cluster nodes, CIS cluster storage, and CIS cluster nodes network,
but not at the overall CIS cluster level.
5.3 Management of pods
5.3.1 Overview
® ®
Pods are the most basic deployable resources in Kubernetes which are represented by Kubernetes objects. Pods
contain one or more containers, such as Docker™ containers. When a pod runs multiple containers, the containers share
the pod's resources. Pods run on nodes organized in a certain container cluster.
Pods follow a defined lifecycle, starting in the Pending phase, moving through the Running phase if at least one of its
containers is running, or in the process of starting or restarting. Pods complete their lifecycle through either the
Succeeded or Failed phases depending on whether any container in the pod has terminated in a failure. A pod will
spend most of its operational life in the Running phase. ®
In a pod, Kubernetes tracks the container(s) status and determines what action(s) to take to keep the pod's actual status ®
as desired. Kubernetes is able to restart containers to handle some failures, e.g. Out-Of-Memory (OOM) failure when a
container exceeds its resource limit. Container failures, which cannot be resolved by restart, are escalated to the pod
level and cause the pod to be terminated in the Failed phase. ®
For stateless containerized applications, Kubernetes provides the Deployment object to realize declarative
configuration for a set of pods. Users can create a Deployment to roll out a group of identical pods, scale the
Deployment to increase or decrease the number of its pods, and update the Deployment which means changing this
Deployment's pod template by updating the pods' metadata and spec configurations (see clause 5.3.2), e.g. pods' labels
or container images. ®
For stateful containerized applications, the Kubernetes object StatefulSet is used to manage the roll-out and scaling of
a set of pods. A StatefulSet provides guarantees about the ordering and uniqueness of these pods. Like a Deployment, a
StatefulSet contains pods that are based on the same container spec. Unlike a Deployment, a StatefulSet maintains a
sticky identity for each of its pods. Even though these pods are created from the same spec, they are not
interchangeable: each has a persistent identifier that it maintains even across rescheduling [i.8].
ETSI
11 ETSI GR NFV-REL 014 V5.1.1 (2023-10)
Pods in a StatefulSet have a unique identity that is comprised of an ordinal and a stable network identity, and a stable
storage. When pods are being deployed, they are created sequentially, which defines a succession. When pods are
deleted, they are terminated in reverse order. Pods of a StatefulSet can be updated in a rolling fashion, which means an
automated rolling update of their containers, labels, resource requests/limits, and annotations. ®
The Kubernetes objects expose some configurable attributes to request resources for running pods and their desired
limits. These attributes allow capacity planning, assessment of current or historical scheduling limits, quick
identification of workloads that cannot be scheduled due to a lack of resources, and comparison of actual usage to the
pod's request.
For more details on pods management, refer to [i.8] and [i.9].
5.3.2 Existing configuration capabilities ®
The Kubernetes object representing a pod includes the following configuration capabilities:
• Metadata: which contains the identification and description of the pod. Commonly used metadata attributes
for a pod are:
- Name.
- Namespace: which configures the namespace to which the pod belongs.
- Labels: which lists the pod's custom labels.
• Spec: which is a detailed configuration of the pod's various resources and handling options. The key attributes
for the pod's resource configuration are the following:
- Containers: which is used to configure the containers of the pod. ®
- NodeName: name of the node on which Kubernetes can schedule this pod. ®
- NodeSelector: which defines the node labels. Kubernetes has to schedule this pod to a node with these
labels.
- Volumes: which provides the storage volume information of the pod.
- RestartPolicy: which configures the strategy for this pod in case of pod failure. ®
Kubernetes provides the capability to configure a single pod; however, it is more common to deploy a set of identical
pods as a Deployment or a StatefulSet using pod templates. ®
object Deployment includes the following configuration
For managing a set of stateless pods, the Kubernetes
capabilities:
• Metadata: which contains the identification and description of the Deployment. Commonly used metadata
attributes for a Deployment are its name and labels.
• Spec: which is a detailed configuration of the Deployment's various resources. The key attributes for the
Deployment's resource configuration are the following:
- Replicas: which is used to configure how many pod replicas are needed.
- Selector: which defines how the Deployment controller finds which pods it manages. For example, the
user can select a label that is defined in the pod template, then the Deployment controller will manage
pods with this label.
- Template: which provides template for pods in the Deployment.
- Strategy: which specifies the strategy used to replace pods of the old template by new ones when the
Deployment is upgraded. It has two options "Recreate" or "RollingUpdate".
ETSI
12 ETSI GR NFV-REL 014 V5.1.1 (2023-10)
For a containerized application consisting of a pool of stateless pods, it can be configured in the sub-
attribute maxUnavailable and maxSurge under the RollingUpdate strategy to control the rolling ®
. The configurable attribute maxUnavailable specifies the
software modification process in Kubernetes
maximum number of pods that can be unavailable during the software modification process. The value
can be an absolute number (for example, 5) or a percentage of desired pods (for example, 10 %),
ensuring that the total number of pods available at all times during the software modification process can
meet the least availability need of the application. The configurable attribute maxSurge specifies the
maximum number of pods that can be created over the desired number of pods. The value can be an
absolute number (for example, 5) or a percentage of desired pods (for example, 10 %), ensuring that the
total number of pods running at any time during the software modification won't go over the threshold to
affect the system performance or occupy too many virtualised resources. ®
- ProgressDeadlineSeconds: which configures the number of seconds Kubernetes waits for the
Deployment to progress before the system reports back that the Deployment has failed. ®
For managing a set of stateful pods, the Kubernetes object StatefulSet includes the following configuration
capabilities:
• Metadata: which contains the identification and description of the StatefulSet, e.g. the name and labels of the
StatefulSet.
• Spec: which is a detailed configuration of the StatefulSet's various resources. The key attributes for the
StatefulSet's resource configuration are the following:
- Replicas: which is used to configure how many pod replicas are needed.
- Selector: which defines how the StatefulSet controller finds which pods it manages. For example, the
user can select a label that is defined in the pod template, then the StatefulSet controller will manage
pods with this label.
- Template: which provides template for pods in the StatefulSet, including the information for containers'
images, ports and volume mounts in the pod.
- ServiceName: which defines the service this StatefulSet corresponds to.
- VolumeClaimTemplate: which configures a Persistent Volume Claim (PVC) template so that each pod
in the StatefulSet will have its persistent volume stable storage.
- PodManagementPolicy: which allows users to relax the StatefulSet's management of pod ordering
while preserving its pod uniqueness and identity guarantees. By default, in a StatefulSet, before a scaling
operation is applied, all the predecessors of the new pod need to be in the Running phase; or before a pod
is terminated, all of its successors need to be terminated (Succeeded or Failed).
- UpdateStrategy: which configures or disables automated rolling updates for containers, labels, resource
request/limits, and annotations of the pods of a StatefulSet. It has two options "OnDelete" or ®
"RollingUpdate". When the value is "OnDelete", Kubernetes will not automatically update the pods in
the StatefulSet. Users manually delete old pods so that the controller creates new pods that reflect
modifications made to the template. The type "RollingUpdate" allows all or a partition of pods to be
automatically updated when the StatefulSet's template is updated.
For the stateful containerized application software modification, the maxUnavailable can be configured
for the StatefulSet similar to the Deployment. Besides the maxUnavailable, the sub-attribute partition
under the RollingUpdate strategy can also be configured to define a set of pods that may be modified and
a set of pods that are not modified in this software modification process. This configuration can be useful ®
if it is decided to roll out a subset for software modification validation (known in Kubernetes as a
canary upgrade), or perform a phased roll-out for containerized application software modification
depending on the likelihood of meeting the availability requirements of the application. ®
For more details of the existing pod configurable attributes in Kubernetes , refer to Annex A.
ETSI
13 ETSI GR NFV-REL 014 V5.1.1 (2023-10)
5.3.3 Existing metrics ®
For pods management in Kubernetes , the status of pods summarizes the current situation of the pods in a container
cluster. Fields in status for pods are the most recent observations for pods' situation, but they may contain information ®
such as the results of allocations or similar operations which are executed in response to the Kubernetes object's spec. ®
The key metrics showing the Kubernetes pod's status are as follows:
• Phase: showing which phase this pod is currently in.
• Conditions: showing more detailed information per condition type on this pod's readiness:
- Type: there are four condition types: "PodScheduled", "Initialized", "ContainersReady" and "Ready".
"PodScheduled" shows if the pod has been scheduled to a node. "Initialized" shows if all init containers
in this pod have been started successfully. "ContainersReady" shows if all containers in the pod are
ready. "Ready" shows if the pod can provide its service. For all four condition types, the status value can
be "True", "False" or "Unknown".
- LastProbeTime: the timestamp of the last pod condition detection.
- LastTransitionTime: the timestamp of the last condition transition from one status value to another.
- Reason: a machine-readable reason for the last condition transition.
- Message: a human-readable detailed description of the last condition transition. ®
Besides, in Kubernetes , CPU usage and memory usage are two key performance metrics for pod's computing
resources:
• Pod CPU usage: CPU is reported as the average core usage measured in CPU units. One CPU, in ®
Kubernetes , means one vCPU/Core for cloud providers, or one hyper-thread on bare-metal processors. The
existing metrics include the number of cores and percentage (actual usage compared to the max limit) of
CPU usage.
• Pod memory usage: Memory is reported as the working set, measured in bytes, at the instant the metric was
collected. The existing metrics include the number of bytes and percentage (actual usage compared to the max
limit) of memory usage. ®
For monitoring a set of containerized applications, the key metrics showing the Kubernetes Deployment and
StatefulSet's status are as follows:
• Replicas: showing how many pod replicas are in this set of pods.
• AvailableReplicas: showing the number of available pod replicas in this set of pods. Available pods are in the
phase "Running" and the condition type "Ready".
• UnavailableReplicas: showing the number of unavailable pod replicas in this set of pods. Available pods are
both in the phase "Running" and in the condition "Ready". All other pods are considered unavailable.
• Conditions: showing detailed information per condition type on the readiness of this set of pods:
- Type: there are two condition types: "Progressing" and "Complete". "Progressing" shows if the
Deployment or StatefulSet is now creating pods, scaling or has pods available. "Complete" shows if all
of the pods in this set have been updated to the latest version specified by the user, if all new replicas are
available and all old replicas have been terminated. For both condition types, the status value can be
"True", "False", or "Unknown".
- LastTransitionTime: the timestamp of the last condition transition from one status value to another
- Reason: a machine-readable reason for the last condition transition, e.g. "ProgressDeadlineExceed" for a
Deployment.
- Message: a human-readable detailed description of the last condition transition. ®
For more details of the existing pod metrics in Kubernetes , refer to Annex A.
ETSI
14 ETSI GR NFV-REL 014 V5.1.1 (2023-10)
6 Use cases
6.1 Introduction
This clause provides use cases related to evaluating reliability for cloud-native VNF software modification and scaling.
6.2 Cloud-native VNF software modification
6.2.1 Overview
In ETSI NFV concepts, the software modification process includes software upgrade, software update, software
fallback, and software rollback [i.1]. Cloud-native VNFs are expected to be equipped with appropriate mechanisms to
monitor the VNF health and support the general VNF lifecycle. The ability to estimate reliability and availability is very
useful for the successful software modification of cloud-native VNFs. For example, the software modification process
for VNFs may take different paths depending on the likelihood of meeting the availability requirements of the VNFs. In
clause 6.2, the VNF availability evaluation for containerized and VNF software modification is discussed.
Containerized implementation does not bring any inherent change to the overall logic of VNF software modification; ®
however, the CISM (as implemented by Kubernetes ) provides more automatic capabilities for containerized VNF
software modification. Similar to the case of VNFs deployed as virtual machines, containerized VNF software
modification may be initiated by EM or NFVO (the latter NFVO case assumes that the NFVO has received an
UpdateNS operation with updateType = ChangeVnfPkg from the OSS) using a ChangeCurrentVnfPackage operation. ®
As a result of this operation, VNFM requests the update of Kubernetes managed objects (e.g. Deployment, StatefulSet)
which implies that the new software will be deployed in new containers. Before the request, it would be useful to ®
estimate if the current status of containerized applications managed by Kubernetes and their configuration would ®
impact the VNF availability during the software modification, and re-configure Kubernetes (using for example ®
replicas, updateStrategy) if necessary. Kubernetes can then follow the configured strategy for the containerized
software modification process. ®
For both stateful and stateless containerized VNFs, Kubernetes provides several autonomous mechanisms for software ®
modification. However, Kubernetes itself doesn't have the ability to do the VNF availability calculation without
