ETSI GS ARF 004-4 V1.1.1 (2023-01)

Augmented Reality Framework (ARF); Interoperability Requirements for AR components, systems and services; Part 4: World Analysis, World Storage and Scene Management functions

DGS/ARF-004-4

General Information

• Status: Not Published
• Technical Committee: ARF - Augmented Reality Framework
• Current Stage: 12 - Completion
• Due Date: 17-Jan-2023
• Completion Date: 20-Jan-2023

Standards Content (Sample)

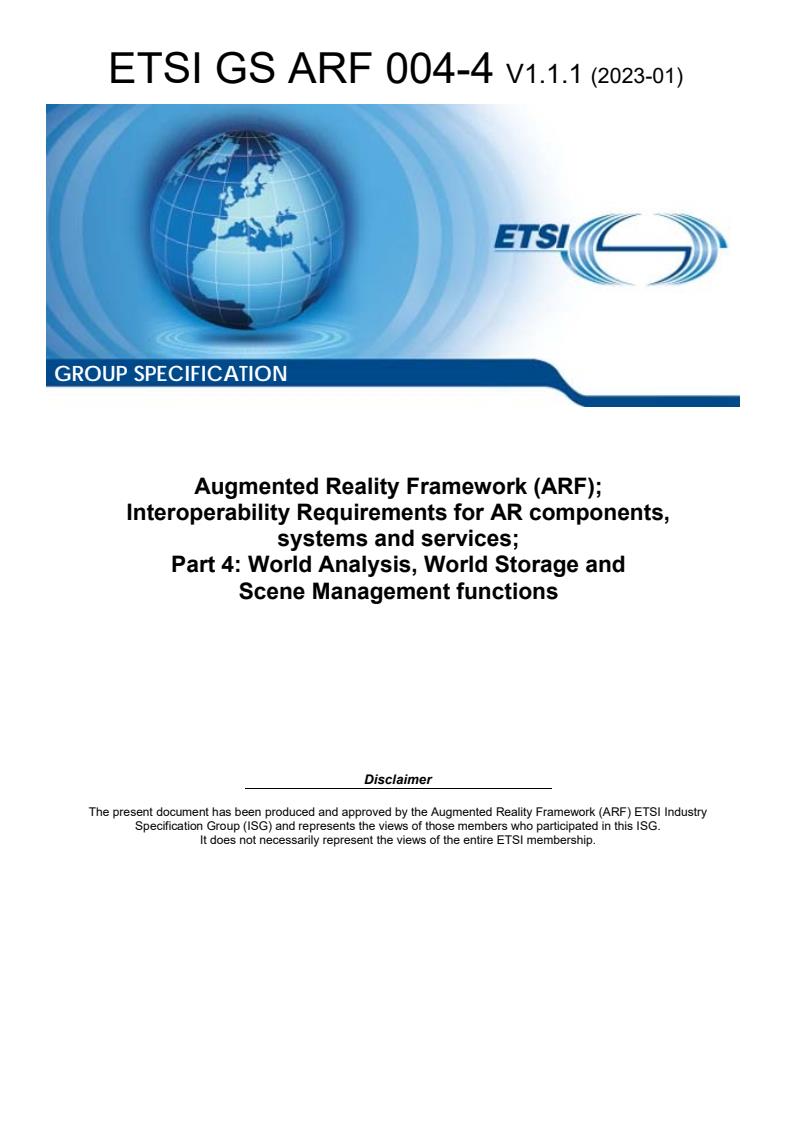

GROUP SPECIFICATION
Augmented Reality Framework (ARF);
Interoperability Requirements for AR components,
systems and services;
Part 4: World Analysis, World Storage and
Scene Management functions
Disclaimer
The present document has been produced and approved by the Augmented Reality Framework (ARF) ETSI Industry
Specification Group (ISG) and represents the views of those members who participated in this ISG.
It does not necessarily represent the views of the entire ETSI membership.

2 ETSI GS ARF 004-4 V1.1.1 (2023-01)

Reference
DGS/ARF-004-4
Keywords
API, AR Cloud, architecture, augmented reality,
context capturing and analysis, data sharing,
framework, interoperability, model,
real world capture, requirements
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
and/or governmental
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2023.
All rights reserved.
ETSI
3 ETSI GS ARF 004-4 V1.1.1 (2023-01)

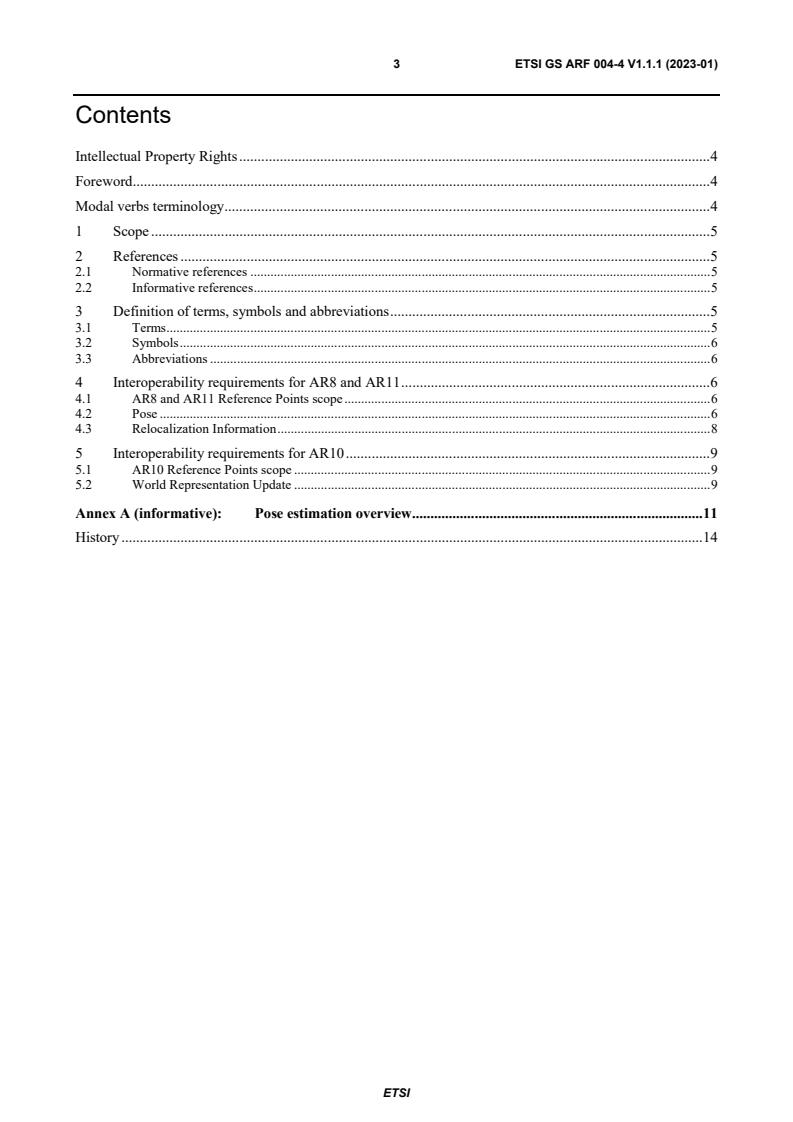

Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Definition of terms, symbols and abbreviations . 5
3.1 Terms . 5
3.2 Symbols . 6
3.3 Abbreviations . 6
4 Interoperability requirements for AR8 and AR11 . 6
4.1 AR8 and AR11 Reference Points scope . 6
4.2 Pose . 6
4.3 Relocalization Information . 8
5 Interoperability requirements for AR10 . 9
5.1 AR10 Reference Points scope . 9
5.2 World Representation Update . 9
Annex A (informative): Pose estimation overview . 11
History . 14

ETSI
4 ETSI GS ARF 004-4 V1.1.1 (2023-01)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
The present document is part 4 of a multi-part deliverable covering Interoperability Requirements for AR components,
systems and services, as identified below:
Part 1: "Overview";
Part 2: "World Storage and AR Authoring functions";
Part 3: "World Capture, World Analysis and Scene Management";
Part 4: "World Analysis, World Storage and Scene Management functions";
Part 5: "External Communications".
The ISG ARF shares the following understanding for Augmented Reality: Augmented Reality (AR) is the ability to mix
in real-time spatially-registered digital content with the real world.
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
5 ETSI GS ARF 004-4 V1.1.1 (2023-01)
1 Scope
The present document specifies the high level Reference Point requirements between the World Analysis, the
World Storage and the Scene Management functions as they are identified in ETSI GS ARF 003 [1]. It further defines
the requirements of the Reference Points "Pose" (AR8), "3D Map" (AR10) and "Relocalization Information" (AR11).
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI GS ARF 003 (V1.1.1): "Augmented Reality Framework (ARF) AR framework architecture".
[2] ETSI GS ARF 004-2 (V1.1.1): "Augmented Reality Framework (ARF) Interoperability
Requirements for AR components, systems and services Part 2: World Storage and AR Authoring
functions".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
Not applicable.
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the following terms apply:
AR Asset: any kind of content positioned and oriented in the real world to alter the user's experience
feature: characteristics of a real world element that can be searched, recognized or tracked ®
NOTE: Features can be of different nature without being limited to visual patterns, UWB, Wi-Fi , infrared or
sounds.
GeoTrackable: position and orientation on earth in a geodetic referential
ETSI
6 ETSI GS ARF 004-4 V1.1.1 (2023-01)
Reference Point: point located at the interface of two non-overlapping functions and representing interrelated
interactions between those functions
Trackable: element of the real world of which features are available and/or could be extracted
NOTE: Features can be made available from an analysis of the element itself (fiducial markers, natural images,
3D point cloud) or processed from a representation of the element (3D CAD model).
World Anchor: fixed position in relation to one or more elements of the real world
NOTE 1: A World Anchor has a Coordinate Reference System in which AR Assets stay spatially-registered.
NOTE 2: More than one World Anchor can be attached to a Trackable.
NOTE 3: As the AR system updates its knowledge of the environment, the World Anchor's pose adapts to the real
world preventing the associated AR Asset attached to the World Anchor from drifting.
World Graph: graph of Trackables and World Anchors representing the real world knowledge in the
World Representation sub-function
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AR Augmented Reality
GNSS Global Navigation Satellite System
LiDAR Light Detection And Ranging
SM Scene Management
UUID Universally Unique IDentifier
WA World Analysis ®
Wi-Fi Wireless Fidelity
WS World Storage
4 Interoperability requirements for AR8 and AR11
4.1 AR8 and AR11 Reference Points scope
AR8 "Pose" and AR11 "Relocalization Information", as specified in ETSI GS ARF 003 [1], define a subset of the
dialog structure between the AR Scene Management (SM), the World Analysis (WA), and the World Storage (WS)
functions. The SM function needs the poses of the AR device and/or of one or more World Anchors to update its AR
scene representation at runtime. These poses are estimated by the WA function which will require relocalization
information extracted from the World Graph stored in the WS function.
4.2 Pose
A pose defines the position and orientation in six degrees of freedom in the world of either an AR device in relation to a
World Anchor or a Trackable (AR device pose), or conversely a Trackable or World Anchor in relation to the AR
device (object pose).
ETSI
7 ETSI GS ARF 004-4 V1.1.1 (2023-01)
RQ-AR8-001 The WA function shall provide the SM function with a pose of either an AR device in relation to a World
Anchor or a Trackable, or conversely a Trackable or World Anchor in relation to the AR device.
NOTE: The pose can be estimated from data captured by various sensors (e.g. cameras, depth sensors, LiDAR, ®
GNSS, accelerometers, or Wi-Fi ).The World Anchors and Trackables are referenced in the Scene Graph
of the application by their UUID defined during the World Graph authoring.
RQ-AR8-002 The WA function shall provide the SM function with a pose defined either in a geodetic or Cartesian
reference frame. In case of a geodetic reference frame, the geodetic system shall be specified.
NOTE: In case where poses are defined in different reference frames, a conversion of these poses in a common
reference frame will be required.
RQ-AR8-003 The WA function shall provide the SM function with a time stamp for the specific captures used to
estimate the
...
