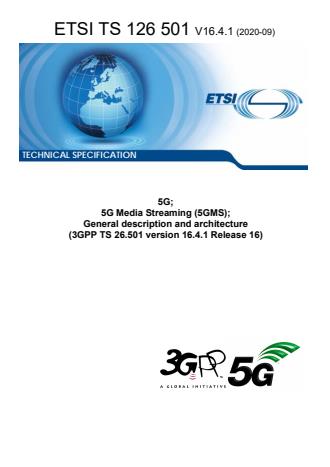

TECHNICAL SPECIFICATION
5G;
5G Media Streaming (5GMS);
General description and architecture
(3GPP TS 26.501 version 16.4.1 Release 16)

3GPP TS 26.501 version 16.4.1 Release 16 1 ETSI TS 126 501 V16.4.1 (2020-09)

Reference
DTS/TSGS-0426501vg41
Keywords
5G
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2020.
All rights reserved.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.

3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and
of the oneM2M Partners. ®
GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI
3GPP TS 26.501 version 16.4.1 Release 16 2 ETSI TS 126 501 V16.4.1 (2020-09)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
Legal Notice
This Technical Specification (TS) has been produced by ETSI 3rd Generation Partnership Project (3GPP).
The present document may refer to technical specifications or reports using their 3GPP identities. These shall be
interpreted as being references to the corresponding ETSI deliverables.
The cross reference between 3GPP and ETSI identities can be found under http://webapp.etsi.org/key/queryform.asp.
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
3GPP TS 26.501 version 16.4.1 Release 16 3 ETSI TS 126 501 V16.4.1 (2020-09)
Contents
Intellectual Property Rights . 2
Legal Notice . 2
Modal verbs terminology . 2
Foreword . 5
1 Scope . 6
2 References . 6
3 Definition of terms, symbols and abbreviations . 7
3.1 Terms . 7
3.2 Symbols . 8
3.3 Abbreviations . 9
4 Media Streaming General Service Architecture . 10
4.1 Overall Media Architecture . 10
4.2 5G Unicast Downlink Media Streaming Architecture . 12
4.2.1 Standalone – Non-Roaming . 12
4.2.2 UE 5GMSd Functions . 15
4.2.3 Service Access Information for Downlink Media Streaming . 17
4.3 5G Uplink Media Streaming Architecture . 18
4.3.1 Media Architecture . 18
4.3.2 UE Media Functions . 21
4.4 Network Slicing for Downlink Media Streaming . 22
5 Procedures for Downlink Media Streaming . 23
5.1 General . 23
5.2 Baseline procedure for Unicast Downlink Media Streaming Session establishment . 25
5.2.1 General . 25
5.2.2 Progressive Download of On-Demand Content . 25
5.2.3 DASH Streaming . 27
5.3 Provisioning Session for Media Streaming . 28
5.3.1 Domain model . 28
5.3.2 Baseline provisioning procedure . 30
5.4 Content Hosting Configuration for Downlink Media Streaming . 32
5.4.1 General . 32
5.4.2 Media ingest procedure . 33
5.5 Metrics collection and reporting . 34
5.5.1 General . 34
5.5.2 Out-of-band-controlled reporting procedure . 34
5.5.3 In-band-controlled reporting procedure . 36
5.5.4 Metrics collection configuration parameters . 37
5.6 Consumption reporting . 38
5.6.1 Consumption reporting procedure . 38
5.6.2 Consumption reporting parameters . 40
5.6.3 Triggering consumption reporting . 40
5.7 Establishing a Unicast Downlink Media Streaming Session with 5GMSd AF interactions for dynamic
policy updates . 40
5.7.1 General . 40
5.7.2 Provisioning . 41
5.7.3 Progressive Download of On-Demand Content . 42
5.7.4 DASH Streaming . 45
5.7.5 Parameters for dynamic policy invocation configuration . 47
5.8 Dynamic Policy based on Network Slicing for Downlink Media Streaming . 48
5.9 Downlink Network Assistance . 49
5.9.1 Introduction. 49
5.9.2 5GMSd AF-based downlink Network Assistance . 49
5.9.3 ANBR-based downlink Network Assistance . 50
ETSI
3GPP TS 26.501 version 16.4.1 Release 16 4 ETSI TS 126 501 V16.4.1 (2020-09)
6 Procedures for Uplink Media Streaming . 51
6.1 General . 51
6.2 Preparing for Uplink Media Streaming . 53
6.2.1 Introduction. 53
6.2.2 Sink Configuration at the 5GMSu AF/AS . 53
6.2.3 Source Configuration at the UE . 53
6.3 Establishment of an Uplink Media Streaming Session . 55
6.4 Termination of an Uplink Media Streaming Session . 56
6.5 Providing 5GMSu AF-based Network Assistance . 57
6.6 Providing Remote Control . 57
6.7 RAN Signalling based Support for Uplink Network Assistance . 58
7 5GMS Network Media Processing . 59
7.1 General . 59
7.2 Media Processing Procedures for Downlink . 59
7.3 Media Processing Procedures for Uplink . 61
7.4 Edge Computing . 61
Annex A (informative): Usage Guidelines for collaboration scenarios . 62
A.0 General . 62
A.1 Collaboration 1 . 62
A.2 Collaboration 2 . 63
A.3 Collaboration 3 . 63
A.4 Collaboration 4 . 64
A.5 Collaboration 5 . 64
A.6 Collaboration 6 . 65
A.7 Collaboration 7 . 65
A.8 Collaboration 8 . 66
A.9 Collaboration 9 . 67
Annex B (informative): MNO-specific Service Access Information acquisition. 68
B.1 General . 68
B.2 Deployment with DNS-based resolution . 68
B.3 Deployment with HTTPS-based resolution . 70
Annex C (informative): Change history . 72
History . 73

ETSI
3GPP TS 26.501 version 16.4.1 Release 16 5 ETSI TS 126 501 V16.4.1 (2020-09)
Foreword
This Technical Specification has been produced by the 3rd Generation Partnership Project (3GPP).
The contents of the present document are subject to continuing work within the TSG and may change following formal
TSG approval. Should the TSG modify the contents of the present document, it will be re-released by the TSG with an
identifying change of release date and an increase in version number as follows:
Version x.y.z
where:
x the first digit:
1 presented to TSG for information;
2 presented to TSG for approval;
3 or greater indicates TSG approved document under change control.
y the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
z the third digit is incremented when editorial only changes have been incorporated in the document.
ETSI
3GPP TS 26.501 version 16.4.1 Release 16 6 ETSI TS 126 501 V16.4.1 (2020-09)
1 Scope
The present document specifies the 5G Media Streaming (5GMS) architecture. The 5GMS supported services include
MNO and third-party Downlink Media Streaming Services, and MNO and third-party Uplink Media Streaming
Services. The 5GMS architecture supports related network and UE functions and APIs, backwards compatible functions
for EUTRAN deployments (with and without MBMS) and 5G specific features.
NOTE: Support of 5G Media Streaming over MBMS with 5GC is not considered in the current version of the
present document.
The 5GMS architecture is functionally divided into independent components enabling different deployments with
various degrees of integration between 5G MNOs and Content Providers. It is specified as a set of extensions to
TS 23.501 "System Architecture for the 5G System".
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
- References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
- For a specific reference, subsequent revisions do not apply.
- For a non-specific reference, the latest version applies. In the case of a reference to a 3GPP document (including
a GSM document), a non-specific reference implicitly refers to the latest version of that document in the same
Release as the present document.
[1] 3GPP TR 21.905: "Vocabulary for 3GPP Specifications".
[2] 3GPP TS 23.501: "System architecture for the 5G System (5GS)".
[3] 3GPP TS 23.502: "Procedures for the 5G System (5GS)".
[4] 3GPP TS 23.503: "Policy and charging control framework for the 5G System (5GS); Stage 2".
[5] 3GPP TS 26.238: "Uplink streaming".
[6] 3GPP TS 26.307: "Presentation layer for 3GPP services".
[7] 3GPP TS 26.247: "Transparent end-to-end Packet-switched Streaming Service (PSS); Progressive
Download and Dynamic Adaptive Streaming over HTTP (3GP-DASH)".
[8] 3GPP TS 26.234: "Transparent end-to-end Packet-switched Streaming Service (PSS); Protocols
and codecs".
[9] 3GPP TS 23.003: "Technical Specification Group Core Network and Terminals; Numbering,
addressing and identification".
[10] 3GPP TS 28.530: "Management and orchestration; Concepts, use cases and requirements".
[11] 3GPP TS 28.531: "Management and orchestration; Provisioning".
[12] 3GPP TS 28.541: "Management and orchestration; 5G Network Resource Model (NRM); Stage 2
and stage 3".
[13] 3GPP TS 23.222: "Common API Framework for 3GPP Northbound APIs".
[14] IETF RFC 1034: "Domain names – concepts and facilities".
ETSI
3GPP TS 26.501 version 16.4.1 Release 16 7 ETSI TS 126 501 V16.4.1 (2020-09)
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms given in TR 21.905 [1] and the following apply. A term defined in
the present document takes precedence over the definition of the same term, if any, in TR 21.905 [1].
5GMS System: An assembly of Application Functions, Application Servers and interfaces from the 5G Media
Streaming architecture that support either downlink media streaming services or uplink media streaming services, or
both.
NOTE 1: The components of a 5GMS System may be provided by an MNO as part of a 5GS and/or by a 5GMS
Application Provider.
5GMS Application Provider: A party that interacts with functions of the 5GMS System and supplies a 5GMS-Aware
Application that interacts with functions of the 5GMS System.
5GMS-Aware Application: Application in the UE, provided by the 5GMS Application Provider, that contains the
service logic of the 5GMS application service, and interacts with other 5GMS Client and Network functions via the
interfaces and APIs defined in the 5GMS architecture.
NOTE 2: Functionality of the 5GMS-Aware Application is outside the scope of this specification.
NOTE 3: A 5GMS-Aware Application associated with the delivery of either a downlink or uplink related 5GMS
service is referred to as a 5GMSd-Aware Application or a 5GMSu-Aware Application, respectively.
5GMS Client: A UE function that is either a 5GMSd Client or a 5GMSu Client, or both.
5G Media Streaming Client for downlink (5GMSd Client): UE function that includes at least a 5G Media Streaming
Player and a Media Session Handler for downlink streaming and that may be accessed through well-defined
interfaces/APIs.
5G Media Streaming Client for uplink (5GMSu Client): Originator of 5GMSu service that may be accessed through
well-defined interfaces/APIs.
5GMSu Media Streamer: UE function that enables uplink delivery of streaming media content to an Application
Server function of the 5GMS Application Provider, and which interacts with both the 5GMSu-Aware Application for
media capture and subsequent streaming, and the Media Session Handler for media session control.
NOTE 4: The 5GMSu Media Streamer receives a Media Streamer Entry to initiate an uplink streaming session.
NOTE 5: The 5GMSu Media Streamer captures the media on the provided input devices. The 5GMSu Media
Streamer exposes some basic controls such as capture, pause, and stop to the 5GMSu-Aware Application.
Dynamic policy: A Dynamic PCC Rule (c.f. TS 23.503[4]) for an uplink or downlink application flow during a media
session.
Egest Session: An uplink media streaming session from the 5GMSu AS towards the 5GMSu Application Provider.
Ingest Session: A session to upload the media content into a 5GMSd AS.
Policy Template: A collection of (semi-static) PCF/NEF API parameters which are specific to the 5GMS Application
Provider and also the resulting PCC Rule.
Policy Template Id: Identifies the desired policy template, which is used by 5GMSd AF to select the appropriate
PCF/NEF API towards the 5G System so that the PCF can compile the desired PCC Rule.
Media Player Entry: a document or a pointer to a document that defines a media presentation e.g. MPD for DASH
content or URL to a video clip file.
Media Streamer Entry: A pointer (e.g. in the form of a URL) that defines an entry point of an uplink media streaming
session.
ETSI
3GPP TS 26.501 version 16.4.1 Release 16 8 ETSI TS 126 501 V16.4.1 (2020-09)
presentation entry: A document or a pointer to a document that defines an application presentation e.g. an HTML5
document as defined in e.g. TS 26.307 [6].
Provisioning Session: a data structure supplied at interface M1d by a 5GMSd Application Provider that configures the
5GMSd features relevant to a set of 5GMSd-Aware Applications.
5GMSd Media Player: UE function that enables playback and rendering of a media presentation based on a media
player entry and exposing some basic controls such as play, pause, seek, stop to the 5GMSd-Aware Application.
NOTE 6: A 5GMSd Media Player is expected to include a Media Access Client, Media Decoders, Media
rendering/presentation, and possibly also DRM Client and Metrics Collection and Reporting. The 5GMSd
Media Player's Media Access Client receives a Media Player Entry. The 5GMSd Media Player renders
the media on the provided output devices, such as a display in case of video.
NOTE 7: The 5GMSd Media Player is functionally similar to the combination of a TS 26.247 [7] 3GP-DASH
client and a TS 26.234 [8] PSS media decoder and renderer.
Service Access Information: Set of parameters and addresses (including 5GMSd AF and 5GMSd AS addresses),
which are needed to activate the reception of a streaming session.
Service and Content Discovery: Functionality and procedures provided by a 5GMSd Application Provider to a 5GMS-
Aware Application that enables the end user to discover the available streaming service and content offerings and select
a specific service or content item for access.
NOTE 8: The Service and Content Discovery functionality and procedures are outside the scope of this
specification.
Service Announcement: Procedures conducted between the 5GMS-Aware Application and the 5GMS Application
Provider such that the 5GMS-Aware Application is able to obtain 5GMS Service Access Information, either directly or
in the form of a reference to that information.
third party player: Part of an application that uses APIs to exercise selected 5GMSd functions to play back media
content.
NOTE 9: Such APIs are for example defined in TS 26.307 [6] when using the Media Source Extensions for media
playback. This type of player is downloaded by or built into an application, or it is downloaded with the
Presentation Entry (e.g. as a JavaScript library).
third party uplink streamer: Part of an application that uses APIs to exercise selected 5GMSu functions to capture
and stream media content.
NOTE 10: This type of streamer is typically implemented as downloadable software.
3.2 Symbols
Void.
ETSI
3GPP TS 26.501 version 16.4.1 Release 16 9 ETSI TS 126 501 V16.4.1 (2020-09)
3.3 Abbreviations
For the purposes of the present document, the abbreviations given in TR 21.905 [1] and the following apply. An
abbreviation defined in the present document takes precedence over the definition of the same abbreviation, if any, in
TR 21.905 [1].
5GC 5G Core Network
5GMS 5G Media Streaming
5GMSd 5G Media Streaming downlink
5GMSu 5G Media Streaming uplink
5GS 5G Systems
AF Application Function
ABR Adaptive Bit Rate
AMF Access and Mobility Function
API Application Programming Interface
App Application
AS Application Server
CAPIF Common API Framework
CDN Content Delivery Network
DASH Dynamic and Adaptive Streaming over HTTP
DN Data Network
DNAI Data Network Application Identifier
DNN Data Network Name
DRM Digital Rights Management
EPC Evolved Packet Core
EPS Evolved Packet System
EUTRAN Evolved Universal Terrestrial Radio Access Network
FLUS Framework for Live Uplink Streaming
FQDN Fully-Qualified Domain Name
GPU Graphics Processing Unit
GSM Global System for Mobile communication
HPLMN Home Public Land Mobile Network
HTTP HyperText Transfer Protocol
HTTPS HyperText Transfer Protocol Secure
LTE Long-Term Evolution
MBMS Multimedia Broadcast Multicast System
MNO Mobile Network Operator
MPD Media Presentation Description
MSISDN Mobile Station International Subscriber Directory Number
NA Network Assistance
NEF Network Exposure Function
NR New Radio
NSMF Network Slice Management Function
NSSAI Network Slice Selection Assistance Information
NSSP Network Slice Selection Policy
OAM Operations, Administration and Maintenance
OTT Over-The-Top
PCC Policy and Charging Control
PCF Policy and Charging Function
PDU Packet Data Unit
PSS Packet-switched Streaming Service
RAN Radio Access Network
SBA Service based Architecture
SLA Service Level Agreement
TCP Transmission Control Protocol
URL Unique Resource Identifier
URSP UE Route Selection Policy
ETSI
3GPP TS 26.501 version 16.4.1 Release 16 10 ETSI TS 126 501 V16.4.1 (2020-09)
4 Media Streaming General Service Architecture
4.1 Overall Media Architecture
Streaming in the context of this specification is defined as the delivery of time-continuous media as the predominant
media. Streaming points to the fact that the media is predominantly sent only in a single direction and consumed as it is
received. Additionally, the media content may be streamed as it is produced, referred to as live streaming. If content is
streamed that is already produced, it is referred to as on-demand streaming.
The overall 5G Media Streaming Architecture is shown in Figure 4.1-1 below.
5G
5GMS Application
5GMS External
System
Provider
5GMS Aware
Application
N33
NEF
5GMS AF
N33
N5
PCF 5GMS AF
UE External DN
Trusted DN
5GMS
N6 5GMS AS
Client
5GMS AS
Uu RAN N3 UPF
N6
Figure 4.1-1: 5G Media Streaming within the 5G System
NOTE: The functions indicated by the yellow filled boxes are in scope of stage 3 specifications for 5GMS. The
functions indicated by the grey boxes are defined in 5G System specifications. The functions indicated by
the blue boxes are neither in scope of 5G Media Streaming nor 5G System specifications.
The 5GMS Application Provider uses 5GMS for streaming services. It provides a 5GMS Aware-Application on the UE
to make use of 5GMS Client and network functions using interfaces and APIs defined in 5GMS.
The architecture in Figure 4.1-1 represents the specified 5GMS functions within the 5G System (5GS) as defined in
TS 23.501 [2]. Three main functions are defined:
- 5GMS AF: An Application Function similar to that defined in TS 23.501 [2] clause 6.2.10, dedicated to 5G
Media Streaming.
- 5GMS AS: An Application Server dedicated to 5G Media Streaming.
- 5GMS Client: A UE internal function dedicated to 5G Media Streaming.
5GMS AF and 5GMS AS are Data Network (DN) functions and communicate with the UE via N6 as defined in
TS 23.501 [2].
Functions in trusted DNs, i.e. 5GMS AFs in the external DNs, are trusted by the operator’s network as illustrated in
Figure 4.2.3-5 of TS 23.501 [2]. Therefore, AFs in trusted DNs may directly communicate with relevant 5G Core
functions.
Functions in external DNs may only communicate with 5G Core functions via the NEF using N33.
The present document specifies the according network architectures for 5GS. The 5GMS architecture may be applied to
an EPS although such an application is not specified in the present document and is left to the discretion of deployments
and implementations.
ETSI
3GPP TS 26.501 version 16.4.1 Release 16 11 ETSI TS 126 501 V16.4.1 (2020-09)
The 5G Media Services Architecture maps the overall high-level architecture shown in Figure 4.1-1 above to the
general architecture shown in Figure 4.1-2 below.
M8
5GMS-Aware Application
N33
NEF
M6
N5
PCF
5GMS
Media
M1
M7
AF
Session
5GMS
M5
Application
Handler
Provider
M7 M6
M3
Media Stream
M4 5GMS
Handler
M2
Exposed API AS
5GMS Scope
5GMS Client
5GS Scope
5GMS 5GS External
Out of scope
UE DN
Figure 4.1-2: 5G Media Streaming General Architecture
NOTE: In Figure 4.1-2 the 5GMS Client in the UE is depicted in the form of a UE that exposes APIs to the
constituent functions Media Session Handler and Media Stream Handler in the same way that the same
APIs are exposed to 5GMS-aware applications. This UE architecture is not applicable generally; it is just
as valid to implement a 5GMS Client that does not expose interfaces M6 ad M7 within the 5GMS Client.
It is also valid for a 5GMS Client inside a UE to be completely self-contained, such that all functionality
typically implemented in the 5GMS-aware application is embedded in the UE and thus interfaces M6 and
M7 are not exposed at all.
The remainder of the present document specifies stage 2 aspects of the media streaming functional entities shown in the
general architecture of Figure 4.1-2.
This architecture specification addresses two main scenarios as concerns each individual media streaming operation:
- Downlink streaming: The network is the origin of the media and the UE acts as the consumption device.
- Uplink streaming: The UE is the origin of the media and the network acts as the consumption entity.
The functional entities and interfaces of the media streaming general architecture need to be elaborated with
specificities relating to downlink and uplink streaming. For this purpose corresponding descriptions add the suffix “d”
for downlink and “u” for uplink functionality as appropriate in each case.
Clause 4.2 introduces the 5G Unicast Downlink Media Streaming architecture.
Clause 4.3 introduces the 5G Unicast Uplink Media Streaming architecture.
ETSI
3GPP TS 26.501 version 16.4.1 Release 16 12 ETSI TS 126 501 V16.4.1 (2020-09)
4.2 5G Unicast Downlink Media Streaming Architecture
4.2.1 Standalone – Non-Roaming
The 5GMSd Application Provider uses 5GMSd functions for downlink streaming services. It provides a 5GMSd-Aware
Application on the UE the ability to make use of 5GMSd Client and network functions using 5GMSd interfaces and
APIs.
The architecture in Figure 4.2.1-1 below represents the specified 5GMSd functions within the 5G System (5GS) as
defined in TS23.501 [2]. Three main functions are defined:
- 5GMSd AF: An Application Function similar to that defined in TS 23.501 [2] clause 6.2.10, dedicated to 5G
Downlink Media Streaming.
- 5GMSd AS: An Application Server dedicated to 5G Downlink Media Streaming.
- 5GMSd Client: A UE internal function dedicated to 5G Downlink Media Streaming.
5GMSd AF and 5GMSd AS are Data Network (DN) functions and communicate with the UE via N6 as defined in
TS 23.501 [2].
Functions in trusted DNs are trusted by the operator’s network as illustrated in Figure 4.2.3-5 of TS 23.501 [2].
Therefore, AFs in trusted DNs may directly communicate with relevant 5G Core functions.
Functions in external DNs, i.e. 5GMSd AFs in external DNs, may only communicate with 5G Core functions via the
NEF using N33.
NOTE 1: The 5GMS architecture may be applied to an EPS although such an application is not specified in the
present document and is left to the discretion of deployments and implementations.
5G
5GMSd Application
5GMSd External
System
Provider
5GMSd Aware
Application
N33
NEF
5GMSd AF
N33
N5
PCF 5GMSd AF
UE
External DN
Trusted DN
5GMSd
N6 5GMSd AS
Client
5GMSd AS
Uu RAN N3 UPF
N6
Figure 4.2.1-1: 5G Downlink Media Streaming within 5G System
NOTE 2: The functions indicated by the yellow filled boxes are in scope of stage 3 specifications for 5GMS. The
functions indicated by the grey boxes are defined in 5G System specifications. The functions indicated by
the blue boxes are neither in scope of 5G Media Streaming nor 5G System specifications.
ETSI
3GPP TS 26.501 version 16.4.1 Release 16 13 ETSI TS 126 501 V16.4.1 (2020-09)
The architecture in Figure 4.2.1-2 below represents the media architecture connecting UE internal functions and related
network functions.
M8d
5GMSd-Aware Application
N33
NEF
M6d
N5
PCF
5GMSd
Media
M1d
M7d
AF
Session
5GMSd
M5d
Application
Handler
Provider
M7d M6d
M3d
Media Player
M4d
5GMSd
M2d
Exposed API AS
5GMSd Scope
5GMSd Client
5GS Scope
5GMSd 5GS External
Out of scope
UE DN
Figure 4.2.1-2: Media Architecture for unicast downlink media streaming
NOTE 3: The functions indicated by the yellow filled boxes are in scope of stage 3 for 5GMSd. The functions
indicated by the grey boxes are defined in 5GS. The interfaces indicated by solid lines are in scope of
stage 3 for 5GMSd. The interfaces indicated by dashed lines are defined in 5GS. The interfaces indicated
by dotted lines are neither in scope of 5GS nor 5GMSd, but are considered as part of informative call
flows.
NOTE 4: Red ovals indicate API provider functions.
NOTE 5: The 5GMSd AF may also interact with the NEF for NEF-enabled API access. However, within Release
16, the NEF is only used by the 5GMSd AF to interact with the Policy and Charging Function (PCF) in
5GMS specifications.
NOTE 6: Some information might also be exchanged via the OAM, although the OAM is not explicitly shown in
the architecture.
The following functions are defined:
- 5G Media Streaming Client for downlink (5GMSd Client) on the UE: Receiver of 5GMS downlink media
streaming service that may be accessed through well-defined interfaces/APIs. Alternatively, the UE may be
implemented in a self-contained manner such that interfaces M6d and M7d are not exposed at all.
- The 5GMSd Client contains two subfunctions:
- Media Session Handler: A function on the UE that communicates with the 5GMSd AF in order to establish,
control and support the delivery of a media session. The Media Session Handler may expose APIs that can be
used by the 5GMSd-Aware Application.
- Media Player: A function on the UE that communicates with the 5GMSd AS in order to stream the media
content and may provide APIs to the 5GMSd-Aware Application for media playback and to the Media
Session Handler for media session control.
- 5GMSd-Aware Application: The 5GMSd Client is typically controlled by an external media application, e.g.
an App, which implements external application or content service provider specific logic and enables a media
session to be established. The 5GMSd-Aware Application is not defined within the 5G Media Streaming
specifications, but the function makes use of 5GMSd Client and network functions using 5GMSd interfaces and
APIs.
- 5GMSd AS: An Application Server which hosts 5G media functions. Note that there may be different
realizations of the 5GMSd AS, for example a Content Delivery Network (CDN).
ETSI
3GPP TS 26.501 version 16.4.1 Release 16 14 ETSI TS 126 501 V16.4.1 (2020-09)
- 5GMSd Application Provider: External application or content-specific media functionality, e.g., media
creation, encoding and formatting that uses 5GMSd to stream media to 5GMSd-Aware applications.
- 5GMSd AF: An Application Function that provides various control functions to the Media Session Handler on
the UE and/or to the 5GMSd Application Provider. It may relay or initiate a request for different Policy or
Charging Function (PCF) treatment or interact with other network functions via the NEF.
NOTE 7: There may be multiple 5GMSd AFs residing within the Trusted Media Functions entity, each exposing
one or more APIs.
The following interfaces are defined for 5G Downlink Media Streaming:
- M1d (5GMSd Provisioning API): External API, exposed by the 5GMSd AF to provision the usage of the 5G
Media Streaming System and to obtain feedback.
- M2d (5GMSd Ingest API): Optional External API exposed by the 5GMSd AS used when the 5GMSd AS in the
trusted DN is selected to host content for the streaming service.
- M3d: (Internal and NOT SPECIFIED): Internal API used to exchange information for content hosting on a
5GMSd AS within the trusted DN.
- M4d (Media Streaming APIs): APIs exposed by a 5GMSd AS to the Media Player to stream media content.
- M5d (Media Session Handling API): APIs exposed by a 5GMSd AF to the Media Session Handler for media
session handling, control and assistance that also include appropriate security mechanisms, e.g. authorization and
authentication.
- M6d (UE Media Session Handling APIs): APIs exposed by a Media Session Handler to the Media Player for
client-internal communication, and exposed to the 5GMSd-Aware Application enabling it to make use of 5GMS
functions.
- M7d (UE Media Player APIs): APIs exposed by a Media Player to the 5GMSd-Aware Application and Media
Session Handler to make use of the Media Player.
- M8d: (Application API): application interface used for information exchange between the 5GMSd-Aware
application and the 5GMSd Application Provider, for example to provide Service Access Information to the
5GMSd-Aware Application. This API is external to the 5G System and not specified by 5GMS.
NOTE 8: Non-Standalone, Roaming, Non-3GPP Access and EPC-5GC interworking aspects are FFS.
The following subfunctions are identified as a part of a more detailed breakdown of the 5GMSd AS for stage 3
specifications:
- Adaptive Bit Rate (ABR) Encoder, Encryption and Encapsulator.
- Manifest (e.g. MPD) Generator and Segment (e.g. DASH) Packager.
- Origin Server.
- CDN Server (e.g. Edge Servers).
- DRM Server (e.g. DRM License Server).
- Service Directory.
- Content Guide Server.
- Replacement content server (e.g. Ad content server).
- Manifest Proxy, i.e. MPD modification server.
- App Server.
- Session Management Server.
A breakdown of 5GMSd functions in the UE is provided in clause 4.2.2 below.
ETSI
3GPP TS 26.501 version 16.4.1 Release 16 15 ETSI TS 126 501 V16.4.1 (2020-09)
4.2.2 UE 5GMSd Functions
The UE may include many detailed subfunctions that can be used individually or controlled individually by the
5GMSd-Aware Application. This clause breaks down several relevant identified subfunctions for which stage 3
specification is available.
The 5GMSd-Aware Application itself may include many functions that are not provided by the 5GMSd Client or by the
5G UE. Examples include service and content discovery, notifications and social network integration. The 5GMSd-
Aware Application may also include functions that are equivalent to ones provided by the 5GMSd Client and may only
use a subset of the 5GMSd client functions. The 5GMSd-Aware Application may act based on user input or may for
example also receive remote control commands from the 5GMSd Application Provider through M8d.
With respect to Media Player functions, Figure 4.2.2-1 below shows more detailed functional components of a UE for
media player functions to access the 5GMSd AS.
M8d
5GMSd-Aware Application
N33
NEF
M6d
PCF
N5 5GMSd AF
M1d
M5d
M7d
Media Presentation
and Rendering
5GMSd
Media
Application
Media Decoders
M3d
Session
Provider
M7d
Handler
Media Decryption
M6d
DRM Client
Media Decapsulation
M4d
5GMSd AS
M2d
Media Access Client
Media Player
5GMSd Client
DN
UE
Figure 4.2.2-1: UE 5G Downlink Media Streaming Functions (Media Player centric)
The following subfunctions are identifi
...
