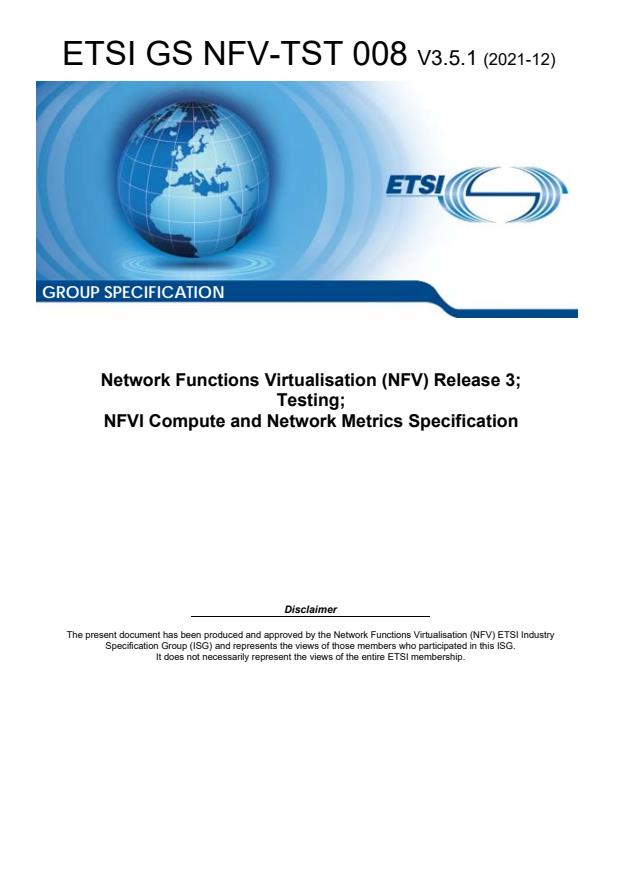

ETSI GS NFV-TST 008 V3.5.1 (2021-12)

Network Functions Virtualisation (NFV) Release 3; Testing; NFVI Compute and Network Metrics Specification

RGS/NFV-TST008ed351

General Information

• Status: Not Published
• Technical Committee: NFV TST - Testing, Implementation, and Open Source Working Group
• Current Stage: 12 - Completion
• Due Date: 21-Dec-2021
• Completion Date: 03-Dec-2021

Standards Content (Sample)

GROUP SPECIFICATION
Network Functions Virtualisation (NFV) Release 3;
Testing;
NFVI Compute and Network Metrics Specification
Disclaimer
The present document has been produced and approved by the Network Functions Virtualisation (NFV) ETSI Industry
Specification Group (ISG) and represents the views of those members who participated in this ISG.
It does not necessarily represent the views of the entire ETSI membership.

2 ETSI GS NFV-TST 008 V3.5.1 (2021-12)

Reference
RGS/NFV-TST008ed351
Keywords
metrics, network, NFV, NFVI, testing

ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2021.
All rights reserved.
ETSI
3 ETSI GS NFV-TST 008 V3.5.1 (2021-12)

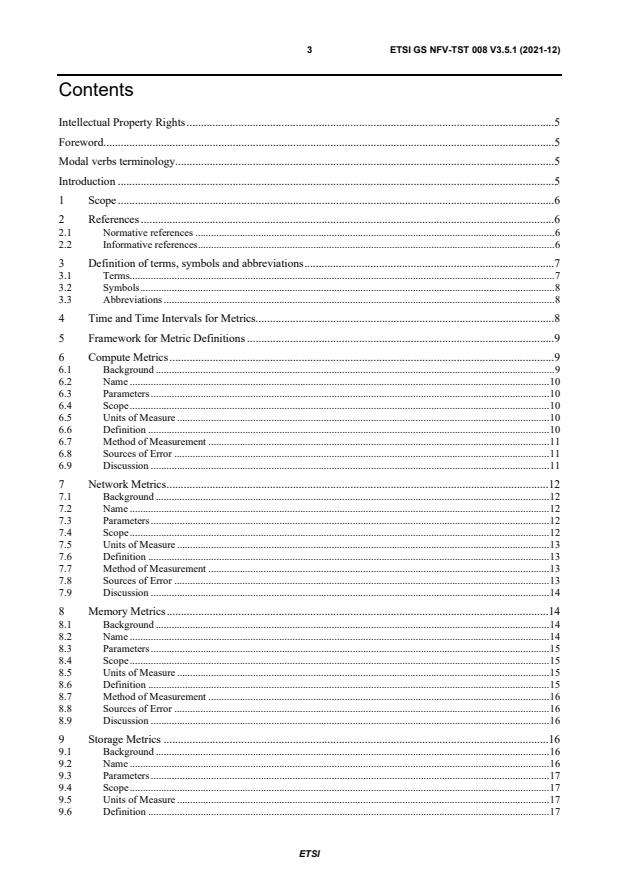

Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
Introduction . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definition of terms, symbols and abbreviations . 7
3.1 Terms . 7
3.2 Symbols . 8
3.3 Abbreviations . 8
4 Time and Time Intervals for Metrics. 8
5 Framework for Metric Definitions . 9
6 Compute Metrics . 9
6.1 Background . 9
6.2 Name . 10
6.3 Parameters . 10
6.4 Scope . 10
6.5 Units of Measure . 10
6.6 Definition . 10
6.7 Method of Measurement . 11
6.8 Sources of Error . 11
6.9 Discussion . 11
7 Network Metrics . 12
7.1 Background . 12
7.2 Name . 12
7.3 Parameters . 12
7.4 Scope . 12
7.5 Units of Measure . 13
7.6 Definition . 13
7.7 Method of Measurement . 13
7.8 Sources of Error . 13
7.9 Discussion . 14
8 Memory Metrics . 14
8.1 Background . 14
8.2 Name . 14
8.3 Parameters . 15
8.4 Scope . 15
8.5 Units of Measure . 15
8.6 Definition . 15
8.7 Method of Measurement . 16
8.8 Sources of Error . 16
8.9 Discussion . 16
9 Storage Metrics . 16
9.1 Background . 16
9.2 Name . 16
9.3 Parameters . 17
9.4 Scope . 17
9.5 Units of Measure . 17
9.6 Definition . 17
ETSI
4 ETSI GS NFV-TST 008 V3.5.1 (2021-12)
9.7 Method of Measurement . 18
9.8 Sources of Error . 18
9.9 Discussion . 18
10 Follow-on Activities . 19
Annex A (informative): Examples of Scope Specification for Metrics . 20
A.1 Description . 20
A.2 Memory Scope . 21
History . 23

ETSI
5 ETSI GS NFV-TST 008 V3.5.1 (2021-12)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Group Specification (GS) has been produced by ETSI Industry Specification Group (ISG) Network Functions
Virtualisation (NFV).
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
Although many metrics for the performance and utilization of the Network Functions Virtualisation Infrastructure
(NFVI) components have been in wide use for many years, there were no independent specifications to support
consistent metric development and interpretation. The present document provides the needed specifications for key
NFVI metrics.
ETSI
6 ETSI GS NFV-TST 008 V3.5.1 (2021-12)
1 Scope
The present document specifies detailed and vendor-agnostic key operational performance metrics at different layers of
the NFVI, especially processor usage and network interface usage metrics. These metrics are expected to serve as
references for processed and time-aggregated measurement values for performance management information that
traverses the Or-Vi and/or Vi-Vnfm reference points of the NFV architectural framework. The present document
contains normative provisions.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
Not applicable.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI GS NFV-INF 003 (V1.1.1) (12-2014): "Network Functions Virtualisation (NFV);
Infrastructure; Compute Domain".
[i.2] Linux®/UNIX system programming training, Linux man-pages: "TOP(1)".
NOTE 1: Available at http://man7.org/linux/man-pages/man1/top.1.html#2._SUMMARY%C2%A0Display.
NOTE 2: Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.
[i.3] TecMint: "Exploring /proc File System in Linux", January 3, 2015.
NOTE: Available at https://www.tecmint.com/exploring-proc-file-system-in-linux/.
[i.4] RHEL™ 6.8 Deployment Guide: "E.2.18. /proc/meminfo".
NOTE: Available at https://access.redhat.com/documentation/en-
US/Red_Hat_Enterprise_Linux/6/html/Deployment_Guide/s2-proc-meminfo.
[i.5] ETSI GS NFV 003: "Network Functions Virtualisation (NFV); Terminology for Main Concepts in
NFV".
ETSI
7 ETSI GS NFV-TST 008 V3.5.1 (2021-12)
[i.6] IETF RFC 7348: "Virtual eXtensible Local Area Network (VXLAN): A Framework for
Overlaying Virtualized Layer 2 Networks over Layer 3 Networks".
[i.7] "free(1) Linux User Commands", published by man7.org.
NOTE: Available at http://man7.org/linux/man-pages/man1/free.1.html.
[i.8] collectd codebase, file: "/src/memory.c", published by GitHub®, Inc.
NOTE: Available at https://github.com/collectd/collectd/blob/collectd-5.7/src/memory.c#L325.
[i.9] ETSI GS NFV-IFA 003 (V2.4.1): "Network Functions Virtualisation (NFV) Release 2;
Acceleration Technologies; vSwitch Benchmarking and Acceleration Specification".
[i.10] Debian Wiki: "Hugepages".
NOTE: Available at https://wiki.debian.org/Hugepages.
[i.11] ETSI GS NFV-INF 010 (V1.1.1) (12-2014): "Network Functions Virtualisation (NFV); Service
Quality Metrics".
[i.12] "Understanding CPU Steal Time - when should you be worried?", Scout application performance
monitoring blog, Derek Haynes, July 25, 2013.
NOTE: Available at https://scoutapm.com/blog/understanding-cpu-steal-time-when-should-you-be-worried.
[i.13] "Understanding Linux Container Scheduling", Squarespace Engineering blog, June 27, 2017.
NOTE: Available at https://engineering.squarespace.com/blog/2017/understanding-linux-container-scheduling.
[i.14] "procfs-diskstats", October 30, 2020.
NOTE: Available in Linux Kernel at
https://github.com/torvalds/linux/blob/master/Documentation/ABI/testing/procfs-diskstats or at
https://www.kernel.org/doc/Documentation/ABI/testing/procfs-diskstats.
[i.15] "proc(5) - Linux manual page", man7.org, March 22, 2021.
NOTE: Available at https://man7.org/linux/man-pages/man5/proc.5.html.
[i.16] "collectd Wiki - Plugin: Disk", January 6, 2017.
NOTE: Available at https://collectd.org/wiki/index.php/Plugin:Disk.
[i.17] "collectd Wiki - Plugin: DF", June 11, 2015.
NOTE: Available at https://collectd.org/wiki/index.php/Plugin:DF.
[i.18] "SNIA Solid State Storage (SSS) Performance Test Specification (PTS) Version 2.0.1",
February 5, 2018.
NOTE: Available at https://www.snia.org/sites/default/files/technical_work/PTS/SSS_PTS_2.0.1.pdf.
[i.19] "OPNFV StorPerf Project, Blog: Storage Performance Guidelines", Mark Beierl, October 12,
2018.
NOTE: Available at https://wiki.opnfv.org/x/UQO8AQ.
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms given in ETSI GS NFV 003 [i.5] apply.
ETSI
8 ETSI GS NFV-TST 008 V3.5.1 (2021-12)
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the abbreviations given in ETSI GS NFV 003 [i.5] and the following apply:
CPU Central Processing Unit
CRC Cyclic Redundancy Check
HZ Hertz of the system clock, an operating system parameter
IOPS Input or Output operations Per Second
kB kiloBytes
KiB Kibibytes
NFVI Network Functions Virtualisation Infrastructure
OS Operating System
OSC Operating System Container
RAM Random Access Memory
VIM Virtual Infrastructure Manager
VM Virtual Machine
VNF Virtual Network Function
VNFC Virtual Network Function Component
VXLAN Virtual eXtensible Local Area Network
NOTE: See IETF RFC 7348 [i.6].
4 Time and Time Intervals for Metrics
Coherent compute domains [i.1] usually need access to a clock with accurate time-of-day (or simply time) and sources
of periodic interrupts. Time sources are accessed to provide timestamps for events and log entries that document the
recent history of the compute environment. Periodic interrupts provide a trigger to increment counters and read current
conditions in the compute and networking environments. The compute domain may contain a very large number of
NFV compute nodes [i.1], and each node needs to execute a process to synchronize its hardware and system clocks to a
source of accurate time-of-day, preferably traceable to an international time standard.
With the foundation of time, date, and periodic interrupts, a measurement system can determine the beginning and end
of time intervals, which is a fundamental aspect of metrics that involve counting and collecting events.
Table 4-1 specifies requirements applicable to time, date, and periodic interrupts.
Table 4-1: Requirements applicable to time, date and periodic interrupts
General-Time-01 Each node in the compute domain shall be able to take readings from (or access) a clock with
accurate time-of-day and calendar date.
General-Time-02 Each node in the compute domain shall have a source of periodic interrupts available which are
derived from the time-of-day clock, with configurable period (a parameter of metrics that use this
feature).
When the results from measurement systems are collected and reported by management systems, the management
systems may provide an additional time and date reading associated with the operation to collect the results, using their
own time source.
ETSI
9 ETSI GS NFV-TST 008 V3.5.1 (2021-12)
5 Framework for Metric Definitions
The metric definitions in the present document are primarily based on the fact that the resources of the NFVI have
utilization and performance characteristics that can be assessed by measurement processes. The resources may be
implemented in hardware, software (such as virtual resources) or a combination of both. The measurement processes
are primarily implemented in software (such as in the kernel or user space), but may be assisted by features of the
hardware.
The measured NFVI resources and the measurement processes shall be completely specified in the dimensions of model
numbers, firmware versions, software versions and any other aspects that influence the results (such as physical location
of the components within a datacentre's racks and shelves). For example, the fixed frequency of the physical CPU clock
in Hz, which governs the rate that the CPU executes instructions, is one important descriptor of the NFVI. Clock Speed
may depend on other CPU settings, such as energy-saving power control. For one list of NFVI platform descriptors, see
clause 5.1 of ETSI GS NFV-IFA 003 [i.9].
For each metric it specifies, the present document provides the following elements:
• Background
• Name
• Parameters (input factors)
• Scope of coverage
• Unit(s) of measure
• Definition
• Method of Measurement
• Sources of Error
• Discussion
NOTE: The present document specifies well-known metrics, and assumes that Virtual Infrastructure Managers
(VIMs) will control and expose the metrics as specified here, or will be enhanced to collect and convey
the metrics with the required framework elements, which are Name, Parameters, Scope, Units of measure
and the source of the measurement (where the metric was measured, which may be synonymous with the
scope).
6 Compute Metrics
6.1 Background
The Central Processing Unit (CPU) is an essential component of every coherent compute domain. Each CPU is a
limited resource in terms of the instructions per second it can execute. It is valuable to monitor the utilization of the
CPU resource to fulfil the goals of maintaining continued and efficient operations, and for troubleshooting abnormal
behaviour to find root causes. For many uses, it is helpful to categorize the CPU's execution time into multiple
execution contexts, such as system and user contexts. A compute node may include additional processors beyond the
main CPU; the metrics specified in this clause can also be used to measure and report the usage of such processors.
VNFs also have a view of CPU resources in terms of execution time they have used during a measurement interval.
However, the configured instantiation of the VNF determines how to map its view of virtual processor resource usage to
actual hardware CPU resources available and used. For example, a VNF's processes may be pinned to one or more CPU
cores or the VNF may be sharing the resources of many CPU cores with other VNFs.
ETSI
10 ETSI GS NFV-TST 008 V3.5.1 (2021-12)
6.2 Name
There are two variants of this metric:
• Processor Usage
• Processor Utilization
The two variants allow reporting this metric as a percentage. The metric is a function of the scope, set of reported
contexts, measurement interval and other factors.
6.3 Parameters
The following parameters shall be supported for this metric:
• Tick interval: the period of timed interrupts when the processor's execution context can be recorded. Note that
this parameter is an integral part of the method of measurement. The tick interval is sometimes called a "jiffy".
The tick interval is controlled by a system parameter, "HZ", whose default value shall be 250 Hz for
measurements complying with the present document.
• Set of execution contexts: the desired set of processor states with reported utilization. For example, the
simplest set includes two states: active and idle. Time in the active context can be calculated as a sum of states
with more specific definitions, such as the active states user and system. A commonly chosen set of four states
is user, system, wait, and idle. See [i.2] for a list of eight states available in Linux OS.
• End time: the termination of the measurement interval (time and date).
• Measurement interval: the duration of the observation by the measurement system to assess the metric.
6.4 Scope
The list of one or more compute resources which shall be included in the values reported, and whether the resource is
physical or virtual. Annex A gives examples of the scope usage for physical and virtual processor metrics.
6.5 Units of Measure
Processor usage results shall be reported as time in nanoseconds, and utilization shall be reported as the ratio of total
time in one or more execution contexts to the total time in the measurement interval, expressed as a percentage.
6.6 Definition
The compute resource usage at time T (for a given scope, context, and measurement interval) shall be asses
...
