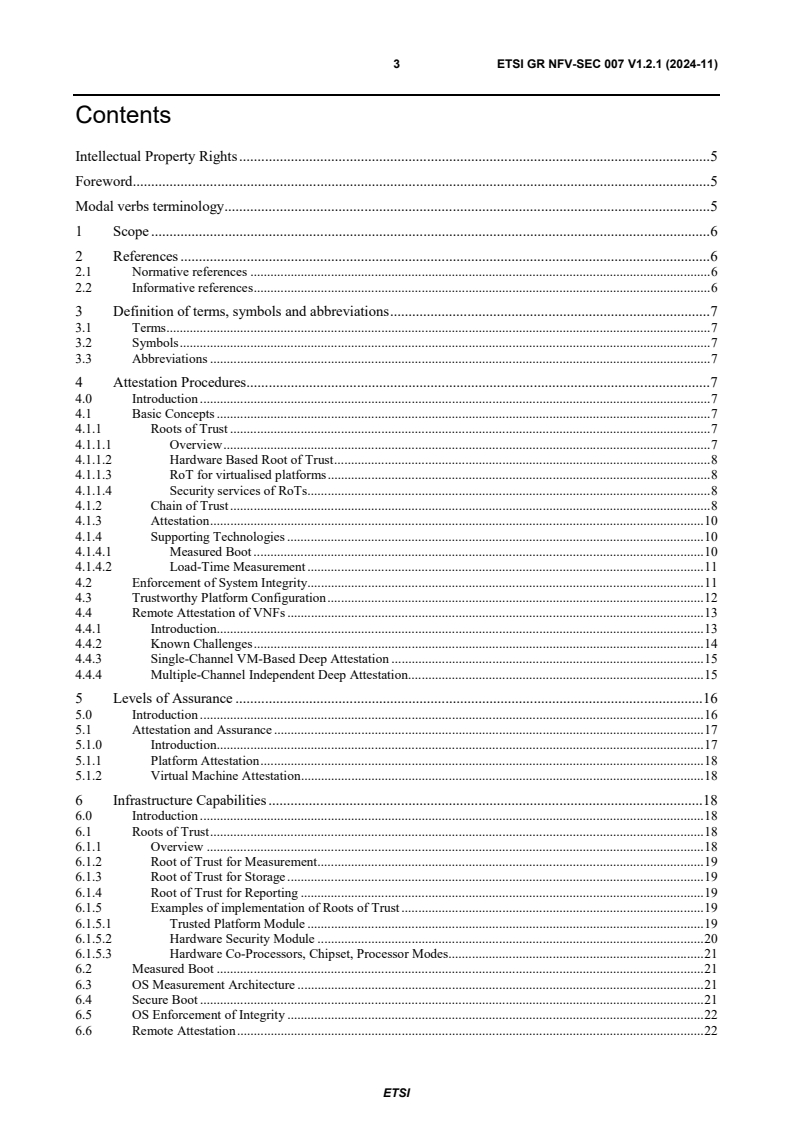

Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definition of terms, symbols and abbreviations . 7
3.1 Terms . 7
3.2 Symbols . 7
3.3 Abbreviations . 7
4 Attestation Procedures . 7
4.0 Introduction . 7
4.1 Basic Concepts . 7
4.1.1 Roots of Trust . 7
4.1.1.1 Overview . 7
4.1.1.2 Hardware Based Root of Trust . 8
4.1.1.3 RoT for virtualised platforms . 8
4.1.1.4 Security services of RoTs . 8
4.1.2 Chain of Trust . 8
4.1.3 Attestation . 10
4.1.4 Supporting Technologies . 10
4.1.4.1 Measured Boot . 10
4.1.4.2 Load-Time Measurement . 11
4.2 Enforcement of System Integrity . 11
4.3 Trustworthy Platform Configuration . 12
4.4 Remote Attestation of VNFs . 13
4.4.1 Introduction. 13
4.4.2 Known Challenges . 14
4.4.3 Single-Channel VM-Based Deep Attestation . 15
4.4.4 Multiple-Channel Independent Deep Attestation . 15
5 Levels of Assurance . 16
5.0 Introduction . 16
5.1 Attestation and Assurance . 17
5.1.0 Introduction. 17
5.1.1 Platform Attestation . 18
5.1.2 Virtual Machine Attestation . 18
6 Infrastructure Capabilities . 18
6.0 Introduction . 18
6.1 Roots of Trust . 18
6.1.1 Overview . 18
6.1.2 Root of Trust for Measurement . 19
6.1.3 Root of Trust for Storage . 19
6.1.4 Root of Trust for Reporting . 19
6.1.5 Examples of implementation of Roots of Trust . 19
6.1.5.1 Trusted Platform Module . 19
6.1.5.2 Hardware Security Module . 20
6.1.5.3 Hardware Co-Processors, Chipset, Processor Modes . 21
6.2 Measured Boot . 21
6.3 OS Measurement Architecture . 21
6.4 Secure Boot . 21
6.5 OS Enforcement of Integrity . 22
6.6 Remote Attestation . 22
ETSI
4 ETSI GR NFV-SEC 007 V1.2.1 (2024-11)
6.7 Other Capabilities . 22
6.8 Levels of Assurance to Capabilities Mapping . 22
7 Operational Procedures . 23
7.0 Introduction . 23
7.1 Platform Deployment . 23
7.1.1 Deployment Specific Processes . 23
7.1.2 Mutual Key Registration . 24
7.1.2.1 Attestation Key Generation . 24
7.1.2.2 Attestation Key Registration . 24
7.1.2.3 Remote Verifier Secure Channel . 24
7.1.3 Golden measurements registration . 25
7.2 Attestation Cycle . 25
7.2.1 Attestation flow . 25
7.2.2 Attestation intervals . 26
8 Analysis of the Evolution of Attestation Technologies . 26
8.1 Network Service (NS) Attestation . 26
8.2 Infrastructure Network Attestation Using a SDN Verifier . 27
8.3 Perspectives for Run-Time Attestation . 28
8.4 Attestation using HMEE based technology . 29
Annex A: Possible Proof of Concepts . 30
Annex B: Change history . 31
History . 32

ETSI
5 ETSI GR NFV-SEC 007 V1.2.1 (2024-11)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI IPR online database.
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its
Members. 3GPP™, LTE™ and 5G logo are trademarks of ETSI registered for the benefit of its Members and of the
3GPP Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of ®
the oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Group Report (GR) has been produced by ETSI Industry Specification Group (ISG) Network Functions
Virtualisation (NFV).
Modal verbs terminology
In the present document "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be
interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
6 ETSI GR NFV-SEC 007 V1.2.1 (2024-11)
1 Scope
The present document discusses existing attestation technologies and practices, as applicable to NFV systems,
addressing:
• The identification and definition of levels of assurance
• The assumed capabilities from the NFVI (e.g. TPM, HSM, etc.)
• Operational procedures
• A gap analysis of current (established or newly proposed) attestation technologies
• Recommendations for follow-on PoCs to demonstrate feasibility of the attestation procedures
Given the current status of attestation technologies and standards, the present document is applicable to hypervisor-
based NFV deployments only, with the exception of some of the perspectives analysed in clause 8.
2 References
2.1 Normative references
Normative references are not applicable in the present document.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI GR NFV 003: "Network Functions Virtualisation (NFV); Terminology for Main Concepts in
NFV".
[i.2] ETSI GS NFV 002: "Network Functions Virtualisation (NFV); Architectural Framework".
[i.3] ETSI GS NFV-SEC 012: "Network Functions Virtualisation (NFV) Release 3; Security; System
architecture specification for execution of sensitive NFV components".
[i.4] TCG, PC Client WG: "PC Client Specific Implementation Specification for Conventional BIOS",
V1.21 Errata, rev 1.0, 2012-02.
[i.5] TCG, Infrastructure WG: "TCG Attestation, PTS Protocol: Binding to TNC IF-M", V1.0, revision
28, 2011-08.
[i.6] ETSI GR NFV-SEC 009: "Network Functions Virtualisation (NFV); NFV Security; Report on use
cases and technical approaches for multi-layer host administration".
[i.7] ETSI GR NFV-SEC 003: "Network Functions Virtualisation (NFV); NFV Security; Security and
Trust Guidance".
[i.8] Unified Extensible Firmware Interface Forum: "Unified Extensible Firmware Interface
Specification", V2.7, 2017-05.
[i.9] NIST SP800-155, draft, 2011-12: "BIOS Integrity Measurement Guidelines".
ETSI
7 ETSI GR NFV-SEC 007 V1.2.1 (2024-11)
[i.10] TCG PC Client WG: "TCG EFI Platform Specification", V1.22, revision 15, 2014-01.
[i.11] TCG Virtual Platform WG: "Virtualised Trusted Platform Architecture Specification", V1.0,
revision 0.26, 2011-09.
[i.12] TCG TPM WG: "Trusted Platform Module Library Specification", V1.38, 2016-09.
[i.13] Andre Rein, 2017: "DRIVE: Dynamic Runtime Integrity Verification and Evaluation",
Proceedings of the 2017 ACM on Asia Conference on Computer and Communications Security.
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms and definitions given in ETSI GR NFV 003 [i.1] apply.
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the abbreviations given in ETSI GR NFV 003 [i.1] and the following apply:
CoT Chain of Trust
CRTM Core Root of Trust for Measurement
HBRT Hardware Based Root of Trust
LoA Level of Assurance
RoT Root of Trust
SML Stored Measurement Log
4 Attestation Procedures
4.0 Introduction
Both authentication (a process of ensuring that the computing platform can prove that it is what it claims to be) and
attestation (a process of proving that a computing platform is trustworthy and has not been breached) are necessary
steps to ensure secure computing in NFV environment. Attestation procedures create assurances of computing
platform's integrity state and ability to protect data in accordance with policy.
4.1 Basic Concepts
4.1.1 Roots of Trust
4.1.1.1 Overview
The trust status of a computing platform can be determined by a remote party only by using inherently trusted
primitives embedded into that platform. These primitives are called Roots of Trust (RoTs). The RoTs are expected to
behave always according to their predefined purpose, as no other mechanism is available to fully check their behaviour.
ETSI
8 ETSI GR NFV-SEC 007 V1.2.1 (2024-11)
The RoTs are ideally implemented in hardware or protected by hardware mechanisms and provide very specific
services to the computing platform they are serving. For attestation of a computing platform, three main services types
are required to be supported by its RoTs:
• Protection of cryptographic material (e.g. keys).
• Isolated execution of cryptographic operations.
• Bootstrapping code measurement.
4.1.1.2 Hardware Based Root of Trust
In NFV deployments it is expected that the virtualisation layer (i.e. hypervisor) will make use of a Hardware Based
Root of Trust (HBRT). The HBRT should be implemented in a hardware component that fulfils the requirements
defined in ETSI GS NFV-SEC 012 [i.3]. The HBRT provides a subset of the services required for enabling a remote
party to compute the trust status of the virtualisation host.
4.1.1.3 RoT for virtualised platforms
Unlike the virtualisation layer, which is expected to run directly on the hardware of the compute node, the VNFCIs will
run on virtualised platforms. They may run in an execution environment created by the hypervisor based on dedicated
hardware support.
The same principle applies to the RoTs available to the virtualised platform: the virtual platform can make use of
dedicated hardware features provided by the HBRT (as defined in ETSI GS NFV-SEC 012 [i.3]), but the hypervisor is
involved in configuring this access and sometimes transferring messages between VNFCIs and their associated
hardware rooted vRoTs. Therefore, a vRoTs represents the combination of hardware functionality provided by the
HBRT and the relevant components of the hypervisor that configure and mediate access to those functionalities.
In NFV deployments, it is highly desirable to restrict as much as possible the influence of the hypervisor on the vRoTs.
Coupled with the host hardening requirements of ETSI GS NFV-SEC 012 [i.3], this would ensure the best available
protection for the vRoTs.
If HMEE technology is used to host and protect virtual RoTs, one possibility to integrate them in the CoT is to tether
them to their corresponding HBRT implementation (e.g. TPM, HSM, etc.).
4.1.1.4 Security services of RoTs
A RoT provides one or more security services to the platform, e.g. software measurement service for the Root of Trust
for Measurement (RTM), software measurement and measurement validation service for the Root of Trust for
Verification (RTV), access controlled and tamper evident or tamper resistant protected storage service for the Root of
Trust for Storage (RTS), certification service (providing cryptographic proof that a set of data originates from the RTS)
for the Root of Trust for Reporting (RTR).
The term RTM is used in the present document to represent the origin of the Chain of Trust (CoT) (see clause 4.1.2), as
the present document is primarily focused on exploring Remote Attestation technologies. Wherever Secure Boot/Local
Attestation is instead referenced within the present document, it should be assumed that the origin of the CoT is, in that
case, the RTV.
4.1.2 Chain of Trust
A CoT, also known as a Transitive CoT, is used to infer trust in the measurement data of the software component that
represents the last link of the chain. Trust is initially only bestowed on the first link in the chain, the Root of Trust for
Measurement (RTM).
Starting from the RTM the principle of "first measure and record, then execute" is applied by all software components
that are executed on the given platform. It ensures that all software components are measured at load time and cannot
tamper with their own measurement procedure. The RTM performs the first measurement, which will be implicitly
trusted, because of the defining property of the RTM - immutability (as defined by TCG PC Client Specific
Implementation Specification for Conventional BIOS [i.4]). Thus trust can be transferred from the first measurement to
the measurement of the last software component in the chain. This process of building a measurement log is also
referenced as a Measured Boot process.
ETSI
9 ETSI GR NFV-SEC 007 V1.2.1 (2024-11)
When regarded from bottom to top, from the RTM to each of the measurement endpoint software components, this
process resembles a tree (of transitive trust), while, when regarded from top to bottom, from the last measured software
component to the RTM, it constitutes a CoT.
The CoT is a purely logical construct. It can be explicitly constructed by the Remote Verifier during a Remote
Attestation (RA) process as long as the target platform implements either only Measured Boot or both Measured Boot
and Secure Boot. For this purpose the data in the measurement log is checked against golden measurements. In case of a
match, a new leaf is added to the CoT. Starting from the first mismatch, the data in the measurement log can no longer
be trusted and the CoT cannot be expanded further.
When only Secure Boot is implemented by a platform (without Measured Boot), an independent observer (similar to the
Remote Verifier used in RA) cannot reconstruct and verify the CoT. It can only trust that the running code was loaded
as the last leaf of a properly rooted and locally (on the target platform) constructed CoT.
An example of such a tree/CoT is depicted in Figure 1 (based on TCG Attestation, PTS Protocol: Binding to
TNC IF-M [i.5]).
User Space
Attestation agent Reporting of SML Remote Verifier
application
OS Kernel module
OS User Space OS Kernel
application loader modules loader
OS Kernel
Boot loader
Measurement Flow
(Recorded in SML)
Chain of Trust
Root of Trust for
Measurement
(RTM)
Figure 1: System Services Chain of Trust and Attestation
ETSI
10 ETSI GR NFV-SEC 007 V1.2.1 (2024-11)
4.1.3 Attestation
Attestation is the process through which a remote challenger can retrieve verifiable information regarding a platform's
integrity state (as described in TCG PC Client Specific Implementation Specification for Conventional BIOS [i.4]). It is
also commonly referenced as Remote Attestation, to highlight that the verification of integrity information is performed
by an independent party in a different trust domain.
The platform's integrity information is delivered to the remote challenger in the form of a measurements log. However,
as specified in TCG PC Client Specific Implementation Specification for Conventional BIOS [i.4], the information in
the measurements log alone is not sufficient to enable a trustworthy assessment of the platform's integrity state. The
measurement log is generated by the very software running on the platform being assessed. Therefore, trust in data
contained in the measurements log is ensured only if:
• A Chain of Trust (CoT) is established from the platform boot up to any given running application being
attested (as defined in TCG Attestation, PTS Protocol: Binding to TNC IF-M [i.5]).
• Evidence of measurements log data protection from local tampering is provided.
As explained in clause 4.1.2, any given software component participating to the chain of trust cannot influence its own
measurement procedure, as its execution begins only after it has been measured. However, a CoT does not provide
assurances that already recorded measurements have not been tampered at a later time. For this purpose a Root of Trust
for Reporting (RTR) is required.
A RTR needs to be able to create cryptographic evidence that the data in the measurements log originates from a RTS
and has not been tampered.
A TPM (see clause 6.1) is an example of implementation that could provide RTR and RTS by leveraging the specific
tampering detection properties of its Platform Configuration Registers (PCR) and issuing signed quotes of their content
(as described in TCG Attestation, PTS Protocol: Binding to TNC IF-M [i.5]).
An HSM (see clause 6.2), is another example of implementation that could provide RTR and RTS, using its capability
to provide integrity and confidentiality and cryptographic processing.
Upon receiving a measurements log and the appropriate evidence that its contents has not been tampered with, the
remote challenger can determine, in a trustworthy manner, the platform's integrity status. For this purpose the remote
party uses reference measurements.
4.1.4 Supporting Technologies
4.1.4.1 Measured Boot
As described above, trust in the attestation data is dependent on the establishment of a CoT starting from a RTM. The
initialization of this CoT is performed by a measured boot process (according to ETSI GR NFV-SEC 009 [i.6]). The
process ensures that all software components starting from the RTM are measured before execution and their
measurements recorded in the measurement log, which is integrity protected by the RTR.
Typically, a measured boot covers the measurement of all software components that are executed sequentially, on a
linear execution flow, as part of the boot process. This implies constructing the CoT up to, at minimum, the Operating
System (OS) kernel. The rest of the CoT from the OS kernel up to any given user space application executed in the
system is constructed through load-time measurement.
ETSI
11 ETSI GR NFV-SEC 007 V1.2.1 (2024-11)

Figure 2: Measured boot CoT
4.1.4.2 Load-Time Measurement
Upon the OS kernel being launched, the execution flow of software components (i.e. applications and kernel modules)
is no longer linear. Multiple application and kernel modules can be loaded and executed in parallel and no guarantees as
to the order of execution can be provided.
Extending the CoT from the linearly executed boot software components to any given parallel launched user space
application can also be accomplished by enforcing the measurement of all applications and modules at load-time, before
they are executed, as illustrated in Figure 3. This requires dedicated support, usually within the OS kernel, to ensure that
all measurements are properly collected and recorded in the integrity protected SML. It is also sometimes referred to as
a "Measurement Architecture".
Generic User
Attestation agent
Space application
OS Kernel module
OS User Space OS Kernel
application loader modules loader
Measurement Flow
(Recorded in SML)
OS Kernel
Chain of Trust
Figure 3: Load-Time CoT
4.2 Enforcement of System Integrity
Attestation provides only the means to remotely detect platform integrity compromise. For cases where local policy
enforcement based on integrity information is desired, the principles of Secure Boot, as opposed to Measured Boot or
Trusted Boot (as defined by ETSI GR NFV-SEC 003 [i.7]) are more suitable.
ETSI
12 ETSI GR NFV-SEC 007 V1.2.1 (2024-11)
Secure Boot or Verified Boot leverages typically digital signature over software components to detect and block
execution of any component that is found to have been compromised. The same principle of "first measure, then
execute" is applied. The only difference is that a supplementary step is performed after measurement and before
execution: checking that the current software component measurement matches the measurement recorded in the digital
signature (usually called the reference measurement). Upon detecting a mismatch between the two measurements,
execution of the component is blocked and an appropriate recovery procedure need to be activated. It should be noted
that any recovery procedure should be performed only by a component that is already part of the CoT established using
Secure Boot, or is booted later using Secure Boot before control of CoT is transferred to it to initiate the recovery
process. Otherwise the CoT is broken at the point of failure. An example of recovery procedure might be for the loader
to try to revert back to the last known successfully securely booted image to continue the Secure Boot process and
report the failure to boot the new process.
Similar to the process used for creating a CoT for attestation, an implicitly trusted component has to exist, which starts
the chain of measurements and digital signatures validation (i.e. a CRTM) (as described in the Unified Extensible
Firmware Interface Specification [i.8]). Also, the principles behind Secure Boot can be further leveraged to extend the
chain of signature based integrity validation up to the last software component in the execution tree, similarly to the
CoT for attestation (as described in ETSI GR NFV-SEC 003 [i.7]). This type of process is also known as Local
Attestation.
Software components signature validation (extended Secure Boot) cannot provide the necessary data to allow a remote
challenger to determine the integrity of the platform. However, the (extended) Secure Boot procedure can be
complemented with a procedure for creating a CoT for attestation as described in clause 4.1. The two procedures are not
alternatives to each other, but complementary to each other.
4.3 Trustworthy Platform Configuration
The trustworthiness of a platform state measured through a process as described in clauses 4.1.4.1 and 4.1.4.2, and
verified through attestation (see clause 4.1.2) and/or locally enforced (i.e. local attestation) through a process as
described in clause 4.2, can also be influenced by the platform's hardware and software configuration, especially during
boot.
Attestation mainly focuses on verifying the integrity of the software (SW) that is executed on that platform. Attestation
may lead to integrity corrective actions. The platform hardware (HW) configuration can disrupt the software integrity
measuring and/or enforcement process, by effectively breaking the CoT (Chain of Trust) that infers trust in the integrity
of the software executed (as described in NIST SP800-155 [i.9]).
In order to attain a high level of trust in the platform's state, the platform's HW configuration should also be verified
(during remote attestation and/or local enforcement). To this end, remote attestation and/or local enforcement should be
complemented by mechanisms that provide measurements and/or enforce the platform's HW configuration.
Platform HW configuration, which might have an impact on the platform's software integrity measurement and/or
enforcement, may include (as defined also by NIST SP800-155 [i.9]), but is not limited to:
• Hardware configuration details:
- List of attached devices (internal and external)
- State of hardware interfaces (e.g. USB ports)
- Option ROMs - typically firmware designed to assist with a specific device initialization/configuration
- Non-volatile configuration items (e.g. fuse, state-retention flipflops)
• Boot flow configuration events:
- Boot flow interruption by user/administrator (e.g. through login)
- Boot flow changes (e.g. boot from different image)
In the case of using remote attestation to verify the trustworthiness of a platform's boot process, the specifications of the
TCG (TCG PC Client Specific Implementation Specification for Conventional BIOS [i.4], TCG EFI Platform
Specification [i.10] explicitly detail the options to extend the measurements also over the platform HW configuration.
ETSI
13 ETSI GR NFV-SEC 007 V1.2.1 (2024-11)
The platform HW configuration measurements will then be retrieved together with the software integrity measurements
by the remote verifier (see clause 4.1.2). Thus, upon performing a validation of the platform's software integrity, the
remote verifier can also factor in the additional data on the platform HW configuration integrity.
Enforcement (local attestation) of platform HW configuration is not fully supported by relevant industry specifications
(e.g. UEFI Secure Boot [i.8] supports just Option ROMs signature checking). This represents a gap between the current
industry standards and NFV security requirements. That is not to say the already defined mechanisms cannot be
extended to ensure full enforcement of a platform configuration. Already available hardware features can be leveraged
for this purpose (e.g. Dynamic Root of Trust for Measurement (DRTM)).
4.4 Remote Attestation of VNFs
4.4.1 Introduction
Remote Attestation can be used as a tool for checking the LoA (see clause 5) of VNFs, by a Remote Verifier. The
Remote Verifier can determine the trust status of a VNF, within a certain LoA, upon receiving qualifying data through
the Remote Attestation process. According to ETSI GR NFV-SEC 003 [i.7] the qualifying data for assigning trust in a
VNF derives from three main sources:
• Signed VNF package
• Hypervisor software integrity state
• VNFCs software integrity state
The VNF package integrity and provenance data is a source of data for trust establishment, but it is not meant to be
transferred through a Remote Attestation to the Remote Verifier for validating. Instead, as described in ETSI
GR NFV-SEC 003 [i.7], this data is meant to be validated before the instantiation of the VNFC. Nevertheless, Remote
Attestation can be perhaps used to validate the trust status of the component, which performs the checks on this data.
The hypervisor and VNFC's software integrity state are both suitable for collection through Remote Attestation. Based
on the hypervisor software integrity state, the Remote Verifier can assign a trust level to the hypervisor operations,
including the setup and execution of the VNFCs virtualisation containers. Together with the VNF package integrity and
provenance data this infers a certain trust level in the instantiation of the VNFCs.
Depending on the LoA, which a specific VNF is expected to meet, its constituting VNFC's software integrity validation
through Remote Attestation might also be required. As also described in ETSI GR NFV-SEC 003 [i.7], this is a
mechanism that enables validation of the trust level of a VNF after instantiation.
Figure 4 highlights the coverage of the two different sets of data - hypervisor and VNFC integrity state data - which can
be collected through Remote Attestation to enable validation of the VNF trust status. The execution flow is built
according to ETSI GR NFV-SEC 003 [i.7].
ETSI
14 ETSI GR NFV-SEC 007 V1.2.1 (2024-11)
VNFC integrity state data
VNFC 1 App VNFC 2 App
Hypervisor & Platform
VNFC 1 OS VNFC 2 OS
integrity state data
VNFC 1 VNFC 2
Virtual Virtual
Hypervisor
Execution Execution
Environment Environment
Platform Code
(e.g. BIOS)
RTR/RTS
Compute Node
Figure 4: Coverage of integrity data
4.4.2 Known Challenges
Attestation of a VNF implies reporting and verification steps for all of the constituting software components. These
include the primary software building blocks of any VNF, the VMs that the VNF is running on top of (according to
ETSI GS NFV 002 [i.2]), together with the corresponding infrastructure components (i.e. virtualisation layer). The core
of this process is, therefore, the employed VM attestation model.
For attestation, each VM can leverage the virtual trusted platform instance that is uniquely associated to it, which
includes security capabilities such as virtual Root of Trust for Measurement (vRTM), virtual Root of Trust for
Reporting (vRTR) or virtual Root of Trust for Storage (vRTS), as defined by TCG's Virtualised Trusted Platform
Architecture Specification [i.11]. These capabilities can be provided by the virtualisation layer in the form of a virtual
Root of Trust for Measurement (vRTM) and virtual RTS and virtual RTR implementation.
The purpose of the virtual Roots of Trust (vRoTs) is to infer trust in the reporting of VM software measurements
through the establishment of a chain of trust originating in these vRoTs. As the vRoTs do not belong to the same
execution domain as the VM software on which they report, an implicitly higher level of trust is assigned to their
functionality. This is similar to the transitive chain of trust established for attestation in non-virtualised platforms, which
is based on hardware protected RoTs (e.g. physical TPM - pTPM, HSM).
The virtualisation layer, typically embodied as a hypervisor (according to ETSI GS NFV 002 [i.2]), maintains the
potential to influence the functionality of the vRoTs. An accurate assessment of the VM state can, therefore, only be
performed, if the hypervisor's chain of trust is also validated as part of the VM attestation. This process is called deep
attestation (in TCG's Virtualised Trusted Platform Architecture Specification [i.11]) and it allows trust to be extended
from the hardware protected RoTs of the computing node, through the hypervisor established chain of trust, to the
vRoTs implementation and from there forward, through the VM chain of trust, to the VNF.
Virtual Virtual
Machine 1 Machine 2
vRTM1 vRTM2
Hypervisor
vRTS1/vRTR1 vRTS2/vRTR2
Compute Node RTM/RTS/RTR
Figure 5: Roots of Trust in a NFV deployment
ETSI
15 ETSI GR NFV-SEC 007 V1.2.1 (2024-11)
Deep attestation implies retrieval and subsequent validation, by a Remote Verifier, of the attestation data from the VM
and the attestation data of the underlying hypervisor. From the Remote Verifier's perspective these two attestation
reports can be provided from two independent entities. Therefore, the Remote Verifier requires proof that the
hypervisor, which it is attesting as part of a deep attestation, is actually executing the vRoTs instances (i.e. vRTM,
vRTS, vRTR instances) uniquely associated with the VM that is the main target of the deep attestation. The problem of
creating an explicit and verifiable binding between the VM attestation and the attestation of
...
