ETSI TS 101 158 V1.3.1 (2014-02)

Telecommunications security; Lawful Interception (LI); Requirements for network functions

RTS/LI-00110

General Information

• Status: Published
• Publication Date: 19-Feb-2014
• Technical Committee: LI - Lawful Interception
• Current Stage: 12 - Completion
• Due Date: 10-Mar-2014
• Completion Date: 20-Feb-2014

Standards Content (Sample)

Technical Specification
Telecommunications security;
Lawful Interception (LI);
Requirements for network functions

2 ETSI TS 101 158 V1.3.1 (2014-02)

Reference
RTS/LI-00110
Keywords
lawful interception, security
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2014.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI TS 101 158 V1.3.1 (2014-02)

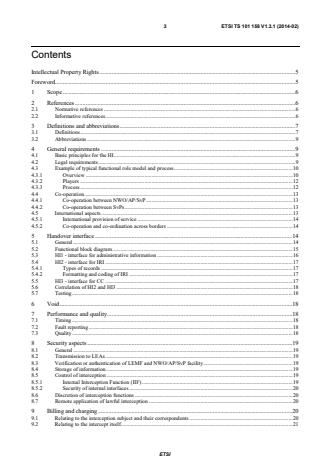

Contents
Intellectual Property Rights . 5
Foreword . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definitions and abbreviations . 7
3.1 Definitions . 7
3.2 Abbreviations . 9
4 General requirements . 9
4.1 Basic principles for the HI . 9
4.2 Legal requirements . 9
4.3 Example of typical functional role model and process . 10
4.3.1 Overview . 10
4.3.2 Players . 12
4.3.3 Process . 12
4.4 Co-operation . 13
4.4.1 Co-operation between NWO/AP/SvP . 13
4.4.2 Co-operation between SvPs . 13
4.5 International aspects . 13
4.5.1 International provision of service . 14
4.5.2 Co-operation and co-ordination across borders . 14
5 Handover interface . 14
5.1 General . 14
5.2 Functional block diagram . 15
5.3 HI1 - interface for administrative information . 16
5.4 HI2 - interface for IRI . 17
5.4.1 Types of records . 17
5.4.2 Formatting and coding of IRI . 17
5.5 HI3 - interface for CC . 17
5.6 Correlation of HI2 and HI3 . 18
5.7 Testing . 18
6 Void . 18
7 Performance and quality . 18
7.1 Timing . 18
7.2 Fault reporting . 18
7.3 Quality . 18
8 Security aspects . 19
8.1 General . 19
8.2 Transmission to LEAs . 19
8.3 Verification or authentication of LEMF and NWO/AP/SvP facility . 19
8.4 Storage of information . 19
8.5 Control of interception . 19
8.5.1 Internal Interception Function (IIF) . 19
8.5.2 Security of internal interfaces . 20
8.6 Discretion of interception functions . 20
8.7 Remote application of lawful interception . 20
9 Billing and charging . 20
9.1 Relating to the interception subject and their correspondents . 20
9.2 Relating to the intercept itself. 21
ETSI
4 ETSI TS 101 158 V1.3.1 (2014-02)
Annex A (informative): Quantitative aspects . 22
A.1 Networks . 22
A.2 Recipient LEMFs . 22
A.3 Number of simultaneous intercepts . 22
Annex B (informative): Typical interface implementations . 23
B.1 Principles . 23
Annex C (informative): Example direct delivery interface from an ISDN . 24
C.1 IRI records content . 24
Annex D (informative): Testing . 25
D.1 Simple test . 26
D.2 Enhanced test . 26
Annex E (informative): Bibliography . 27
Annex F (informative): Change Request History . 28
History . 29

ETSI
5 ETSI TS 101 158 V1.3.1 (2014-02)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Technical Specification (TS) has been produced by ETSI Technical Committee Lawful Interception (LI).
ETSI
6 ETSI TS 101 158 V1.3.1 (2014-02)
1 Scope
The present document describes the general requirements of Network Operators (NWOs), Service Providers (SvPs) and
Access Providers (APs) relating to the provision of lawful interception, with particular reference to the Handover
Interface (HI). The provision of lawful interception is a requirement of national law, which is usually mandatory. From
time to time, a NWO and/or SvP and/or AP will be required, according to a lawful authorization, to make available
results of interception, relating to specific identities, to a specific Law Enforcement Agency (LEA).
The general approach of the HI described in the present document is to be applied for every network technique, present
or future, as long as the intercept requirements can be satisfied.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI TS 101 331: "Lawful Interception (LI); Requirements of Law Enforcement Agencies".
[2] European Union Council Resolution 96/C 329/01 of 17 January 1995 on the Lawful Interception
of Telecommunications.
[3] Void.
[4] ETSI TS 101 671: "Lawful Interception (LI); Handover interface for the lawful interception of
telecommunications traffic".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI ETR 330: "Security Techniques Advisory Group (STAG); A guide to legislative and
regulatory environment".
ETSI
7 ETSI TS 101 158 V1.3.1 (2014-02)
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in TS 101 671 [4] and the following apply:
Access Provider (AP): natural or legal person providing (via a terminal) access to a network
NOTE: This definition applies specifically for the present document. In a particular case, the AP and Network
Operator may be a common commercial entity.
(to) buffer: temporary storing of information in case the necessary telecommunication connection to transport
information to the Law Enforcement Monitoring Facility (LEMF) is temporarily unavailable
call: any connection (fixed or temporary) capable of transferring information between two or more users of a
telecommunications system
NOTE 1: In this context a user may be a person or a machine.
NOTE 2: It is used for transmission of the content of communication. This term refers to circuit switched only.
communication: information transfer according to agreed conventions
Content of Communication (CC): information exchanged between two or more users of a telecommunications
service, excluding Intercept Related Information (IRI)
NOTE: This includes information which may, as part of some telecommunications service, be stored by one user
for subsequent retrieval by another.
Content of Communication link: communication channel for HI3 information between a mediation function and a
LEMF
handover interface: physical and logical interface across which the interception measures are requested from network
operator/access provider/service provider, and the results of interception are delivered from a network operator/access
provider/service provider to a law enforcement monitoring facility
identity: technical label which may represent the origin or destination of any telecommunications traffic, as a rule
clearly identified by a physical telecommunications identity number (such as a telephone number) or the logical or
virtual telecommunications identity number (such as a personal number) which the subscriber can assign to a physical
access on a case-by-case basis
information: intelligence or knowledge capable of being represented in forms suitable for communication, storage or
processing
NOTE: Information may be represented for example by signs, symbols, pictures or sounds.
interception: action (based on the law), performed by a NWO/AP/SvP, of making available certain information and
providing that information to a LEMF
NOTE: In the present document, the term interception is not used to describe the action of observing
communications by a LEA (see below).
interception interface: physical and logical locations within the NWO/AP/SvP telecommunications facilities where
access to the CC and IRI is provided
NOTE: The interception interface is not necessarily a single, fixed point.
interception measure: technical measure which facilitates the interception of telecommunications traffic pursuant to
the relevant national laws and regulations
intercept related information: collection of information or data associated with telecommunication services involving
the target identity, specifically communication associated information or data (including unsuccessful communication
attempts), service associated information or data (e.g. service profile management by subscriber) and location
information
ETSI
8 ETSI TS 101 158 V1.3.1 (2014-02)
interception subject: a person or persons, specified in a lawful authorization, whose telecommunications are to be
intercepted
intercept related information: collection of information or data associated with telecommunication services involving
the target identity, specifically communication associated information or data (including unsuccessful communication
attempts), service associated information or data (e.g. service profile management by subscriber) and location
information
internal network interface: network's internal interface between the Internal Intercepting Function and a mediation
function
Law Enforcement Agency (LEA): organization authorized by a lawful authorization based on a national law to
receive the results of telecommunications interceptions
Law Enforcement Monitoring Facility (LEMF): law enforcement facility designated as the transmission destination
for the results of interception relating to a particular interception subject
lawful authorization: permission granted to a LEA under certain conditions to intercept specified telecommunications
and requiring co-operation from an NWO/AP/SvP
NOTE: Typically this refers to a warrant or order issued by a lawfully authorized body.
lawful interception: See interception.
location information: information relating to the geographic, physical or logical location of an identity relating to an
interception subject
mediation function: mechanism which passes information between a network operator, an access provider or service
provider and a handover interface, and information between the internal network interface and the handover interface
network element: component of the network structure, such as a local exchange, higher order switch or service control
processor
Network Operator (NWO): operator of a public telecommunications infrastructure which permits the conveyance of
signals between defined network termination points by wire, by microwave, by optical means or by other
electromagnetic means
Quality of Service (QoS): quality specification of a telecommunications channel, system, virtual channel,
computer-telecommunications session, etc.
NOTE: Quality of Service may be measured, for example, in terms of signal-to-noise ratio, bit error rate, message
throughput rate or call blocking probability.
reliability: probability that a system or service will perform in a satisfactory manner for a given period of time when
used under specific operating conditions
result of interception: information relating to a target service, including the CC and IRI, which is passed by an
NWO/AP/SvP to a LEA
NOTE: IRI is provided whether or not call activity is taking place.
service information: information used by the telecommunications infrastructure in the establishment and operation of a
network related service or services
NOTE: The information may be established by an NWO/AP/SvP or a network user.
Service Provider (SvP): natural or legal person providing one or more public telecommunications services whose
provision consists wholly or partly in the transmission and routeing of signals on a telecommunications network
NOTE: An SvP need not necessarily run his own network.
target identity: identity associated with a target service (see below) used by the interception subject
target identification: identity which relates to a specific lawful authorization as such
NOTE: This might be a serial number or similar. It is not related to the denoted interception subject or subjects.
ETSI
9 ETSI TS 101 158 V1.3.1 (2014-02)
target service: telecommunications service associated with an interception subject and usually specified in a lawful
authorization for interception
NOTE: There may be more than one target service associated with a single interception subject.
telecommunication: any transfer of signs, signals, writing images, sounds, data or intelligence of any nature
transmitted in whole or in part by a wire, radio, electromagnetic, photoelectronic or photo-optical system
3.2 Abbreviations
For the purposes of the present document, the abbreviations given in TS 101 671 [4] and the following apply:
AP Access Provider
CC Content of Communication
GSM Global System for Mobile communications
HI Handover Interface
IIF Internal Intercepting Function
INI Internal Network Interface
IRI Intercept Related Information
ISDN Integrated Services Digital Network
ITI Interception Target Identity
LEA Law Enforcement Agency
LEMF Law Enforcement Monitoring Facility
LI Lawful Interception
MSN Multiple Subscriber Number
NE Network Element
NWO NetWork Operator
QoS Quality of Service
SvP Service Provider
TE Test Equipment
TTI Test Target Identity
4 General requirements
The present document focuses on the HI between an NWO/AP/SvP and a LEA.
4.1 Basic principles for the HI
The network requirements mentioned in the present document are derived, in part, from the requirements of LEAs
regarding the HI for the interception of telecommunications, TS 101 331 [1]. There are other requirements which relate
to the operation of commercial telecommunications systems. Together, these requirements will be used to standardize
HIs for specific telecommunications systems.
Lawful interception requires functions to be provided in all, or some of the telecommunications network elements.
NOTE: The interface is intended to be extensible and will be extended in future. The LEMF needs to be able to
handle changes, such as new data elements, cleanly.
4.2 Legal requirements
It shall be possible to configure the HI to:
- conform to national requirements;
- conform to national law;
- conform with the law applicable to a specific LEA.
ETSI
10 ETSI TS 101 158 V1.3.1 (2014-02)
Further information is given in TS 101 331 [1], Official Journal of the European Communities, 96/C 329/01 [2] and
ETR 330 [i.1].
4.3 Example of typical functional role model and process
The functional role model described in this clause is a reference example to allow the typical procedural operation of
interception, and the typical responsibilities of the various players, readily to be understood. In relation to a particular
country national laws and procedures will apply.
4.3.1 Overview
There are various aspects of interception.
There is the national law that describes under what conditions and with what restrictions interception is allowed.
If a LEA wishes to use lawful interception as a tool that LEA will ask a prosecuting judge or other responsible body for
a lawful authorization, such as a warrant. If the lawful authorization is granted the LEA will present the lawful
authorization to the NWO/AP/SvP via an administrative interface or procedure (interface port HI1).
When lawful interception is authorized the IRI and the CC is delivered to the LEMF (interface ports HI2 and HI3) of a
LEA.
A lawful authorization may describe the IRI and the CC that are allowed to be delivered for this LEA, investigation,
period and interception subject. For different LEAs and for different investigations different constraints can apply that
further limit the general borders set by the law. The interception subject may also be described in different ways in a
lawful authorization (e.g. subscriber address, physical address, services, etc.).
A lawful authorization or multiple lawful authorizations will be issued to one or more NWO/AP/SvP. This will depend
on the subscribed services and on the networks which could be used by the interception subject.
A single interception subject may be the subject of interception of different LEAs and different investigations. It might
be necessary to strictly separate these investigations and LEAs. It is therefore possible that more than one lawful
authority (each based on a specific application for lawful authority) may be issued relating to the same interception
subject. These various lawful interceptions might contain different constraints on the IRI and the CC. These various
lawful interceptions could fall under different laws.
ETSI
11 ETSI TS 101 158 V1.3.1 (2014-02)
LEA
5 7
2 3
service
provider
network
operator
Authorization
access
authority
provider 6
target identity
target
identity’s
actions
equipment
manufacturer
other network
& service users
NOTE: The numbered lines relate to actions described in clause 4.3.3 and table 2.
The law may require that checks and audits are possible. Therefore there should be facilities at the
NWO/AP/SvP and/or LEA that make such required checks and audits possible.

Figure 1: Functional role model
ETSI
12 ETSI TS 101 158 V1.3.1 (2014-02)
4.3.2 Players
The players in the functional role model are given in table 1.
Table 1: Players in the role model
Player Role
Authorization authority A judicial or administrative (etc.) authority. It gives the LEA the lawful authorization to
intercept an interception subject.
LEA The LEA requests NWO/AP/SvP to intercept communications according to a lawful
authorization.
The LEA receives, through a LEMF, the result of interception (CC and IRI) relating to a
target identity.
Several LEAs may request the interception of the same target identity at the same
time.
NWO An NWO operates the telecommunication network on which services are connected.
The operator is responsible for providing interception to the LEAs via the HI. Several
NWOs might be involved in interception with the same LEAs.
SvP An SvP provides services, additional to those provided by any network itself, to users
of a network. An SvP may use and administer various (target) identities which are, of
themselves, unknown to the network. The SvP is responsible for making
...
