Standards Content (Sample)

TECHNICAL SPECIFICATION
LTE;
Evolved Universal Terrestrial Radio Access (E-UTRA);
Electromagnetic compatibility (EMC)
requirements for mobile terminals and ancillary equipment
(3GPP TS 36.124 version 16.3.0 Release 16)

3GPP TS 36.124 version 16.3.0 Release 16 1 ETSI TS 136 124 V16.3.0 (2022-07)

Reference
RTS/TSGR-0436124vg30
Keywords
LTE
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
and/or governmental
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2022.
All rights reserved.
ETSI

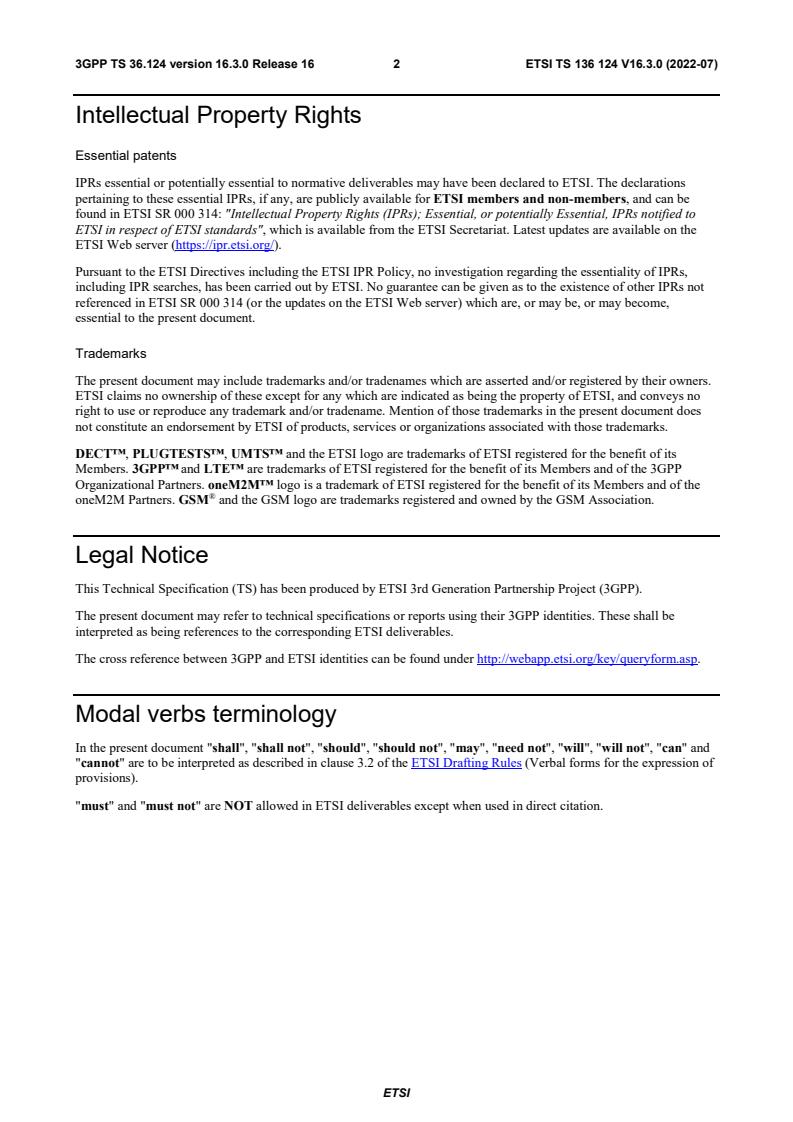

3GPP TS 36.124 version 16.3.0 Release 16 2 ETSI TS 136 124 V16.3.0 (2022-07)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Legal Notice
This Technical Specification (TS) has been produced by ETSI 3rd Generation Partnership Project (3GPP).
The present document may refer to technical specifications or reports using their 3GPP identities. These shall be
interpreted as being references to the corresponding ETSI deliverables.
The cross reference between 3GPP and ETSI identities can be found under http://webapp.etsi.org/key/queryform.asp.
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
3GPP TS 36.124 version 16.3.0 Release 16 3 ETSI TS 136 124 V16.3.0 (2022-07)
Contents
Intellectual Property Rights . 2
Legal Notice . 2
Modal verbs terminology . 2
Foreword . 5
1 Scope . 6
2 References . 6
3 Definitions and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 9
3.3 Abbreviations . 9
4 Test conditions . 10
4.1 General . 10
4.2 Arrangements for establishing a communication link . 10
4.3 Narrow band responses on receivers . 11
4.4 Receiver exclusion band . 11
5 Performance assessment . 12
5.1 General . 12
5.2 Equipment which can provide a continuous communication link . 12
5.3 Equipment which can only provide a discontinuous communication link (packet data/transmission). 12
5.4 Equipment which does not provide a communication link . 12
5.5 Conformance of ancillary equipment . 12
5.6 Equipment classification . 13
6 Performance criteria . 13
6.1 Performance criteria for continuous phenomena . 13
6.2 Performance criteria for Transient phenomena . 13
7 Applicability overview tables . 14
7.1 Emission . 14
7.2 Immunity . 15
8 Methods of measurement and limits for EMC emissions . 15
8.1 Test configurations . 15
8.2 Radiated Emission . 16
8.2.1 Definition . 16
8.2.2 Test method . 16
8.2.3 Limits . 16
8.2.4 Interpretation of the measurement results . 17
8.3 Conducted emission DC power input/output port . 17
8.3.1 Definition . 18
8.3.2 Test method . 18
8.3.3 Limits . 18
8.4 Conducted emissions, AC mains power input/output port . 18
8.4.1 Definition . 18
8.4.2 Test method . 18
8.4.3 Limits . 19
8.5 Harmonic current emissions (AC mains input port) . 19
8.6 Voltage fluctuations and flicker (AC mains input port) . 19
9 Test methods and levels for immunity tests . 19
9.1 Test configurations . 19
9.2 RF electromagnetic field (80 MHz - 6000 MHz) . 20
9.2.1 Definition . 20
9.2.2 Test method and level . 20
9.2.3 Performance criteria . 20
ETSI
3GPP TS 36.124 version 16.3.0 Release 16 4 ETSI TS 136 124 V16.3.0 (2022-07)
9.3 Electrostatic discharge . 20
9.3.1 Definition . 20
9.3.2 Test method and level . 20
9.3.3 Performance criteria . 21
9.4 Fast transients common mode . 21
9.4.1 Definition . 21
9.4.2 Test method and level . 21
9.4.3 Performance criteria . 21
9.5 RF common mode (0.15 MHz to 80 MHz) . 21
9.5.1 Definition . 22
9.5.2 Test method and level . 22
9.5.3 Performance criteria . 22
9.6 Transients and surges, vehicular environment. 22
9.6.1 Definition . 22
9.6.2 Test method and level . 22
9.6.2.1 12 V DC powered equipment . 22
9.6.2.2 24 V DC powered equipment . 23
9.6.3 Performance criteria . 23
9.7 Voltage dips and interruptions . 23
9.7.1 Definition . 24
9.7.2 Test method and level . 24
9.7.3 Performance criteria . 24
9.8 Surges, common and differential mode . 24
9.8.1 Definition . 24
9.8.2 Test method and level . 24
9.8.3 Performance criteria . 24
Annex A (normative): Performance assessment voice call. Audio break through . 25
A.1 Calibration of audio levels . 25
A.2 Measurement of audio levels . 26
Annex B (normative): Performance assessment of data transfer call. Throughput
Percentages . 27
B.1 Calibration of data transfer . 27
B.2 Derivation of Throughput Percentages . 27
B.3 EUT without data application ancillary . 27
B.4 EUT with data application ancillary . 27
Annex C (informative): Change History . 29
History . 30

ETSI
3GPP TS 36.124 version 16.3.0 Release 16 5 ETSI TS 136 124 V16.3.0 (2022-07)
Foreword
rd
This Technical Specification has been produced by the 3 Generation Partnership Project (3GPP).
The contents of the present document are subject to continuing work within the TSG and may change following formal
TSG approval. Should the TSG modify the contents of the present document, it will be re-released by the TSG with an
identifying change of release date and an increase in version number as follows:
Version x.y.z
where:
x the first digit:
1 presented to TSG for information;
2 presented to TSG for approval;
3 or greater indicates TSG approved document under change control.
y the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
z the third digit is incremented when editorial only changes have been incorporated in the document.
ETSI
3GPP TS 36.124 version 16.3.0 Release 16 6 ETSI TS 136 124 V16.3.0 (2022-07)
1 Scope
rd
The present document establishes the essential EMC requirements for "3 generation" digital cellular mobile terminal
equipment and ancillary accessories in combination with a 3GPP E-UTRA user equipment (UE).
The equipment conforming to the requirements laid out in the present document and used in its intended
electromagnetic environment in accordance with the manufacturers instructions
- shall not generate electromagnetic disturbances at a level which may interfere with the intended operation of
other equipment;
- has an adequate level of intrinsic immunity to electromagnetic disturbances to operate as intended;
The present document specifies the applicable EMC tests, the methods of measurement, the frequency range, the limits
and the minimum performance criteria for all types of E-UTRA UE´s and their accessories. E-UTRA base station
equipment operating within network infrastructure is outside the scope of the present document. However, the present
document does cover mobile and portable equipment that is intended to be operated in a fixed location while connected
to the AC mains. E-UTRA base stations in the radio access network are covered by the technical specification
TS36.113 [2].
Requirements for the radiated emission from the enclosure port of integral antenna equipment and ancillaries have been
included. Technical specifications for conducted emissions from the antenna connector are found in the 3GPP
specifications for the radio interface, e.g. TS36.521 [3], for the effective use of the radio spectrum.
The immunity requirements have been selected to ensure an adequate level of compatibility for apparatus in residential,
commercial, light industrial and vehicular environments. The levels however, do not cover extreme cases, which may
occur in any location but with low probability of occurrence.
The environment classification used in the present document refers to the environment classification used in the Generic
Standards IEC 61000-6-1 [4], IEC 61000-6-3 [5], except the vehicular environment class which refers to
ISO 7637 Part 1 [6] and Part 2 [7].
Compliance of radio equipment to the requirements of the present document does not signify compliance to any
requirement related to the use of the equipment (i.e. licensing requirements).
Compliance to the requirements of the present document does not signify compliance to any safety requirement.
However, any temporary or permanent unsafe condition caused by EMC is considered as non-compliance.
2 References
The following documents contain provisions, which, through reference in this text, constitute provisions of the present
document.
- References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific;
- for a specific reference, subsequent revisions do not apply;
- for a non-specific reference, subsequent revisions do apply. In the case of a reference to a 3GPP document
(including a GSM document), a non-specific reference implicitly refers to the latest version of that document in
the same Release as the present document.
[1] 3GPP TR 25.990: "Vocabulary for UTRAN".
3GPP TR 21.905: "Vocabulary for 3GPP Specifications".
[2] 3GPP TS 36.113: "Evolved Universal Terrestrial Radio Access (E-UTRA); Base station and
repeater electromagnetic compatibility (EMC)".
[3] 3GPP TS 36.521: "Evolved Universal Terrestrial Radio Access (E-UTRA) and Evolved Universal
Terrestrial Radio Access Network (E-UTRAN); User Equipment (UE) conformance specification
Radio transmission and reception".
ETSI
3GPP TS 36.124 version 16.3.0 Release 16 7 ETSI TS 136 124 V16.3.0 (2022-07)
[4] IEC 61000-6-1 (1997): "Electromagnetic compatibility (EMC) - Part 6: Generic standards -
Section 1: Immunity standard for residential, commercial and light-industrial environments".
[5] IEC 61000-6-3 (1996): "Electromagnetic compatibility (EMC) - Part 6: Generic standards -
Section 3: Emission standard for residential, commercial and light-industrial environments.
[6] ISO 7637-1 (1990): "Road vehicles - Electrical disturbance by conduction and coupling - Part 1:
Passenger cars and light commercial vehicles with nominal 12 V supply voltage - Electrical
transient conduction along supply lines only".
[7] ISO 7637-2 (1990): "Road vehicles - Electrical disturbance by conduction and coupling - Part 2:
Commercial vehicles with nominal 24 V supply voltage - Electrical transient conduction along
supply lines only".
[8] IEC 60050(161): "International Electrotechnical Vocabulary - Chapter 161: Electromagnetic
compatibility".
[9] ITU-R Recommendation SM.329: "Unwanted emissions in the spurious domain".
[10] IEC CISPR publication 22: "Information technology equipment; Radio disturbance characteristics
- Limits and methods of measurement".
[11] 3GPP TS 36.101: "Evolved Universal Terrestrial Radio Access (E-UTRA); User Equipment (UE)
radio transmission and reception (FDD)".
[12] 3GPP TS 36.508: "Evolved Universal Terrestrial Radio Access (E-UTRA) and Evolved Universal
Terrestrial Radio Access Network (E-UTRAN); Common test environments for User Equipment
(UE) conformance testing".
[13] 3GPP TS 36.523: " Evolved Universal Terrestrial Radio Access (E-UTRA) and Evolved Universal
Terrestrial Radio Access Network (E-UTRAN); User Equipment (UE) conformance
specification".
[14] IEC CISPR publication 16-1: "Specification for radio disturbance and immunity measuring
apparatus and methods".
[15] IEC 61000-3-2; (2000): "Electromagnetic compatibility; Part 3 - Limits; section 2 - Limits for
harmonic current emissions (equipment input current ≤ 16 A per phase)"; Am.1 (1997-09)".
[16] IEC 61000-3-3; (19952): "Electromagnetic compatibility; Part 3 - Limits; section 2 - Limitation of
voltage fluctuations and flicker in low-voltage supply systems for equipment with rated current
≤ 16 A"
[17] IEC 61000-4-3: "Electromagnetic compatibility (EMC) - Part 4: Testing and measurement
techniques - section 3: Radiated, radio-frequency electromagnetic field immunity test".
[18] IEC 61000-4-2: "Electromagnetic compatibility (EMC) - Part 4: Testing and measurement
techniques - section 2: Electrostatic discharge immunity test - Basic EMC publication".
[19] IEC 61000-4-4: "Electromagnetic compatibility (EMC) - Part 4: Testing and measurement
techniques - section 4: Electrical fast transient/burst immunity test - Basic EMC publication".
[20] IEC 61000-4-6: "Electromagnetic compatibility (EMC) - Part 4: Testing and measurement
techniques - section 6: immunity to conducted disturbances induced by radio frequency fields".
[21] IEC 61000-4-11: "Electromagnetic compatibility (EMC) - Part 4: Testing and measurement
techniques - section 11: Voltage dips, short interruptions, and voltage variations immunity test".
[22] IEC 61000-4-5: "Electromagnetic compatibility (EMC) - Part 4: Testing and measurement
techniques - section 5: Surge immunity test".
[23] ITU-R Recommendation SM.1539 (2001): "Variation of the boundary between the out-of-band
and spurious domains required for the application of Recommendations ITU-R SM.1541 and ITU-
R SM.329".
ETSI
3GPP TS 36.124 version 16.3.0 Release 16 8 ETSI TS 136 124 V16.3.0 (2022-07)
[24] 3GPP TS 36.509: "Evolved Universal Terrestrial Radio Access (E-UTRA) and Evolved Universal
Terrestrial Radio Access Network (E-UTRAN); Terminal logical test interface; Special
conformance testing functions".
[25] ETSI ETR 027 (1991): "Radio Equipment and Systems (RES); Methods of measurement for
private mobile radio equipment".
[26] ITU-T Recommendation P.64: "Telephone transmission quality, Telephone installations, Local
line networks, Objective electro-acoustical measurements. Determination of sensitivity/frequency
characteristics of local telephone systems".
[27] ITU-T Recommendation P.76: "Telephone transmission quality, Measurements related to speech
loudness, Determination of loudness ratings; Fundamental principles, Annex A".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply.
Ancillary equipment: Equipment (apparatus), used in connection with a user equipment (UE) is considered as an
ancillary equipment (apparatus) if:
- the equipment is intended for use in conjunction with a UE to provide additional operational and/or control
features to the UE, (e.g. to extend control to another position or location); and
- the equipment cannot be used on a stand alone basis to provide user functions independently of a UE; and
- the UE to which it is connected, is capable of providing some intended operation such as transmitting and/or
receiving without the ancillary equipment (i.e. it is not a sub-unit of the main equipment essential to the main
equipment basic functions).
Average power: The average transmitter output power obtained over any specified time interval, including periods
with no transmission, when the transmit time slots are at the maximum power setting.
Camped on a cell: The UE is in idle mode and has completed the cell selection/reselection process and has chosen a
cell. The UE monitors system information and (in most cases) paging information. Note that the services may be
limited, and that the PLMN may not be aware of the existence of the UE within the chosen cell.
Channel bandwidth: The RF bandwidth supporting a single E-UTRA RF carrier with the transmission bandwidth
configured in the uplink or downlink of a cell. The channel bandwidth is measured in MHz and is used as a reference
for transmitter and receiver RF requirements.
Continuous phenomena (continuous disturbance): Electromagnetic disturbance, the effects of which on a particular
device or equipment cannot be resolved into a succession of distinct effects (IEC 60050-161 [8]).
Data application ancillary: Ancillary which provides send and/or receive data access to UMTS services via UE.
Enclosure port: Physical boundary of the apparatus through which electromagnetic fields may radiate or impinge. In
the case of integral antenna equipment, this port is inseparable from the antenna port.
End- User data: Manufacturer defined data patterns for data transfer testing. Represents EUT´s typical user application
(e.g. photo, video, text file, message) in its characteristics.
Idle mode: Idle mode is the state of User Equipment (UE) when switched on but with no Radio Resource Control
(RRC) connection.
Integral antenna: Antenna designed to be connected directly to the equipment with or without the use of an external
connector and considered to be part of the equipment. An integral antenna may be fitted internally or externally to the
equipment.
Maximum throughput: The maximum achievable throughput for a reference measurement channel.
Necessary bandwidth: For a given class of emission, the width of the frequency band which is just sufficient to ensure
the transmission of information at the rate and with the quality required under specified conditions.
ETSI
3GPP TS 36.124 version 16.3.0 Release 16 9 ETSI TS 136 124 V16.3.0 (2022-07)
Out of band emissions: Emission on a frequency or frequencies immediately outside the necessary bandwidth, which
results from, the modulation process, but excluding spurious emissions.
NOTE: Any unwanted emission which falls at frequencies separated from the centre frequency of the emission by
less than 250% of the necessary bandwidth of the emission will generally be considered out-of-band
emission.
Port: particular interface, of the specified equipment (apparatus), with the electromagnetic environment. For example,
any connection point on an equipment intended for connection of cables to or from that equipment is considered as a
port (see figure 1).
Spurious emission from ITU-R SM 329 [9]: Emission on a frequency, or frequencies, which are outside the necessary
bandwidth and the level of which may be reduced without affecting the corresponding transmission of information.
Spurious emissions include harmonic emissions, parasitic emissions, intermodulation products and frequency
conversion products but exclude out-of-band emissions.
Telecommunication port: Ports which are intended to be connected to telecommunication networks (e.g. public
switched telecommunication networks, integrated services digital networks), local area networks (e.g. Ethernet, Token
Ring) and similar networks (see CISPR 22 [10]).
Throughput: The number of payload bits successfully received per second for a reference measurement channel in a
specified reference condition.
Transient phenomena: Pertaining to or designating a phenomena or a quantity which varies between two consecutive
steady states during a time interval short compared with the time-scale of interest (IEC 60050-161 [8])
Traffic mode: Is the state of User Equipment (UE) when switched on and with Radio Resource Control (RRC)
connection established.
Universal mobile telecommunications system (UMTS): The telecommunications system, incorporating mobile
cellular and other functionality, that is the subject of specifications produced by 3GPP
User equipment (UE): is a "Mobile Station" (MS) which is an entity capable of accessing a set of UMTS services via
one or more radio interfaces. This entity may be stationary or in motion within the UMTS service area while accessing
the UMTS services, and may simultaneously serve one or more users.
3.2 Symbols
For the purposes of the present document, the following symbols apply:
BW Channel bandwidth
Channel
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
BCCH Broadcast Control Channel *)
BS Base Station
BSS Base Station System
BTS Base Transceiver Station
CCCH Common Control Channel *)
CW Continuous Wave (unmodulated carrier wave)
DC Direct Current
ETSI
3GPP TS 36.124 version 16.3.0 Release 16 10 ETSI TS 136 124 V16.3.0 (2022-07)
DL Down Link (From BTS to UE)
DTX Discontinuous Transmission *)
EMC Electromagnetic Compatibility
EPC Evolved Packet Core
ESD ElectroStatic Discharge
EUT Equipment Under Test (UE or UE with ancillaries)
FDD Frequency Division Duplex
FRC Fixed Reference Channel
LISN Line Impedance Stabilizing Network
MRP Mouth Reference Point (artificial head)
PCCPCH Primary Common Control Physical Channel
RF Radio Frequency
rms root mean square
RRC Radio Resource Control
SPL Sound Pressure Level
TCH Traffic channel
TDD Time Division Duplex
UARFCN UTRA Absolute Radio Frequency Channel Number *)
UE User Equipment
UL Up Link (From UE to BTS)
UMTS Universal Mobile Telecommunication System
UTRA Universal Terrestrial Radio Access network
*) refer to Terminology specifications TS 21.905 and TS 25.990 [1] for further details.
4 Test conditions
4.1 General
The equipment shall be tested under normal test conditions according to the relevant product and basic standards (See
Annex E of TS 36.101 [11] for environmental conditions). If these conditions are not specified then the manufacturers
declared range of humidity, temperature and supply voltage shall be used. The test conditions shall be recorded in the
test report.
Whenever the Equipment under test (EUT) is provided with a detachable antenna, the EUT shall be tested with the
antenna fitted in a manner typical of normal intended use, unless specified otherwise.
Where the equipment incorporates an external 50 Ω RF antenna connector that is normally connected via a coaxial
cable, then the wanted signal to establish a communication link also uses a coaxial cable.
Where the equipment has an external 50 Ω RF antenna connector that is not normally connected via a coaxial cable or
where the equipment has no external 50 Ω RF connector (i.e., integral antenna equipment), then the wanted signal, to
establish a communication link, shall be delivered from the equipment to an antenna located within the test
environment.
4.2 Arrangements for establishing a communication link
The wanted RF input signal nominal frequency shall be selected by setting the E-UTRA Absolute Radio Frequency
Channel Number (EARFCN) to an appropriate number.
A communication link shall be set up with a suitable base station simulator (hereafter called "the test system"). The test
system shall be located outside of the test environment
When the EUT is required to be in the traffic mode, a call is set up according to the Generic call set-up procedure and
the following conditions shall be met:
See TS 36.508 [12] and TS 36.509 [24] for details regarding generic call set-up procedure and throughput test loop
scenarios.
- Set and send continuously positive TPC commands to the UE;
ETSI
3GPP TS 36.124 version 16.3.0 Release 16 11 ETSI TS 136 124 V16.3.0 (2022-07)
- the DTX shall be disabled;
- uplink power control shall be enabled;
- transmitting and/or receiving (UL/DL) bit rate for reference test channel shall be the reference measurement
channel as specified in Annex C in TS 36.101 [11] with parameters specified in Table 7.3.1-1 and Table 7.3.1-2
in TS 36.101 [11];
- adequate measures shall be taken to avoid the effect of the unwanted signal on the measuring equipment;
- for immunity testing, the wanted input signal level shall be set to 40 dB above the reference sensitivity level to
provide a stable communication link. The reference sensitivity level is defined in TS 36.101 [11];
- for emission testing, the wanted input signal level shall be no more than 15 dB above the reference sensitivity
level, such that the performance of the measuring receiver is not limited by strong signal effects.
When the EUT is required to be in the idle mode, the following conditions shall be met:
- UE shall be camped on a cell
- UE shall perform Location Registration (LR) before the test, but not during the test;
- UE´s neighbour cell list shall be empty;
- Paging repetition period and DRX cycle shall be set to minimum (shortest possible time interval);
For immunity tests subclause 4.3, shall apply and the conditions shall be as follows:
4.3 Narrow band responses on receivers
Responses on receivers or duplex transceivers occurring during the test at discrete frequencies, which are narrow band
responses (spurious responses), are identified by the following method:
- If during an immunity test the quantity being monitored goes outside the specified tolerances, it is necessary to
establish whether the deviation is due to an unwanted effect on the receiver of the UE or on the test system
(narrow band response) or to a wide band (EMC) phenomenon. Therefore, the test shall be repeated with the
unwanted signal frequency increased or decreased by BW MHz, where BW is the channel bandwidth
Channel Channel
as defined in TS 36.101 [11];
- if the deviation does not disappear, the procedure is repeated the unwanted signal frequency increased or
decreased by 2 x BW MHz, where BW is the channel bandwidth as defined in TS 36.101 [11];
Channel Channel
- if the deviation does not disappear with the increased and/or decreased frequency, the phenomenon is considered
wide band and therefore an EMC problem and the equipment fails the test.
Narrow band responses are disregarded.
The procedure above does not apply to conducted immunity tests in the frequency range 150 kHz to 80 MHz.
4.4 Receiver exclusion band
The receiver exclusion band for terminals extends from the lower frequency of the allocated receiver band minus
85 MHz to the upper frequency of the allocated receiver band plus 85 MHz. The receiver exclusion band for UE is the
frequency range over which no tests of radiated immunity of a receiver are made. The exclusions bands are as set out
below:
F – 85 < f < F + 85 (MHz)
DL,low DL,high
Where values of F and F are defined for each operating band in TS 36.101 [11], clause 5.5.
DL,low DL,high
ETSI
3GPP TS 36.124 version 16.3.0 Release 16 12 ETSI TS 136 124 V16.3.0 (2022-07)
5 Performance assessment
5.1 General
The manufacturer shall at the time of submission of the equipment for test, supply the following information to be
recorded in the test report:
- the primary functions of the radio equipment to be tested during and after the EMC testing;
- if applicable, the method to be used to verify that a communications link is established and maintained;
- the intended functions of the radio equipment which shall be in accordance with the documentation
accompanying the equipment;
- the user-control functions and stored data that are required for normal operation and the method to be used to
assess whether these have been lost after EMC stress;
- the ancillary equipment to be combined with the radio equipment for testing (where applicable);
- information about ancillary equipment intended to be used with the radio equipment;
- an exhaustive list of ports, classified as either power or signal/control. Power ports shall further be classified as
AC or DC power;
- the humidity range, temperature, and supply voltage for all equipment submitted for testing.
5.2 Equipment which can provide a continuous communication
link
The test arrangement and signals, given in clause 4, apply to radio equipment or a combination of radio equipment and
ancillary equipment that permits the establishment of a communication link. The assessment of equipment performance
shall be based on speech call and data transfer according to the criteria in clause 6.
5.3 Equipment which can only provide a discontinuous
communication link (packet data/transmission)
If the equipment does not permit or allow for a communications link to be established and maintained during the EMC
tests (as in subclause 5.2), the manufacturer shall define the performance assessment. The manufacturer shall provide
the method of observing the degradation of performance of the equipment.
5.4 Equipment which does not provide a communication link
If the equipment is of a specialised nature which does not permit a communication link to be established, the
manufacturer shall define the method of test to determine the acceptable level of performance or degradation of
performance during and/or after the test. The manufacturer shall provide the method of observing the degradation of
performance of the equipment.
The performance assessment carried out shall be simple, but at the same time give adequate proof that the primary
functions of the equipment are operational.
5.5 Conformance of ancillary equipment
Ancillary equipment shall be tested with it connected to a UE in which case compliance shall be demonstrated to the
appropriate clauses of the present document.
ETSI
3GPP TS 36.124 version 16.3.0 Release 16 13 ETSI TS 136 124 V16.3.0 (2022-07)
5.6 Equipment classific
...
