ETSI TS 122 060 V10.0.0 (2011-05)

Digital cellular telecommunications system (Phase 2+); Universal Mobile Telecommunications System (UMTS); General Packet Radio Service (GPRS); Service description; Stage 1 (3GPP TS 22.060 version 10.0.0 Release 10)

RTS/TSGS-0122060va00

General Information

• Status: Published
• Publication Date: 17-May-2011
• Technical Committee: 3GPP SA 1 - Services
• Current Stage: 12 - Completion
• Completion Date: 18-May-2011

Standards Content (Sample)

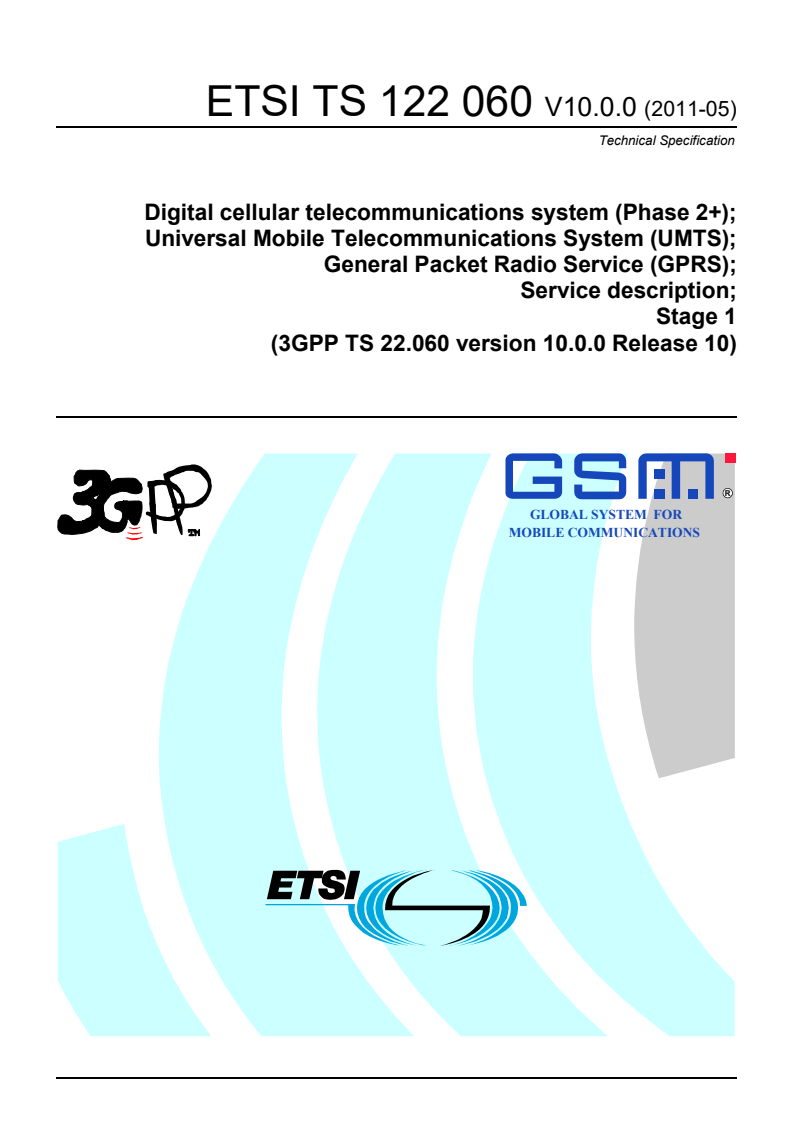

Technical Specification
Digital cellular telecommunications system (Phase 2+);
Universal Mobile Telecommunications System (UMTS);
General Packet Radio Service (GPRS);
Service description;
Stage 1
(3GPP TS 22.060 version 10.0.0 Release 10)

R
GLOBAL SYSTEM FOR
MOBILE COMMUNICATIONS

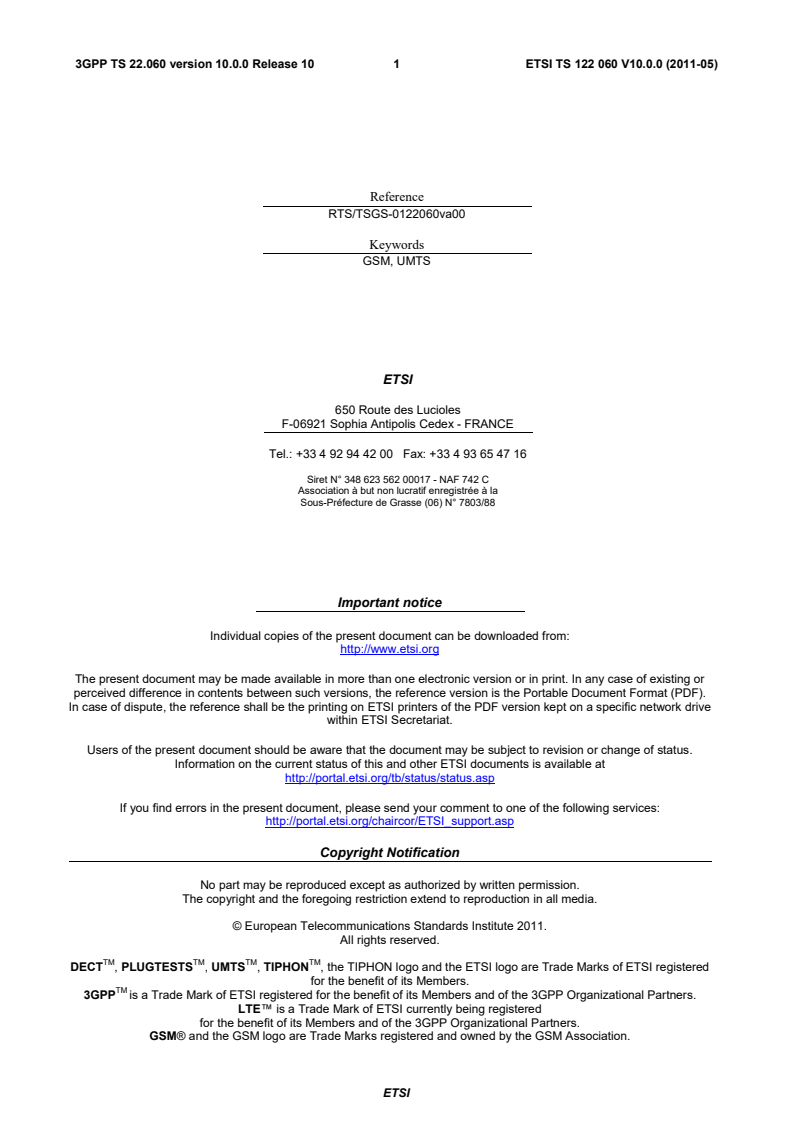

3GPP TS 22.060 version 10.0.0 Release 10 1 ETSI TS 122 060 V10.0.0 (2011-05)

Reference
RTS/TSGS-0122060va00
Keywords
GSM, UMTS
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3GPP TS 22.060 version 10.0.0 Release 10 2 ETSI TS 122 060 V10.0.0 (2011-05)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Technical Specification (TS) has been produced by ETSI 3rd Generation Partnership Project (3GPP).
The present document may refer to technical specifications or reports using their 3GPP identities, UMTS identities or
GSM identities. These should be interpreted as being references to the corresponding ETSI deliverables.
The cross reference between GSM, UMTS, 3GPP and ETSI identities can be found under
http://webapp.etsi.org/key/queryform.asp.
ETSI
3GPP TS 22.060 version 10.0.0 Release 10 3 ETSI TS 122 060 V10.0.0 (2011-05)
Contents
Intellectual Property Rights . 2
Foreword . 2
Foreword . 5
1 Scope . 6
2 References . 6
3 Definitions and abbreviations . 7
3.1 Definitions . 7
3.2 Abbreviations . 9
4 Main Concepts . 10
5 Service Requirements . 11
5.1 GPRS reference model . 11
5.1.1 Bearer services . 11
5.1.2 (Void) . 11
5.1.3 (Void) . 11
5.2 Network Interworking . 11
5.2.1 Interworking with other data networks and other PLMNs . 12
5.2.1.1 QoS when Interworking . 12
5.2.2 GPRS Numbering Plan . 12
5.2.3 Addressing and routeing requirements . 12
5.2.3.1 PTP network layer services . 12
5.2.4 Interworking for subscriber roaming . 12
5.3 GPRS service description . 12
5.3.1 Point-To-Point Connectionless Network Service (PTP-CLNS) . 13
5.3.2 (Void) . 13
5.3.3 Point-To-Multipoint (PTM) service overview . 13
5.4 Service interworking . 14
5.5 Transfer Characteristics . 14
5.6 Service characteristics . 15
5.6.1 Subscriber profile . 15
5.6.2 Quality of Service (QoS) . 15
5.6.2.1 QoS parameter definitions . 15
5.6.2.1.1 Service precedence (priority) . 15
5.6.2.1.2 Reliability . 15
5.6.2.1.3 Delay . 16
5.6.2.1.4 Throughput . 16
5.6.2.2 QoS profile - PTP . 17
5.6.2.3 Monitor . 17
5.6.3 Packet size . 17
6 Operational Requirements . 17
6.1 GPRS UE Modes of Operation. 17
6.1.1 GPRS UE classes . 17
6.1.2 UE support for SMS over GPRS . 19
6.2 Subscriber roaming. 19
6.3 Construction of GPRS subscriber numbers . 19
6.4 Battery life extension . 19
6.5 Format Of Message User Data . 19
6.6 Charging aspects . 20
6.6.1 PTP and IP-M charging information . 20
6.6.2 Reverse Charging . 20
6.7 Security services . 20
6.8 Message Screening . 21
6.9 GPRS Operator Determined Barring . 21
ETSI
3GPP TS 22.060 version 10.0.0 Release 10 4 ETSI TS 122 060 V10.0.0 (2011-05)
7 Normal procedures with successful outcome . 21
7.1 Provision . 21
7.2 Withdrawal . 22
7.3 GPRS-Attach, GPRS-Detach . 22
7.4 Registration . 22
7.5 Void . 23
7.6 Interrogation . 23
7.7 Activation . 23
7.8 De-activation . 23
7.9 Invocation and operation . 23
7.10 PIN and Password Management . 24
8 Exceptional procedures . 24
8.1 Provision . 24
8.2 Withdrawal . 24
8.3 Registration . 24
8.4 Void . 24
8.5 Interrogation . 24
8.6 Activation . 25
8.7 De-activation . 25
8.8 Invocation and operation . 25
8.9 PIN and Password management . 25
9 Addressing . 25
9.1 Point to Point services . 25
9.2 Point to Multipoint services. 25
9.3 Overview . 25
Annex A (informative): Change history . 26
History . 27

ETSI
3GPP TS 22.060 version 10.0.0 Release 10 5 ETSI TS 122 060 V10.0.0 (2011-05)
Foreword
rd
This Technical Specification has been produced by the 3 Generation Partnership Project (3GPP).
The contents of the present document are subject to continuing work within the TSG and may change following formal
TSG approval. Should the TSG modify the contents of the present document, it will be re-released by the TSG with an
identifying change of release date and an increase in version number as follows:
Version x.y.z
where:
x the first digit:
1 presented to TSG for information;
2 presented to TSG for approval;
3 or greater indicates TSG approved document under change control.
y the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
z the third digit is incremented when editorial only changes have been incorporated in the document.
ETSI
3GPP TS 22.060 version 10.0.0 Release 10 6 ETSI TS 122 060 V10.0.0 (2011-05)
1 Scope
This TS defines the stage one description of the General Packet Radio Service (GPRS). Stage one is an overall service
description, primarily from the service subscriber's and user's points of view, but does not deal with the details of the
human interface itself. This TS includes information applicable to network operators, service providers and terminal,
switch and data base manufacturers.
This TS contains the core requirements for the packet switched networks specified by 3GPP which are sufficient to
provide a complete service. It defines a set of bearer services that provide packet mode transmission within the PLMN
and interwork with external networks.
The term GPRS shall be used in this document to refer the GPRS service offered via GERAN and UTRAN and the PS
Domain of the 3G PLMN.
The GPRS shall not prevent the user's operation of other 3GPP services.

2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
• References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• For a non-specific reference, the latest version applies. In the case of a reference to a 3GPP document (including
a GSM document), a non-specific reference implicitly refers to the latest version of that document in the same
Release as the present document.
[1] 3GPP TS 22.001: " Principles of telecommunication services supported by a Public Land Mobile
Network (PLMN)".
[2] 3GPP TS 24.002: " Public Land Mobile Network (PLMN) access reference configuration".
[3] ISO 8348: "Information processing systems - data communications - network service definition".
[4] Internet STD 5:RFC 791: Internet protocol, RFC 950: "Internet standard subnetting procedure",
RFC 919: "Broadcasting internet datagrams", RFC 922: "Broadcasting internet datagrams in the
presence of subnets", RFC 792: "Internet control message protocol", RFC 1112: "Host extensions
for IP multicasting" RFC 1122:" Requirements for Internet hosts - communication layers". RFC
1920:" Internet official protocol standards", RFC 1458: "Requirements for multicast protocols",
RFC 1301: "Multicast transport protocol".
[5] 3GPP TS22.004: " General on supplementary services".
[6] 3GPP TS 22.030: " Man-Machine Interface (MMI) of the User Equipment (UE)"
[7] 3GPP TS 42.017 : "Subscriber Identity Modules (SIM) Functional characteristics".
[8] 3GPP TS 22.041: "Operator Determined Barring (ODB)"
[9] 3GPP TS 27.060: "General Packet Radio Service (GPRS); Mobile Station (MS) supporting
GPRS".
[10] 3GPP TS 43.055: Dual Transfer Mode; Stage 2"
ETSI
3GPP TS 22.060 version 10.0.0 Release 10 7 ETSI TS 122 060 V10.0.0 (2011-05)
3 Definitions and abbreviations
3.1 Definitions
For the purposes of this 3GPP TS the following definitions apply:
A
access delay: The value of elapsed time between an access request and a successful access (source: ITU-T X.140).
accuracy: A performance criterion that describes the degree of correctness with which a function is performed. (The
function may or may not be performed with the desired speed.) (source: ITU-T I.350).
B
bearer service: A type of telecommunication service that provides the capability for the transmission of signals
between user-network interfaces (source: ITU-T I.112).
C
conversational service: An interactive service which provides for bi-directional communication by means of real-time
(no store-and-forward) end-to-end information transfer from user to user (source: ITU-T I.113).
D
destination user: Entity to which calls to the General Packet Radio Service (GPRS) are directed.
F
G
I
interactive service: A service which provides the means for bi-directional exchange of information between users.
Interactive services are divided into three classes of services: conversational services, messaging services and retrieval
services (source: ITU-T I.113).
interface: The common boundary between two associated systems (source: ITU-T I.112).
M
mean bit rate: A measure of throughput. The average (mean) bit rate available to the user for the given period of time
(source: ITU-T I.210).
messaging service: An interactive service which offers user-to-user communication between individual users via
storage units with store-and-forward, mailbox and/or message handling, (e.g., information editing, processing and
conversion) functions (source: ITU-T I.113).
mobile termination: The part of the UE which terminates the radio transmission to and from the network and adapts
terminal equipment capabilities to those of the radio transmission multicast service: A unidirectional PTM service in
which a message is transmitted from a single source entity to multiple destinations.
multipoint: A value of the service attribute "communication configuration", which denotes that the communication
involves more than two network terminations (source: ITU-T I.113).
N
network operator: Entity which provides the network operating elements and resources for the execution of the
General Packet Radio Service (GPRS).
ETSI
3GPP TS 22.060 version 10.0.0 Release 10 8 ETSI TS 122 060 V10.0.0 (2011-05)
network service data unit (NSDU): A unit of data passed between the user and the GPRS network across a Network
Service Access Point (NSAP).
network termination: A functional group on the network side of a user-network interface (source: ITU-T I.112).
O
P
packet: An information unit identified by a label at layer 3 of the OSI reference model (source: ITU-T I.113). A
network protocol data unit (NPDU).
packet data protocol (PDP): Any protocol which transmits data as discrete units known as packets, e.g., IP.
packet transfer mode: Also known as packet mode. A transfer mode in which the transmission and switching
functions are achieved by packet oriented techniques, so as to dynamically share network transmission and switching
resources between a multiplicity of connections (source: ITU-T I.113).
PLMN Operator: Public Land Mobile Network operator. The entity which offers a GPRS.
point-to-multipoint (PTM) service: A service type in which data is sent to 'all service subscribers or a pre-defined
subset of all subscribers' within an area defined by the Service Requester.
point-to-point (PTP): A value of the service attribute "communication configuration", which denotes that the
communication involves only two network terminations.
point-to-point (PTP) service: A service type in which data is sent from a single network termination to another
network termination.
protocol: A formal set of procedures that are adopted to ensure communication between two or more functions within
the within the same layer of a hierarchy of functions (source: ITU-T I.112).
protocol data unit (PDU): In the reference model for OSI, a unit of data specified in an (N)-protocol layer and
consisting of (N)-protocol control information and possibly (N)-user data (source: ITU-T X.200 / ISO-IEC 7498-1).
push service: service type which delivers information (data/multimedia) initiated from a network (which may be
external to the PLMN) to the UE. The service will cause a PDP context to be activated if needed.
Q
quality of service: The collective effect of service performances which determine the degree of satisfaction of a user of
the service (ITU-T E.800). The set of performance parameters that can be directly observed and measured at the point at
which the service is accessed by the user. There are three criteria by which performance is measured: speed, accuracy
and dependability (source: ITU-T I.350).
R
reference configuration: A combination of functional groups and reference points that shows possible network
arrangements (source: ITU-T I.112).
reference point: A conceptual point at the conjunction of two non-overlapping functional groups (source: ITU-T
I.112).
retrieval service: An interactive service which provides the capability of accessing information stored in data base
centres. The information will be sent to the user on demand only. The information is retrieved on an individual basis,
i.e., the time at which an information sequence is to start is under the control of the user (source ITU-T I.113).
S
service attribute: A specified characteristic of a telecommunication service (source: ITU-T I.112).
NOTE: the value(s) assigned to one or more service attributes may be used to distinguish that telecommunications
service from others.
service data unit (SDU): In the reference model for OSI, an amount of information whose identity is preserved when
transferred between peer (N+1)-layer entities and which is not interpreted by the supporting (N)-layer entities (source:
ITU-T X.200 / ISO-IEC 7498-1).
ETSI
3GPP TS 22.060 version 10.0.0 Release 10 9 ETSI TS 122 060 V10.0.0 (2011-05)
service delay: The time elapsed from the invocation of the service request, to the corresponding service request
indication at the Service Receiver, indicating the arrival of application data.
service provider: Entity which offers the General Packet Radio Service (GPRS) for subscription. The network operator
may be the service provider.
service receiver: The entity which receives the service request indication primitive, containing the SDU.
service request: This is defined as being one invocation of the service through a service request primitive.
service requester: The entity which requests the initiation of a GPRS operation, through a service request.
service subscriber: Entity which subscribes to the General Packet Radio Service (GPRS) service.
speed: A performance criterion that describes the time interval required to perform a function or the rate at which the
function is performed. (The function may or may not be performed with the desired accuracy.) (source: ITU-T I.350).
T
throughput: A parameter describing service speed. The number of data bits successfully transferred in one direction
between specified reference points per unit time (source: ITU-T I.113).
transit delay: A parameter describing service speed. The time difference between the instant at which the first bit of a
protocol data unit (PDU) crosses one designated boundary (reference point), and the instant at which the last bit of the
PDU crosses a second designated boundary (source: ITU-T I.113).
U
V
variable bit rate service: A type of telecommunication service characterised by a service bit rate specified by
statistically expressed parameters which allow the bit rate to vary within defined limits (source: ITU-T I.113).
3.2 Abbreviations
For the purposes of this 3GPP TS the following definitions apply:
CLNP Connectionless network protocol
CLNS Connectionless network service
EGPRS Enhanced GPRS
FFS For further study
GPRS General packet radio service
HSDPA High Speed Downlink Packet Access
IP Internet protocol
IP-M Internet protocol multicast
NSDU Network service data unit
PDP Packet data protocol
PDU Protocol data unit
PLMN Public land mobile network
PTM Point to multipoint
PTP Point to point
QoS Quality of service
SAP Service access point
SVC Switched virtual circuit
SDU Service data unit
TBD To be defined
TLLI Temporary link level identity

ETSI
3GPP TS 22.060 version 10.0.0 Release 10 10 ETSI TS 122 060 V10.0.0 (2011-05)
4 Main Concepts
The GPRS allows the service subscriber to send and receive data in an end-to-end packet transfer mode, without
utilizing network resources in circuit switched mode.
GPRS enables the cost effective and efficient use of network resources for packet mode data applications e.g. for
applications that exhibit one or more of the following characteristics:
- intermittent, non-periodic (i.e., bursty) data transmissions, where the time between successive transmissions
greatly exceeds the average transfer delay;
- frequent transmissions of small volumes of data, for example transactions consisting of less than 500 octets of
data occurring at a rate of up to several transactions per minute;
- infrequent transmission of larger volumes of data, for example transactions consisting of several kilobytes of
data occurring at a rate of up to several transactions per hour.
Within the GPRS, two different bearer service types are defined. These are:
- Point-To-Point (PTP);
- Point-To-Multipoint (PTM).
Based on standardized network protocols supported by the GPRS bearer services, a GPRS network administration may
offer (or support) a set of additional services. This is outside the scope of this specification, however, a number of
possible PTP interactive teleservices include:
- retrieval services which provide the capability of accessing information stored in data base centres. The
information is sent to the user on demand only. An example of one such service in the Internet's World Wide
Web (WWW);
- messaging services which offer user-to-user communication between individual users via storage units with
store-and-forward mailbox, and/or message handling (e.g., information editing, processing and conversion)
functions;
- conversational services which provide bi-directional communication by means of real-time (no store-and-
forward) end-to-end information transfer from user to user. An example of such a service is the Internet's Telnet
application;
- tele-action services which are characterized by low data-volume (short) transactions, for example credit card
validations, lottery transactions, utility meter readings and electronic monitoring and surveillance systems.
Some examples of teleservices which may be supported by a PTM bearer service include:
- distribution services which are characterized by the unidirectional flow of information from a given point in the
network to other (multiple) locations. Examples may include news, weather and traffic reports, as well as
product or service advertisements;
- dispatching services which are characterized by the bi-directional flow of information from a given point in the
network (dispatcher) and other (multiple) users. Examples include taxi and public utility fleet services;
- conferencing services which provide multi-directional communication by means of real-time (no store-and-
forward) information transfer between multiple users.
Some examples of teleservices which may be supported by either PTP or PTM bearers include:
- user subscribed services where a priori agreement is made for delivery of data to a user, such as stock quotes,
sports results, specific product or service advertisements, and email.
EGPRS is an enhancement of GPRS for GERAN allowing higher data rates on the radio interface. The same set of
services provided by GPRS is available in EGPRS.
HSDPA is an enhancement to Packet data services for UTRAN allowing higher data rates on the radio interface
downlink. The same set of services provided by GPRS is available with GPRS using HSDPA.
ETSI
3GPP TS 22.060 version 10.0.0 Release 10 11 ETSI TS 122 060 V10.0.0 (2011-05)
5 Service Requirements
5.1 GPRS reference model
The GPRS can be described using the simplified reference model in figure 1.
GPRS provides data transfer capabilities between a sending entity and one or more receiving entities. These entities
may be an UE or a Terminal Equipment, the latter being attached either to a GPRS network or to an external data
network. The base station provides radio channel access for UEs to the GPRS network. User data may be transferred
between four types of UEs as described in 3GPP TS22.001 [1] and TS 24.002 [2].
Each PLMN has two access points, the radio interface (labelled Um for GERAN and Uu for UTRAN) used for mobile
access and the R reference point used for origination or reception of messages. The R reference point for the UEs is
defined in 27.060 [9].
Um or Uu
UE
GPRS Data Network
Gi
TE
External
TE
Data Network
Figure 1: GPRS simplified reference model
5.1.1 Bearer services
The GPRS bearer services support the capability to transmit data between user-network access points.
5.1.2 (Void)
5.1.3 (Void)
5.2 Network Interworking
Network interworking is required whenever a PLMN and a non-PLMN are involved in the execution of a GPRS Service
request.
ETSI
3GPP TS 22.060 version 10.0.0 Release 10 12 ETSI TS 122 060 V10.0.0 (2011-05)
In general the mobile user of a GPRS network will receive and experience all the services provided by an external data
network. In this case the external data network refers to the network that the GPRS PLMN interworks with as
determined by the network operator. With this in mind it can be said that a user :-
1) will require a universal identity(ies) of the form compatible with the interworked with network(s);
2) and experience access to and provision of all services as offered by the interworked with networks (some
reduction of capability may result from unavoidable restrictions due to the complexity of implementation).
5.2.1 Interworking with other data networks and other PLMNs
GPRS shall provide means to interwork with external data networks. The GPRS operator may provide an appropriate
address to the external data network for the subscriber as part of the GPRS subscription. That address can be either
dynamic (e.g. the user's IP address is allocated from a pool of unused IP addresses every time the subscriber activates
the access to an IP network) or static (e.g. a certain IP address is permanently allocated to a particular subscriber). In
addition, the GPRS network shall be able to notify the server IP address (e.g. the gateway IP address) to the subscriber,
when the subscriber activates. When connected with some external data networks, the routeing protocols of these
networks may limit the data network addresses that can be allocated. For example, when interworking with IP networks,
the IP address for the GPRS subscriber shall belong to that GPRS operator's IP subnetwork that allocates the address. In
the case of a simple point to point connection, a GPRS subscriber need not have an associated network address.
The type of interworking between a PLMN and data networks is determined by the network operator.
Interworking with the following types of data networks shall be defined:
- IP networks;
- other PLMNs, directly or via a transit network.
5.2.1.1 QoS when Interworking
GPRS shall satisfy, within the constraints introduced by the mobile radio environment, the QoS requirements of the
interworked-with network.
5.2.2 GPRS Numbering Plan
It is required that GPRS UE addresses conform to the numbering plan already defined for 3GPP system.
5.2.3 Addressing and routeing requirements
5.2.3.1 PTP network layer services
A GPRS subscriber identified by an IMSI, may have a network layer address(es) temporarily and/or permanently
associated with it that conforms to the standard addressing scheme of the respective network layer service used, e.g.:
- IP Version 4 and 6 addresses for Internet CLNS.
In the case of a simple point to point connection, a GPRS subscriber need not have an associated network layer
address.
5.2.4 Interworking for subscriber roaming
Interworking between different GPRS PLMNs is required in order to support subscriber roaming.
It shall be possible for the VPLMN to provide access to the external data network when the external non-3GPP data
network address is dynamically assigned by the VPLMN.
5.3 GPRS service description
There are two categories of GPRS services:
ETSI
3GPP TS 22.060 version 10.0.0 Release 10 13 ETSI TS 122 060 V10.0.0 (2011-05)
- Point to Point (PTP) services,
- Point to Multipoint (PTM) services.
The PTP service provides a transmission of one or more packets between two users, initiated by a service requester and
received by a receiver.
There is one PTP service: - PTP Connectionless Network Service (PTP-CLNS). The PTM service provides a
transmission of packets between a service requester and a receiver group.
There is one PTM service:
- IP Multicast (IP-M).
An invocation of the service request by a service requester is possible from the fixed and mobile access points.
Table 1 presents the relationship between service requests and the Service Requester/Receiver.
Table 1: Relationship of service request and service requester/receiver
Service Types of service request
requester/receiver
AP = Access Point IP-M
PTP-CLNS
From fixed AP to mobile Supported Supported
AP
From mobile AP to Supported Supported
mobile AP
(see note 1)
From mobile AP to fixed Supported Supported
AP
NOTE 1: It shall be possible to transfer data between two mobiles of the same operator without the use of
external data networks.
5.3.1 Point-To-Point Connectionless Network Service (PTP-CLNS)
Point-To-Point Connectionless Network Service (PTP-CLNS) is a service in which one (or more) single packet(s) is
(are) sent from a single service subscriber "A" to a single destination user "B". Each packet is independent of the
preceding and succeeding packet. This service is of the datagram type and is intended to support bursty applications. On
the radio interface PTP-CLNS supports the acknowledged transfer mode for reliable delivery.
GPRS provides data communications services consistent with the connectionless network layer service definition ISO
8348 [3]. Specifically, GPRS shall be able to support applications based on the following network layer protocol:
- Internet Protocol (IP);
- IP is the network layer protocol of the Internet TCP/IP protocol suite defined by Internet STD 5 [4].
5.3.2 (Void)
5.3.3 Point-To-Multipoint (PTM) service overview
A PTM service is the transmission of a single message to multiple subscribers. The GPRS PTM services provide the
capability for a subscriber to send data to multiple destinations.
There is one PTM service:
- IP Multicast (IP-M), which is a service defined as a part of the IP protocol suite. In IP-M messages are sent
between participants of an IP-M group. An IP-M group can be internal to the PLMN or distributed across the
Internet. Participation and data transfer in the IP-M service shall be compliant with the Internet protocols. See
RFC 1920 [4], RFC 1458 [4], RFC 1301 [4] and RFC 1112 [4]. The Service Receiver of a point-to-multipoint
ETSI
3GPP TS 22.060 version 10.0.0 Release 10 14 ETSI TS 122 060 V10.0.0 (2011-05)
service request shall be able to filter out packets at a network level, through use of the Packet Identities, which
are of no interest either because they are for a service for which no subscription is held, or the packet belongs to
a sub-group within the offered application service which is of no interest. It is required that the UE-Application
resources shall not be utilized for this function.
Table 2: PTM Service Characteristics
Characteristics IP-M
Primary addressing specified group of
mechanism subscribers
Secondary addressing no
mechanism
Present subscribers known yes, group members shall
join the IP-M call to
become participants.
Delivery time real time
Direction of transmission multi-directional
Reliable delivery acknowledged as normal IP
PTP packets
Ciphering yes
5.4 Service interworking
It shall be possible for the GPRS PTP services to be utilized as a bearer service for the SMS-MO and SMS-MT
services.
5.5 Transfer Characteristics
The packet multiplexing mechanisms developed for GPRS shall be independent of a given channel type. It shall be
possible to operate GPRS over low and high capacity channels. Table 3 is only applicable to the GPRS part of the
connection.
Table 3: Transfer Characteristics
Attributes Supported capabilities
Information Transfer Capability Unrestricted digital information
Information Connection mode Connection orientated, connectionless
Transfer (a) Variable bit rate and variable delay
Traffic type
Mode (b) Asynchronous
Timing end-to-end
(c) Maximum bit rate.
Information Transfer Rate
Information Structure - Service data unit integrity
- Data sequence integrity
Communication Configuration - Point to point

- Point to multipoint
(d) Demand mobile originated or mobile terminated
Establishment of Communication
Negotiation - Out of band
- In band
Symmetry - Bi-directional
- Unidirectional
Radio Channel assignment Shared, multi-user

a) Traffic type: describing data streams with constant bit rate or variable bit rate characteristics.
b) Timing end-to-end: describing the timing relation between the source and destination of signals.
ETSI
3GPP TS 22.060 version 10.0.0 Release 10 15 ETSI TS 122 060 V10.0.0 (2011-05)
c) Flexible channels with a maximum bit rate that depends on the type of channel and the number of time slots in
GERAN that are used. This capability defines the maximum capability associated with the channel(s). The actual
bit rate for a particular user may be any value up to this maximum value.
d) Establishment of communication: may be on demand, reserved or permanent.
5.6 Service characteristics
5.6.1 Subscriber profile
The subscriber profile holds subscription information about services and other parameters that have been assigned for
an agreed contractual period. It includes the following information:
- subscribed services (PTP-CLNS);
- subscribed QoS profile (service precedence(priority), reliability, delay, throughput).
An invocation of a service by any user with the appropriate subscription profile shall be possible.

It shall be possible to validate a service request against a service subscriber's subscription profile.
5.6.2 Quality of Service (QoS)
The mapping of user application QoS parameters to GPRS QoS parameters is an implementation issue and is not part of
GPRS specifications.
It shall be possible to respond to local data traffic conditions adaptively. GPRS shall include the functionality to
increase or decrease the amount of radio resources allocated to GPRS on a dynamic basis. The criteria used to decide on
dynamic changes of the GPRS part of the radio resource should not be specified. Thus, only the necessary procedure,
including radio protocol and timers, needed to perform the change of radio resources shall be specified within the ETSI
specifications.
Within GPRS the dynamic allocation of th
...
