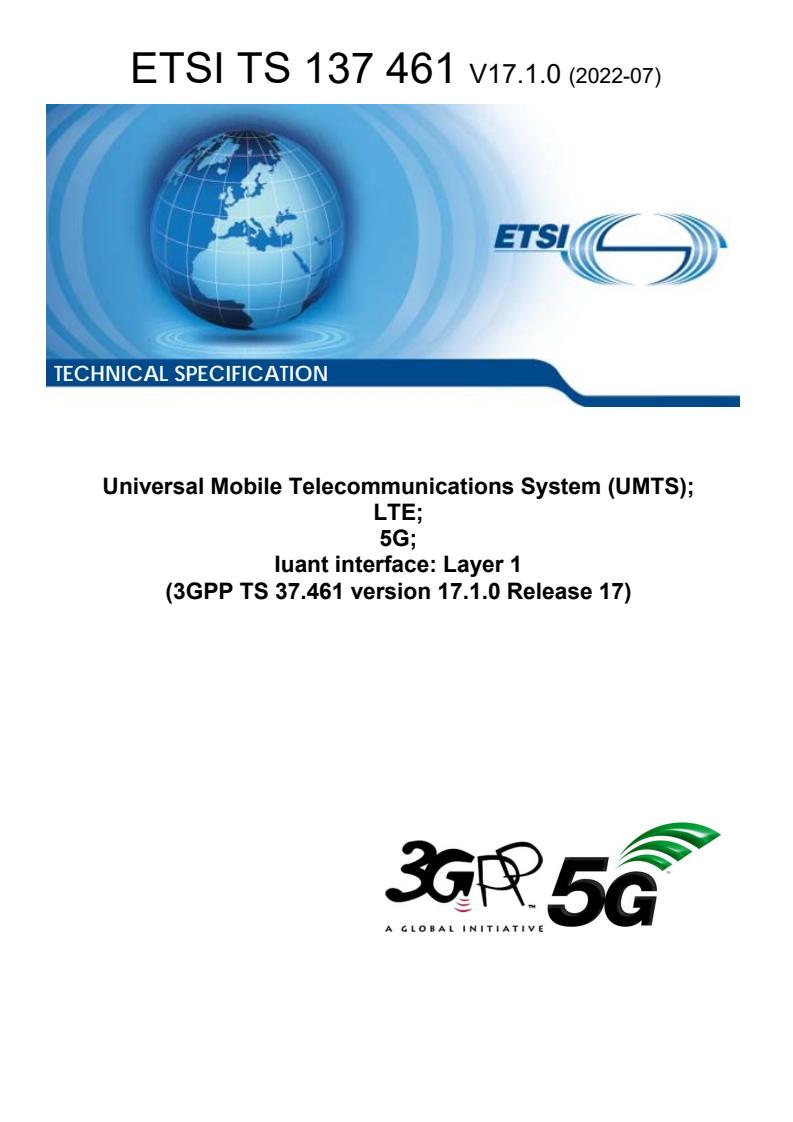

ETSI TS 137 461 V17.1.0 (2022-07)

Universal Mobile Telecommunications System(UMTS) ;LTE ;5G ; Iuant interface: Layer 1 (3GPP TS 37.461 version 17.1.0 Release 17)

RTS/TSGR-0337461vh10

General Information

• Status: Not Published
• Technical Committee: 3GPP RAN 3 - lub specification, lur specification, lu specification and UTRAN & O&M
• Current Stage: 12 - Citation in the OJ (auto-insert)
• Completion Date: 20-Jul-2022

Standards Content (Sample)

TECHNICAL SPECIFICATION
Universal Mobile Telecommunications System (UMTS);
LTE;
5G;
Iuant interface: Layer 1
(3GPP TS 37.461 version 17.1.0 Release 17)

3GPP TS 37.461 version 17.1.0 Release 17 1 ETSI TS 137 461 V17.1.0 (2022-07)

Reference
RTS/TSGR-0337461vh10
Keywords
5G,LTE,UMTS
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
and/or governmental
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2022.
All rights reserved.
ETSI
3GPP TS 37.461 version 17.1.0 Release 17 2 ETSI TS 137 461 V17.1.0 (2022-07)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Legal Notice
This Technical Specification (TS) has been produced by ETSI 3rd Generation Partnership Project (3GPP).
The present document may refer to technical specifications or reports using their 3GPP identities. These shall be
interpreted as being references to the corresponding ETSI deliverables.
The cross reference between 3GPP and ETSI identities can be found under http://webapp.etsi.org/key/queryform.asp.
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
3GPP TS 37.461 version 17.1.0 Release 17 3 ETSI TS 137 461 V17.1.0 (2022-07)
Contents
Intellectual Property Rights . 2
Legal Notice . 2
Modal verbs terminology . 2
Foreword . 4
1 Scope . 5
2 References . 5
3 Definitions and abbreviations . 5
3.1 Definitions . 5
3.2 Abbreviations . 5
4 Iuant layer 1 . 6
4.1 General . 6
4.2 RS485 option . 7
4.3 Modem option . 7
4.3.1 Interference with existing systems . 9
4.3.1.1 Carrier frequency and frequency stability . 9
4.3.1.2 Modem isolation and modem emissions . 9
4.3.1.3 Modem intermodulation attenuation . 10
4.3.2 Recovery time . 10
4.3.3 Impedance . 10
4.3.4 Modulator characteristics . 11
4.3.4.1 Levels . 11
4.3.4.2 Spectrum emission mask . 11
4.3.5 Demodulator characteristics. 11
4.3.6 Duty cycle variation . 11
4.3.7 Operating bands . 12
4.3.8 Time delay and accuracy . 12
4.3.9 Insertion Loss. 12
4.3.10 DC port isolation . 13
4.3.11 RET control unit spurious emission . 13
4.3.12 Control unit spurious emission . 13
4.4 DC power supply . 14
4.4.1 Power consumption. 14
4.4.2 Conducted emission . 14
4.4.3 Power-up characteristics . 14
Annex A (normative): Test procedures . 16
Annex B (informative): Change history . 17
History . 18

ETSI
3GPP TS 37.461 version 17.1.0 Release 17 4 ETSI TS 137 461 V17.1.0 (2022-07)
Foreword
rd
This Technical Specification has been produced by the 3 Generation Partnership Project (3GPP).
The contents of the present document are subject to continuing work within the TSG and may change following formal
TSG approval. Should the TSG modify the contents of the present document, it will be re-released by the TSG with an
identifying change of release date and an increase in version number as follows:
Version x.y.z
where:
x the first digit:
1 presented to TSG for information;
2 presented to TSG for approval;
3 or greater indicates TSG approved document under change control.
Y the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
z the third digit is incremented when editorial only changes have been incorporated in the document.
ETSI
3GPP TS 37.461 version 17.1.0 Release 17 5 ETSI TS 137 461 V17.1.0 (2022-07)
1 Scope
The present document specifies the standards allowed to implement layer 1 on the Iuant interface for UTRA, E-UTRA
and NR.
The specification of transmission delay requirements and O&M requirements are not in the scope of the present
document.
The modem option of Iuant layer 1 specification in clause 4.3 applies to UTRA, E-UTRA BS and NR BS type 1-C.
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
● References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
● For a specific reference, subsequent revisions do not apply.
● For a non-specific reference, the latest version applies. In the case of a reference to a 3GPP document (including
a GSM document), a non-specific reference implicitly refers to the latest version of that document in the same
Release as the present document.
[1] 3GPP TS 37.462: "UTRAN Iuant interface: Signalling transport".
[2] ISO/IEC 8482 (1993-12): "Information technology - Telecommunications and information
exchange between systems - Twisted pair multipoint interconnections".
[3] TIA/EIA TSB89: "Application guidelines for TIA/EIA-485-A".
[4] 3GPP TS 25.101: "Technical Specification Group Radio Access Network; User Equipment (UE)
radio transmission and reception (FDD)"
[5] 3GPP TS 36.101: "Evolved Universal Terrestrial Radio Access (E-UTRA); User Equipment (UE)
radio transmission and reception"
[6] 3GPP TS 38.101: "NR; User Equipment (UE) radio transmission and reception (FDD)"

3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
On-Off-Keying: A modulation system in which a carrier is switched between two states, ON and OFF.
Common feeder cable: Feeder cable where some antenna line devices (e.g. RET, TMA) are connected via the same
feeder cable.
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
BS Base Station
DC Direct Current
ETSI
3GPP TS 37.461 version 17.1.0 Release 17 6 ETSI TS 137 461 V17.1.0 (2022-07)
DL Downlink
FDD Frequency Division Duplex
ISB Idle-State Biasing
OOK On-Off-Keying
RET Remote Electrical Tilting
RF Radio Frequency
TMA Tower Mounted Amplifier
UE User Equipment
UL Uplink
UMTS Universal Mobile Telecommunications System
UTRA UMTS Terrestrial Radio Access
4 Iuant layer 1
4.1 General
There are two layer 1 options:
- RS485 option: A screened multicore cable, which supports a conventional RS485 serial multi-drop bus.
- Modem option: A connection to a RET and/or a TMA control unit by way of a coaxial cable which is shared
with DC supply and RF signals.
Both layer 1 options support the connection of two-way serial data and DC power to the RET and/or TMA antenna
device.
At least one of these two layer 1 options shall be supported.
The default data rate for both layer 1 options shall be 9.6 kbps. Higher data rates of 38.4 kbps for both layer 1 options
and 115.2 kbps only for the RS485 layer 1 option may optionally be supported. Each unit communicates on one of the
three data rates, but different units on the same interface may use different data rates.
After a reset, a secondary device shall alternate between supported data rates. When alternating between data rates, the
data rate shall be held constant for 300 ms. After every correctly received device scan command (see TS 37.462 [1])
independent of whether it matches or not, at one of the supp
...
