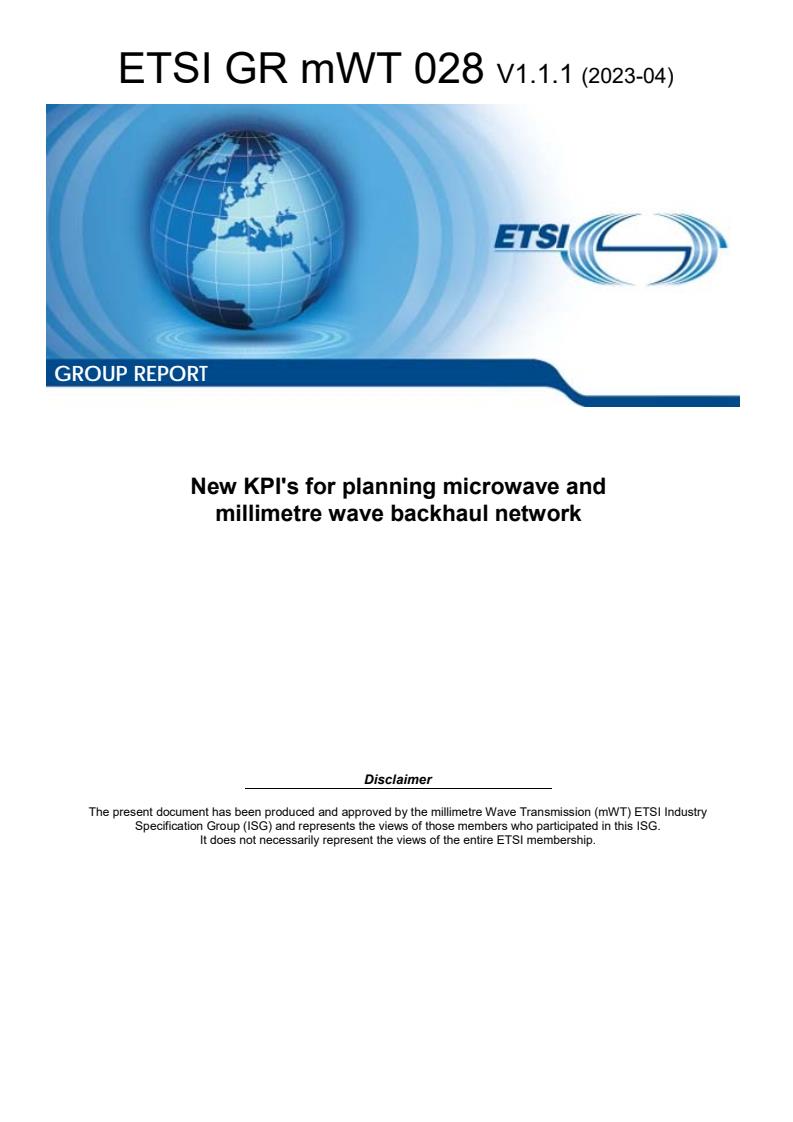

ETSI GR mWT 028 V1.1.1 (2023-04)

New KPI’s for planning microwave and millimeter wave backhaul network

DGR/mWT-0028

General Information

• Status: Not Published
• Technical Committee: mWT - millimetre Wave Transmission
• Current Stage: 12 - Completion
• Due Date: 28-Mar-2023
• Completion Date: 05-Apr-2023

Standards Content (Sample)

GROUP REPORT
New KPI's for planning microwave and
millimetre wave backhaul network
Disclaimer
The present document has been produced and approved by the millimetre Wave Transmission (mWT) ETSI Industry
Specification Group (ISG) and represents the views of those members who participated in this ISG.
It does not necessarily represent the views of the entire ETSI membership.

2 ETSI GR mWT 028 V1.1.1 (2023-04)

Reference
DGR/mWT-0028
Keywords
backhaul, microwave, millimetre wave
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
https://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
and/or governmental
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2023.
All rights reserved.
ETSI
3 ETSI GR mWT 028 V1.1.1 (2023-04)

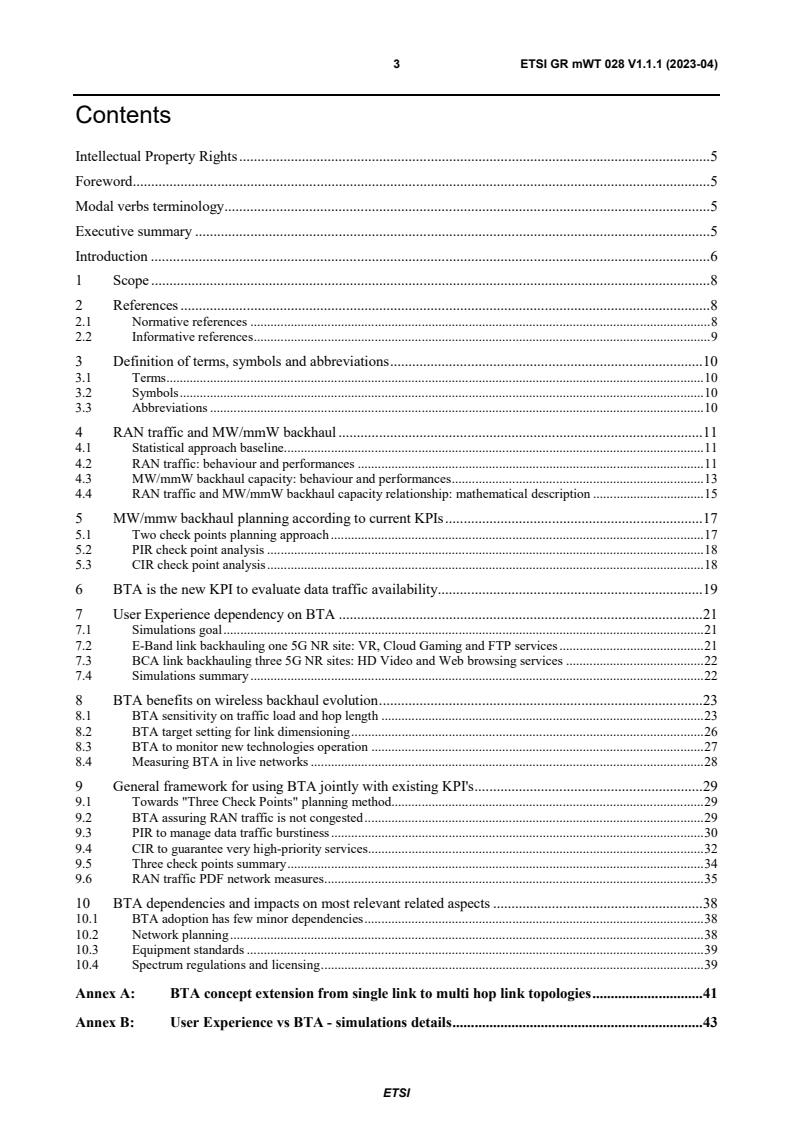

Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
Executive summary . 5
Introduction . 6
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 9
3 Definition of terms, symbols and abbreviations . 10
3.1 Terms . 10
3.2 Symbols . 10
3.3 Abbreviations . 10
4 RAN traffic and MW/mmW backhaul . 11
4.1 Statistical approach baseline. 11
4.2 RAN traffic: behaviour and performances . 11
4.3 MW/mmW backhaul capacity: behaviour and performances . 13
4.4 RAN traffic and MW/mmW backhaul capacity relationship: mathematical description . 15
5 MW/mmw backhaul planning according to current KPIs . 17
5.1 Two check points planning approach . 17
5.2 PIR check point analysis . 18
5.3 CIR check point analysis . 18
6 BTA is the new KPI to evaluate data traffic availability . 19
7 User Experience dependency on BTA . . 21
7.1 Simulations goal . 21
7.2 E-Band link backhauling one 5G NR site: VR, Cloud Gaming and FTP services . 21
7.3 BCA link backhauling three 5G NR sites: HD Video and Web browsing services . 22
7.4 Simulations summary . 22
8 BTA benefits on wireless backhaul evolution . . 23
8.1 BTA sensitivity on traffic load and hop length . 23
8.2 BTA target setting for link dimensioning . 26
8.3 BTA to monitor new technologies operation . 27
8.4 Measuring BTA in live networks . 28
9 General framework for using BTA jointly with existing KPI's . 29
9.1 Towards "Three Check Points" planning method. 29
9.2 BTA assuring RAN traffic is not congested . 29
9.3 PIR to manage data traffic burstiness . 30
9.4 CIR to guarantee very high-priority services. 32
9.5 Three check points summary . 34
9.6 RAN traffic PDF network measures . 35
10 BTA dependencies and impacts on most relevant related aspects . 38
10.1 BTA adoption has few minor dependencies . 38
10.2 Network planning . 38
10.3 Equipment standards . 39
10.4 Spectrum regulations and licensing . 39
Annex A: BTA concept extension from single link to multi hop link topologies . 41
Annex B: User Experience vs BTA - simulations details . 43
ETSI
4 ETSI GR mWT 028 V1.1.1 (2023-04)
B.1 E-Band link backhauling one 5G NR site: VR, gaming and FTP services . 43
B.1.0 Introduction . 43
B.1.1 Simulation Models and Assumptions . 43
B.1.1.0 Network scenario and network simulator . 43
B.1.1.1 Virtual Reality Downlink (VR DL) Stream Model . 44
B.1.1.2 Cloud Gaming Downlink (CG DL) Stream Model . 45
B.1.1.3 File Transfer Protocol Downlink (FTP DL) Stream Model . 45
B.1.1.4 The Happy User . 45
B.1.2 Numerical Analysis . 46
B.1.2.0 Simulation results and methodology . 46
B.1.2.1 100 % Of RAN Wireless Users Running Virtual Reality Downlink Services . 48
B.1.2.2 100 % Of RAN Wireless Users Running Cloud Gaming Downlink Services . 51
B.1.2.3 Mixed Traffic (67 % VR DL Users + 33 % FTP DL Users) . 53
B.2 BCA link backhauling three 5G NR sites: HD Video and Web browsing services . 55
B.2.0 Introduction . 55
B.2.1 Simulation Models and Assumptions . 55
B.2.1.0 Network scenario . 55
B.2.1.1 Details of RAN . 56
B.2.1.2 Details of wireless backhaul link . 56
B.2.1.3 Combined RAN and backhaul operation . 56
B.2.2 Numerical analysis . 58
B.2.3 Conclusions . 62
Annex C: Change History . 63
History . 64

ETSI
5 ETSI GR mWT 028 V1.1.1 (2023-04)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Group Report (GR) has been produced by ETSI Industry Specification Group (ISG) millimetre Wave
Transmission (mWT).
Modal verbs terminology
In the present document "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be
interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Executive summary
The ever increasing 4G and 5G traffic demand has reached a level that MW/mmW wireless backhaul extra cost due to
link over-engineering is not affordable any more in terms of spectrum resources (license fees), size of antennas to be
deployed, products to be used and energy consumption.
The well-known link dimensioning approach adopted today is based on two KPIs: Committed Information Rate (CIR)
and Peak Information Rate (PIR) with relevant target availability derived from legacy networks. This methodology is
not considering the fact that 99 % of the backhaul traffic nowadays is data.
The present document defines a new KPI called Backhaul Traffic Availability (BTA) that is based on the statistical
nature of Radio Access Network (RAN) data traffic and the statistical behaviour of wireless backhaul link capacity
against propagation related fading (such as rain fading). BTA represents the probability that wireless backhaul link is
not congesting RAN traffic.
ETSI
6 ETSI GR mWT 028 V1.1.1 (2023-04)
The present deliverable provides network simulation results demonstrating that BTA levels above 99,7 % does not
impact end user Quality of Experience. Such BTA target levels can easily be met by E-Band and BCA (Band and
Carrier Aggregation) links with hop lengths much longer (almost double) than typical limits derived by link
dimensioning approach used today.
Finally, the present document provides baseline for a new link dimensioning approach based on CIR, PIR and BTA,
called three-check points planning method. This new approach allows more efficient spectrum utilization re-considering
a less conservative definition of CIR (that is no longer calculated as percentage of PIR) and PIR targets, while using
BTA to make sure that the link will be capable to deliver RAN traffic without impacting Quality of Experience.
This new methodology does not change the foundation of radio propagation, it does not require new features on
MW/mmW equipment and it is not changing the way spectrum is used. It only needs a simple additional module in the
link planning tool for BTA calculation.
Introduction
Mobile backhaul with Microwave (MW) radio links is dating back to early 90s of last century when Mobile Network
Operators (MNOs) started deploying 2G networks for voice services. 2G backhaul was a simple E1 (2 Mbps) TDM
interface that was transported over PDH MW links using one single static modulation. Therefore, MNOs started to plan
backhaul links based on link outage targets (derived by Recommendation ITU-T G.827, [i.1]) that were mapping one to
one with voice service outage.
Since those days MNOs have deployed 3G, 4G and now 5G Radio Access Networks (RAN) introducing data services
on top of voice services: this took place with an exponential growth of backhaul capacity demand that is summarized
within following picture (more details on 5G capacity demand can be found in [i.2]). In a nutshell, it has started with
2 Mbps for 2G, and with 5G launch there is a need for 2 Gbps (and beyond): this is 3 orders of magnitude capacity
growth.
Figure 1: Backhaul capacity growth along RAN technology generations
In order to cope with an exponential backhaul capacity growth, MW technologies evolved introducing three key steps to
make most efficient usage of spectrum resources:
• Adaptive Coding and Modulation (ACM): for increasing spectral efficiency without compromising on link
outage.
• E-Band millimetre Wave (mmW) usage: for leveraging huge free spectrum on short hops.
• Band and Carrier Aggregation (BCA): for increasing E-Band applicability on longer hops without
compromising on link outage.
All these MW and mmW technologies introduced a wide dynamic range of capacity and availability pairs on top of the
simple TDM concept of link availability (outage) that was used for 2G. These new technologies have been deployed by
MNOs worldwide using planning availability criteria and targets derived by TDM consolidated concepts. Generally
speaking, large majority of MNOs adopted the following approach:
• link availability target was kept unchanged (4 to 5 nines typically) and a minimum target link capacity or
committed information rate (CIR) was defined based on a variety of criteria;
ETSI
7 ETSI GR mWT 028 V1.1.1 (2023-04)
• maximum link capacity or Peak Information Rate (PIR) target was defined based on RAN technology
deployed using simple formulas (most famous ones come from NGMN [i.3]) and setting a "less conservative
availability target" (4 nines, 3 nines, 2 nines) without strong rationales.
Regardless of which formulae and target availabilities MNOs choose to adopt, none of them can be considered a proper
planning methodology because they are missing to take into account two key aspects:
• RAN traffic cannot be described using only two figures (minimum and maximum, translated into CIR and
PIR); traffic demand is a continuous set of values (from min to max) with certain occurrence probabilities;
• MW/mmW backhaul link impact on RAN traffic demand cannot be described by two availability targets
(those associated with CIR and PIR) because it depends on full set of capacity and availability pairs provided
by ACM and BCA technologies.
The present document aims at defining a new planning methodology that will be based on the two key aspects listed
above. As the established planning methodology is based on some KPIs (CIR, PIR and relevant availability targets)
there is the need to define a new KPI in order to have a measurable parameter that can be calculated during link design
phase and then monitored in the network.
Reasons triggering the need of a new planning methodology is that existing one can lead to:
• either a link over-engineering in case of too demanding availability targets (e.g. when setting 4 nines on PIR);
• or a link under-engineering in case of reduced capacity targets (e.g. a PIR that does not suit RAN traffic peak
burstiness).
This fact is true since 3G era when MNOs started delivering data services. Nowadays with 4G and 5G traffic demand
levels, the Total Cost of Ownership (TCO) impact due to link over-engineering is becoming bigger and bigger in terms
of spectrum resources (license fees), size of antennas to be deployed, products to be used, etc. In other words, MNOs
deserve a more suitable planning methodology in order to optimize MW/mmW backhaul links TCO.
At the same time, this new planning methodology will ensure MNOs that MW/mmW backhaul links are properly
serving RAN traffic without impacting network performances, overall network KPIs and finally the User Experience
(most important aspect).
ETSI
8 ETSI GR mWT 028 V1.1.1 (2023-04)
1 Scope
The present document is aiming at the definition of new KPI's for planning microwave and millimetre wave backhaul
networks. Identification of new KPI's should take into account the evolution of wireless backhaul:
• more challenging requirements coming from 5G deployment;
• new technologies aiming at more efficient interference mitigation and cancellation;
• increase of use of spectrum in the millimetre wave range, both stand-alone and aggregated (BCA);
• different typologies and mix of services transported.
User Experience is the key driver for backhaul dimensioning considered in the present document. Studies, carried out to
produce the present document, have considered RAN traffic characteristics (both network measures and full
(propagation, interference, multi users, scheduling and protocols) RAN simulations) in conjunction with backhaul link
behaviour against propagation related fading (e.g. rain fading, multipath fading, etc.), with the aim to reach the most
efficient backhaul spectrum usage and reduced Total Cost of Ownership (TCO).
The present document focuses primarily on "single backhaul link" (carrying one or multiple RAN site(s) traffic) that is
baseline for MW/mmW planning. A few preliminary considerations on link daisy chains (legacy MW topology), hubs
& spoke (on-going topology trend due to increasing fibre penetration) and more general geographic area approaches
(i.e. clusters of hubs) can be found in annex A.
The present document considers RAN downlink traffic since it is more demanding than uplink traffic, thus becoming
the backhaul link dimensioning constraint in case of FDD symmetric spectrum resources allocation (standard approach
for all MW and mmW bands used for mobile backhaul today).
The present document is considering links already deployed and links that will be deployed using consolidated
MW/mmW technology (such as ACM and BCA). However in the present document the reader will also find some
general considerations on emerging MW/mmW technology evolutions.
The present document also provides an analysis of impacts and dependencies of the new KPI's on:
• network planning and monitoring (across entire link life cycle in a network);
• equipment standards (to spot if there are impacts or dependencies);
• spectrum regulations and licensing (to spot if there are impacts or dependencies).
Finally, it is also worth mentioning that Fronthaul (definition in 3GPP TR 38.801 [i.4]) is out of the present document
scope, while mid-haul can be considered included in the scope of the present document because it has capacity &
latency requirements very similar with backhaul ones. Regarding backhaul link, the present document focus is on
propagation related fading and it does not consider end users experience impacts due to any other backhaul link
impairments such as equipment failures, energy outage and network operations.
2 References
2.1 Normative references
Normative references are not applicable in the present document.
ETSI
9 ETSI GR mWT 028 V1.1.1 (2023-04)
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Recommendation ITU-T G.827 (September 2003): "Availability performance parameters and
objectives for end-to-end international constant bit-rate digital paths".
[i.2] ETSI White Paper No. 25 (February 2018): "Microwave and Millimetre-wave for 5G Transport".
[i.3] NGMN 0.4.2 FINAL (July 2011): "Guidelines for LTE Backhaul Traffic Estimation".
rd
[i.4] 3GPP TR 38.801 (V14.0.0): "3 Generation Partnership Project; Technical Specification Group
Radio Access Network; Study on new radio access technology: Radio access architecture and
interfaces (Release 14)".
[i.5] Recommendation ITU-R P.530-18 (September 2021): "Propagation data and prediction methods
required for the design of terrestrial line-of-sight systems".
[i.6] Recommendation ITU-R P.837-7 (June 2017): "Characteristics of precipitation for propagation
modelling".
[i.7] ETSI GR mWT 016 (V1.1.1): "Applications and use cases of Software Defined Networking
(SDN) as related to microwave and millimetre wave transmission".
[i.8] ETSI EN 302 217-1 (all parts): "Fixed Radio Systems; Characteristics and requirements for point-
to-point equipment and antennas".
[i.9] Recommendation ITU.R F.1703-0 (2005): "Availability objectives for real digital fixed wireless
links used in 27500 km hypothetical reference paths and connections".
[i.10] Recommendation ITU-R F.2113-0 (January 2018): "Error performance and availability objectives
and requirements for real point-to-point packet-based radio links".
[i.11] ETSI TS 138 300: "5G; NR; Overall description; Stage-2 (3GPP TS 38.300 Release 15)".
[i.12] ETSI TR 138 901 (V15.0.0): "5G; Study on channel model for frequencies from 0.5 to 100 GHz
(3GPP TR 38.901 version 15.0.0 Release 15)".
[i.13] 3GPP TR 38.838 (V17.0.0): "Study on XR (Extended Reality) Evaluations for NR".
[i.14] 3GPP TR 36.814 (V9.2.0): "Further advancements for E-UTRA physical layer aspects".
[i.15] 3GPP TR 36.873 (V12.7.0): "Study on 3D channel model for LTE".
[i.16] Recommendation ITU-T P.1203 (October 2017): "Parametric bitstream-based quality assessment
of progressive download and adaptive audiovisual streaming services over reliable transport".
ETSI
10 ETSI GR mWT 028 V1.1.1 (2023-04)
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the following terms apply:
dimensioning (a link): activity carried out by MNO to calculate link system gain needed to meet all link capacity
requirements
NOTE: Along the present document (link) planning or design is used as synonymous of (link) dimensioning
E1: European format for digital transmission of one PCM signal 2 048 kbit/s
end user experience (quality of experience): service quality perceived by a human being using a mobile terminal
mode: combination of a modulation order and a Forward Error Correction (FEC) coding scheme that a link can operate
propagation related fading: any possible fading due to propagation phenomena (such as rain or multipath) considered
in Recommendation ITU-R P.530-18 [i.5]
3.2 Symbols
For the purposes of the present document, the following symbols apply:
c Link capacity value corresponding to a given link mode (i,=0,1,…,N)
i
P (c ) Outage probability corresponding to a given link mode (i,=0,1,…,N)
o i
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
nd
2G 2 Generation Mobile Networks
rd
3G 3 Generation Mobile Networks
th
4G 4 Generation Mobile Networks
5G NR 5G New Radio
th
5G 5 Generation Mobile Networks
ACM Adaptive Coding and Modulation
BCA Band and Carrier Aggregation
BTA Backhaul Traffic Availability
CA Carrier Aggregation
CDF Cumulative Distribution Function
CG Cloud Gaming
CIR Committed Information Rate
DL Down Link
E2E End to End
FDD Frequency Division Duplex
FEC Forward Error Correction
FTP File Transfer Protocol
FWA Fixed Wireless Access
GBR Guaranteed Bit Rate
gNB 5G Node B
HD High Definition
IP Internet Protocol
KPI Key Performance Indicator
LTE Long Term Evolution
MIMO Multiple Input Multiple Output
mmW millimetre Wave
MNO Mobile Network Operator
MU Multiple Users
ETSI
11 ETSI GR mWT 028 V1.1.1 (2023-04)
MW MicroWave
NGMN Next Generation Mobile Networks alliance
NMS Network Management System
OSI Open Systems Interconnection
PDB Packet Delay Budget
PDF Probability Density Function
PDH Plesiochronous Digital Hierarchy
PIR Peak Information Rate
PM Performance Monitoring
POP Point Of Presence
QoE Quality of Experience
QoS Quality of Service
RAN Radio Access Network
RAT Radio Access Technology
RBS Radio Base Station
RS Radio Site
SDN Software Defined Network
SLA Service Level Agreement
SU Single User
SyncE Synchronous Ethernet
TCO Total Cost of Ownership
TCP Transmission Control Protocol
TDD Time Division Duplex
TDM Time Division Multiplex
UE User Equipment
UL Up Link
uR ultra-Reliable
VR Virtual Reality
WCDMA Wide band Code Division Multiple Access
XPIC Cross Polar Interference Canceller
XR eXtended Reality
4 RAN traffic and MW/mmW backhaul
4.1 Statistical approach baseline
The present clause provides the mathematical baseline used to prepare the present document by defining:
• RAN traffic as a statistical random variable (T) determined by several factors such as service types, end
users' number, end users' device performances, end users' geo-distribution across cell coverage, Radio Access
network Technologies (RATs) deployed, radio access network design in terms of coverage, interference, etc.;
• MW/mmW backhaul link capacity as a statistical random variable (C) determined by rain fading and further
possible propagation impairments (e.g. multipath fading, etc.), as per consolidated Recommendation
ITU-R P.530-18 [i.5];
• a mathematical description of the relationship between these two statistical variables (RAN traffic and
MW/mmW backhaul link capacity).
4.2 RAN traffic: behaviour and performances
RAN traffic generated by a single RAN cell (sector) with a single RAT is determined by several factors such as:
• end users' number served by the cell (this is continuously changing since it is a mobile network);
• end user's geo-distribution across cell coverage (given a certain number of users, overall cell traffic depends on
whether users are under good or bad propagation conditions);
ETSI
12 ETSI GR mWT 028 V1.1.1 (2023-04)
• end users' habits and services (traffic volume and traffic patterns changes a lot if users are doing web browsing
on public transportation or using FWA service at home watching 4k videos);
• radio access network design in terms of coverage and interference (changing with RAT configurations and
RAT features like SU-MIMO, MU-MIMO, CA, etc.);
• RAT parameters setting (changing continuously with optimization algorithms in place nowadays);
• end users' device performances (e.g. 4G/5G User Equipment Category 1, 2, …. to 26, etc.) that can leverage
existing network resources to a certain level;
• etc.
It is worth noting, in the present document, that RAN traffic is considered the amount of throughput potentially
generated by a certain configuration of the radio access network (in terms of the features specified above) without
taking into account possible bottlenecks imposed by the backhaul layer. This definition, that dissociates the
behaviour of the backhaul links from the actual traffic requests characterizing (in a statistical sense) the peculiar radio
access scenario, will allow defining a new planning method for MW/mmWave backhaul systems that is fully oriented to
the real End Users Experience.
All the above variables are impacting RAN traffic generated also in the simplest considered scenario (single RAN cell
with a single RAT) that can only be described as a statistical random variable.
When considering the traffic generated by one RAN site, typically composed of 3 cells (sectors) and a combination of
some RAT layers (4G + 5G across multiple bands), it can only be described with a statistical variable.
Then, when considering traffic generated by a certain number of RAN sites, once again it can only be described with a
statistical variable.
By observing this statistical variable in a live network for a certain period of time, the resulting traffic pattern looks
similar to the example shown in Figure 2: there is huge difference between minimum (low traffic hours) and maximum
(busy hours traffic) and there is a certain periodicity along days and weeks.

Figure 2: RAN traffic pattern example during 10 days
Traffic patterns are completely different in the case of a 4G+5G RAN site (using 150 MHz spectrum overall) in dense
urban areas or in the case of a 4G RAN site (using 20 MHz spectrum) in rural areas, and this is quite obvious. What is
less obvious is that different RAN sites with same set of RAT layers and spectrum usage, even when deployed within
the same urban area, can have completely different traffic patterns due to the different number of users served during
different time of the day. Moreover, even observing the same RAN site during 7 consecutive days and overlapping
traffic patterns along the 24 hours, the typical outcome is very different daily patterns as depicted in Figure 3.
ETSI
13 ETSI GR mWT 028 V1.1.1 (2023-04)

Figure 3: RAN site daily traffic patterns for 7 consecutive days
Therefore, it is not possible describing RAN traffic behaviour with simple formulae, see [i.3], that calculate some few
theoretical RAN performance figures (peak, average, etc.) based on the number and type of RAT layers deployed. The
only viable approach is to consider RAN traffic as a statistical random variable (T) that can be described by its own
Probability Density Function (PDF) or Cumulative Distribution Function (CDF) as depicted in Figure 4. The traffic
PDF shape for a given RAN site will change from one day to another and, of course, it will shift to the right along years
while the overall end users throughput grows (see Figure 4 b).

Figure 4: RAN site traffic PDF (RAN (T)) (a) and its evolution along years with traffic growth (b)
PDF
From previous considerations (see Figure 2 and Figure 3), it is evident that RAN traffic (T) is not a stationary process,
in the sense that PDF, average, variance, etc. change over time. Therefore, the first question link planners can have is
the following: which PDF should be considered? The answer is the following: most appropriate PDF can be identified
according to actual needs. If it is for link planning purposes, it might be useful considering worst case traffic PDF
measured over the network for all RAN sites with same RAT set-up. If it is for link monitoring purposes, it might be
useful considering daily traffic pattern envelope across multiple days (see Figure 3), considering max value at any time
and then calculating PDF.
One final remark is that, the only PDF (CDF) curve is sufficient to provide the overall RAN traffic description as it
represents the amount of bits per unit of time, with the associated occurrence probabilities, that should be delivered by
the backhaul network including the MW/mmW backhaul link serving the RAN, along hours, days, weeks, months and
years.
4.3 MW/mmW backhaul capacity: behaviour and performances
MW/mmW backhaul link capacity (C) behaviour is characterized by:
• a minimum link capacity (usually identified as CIR) that can be delivered even with very deep propagation
related fading before the link goes on full outage (when connectivity is down - zero traffic delivered for few
minutes in a year in this case);
ETSI
14 ETSI GR mWT 028 V1.1.1 (2023-04)
• a maximum link capacity (usually identified as PIR) that can be provided in clear sky conditions for most of
the time in a year (usually more than 364 days in a year);
• a set of intermediate link capacities that can be provided (by ACM and BCA technologies) in between clear
sky and deep propagation related fading conditions, usually referred as graceful capacity degradation, lasting
for few hours in a year- as depicted in Figure 5.

Figure 5: MW/mmW backhaul link capacity behaviour against propagation related fading events
Backhaul MW capacity provided by a link using ACM and BCA is a statistical random variable determined by:
• link design (system gain, bands, antennas, etc.);
• propagation impairments (mostly rain fading).
That does not have any periodicity, since capacity drops are taking place during some fading events randomly spread
along the year, each one with different time duration and fading depth.
The time duration in which the backhaul link is providing a certain capacity level (� ) is calculated as a probability of
�
fading occurrence according to well established ITU-R prediction methods provided in Recommendation ITU-T
P.530-18 [i.5]. This means that also MW/mmW link capacity performance can be described with a statistical random
�
variable C that can only assume a discrete set of values ��� . Notice that each capacity value � can be associated
� ��� �
with a certain outage probability � �� � ��, � �, �, … , �� as described in Figure 6. Accordingly the probability density
�
�
function of MW/mmW backhaul link capacity C can be formulated in a continuous domain as (see Figure 6):
���
Pr�� � � � �� �∙�����∑�� �� ��� ����∙����� ���1�� �� ��∙����� �
� 1 ��� � ��1 � � � � � �
where δ(C) is the Dirac delta function.

Figure 6: Statistical description of the MW/mmW backhaul link capacity
The set of pairs (c , P (c )) is what MW/mmW link planning tools calculate today with consolidated Recommendation
i o i
ITU-R P.530-18 [i.5] prediction methods. MW/mmW planning methodologies adopted by MNOs today typically
, P (c )) and (c , P (c )).
consider only a couple of these pairs, usually the two pairs (c1 o 1 N o N
ETSI
15 ETSI GR mWT 028 V1.1.1 (2023-04)
4.4 RAN traffic and MW/mmW backhaul capacity relationship:
mathematical description
In the previous clauses of clause 4, it has been described that both RAN traffic and MW/mmW backhaul capacity can
be described with statistical random variables determined by:
• RAN network characteristics and users' behaviour for RAN traffic (T);
• propagation related fading events (or other possible adverse propagation conditions as outlined in
Recommendation ITU-R P.530-18 [i.5]) for MW/mmW backhaul capacity (C).
Since there are no common factors determining RAN traffic and MW/mmW backhaul capacity, these two random
variables can be considered statistically independent and therefore their joint probability density function is the
product of the two probability density functions described previously in this clause. This is baseline to understand the
mathematical relationship provided in this clause.
��1
� � � � � � ∑� � � � �� � � � � �� � �
Pr �, � � ��� ���∙ �� � ∙� � � � � �� � ∙���� � 1� � � ∙���� �
��� � � � ��� � � � � � �
��1
���
� � � � � � � � ∑ � � � � �� � � � � � � ��
Pr �, � � � � ∙� � ∙ ��� � � � � �� � ∙� ��� ∙ ��� � � 1� � � ∙
� 1 ��� ��� � ��1 � � � ��� � �
����� �∙ ��� ���
� ���
Given a RAN site traffic PDF (RAN (T) as per clause 4.2) and a MW/mmW backhaul link capacity PDF (as per
PDF
clause 4.3) it is possible representing the joint probability density function formula Pr��, �� as depicted in Figure 7,
showing in a 3D representation:
• the set of N blue curves replicating the shape of RAN traffic PDF (RAN (T));
PDF
• for different MW/mmW backhaul link capacities (0, c , c and c ) weighted by relevant availabilities (P (c ),
1 2 N o 1
(c )- P (c ) … and 1- P (c )).
(Po 2 o 1 o N
Figure 7: Joint probability density function and probability of RAN traffic
exceeding backhaul capacity
ETSI
16 ETSI GR mWT 028 V1.1.1 (2023-04)
Given a RAN site traffic PDF (as per clause 4.2) and a MW/mmW backhaul link capacity PDF (as per clause 4.3), it is
possible to calculate the probability that the MW/mmW backhaul link cannot deliver the entire RAN traffic demand by
using the joint probability density function depicted in Figure 7. Areas coloured in blue represent the probability that
RAN traffic (T) is exceeding MW/mmW backhaul capacity � �� � 1,2, … , ��, AND that the MW/mmWave backhaul
�
link is delivering a capacity equal to � , due to the specific propagation conditions experienced on field (e.g. rain fading
�
or other according to Recommendation ITU-T P.530 [i.5]):
• when it is clear sky (with probability 1- P (c )), only RAN traffic exceeding maximum MW/mmW backhaul
o N
capacity c cannot be delivered by MW/mmW backhaul link, and the overall probability of this sub-event
N
reads:
�! ��
...
