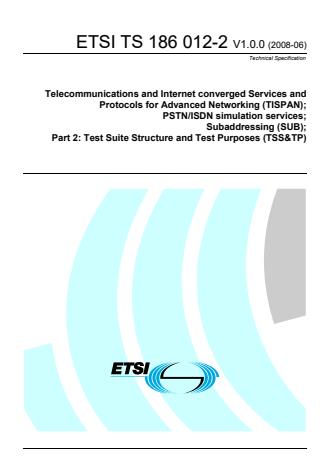

Technical Specification
Telecommunications and Internet converged Services and
Protocols for Advanced Networking (TISPAN);
PSTN/ISDN simulation services;
Subaddressing (SUB);
Part 2: Test Suite Structure and Test Purposes (TSS&TP)

2 ETSI TS 186 012-2 V1.0.0 (2008-06)

Reference
DTS/TISPAN-06044-2-NGN
Keywords
IMS, SUB, testing, TSS&TP
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2008.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
ETSI
3 ETSI TS 186 012-2 V1.0.0 (2008-06)

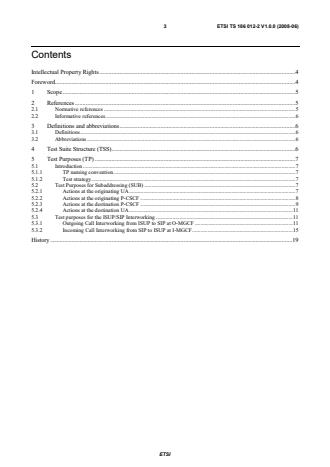

Contents
Intellectual Property Rights.4
Foreword.4
1 Scope.5
2 References.5
2.1 Normative references.5
2.2 Informative references.6
3 Definitions and abbreviations.6
3.1 Definitions.6
3.2 Abbreviations.6
4 Test Suite Structure (TSS).6
5 Test Purposes (TP).7
5.1 Introduction.7
5.1.1 TP naming convention.7
5.1.2 Test strategy.7
5.2 Test Purposes for Subaddressing (SUB) .7
5.2.1 Actions at the originating UA.7
5.2.2 Actions at the originating P-CSCF .8
5.2.3 Actions at the destination P-CSCF .9
5.2.4 Actions at the destination UA.11
5.3 Test purposes for the ISUP/SIP Interworking .11
5.3.1 Outgoing Call Interworking from ISUP to SIP at O-MGCF .11
5.3.2 Incoming Call Interworking from SIP to ISUP at I-MGCF.15
History .19

ETSI
4 ETSI TS 186 012-2 V1.0.0 (2008-06)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Technical Specification (TS) has been produced by ETSI Technical Committee Telecommunications and Internet
converged Services and Protocols for Advanced Networking (TISPAN).
The present document is part 2 of a multi-part deliverable covering the Subaddressing (SUB) service, as identified
below:
Part 1: "Protocol Implementation Conformance Statement (PICS)";
Part 2: "Test Suite Structure and Test Purposes (TSS&TP)".
ETSI
5 ETSI TS 186 012-2 V1.0.0 (2008-06)
1 Scope
The present document specifies the test suite structure and test purposes of the Subaddressing (SUB) service, based on
IP Multimedia Call Control Protocol based on Session Initiation Protocol (SIP) and Session Description Protocol (SDP)
Stage 3. Within the Next Generation Network (NGN) the stage 3 description is specified using the IP Multimedia
Communication Control Protocol based on Session Initiation Protocol (SIP) and Session Description Protocol (SDP).
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• Non-specific reference may be made only to a complete document or a part thereof and only in the following
cases:
- if it is accepted that it will be possible to use all future changes of the referenced document for the
purposes of the referring document;
- for informative references.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
For online referenced documents, information sufficient to identify and locate the source shall be provided. Preferably,
the primary source of the referenced document should be cited, in order to ensure traceability. Furthermore, the
reference should, as far as possible, remain valid for the expected life of the document. The reference shall include the
method of access to the referenced document and the full network address, with the same punctuation and use of upper
case and lower case letters.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are indispensable for the application of the present document. For dated
references, only the edition cited applies. For non-specific references, the latest edition of the referenced document
(including any amendments) applies.
[1] ETSI ES 283 003: "Telecommunications and Internet converged Services and Protocols for
Advanced Networking (TISPAN); IP Multimedia Call Control Protocol based on Session
Initiation Protocol (SIP) and Session Description Protocol (SDP) Stage 3
[3GPP TS 24.229 (Release 7), modified]".
[2] ETSI TS 186 012-1: "Telecommunications and Internet converged Services and Protocols for
Advanced Networking (TISPAN); PSTN/ISDN simulation services; Subaddressing (SUB);
Part 1: Protocol Implementation Conformance Statement (PICS)".
[3] ETSI TS 181 002: "Telecommunications and Internet converged Services and Protocols for
Advanced Networking (TISPAN); Multimedia Telephony with PSTN/ISDN simulation services".
[4] IETF RFC 3261: "SIP: Session Initiation Protocol".
[5] ETSI ES 283 027: "Telecommunications and Internet converged Services and Protocols for
Advanced Networking (TISPAN); Endorsement of the SIP-ISUP Interworking between the IP
Multimedia (IM) Core Network (CN) subsystem and Circuit Switched (CS) networks
[3GPP TS 29.163 (Release 7), modified]".
ETSI
6 ETSI TS 186 012-2 V1.0.0 (2008-06)
2.2 Informative references
The following referenced documents are not essential to the use of the present document but they assist the user with
regard to a particular subject area. For non-specific references, the latest version of the referenced document (including
any amendments) applies.
[i.1] IETF RFC 3966 (2004): "The tel URI for Telephone Numbers".
[i.2] ISO/IEC 8348:2002: "Information technology - Open Systems Interconnection - Network service
definition".
[i.3] ITU-T Recommendation X.213: "Information technology - Open Systems Interconnection -
Network service definition".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in TS 181 002 [3] and RFC 3261 [4] apply.
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACK ACKnowledgement
HOLD communication HOLD
IMS IP Multimedia Subsystem
IP Internet Protocol
ISDN Integrated Service Data Network
NGN Next Generation Network
PSTN Public Switched Telephone Network
SDP Session Description Protocol
SIP Session Initiation Protocol
SUB Subaddressing
TIP Terminating Identification Presentation
UA User Agent
UE User Equipment
URI Universal Resource Identifier
4 Test Suite Structure (TSS)
SUB
originating_UE SUB_U01_xxx
originating_P-CSCF SUB_N01_xxx
destination_P-CSCF SUB_N02_xxx
destination_UE SUB_U02_xxx
ISUP-SIP
SS SUB TP607xxx
SIP-ISUP
SS SUB TP508xxx
ETSI
7 ETSI TS 186 012-2 V1.0.0 (2008-06)
5 Test Purposes (TP)
5.1 Introduction
For each test requirement a TP is defined.
5.1.1 TP naming convention
TPs are numbered, starting at 001, within each group. Groups are organized according to the TSS. Additional references
are added to identify the actual test suite and whether it applies to the network or the user (see table 1).
Table 1: TP identifier naming convention scheme
Identifier: __
= supplementary service: e.g. "SUB"
= type of IUT: U User – equipment
N Network
= group 2 digit field representing group reference according to TSS
= sequential number (001-999)

5.1.2 Test strategy
As the base standard ES 283 003 [1] contains no explicit requirements for testing, the TPs were generated as a result of
an analysis of the base standard and the PICS specification TS 186 012-1 [2]. The criteria applied include the following:
• whether or not a test case can be built from the TP is not considered.
5.2 Test Purposes for Subaddressing (SUB)
5.2.1 Actions at the originating UA
TSS TP SUB reference [5] Selection expression
SUB/originating_UE SUB_U01_001 clause 4.5.2 PICS 1/1
Test purpose
UE sends a subaddress in the From header in the initial INVITE
Ensure that the originating user equipment is able to send an ISDN calling party subaddress in the From header of the
INVITE
Preconditions:
SIP header values:
INVITE: From: sip: user part; isub=@hostportion
Comments:
UA C SUT UA S
INVITE  INVITE
100 Trying  100 Trying
180 Ringing  180 Ringing
200 OK INVITE 200 OK INVITE
ACK  ACK
Communication
BYE BYE
200 OK BYE  200 OK BYE
ETSI
8 ETSI TS 186 012-2 V1.0.0 (2008-06)
TSS TP SUB reference [5] Selection expression
SUB/originating_UE SUB_U01_002 clause 4.5.2 PICS 1/1
Test purpose
UE sends a subaddress in the To header in the initial INVITE
Ensure that the originating user equipment is able to send a called party ISDN subaddress in the To header of the
INVITE
Preconditions:
SIP header values:
INVITE: To: sip: user part; isub=@hostportion
Comments:
UA C SUT UA S
INVITE  INVITE
100 Trying  100 Trying
180 Ringing  180 Ringing
200 OK INVITE  200 OK INVITE

ACK ACK
Communication
BYE  BYE
200 OK BYE  200 OK BYE
5.2.2 Actions at the originating P-CSCF
TSS TP SUB reference [5] Selection expression
SUB/originating_P-CSCF SUB_N01_001 clause 4.5.2 PICS 1/2
Test purpose
Ensure that the originating P-CSCF in able to transfer an ISDN subaddress in the From header and To header of the
received INVITE into the P-Asserted-Identity and Request-URI
Preconditions:
SIP header values:
INVITE: From: sip: user part; isub=@hostportion
To: sip: user part; isub=@hostportion
INVITE: P-Asserted-Identity: sip: user part; isub=@hostportion
Request-URI: sip: user part; isub=@hostportion
Comments:
UA C SUT UA S
INVITE  INVITE
100 Trying  100 Trying
180 Ringing  180 Ringing
200 OK INVITE  200 OK INVITE
ACK  ACK
Communication
BYE  BYE
200 OK BYE  200 OK BYE
ETSI
9 ETSI TS 186 012-2 V1.0.0 (2008-06)
TSS TP SUB reference [5] Selection expression
SUB/originating_P-CSCF SUB_N01_002 clause 4.5.2 PICS 1/2
Test purpose
Ensure that the originating P-CSCF in able to pass an ISDN connected subaddress in the “changed” From header of
the UPDATE
Preconditions:
SIP header values:
INVITE: supported: from-change
UPDATE: From: sip: user part; isub=@hostportion
Comments:
UA C SUT UA S
INVITE (From-change)  INVITE
100 Trying  100 Trying
180 Ringing  180 Ringing
200 OK INVITE 200 OK INVITE
ACK  ACK
UPDATE (From)  UPDATE (From)
200 OK UPDATE  200 OK UPDATE
Communication
BYE BYE
200 OK BYE  200 O
...
