ETSI GR PDL 010 V1.1.1 (2021-08)

PDL Operations in Offline Mode

DGR/PDL-0010_Offline_Mode

General Information

• Status: Not Published
• Technical Committee: PDL - Permissioned Distributed Ledger
• Current Stage: 12 - Completion
• Due Date: 15-Sep-2021
• Completion Date: 30-Aug-2021

Standards Content (Sample)

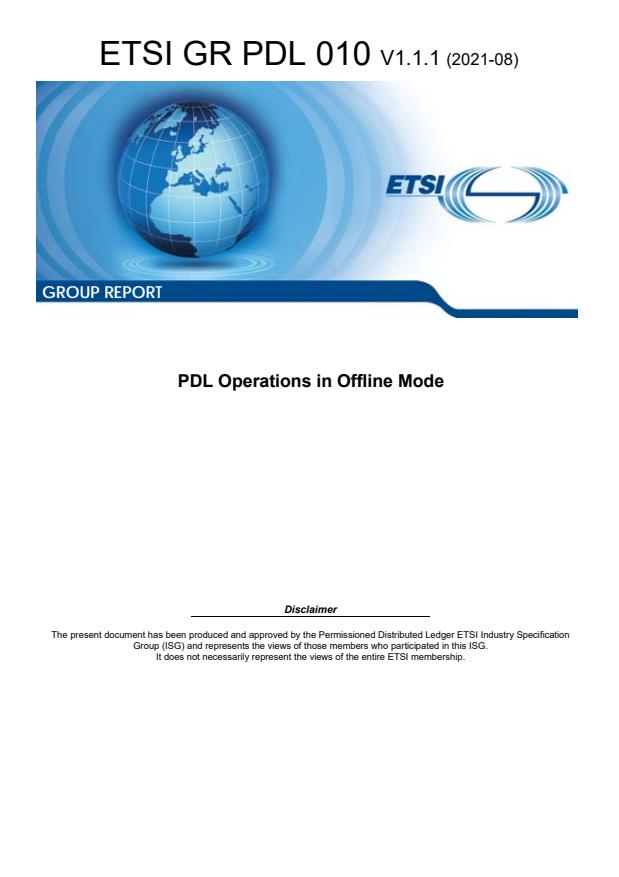

GROUP REPORT
PDL Operations in Offline Mode
Disclaimer
The present document has been produced and approved by the Permissioned Distributed Ledger ETSI Industry Specification
Group (ISG) and represents the views of those members who participated in this ISG.
It does not necessarily represent the views of the entire ETSI membership.

2 ETSI GR PDL 010 V1.1.1 (2021-08)

Reference
DGR/PDL-0010_Offline_Mode
Keywords
accountability, ledger, PDL, smart contract

ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2021.
All rights reserved.
ETSI
3 ETSI GR PDL 010 V1.1.1 (2021-08)

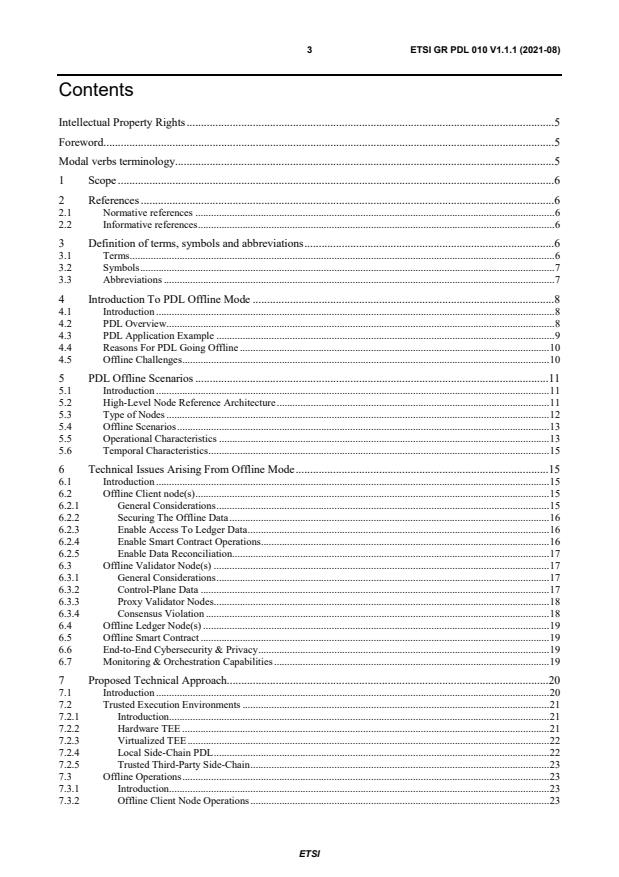

Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definition of terms, symbols and abbreviations . 6
3.1 Terms . 6
3.2 Symbols . 7
3.3 Abbreviations . 7
4 Introduction To PDL Offline Mode . 8
4.1 Introduction . 8
4.2 PDL Overview . 8
4.3 PDL Application Example . 9
4.4 Reasons For PDL Going Offline . 10
4.5 Offline Challenges . 10
5 PDL Offline Scenarios . 11
5.1 Introduction . 11
5.2 High-Level Node Reference Architecture . 11
5.3 Type of Nodes . 12
5.4 Offline Scenarios . 13
5.5 Operational Characteristics . 13
5.6 Temporal Characteristics . 15
6 Technical Issues Arising From Offline Mode . 15
6.1 Introduction . 15
6.2 Offline Client node(s) . 15
6.2.1 General Considerations . 15
6.2.2 Securing The Offline Data . 16
6.2.3 Enable Access To Ledger Data . 16
6.2.4 Enable Smart Contract Operations . 16
6.2.5 Enable Data Reconciliation. 17
6.3 Offline Validator Node(s) . 17
6.3.1 General Considerations . 17
6.3.2 Control-Plane Data . 17
6.3.3 Proxy Validator Nodes . 18
6.3.4 Consensus Violation . 18
6.4 Offline Ledger Node(s) . 19
6.5 Offline Smart Contract . 19
6.6 End-to-End Cybersecurity & Privacy . 19
6.7 Monitoring & Orchestration Capabilities . 19
7 Proposed Technical Approach . 20
7.1 Introduction . 20
7.2 Trusted Execution Environments . 21
7.2.1 Introduction. 21
7.2.2 Hardware TEE . 21
7.2.3 Virtualized TEE . 22
7.2.4 Local Side-Chain PDL . 22
7.2.5 Trusted Third-Party Side-Chain . 23
7.3 Offline Operations . 23
7.3.1 Introduction. 23
7.3.2 Offline Client Node Operations . 23
ETSI
4 ETSI GR PDL 010 V1.1.1 (2021-08)
7.3.3 Offline Validator Node Operations . 25
7.3.4 Offline Smart Contract Execution . 26
7.4 Proxy Mechanisms . 26
7.4.1 Introduction. 26
7.4.2 What Is A Proxy Node . 26
7.4.3 When To Elect A Proxy Node . 27
7.4.4 How To Elect Proxy Nodes . 27
7.4.5 Operations of Proxy Node . 27
7.5 PDL Reconciliation . 28
7.5.1 Introduction. 28
7.5.2 Ledger Reconciliation . 28
7.5.3 Smart Contract Reconciliation . 29
7.6 Monitoring and Orchestration . 29
7.6.1 Introduction. 29
7.6.2 End-to-End Security . 30
7.6.3 Privacy . 30
7.6.4 Monitoring . 30
7.6.5 Orchestration. 31
8 Offline PDL Architecture and Procedures . 31
8.1 Introduction . 31
8.2 PDL Architecture Embodiments . 31
8.2.1 Logical Architecture Elements . 31
8.2.2 High-Level Architecture . 33
8.2.3 3GPP-Aligned Architecture . 33
8.3 MANO-Aligned Orchestration Framework . 34
8.4 Deployment and Operational Procedures . 35
8.4.1 Introduction. 35
8.4.2 Offline Client Node Preparations . 35
8.4.3 Offline Client Node Operations . 36
8.4.4 Offline Validation Node Operations . 39
9 Conclusions and Next Steps . 39
9.1 Concluding Remarks . 39
9.2 Next Steps . 40
History . 41

ETSI
5 ETSI GR PDL 010 V1.1.1 (2021-08)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Group Report (GR) has been produced by ETSI Industry Specification Group (ISG) Permissioned Distributed
Ledger (PDL).
Modal verbs terminology
In the present document "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be
interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
6 ETSI GR PDL 010 V1.1.1 (2021-08)
1 Scope
The present document describes the current challenges related to data storage and ledger operations when a single PDL
node or several PDL nodes are offline. This may happen because the nodes are duty cycled, or go offline because of an
operational failure or a cyber attack. Operational problems are identified, and possible solutions discussed. Procedures
and architecture designs are also presented.
2 References
2.1 Normative references
Normative references are not applicable in the present document.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI GR PDL 002 (V1.1.1): "Permissioned Distributed Ledger (PDL); Applicability and
Compliance to Data Processing Requirements".
[i.2] Capability Hardware Enhanced RISC Instructions (CHERI); University of Cambridge.
NOTE: Available at https://www.cl.cam.ac.uk/research/security/ctsrd/cheri.
[i.3] ETSI GS NFV-MAN 001: "Network Functions Virtualisation (NFV); Management and
Orchestration".
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the following terms apply:
client node: physical node belonging to a client of the PDL, which may or may not be consortium member of the PDL
ledger node: physical node belonging to the PDL which stores data and execution logic in form of Smart Contracts in a
distributed and secure manner
offline mode: PDL with at least one element losing connectivity to one, several or all connected elements
online mode: PDL with all of its underlying nodes and protocols being operational and reachable at all times
orchestration: logical capability to provide operational and governance support to the PDL
Permissioned Distributed Ledger (PDL): distributed ledger which is not public, i.e. access permissions are restricted
and governed by prior established principles
validator node: physical node belonging to the PDL which is responsible for validating the content provided by the
Client nodes before passing it on to the ledge nodes
ETSI
7 ETSI GR PDL 010 V1.1.1 (2021-08)
3.2 Symbols
For the purposes of the present document, the following symbols apply:
N validated block of the main PDL at time moment N
N' validated block of the side-chain sPDL at time moment N
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
rd
3GPP 3 Generation Partnership Project
AI Artificial Intelligence
CHERI Capability Hardware Enhanced RISC Instructions
CP Control Plane
CU Central Unit
dApp distributed Application
DDoS Distributed Denial of Service
DLT Distributed Ledger Technology
ETSI European Telecommunications Standards Institute
GDPR General Data Protection Regulation
HTTP HyperText Transfer Protocol
IoT Internet of Things
IP Internet Protocol
IT Information Technology
JSON JavaScript Object Notation
MANO Management and Orchestration
ML Machine Learning
OFF Offline mode
ON Online mode
OOB Out Of Band
OS Operating System
pBFT practical Byzantine Fault Tolerance
PDL Permissioned Distributed Ledger
PDLF PDL Function
PoC Proof of Concept
PoET Proof of Elapsed Time
PoS Proof of Stake
PoW Proof of Work
RAN Radio Access Network
RISC Reduced Instruction Set Computer
RTT Round Trip Time
SBI Service-Based Interface
SDK Software Development Kit
SHA Secure Hash Algorithm
sPDL sidechain PDL
SSH Secure Shell (Protocol)
TCP Transmission Control Protocol
TEE Trusted Execution Environment
UK United Kingdom
VM Virtual Machine
VPN Virtual Private Network
ETSI
8 ETSI GR PDL 010 V1.1.1 (2021-08)
4 Introduction To PDL Offline Mode
4.1 Introduction
This clause gives a high-level introduction to Permissioned Distributed Ledgers (PDL) in Offline mode (OFF). To this
end, the operational mechanisms of PDL are reviewed first. Then, the present document illustrates a PDL usage
scenario and discusses reasons for a PDL going into OFF. Finally, the resulting implications are discussed which lay the
foundations for the work carried out in the present document.
4.2 PDL Overview
In the most general case, a ledger is a database. A distributed ledger is thus a distributed database that is consensually
shared and synchronized across multiple sites or nodes. The database is typically used through three main interactions:
1) submit (content from a client/user onto the ledger);
2) validate (and write onto the ledger the submitted content through a consensus protocol); and
3) read (the stored content from the ledger).
The content itself has evolved over past years. Initially, only ledger entries could be stored, such as financial
transactions, ownership association, etc. However, with the introduction of Ethereum in 2015, execution logic in form
of programming code could be stored too. This has led to the emergence of Smart Contracts and, as of late, distributed
Applications (dApps). The role of distributed ledgers is thus evolving from distributed databases that only store data, to
distributed contracts which can take programmatic action on stored or submitted data, to distributed applications that
can interface with the clients/users when submitting/reading data.
The writing of content onto the ledger typically happens in blocks which are cryptographically linked and, once
validated, distributed to all nodes across the entire ledger. The cryptographic linkage and spatial distribution, along with
a properly designed validation protocol, make the data written onto the ledger immutable. The distributed nature of the
ledger ensures that no central authority can alter content, thus making this technology useful in the context of
non-trusted parties interacting with each other.
At the core of each Distributed Ledger Technology (DLT) is the consensus protocol, which is being carried out by the
validators. It has many roles but mainly ensures that a specific ledger entry cannot appear more than once (thus
e.g. preventing the double-spend problem). Different consensus protocols have emerged over past years, such as Proof
of Work (PoW); Proof of Stake (PoS), Proof of Elapsed Time (PoET) or practical Byzantine Fault Tolerance (pBFT).
They differ in energy efficiency, scale, speed of transactions, among other factors.
Another important aspect is the notion of public vs. private ledger. It commonly refers to the degree of anonymity of
the validators but also typically extrapolates to the access rights in general, i.e. who can write to and read from the DLT.
In the case of a public ledger, validation and access can be done anonymously and by anybody wishing to participate in
the ledger. In the case of a private ledger, validation and/or access is restricted to a closed user group such as a
consortium (e.g. 10 companies).
Another point to consider is the difference between permissionless vs permissioned DLTs. It defines the degree of
trust in the validators which execute the consensus protocol. In a permissionless ledger, anyone can participate in the
consensus mechanism; whereas, in a permissioned ledger, only those fulfilling certain requirements can take part in the
consensus mechanism. Not all consensus protocols are suitable to all scenarios; e.g. permissionless ledgers (such as
Bitcoin) would use protocols such as PoW while permissioned ledgers (such as HyperFabric) may use more protocols
such as pBFT.
In the present document, solely Permissioned Distributed Ledgers (PDLs) are considered.
ETSI
9 ETSI GR PDL 010 V1.1.1 (2021-08)
4.3 PDL Application Example
Figure 4-1 illustrates an example of a PDL reference use-case scenario, which had been introduced in ETSI
GR PDL 002 [i.1]. The scenario pertains to an agricultural application, which is explained in more detail below.
Consider a farmer of a large set of disaggregated land claiming to only be using natural and organic substances, without
any chemical and/or genetically modified substances. To prove these credentials, and thus boosting sales, the farmer
decides to join a Bio Certification Alliance. The alliance offers bio certification using a PDL, so as to increase
transparency to its alliance governance players, to its farmers and to the end consumer wishing to validate the
truthfulness of the bio certificate.
At the farmer's side, this is enabled through a set of Internet of Things (IoT) sensors measuring chemical and other
pollution throughout the growth and production process. These sensors have their trusted certification and unique digital
identity. They constitute the Client nodes which transmit information into the PDL for validation. Said validation is
done by means of Validator nodes. Once validated, the information is immutably written onto the ledger and stored by
means of the Ledger nodes.
The accuracy of the measurements, and thus the credibility of the bio credentials, depends on the quality and accuracy
of the IoT devices and the sampling process. This is referred to as "the last mile" problem. It is beyond the scope of the
present document to discuss or solve the last mile problem, but embedding the trusted certification of such IoT devices
in the PDL may increase users' trust in the data these devices collect and store in the PDL.
In the context of a PDL, the Validator and Ledger nodes typically belong to a consortium where each member may own
a prior agreed set of these nodes. Furthermore, each member or a sub-set of members may offer a set of applications.
For instance, a part of the alliance members jointly offers the bio certificate, as long as the sensors in the field support
the bio credentials. Another alliance member may offer a smart irrigation service which controls the irrigation system in
each of the disaggregated land areas.
Above is enabled through Smart Contracts residing in the PDL. Notably, the logic of the Smart Contract will issue a
positive certification flag only when all sensors from each of the fields report adherence to bio credentials. The logic
can be programmed to perform that check at regular intervals, or be updated when new data from the sensors in the field
arrives. Equally, the irrigation Smart Contract will trigger the water valves to be opened when moisture falls below a
certain level across a prior agreed set of nodes. Other interesting conditions can be baked in, such as only switching on
irrigation when the water price is below a certain threshold (unless irrigation is critical to the survival of the crop). Note
that such conditions may be specific for bio credentials (e.g. detection of chemicals) while others may be general
(e.g. water cost optimization).

Figure 4-1: Example of a PDL reference use-case scenario from ETSI GR PDL 002 [i.1]
ETSI
10 ETSI GR PDL 010 V1.1.1 (2021-08)
4.4 Reasons For PDL Going Offline
From above example, it is clear that underpinning technology elements of a distributed ledger may occasionally go
offline. The reasons are discussed here:
• By Design:
- Maintenance: Part of the ledger may require maintenance, such as hardware, networking or software
maintenance. Whilst maintenance occurs, the normal operations of the ledger might be impacted which
leads to vulnerabilities that need to be dealt with.
- Duty Cycle: To minimize energy consumption of the entire ledger, some of its elements might be duty
cycled as per a given and prior agreed schedule. Whilst nodes are offline, possible operational issues as
well as vulnerabilities may occur which ought to be dealt with.
• By Circumstance:
- Temporary Unavailability: Elements of the ledger may unexpectedly become temporarily unavailable.
This could be, for instance, due to an end point using wireless communications moving away from a base
station and temporarily losing access to the ledger. Another example occurs in very remote locations
where the ledger might be connected via intermittent fixed-line or satellite network.
- Congested Network: In the case of bandwidth-limited or highly congested networks, intra and inter
ledger data may not be delivered in time (or delivered at all) and thus compromise the integrity of the
ledger operations. That is, all elements are in principle connected but data is not distributed properly. The
communication or PDL protocols may have mechanisms in place to resend missing data but that may not
happen within the timeframe requirements by the PDL.
• By Incident:
- Disaster and natural phenomena: Certain elements of the ledger might be powered by power sources
which go out of operations, e.g. due to unforeseeable natural phenomena, such as a lightning strike. The
loss of power can cause serious issues to the proper operations of the ledger.
- Attack: In the case of malicious attacks, elements of the ledger can be compromised and rendered intact
or offline; in the worst case, the majority quorum capabilities are compromised. This poses serious
threats to the integrity and operations of the ledger.
4.5 Offline Challenges
In the case that a PDL or some nodes of a PDL or certain functionality of a PDL are rendered offline, a series of
challenges arise which are not normally encountered in fully operational PDLs. These are summarized below and form
the rational for the technical approach outlined in the later part of the present document.
From a high level technical and operational point of view, the offline challenges can be categorized as follows:
1) Security: In terms of security of the PDL, the following issues arise:
a) Consensus Capabilities, i.e. the consensus approach underpinning the very essence of the PDL may get
compromised.
b) Weakening Security, i.e. cryptographic primitives may become unavailable and thus certain processes
become unverifiable.
2) Availability: In the most general terms, availability is impacted as follows:
a) Reconciliation Time, i.e. when nodes come back online after being offline, it may take some time for
them to catch up with the PDL. In the case of nodes suffering intermittent connectivity, it may be
possible that by the time they reconcile, the service is interrupted again and they go offline again.
b) Side-Chains & Chain Merging, i.e. the offline mode may trigger the emergence of side chains which
has an impact on integrity and availability; and certainly will influence the approach to chain merging.
The latter is typically a rare event but may happen very frequently in the discussed scenarios of offline
operations.
ETSI
11 ETSI GR PDL 010 V1.1.1 (2021-08)
c) Stale Transactions, i.e. if chain merging is not successful, some transactions may become stale which
ought to be dealt with by the offline ledger design.
3) Integrity: Important issues arise in the context of data integrity:
a) Control Data, i.e. data a previously offline node needs to have in order to be accepted back into the PDL
network. This typically pertains to authentication data, cryptographical keys, connectivity data, etc. The
data related with the content of the ledger itself is out of scope here.
b) Software Code, i.e. before being accepted back into the PDL network, checks will need to be performed
to ensure that the software/program running on it have not been compromised.
5 PDL Offline Scenarios
5.1 Introduction
This clause discusses possible scenarios resulting from ledgers going offline, as discussed in clause 4. To aid technical
understanding, a high-level technical reference architecture is introduced. Thereupon, the role of the different types of
nodes is discussed. It is then possible to construct and discuss the different PDL offline scenarios. Last, temporal and
spatial characteristics emerging from the different offline scenarios which is unique to a permissioned ledger having
offline constituents are discussed.
5.2 High-Level Node Reference Architecture
The application example given in clause 4.3 can be abstracted to a high-level reference Ledger node architecture as
illustrated in figure 5-1.
Notably, a set of Client nodes collects data which needs to be written onto the PDL. The data from the Client nodes is
transmitted via a fixed or wireless network to the Validator nodes.
The Validator nodes prepare the data for the specific ledger, i.e. sort the data, cast it into a specific format, check for
initial consistency, etc. They then perform the PDL-specific consensus protocol to validate the content of the
information provided by the Client nodes.
Once validated, the content is written onto the Ledger nodes which store the content for perpetuity. Ledger and
Validator nodes belong to several parties.
The end-to-end ledger is configured and maintained by means of PDL-orchestration. Said orchestrator may be
implemented on one or several Ledger nodes or on special-purpose orchestration nodes.
The links between the client and Validator nodes and between validator and Ledger nodes might be volatile due to
intermittent connectivity or congested networks.
ETSI
12 ETSI GR PDL 010 V1.1.1 (2021-08)

Figure 5-1: High-level node reference architecture comprised of client, validator and
Ledger nodes; the system is overseen by orchestration capabilities
5.3 Type of Nodes
As discussed in clause 4.4, there can be several reasons for a node to go offline, such as an engineered duty cycle or an
unexpected outage of the wireless network. In this clause, the role of each node type is explained and the likelihood of
them going offline estimated.
• Client nodes: These are nodes which belong to a client collecting, storing and/or transmitting data. From the
ledger's perspective, these are temporary and transient nodes: temporary because a specific Client node may
lose connection with the ledger (e.g. a vehicle is going through a patch of poor connectivity) and transient
because clients may sign onto the specific PDL service and after a few months/years sign off. Since their
presence cannot be guaranteed, they do not take part in the consensus process nor do they form part of the
storage ledger. They typically only update their state by sending transactions to Validator nodes.
• Validator nodes: These nodes accept transactions from the Client nodes, check the validity and send them to
Ledger nodes. Whilst Validator nodes are typically hosted in operationally reliable locations, they can go
offline when e.g. there is a network congestion or poor mid/backhaul. For that reason, a strong governance
model is required which ensures the viability of the consensus approach when some of the Validator nodes are
OFF. For example, a requirement could be that consensus can only be reached if two-thirds of the Validator
nodes are online.
• Ledger nodes: Ledger nodes are permanent nodes of the ledger. This means that all of the nodes are generally
available and online, unless of course in the case of force majeure or a cybersecurity attack. Depending on the
design requirements these nodes can or cannot be Validator node. Some architecture models allow Ledger
nodes to also serve as Validator nodes and vice versa. The state of the Ledger nodes is being updated by the
Validator nodes.
• PDL-Governance/Orchestration: Governance is important as it ensures the proper monitoring and execution
of the PDL. It is particularly important in the offline scenario as the orchestration capabilities will have to
maintain viability of the consensus protocol and ledger operations, among others. It may include roles like the
verification of certificates or the revocation of access rights.
Each of these nodes requires trusted digital identities and trusted certificates. Operationally, they can be hosted on bare-
metal servers, Virtual Machines (VMs) or containers. Depending on policy and regulation they may be required to be
hosted on-premises of the node operator or may be hosted on a public or private cloud.
ETSI
13 ETSI GR PDL 010 V1.1.1 (2021-08)
5.4 Offline Scenarios
The possible scenarios arising due a subset of certain node types becoming unavailable are summarized in table 5-1.
Note that when nodes are offline, they may or may not be functional. If they are functional, then they can continue
executing tasks locally. Note further that OFF refers to at least one of the node types not being reachable, and not
necessarily all of them. The table is sorted from the most likely scenario to the least likely one:
• Scenario #1: Is the reference scenario where all nodes are functional and reachable. This should be the modus
operandi of the PDL.
• Scenario #2: Occasionally, one, several or a cluster of the Client nodes may go offline due to reasons
discussed in previous clauses. When this occurs, in most cases the nodes will remain functional, but unable to
communicate with other PDL nodes. Situations where the nodes have been rendered dysfunctional or where an
entire cluster of nodes has gone offline should also be catered for. It is important to note that when a node goes
OFF the reason and functionality of such node are unknown to the other nodes.
• Scenarios #3 & #4: Rarely, one or more Validator nodes goes offline for reasons discussed in previous
clauses. Again, one needs to cater for situations where the node has been rendered dysfunctional, and not just
temporarily gone offline.
• Scenarios #5-#8: Extremely unlikely but plausibly, one or more Ledger nodes goes offline for reasons
discussed in previous clauses.
The likelihood of any of the scenarios to occur depends on the spatial distribution of the nodes as well as on
redundancy/diversity of power and communication utilities, which also impacts the temporal behaviour of the system.
Unlike always-on PDLs, Offline PDLs thus suffer from breaks in chain causality. This, in turn, jeopardizes the very
essence of distributed ledgers and thus warrants appropriate design attention.
Table 5-1: Possible operating scenarios due to different node types being reachable or offline
Client nodes Validation Nodes Ledger nodes Likelihood
Scenario #1 ON ON ON very likely
Scenario #2
OFF ON ON occasional
Scenario #3 rare
ON OFF ON
Scenario #4 OFF OFF ON rare
Scenario #5 ON ON OFF unlikely
Scenario #6 OFF ON OFF unlikely
Scenario #7 ON OFF OFF unlikely
Scenario #8 OFF OFF OFF unlikely
NOTE: Nodes that are offline may or may not be functional. Furthermore, OFF refers to at least one of the
node types not being reachable. The table is sorted from most likely to least likely.

5.5 Operational Characteristics
The likelihood of a node or set of nodes going offline depends on spatial and operational characteristics of the system,
i.e. the node location and operational provisioning.
The spatial composition of a typical PDL is likely as follows:
• Client nodes: These are typically lightweight nodes with an embedded Operating System (OS) and limited
processing power, onboard memory and battery power. Depending on the PDL design, they could form part of
the PDL or not. In any case, Client nodes write data onto the ledger and may receive instructions from the
ledger via Smart Contracts. They are located at the very edge of the network, are typically mobile and often
untethered.
• Validator nodes: These are typically placed physically close to the Client nodes but within the networking
infrastructure. For instance, in a 5G system, Validator nodes could sit in the Central Unit (CU) of the Radio
Access Network (RAN), or any other edge-cloud location. They would typically be virtualized via VMs or
containers, and have sufficient processing power. Whilst spatially placed in a managed environment, the edge
is often connected via unreliable backhaul which makes the operational viability of these nodes volatile.
ETSI
14 ETSI GR PDL 010 V1.1.1 (2021-08)
• Ledger nodes: These ar
...
