Standards Content (Sample)

ETSI GS CIM 016 V1.1.1 (2021-04)






GROUP SPECIFICATION
Context Information Management (CIM);
NGSI-LD Testing Framework: Test Template
Disclaimer
The present document has been produced and approved by the cross-cutting Context Information Management (CIM) ETSI
Industry Specification Group (ISG) and represents the views of those members who participated in this ISG.
It does not necessarily represent the views of the entire ETSI membership.

---------------------- Page: 1 ----------------------
2 ETSI GS CIM 016 V1.1.1 (2021-04)



Reference
DGS/CIM-0016v111
Keywords
API, IoT, testing

ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2021.
All rights reserved.

DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.

3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and
of the oneM2M Partners.
®
GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI

---------------------- Page: 2 ----------------------
3 ETSI GS CIM 016 V1.1.1 (2021-04)

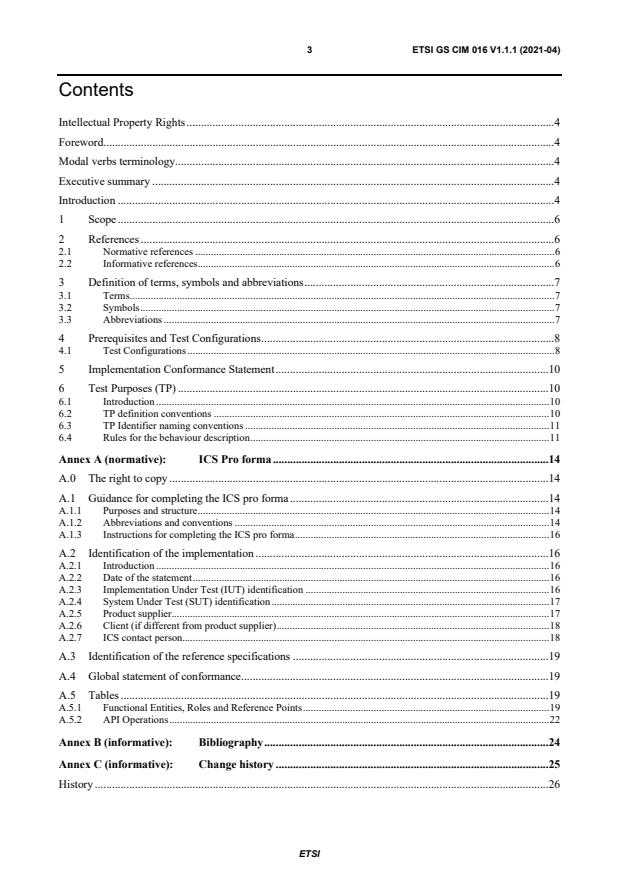

Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 4
Executive summary . 4
Introduction . 4
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definition of terms, symbols and abbreviations . 7
3.1 Terms . 7
3.2 Symbols . 7
3.3 Abbreviations . 7
4 Prerequisites and Test Configurations . 8
4.1 Test Configurations . 8
5 Implementation Conformance Statement . 10
6 Test Purposes (TP) . 10
6.1 Introduction . 10
6.2 TP definition conventions . 10
6.3 TP Identifier naming conventions . 11
6.4 Rules for the behaviour description . 11
Annex A (normative): ICS Pro forma . 14
A.0 The right to copy . 14
A.1 Guidance for completing the ICS pro forma . 14
A.1.1 Purposes and structure . 14
A.1.2 Abbreviations and conventions . 14
A.1.3 Instructions for completing the ICS pro forma . 16
A.2 Identification of the implementation . 16
A.2.1 Introduction . 16
A.2.2 Date of the statement . 16
A.2.3 Implementation Under Test (IUT) identification . 16
A.2.4 System Under Test (SUT) identification . 17
A.2.5 Product supplier . 17
A.2.6 Client (if different from product supplier) . 18
A.2.7 ICS contact person. 18
A.3 Identification of the reference specifications . 19
A.4 Global statement of conformance . 19
A.5 Tables . 19
A.5.1 Functional Entities, Roles and Reference Points . 19
A.5.2 API Operations . 22
Annex B (informative): Bibliography . 24
Annex C (informative): Change history . 25
History . 26

ETSI

---------------------- Page: 3 ----------------------
4 ETSI GS CIM 016 V1.1.1 (2021-04)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
Foreword
This Group Specification (GS) has been produced by ETSI Industry Specification Group (ISG) cross-cutting Context
Information Management (CIM).
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Executive summary
The present document is providing operational guidance to the one developing and using the NGSI-LD test suites. It
identifies the different test configurations which may be encountered within ISG CIM architectures. It also defines a
template for the Test Purposes (TP) description and finally lists the Implementation Conformance Statements (ICSs).
Introduction
The ISG CIM group has defined an API for exchange of information contextualized in time, space and relation to other
information using a property graph model with the intent that the associated protocol (called NGSI-LD) becomes the
"glue" between all kinds of applications and databases associated with services for Smart Cities, Smart Agriculture,
Smart Manufacturing, etc.
To be successful, the NGSI-LD API specification needs to be well understood and well implemented. The community
of users will not be solely highly professional engineers employed by big companies but will include many small teams
and SMEs and even hobbyists. Therefore, it is essential that the developers have access to not only the standard but also
a test specification and a testing environment to check that their work is (and remains) conformant to the ETSI
NGSI-LD specification.
ETSI

---------------------- Page: 4 ----------------------
5 ETSI GS CIM 016 V1.1.1 (2021-04)
The developers will usually write integration tests to validate the behaviour of their NGSI-LD implementation, but it is
important to assert compliance to the specification based on a test suite agreed by the group creating the API
specification, i.e. ETSI ISG CIM. Therefore, it is very important to create a set of ETSI-approved test cases.
What is more, the existence of such a test suite will likely help to increase the adoption of the NGSI-LD specification
by giving developers a ready to use and complete set of sample requests.
The present document defines the underlying structure of the test suite: it first identifies the different test configurations,
then defines the template to draft the test purposes and finally specifies the Implementation Conformance Statements
(ICSs) aimed at listing the target capabilities of the NGSI-LD specification.

ETSI

---------------------- Page: 5 ----------------------
6 ETSI GS CIM 016 V1.1.1 (2021-04)
1 Scope
The Testing Framework (document format) specifies a testing framework defining a methodology for the development
of the test strategies, test systems and resulting test specifications. The present document identifies the implementation
under test (scope of the testing), the format for the test specification, the test architecture, the points of control and
observation, the naming conventions (e.g. for test case ID and test case grouping ID), etc. It also provides the
Implementation Conformance Statement which is basically a checklist for a client-owner so they know what parts of the
specification will be tested and if any is optional. The ICS will be published as a separate GS.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI GS CIM 009 (V1.3.1): "Context Information Management (CIM); NGSI-LD API".
NOTE: Available at
https://www.etsi.org/deliver/etsi_gs/CIM/001_099/009/01.03.01_60/gs_CIM009v010301p.pdf.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long-term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ISO/IEC 9646-7: "Information technology - Open Systems Interconnection - Conformance testing
methodology and framework - Part 7: Implementation Conformance Statements".
ETSI

---------------------- Page: 6 ----------------------
7 ETSI GS CIM 016 V1.1.1 (2021-04)
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the following terms apply:
NOTE: The letters "NGSI-LD" were added to most terms to confirm that they are distinct from other terms of
similar/same name in use in other organizations, however, in the present document the letters "NGSI-LD"
are generally omitted for brevity.
NGSI-LD Central Broker: NGSI-LD Context Broker that only uses a local storage when serving NGSI-LD requests,
without involving any external Context Sources
NGSI-LD Context Broker: architectural component that implements all the NGSI-LD interfaces
NGSI-LD Context Consumer: agent that uses the query and subscription functionality of NGSI-LD to retrieve context
information
NGSI-LD Context Producer: agent that uses the NGSI-LD context provision and/or registration functionality to
provide or announce the availability of its context information to an NGSI-LD Context Broker
NGSI-LD Context Registry: software functional element where Context Sources register the information that they can
provide
NOTE: It is used by Distribution Brokers and Federation Brokers to find the appropriate Context Sources which
can provide the information required for serving an NGSI-LD request.
NGSI-LD Context Source: source of context information which implements the NGSI-LD consumption and
subscription (and possibly provision) interfaces defined by the present document
NOTE: It is usually registered with an NGSI-LD Registry so that it can announce what kind of information it can
provide, when requested, to Context Consumers and Brokers.
NGSI-LD Distribution Broker: NGSI-LD Context Broker that uses both local context information and registration
information from an NGSI-LD Context Registry, to access matching context information from a set of distributed
Context Sources
NGSI-LD Federation Broker: Distribution Broker that federates information from multiple underlying NGSI-LD
Context Brokers and across domains
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
API Application Programming Interface
ATS Abstract Test Suite
GR Group Report
GS Group Specification
HTTP HyperText Transfer Protocol
HTTPS HyperText Transfer Protocol Secure
ICS Implementation Conformance Statement
IoT Internet of Things
ISG Industry Specification Group
ISO International Organization for Standardization
IUT Implementation Under Test
JSON JavaScript Object Notation
ETSI

---------------------- Page: 7 ----------------------
8 ETSI GS CIM 016 V1.1.1 (2021-04)
JSON-LD JSON Linked Data
NGSI Next Generation Service Interfaces
PDU Protocol Data Unit
PICS Profile Implementation Conformance Statement
RDF Resource Description Format
RDFS Resource Description Format Schema
SUT Implementation Under Test
TB Technical Body
ToR Terms of Reference
TP Test Purposes
TSS Test Suite Structure
TSS&TP Test Suite Structure & Test Purposes
URL Universal Resource Locator
4 Prerequisites and Test Configurations
4.1 Test Configurations
Test configurations are defined upon the different architectures' options defined in clause 4.3 of ETSI GS CIM 009 [1].
Considered architectures are:
• Centralized architecture: A Central Broker stores all the context information. There are Context Producers
that use update operations to update the context information in the Central Broker and there are Context
Consumers that request context information from the Central Broker, either using synchronous one time query
or asynchronous subscribe/notify operations.
• Distributed architecture: All information is stored by the Context Sources. Context Sources implement the
query and subscription part of the NGSI-LD API as a Context Broker does. They register themselves with the
Context Registry, providing information about what context information they can provide, but not the context
information itself.
• Federated architecture: The architecture works in the same way as the distributed architecture described in
clause 4.3.3 of ETSI GS CIM 009 [1], except that instead of simple Context Sources, whole domains are
registered with the respective Context Broker as point of access. Typically, the domains will be registered to
the federation Context Registry on a more coarse-grained level, providing scopes, in particular geographic
scopes, that can then be matched to the scopes provided in the requests.
Test configurations are defined to test different entities such as NGSI-LD Broker, NGSI-LD Context Producer, NGSI-
LD Context Consumer, NGSI-LD Context Source, etc.

Figure 4.1-1: Test configuration 1 (CF01)
ETSI

---------------------- Page: 8 ----------------------
9 ETSI GS CIM 016 V1.1.1 (2021-04)

Figure 4.1-2: Test configuration 2 (CF02)

Figure 4.1-3: Test configuration 3 (CF03)

Figure 4.1-4: Test configuration 4 (CF04)

Figure 4.1-5: Test configuration 5 (CF05)
ETSI

---------------------- Page: 9 ----------------------
10 ETSI GS CIM 016 V1.1.1 (2021-04)
5 Implementation Conformance Statement
An ICS pro forma which conforms to this ICS pro forma specification shall be technically equivalent to annex A, and
shall preserve the numbering and ordering of the items in annex A.
An ICS which conforms to this PICS pro forma specification shall:
a) describe an implementation which claims to conform to ETSI GS CIM 009 [1];
b) be a conforming ICS pro forma which has been completed in accordance with the instructions for completion
given in clause A.1;
c) include the information necessary to uniquely identify both the supplier and the implementation.
6 Test Purposes (TP)
6.1 Introduction
A test purpose is an informal description of the expected test behaviour. As such it is written in prose.
When needed to clarify the TP, it is helpful to add some graphical presentations, mainly tables, and include message
sequence charts.
6.2 TP definition conventions
In order to increase the readability of the TP, the following two recommendations should be followed:
• Each TP should be presented in a table, containing two main parts:
- The TP header, which contains the TP identifier, the TP objective and the external references (ICS and
base standard).
- The behaviour part, which contains the test behaviour description. This part can be optionally divided in
the three following parts, in order to increase the readability:
 the initial conditions;
 the expected behaviour;
 the final conditions.
• The prose describing the test behaviour (including initial and final conditions) should follow some rules, as for
instance the use of reserved keywords and syntax.
Table 6.2-1: TP template
TP Id

Test objective

References

Config Id

PICS Selection

Initial conditions

Expected behaviour Test events Direction
when {
SUT  Client
}
then {
SUT  Client
}

ETSI

---------------------- Page: 10 ----------------------
11 ETSI GS CIM 016 V1.1.1 (2021-04)
Table 6.2-2: Description of the fields of the TP template
TP Header
TP ID The TP ID is a unique identifier. It shall be specified according to the TP naming
conventions defined in clause 6.3.
Test objective Short description of test purpose objective according to the requirements from the base
standard. The test objective clearly indicates which requirement is intended to be tested
in the test purpose. This part eases the understanding of the TP behaviour. This also
eases the identification of the requirements, which were used as a basis for the test
purpose. It is recommended to limit the length of the test objective to one sentence.
References The reference indicates the clauses of the reference standard specifications in which the
conformance requirement is expressed. In the reference row, the TP writer indicates, in
which clauses of the protocol standards, the requirement is expressed. This information
is critical, because it justifies the existence and the behaviour of the TP. The reference
row may refer to several clauses. When the clause containing the requirement is big (for
instance, more than ½ page), it is recommended to indicate the paragraph of the clause
where the requirement was identified. The reference to the base standard actually is
precise enough to enable the TP reader to identify quickly and precisely the requirement.
Config ID The Config ID is a unique identifier for the configuration required to execute the test.
PICS selection The PICS selection row contains a Boolean expression, made of ICS parameters. It is
recommended to use ICS acronym, which clearly identify the role of the ICS. A mapping
table is included in the TP document to link the ICS acronym with its corresponding
reference in the ICS document.
Initial conditions The initial conditions define in which initial state the SUT has to be to apply the actual TP.
In the corresponding Test Case, when the execution of the initial condition does not
succeed, it leads to the assignment of an inconclusive verdict.
Expected behaviour Definition of the events, which are parts of the TP objective, and the SUT are expected to
perform in order to conform to the base specification. In the corresponding Test Case,
Pass or Fail verdicts can be assigned there.

6.3 TP Identifier naming conventions
The TP identifier identifies uniquely the test purposes. In order to ensure the uniqueness of the TP identifier, it follows a
naming convention.
The more useful and straightforward naming convention consists of using the test suite structure, to form the first part
of the TP identifier. Then the final part consists of a number to identify the TP order within a TP group.
The TP identifier is formed by the abbreviation "TP", followed by abbreviation representing the group of the following
TSS levels. Each field of the TP identifier is separated by a "/".
Proposed TP naming convention:
TP/NGSI-LD//<sub>//_
A TP identifier, following the above convention of the table could then be:
TP/NGSI-LD/CI/Prov/E/002_03
6.4 Rules for the behaviour description
The following global rules apply, when writing the behaviour description:
• The behaviour description is written in an explicit, exhaustive and unambiguous manner.
• The behaviour description only refers to externally observable test events (send/receive PDUs, timer, counters,
etc.) or to events or states, which can be directly or indirectly observed externally.
• All test events used in the behaviour description are part of the procedures specified in the standards.
• The wording of the test events in the behaviour description is explicit, so that the ATS writers do not have to
interpret the behaviour description.
ETSI

---------------------- Page: 11 ----------------------
12 ETSI GS CIM 016 V1.1.1 (2021-04)
• All test events in the behaviour description should result as far as possible in one ATS statement.
The test behaviour is described in prose. This enables to use different ways to express similar behaviour. But using
different expressions to define identical behaviours can lead to some misinterpretation of the test purposes. Also, the
meaning and the expected order of the test events have a clear and unique meaning for different readers.
Thus, the present document recommends to use pre-defined keywords in order to express clearly and uniquely the test
behaviour.
Table 6.4-1 shows some recommended pre-defined keywords and their context of usage. The pre-defined keywords are
also likely to be used in combination with the "{" "}"delimiters, in order to clearly delimitate their action in the test
behaviour description.
Table 6.4-1 does not present an exhaustive list, so that additional keywords might be defined as necessary. The
definition of additional keywords is included in the corresponding TSS&TP document.
Table 6.4-1: List of pre-defined keywords for the behaviour description
Behavioural keywords
with with, together with "{" "}" delimiters is used to express the initial conditions, which consist of a set
of events, to be executed before starting with the test behaviour corresponding to the test
objective.
EXAMPLE:
With { the SUT having sent a container create request message and . }
ensure that ensure that, together with "{" "}" delimiters is used to define the place of the expected behaviour
(TP body) or the final conditions.
EXAMPLE:
ensure that {
when { the SUT receives a valid container create request message. }
when/then when combined with then enables to define the test behaviour involving a combination of stimuli
and response events. The when/then combination is used when the occurrence of an event is
triggered by the realization of a previous event.
EXAMPLE:
ensure that {
when {
a XXX signal is activated }
then {
the SUT sends a message containing YYY Value indicating "True"} }
Event keywords
the SUT Event in the TP is expressed from the point of view of the SUT. This avoid any misinterpretation.
receives states for an event corresponding to the receipt of a message by the SUT.
having received states for a condition where the SUT has received a message.
sends states for an event corresponding to the sending of a message by the SUT.
having sent states for a condition where the SUT has sent a message.
from/to Indicates the destination or the origin of a message as necessary (interface, .)
EXAMPLE:
ensure that {
when { the
...</sub>
