ETSI TS 138 211 V15.10.0 (2022-01)

5G; NR; Physical channels and modulation (3GPP TS 38.211 version 15.10.0 Release 15)

RTS/TSGR-0138211vfa0

General Information

• Status: Not Published
• Technical Committee: 3GPP RAN 1 - Radio layer 1 specification
• Current Stage: 12 - Completion
• Completion Date: 26-Jan-2022

Standards Content (Sample)

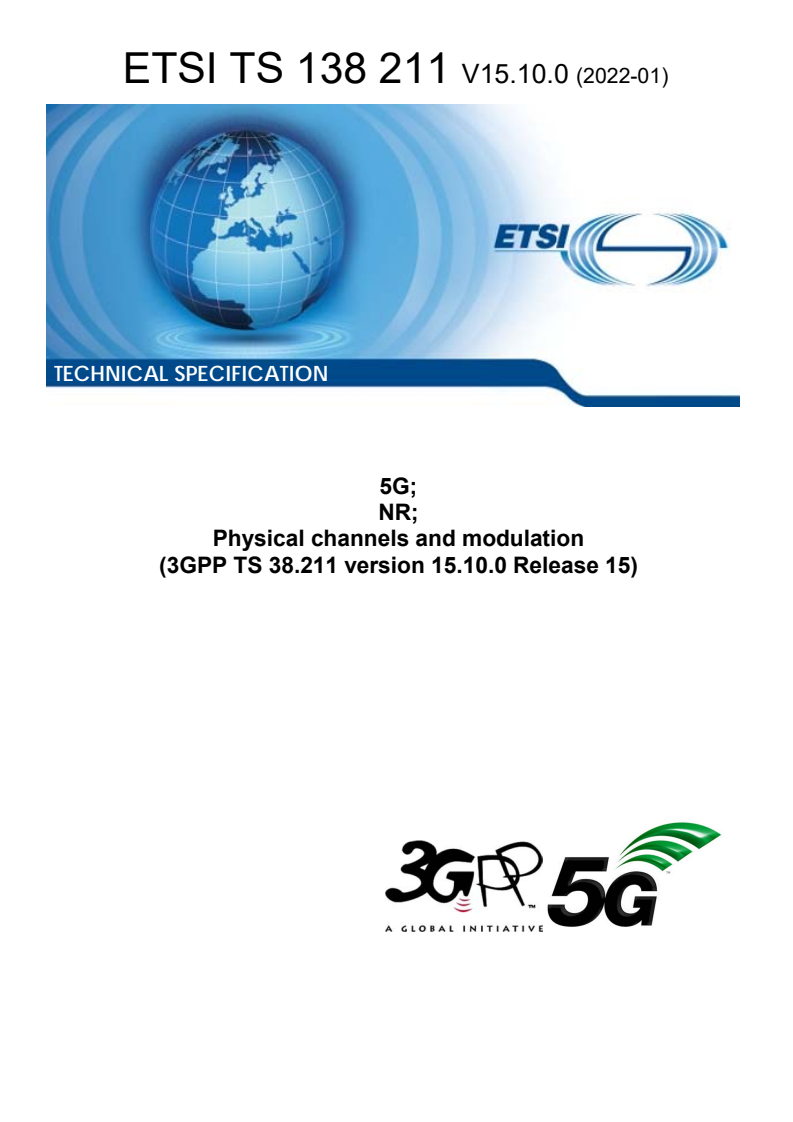

TECHNICAL SPECIFICATION
5G;
NR;
Physical channels and modulation
(3GPP TS 38.211 version 15.10.0 Release 15)

3GPP TS 38.211 version 15.10.0 Release 15 1 ETSI TS 138 211 V15.10.0 (2022-01)

Reference
RTS/TSGR-0138211vfa0
Keywords
5G
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2022.
All rights reserved.
ETSI
3GPP TS 38.211 version 15.10.0 Release 15 2 ETSI TS 138 211 V15.10.0 (2022-01)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Legal Notice
This Technical Specification (TS) has been produced by ETSI 3rd Generation Partnership Project (3GPP).
The present document may refer to technical specifications or reports using their 3GPP identities. These shall be
interpreted as being references to the corresponding ETSI deliverables.
The cross reference between 3GPP and ETSI identities can be found under http://webapp.etsi.org/key/queryform.asp.
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
3GPP TS 38.211 version 15.10.0 Release 15 3 ETSI TS 138 211 V15.10.0 (2022-01)
Contents
Intellectual Property Rights . 2
Legal Notice . 2
Modal verbs terminology . 2
Foreword . 6
1 Scope . 7
2 References . 7
3 Definitions, symbols and abbreviations . 7
3.1 Definitions . 7
3.2 Symbols . 7
3.3 Abbreviations . 8
4 Frame structure and physical resources . 9
4.1 General . 9
4.2 Numerologies . 9
4.3 Frame structure . 10
4.3.1 Frames and subframes . 10
4.3.2 Slots . 10
4.4 Physical resources . 11
4.4.1 Antenna ports . 11
4.4.2 Resource grid . 11
4.4.3 Resource elements . 12
4.4.4 Resource blocks . 12
4.4.4.1 General . 12
4.4.4.2 Point A . 12
4.4.4.3 Common resource blocks . 12
4.4.4.4 Physical resource blocks . 12
4.4.4.5 Virtual resource blocks . 13
4.4.5 Bandwidth part . 13
4.5 Carrier aggregation . 13
5 Generic functions . 13
5.1 Modulation mapper . 13
5.1.1 π/2-BPSK . 13
5.1.2 BPSK . 13
5.1.3 QPSK . 14
5.1.4 16QAM . 14
5.1.5 64QAM . 14
5.1.6 256QAM . 14
5.2 Sequence generation . 14
5.2.1 Pseudo-random sequence generation . 14
5.2.2 Low-PAPR sequence generation . 15
5.2.2.1 Base sequences of length 36 or larger . 15
5.2.2.2 Base sequences of length less than 36 . 15
5.3 OFDM baseband signal generation . 19
5.3.1 OFDM baseband signal generation for all channels except PRACH . 19
5.3.2 OFDM baseband signal generation for PRACH . 20
5.4 Modulation and upconversion . 21
6 Uplink . 22
6.1 Overview . 22
6.1.1 Overview of physical channels . 22
6.1.2 Overview of physical signals . 22
6.2 Physical resources . 22
6.3 Physical channels . 23
6.3.1 Physical uplink shared channel . 23
ETSI
3GPP TS 38.211 version 15.10.0 Release 15 4 ETSI TS 138 211 V15.10.0 (2022-01)
6.3.1.1 Scrambling . 23
6.3.1.2 Modulation . 23
6.3.1.3 Layer mapping . 24
6.3.1.4 Transform precoding . 24
6.3.1.5 Precoding . 25
6.3.1.6 Mapping to virtual resource blocks . 28
6.3.1.7 Mapping from virtual to physical resource blocks . 28
6.3.2 Physical uplink control channel . 28
6.3.2.1 General . 28
6.3.2.2 Sequence and cyclic shift hopping . 29
6.3.2.2.1 Group and sequence hopping . 29
6.3.2.2.2 Cyclic shift hopping . 30
6.3.2.3 PUCCH format 0 . 30
6.3.2.3.1 Sequence generation . 30
6.3.2.3.2 Mapping to physical resources . 30
6.3.2.4 PUCCH format 1 . 31
6.3.2.4.1 Sequence modulation . 31
6.3.2.4.2 Mapping to physical resources . 32
6.3.2.5 PUCCH format 2 . 32
6.3.2.5.1 Scrambling . 32
6.3.2.5.2 Modulation . 32
6.3.2.5.3 Mapping to physical resources . 32
6.3.2.6 PUCCH formats 3 and 4 . 33
6.3.2.6.1 Scrambling . 33
6.3.2.6.2 Modulation . 33
6.3.2.6.3 Block-wise spreading . 33
6.3.2.6.4 Transform precoding . 34
6.3.2.6.5 Mapping to physical resources . 34
6.3.3 Physical random-access channel . 35
6.3.3.1 Sequence generation. 35
6.3.3.2 Mapping to physical resources . 40
6.4 Physical signals . 59
6.4.1 Reference signals . 59
6.4.1.1 Demodulation reference signal for PUSCH . 59
6.4.1.1.1 Sequence generation . 59
6.4.1.1.2 (void) . 60
6.4.1.1.3 Precoding and mapping to physical resources . 60
6.4.1.2 Phase-tracking reference signals for PUSCH . 64
6.4.1.2.1 Sequence generation . 64
6.4.1.2.1.1 Sequence generation if transform precoding is not enabled . 64
6.4.1.2.1.2 Sequence generation if transform precoding is enabled . 65
6.4.1.2.2 Mapping to physical resources . 65
6.4.1.2.2.1 Precoding and mapping to physical resources if transform precoding is not enabled. 65
6.4.1.2.2.2 Mapping to physical resources if transform precoding is enabled . 67
6.4.1.3 Demodulation reference signal for PUCCH . 68
6.4.1.3.1 Demodulation reference signal for PUCCH format 1 . 68
6.4.1.3.1.1 Sequence generation . 68
6.4.1.3.1.2 Mapping to physical resources . 69
6.4.1.3.2 Demodulation reference signal for PUCCH format 2 . 69
6.4.1.3.2.1 Sequence generation . 69
6.4.1.3.2.2 Mapping to physical resources . 69
6.4.1.3.3 Demodulation reference signal for PUCCH formats 3 and 4 . 70
6.4.1.3.3.1 Sequence generation . 70
6.4.1.3.3.2 Mapping to physical resources . 70
6.4.1.4 Sounding reference signal . 71
6.4.1.4.1 SRS resource . 71
6.4.1.4.2 Sequence generation . 71
6.4.1.4.3 Mapping to physical resources . 72
6.4.1.4.4 Sounding reference signal slot configuration . 76
7 Downlink . 76
7.1 Overview . 76
ETSI
3GPP TS 38.211 version 15.10.0 Release 15 5 ETSI TS 138 211 V15.10.0 (2022-01)
7.1.1 Overview of physical channels . 76
7.1.2 Overview of physical signals . 76
7.2 Physical resources . 76
7.3 Physical channels . 77
7.3.1 Physical downlink shared channel . 77
7.3.1.1 Scrambling . 77
7.3.1.2 Modulation . 77
7.3.1.3 Layer mapping . 78
7.3.1.4 Antenna port mapping . 79
7.3.1.5 Mapping to virtual resource blocks . 80
7.3.1.6 Mapping from virtual to physical resource blocks . 80
7.3.2 Physical downlink control channel (PDCCH) . 82
7.3.2.1 Control-channel element (CCE) . 82
7.3.2.2 Control-resource set (CORESET) . 82
7.3.2.3 Scrambling . 83
7.3.2.4 PDCCH modulation . 84
7.3.2.5 Mapping to physical resources . 84
7.3.3 Physical broadcast channel . 84
7.3.3.1 Scrambling . 84
7.3.3.2 Modulation . 84
7.3.3.3 Mapping to physical resources . 84
7.4 Physical signals . 84
7.4.1 Reference signals . 84
7.4.1.1 Demodulation reference signals for PDSCH . 84
7.4.1.1.1 Sequence generation . 84
7.4.1.1.2 Mapping to physical resources . 85
7.4.1.2 Phase-tracking reference signals for PDSCH . 88
7.4.1.2.1 Sequence generation . 88
7.4.1.2.2 Mapping to physical resources . 88
7.4.1.3 Demodulation reference signals for PDCCH . 90
7.4.1.3.1 Sequence generation . 90
7.4.1.3.2 Mapping to physical resources . 90
7.4.1.4 Demodulation reference signals for PBCH . 91
7.4.1.4.1 Sequence generation . 91
7.4.1.4.2 Mapping to physical resources . 91
7.4.1.5 CSI reference signals. 91
7.4.1.5.1 General . 91
7.4.1.5.2 Sequence generation . 91
7.4.1.5.3 Mapping to physical resources . 92
7.4.2 Synchronization signals . 95
7.4.2.1 Physical-layer cell identities. 95
7.4.2.2 Primary synchronization signal . 95
7.4.2.2.1 Sequence generation . 95
7.4.2.2.2 Mapping to physical resources . 95
7.4.2.3 Secondary synchronization signal . 96
7.4.2.3.1 Sequence generation . 96
7.4.2.3.2 Mapping to physical resources . 96
7.4.3 SS/PBCH block . 96
7.4.3.1 Time-frequency structure of an SS/PBCH block . 96
7.4.3.1.1 Mapping of PSS within an SS/PBCH block . 97
7.4.3.1.2 Mapping of SSS within an SS/PBCH block . 97
7.4.3.1.3 Mapping of PBCH and DM-RS within an SS/PBCH block . 97
7.4.3.2 Time location of an SS/PBCH block . 98
Annex A: Change history . 99
History . 100

ETSI
3GPP TS 38.211 version 15.10.0 Release 15 6 ETSI TS 138 211 V15.10.0 (2022-01)
Foreword
rd
This Technical Specification has been produced by the 3 Generation Partnership Project (3GPP).
The contents of the present document are subject to continuing work within the TSG and may change following formal
TSG approval. Should the TSG modify the contents of the present document, it will be re-released by the TSG with an
identifying change of release date and an increase in version number as follows:
Version x.y.z
where:
x the first digit:
1 presented to TSG for information;
2 presented to TSG for approval;
3 or greater indicates TSG approved document under change control.
y the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
z the third digit is incremented when editorial only changes have been incorporated in the document.
ETSI
3GPP TS 38.211 version 15.10.0 Release 15 7 ETSI TS 138 211 V15.10.0 (2022-01)
1 Scope
The present document describes the physical channels and signals for 5G-NR.
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
[1] 3GPP TR 21.905: "Vocabulary for 3GPP Specifications".
[2] 3GPP TS 38.201: "NR; Physical Layer – General Description"
[3] 3GPP TS 38.202: "NR; Services provided by the physical layer"
[4] 3GPP TS 38.212: "NR; Multiplexing and channel coding"
[5] 3GPP TS 38.213: "NR; Physical layer procedures for control "
[6] 3GPP TS 38.214: "NR; Physical layer procedures for data "
[7] 3GPP TS 38.215: "NR; Physical layer measurements"
[8] 3GPP TS 38.104: "NR; Base Station (BS) radio transmission and reception"
[9] void
[10] 3GPP TS 38.306: "NR; User Equipment (UE) radio access capabilities"

3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following definitions apply:
3.2 Symbols
For the purposes of the present document, the following symbols apply:
()k,l
Resource element with frequency-domain index k and time-domain index l for antenna port �
p,μ
and subcarrier spacing configuration �; see clause 4.4.3
( p,μ )
a Value of resource element (k, l) for antenna port � and subcarrier spacing configuration �; see
k,l
clause 4.4.3
β Amplitude scaling for a physical channel/signal
c(n) PN sequence; see clause 5.2.1
Δf Subcarrier spacing
Δf Subcarrier spacing for random-access preambles
RA
� The ratio between T and T ; see clause 4.1
s c
k Subcarrier index relative to a reference
l OFDM symbol index relative to a reference
�
� Subcarrier spacing configuration, Δ� =2 ∙ 15 [���]
(�)
� Number of coded bits to transmit on a physical channel [for codeword �]
bit
ETSI
3GPP TS 38.211 version 15.10.0 Release 15 8 ETSI TS 138 211 V15.10.0 (2022-01)
(�)
� Number of modulation symbols to transmit on a physical channel [for codeword �]
symb
layer
� Number of modulation symbols to transmit per layer for a physical channel
symb
PUSCH
� Scheduled bandwidth for uplink transmission, expressed as a number of subcarriers
sc
PUSCH
� Scheduled bandwidth for uplink transmission, expressed as a number of resource blocks
RB
ap
� Number of modulation symbols to transmit per antenna port for a physical channel
symb
υ Number of transmission layers
size
� Size of bandwidth part i ; see clause 4.4.4.4
BWP,�
start
� Start of bandwidth part i ; see clause 4.4.4.4
BWP,�
�
� Cyclic prefix length; see clause 5.3.1
CP,�
size,�
� The size of the resource grid; see clauses 4.4.2 and 5.3
grid,�
start,�
� The start of the resource grid; see clause 4.4.2
grid,�
PT-RS
� The number of PT-RS groups; see clause 6.3.1.4
group
cell
� Physical layer cell identity; see clause 7.4.2.1
ID
CORESET
� Frequency-domain size of a control resource set; see clause 7.3.2.2
RB
CORESET
� Number of resource-element groups in a CORESET; see clause 7.3.2.2
REG
group
� Number of samples per PT-RS group; see clause 6.3.1.4
samp
RB
� Number of subcarriers per resource block, see clause 4.4.4.1
sc
subframe,�
� Number of slots per subframe for subcarrier spacing configuration �, see clause 4.3.2
slot
frame,�
� Number of slots per frame for subcarrier spacing configuration �, see clause 4.3.2
slot
CORESET
� Time duration of a control resource set; see clause 7.3.2.2
symb
PUCCH
� Length of the PUCCH transmission in OFDM symbols; see clause 6.3.2.1
symb
subframe,�
� Number of OFDM symbols per subframe for subcarrier spacing configuration �; see clause 4.3.1
symb
slot
� Number of symbols per slot
symb
� Timing advance between downlink and uplink; see clause 4.3.1
TA
� A fixed offset used to calculate the timing advance; see clause 4.3.1
TA,offset
� Minimum time from reception to transmission for a half-duplex UE; see clause 4.3.2
Rx-Tx
� System frame number (SFN)
f
�
� Common resource block number for subcarrier spacing configuration �, see clause 4.4.4.3
CRB
� Physical resource block number; see clause 4.4.4.4
PRB
� Radio network temporary identifier
RNTI
�
� Slot number within a subframe for subcarrier spacing configuration �; see clause 4.3.2
s
�
� Slot number within a frame for subcarrier spacing configuration �; see clause 4.3.2
s,f
� Antenna port number
Modulation order
Q
m
ρ Number of antenna ports
�̅(�) Low-PAPR base sequence; see clause 5.2.2
�,�
(�,�)
� (�) Low-PAPR sequence; see clause 5.2.2
�,�
��,��
� (�) The time-continuous signal on antenna port � and subcarrier spacing configuration � for OFDM
�
symbol l in a subframe; see clause 5.3.1
T Basic time unit for NR; see clause 4.1
c
T Radio frame duration; see clause 4.3.1
f
T Basic time unit for LTE
s
T
Subframe duration; see clause 4.3.1
sf
T Slot duration; see clause 4.3.2
slot
T
Timing advance between downlink and uplink; see clause 4.3.1
TA
W Precoding matrix for spatial multiplexing

3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ETSI
3GPP TS 38.211 version 15.10.0 Release 15 9 ETSI TS 138 211 V15.10.0 (2022-01)
BWP Bandwidth part
CCE Control channel element
CORESET Control resource set
CRB Common resource block
CSI Channel-state information
CSI-RS CSI reference signal
DCI Downlink Control Information
DM-RS Demodulation reference signal
FR1 Frequency range 1 as defined in [8, TS 38.104]
FR2 Frequency range 2 as defined in [8, TS 38.104]
IE Information element
PBCH Physical broadcast channel
PDCCH Physical downlink control channel
PDSCH Physical downlink shared channel
PRACH Physical random-access channel
PRB Physical resource block
PSS Primary synchronization signal
PT-RS Phase-tracking reference signal
PUCCH Physical uplink control channel
PUSCH Physical uplink shared channel
REG Resource-element group
SRS Sounding reference signal
SSS Secondary synchronization signal
VRB Virtual resource block
4 Frame structure and physical resources
4.1 General
Throughout this specification, unless otherwise noted, the size of various fields in the time domain is expressed in time
�
T = 1()Δf ⋅ N N = 4096
units where Δ� = 480 ∙ 10 Hz and . The constant κ = T T = 64 where
c max f max f s c
( )
T =1 Δf ⋅ N , Δf = 15⋅10 Hz and N = 2048 .
s ref f,ref ref f,ref
4.2 Numerologies
Multiple OFDM numerologies are supported as given by Table 4.2-1 where � and the cyclic prefix for a bandwidth part
are obtained from the higher-layer parameter subcarrierSpacing and cyclicPrefix, respectively.

Table 4.2-1: Supported transmission numerologies.
μ
μ
Δf = 2 ⋅15 [kHz] Cyclic prefix
0 15 Normal
1 30 Normal
2 60 Normal, Extended
3 120 Normal
4 240 Normal
ETSI
3GPP TS 38.211 version 15.10.0 Release 15 10 ETSI TS 138 211 V15.10.0 (2022-01)
4.3 Frame structure
4.3.1 Frames and subframes
T =()Δf N 100 ⋅T =10 ms
Downlink and uplink transmissions are organized into frames with duration, each
f max f c
consisting of ten subframes of T =()Δf N 1000 ⋅T =1 ms duration. The number of consecutive OFDM symbols
sf max f c
subframe,� subframe,�
slot
per subframe is � = � � . Each frame is divided into two equally-sized half-frames of five
symb
symb slot
subframes each with half-frame 0 consisting of subframes 0 – 4 and half-frame 1 consisting of subframes 5 – 9.
There is one set of frames in the uplink and one set of frames in the downlink on a carrier.
Uplink frame number i for transmission from the UE shall start T = (N + N )T before the start of the
TA TA TA,offset c
corresponding downlink frame at the UE where N is given by [5, TS 38.213].
TA,offset
Downlink frame i
Uplink frame i
Figure 4.3.1-1: Uplink-downlink timing relation.
4.3.2 Slots
� subframe,�
For subcarrier spacing configuration μ , slots are numbered � ∈ �0, … ,� −1 � in increasing order within a
s
slot
� frame,� slot
subframe and � ∈ �0, … ,� −1 � in increasing order within a frame. There are N consecutive OFDM
s,f slot symb
slot
�
N
symbols in a slot where depends on the cyclic prefix as given by Tables 4.3.2-1 and 4.3.2-2. The start of slot �
symb s
μ slot
in a subframe is aligned in time with the start of OFDM symbol n N in the same subframe.
s symb
OFDM symbols in a slot can be classified as 'downlink', 'flexible', or 'uplink'. Signaling of slot formats is described in
clause 11.1 of [5, TS 38.213].
In a slot in a downlink frame, the UE shall assume that downlink transmissions only occur in 'downlink' or 'flexible'
symbols.
In a slot in an uplink frame, the UE shall only transmit in 'uplink' or 'flexible' symbols.
A UE not capable of full-duplex communication and not supporting simultaneous transmission and reception as defined
by paremeter simultaneousRxTxInterBandENDC, simultaneousRxTxInterBandCA or simultaneousRxTxSUL [10, TS
38.306] among all cells within a group of cells is not expected to transmit in the uplink in one cell within the group of
cells earlier than � � after the end of the last received downlink symbol in the same or different cell within the
Rx-Tx c
group of cells where � is given by Table 4.3.2-3.
Rx-Tx
A UE not capable of full-duplex communication and not supporting simultaneous transmission and reception as defined
by parameter simultaneousRxTxInterBandENDC, simultaneousRxTxInterBandCA or simultaneousRxTxSUL [10, TS
38.306] among all cells within a group of cells is not expected to receive in the downlink in one cell within the group of
cells earlier than � � after the end of the last transmitted uplink symbol in the same or different cell within the
Tx-Rx c
group of cells where � is given by Table 4.3.2-3.
Tx-Rx
A UE not capable of full-duplex communication is not expected to transmit in the uplink earlier than � � after the
Rx-Tx c
end of the last received downlink symbol in the same cell where � is given by Table 4.3.2-3.
Rx-Tx
ETSI
3GPP TS 38.211 version 15.10.0 Release 15 11 ETSI TS 138 211 V15.10.0 (2022-01)
A UE not capable of full-duplex communication is not expected to receive in the downlink earlier than � � after
Tx-Rx c
the end of the last transmitted uplink symbol in the same cell where � is given by Table 4.3.2-3.
Tx-Rx
Table 4.3.2-1: Number of OFDM symbols per slot, slots per frame, and slots per subframe for normal
cyclic prefix.
frame,� subframe,�
slot
�
� � �
symb
slot slot
0 14 10 1
1 14 20 2
2 14 40 4
3 14 80 8
4 14 160 16
Table 4.3.2-2: Number of OFDM symbols per slot, slots per frame, and slots per subframe for
extended cyclic prefix.
slot frame,� subframe,�
� �
� �
symb
slot slot
2 12 40 4
Table 4.3.2-3: Transition time � and �
Rx-Tx Tx-Rx
Transition time FR1 FR2
� 25600 13792
Tx-Rx
� 25600 13792
Rx-Tx
4.4 Physical resources
4.4.1 Antenna ports
An antenna port is defined such that the channel over which a symbol on the antenna port is conveyed can be inferred
