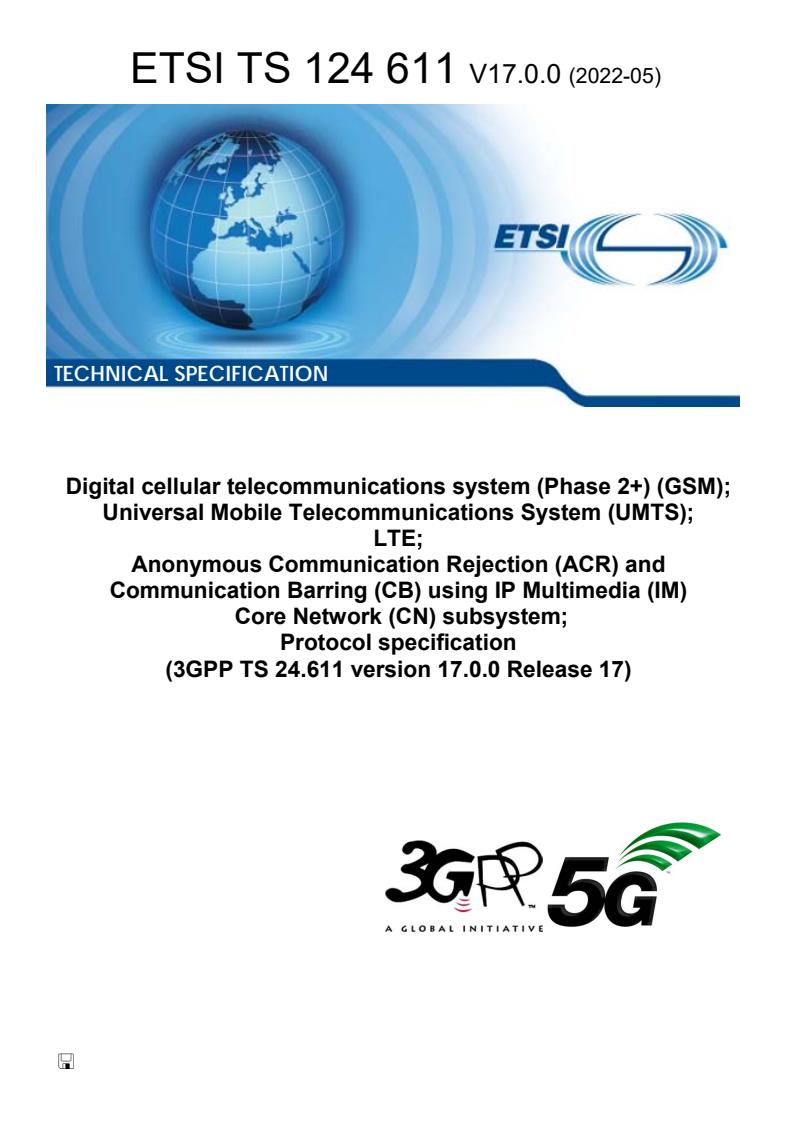

ETSI TS 124 611 V17.0.0 (2022-05)






TECHNICAL SPECIFICATION
Digital cellular telecommunications system (Phase 2+) (GSM);
Universal Mobile Telecommunications System (UMTS);
LTE;
Anonymous Communication Rejection (ACR) and
Communication Barring (CB) using IP Multimedia (IM)
Core Network (CN) subsystem;
Protocol specification
(3GPP TS 24.611 version 17.0.0 Release 17)



---------------------- Page: 1 ----------------------
3GPP TS 24.611 version 17.0.0 Release 17 1 ETSI TS 124 611 V17.0.0 (2022-05)

Reference
RTS/TSGC-0124611vh00
Keywords
GSM,LTE,UMTS
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2022.
All rights reserved.

ETSI

---------------------- Page: 2 ----------------------
3GPP TS 24.611 version 17.0.0 Release 17 2 ETSI TS 124 611 V17.0.0 (2022-05)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the
®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Legal Notice
This Technical Specification (TS) has been produced by ETSI 3rd Generation Partnership Project (3GPP).
The present document may refer to technical specifications or reports using their 3GPP identities. These shall be
interpreted as being references to the corresponding ETSI deliverables.
The cross reference between 3GPP and ETSI identities can be found under http://webapp.etsi.org/key/queryform.asp.
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI

---------------------- Page: 3 ----------------------
3GPP TS 24.611 version 17.0.0 Release 17 3 ETSI TS 124 611 V17.0.0 (2022-05)
Contents
Intellectual Property Rights . 2
Legal Notice . 2
Modal verbs terminology . 2
Foreword . 5
1 Scope . 6
2 References . 6
3 Definitions and abbreviations . 7
3.1 Definitions . 7
3.2 Abbreviations . 7
4 Anonymous Communication Rejection (ACR) and Communication Barring (CB) . 8
4.1 Introduction . 8
4.2 Description . 8
4.2.1 General description . 8
4.3 Operational requirements . 9
4.3.1 Provision/withdrawal . 9
4.3.2 Requirements on the originating network side. 9
4.3.3 Requirements in the network . 9
4.3.4 Requirements on the terminating network side . 9
4.4 Coding requirements . 10
4.4.1 ICB coding requirements . 10
4.4.2 ACR coding requirements . 10
4.4.3 OCB coding requirements . 10
4.5 Signalling requirements . 10
4.5.0 General . 10
4.5.1 Activation/deactivation . 10
4.5.1A Registration/erasure. 11
4.5.1B Interrogation . 11
4.5.2 Invocation and operation . 11
4.5.2.1 Actions at the originating UE . 11
4.5.2.2 Void. 11
4.5.2.3 Void. 11
4.5.2.4 Actions at the originating AS . 11
4.5.2.4.1 Actions for OCB at the originating AS . 11
4.5.2.5 Void. 12
4.5.2.6 Actions at the terminating AS . 12
4.5.2.6.1 Actions for ICB at the terminating AS . 12
4.5.2.6.2 Action for ACR at the terminating AS . 13
4.5.2.7 Void. 14
4.5.2.8 Void. 14
4.5.2.9 Void. 14
4.5.2.10 Void. 14
4.5.2.11 Void. 14
4.5.2.12 Void. 14
4.5.2.13 Actions at the destination UE . 14
4.6 Interaction with other services . 14
4.6.1 Communication HOLD (HOLD) . 14
4.6.2 Terminating Identification Presentation (TIP) . 14
4.6.3 Terminating Identification Restriction (TIR) . 14
4.6.4 Originating Identification Presentation (OIP) . 14
4.6.5 Originating Identification Restriction (OIR) . 14
4.6.6 CONFerence Calling (CONF) . 14
4.6.7 Communication DIVersion services (CDIV) . 15
4.6.8 Malicious Communication IDentification (MCID) . 15
4.6.9 Explicit Communication Transfer (ECT) . 15
ETSI

---------------------- Page: 4 ----------------------
3GPP TS 24.611 version 17.0.0 Release 17 4 ETSI TS 124 611 V17.0.0 (2022-05)
4.6.10 Enhanced Calling Name (eCNAM) . 15
4.6.11 Multi-Device (MuD) . 15
4.6.12 Multi-Identity (MiD). 15
4.7 Interworking with other networks . 15
4.7.1 Void . 15
4.7.2 Void . 15
4.7.3 Void . 15
4.8 Parameter values (timers) . 15
4.9 Service configuration . 16
4.9.1 Structure of the XML Document . 16
4.9.1.0 Definitions . 16
4.9.1.1 General . 16
4.9.1.2 Communication Barring elements . 16
4.9.1.3 Communication Barring rules . 17
4.9.1.4 Communication Barring rule conditions . 17
4.9.1.5 Communication Barring rule actions . 19
4.9.1.6 Supported Conditions for Communication Barring . 19
4.9.2 XML Schema . 19
4.9.3 XML schema for indication of supported conditions and actions. 20
Annex A (informative): Signalling flows . 22
A.1 ACR termination towards UE-B . 22
A.2 Service configuration . 23
Annex B (informative): Example of filter criteria . 27
Annex C (informative): Change history . 28
History . 30

ETSI

---------------------- Page: 5 ----------------------
3GPP TS 24.611 version 17.0.0 Release 17 5 ETSI TS 124 611 V17.0.0 (2022-05)
Foreword
This Technical Specification (TS) was been produced by ETSI Technical Committee Telecommunications and Internet
converged Services and Protocols for Advanced Networking (TISPAN) and originally published as
ETSI TS 183 011 [19]. It was transferred to the 3rd Generation Partnership Project (3GPP) in January 2008.
The contents of the present document are subject to continuing work within the TSG and may change following formal
TSG approval. Should the TSG modify the contents of the present document, it will be re-released by the TSG with an
identifying change of release date and an increase in version number as follows:
Version x.y.z
where:
x the first digit:
1 presented to TSG for information;
2 presented to TSG for approval;
3 or greater indicates TSG approved document under change control.
y the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
z the third digit is incremented when editorial only changes have been incorporated in the document.
ETSI

---------------------- Page: 6 ----------------------
3GPP TS 24.611 version 17.0.0 Release 17 6 ETSI TS 124 611 V17.0.0 (2022-05)
1 Scope
The present document specifies the stage three, Protocol Description of the Anonymous Communication Rejection
(ACR) and Communication Barring (CB) supplementary service, based on stage one and two of the ISDN
supplementary service Anonymous Call Rejection (ACR), Incoming Communication Barring (ICB) and Outgoing
Communication Barring (OCB). It provides the protocol details in the IP Multimedia (IM) Core Network (CN)
subsystem based on the Session Initiation Protocol (SIP) and the Session Description Protocol (SDP).
The present document is applicable to User Equipment (UE) and Application Servers (AS) which are intended to
support the ACR and CB supplementary services.
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
- References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
- For a specific reference, subsequent revisions do not apply.
- For a non-specific reference, the latest version applies. In the case of a reference to a 3GPP document (including
a GSM document), a non-specific reference implicitly refers to the latest version of that document in the same
Release as the present document.
[1] 3GPP TS 22.173: "IP Multimedia Core Network Subsystem (IMS) Multimedia Telephony Service
and supplementary services, Stage 1".
[2] 3GPP TS 24.229: "Internet Protocol (IP) multimedia call control protocol based on Session
Initiation Protocol (SIP) and Session Description Protocol (SDP); Stage 3".
[3] 3GPP TS 24.607: "Originating Identification Presentation (OIP) and Originating Identification
Restriction (OIR) using IP Multimedia (IM) Core Network (CN) subsystem; Protocol
specification".
[4] ETSI TS 183 038: "Telecommunications and Internet converged Services and Protocols for
Advanced Networking (TISPAN); PSTN/ISDN Simulation Services; Extensible Markup
Language (XML) Document Management; Protocol Specification (Endorsement of
OMA-TS-XDM-Core-V1-0-20051103-C and OMA-TS-XDM-Shared-V1-0-20051006-C)".
[5] IETF RFC 4566: "SDP: Session Description Protocol".
[6] 3GPP TS 24.623: " Extensible Markup Language (XML) Configuration Access Protocol (XCAP)
over the Ut interface for Manipulating Supplementary Services".
[7] Void.
[8] Void.
[9] 3GPP TS 24.604: "Communication Diversion (CDIV); using IP Multimedia (IM)Core Network
(CN) subsystem; Protocol specification".
[10] 3GPP TS 24.628: "Common Basic Communication procedures using IP Multimedia (IM)Core
Network (CN) subsystem; Protocol specification".
[11] Void.
[12] 3GPP TS 29.228: "IP Multimedia (IM) Subsystem Cx and Dx Interfaces; Signalling flows and
message contents".
[13] IETF RFC 3325: "Private Extensions to the Session Initiation Protocol (SIP) for Asserted Identity
within Trusted Networks".
ETSI

---------------------- Page: 7 ----------------------
3GPP TS 24.611 version 17.0.0 Release 17 7 ETSI TS 124 611 V17.0.0 (2022-05)
[14] IETF RFC 3323: "A privacy Mechanism for the Session Initiation Protocol (SIP)".
[15] IETF RFC 7315: "Private Header (P-Header) Extensions to the Session Initiation Protocol (SIP)
for the 3GPP".
[16] IETF RFC 4745: "Common Policy: A Document Format for Expressing Privacy Preferences".
[17] OMA-TS-XDM-Core-V1-0: "XML Document Management (XDM) Specification",
Version 1.0. OMA-TS-XDM-Core-V1-0-1-20061128-A.pdf.
[18] IETF RFC 5079 (2007): "Rejecting Anonymous Requests in the Session Initiation Protocol (SIP)".
[19] ETSI TS 183 011 V1.3.0: "Telecommunications and Internet converged Services and Protocols for
Advanced Networking (TISPAN); PSTN/ISDN simulation services: Anonymous Communication
Rejection (ACR) and Communication Barring (CB); Protocol specification".
[20] 3GPP TS 24.238: "Session Initiation Protocol (SIP) based user configuration; stage 3".
[21] IETF RFC 7090 (April 2014): "Public Safety Answering Point (PSAP) Callback".
[22] IETF RFC 3261: "SIP: Session Initiation Protocol".
[23] IETF RFC 5031 (January 2008): "A Uniform Resource Name (URN) for Emergency and Other
Well-Known Services".
[24] 3GPP TS 24.196: "Technical Specification Group Core Network and Terminals; Enhanced Calling
Name".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in 3GPP TS 22.173 [1] apply.
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACR Anonymous Communication Rejection
AP Authentication Proxy
AS Application Server
CB Communication Barring
CDIV Communication DIVersion services
CONF CONFerence calling
ECT Explicit Communication Transfer
HOLD communication session HOLD
ICB Incoming Communication Barring
IFC Initial Filter Criteria
IP Internet Protocol
MCID Malicious Call IDentification
MiD Multi-iDentity
MuD Multi-Device
OCB Outgoing Communication Barring
OIP Originating Identification Presentation
OIR Originating Identification Restriction
PSAP Public Safety Answering Point
S-CSCF Server - Call Session Control Function
TIP Terminating Identification Presentation
TIR Terminating Identification Restriction
UE User Equipment
ETSI

---------------------- Page: 8 ----------------------
3GPP TS 24.611 version 17.0.0 Release 17 8 ETSI TS 124 611 V17.0.0 (2022-05)
XCAP eXtended Camel Application Part
XML eXtensible Markup Language
4 Anonymous Communication Rejection (ACR) and
Communication Barring (CB)
4.1 Introduction
The Communication Barring (CB) service offers the following services:
- The Incoming Communication Barring (ICB) is a service that rejects incoming communications that fulfil
certain provisioned or configured conditions on behalf of the terminating user.
- The Anonymous Communication Rejection (ACR) is a particular case of the ICB service, that allows barring of
incoming communications from an anonymous originator on behalf of the terminating user.
- The Outgoing Communication Barring (OCB) is a service that rejects outgoing communications that fulfil
certain provisioned or configured conditions on behalf of the originating user.
4.2 Description
4.2.1 General description
The Incoming Communication Barring (ICB) service makes it possible for a user to have barring of certain categories
of incoming communications according to a provisioned or user configured barring program and is valid for all
incoming communications. A barring program is expressed as a set of rules in which the rules have a conditional part
and an action part. Examples of conditions are whether the asserted originating public user identity matches a specific
public user identity or whether the originating public user identity is restricted (anonymous). The action part could
specify for a rule that contains a matching condition that the specific incoming communication is barred. The complete
set of conditions and actions that apply to this service and their semantics is described in clause 4.9.
The Inhibition of Incoming Forwarded Calls is a special case of the ICB and allows the served user to reject incoming
communications from users or subscribers who have diverted the communication towards the served user. The
communication history information will be used to trigger the service as described in clause 4.9.
The Anonymous Communication Rejection (ACR) service allows the served user to reject incoming communications
on which the asserted public user identity of the originating user is restricted. In case the asserted public user identity of
the originating user is not provided then the communication is allowed by the ACR service.
An example where the originating user restricts presentation of the asserted public user identity is when he activated the
OIR service 3GPP TS 24.607 [3].
The originating user is given an appropriate indication that the communication has been rejected due to the application
of the ACR service.
The Anonymous Communication Rejection (ACR) service is a special case of the ICB service, which is highlighted
here because it is a regulatory service in many countries. The ACR service can be activated for a specific subscriber by
configuring an ICB service barring rule where the conditional part contains the "Condition=anonymous" and the action
part "allow=false".
The Outgoing Communication Barring (OCB) service makes it possible for a user to have barring of certain categories
of outgoing communications according to a provisioned or user configured barring program and is valid for all outgoing
communications. A barring program is expressed as a set of rules in which the rules have a conditional part and an
action part. An example condition is whether the request uri matches a specific public user identity. The action part can
specify for a rule that contains a matching condition that the specific outgoing communication it to be barred. The
complete set of conditions and actions that apply to this service and their semantics is described in clause 4.9.
ETSI

---------------------- Page: 9 ----------------------
3GPP TS 24.611 version 17.0.0 Release 17 9 ETSI TS 124 611 V17.0.0 (2022-05)
The configuration over the Ut interface of a barring service can be prote
...
