ETSI EN 301 813-2 V1.1.1 (2001-09)

Integrated Services Digital Network (ISDN) and Broadband Integrated Services Digital Network (B-ISDN); Generic Addressing and Transport (GAT) protocol; Part 2: Protocol Implementation Conformance Statement (PICS) proforma specification

DEN/SPAN-130177-2

Digitalno omrežje z integriranimi storitvami (ISDN) in širokopasovno digitalno omrežje z integriranimi storitvami (B-ISDN) – Protokol generičnega naslavljanja in transporta (GAT) – 2. del: Izjava o skladnosti izvedbe protokola (PICS) – Proforma specifikacija

General Information

• Status: Published
• Publication Date: 24-Sep-2001
• Technical Committee: SPAN 13 - SPAN Peer-to-Peer Control Protocol (PTPCP)
• Current Stage: 12 - Completion
• Due Date: 05-Oct-2001
• Completion Date: 25-Sep-2001
• Ref Project: SIST EN 301 813-2 V1.1.1:2005 - Integrated Services Digital Network (ISDN) and Broadband Integrated Services Digital Network (B-ISDN); Generic Addressing and Transport (GAT) protocol; Part 2: Protocol Implementation Conformance Statement (PICS) proforma specification

Standards Content (Sample)

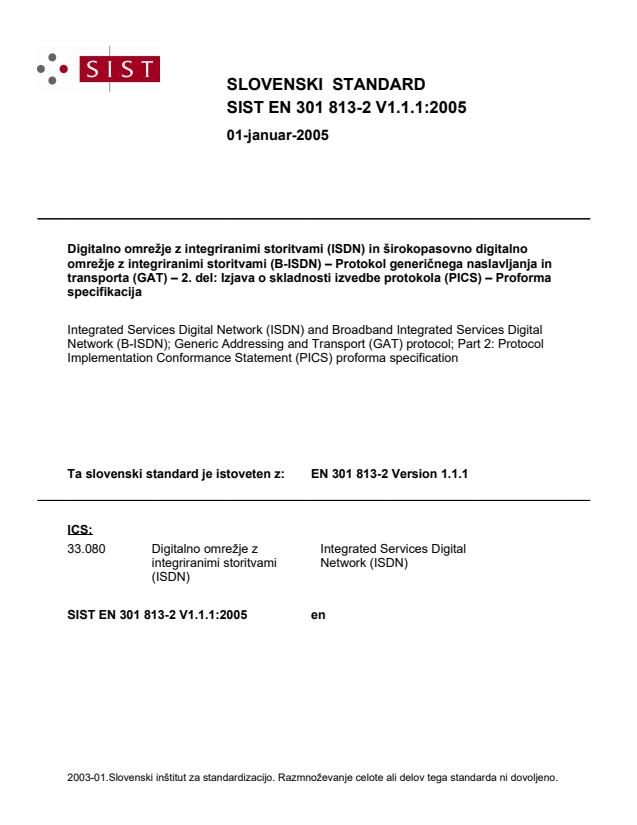

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.VSHFLILNDFLMDIntegrated Services Digital Network (ISDN) and Broadband Integrated Services Digital Network (B-ISDN); Generic Addressing and Transport (GAT) protocol; Part 2: Protocol Implementation Conformance Statement (PICS) proforma specification33.080Digitalno omrežje z integriranimi storitvami (ISDN)Integrated Services Digital Network (ISDN)ICS:Ta slovenski standard je istoveten z:EN 301 813-2 Version 1.1.1SIST EN 301 813-2 V1.1.1:2005en01-januar-2005SIST EN 301 813-2 V1.1.1:2005SLOVENSKI
STANDARD



SIST EN 301 813-2 V1.1.1:2005



ETSI EN 301 813-2 V1.1.1 (2001-09)European Standard (Telecommunications series) Integrated Services Digital Network (ISDN) andBroadband Integrated Services Digital Network (B-ISDN);Generic Addressing and Transport (GAT) protocol;Part 2: Protocol Implementation ConformanceStatement (PICS) proforma specification SIST EN 301 813-2 V1.1.1:2005



ETSI ETSI EN 301 813-2 V1.1.1 (2001-09) 2
Reference DEN/SPAN-130177-2 Keywords PICS, DSS2, DSS1, functional, generic, ISDN ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: [phone]
Fax: [phone]
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, send your comment to: [e-mail] Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2001. All rights reserved.
SIST EN 301 813-2 V1.1.1:2005



ETSI ETSI EN 301 813-2 V1.1.1 (2001-09) 3 Contents Intellectual Property Rights.4 Foreword.4 Introduction.4 1 Scope.5 2 References.5 3 Definitions and abbreviations.5 3.1 Definitions.5 3.2 Abbreviations.6 4 Conformance.6 Annex A (normative): PICS proforma for EN 301 813-1.7 A.1 Guidance for completing the ICS proforma.7 A.1.1 Purposes and structure.7 A.1.2 Abbreviations and conventions.7 A.1.3 Instructions for completing the PICS proforma.8 A.2 Identification of the implementation.9 A.2.1 Date of the statement.9 A.2.2 Implementation Under Test (IUT) identification.9 A.2.3 System Under Test (SUT) identification.9 A.2.4 Product supplier.9 A.2.5 Client (if different from product supplier).10 A.2.6 PICS contact person.11 A.3 Identification of the reference specification type.11 A.4 Global statement of conformance.11 A.5 Roles.11 A.6 GAT-Control role.12 A.6.1 Major capabilities.12 A.6.2 Subsidiary Capabilities.13 A.6.3 Sending GAT-Control PDUs.14 A.6.3.1 PDUs transmitted.14 A.6.3.2 Sending GAT-Control PDU Parameters.14 A.6.4 Receiving GAT-Control PDUs.15 A.6.4.1 PDUs received.15 A.6.4.2 Receiving GAT-Control PDU Parameters.15 History.16
SIST EN 301 813-2 V1.1.1:2005



ETSI ETSI EN 301 813-2 V1.1.1 (2001-09) 4 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://www.etsi.org/legal/home.htm). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Services and Protocols for Advanced Networks (SPAN). The present document is part 2 of a multi-part deliverable covering the Digital Subscriber Signalling System No. one (DSS1) and the Signalling System No.7 (SS7) ISDN User Part (ISUP) protocol implementation conformance statement for the Integrated Services Digital Network (ISDN), the Digital Subscriber Signalling System No. two (DSS2) and Signalling System No.7 (SS7) B-ISDN User Part (B-ISUP) protocol implementation conformance statement for the Broadband Integrated Services Digital Network (B-ISDN) to support the Generic Addressing and Transport protocol (GAT), as described below: Part 1: "Protocol specification [ITU-T Recommendation Q.860 (2000), modified]"; Part 2: "Protocol Implementation Conformance Statement (PICS) proforma specification"; Part 3: "Test Suite Structure and Test Purposes (TSS&TP) specification"; Part 4: "Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT) proforma specification".
National transposition dates Date of adoption of this EN: 21 September 2001 Date of latest announcement of this EN (doa): 31 December 2001 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
30 June 2002 Date of withdrawal of any conflicting National Standard (dow): 30 June 2002
Introduction To evaluate conformance of a particular implementation, it is necessary to have a statement of which capabilities and options have been implemented for a given protocol. Such a statement is called an Implementation Conformance Statement (ICS). An ICS stating what capabilities and options have been implemented for a particular protocol is called a protocol ICS. This is commonly abbreviated to "PICS". EN 301 813-1 [1] is derived from ITU-T Recommendation Q.860 [4]. However, no PICS proforma exists for this recommendation. Therefore, ETSI has created a PICS proforma that is specific to the European environment. SIST EN 301 813-2 V1.1.1:2005



ETSI ETSI EN 301 813-2 V1.1.1 (2001-09) 5 1 Scope The present document provides the Protocol Implementation Conformance Statement (PICS) proforma for the Generic Addressing and Transport (GAT) protocol for Integrated Services Digital Network (ISDN), Broadband Integrated Services Digital Network (B-ISDN)) and Signalling System No. 7 defined in EN 301 813-1 [1] in compliance with the relevant requirements and in accordance with the relevant guidance given in ISO/IEC 9646-7 [3]. The supplier of a protocol implementation that is claimed to conform to EN 301 813-1 [1] is required to complete a copy of the PICS proforma provided in annex A of the present document and is required to provide the information necessary to identify both the supplier and the implementation. Unless otherwise noted, all clauses referred to in the present document refer to clauses in ITU-T Recommendation Q.860 [4]. 2 References The following documents contain provisions which, through reference in this text, constitute provisions of the present document. • References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • For a non-specific reference, the latest version applies. [1] ETSI EN 301 813-1 (V1.1.1): "Integrated Services Digital Network (ISDN) and Broadband Integrated Services Digital Network (B-ISDN); Generic Addressing and Transport (GAT) protocol; Part 1: Protocol specification [ITU-T Recommendation Q.860 (2000), modified]". [2] ISO/IEC 9646-1 (1994): "Information technology - Open Systems Interconnection - Conformance testing methodology and framework - Part 1: General concepts". [3] ISO/IEC 9646-7 (1995): "Information technology - Open Systems Interconnection - Conformance testing methodology and framework - Part 7: Implementation Conformance Statements". [4] ITU-T Recommendation Q.860 (2000): "Integrated Services Digital Network (ISDN) and Broadband Integrated Services Digital Network (B-ISDN) Generic Addressing and Transport (GAT) Protocol". 3 Definitions and abbreviations 3.1 Definitions For the purposes of the present document, the terms and definitions given in EN 301 813-1 [1], ISO/IEC 9646-1 [2], ISO/IEC 9646-7 [3] and the following apply: Implementation Conformance Statement (ICS): statement made by the supplier of an implementation or system claimed to conform to a given specification, stating which capabilities have been implemented. The ICS can take several forms: protocol ICS, profile ICS, profile specific ICS, and information object ICS Protocol Implementation Conformance Statement (PICS): ICS for an implementation or system claimed to conform to a given protocol specification PICS proforma: document, in the form of a questionnaire, which when completed for an implementation or system becomes a PICS SIST EN 301 813-2 V1.1.1:2005



ETSI ETSI EN 301 813-2 V1.1.1 (2001-09) 6 3.2 Abbreviations For the purposes of the present document, the following abbreviations apply: APDU Application Protocol Data Unit AS-ASE Application Service Application Service Element ASN.1 Abstract Syntax Notation No. one B-ISDN Broadband Integrated Services Digital Network DSS1 Digital Subscriber Signalling System No. one DSS2 Digital Subscriber Signalling System No. two GAT Generic Addressing and Transport GAT-Control Generic Addressing and Transport Control GAT-PDU Generic Addressing and Transport Protocol Data Unit ICS Implementation Conformance Statement ISDN Integrated Services Digital Network ISUP ISDN User Part IUT Implementation Under Test PDU Protocol Data Unit PICS Protocol ICS PINX Private Integrated Network Exchange ROSE Remote Operations Service Element SCS System Conformance Statement SUT System Under Test 4 Conformance A PICS proforma that conforms to this PICS proforma specification shall be technically equivalent to annex A, and shall preserve the numbering and ordering of the items in annex A. A PICS that conforms to this PICS proforma specification shall: a) describe an implementation which conforms to EN 301 813-1 [1]; b) be a conforming PICS proforma, which has been completed in accordance with the instructions for completion given in clause A.1; c) include the information necessary to uniquely identify both the supplier and the implementation. SIST EN 301 813-2 V1.1.1:2005



ETSI ETSI EN 301 813-2 V1.1.1 (2001-09) 7 Annex A (normative): PICS proforma for EN 301 813-1 Notwithstanding the provisions of the copyright clause related to the text of the present document, ETSI grants that users of the present document may freely reproduce the PICS proforma in this annex so that it can be used for its intended purposes and may further publish the completed PICS. A.1 Guidance for completing the ICS proforma A.1.1 Purposes and structure The purpose of this PICS proforma is to provide a mechanism whereby a supplier of an implementation of the requirements defined in EN 301 813-1 may provide information about the implementation in a standardized manner. The PICS proforma is subdivided into clauses as follows: A.1: guidance for completing the various parts of the PICS proforma; A.2: identification of the implementation; A.3: identification of the protocol to which this PICS proforma applies; A.4: explanation of the PICS proforma tables; A.5: global statement of conformance; A.6: questions to determine roles; A.7: questions for the signalling entity role. A.1.2 Abbreviations and conventions The PICS proforma contained in this annex is comprised of information in tabular form in accordance with the guidelines presented in ISO/IEC 9646-7. Item column The item column contains a number which identifies the item in the table. Item description column The item description column describes in free text each respective item (e.g. parameters, timers, etc.). It implicitly means "is supported by the implementation?". Status column The following notations, defined in ISO/IEC 9646-7, are used for the status column. m mandatory - the capability is required to be supported. o optional - the capability may be supported or not. n/a not applicable - in the given context, it is impossible to use the capability. x prohibited (excluded) - there is a requirement not to use this capability in the given context. o.i qualified optional - for mutually exclusive or selectable options from a set. "i" is an integer which identifies a unique group of related optional items and the logic of their selection which is defined immediately following the table. SIST EN 301 813-2 V1.1.1:2005



ETSI ETSI EN 301 813-2 V1.1.1 (2001-09) 8 ci conditional - the requirement on the capability ("m", "o", "x" or "n/a") depends on the support of other optional or conditional items. "i" is an integer identifying a unique conditional status expression which is defined immediately following the table. i irrelevant (out-of-scope) - capability outside the scope of the reference specification. No answer is requested from the supplier. NOTE 1: This use of "i" status is not to be confused with the suffix "i" to the "o" and "c" statuses above. NOTE 2: In the present document, the conditions ci are replaced by logical IF. Reference column The reference column makes reference to ITU-T Recommendation Q.860, except where explicitly stated otherwise. Support column The support column shall be filled in by the supplier of the implementation. The following common notations, defined in ISO/IEC 9646-7, are used for the support column. Y or y supported by the implementation. N or n not supported by the implementation. N/A, n/a or -
no answer required (allowed only if the status is n/a, directly or after evaluation of a conditional status). If this PICS proforma is completed in order to describe a multiple-profile support in a system, it is necessary to be able to answer that a capability is supported for one profile and not supported for another. In that case, the supplier shall enter the unique reference to a conditional expression, preceded by "?" (e.g. ?3). This expression shall be given in the space for comments provided at the bottom of the table. It uses pred
...
