IEC 63182-8:2025
(Main)Magnetic powder cores - Guidelines on dimensions and the limits of surface irregularities - Part 8: U-cores
Magnetic powder cores - Guidelines on dimensions and the limits of surface irregularities - Part 8: U-cores
IEC 63182-8:2025 specifies the dimensions that are of importance for mechanical interchangeability for a preferred range of U-cores made of metallic magnetic powder and gives guidelines on allowable limits of surface irregularities applicable to U-cores.
This document is a specification that is useful in the negotiations between magnetic powder core manufacturers and customers about surface irregularities.
The use of "derived" standards which give more detailed specifications of component parts while still permitting conformance with this document is discussed in Annex A.
General Information
Standards Content (Sample)
IEC 63182-8 ®
Edition 1.0 2025-08
INTERNATIONAL
STANDARD
Magnetic powder cores - Guidelines on dimensions and the limits of surface
irregularities -
Part 8: U-cores
ICS 29.100.10 ISBN 978-2-8327-0668-8
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a
publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: sales@iec.ch.

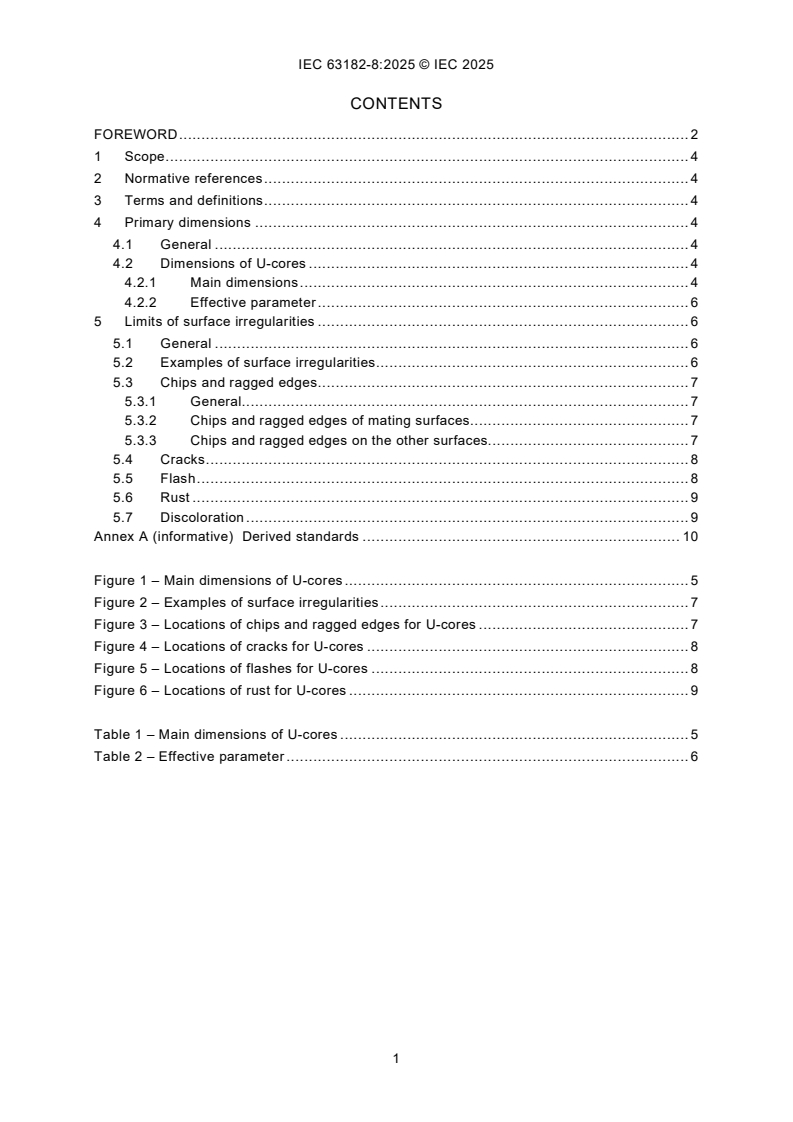

CONTENTS
FOREWORD . 2
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Primary dimensions . 4
4.1 General . 4
4.2 Dimensions of U-cores . 4
4.2.1 Main dimensions . 4
4.2.2 Effective parameter . 6
5 Limits of surface irregularities . 6
5.1 General . 6
5.2 Examples of surface irregularities . 6
5.3 Chips and ragged edges . 7
5.3.1 General. 7
5.3.2 Chips and ragged edges of mating surfaces. 7
5.3.3 Chips and ragged edges on the other surfaces. 7
5.4 Cracks . 8
5.5 Flash . 8
5.6 Rust . 9
5.7 Discoloration . 9
Annex A (informative) Derived standards . 10
Figure 1 – Main dimensions of U-cores . 5
Figure 2 – Examples of surface irregularities . 7
Figure 3 – Locations of chips and ragged edges for U-cores . 7
Figure 4 – Locations of cracks for U-cores . 8
Figure 5 – Locations of flashes for U-cores . 8
Figure 6 – Locations of rust for U-cores . 9
Table 1 – Main dimensions of U-cores . 5
Table 2 – Effective parameter . 6
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Magnetic powder cores -
Guidelines on dimensions and the limits of surface irregularities -
Part 8: U-cores
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
maybe required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.

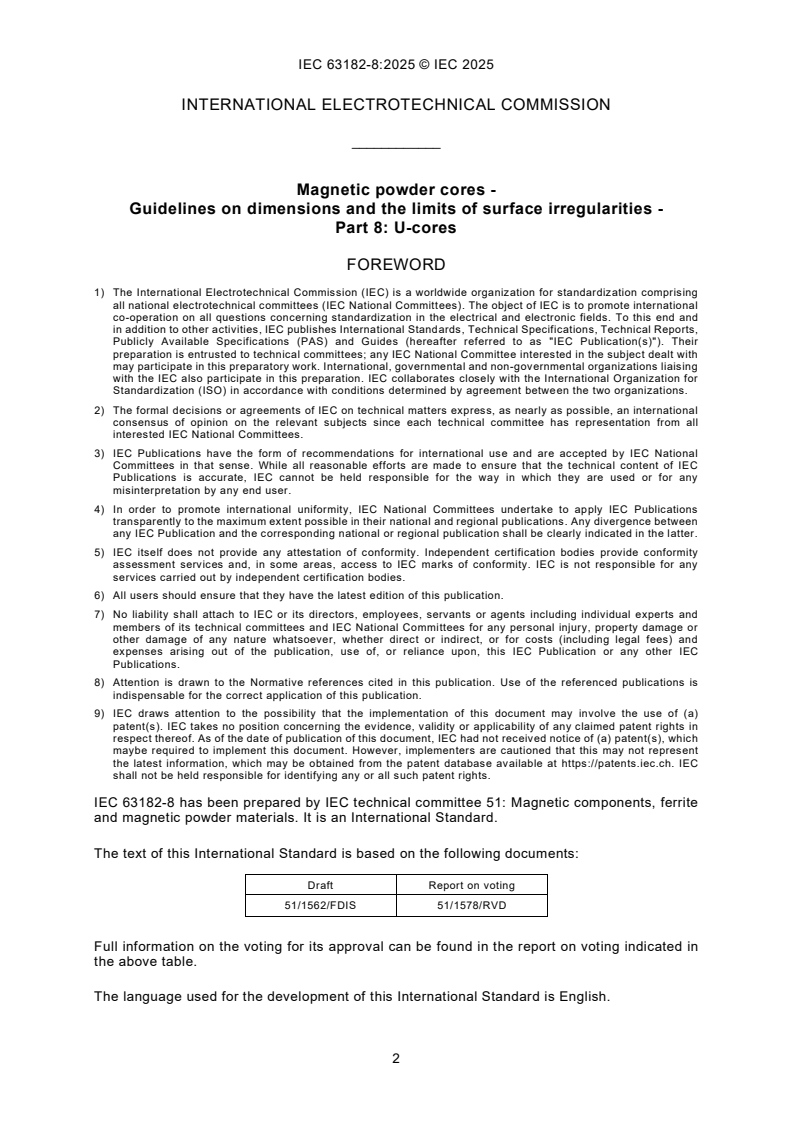

IEC 63182-8 has been prepared by IEC technical committee 51: Magnetic components, ferrite
and magnetic powder materials. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
51/1562/FDIS 51/1578/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 63182 series, published under the general title Magnetic powder
cores – Guidelines on dimensions and the limits of surface irregularities, can be found on the
IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
– reconfirmed,
– withdrawn, or
– revised.
1 Scope
This part of IEC 63182 specifies the dimensions that are of importance for mechanical
interchangeability for a preferred range of U-cores made of metallic magnetic powder and gives
guidelines on allowable limits of surface irregularities applicable to U-cores.
This document is a specification that is useful in the negotiations between magnetic powder
core suppliers and users about surface irregularities.
The use of "derived" standards which give more detailed specifications of component parts
while still permitting conformance with this document is discussed in Annex A.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60205, Calculation of effective parameters of magnetic piece parts
IEC 63182-1, Magnetic powder cores – Guidelines on dimensions and the limits of surface
irregularities – Part 1: General specification
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 63182-1 apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
– IEC Electropedia: available at https://www.electropedia.org/
– ISO Online browsing platform: available at https://www.iso.org/obp
4 Primary dimensions
4.1 General
Conformance with the requirements of 4.2 ensures mechanical interchangeability of complete
assemblies and coil formers.
4.2 Dimensions of U-cores
4.2.1 Main dimensions
The main dimensions of U-cores with rectangular cross-section shall be those given in Table 1.
The dimensions specified in Table 1 are illustrated in Figure 1.
Figure 1 – Main dimensions of U-cores
Table 1 – Main dimensions of U-cores
A B C D E L
a
mm mm mm mm mm mm
Size
Min. Max. Min. Max. Min. Max. Min. Max. Min. Min. Max.
U35/36/20 34,5 35,5 35,5 36,5 19,5 20,5 24,9 25,1 12,4 10,8 11,2
U35/36/25 34,5 35,5 35,5 36,5 24,5 25,5 24,9 25,1 12,4 10,8 11,2
U41/41/20 40,4 41,6 40,4 41,6 19,5 20,5 27,9 28,1 14,4 12,7 13,3
U41/41/25 40,4 41,6 40,4 41,6 24,5 25,5 27,9 28,1 14,4 12,7 13,3
U41/41/30 40,4 41,6 40,4 41,6 29,5 30,5 27,9 28,1 14,4 12,7 13,3
U52/51/25 51,3 52,7 50,3 51,7 24,5 25,5 34,8 35,2 19,2 15,7 16,3
U52/51/30 51,3 52,7 50,3 51,7 29,5 30,5 34,8 35,2 19,2 15,7 16,3
U55/28/16 54,2 55,5 27,1 28,1 15,9 16,7 16,7 17,5 32,5 10,3 10,7
U55/28/23 54,2 55,5 27,1 28,1 22,8 23,6 16,7 17,5 32,5 10,3 10,7
U63/61/30 62,2 63,8 59,7 61,3 29,5 30,5 41,3 41,7 24,0 18,6 19,4
U63/61/35 62,2 63,8 59,7 61,3 34,5 35,5 41,3 41,7 24,0 18,6 19,4
U65/33/20 64,4 66,0 32,0 33,0 19,6 20,4 19,6 20,4 38,5 12,3 12,8
U65/33/27 64,4 66,0 32,0 33,0 26,6 27,4 22,1 22.9 43,3 9,8 10,2
U72/36/21 71,5 73,3 34,9 36,2 20,5 21,3 21,3 22,1 42,8 13,6 14,2
U79/65/30 78,0 80,0 63,5 65,5 29,5 30,5 42,3 42,7 33,6 21,6 22,4
U79/65/35 78,0 80,0 63,5 65,5 34,5 35,5 42,3 42,7 33,6 21,6 22,4
U80/38/20 79,1 80,9 37,5 38,7 19,4 20,2 28,1 28,3 5
...
