IEC 60730-2-6:2025
(Main)Automatic electrical controls - Part 2-6: Particular requirements for automatic electrical pressure sensing controls including mechanical requirements
Automatic electrical controls - Part 2-6: Particular requirements for automatic electrical pressure sensing controls including mechanical requirements
IEC 60730-2-6:2025 applies to automatic electrical pressure sensing controls
• for use in, on, or in association with equipment for household appliance and similar use;
NOTE 1 Throughout this document, the word "equipment" means "appliance and equipment" and "controls" means "pressure sensing controls".
• for building automation within the scope of ISO 16484 series and IEC 63044 series (HBES/BACS);
EXAMPLE 1 Independently mounted automatic electrical pressure sensing controls, controls in smart grid systems and controls for building automation systems within the scope of ISO 16484-2.
• for equipment that is used by the public, such as equipment intended to be used in shops, offices, hospitals, farms and commercial and industrial applications;
EXAMPLE 2 Automatic electrical pressure sensing controls for commercial catering, heating and air-conditioning equipment.
• that are smart enabled automatic electrical pressure sensing controls;
EXAMPLE 3 Smart grid automatic electrical pressure sensing controls, remote interfaces/control of energy-consuming equipment including computer or smart phone.
• that are AC or DC powered controls with a rated voltage not exceeding 690 V AC or 600 V DC;
• used in, on, or in association with equipment that use electricity, gas, oil, solid fuel, solar thermal energy, etc., or a combination thereof;
• utilized as part of a control system or controls which are mechanically integral with multifunctional controls having non-electrical outputs;
• using NTC or PTC thermistors and to discrete thermistors, requirements for which are contained in Annex J;
• that are mechanically or electrically operated, responsive to or controlling a pressure or vacuum;
• as well as manual controls when such are electrically and/or mechanically integral with automatic controls.
NOTE 2 Requirements for manually actuated mechanical switches not forming part of an automatic control are contained in IEC 61058-1-1.
This document is also applicable to individual pressure sensing controls utilized as part of a control system or pressure sensing controls which are mechanically integral with multi-functional controls having non-electrical outputs.
This document is also applicable to pressure sensing controls for appliances within the scope of IEC 60335-1.
This document applies to
- the inherent safety of pressure sensing controls, and
- functional safety of pressure sensing controls and safety related systems,
- pressure sensing controls where the performance (for example the effect of EMC phenomena) of the product can impair the overall safety and performance of the controlled system,
- the operating values, operating times, and operating sequences where such are associated with equipment safety.
This document specifies the requirements for construction, operation and testing of automatic electrical controls used in, on, or in association with an equipment.
This document does not
• apply to pressure sensing controls intended exclusively for industrial process applications unless explicitly mentioned in the relevant part 2 or the equipment standard. However, this document can be applied to evaluate automatic electrical controls intended specifically for industrial applications in cases where no relevant safety standard exists;
• take into account the response value of an automatic action of a pressure sensing control, if such a response value is dependent upon the method of mounting the control in the equipment. Where a response value is of significant purpose for the protection of the user, or surroundings, the value defined in the appropriate equipment standard or as determined by the manufacturer will apply;
• address the integrity of the output signal to the network devices, such as interoperability with other devices unless it has been evaluated as part of the control system.
This document contains requirements for electrical features of pressure sensing controls and requirements for mechanical featu
Dispositifs de commande électriques automatiques - Partie 2-6: Exigences particulières pour les dispositifs de commande électriques automatiques sensibles à la pression, y compris les exigences mécaniques
L'IEC 60730-2-6:2025 s'applique aux dispositifs de commande électrique automatiques sensibles à la pression
− utilisés dans, sur ou avec des matériels pour appareil domestique et usage analogue;
NOTE 1 Dans le présent document, le terme "matériel" signifie "appareil et matériel" et "dispositifs de commande" signifie "dispositifs de commande sensibles à la pression".
− pour l'automatisation des bâtiments qui relèvent du domaine d'application de la série ISO 16484 et de la série IEC 63044 (HBES/BACS);
EXEMPLE 1 Les dispositifs de commande électrique automatiques sensibles à la pression montés indépendamment, les dispositifs de commande des systèmes de réseau intelligent et les dispositifs de commande des systèmes d'automatisation des bâtiments qui relèvent du domaine d'application de l'ISO 16484-2.
− pour des matériels utilisés par le public, tels que les matériels destinés à être utilisés dans des magasins, des bureaux, des hôpitaux, des fermes et des applications commerciales et industrielles;
EXEMPLE 2 Les dispositifs de commande électrique automatiques sensibles à la pression pour les installations de restauration, de chauffage et d'air conditionné.
− qui sont des dispositifs de commande électrique automatiques activés intelligents sensibles à la pression;
EXEMPLE 3 Les dispositifs de commande électrique automatiques sensibles à la pression de réseau intelligent, les interfaces distantes/dispositifs de commande de matériels utilisateurs d'énergie électrique, y compris les ordinateurs ou les mobiles multifonctions.
− qui sont des dispositifs de commande à courant alternatif ou continu dont la tension assignée ne dépasse pas 690 V en courant alternatif ou 600 V en courant continu;
− qui sont utilisés dans, sur ou avec des matériels qui utilisent l'électricité, le gaz, le pétrole, des combustibles solides, l'énergie thermique solaire, etc. ou une combinaison de ces sources d'énergie;
− qui sont utilisés dans le cadre d'un système de commande ou de dispositifs de commande qui sont mécaniquement intégrés à des dispositifs de commande multifonctions comportant des sorties non électriques;
− qui utilisent des thermistances CTN ou CTP ainsi qu'aux dispositifs à thermistances discrètes, dont les exigences sont fournies à l'Annexe J;
− qui sont actionnés mécaniquement ou électriquement, qui commandent ou sont sensibles à la pression ou au vide;
− ainsi qu'aux dispositifs de commande manuels qui sont électriquement et/ou mécaniquement intégrés à des dispositifs de commande automatique.
NOTE 2 Les exigences relatives aux interrupteurs mécaniques à action manuelle qui ne font pas partie d'un dispositif de commande automatique sont contenues dans l'IEC 61058-1-1.
Le présent document s'applique également aux différents dispositifs de commande sensibles à la pression qui sont utilisés dans le cadre d'un système de commande ou aux dispositifs de commande sensibles à la pression qui sont mécaniquement intégrés à des dispositifs de commande multifonctions comportant des sorties non électriques.
Le présent document s'applique également aux dispositifs de commande sensibles à la pression pour appareils qui relèvent du domaine d'application de l'IEC 60335-1.
Le présent document s'applique
− à la sécurité intrinsèque des dispositifs de commande sensibles à la pression; et
− à la sécurité fonctionnelle des dispositifs de commande sensibles à la pression et des systèmes de sécurité;
− aux dispositifs de commande sensibles à la pression pour lesquels les performances (par exemple, l'effet des phénomènes CEM) du produit peuvent compromettre la sécurité et les performances globales du système commandé;
− aux valeurs de fonctionnement, aux temps de fonctionnement et aux séquences de fonctionnement lorsque ces éléments interviennent dans la sécurité du matériel.
Le présent document spécifie les exigences relatives à la construction, au fonctionnement et aux essais des dispositifs de commande électrique automatiques utilisés dans, s
General Information
Relations
Standards Content (Sample)

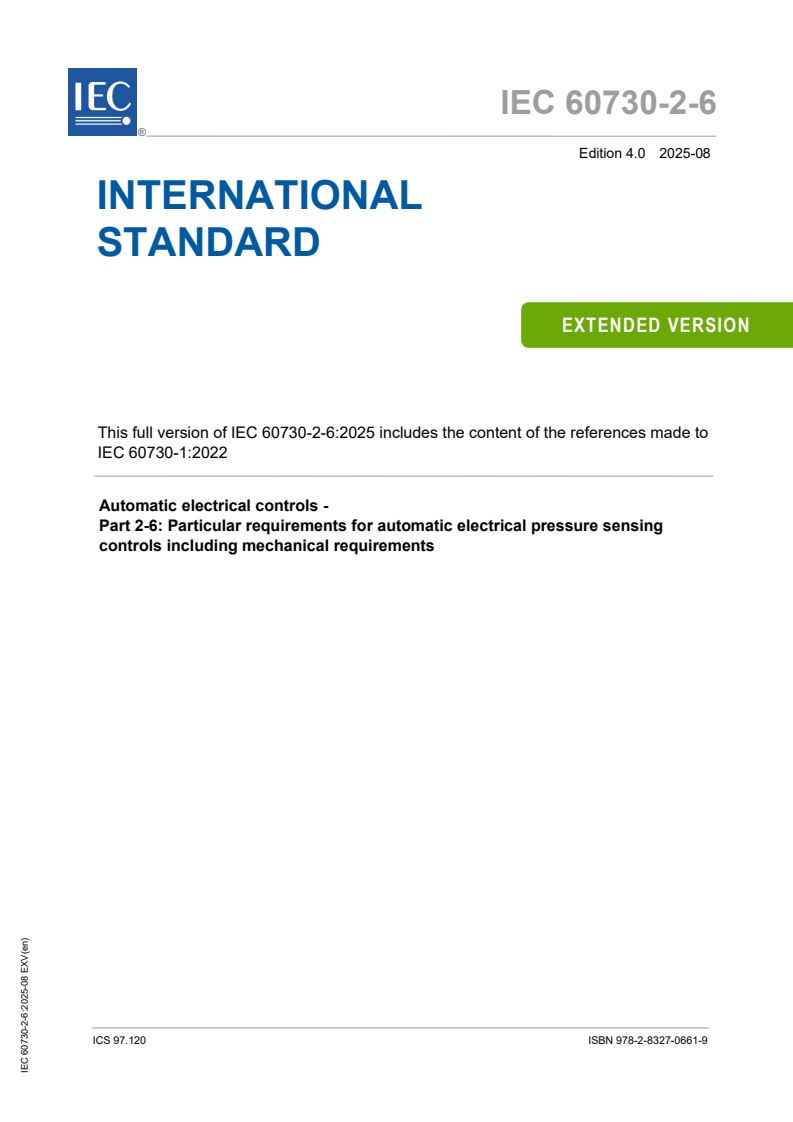

IEC 60730-2-6 ®
Edition 4.0 2025-08
INTERNATIONAL
STANDARD
EXTENDED VERSION
This full version of IEC 60730-2-6:2025 includes the content of the references made to
IEC 60730-1:2022
Automatic electrical controls -
Part 2-6: Particular requirements for automatic electrical pressure sensing
controls including mechanical requirements
ICS 97.120 ISBN 978-2-8327-0661-9
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
The world's leading online dictionary on electrotechnology,
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: sales@iec.ch.
CONTENTS
FOREWORD . 9
1 Scope . 12
2 Normative references . 13
3 Terms and definitions . 17
3.1 Definitions relating to ratings, voltages, currents, frequencies, and wattages . 17
3.2 Definitions of types of control according to purpose . 20
3.3 Definitions relating to the function of controls . 22
3.4 Definitions relating to disconnection and interruption . 26
3.5 Definitions of types of control according to construction . 27
3.6 Definitions of type of automatic action of a control . 28
3.7 Definitions relating to protection against electric shock and type of insulation . 28
3.8 Definitions relating to component parts of controls . 32
3.9 Definitions of types of terminals and terminations of controls . 34
3.10 Definitions relating to the connections to controls . 36
3.11 Definitions relating to the performance of type 2 actions . 37
3.12 Definitions relating to the requirements for creepage distances and
clearances . 37
3.13 Miscellaneous definitions . 38
3.14 Definitions relating to manufacturer and user . 40
3.15 Definitions pertaining to thermistors . 40
3.16 Definitions relating to the structure of controls using software . 40
3.17 Definitions relating to error avoidance in controls using software . 40
3.18 Definitions relating to fault/error control techniques for controls using
software . 40
3.19 Definitions relating to memory tests for controls using software . 40
3.20 Definitions of software terminology – General . 40
3.21 Definitions relating to classes of control functions . 40
3.22 Definitions relating to functional safety . 40
3.23 Definitions related to access to data exchange . 40
3.24 Definitions related to EMC performance . 41
4 General . 43
4.1 General structure of the document . 43
4.2 General requirements . 44
4.3 General notes on tests . 44
5 Required technical information . 48
5.1 General requirements . 48
5.2 Methods of providing technical information . 48
5.3 Class II symbol . 56
5.4 Additional requirements for marking . 56
5.5 Warning or cautionary markings . 58
6 Protection against electric shock . 58
6.1 General requirements . 58
6.2 Actuating members and actuating means . 60
6.3 Capacitors . 61
6.4 Covers and uninsulated live or hazardous parts . 61
6.5 Battery operated controls provided with a user accessible mains supply input
connector . 61
7 Provision for protective earthing . 62
7.1 Class 0I and Class I controls. 62
7.2 Class II and class III controls . 62
7.3 Adequacy of earth connections . 62
7.4 Corrosion resistance . 63
7.5 Other requirements . 64
7.6 Protective equipotential bonding . 64
8 Terminals and terminations. 64
8.1 Terminals and terminations for external copper conductors . 64
8.2 Terminals and terminations for internal conductors . 69
8.3 Terminals and terminations for integrated conductors . 71
9 Constructional requirements . 71
9.1 Materials . 71
9.2 Protection against electric shock . 71
9.3 Actuation and operation . 74
9.4 Actions . 77
9.5 Openings in enclosures . 80
9.6 Mounting of controls . 80
9.7 Attachment of cords . 81
9.8 Size of cords – non-detachable . 82
9.9 Inlet openings . 83
9.10 Equipment inlets and socket-outlets . 83
9.11 Requirements during mounting, use, maintenance and servicing . 84
9.12 Controls using software . 87
9.13 Protective controls and components of protective control systems . 90
9.101 Construction requirements relating to operating mechanism . 92
9.102 A pressure cut-out shall not reset or be resettable manually or otherwise at a
value above the maximum or below the minimum operating pressure,
whichever is declared. . 93
9.103 A pressure cut-out with a manually operated reset device shall be trip-free. . 93
10 Threaded parts and connections . 93
10.1 Threaded parts moved during mounting or servicing . 93
10.2 Current-carrying connections and connections providing protective earthing
continuity . 95
11 Creepage distances, clearances and distances through solid insulation . 96
11.1 General . 96
11.2 Clearances . 97
11.3 Creepage distances . 101
11.4 Solid insulation . 105
12 Components . 106
12.1 Transformers . 106
12.2 Switch mode power supplies and converters . 106
12.3 Capacitors . 107
12.4 Fuses . 107
12.5 Varistors . 107
12.6 Thermistors. 107
12.7 Relays . 108
12.8 Other components . 108
13 Fault assessment on electronic circuits . 108
13.1 Fault assessment for inherent safety . 108
13.2 Fault assessment to ensure functional safety . 114
14 Moisture and dust resistance . 114
14.1 Protection against ingress of water and dust . 114
14.2 Protection against humid conditions . 115
14.3 Touch current test for in-line cord controls and free-standing controls .
...
