IEC TR 62959:2021

Optical fibre cables - Shrinkage effects on cable and cable element end termination - Guidance

IEC TR 62959:2021 which is a Technical Report, provides information on cable shrinkage characterisation of optical fibre cables that consist of standard glass optical fibres for telecommunication application. The characterisation is directed to the effects of cable shrinkage or cable element shrinkage on the termination of cables. Shrinkage can or cannot be a concern depending on the method of termination. Examples of different cable termination cases are included and described. Tests for the evaluation of cable shrinkage are recommended that can be used as indicators, and shrinkage classification by several grades are given.

General Information

• Status: Published
• Publication Date: 16-Feb-2021
• ICS: 33.180.10 - Fibres and cables
• Technical Committee: SC 86A - Fibres and cables
• Current Stage: PPUB - Publication issued
• Start Date: 17-Feb-2021
• Completion Date: 03-Mar-2021

Overview

IEC TR 62959:2021 is a Technical Report from the International Electrotechnical Commission (IEC) that provides guidance on shrinkage effects of optical fibre cables and their impact on cable and cable-element end termination. The report addresses cables built with standard glass optical fibres for telecommunication applications and explains how thermal and material-induced shrinkage can influence connectorization, splicing and other termination methods.

Key topics

• Scope and purpose
  • Guidance (informative) on characterising cable shrinkage and its effects on terminations rather than prescriptive normative requirements.
• Materials and mechanisms
  • Differentiation between reversible thermal expansion/contraction and irreversible thermal contraction (shrinkage) of plastic cable components.
  • Discussion of forces between cable elements caused by thermal changes.
• Cable types
  • Coverage includes simplex, loose-tube, unitube and other common telecommunication cable constructions.
• Termination cases
  • Examples and descriptions of practical termination scenarios: connectorized cables, hardened connectors, modules, dividers/fan-outs, splices and protective housings.
• Test methods and parameters
  • Recommended test methods for evaluating shrinkage with Method F11 and Method F17 highlighted.
  • Guidance on preconditioning, test parameters and shrinkage grades (including fibre protrusion grades).
• Recommended performance indicators
  • Tests to evaluate optical performance under thermal cycling, fibre protrusion, sheath shrinkage and element forces.
• Annexes
  • Extensive informative annexes with test templates, study results and tailored test recommendations for specific termination types.

Practical applications

Who uses IEC TR 62959:2021 and why:

• Cable manufacturers - to characterise shrinkage behavior during product development and for specification of shrinkage grades.
• Test laboratories - to apply recommended test methods (F11, F17) and report shrinkage/fibre protrusion results.
• System designers and installers - to select appropriate termination methods and protectors (modules, housings, hardened connectors) where shrinkage could affect reliability.
• Network operators and specifiers - to set procurement requirements and acceptance criteria for cable assemblies used in outdoor or varying-temperature environments.

Related standards (if applicable)

• This Technical Report complements IEC optical-fibre cable standards and test documents covering mechanical, environmental and optical performance. Users should consult relevant IEC normative standards for formal performance requirements and test procedures when specifying or qualifying products.

Keywords: IEC TR 62959:2021, optical fibre cables, cable shrinkage testing, fibre protrusion, connector termination, loose tube, simplex, shrinkage grades, test methods F11 F17.

Standards Content (Sample)

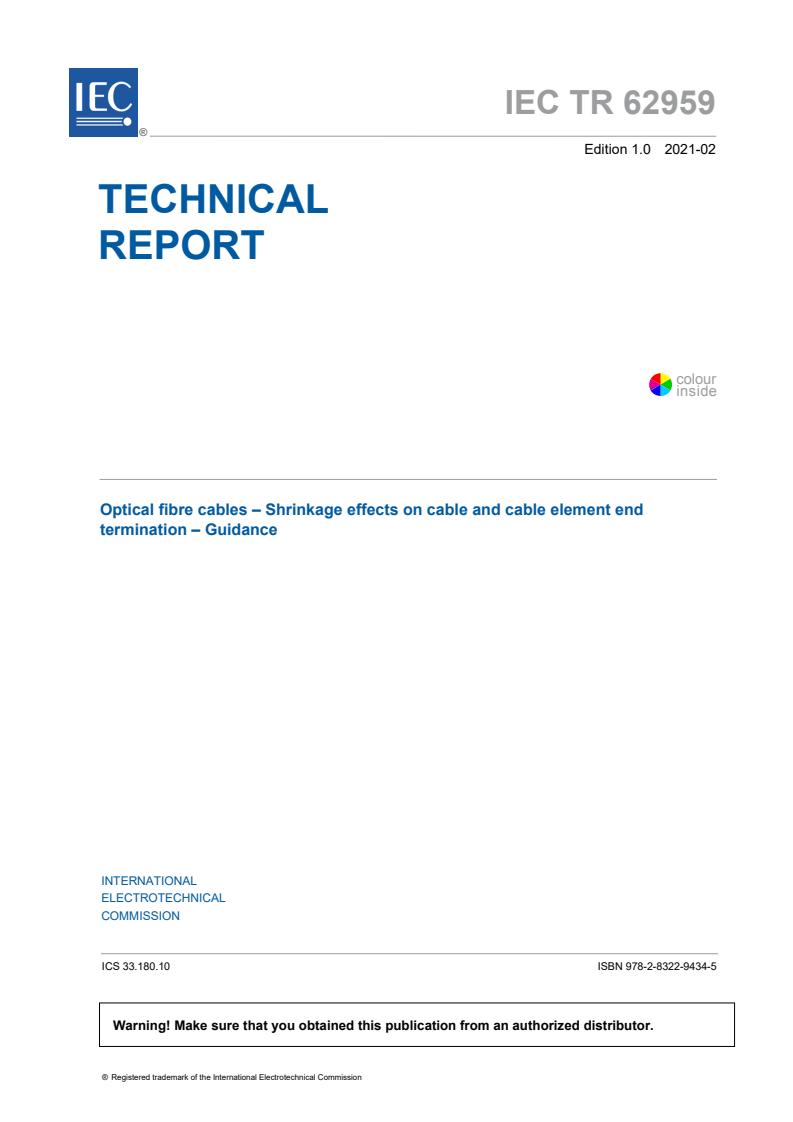

IEC TR 62959 ®
Edition 1.0 2021-02
TECHNICAL
REPORT
colour
inside
Optical fibre cables – Shrinkage effects on cable and cable element end
termination – Guidance
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC TR 62959 ®
Edition 1.0 2021-02
TECHNICAL
REPORT
colour
inside
Optical fibre cables – Shrinkage effects on cable and cable element end

termination – Guidance
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.180.10 ISBN 978-2-8322-9434-5

– 2 – IEC TR 62959:2021  IEC 2021

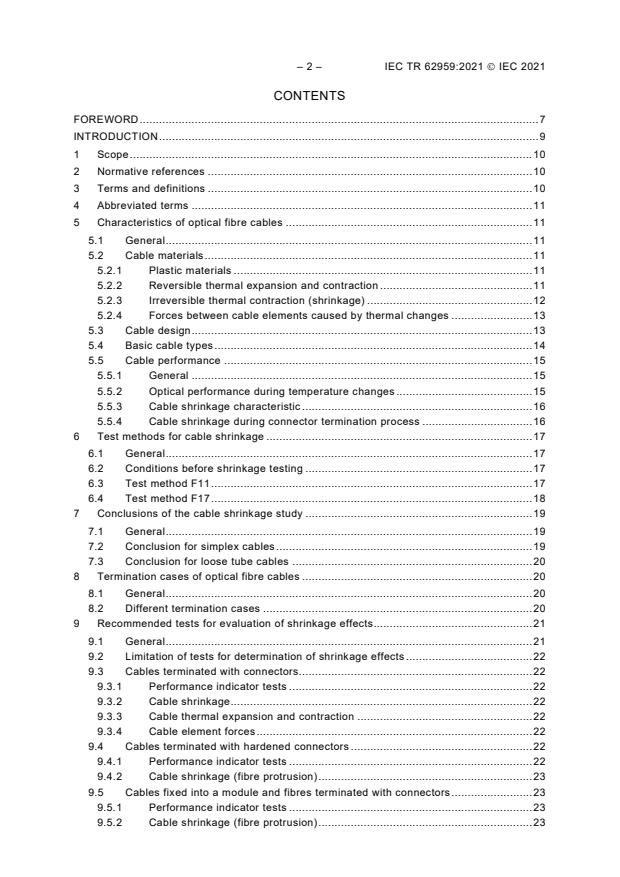

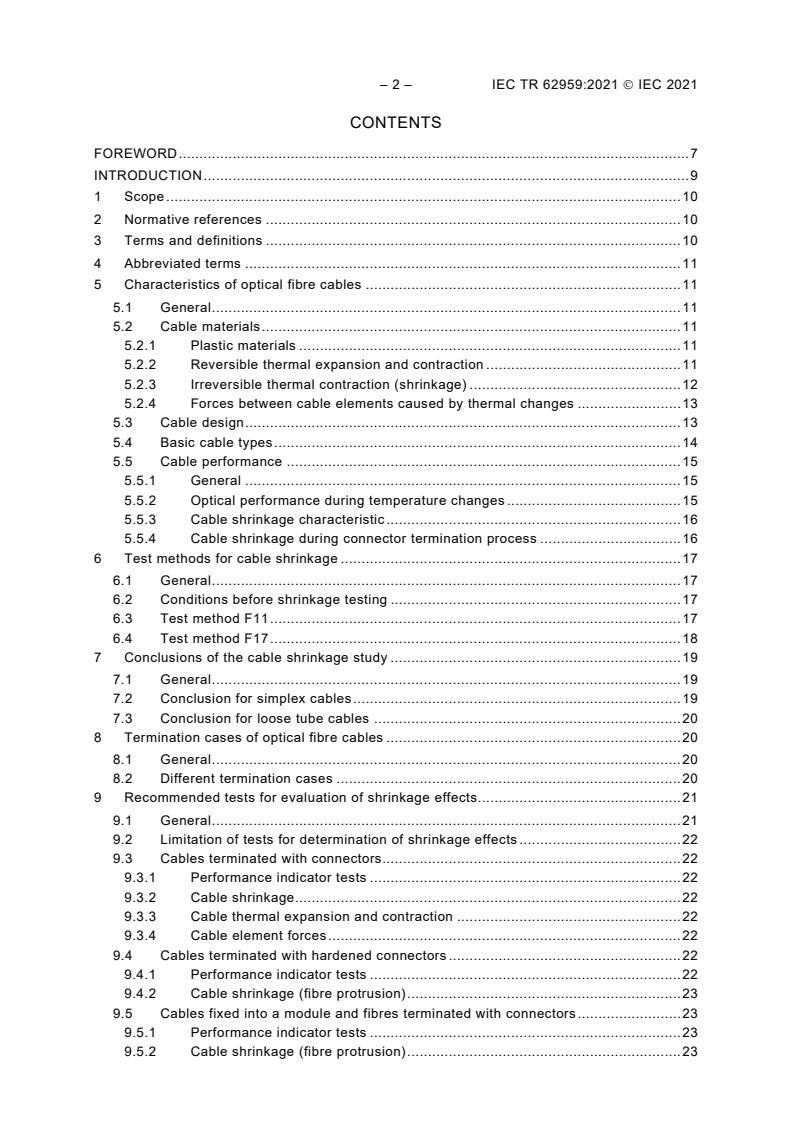

CONTENTS
