IEC 60794-1-404:2022

Optical fibre cables - Part 1-404: Generic specification - Basic optical cable test procedures - Electrical test methods - Current-temperature test, method H4

IEC 60794-1-404:2022 defines a test standard to determine the optical performance and temperature characteristics of a hybrid cable under the maximum current. This document applies to optical phase conductor (OPPC). An optical phase conductor is made of multiple metallic wires that are exposed to the environment without any insulating or protective sheath and contain optical fibres.

Câbles à fibres optiques - Partie 1-404: Spécification générique - Procédures fondamentales d’essais des câbles optiques - Méthodes d’essais électriques - Essai de courant-température, méthode H4

IEC 60794-1-404:2022 définit une norme d’essai visant à déterminer les performances optiques et les caractéristiques thermiques d’un câble hybride sous courant maximal. Le présent document s’applique aux conducteurs de phase à fibres optiques (OPPC). Un conducteur de phase optique est composé de plusieurs brins métalliques exposés à l’environnement sans gaine isolante ou de protection, et contient des fibres optiques.

General Information

• Status: Published
• Publication Date: 09-Feb-2022
• ICS: 33.180.10 - Fibres and cables
• Technical Committee: SC 86A - Fibres and cables
• Current Stage: PPUB - Publication issued
• Start Date: 10-Feb-2022
• Completion Date: 18-Mar-2022

Overview

IEC 60794-1-404:2022 is an internationally recognized standard developed by the International Electrotechnical Commission (IEC). Titled "Optical fibre cables - Part 1-404: Generic specification - Basic optical cable test procedures - Electrical test methods - Current-temperature test, method H4," this standard provides a defined method for evaluating the optical performance and temperature characteristics of hybrid cables, specifically optical phase conductors (OPPC). OPPCs are constructed using multiple metallic wires exposed to the environment and contain integrated optical fibres without any insulating or protective sheath.

This standard is critical for manufacturers, testing laboratories, and utilities that need to confirm the reliability and durability of OPPCs under high-current, high-temperature operating conditions.

Key Topics

• Scope and Purpose: IEC 60794-1-404 details a test procedure to verify that optical phase conductors maintain performance when subjected to their maximum rated electrical current and associated temperature rise.
• Applicability: Focuses on OPPC, where metallic conductors are exposed, and optical fibres are embedded directly in the cable structure.
• Test Setup: Outlines the use of at least two thermocouples, appropriate cable samples, and test apparatus capable of delivering and maintaining specified electrical current with high stability.
• Lab Conditions: Tests are performed under controlled ambient temperature (23°C ± 5°C), with no wind or solar radiation, promoting repeatability and accuracy.
• Performance Criteria:
  • Continuous monitoring of optical attenuation (typically at 1550 nm, aligned with IEC 60793-1-46).
  • The integrity of the cable is judged by ensuring attenuation does not increase by more than 0.15 dB/km (at the specified wavelength and agreement) over the test period.
  • The conductor temperature must not exceed 85°C or another mutually agreed value.

Applications

IEC 60794-1-404:2022 is pivotal for the following use cases:

• OPPC Manufacturing and Product Validation: Ensures that newly designed or manufactured optical phase conductors meet robust electrical and thermal performance specifications before deployment.
• Utility and Energy Sector Testing: Used by power utilities and grid operators to validate the suitability of OPPC infrastructure for high-voltage, overhead transmission applications where both electrical transmission and optical communications are required in a single cable.
• Quality Assurance and Compliance: Supports quality control in manufacturing and provides necessary compliance for procurement and bidding processes in power and communication infrastructure projects.
• Test Laboratories: Provides a standardized and repeatable method for accredited laboratories to conduct type tests on OPPCs and related hybrid cables.

Related Standards

To ensure comprehensive assessment and compatibility, consider the following related standards referenced within IEC 60794-1-404:2022:

• IEC 60793-1-46: Describes methods for monitoring changes in optical transmittance of fibres during mechanical and environmental testing.
• IEC TR 61597: Outlines calculation methods for stranded bare overhead conductors, relevant for determining operational current loads in OPPCs.
• IEC 60794 Series: Covers a wide array of optical fibre cable test procedures, specifications, and related performance standards for both single-mode and multi-mode fibre optic cables.

Incorporating IEC 60794-1-404:2022 into your testing and certification processes strengthens the reliability and market acceptance of optical phase conductors, supporting safe and robust integration into modern energy and communication networks.

Standards Content (Sample)

IEC 60794-1-404 ®
Edition 1.0 2022-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Optical fibre cables –
Part 1-404: Generic specification – Basic optical cable test procedures –
Electrical test methods – Current-temperature test, method H4

Câbles à fibres optiques –
Partie 1-404: Spécification générique – Procédures fondamentales d’essais des
câbles optiques – Méthodes d’essais électriques – Essai de
courant-température, méthode H4

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez
webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un
La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour
en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.
comité d’études, …). Elle donne aussi des informations sur les
projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 300 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 19 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.

Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC Products & Services Portal - products.iec.ch

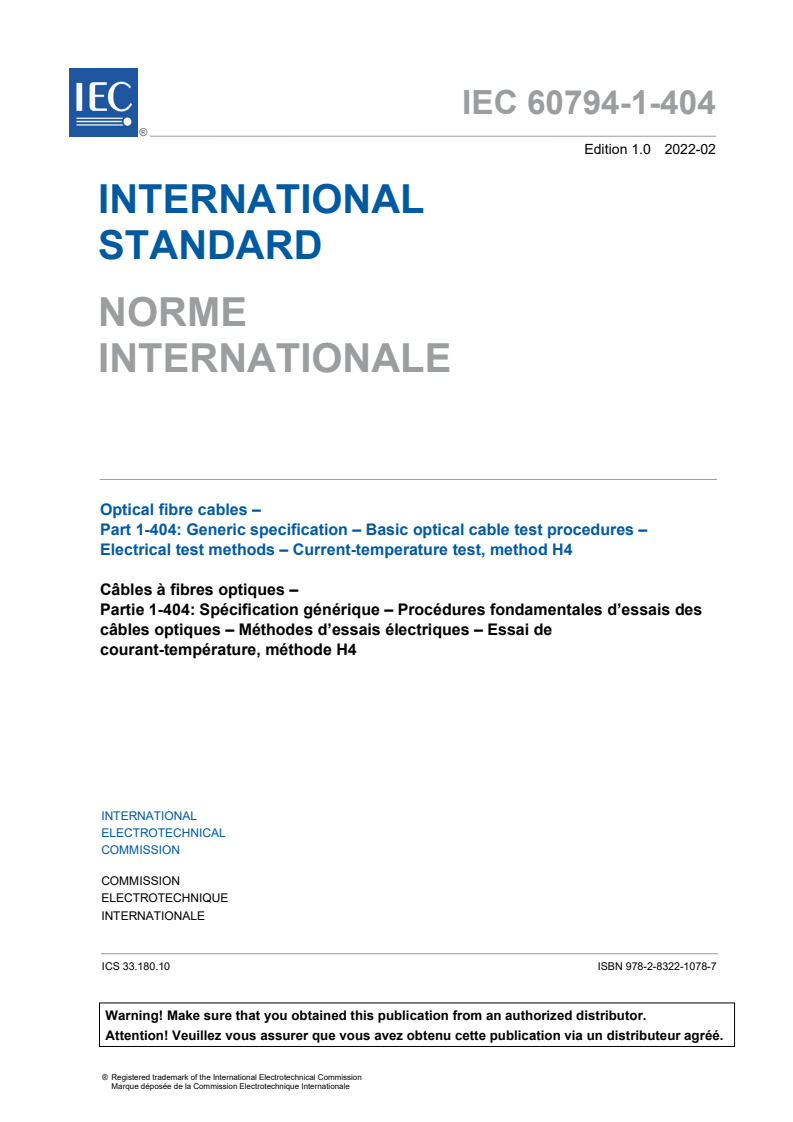

IEC 60794-1-404 ®
Edition 1.0 2022-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Optical fibre cables –
Part 1-404: Generic specification – Basic optical cable test procedures –

Electrical test methods – Current-temperature test, method H4

Câbles à fibres optiques –
Partie 1-404: Spécification générique – Procédures fondamentales d’essais des

câbles optiques – Méthodes d’essais électriques – Essai de

courant-température, méthode H4

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.10 ISBN 978-2-8322-1078-7

– 2 – IEC 60794-1-404:2022 © IEC 2022

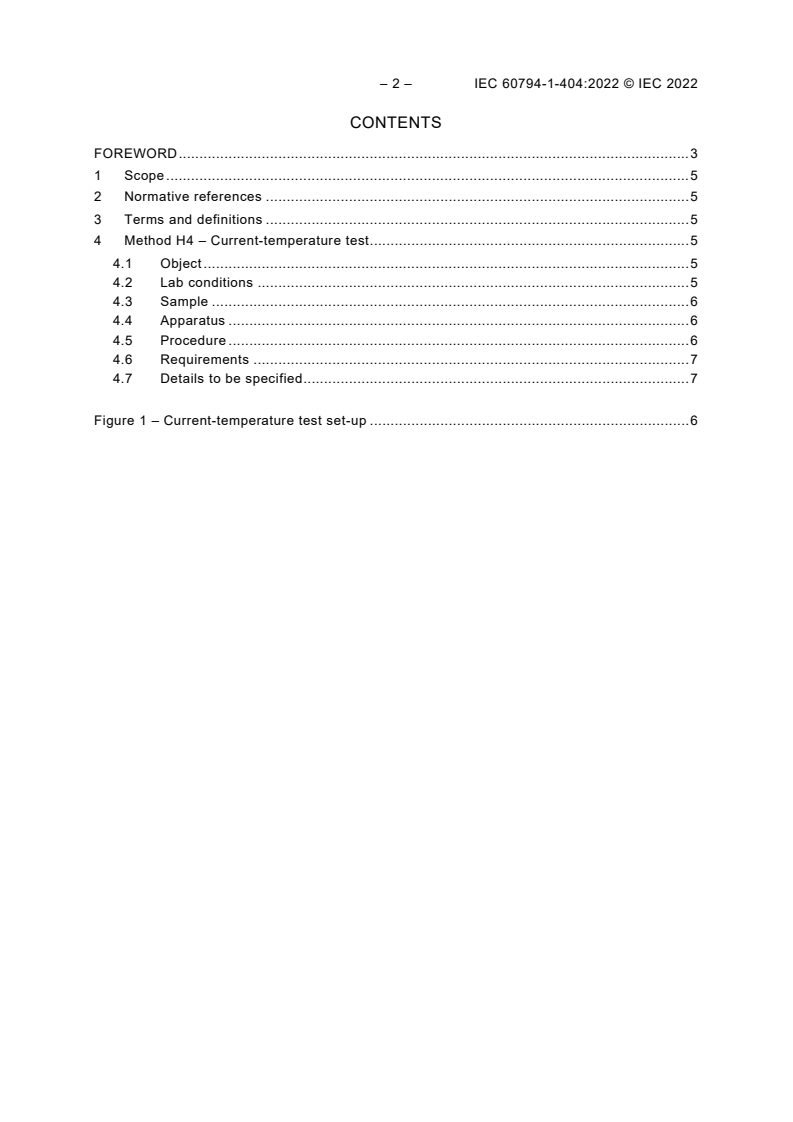

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Method H4 – Current-temperature test . 5
4.1 Object . 5
4.2 Lab conditions . 5
4.3 Sample . 6
4.4 Apparatus . 6
4.5 Procedure . 6
4.6 Requirements . 7
4.7 Details to be specified . 7

Figure 1 – Current-temperature test set-up . 6

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPTICAL FIBRE CABLES –
Part 1-404: Generic specification –
Basic optical cable test procedures – Electrical test methods –
Current-temperature test, method H4

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 60794-1-404 has been prepared by subcommittee 86A: Fibres and cables, of IEC technical
committee 86: Fibre optics. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
86A/2170/FDIS 86A/2185/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

– 4 – IEC 60794-1-404:2022 © IEC 2022
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
A list of all parts in the IEC 60794 series, published under the general title Optical fibre cables,
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
OPTICAL FIBRE CABLES –
Part 1-404: Generic specification –
Basic optical cable test procedures – Electrical test methods –
Current-temperature test, method H4

1 Scope
This part of IEC 60794 defines a test standard to determine the optical performance and
temperature characteristics of a hybrid cable under the maximum current.
This document applies to optical phase conductor (OPPC). An optical phase conductor is made
of multiple metallic wires that are exposed to the environment without any insulating or
protective sheath and contain optical fibres.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60793-1-46, Optical fibres – Part 1-46: Measurement methods and test procedures –
Monitoring of changes in optical transmittance
IEC TR 61597, Overhead electrical conductors – Calculation methods for stranded bare
conductors
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Method H4 – Current-temperature test
4.1 Object
The object of this test is to verify that the temperature of the sample and the attenuation of
monitored optical fibres comply with the general optical requirements during the maximum
current test.
4.2 Lab conditions
Tests shall be carried out in a natural convection lab, and the temperature shall be 23 °C ± 5 °C
without wind or solar radiation.

– 6 – IEC 60794-1-404:2022 © IEC 2022
4.3 Sample
Preparation of the sample length and ends should ensure that flashover along its surface or
breakdown does not occur during the test.
The test length of the sample shall be no less than 6 m.
The test length of the optical fibre shall be no less than 100 m, and several fibres can be spliced
together if necessary. At least one fibre shall be tested from each buffer tube, fibre bundle or
cable element.
4.4 Apparatus
Test apparatus shall provide the frequency of AC voltage, voltage stability, and keep the current
value within the specified value ±3 % during the test. A typical test set-up is shown in Figure 1.

Key
1 electrical isolator
2 loop-spliced fibre
3 holder
4 thermocouple
...
