Standards Content (Sample)

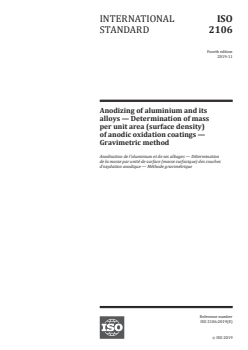

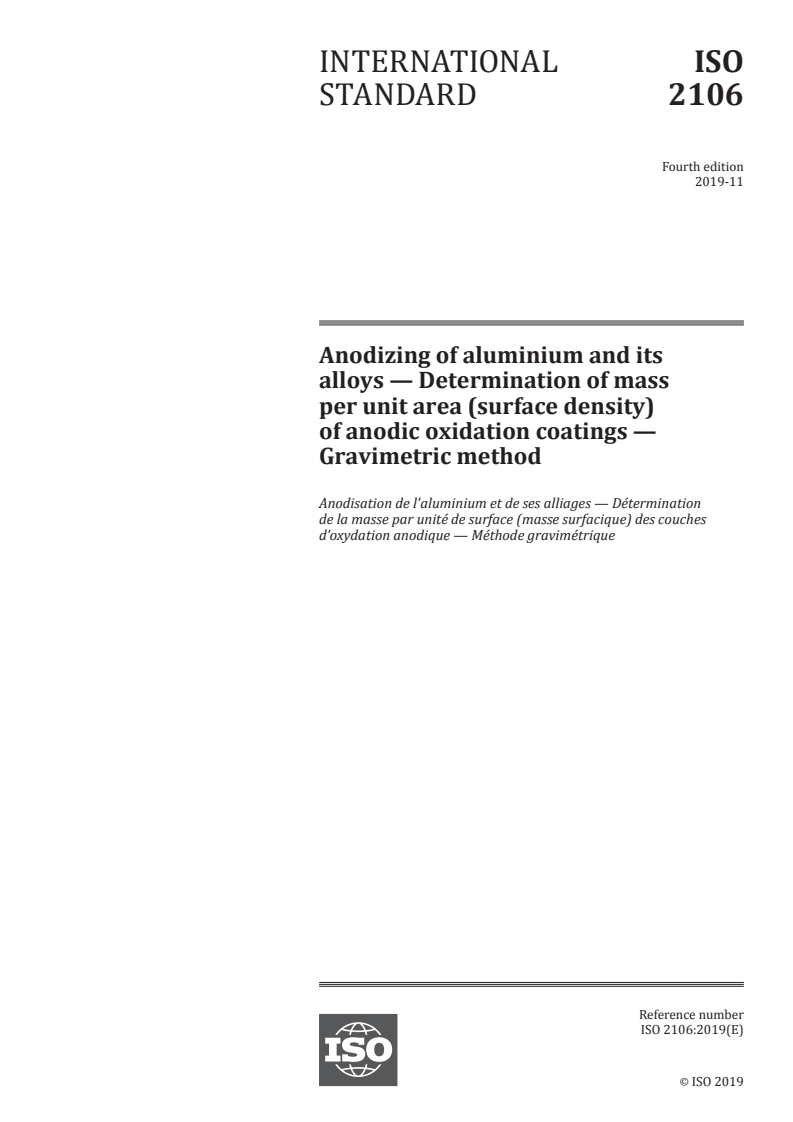

INTERNATIONAL ISO
STANDARD 2106
Fourth edition
2019-11
Anodizing of aluminium and its
alloys — Determination of mass
per unit area (surface density)
of anodic oxidation coatings —
Gravimetric method
Anodisation de l'aluminium et de ses alliages — Détermination
de la masse par unité de surface (masse surfacique) des couches
d’oxydation anodique — Méthode gravimétrique
Reference number
ISO 2106:2019(E)
ISO 2019
---------------------- Page: 1 ----------------------
ISO 2106:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2019

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 2106:2019(E)

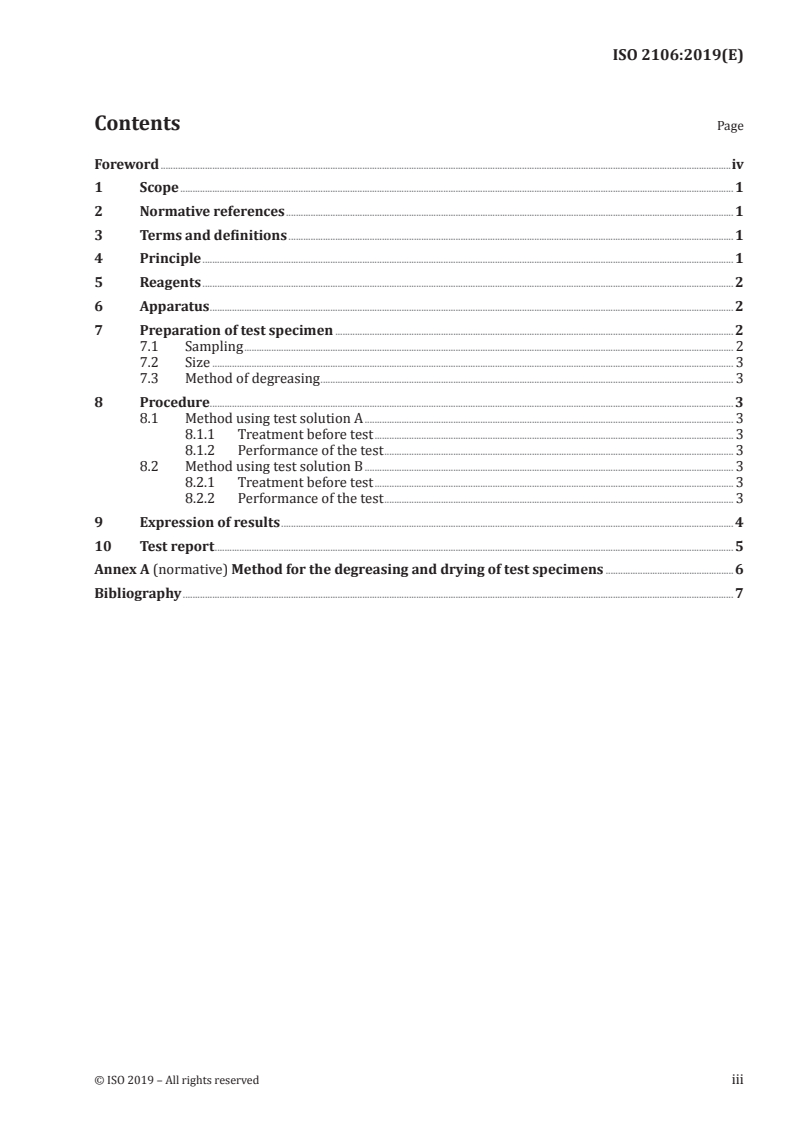

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Principle ........................................................................................................................................................................................................................ 1

5 Reagents ........................................................................................................................................................................................................................ 2

6 Apparatus ..................................................................................................................................................................................................................... 2

7 Preparation of test specimen .................................................................................................................................................................. 2

7.1 Sampling ....................................................................................................................................................................................................... 2

7.2 Size .................................................................................................................................................................................................................... 3

7.3 Method of degreasing ........................................................................................................................................................................ 3

8 Procedure..................................................................................................................................................................................................................... 3

8.1 Method using test solution A ...................................................................................................................................................... 3

8.1.1 Treatment before test .................................................................................................................................................. 3

8.1.2 Performance of the test .............................................................................................................................................. 3

8.2 Method using test solution B ...................................................................................................................................................... 3

8.2.1 Treatment before test .................................................................................................................................................. 3

8.2.2 Performance of the test .............................................................................................................................................. 3

9 Expression of results ........................................................................................................................................................................................ 4

10 Test report ................................................................................................................................................................................................................... 5

Annex A (normative) Method for the degreasing and drying of test specimens ....................................................6

Bibliography ................................................................................................................................................................................................................................ 7

© ISO 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 2106:2019(E)

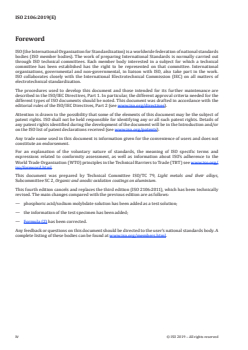

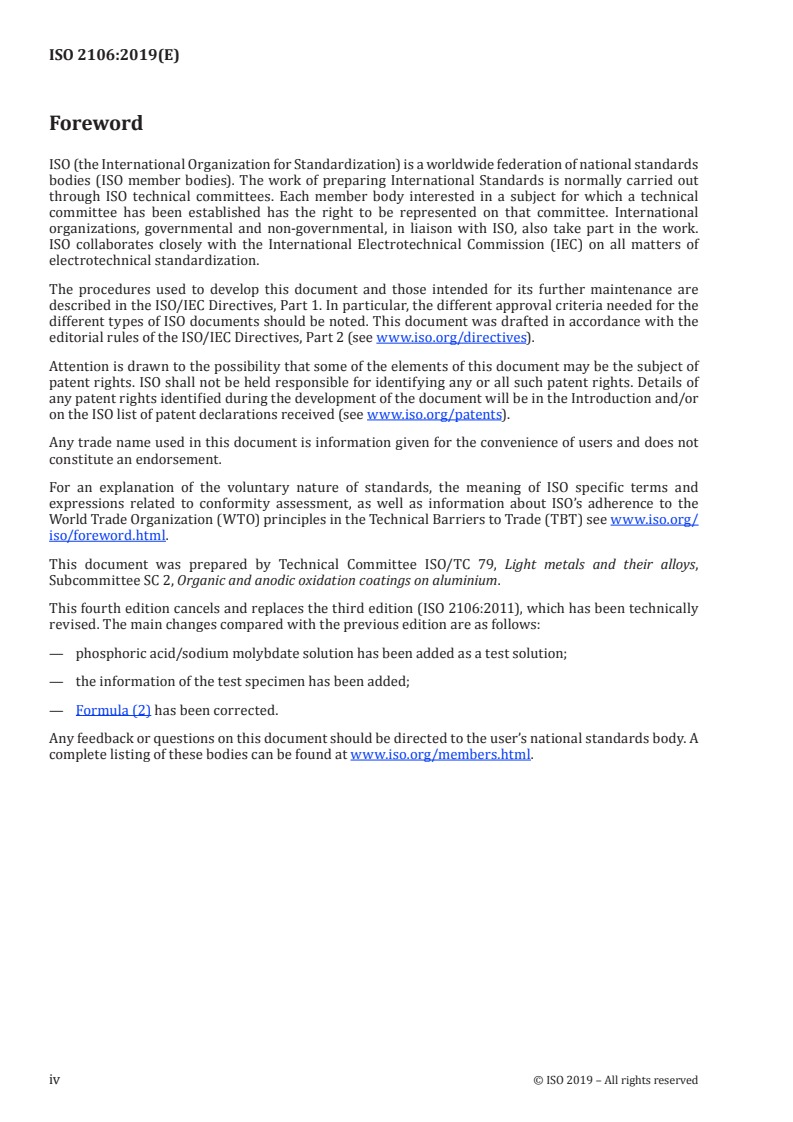

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO’s adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 79, Light metals and their alloys,

Subcommittee SC 2, Organic and anodic oxidation coatings on aluminium.

This fourth edition cancels and replaces the third edition (ISO 2106:2011), which has been technically

revised. The main changes compared with the previous edition are as follows:
— phosphoric acid/sodium molybdate solution has been added as a test solution;
— the information of the test specimen has been added;
— Formula (2) has been corrected.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2019 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 2106:2019(E)
Anodizing of aluminium and its alloys — Determination of
mass per unit area (surface density) of anodic oxidation
coatings — Gravimetric method
1 Scope

This document specifies a gravimetric method for determining the mass per unit area (surface density)

of anodic oxidation coatings on aluminium and its alloys.

The method is applicable to all oxidation coatings formed by anodizing aluminium and its alloys, either

cast or wrought, and is suitable for most aluminium alloys, except those in which the mass fraction of

copper is greater than 6 %.

NOTE 1 A high content of copper in the alloy can lead to increased dissolution of the substrate aluminium.

NOTE 2 If the thickness is known with sufficient precision (for example, using the method specified in

ISO 2128), the determination of the mass per unit area (surface density) of the coatings will enable its apparent

density to be calculated. Conversely, if the conditions of application of the coating and its density are known, the

determination of its mass per unit area (surface density) can permit the calculation of the average mass and an

approximate evaluation of the thickness (see Clause 9).
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 7583, Anodizing of aluminium and its alloys — Terms and definitions
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 7583 apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
4 Principle

The anodic oxidation coating on a weighed test specimen of known surface area is dissolved without

significant
...

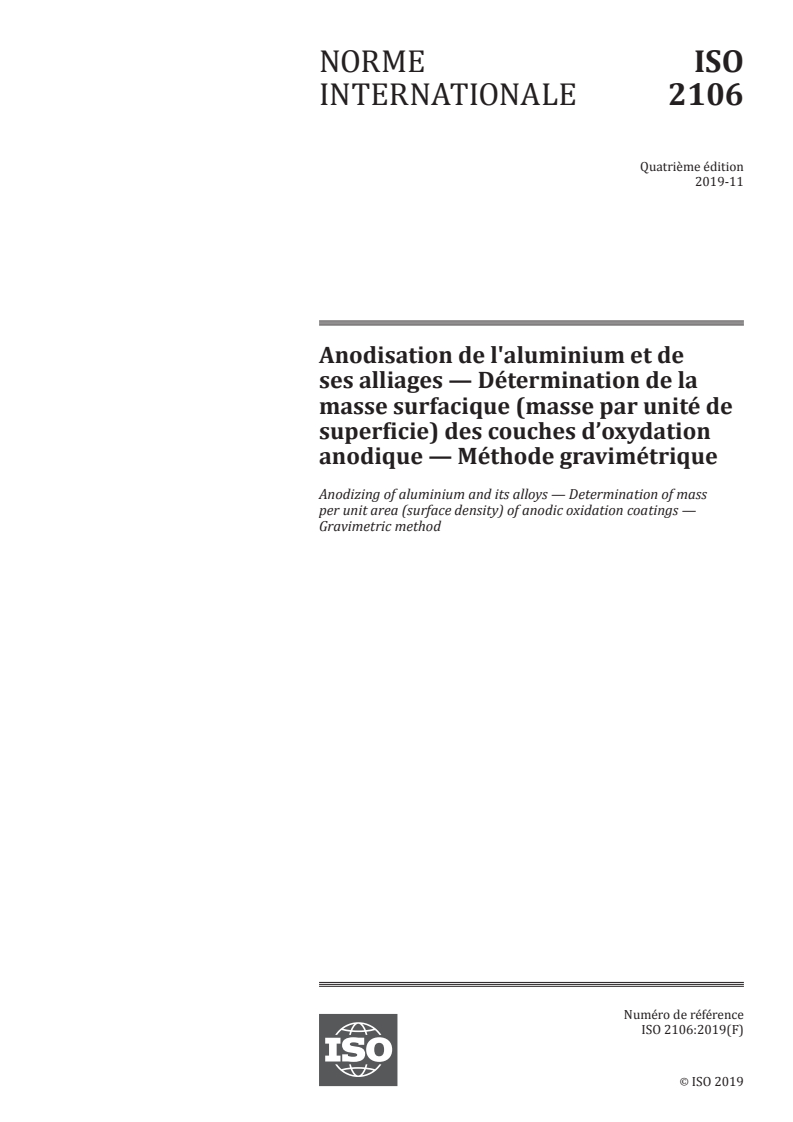

NORME ISO
INTERNATIONALE 2106
Quatrième édition
2019-11
Anodisation de l'aluminium et de
ses alliages — Détermination de la
masse surfacique (masse par unité de
superficie) des couches d’oxydation
anodique — Méthode gravimétrique
Anodizing of aluminium and its alloys — Determination of mass
per unit area (surface density) of anodic oxidation coatings —
Gravimetric method
Numéro de référence
ISO 2106:2019(F)
ISO 2019
---------------------- Page: 1 ----------------------
ISO 2106:2019(F)
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2019

Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette

publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,

y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut

être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.

ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
Fax: +41 22 749 09 47
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse
ii © ISO 2019 – Tous droits réservés
---------------------- Page: 2 ----------------------
ISO 2106:2019(F)

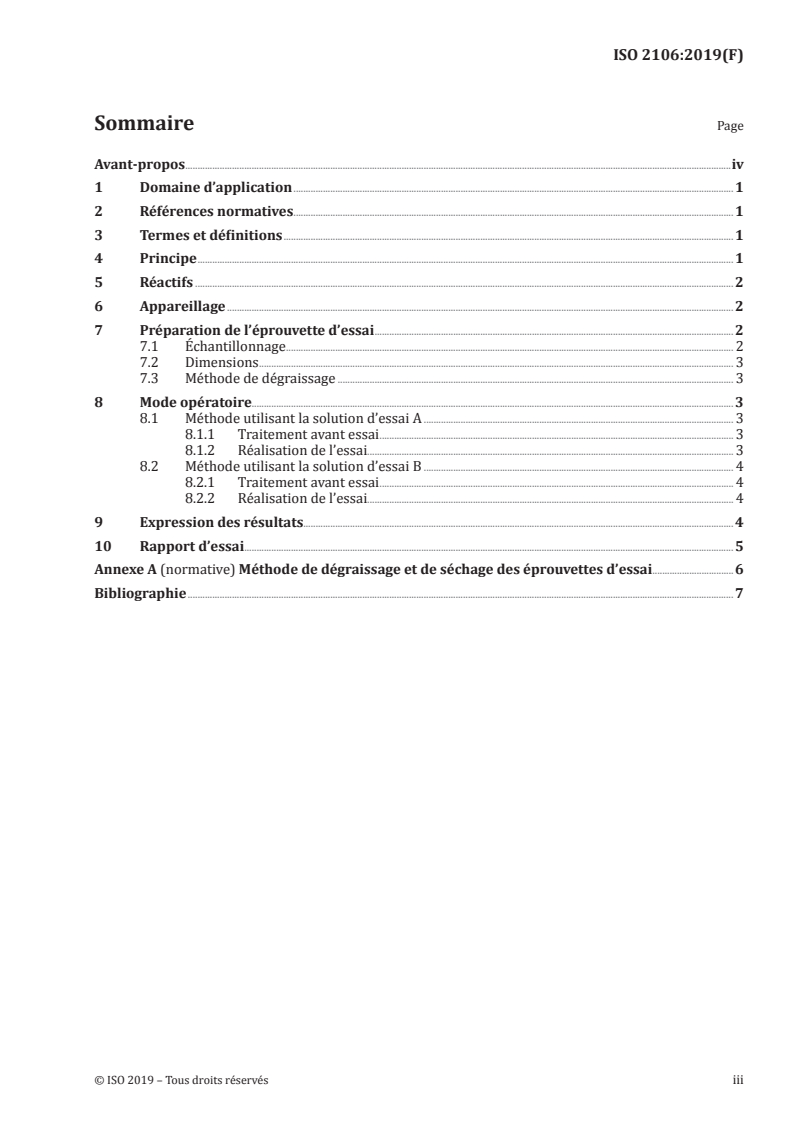

Sommaire Page

Avant-propos ..............................................................................................................................................................................................................................iv

1 Domaine d’application ................................................................................................................................................................................... 1

2 Références normatives ................................................................................................................................................................................... 1

3 Termes et définitions ....................................................................................................................................................................................... 1

4 Principe .......................................................................................................................................................................................................................... 1

5 Réactifs ........................................................................................................................................................................................................................... 2

6 Appareillage .............................................................................................................................................................................................................. 2

7 Préparation de l’éprouvette d’essai .................................................................................................................................................. 2

7.1 Échantillonnage ...................................................................................................................................................................................... 2

7.2 Dimensions ................................................................................................................................................................................................. 3

7.3 Méthode de dégraissage ................................................................................................................................................................. 3

8 Mode opératoire.................................................................................................................................................................................................... 3

8.1 Méthode utilisant la solution d’essai A .............................................................................................................................. 3

8.1.1 Traitement avant essai ................................................................................................................................................ 3

8.1.2 Réalisation de l’essai..................................................................................................................................................... 3

8.2 Méthode utilisant la solution d’essai B .............................................................................................................................. 4

8.2.1 Traitement avant essai ................................................................................................................................................ 4

8.2.2 Réalisation de l’essai..................................................................................................................................................... 4

9 Expression des résultats............................................................................................................................................................................... 4

10 Rapport d’essai ....................................................................................................................................................................................................... 5

Annexe A (normative) Méthode de dégraissage et de séchage des éprouvettes d’essai .................................6

Bibliographie .............................................................................................................................................................................................................................. 7

© ISO 2019 – Tous droits réservés iii
---------------------- Page: 3 ----------------------
ISO 2106:2019(F)

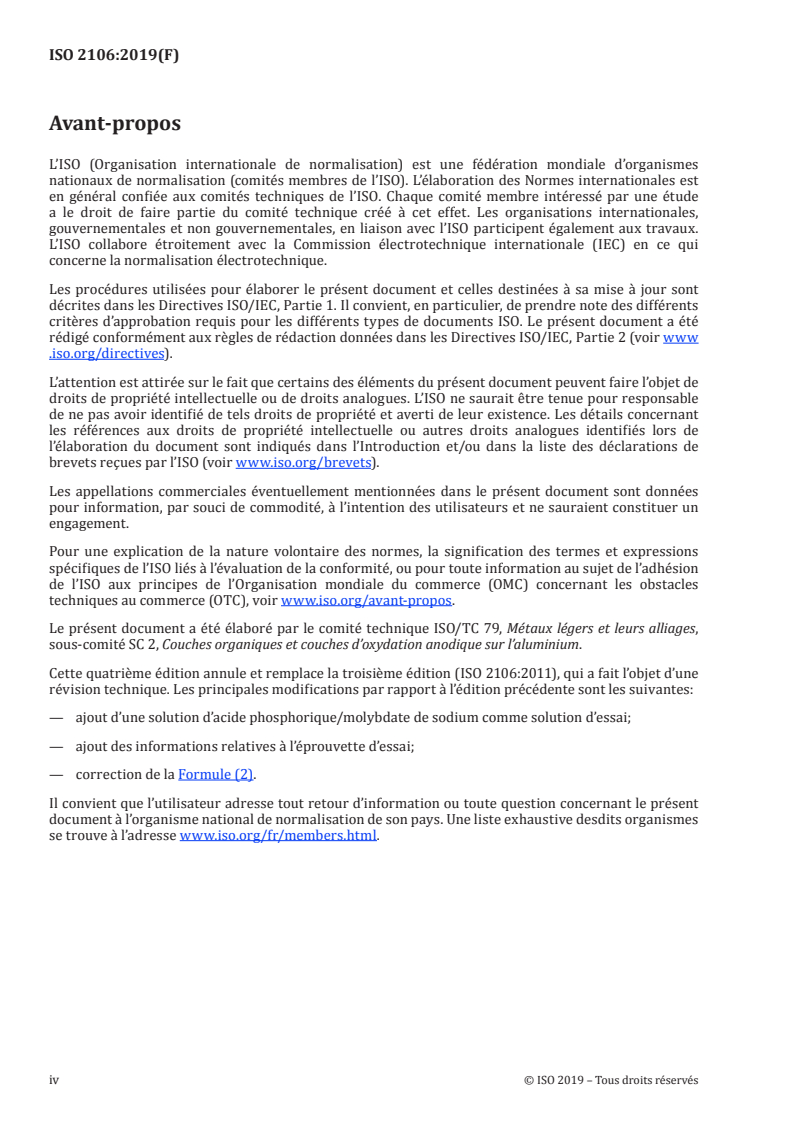

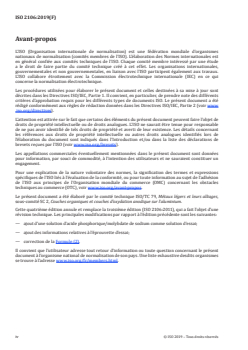

Avant-propos

L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes

nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est

en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude

a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,

gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.

L’ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui

concerne la normalisation électrotechnique.

Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont

décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier, de prendre note des différents

critères d’approbation requis pour les différents types de documents ISO. Le présent document a été

rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www

.iso .org/ directives).

L’attention est attirée sur le fait que certains des éléments du présent document peuvent faire l’objet de

droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable

de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant

les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de

l’élaboration du document sont indiqués dans l’Introduction et/ou dans la liste des déclarations de

brevets reçues par l’ISO (voir www .iso .org/ brevets).

Les appellations commerciales éventuellement mentionnées dans le présent document sont données

pour information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un

engagement.

Pour une explication de la nature volontaire des normes, la signification des termes et expressions

spécifiques de l’ISO liés à l’évaluation de la conformité, ou pour toute information au sujet de l’adhésion

de l’ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles

techniques au commerce (OTC), voir www .iso .org/ avant -propos.

Le présent document a été élaboré par le comité technique ISO/TC 79, Métaux légers et leurs alliages,

sous-comité SC 2, Couches organiques et couches d’oxydation anodique sur l’aluminium.

Cette quatrième édition annule et remplace la troisième édition (ISO 2106:2011), qui a fait l’objet d’une

révision technique. Les principales modifications par rapport à l’édition précédente sont les suivantes:

— ajout d’une solution d’acide phosphorique/molybdate de sodium comme solution d’essai;

— ajout des informations relatives à l’éprouvette d’essai;
— correction de la Formule (2).

Il convient que l’utilisateur adresse tout retour d’information ou toute question concernant le présent

document à l’organisme national de normalisation de son pays. Une liste exhaustive desdits organismes

se trouve à l’adresse www .iso .org/ fr/ members .html.
iv © ISO 2019 – Tous droits réservés
---------------------- Page: 4 ----------------------
NORME INTERNATIONALE ISO 2106:2019(F)
Anodisation de l'aluminium et de ses alliages —
Détermination de la masse surfacique (masse par unité de
superficie) des couches d’oxydation anodique — Méthode
gravimétrique
1 Domaine d’application

Le présent document spécifie une méthode gravimétrique de détermination de la masse surfacique

(masse par unité de superficie) des couches d’oxydation anodique sur l’aluminium et ses alliages.

Cette méthode est applicable à toutes les couches d’oxyde obtenues par anodisation sur l’aluminium et

ses alliages, aussi bien sur pièces moulées que sur produits corroyés, et elle est valable pour la plupart

des alliages d’aluminium, à l’exception de ceux dont la fraction massique de cuivre est supérieure à 6 %.

NOTE 1 Une forte teneur en cuivre dans l’alliage peut conduire à une dissolution excessive du substrat

d’aluminium.

NOTE 2 Si l’épaisseur est connue avec une précision suffisante (par exemple au moyen de la méthode spécifiée

dans l’ISO 2128), la détermination de la masse surfacique (masse par unité de superficie) des couches permettra

de calculer sa masse volumique apparente. Inversement, si les conditions d’application de la couche et sa masse

volumique sont connues, la détermination de sa masse surfacique (masse par unité de superficie) peut permettre

le calcul de la masse moyenne et une estimation approximative de l’épaisseur (voir l’Article 9).

2 Références normatives

Les documents suivants sont cités dans le texte de sorte qu’ils constituent, pour tout ou partie de leur

contenu, des exigences du présent document. Pour les références datées, seule l’édition citée s’applique.

Pour les références non datées, la dernière édition du document de référence s’applique (y compris les

éventuels amendements).
ISO 7583, Anodisation de l’aluminium et de ses alliages — Termes et définitions
3 Termes et définitions

Pour les besoins du présent document, les termes et les définitions de l’ISO 7583 s’appliquent.

L’ISO et l’IEC tiennent à jour des bases de données terminologiques destinées à être utilisées en

normalisation, consultables aux adresses suivantes:

— ISO Online browsing platform: disponible à l’adresse https:// www .iso .org/ obp

— IEC Electropedia: disponible à l’adresse http:// www .electropedia .org/
4 Principe

La couche d’oxydation anodique sur une éprouvette d’essai pesée, de superficie connue, est dissoute,

sans attaque significative du substrat d’aluminium, au moyen d’une solution d’acide phosphorique et

d’oxyde de chrome hexavalent ou d’acide phosphorique et de molybdate de sodium de concentration

spécifiée.
© ISO 2019 – Tous droits réservés 1
---------------------- Page: 5 ----------------------
ISO 2106:2019(F)
Après dissolution de la couche, l’éprouvette d’essai es
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
