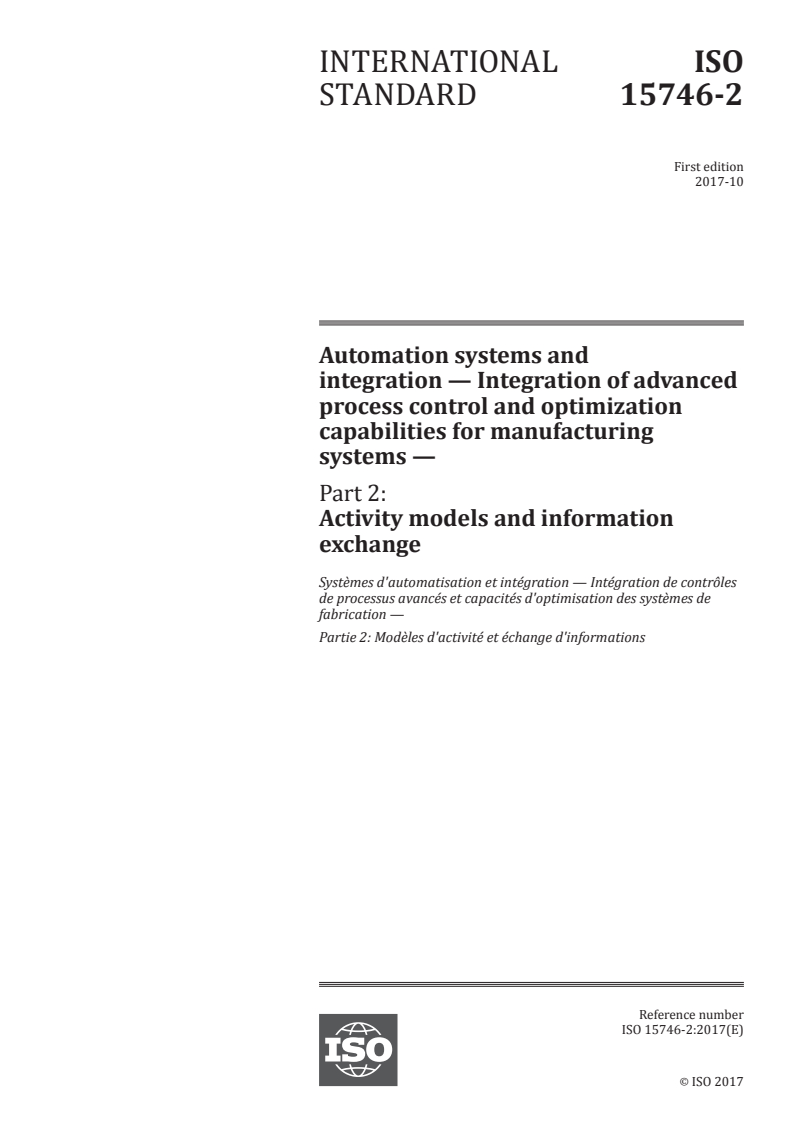

INTERNATIONAL ISO
STANDARD 15746-2
First edition
2017-10
Automation systems and
integration — Integration of advanced
process control and optimization
capabilities for manufacturing
systems —
Part 2:
Activity models and information
exchange
Systèmes d'automatisation et intégration — Intégration de contrôles
de processus avancés et capacités d'optimisation des systèmes de
fabrication —
Partie 2: Modèles d'activité et échange d'informations
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2017 – All rights reserved

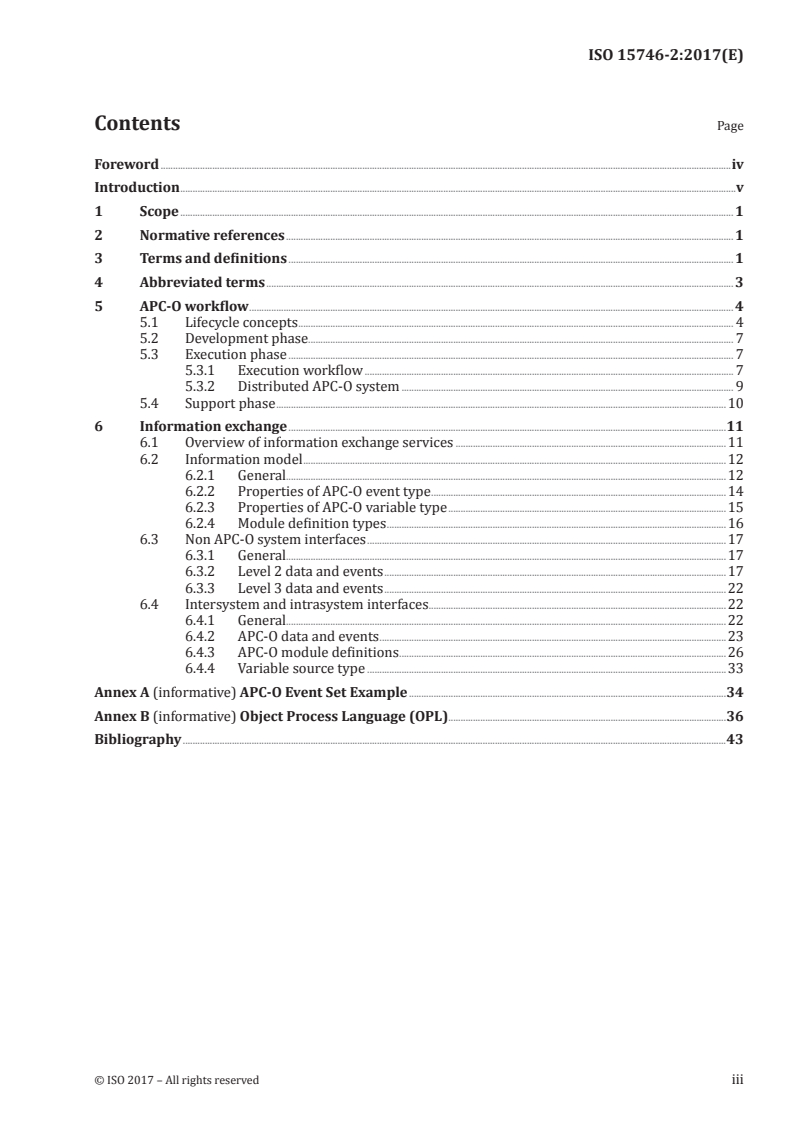

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Abbreviated terms . 3
5 APC-O workflow . 4
5.1 Lifecycle concepts . 4
5.2 Development phase. 7
5.3 Execution phase . 7
5.3.1 Execution workflow . 7
5.3.2 Distributed APC-O system . 9
5.4 Support phase .10
6 Information exchange .11
6.1 Overview of information exchange services .11
6.2 Information model .12
6.2.1 General.12
6.2.2 Properties of APC-O event type .14
6.2.3 Properties of APC-O variable type .15
6.2.4 Module definition types .16
6.3 Non APC-O system interfaces .17
6.3.1 General.17
6.3.2 Level 2 data and events .17
6.3.3 Level 3 data and events .22
6.4 Intersystem and intrasystem interfaces .22
6.4.1 General.22
6.4.2 APC-O data and events .23
6.4.3 APC-O module definitions .26
6.4.4 Variable source type .33
Annex A (informative) APC-O Event Set Example .34
Annex B (informative) Object Process Language (OPL) .36
Bibliography .43

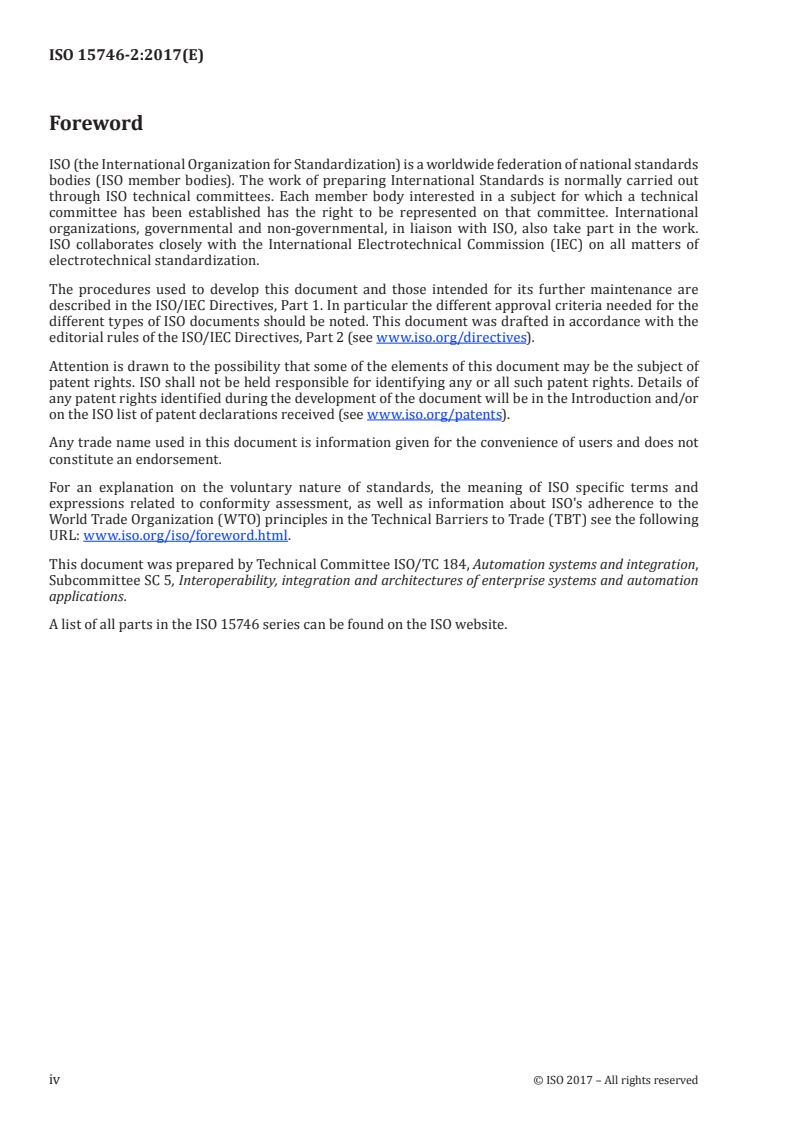

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 184, Automation systems and integration,
Subcommittee SC 5, Interoperability, integration and architectures of enterprise systems and automation
applications.
A list of all parts in the ISO 15746 series can be found on the ISO website.
iv © ISO 2017 – All rights reserved

Introduction
As a crucial part of manufacturing systems with increased complexity, the automation and control
applications enabled by the advanced process control and optimization (APC-O) methodology and
solutions perform the operations directed by production planning and scheduling. This work will
initially deal with the specific use of APC-O to enable integration of manufacturing operations
management (MOM) with the automation and control of manufacturing processes and equipment.
Automation solutions composed of software and hardware components are provided by different
suppliers to accomplish APC-O functions. Due to the diversity of development environments and the
variety of demand focus, the automation solutions from various suppliers are isolated and relatively
independent. These differences make the integration of automation solutions difficult. Consequently,
the customers could purchase different automation solution components with redundant and duplicated
functions, resulting in a waste of resources and limited interoperability. The proposed standard offers
a reference interoperability framework for advanced process control and optimization. It is intended to
maximize the integration and interoperability of automation solutions.
This document provides a consistent framework for integration and interoperability between
APC-O systems, parts of an APC-O system, Level 2 automated process control systems, and Level
3 manufacturing operations management systems. It builds on the functional models defined by
ISO 15746-1 by defining activity models for APC-O systems and the information exchange requirements
needed to support those activity models. The modelled activities operate within Level 2 and Level 3
with interaction between each level.
It is not the intent of this document to suggest that there is only one way of implementing APC-O or to
force users to abandon their current way of implementing APC-O.
The target users of this standard include: users and providers of advanced process control and
optimization solutions, such as, project solution suppliers, automation systems integrators, production
departments of companies, process engineers, independent software testing organizations,
implementation and consulting service organizations of advanced process control and optimization
software, and relevant government and academic organizations.
INTERNATIONAL STANDARD ISO 15746-2:2017(E)
Automation systems and integration — Integration of
advanced process control and optimization capabilities for
manufacturing systems —
Part 2:
Activity models and information exchange
1 Scope
This document defines:
— activity models to describe the dynamic aspects of the APC-O modules;
— information exchange requirements of the dynamic aspects of the APC-O modules;
— workflows and lifecycles of APC-O elements;
— service definitions to support the following information exchanges between:
— Level 3 and APC-O components;
— Level 2 and APC-O components;
— APC-O components within one or more APC-O systems.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 15746-1, Automation systems and integration — Integration of advanced process control and
optimization capabilities for manufacturing systems — Part 1: Framework and functional model
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 15746-1 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at http://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org
3.1
alarm
notification regarding an abnormal condition of special significance to an APC-O component (3.2)
EXAMPLE A temperature controlled by an APC module exceeds a high limit or an input to a Soft Sensor
module is outside the valid range.
3.2
APC-O component
procedural object in an APC-O system that is an instantiation of an APC-O functional module
Note 1 to entry: An APC-O component can execute various functions involving reasoning and communication
with other APC-O components, interaction with simulation and optimization, diagnostic and forecasting, and
control.
3.3
APC-O package
group of commercial software products supplied by a single vendor to deliver one or more APC-O
functional modules
3.4
APC-O platform
computer-based system capable of managing and executing an APC-O system comprised of one or more
APC-O components (3.2)
3.5
bias
adjustment made to a calculated value to force it to match actual measurements
Note 1 to entry: A bias is normally applied to account for unmeasured disturbances.
3.6
controlled variable
variable that a controller maintains either at a target or within minimum and maximum limits
Note 1 to entry: It accomplishes this by adjusting the manipulated variables (3.11).
3.7
disturbance variable
variable that a controller considers as influencing the controlled variables (3.6) but is not adjustable by
the controller
3.8
event
detectable change or occurrence that changes the state of an APC-O component (3.2) or requires action
by an APC-O component
EXAMPLE The mode of a PID loop associated with a manipulated variable (3.11) in an APC module changes to
REMOTE or a process managed by an APC-O system changes state from “Producing” to “Shutdown”.
3.9
final control element
physical equipment that is actually moved to accomplish control of a process
EXAMPLE Valves, dampers, and variable speed drives.
3.10
hard limit
limit that a controller is not allowed to exceed under any circumstances
3.11
manipulated variable
variable that a controller adjusts
Note 1 to entry: These are typically setpoints of PID loops but could also be direct manipulation of a final control
element (3.9).
2 © ISO 2017 – All rights reserved

3.12
performance baseline
evaluation and assessment of a set of key performance indicators for a process prior to implementing
an APC-O system
Note 1 to entry: The intent is to evaluate performance of the APC-O system against the performance baseline.
3.13
rate of change limit
limit placed on the amount a value is allowed to change over a defined period of time
3.14
recipe
set of ingredients, product specifications, and process settings that define how to produce a product
3.15
soft limit
limit a controller should attempt to respect but may exceed if necessary
3.16
tracking
action of making the value of one parameter the same as the value of another parameter
EXAMPLE A PID controller may track the setpoint to the process value when it is in MANUAL mode.
3.17
trajectory
set of values, typically an array, representing expected behaviour over a defined time horizon
Note 1 to entry: In APC applications, the trajectory of a manipulated variable (3.11) is the set of moves planned
by the controller and the trajectory of a controlled variable (3.6) is the expected changes based on those planned
moves and recent history of process changes.
3.18
watchdog
function to determine if a component of the control system or an external system is functioning properly
Note 1 to entry: Typically, a watchdog function will perform some set of instructions if it determines the watched
component is not functioning properly.
3.19
workflow
sequence of activities with explicit starting and ending points to describe a task
Note 1 to entry: Workflows may also have branches, decision points, and events (3.8). A workflow is a type of
activity model.
4 Abbreviated terms
APC advanced process control
APC-O advanced process control and optimization
CV controlled variable
DV disturbance variable
KPI key performance indicator
MPC model predictive control
MV manipulated variable
OP output of a PID controller
OPC open platform communications
OPD object-process diagram
OPL object process language
OPM object process methodology
PID proportional, integral, derivative
SP Setpoint
5 APC-O workflow
5.1 Lifecycle concepts
The lifecycle of an APC-O system consists of the following phases:
a) Requirements Analysis
b) Design
c) Development
d) Execution
e) Support
Figure 1 illustrates the workflow of an APC-O system as it relates to the phases of the lifecycle. This and
all subsequent illustrations are depicted using the object process methodology (OPM). Table 1 defines
the OPM notations used in this document. Object process language (OPL) is the textual counterpart of
the graphic OPM system specification. Example of OPL can be seen in Annex B.
Table 1 — OPM notation used
Symbol Name Description
An object is an item that exists or can exist once constructed, phys-
ically or informatically. Associations among objects shall constitute
Object
the object structure of the system being modelled, i.e. the static,
structural aspect of the system.
A process is an item that expresses the behavioural, dynamic system
aspect: how processes transform objects in the system and how
Process
the system functions to provide benefit. Processes complement
objects by providing the dynamic, procedural aspect of the system.
A state is a situation or position at which an object can exist for a
State
period of time. Object B can be at states S1 or S2.
An instrument link is a procedural link that connects a process
with an enabler of that process where the enabler is tools, data,
Instrument Link
etc. Object A enables Process B and Process B cannot happen if
Object A does not exist.
4 © ISO 2017 – All rights reserved

Table 1 (continued)
Symbol Name Description
A condition link is a procedural link that connects a process with an
Condition Link enabler of that process where the enabler is the state of an object.
The process executes if and only if the object is in the certain state.
A consumption link is a link that connects a process with an object
Con su mpt ion
that is used by, or consumed, as a result of the occurrence of that
Link
process. Process B consumes Object A
A result link is a link that connects a process with an object that is
Result Link constructed as a result of an occurrence of that process. Process
B creates Object A.
Invocation links are procedural links between invoking processes
Invocation Link and invoked ones. The invoking processes activate the invoked
processes. Process B invokes Process C.
Denotes that the object is a human operator. Activating the link
Agent Link
triggers the process B.
Process B changes the state of Object A; the details of the effect
Effect Link
may be added at a lower level.
Existence or generation of object A will attempt to trigger process
Con su mpt ion
B. If B is triggered, it will consume A. Execution will proceed if the
Event Link
triggering failed.
Existence of object A is a condition to the execution of B. If object
Condition Link A does not exist, then process B is skipped and regular system
flow continues.
Note the Requirements Analysis and Design phases generally exchange information manually rather
than making use of computer based or electronic interfaces. Therefore, this standard only addresses
the Development, Execution, and Support phases as illustrated in Figure 1. Figure 1 indicates out of
scope processes and objects with a dashed line and in scope processes and objects with a solid line.
Different tools are typically used for each phase due to the different functional requirements of the
separate phases. Therefore, this document will describe the Development, Execution, and Support
lifecycle phases as separate systems with integration interfaces between them.
ISO 15746-1 identified four functional modules within an APC-O system as Soft Sensor, Advanced
Process Control, Optimization, and Performance Assessment. The workflow for any phase is similar for
these four functional modules, but not identical. As a result, some commercial APC-O products include
completely separate software tools for developing, executing, and supporting the four functional
modules while others are well integrated internally. The integration interfaces defined in this standard
will facilitate integration between different commercial APC-O products and between APC-O and non-
APC-O systems. It does not intentionally favour any particular level of internal integration.
Figure 1 — APC-O Lifecycle Workflow
6 © ISO 2017 – All rights reserved

5.2 Development phase
The Development phase consists of the workflow illustrated in Figure 2. APC-O modules are comprised
of one or more components performing specific functions, or jobs. These individual components may be
constructed individually then assembled to create the complete APC-O module.
External interfaces used by the Development phase include non-APC-O information models. These could
be global resource locators for any level or manually transferred information describing the various
systems the APC-O application is expected to interface with in the Execution and/or Support phases.
Figure 2 — Workflow of the Development Phase
The Development phase also interacts with historical data from various levels, for example:
— Product specifications
— Historical process data
— Historical laboratory results
— Manufacturing costs
The Development phase shall interact with APC-O systems in the Execution and Support phases
by providing APC-O module definitions. These could be new definitions or modifications of existing
definitions. Activities in the Development phase may be initiated by completion of the Design phase or
by the Support phase signalling improvement of an APC-O system is needed.
5.3 Execution phase
5.3.1 Execution workflow
The Execution phase consists of the workflow illustrated in Figure 3.
Generic activities are defined rather than detailing each functional module separately. While there are
differences between the modules as to how these activities are performed, those differences are not
relevant to this standard. Furthermore, the details of the Execution phase workflow will differ from
one commercial APC-O package to another but those differences are not relevant to this standard. For
simplicity, a simple, single-threaded system is used to illustrate the Execution phase workflow. Some
commercial packages are designed this way but there are also commercial packages that use fully
asynchronous processing and even highly distributed processing.
Figure 3 illustrates APC-O components executing in a continuous loop controlled by a “schedule tasks”
process that is only activated if the runtime state of the APC-O module is “running”. As shown in the
Development phase, an APC-O module comprises one or more component. In the Execution phase,
APC-O components may be updated individually as shown in Figure 3 or the entire module could be
updated at one time.
Figure 3 — Workflow of the Execution Phase
The following non-APC-O interfaces to the Execution phase are identified here and described in detail
in Clause 6:
a) Level 2 Information Exchange for data such as:
1) PID Loop parameters
2) Final control elements settings such as valve positions and drive speeds
3) Process measurements from instruments such as flow and temperature sensors
8 © ISO 2017 – All rights reserved

4) General control system tag values
5) Alarm and event signals
b) Level 3 Information Exchange for data such as:
1) Product specifications
2) Recipe based process settings
3) Laboratory results
4) Manufacturing costs
The following interfaces between APC-O Components are also identified here and described in detail in
Clause 6:
a) APC-O Information Exchange, for example:
1) APC-O data, alarms, and events
2) APC-O performance statistics
3) Execution requests and results
4) APC-O Module Definitions
5.3.2 Distributed APC-O system
Figure 4 illustrates how distributed APC-O components interact. In the example system, six APC-O
modules interact to perform several interrelated functions. The six modules are identified as:
— Module 1 – a soft sensor providing one or more data elements for Module 3
— Module 2 – a second soft sensor, different from Module 1, providing one or more data elements for
Module 3
— Module 3 – an APC module performing advanced control functions on a manufacturing process
wholly within a level 2 environment
— Module 4 – an APC module performing advanced control functions on a manufacturing process in
a way that affects the manufacturing process itself in level 2 and also one or more MOM functions
in level 3
— Module 5 – an optimization module performing process optimization functions wholly within a
level 3 environment
— Module 6 – a performance assessment module analysing, tracking, and reporting performance of
modules 1 - 5
Various interactions between modules are illustrated in Figure 4. Modules 1 and 2 simply provide
data for Module 3 in a similar manner as physical instruments installed on the manufacturing process.
Module 3 also consumes one or more outputs from Module 4. These outputs could be setpoints written
from manipulated variables in Module 4 and used as targets for controlled variables in Module 3.
Likewise, Module 4 consumes one or more outputs from Module 5. Since Module 5 is an optimization
module, a good example would be targets for controlled variables in Module 4 where these targets are
determined by Module 5 to be the optimum targets based on business objectives as gathered from
various MOM systems at level 3.
Figure 4 — Example of Distributed APC-O Interaction
5.4 Support phase
The Support phase consists of the workflow illustrated in Figure 5. The Support phase workflow shall
make use of interfaces identified in preceding phases.
The Support phase is often a manual activity to enhance and maintain the performance of an APC-O
system. In a support phase that is executed manually, decisions by engineers are commonly based
on information and analysis from a performance assessment module. The other three modules shall
provide the performance assessment module with performance statistics gathered through internal
tracking and analysis functions. A support phase may be fully automated using a performance
assessment module that is also fully automated.
10 © ISO 2017 – All rights reserved

Figure 5 — Workflow of the Support Phase
6 Information exchange
6.1 Overview of information exchange services
The APC-O lifecycle workflows define the following non-APC-O interfaces that APC-O systems shall
support:
a) Level 2
1. Global resource locators to determine the availability of and capabilities of non-APC-O
resources. Examples include:
i) PID Loops
ii) Final control elements such as valves and drives
iii) Process instruments
iv) Alarm and event signals
2. Information exchange for non-APC-O data. Examples include:
i) PID Loop parameters
ii) Final control elements settings such as valve positions and drive speeds
iii) Process measurements from instruments such as flow and temperature sensors
iv) General control system tag values
v) Alarm and event signals
b) Level 3
1) Global resource locators to determine the availability of and capabilities of non-APC-O
resources. Examples include:
i) Product specifications
ii) Recipes
iii) Historical Process data
iv) Laboratory results
v) Production orders
2) Information exchange for non-APC-O data. Examples include:
i) Product specifications
ii) Recipe settings
iii) Historical process data
iv) Laboratory results
v) Manufacturing costs
In addition, the following internal interfaces between APC-O Modules are defined in sublevel workflows
to support integration of commercial software products to create a heterogeneous APC-O system. This
reduces the industry’s dependency on every commercial APC-O product supporting every possible
technology. APC-O systems shall support these interfaces.
a) APC-O Modules definitions
b) APC-O data
c) APC-O alarms and events
6.2 Information model
6.2.1 General
All interfaces are based on an overall information model for APC-O systems shown in Figure 6. An APC-O
system comprises one or more APC-O Modules. An APC-O Module shall be identified by Name and Type
and may also have one or more vendor-specific attributes that are provided through a discovery service
interface.
The following symbols are used in information models in this document:
12 © ISO 2017 – All rights reserved

Table 2 — Information model symbols
Symbol Description
An object is an item that exists or can exist once constructed, physically
or informatically. Associations among objects shall constitute the ob-
object
ject structure of the system being modelled, i.e. the static, structural
aspect of the system.
A fundamental structural relation. Aggregation-Participation is a
aggregation-partic-
source item that aggregates one or more other participant items, the
ipation relation link
destination items, into a meaningful whole.
A fundamental structural relation. Exhibition-Characterization means
Exhibition-charac- that an item exhibits, or is characterized by, another item. The Exhi-
terization relation bition-Characterization relation binds a source item, the exhibitor,
link with one or more destination items, which shall identify features that
characterizes the exhibitor.
G e n e r a l i z a - Generalization-Specialization relations extend the inheritance concept
tion-Specialization to both objects and processes. A specialization item has at least the
relation link same structural relations and procedural relations as the general item.
Classification-In-
stantiation relation Classification-Instantiation relations connect classes to their instances.
link
APC-O modules SoftSensor, APC, and Optimization shall have a Definition Type that is an object type
with subtypes to define the specific instantiation of the APC-O module. Examples of APCDefinition
Type are MatrixMPC, ExpertSystem, and TransitionProcedure. Examples of SoftSensorDefinition
Type are Equation and NeuralNetwork. Examples of OptimizationDefinition Type are SteadyStateOpt,
DynamicOpt, and ExpertSystemOpt. An APC-O module shall provide its specific Definition Type
structure through a discovery service interface.
A PerformanceAssessment module does not have a Definition Type but shall have KPISets, which are
sets of KPIs used to evaluate performance of the APC-O system. Specific KPIs and their definitions shall
be provided by an APC-O system through a discovery service interface.
Figure 6 — APC-O Information Model
6.2.2 Properties of APC-O event type
An APC-O Module shall contain an Event Set that is a group of events the module will monitor or generate.
The exact events depend not only on the type of APC-O Module but also on the type of manufacturing
process the module is applied to. Events in an Event Set are objects of type APC-O Event Type. Specific
events and their definitions shall be provided by an APC-O system through a discovery service interface.
Communication Timeout, Process On Product, and Product Grade Change are examples of events of
interest to an APC-O system. Events may trigger action, for example, a Product Grade Change event
could trigger loading product specific targets and limits into an APC module.
APC-OEvent Type is an object type defining common attributes of events used in APC-O. Figure 7 shows
the information model for APC-OEvent Type and the subtypes defined. Annex A provides an example
event set.
Properties of APC-OEvent Type are:
— Source - A reference to the object that generated the event
— Time - The time when the event occurred
— Type - The type of event
— EventCategory - The defined grouping of events, such as Process Events or System Events
— Severity - The urgency of the event
14 © ISO 2017 – All rights reserved

— Vendor-Specific Attributes - Additional attributes defined by the specific APC-O package. These
attributes will be provided by a discovery service interface.
A ConditionEvent is a subtype of APC-OEvent Type used to indicate changes in some condition such as the
alarm state of a process measurement or the status of a system communication link. A ConditionEvent
has additional properties as shown below:
— ConditionName - Name of the condition
— NewState - The new state of the condition
A TrackingEvent is a subtype of APC-OEvent Type used to indicate actions such as initiating a product
grade transition or entering a new laboratory measurement. A TrackingEvent has no properties other
than those defined for an APC-O Event Type.
Figure 7 — APC-OEvent Type Information Model
6.2.3 Properties of APC-O variable type
All APC-O Module types shall have VariableSets of base type APC-OVariable Type. VariableSets are sets
of variables used by the APC-O system. Defined sets are shown for each APC-OModule type. Variables in
each of these sets are subtypes of APC-OVariable Type. Other sets may be defined by an APC-O system
and exposed through a discovery service interface. InputVariableSet and OutputVariableSet are sets of
variables of the base type APC-OVariable, and there are no Behaviour Specific attributes.
APC-OVariable Type is an object type defining common attributes of all variables used in APC-O.
Figure 8 shows the information model for APC-OVariable Type and the subtypes defined.
Attributes of APC-OVariable Type are defined as follows:
— Variable Value Set consisting of:
— ProcessValue – current process value read from Source
— Quality – data quality of ProcessValue
— TimeStamp – the date and time associated with ProcessValue
— Variable Attribute Set consisting of:
— Name – descriptive name of the variable
— VariableID – identifier to uniquely identify the variable, format will be vendor-specific
— DataType – data type of ProcessValue, for example REAL, INT, BOOL, etc
— ModuleType – type of APC-O module the variable is associated with, for example APC or
SoftSensor
— Source – a reference to an external source for the data. VariableSource subtypes include PIDLoop,
FinalControlElement, CalculatedVariable, and SoftSensor. These subtypes are described in 6.3
and 6.4.
— EngineeringUnits - units of measure defining the value
— VariableIsActive - flag to indicate whether or not the variable is included in the component
calculations
— VariableStatusEvent – an event to signal a change in the APC-O variable's status
— Vendor-Specific Attributes - Any additional attributes provided by the specific APC-O package
— Behaviourspecific – subtypes of APC-O Variable exhibiting additional behaviour
Figure 8 — APC-OVariable Type Information Model
6.2.4 Module definition types
Three object types are defined for the APC, SoftSensor, and Optimization modules.
An APCDefinition Type specifies the object for performing Advanced Process Control. The definition
of the object depends on the type of APC used. Examples are MatrixMPC, ExpertSystem, and
TransitionProcedure. Other types of APC exist and these will have unique object definitions. The
specific APC-O package shall provide the definitions for APCDefinition Types it uses.
A SoftSensorDefinition Type specifies the object for implementing a Soft Sensor. The definition of the
object depends on the type of Soft Sensor used. Examples are Equation and NeuralNetwork. Other
16 © ISO 2017 – All rights reserved

types of Soft Sensors exist and these will have unique object definitions. The specific APC-O package
shall provide the definitions for SoftSensorDefinition Types it uses.
An OptimizationDefinition Type specifies the object for implementing an Optimization. The definition
of the object depends on the type of Optimization used. Examples are SteadyStateOpt, DynamicOpt, and
ExpertSystemOpt. Other types of Optimization exist and these will have unique object definitions. The
specific APC-O package shall provide the definitions for OptimizationDefinition Types it uses.
6.3 Non APC-O system interfaces
6.3.1 General
The following subclauses define the interfaces between an APC-O system and non-APC-O systems.
6.3.2 Level 2 data and events
6.3.2.1 General
While in the Execution phase, an APC-O system will need to read several data artefacts from the
traditional control system, or Level 2 systems. Much of this data are simple tag/value mappings and
existing standards built on the Open Platform Communications (OPC) specifications, such as OPC Data
Access (IEC 62541), or OPC-DA, are sufficient. Improvement is needed in more complex interactions.
This interface builds upon existing communication standards such as OPC Unified Architecture
(IEC 62541), or OPC-UA, by creating information models specific to an APC-O client. This allows APC-O
application development software to make use of discovery functions to create data links to be used by
the APC-O execution engine at run time. This also provides a standard method for the APC-O execution
engine to access data and events at run time. Information exchange should support both synchronous
and asynchronous methods.
All variables in an APC-O system shall exchange data and events with external systems through their
Source, which is a generic mapping to an external data source of type VariableSource Type. A subtype
of VariableSource Type could be as simple as a data connection to the process value of an instrument in
the underlying control system. Two classes of VariableSource Type that apply to external systems are
complex enough and common enough to be of interest in this document. These classes are PIDLoop and
FinalControlElement.
6.3.2.2 PID loop
PIDLoop is a representation of a PID controller in a Level 2 control system. Figure 9 is an information
model for a PIDLoop containing information of interest to APC-O. Many features and parameters of an
actual PID controller have been omitted in this information model in order to focus on the requirements
of APC-O. Properties of PIDLoop are defined as follows:
— Name – descriptive name of the variable
— ProcessValue - the value read from an instrument and controlled by the PID controller
— Setpoint - the target that the PID controller should control to
— RemoteSetpoint - the setpoint supplied by a higher level controller such as a master in a cascade
arrangement or an APC-O system
— SetpointLimits - a convenient grouping of parameters that define limits on the setpoint. These
include Minimum, Maximum, and Rate of Change
— Output - the output signal sent from the PID controller to a final control element such as a valve
— RemoteOutput - the output supplied by a higher level controller such as an APC-O system
— OutputLimits - a convenient grouping of parameters that define limits on the output of the PID
controller. These include Minimum, Maximum, and Rate of Change
— Vendor-Specific Attributes – Any additional attributes provided by the specific APC-O package
Figure 9 — PIDLoop Information Model
Mode and Tracking affect the behaviour of the PID Loop. Mode can be MANUAL, AUTO, or REMOTE.
When in MANUAL, the loop does not calculate an output, operators set it manually. When in AUTO, the
loop calculates the output to provide control. When in REMOTE, the loop behaves as if it is in AUTO
except the setpoint is provided by a higher level control. This setpoint is written to the RemoteSetpoint
parameter and the loop is responsible for copying the value to the actual setpoint. A common feature of
PID Loops is to track the setpoint to the process value when the loop is in MANUAL so that the process
is not disturbed when the loop is placed in AUTO since the process value will be at the setpoint. A
similar necessary feature to support bumpless transfer in and out of REMOTE mode is to track the
remote setpoint to the setpoint when not in REMOTE. TrackingFlags are attributes used to manage
these features and their exact definitions are determined by the APC-O system vendor.
PIDAlarm is defined as an object type consistent with standards such as OPC-UA to allow the APC-O
system to register for events such as alarms and failure events.
Proper interaction with the underlying PID controller at run time is critical to the performance of most
APC-O applications. This interaction is illustrated in the SAMA diagram in Figure 10. SAMA diagrams
are based on symbols and diagramming conventions developed by the Scientific Apparatus Makers
Association (SAMA) for describing and documenting control strategies. Table 3 shows SAMA symbols
used in this document.
18 © ISO 2017 – All rights reserved

Figure 10 — APC-O interaction with traditional PID loop
Table 3 — SAMA symbols
Symbol Description
Difference
Proportional-Integral-Derivative algorithm for control
Low limiting
High limiting
Velocity limiting (rate of change)
Automatic signal processing
Manual signal processing
Adjustable signal
Transfer signal
Continuous signal
On-off signal
6.3.2.3 Final control element
It is common for some APC-O applications to manipulate final control elements directly, rather than
through a PID controller. FinalControlElement is a re
...
