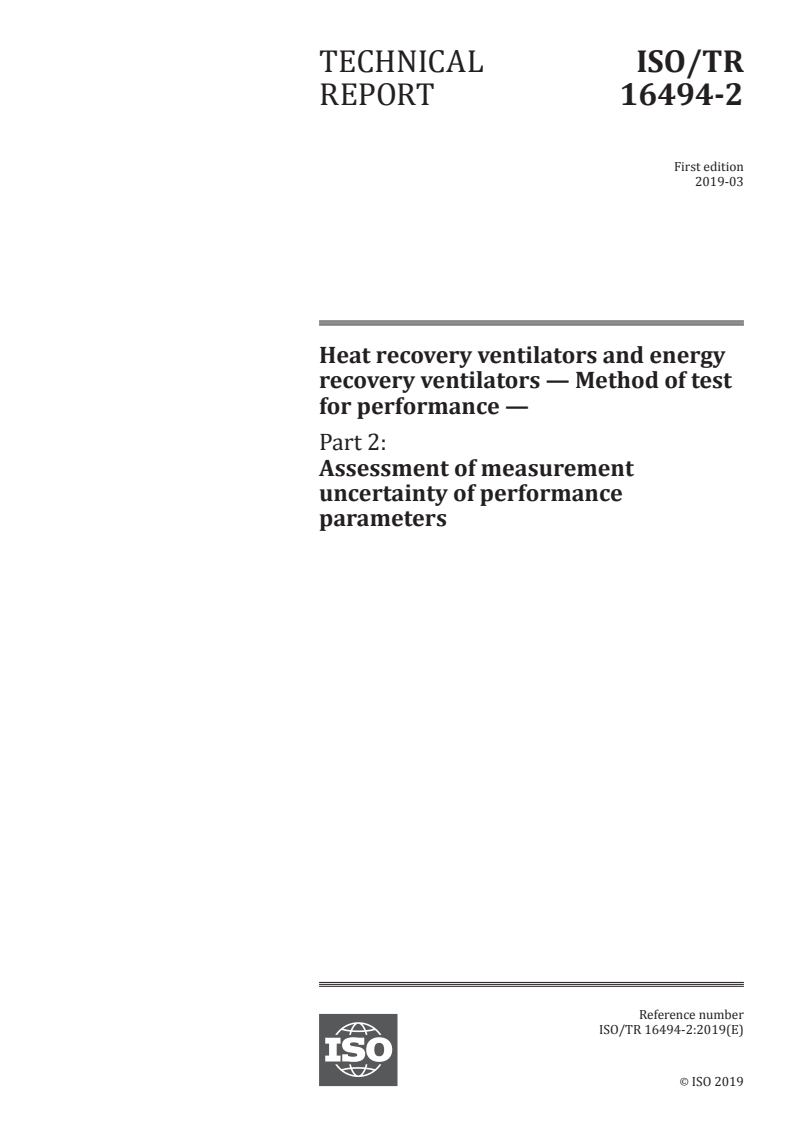

TECHNICAL ISO/TR
REPORT 16494-2
First edition
2019-03
Heat recovery ventilators and energy
recovery ventilators — Method of test
for performance —
Part 2:
Assessment of measurement
uncertainty of performance
parameters
Reference number
ISO/TR 16494-2:2019(E)
ISO 2019
---------------------- Page: 1 ----------------------
ISO/TR 16494-2:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2019

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TR 16494-2:2019(E)

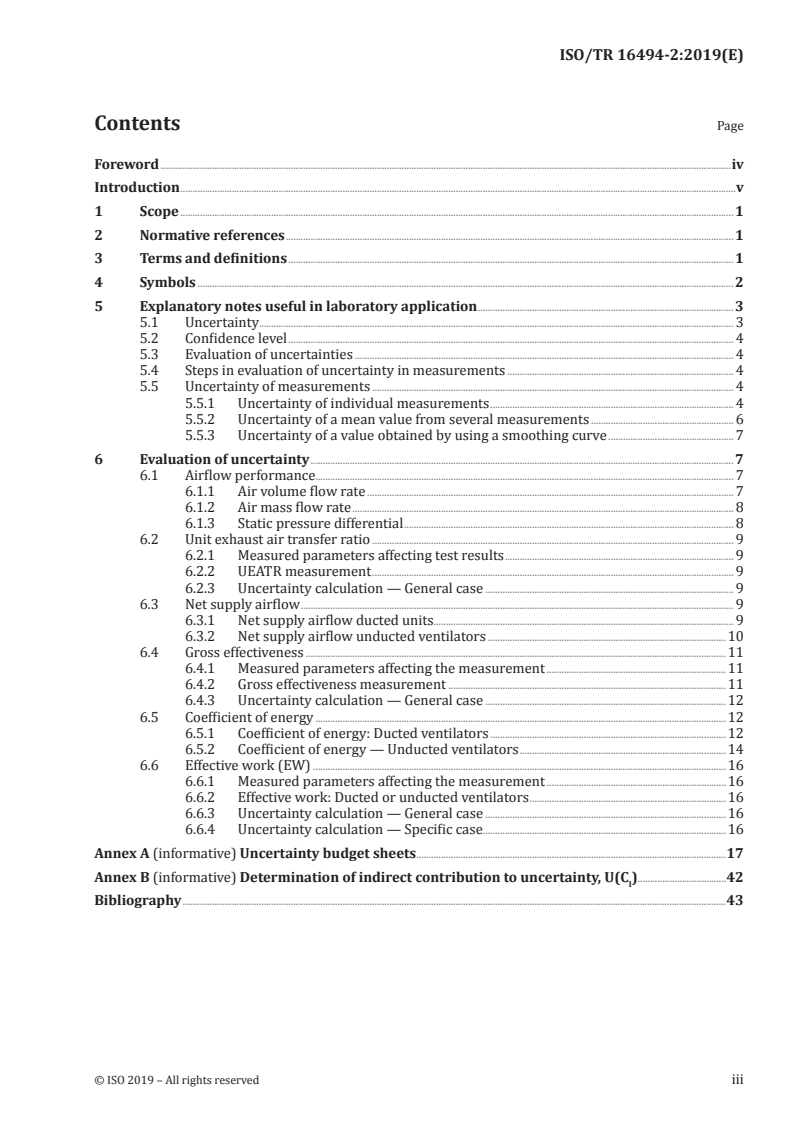

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Symbols .......................................................................................................................................................................................................................... 2

5 Explanatory notes useful in laboratory application ........................................................................................................ 3

5.1 Uncertainty ................................................................................................................................................................................................. 3

5.2 Confidence level ..................................................................................................................................................................................... 4

5.3 Evaluation of uncertainties .......................................................................................................................................................... 4

5.4 Steps in evaluation of uncertainty in measurements ............................................................................................ 4

5.5 Uncertainty of measurements ................................................................................................................................................... 4

5.5.1 Uncertainty of individual measurements ................................................................................................... 4

5.5.2 Uncertainty of a mean value from several measurements .......................................................... 6

5.5.3 Uncertainty of a value obtained by using a smoothing curve ................................................... 7

6 Evaluation of uncertainty ............................................................................................................................................................................ 7

6.1 Airflow performance .......................................................................................................................................................................... 7

6.1.1 Air volume flow rate ..................................................................................................................................................... 7

6.1.2 Air mass flow rate ........................................................................................................................................................... 8

6.1.3 Static pressure differential ...................................................................................................................................... 8

6.2 Unit exhaust air transfer ratio ................................................................................................................................................... 9

6.2.1 Measured parameters affecting test results ............................................................................................. 9

6.2.2 UEATR measurement ................................................................................................................................................... 9

6.2.3 Uncertainty calculation — General case ..................................................................................................... 9

6.3 Net supply airflow ................................................................................................................................................................................ 9

6.3.1 Net supply airflow ducted units.......................................................................................................................... 9

6.3.2 Net supply airflow unducted ventilators .................................................................................................10

6.4 Gross effectiveness ...........................................................................................................................................................................11

6.4.1 Measured parameters affecting the measurement .........................................................................11

6.4.2 Gross effectiveness measurement .................................................................................................................11

6.4.3 Uncertainty calculation — General case ..................................................................................................12

6.5 Coefficient of energy .......................................................................................................................................................................12

6.5.1 Coefficient of energy: Ducted ventilators ................................................................................................12

6.5.2 Coefficient of energy — Unducted ventilators ....................................................................................14

6.6 Effective work (EW) ........................................................................................................................................................................16

6.6.1 Measured parameters affecting the measurement .........................................................................16

6.6.2 Effective work: Ducted or unducted ventilators ................................................................................16

6.6.3 Uncertainty calculation — General case ..................................................................................................16

6.6.4 Uncertainty calculation — Specific case...................................................................................................16

Annex A (informative) Uncertainty budget sheets ..............................................................................................................................17

Annex B (informative) Determination of indirect contribution to uncertainty, U(C ) ....................................42

Bibliography .............................................................................................................................................................................................................................43

© ISO 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/TR 16494-2:2019(E)

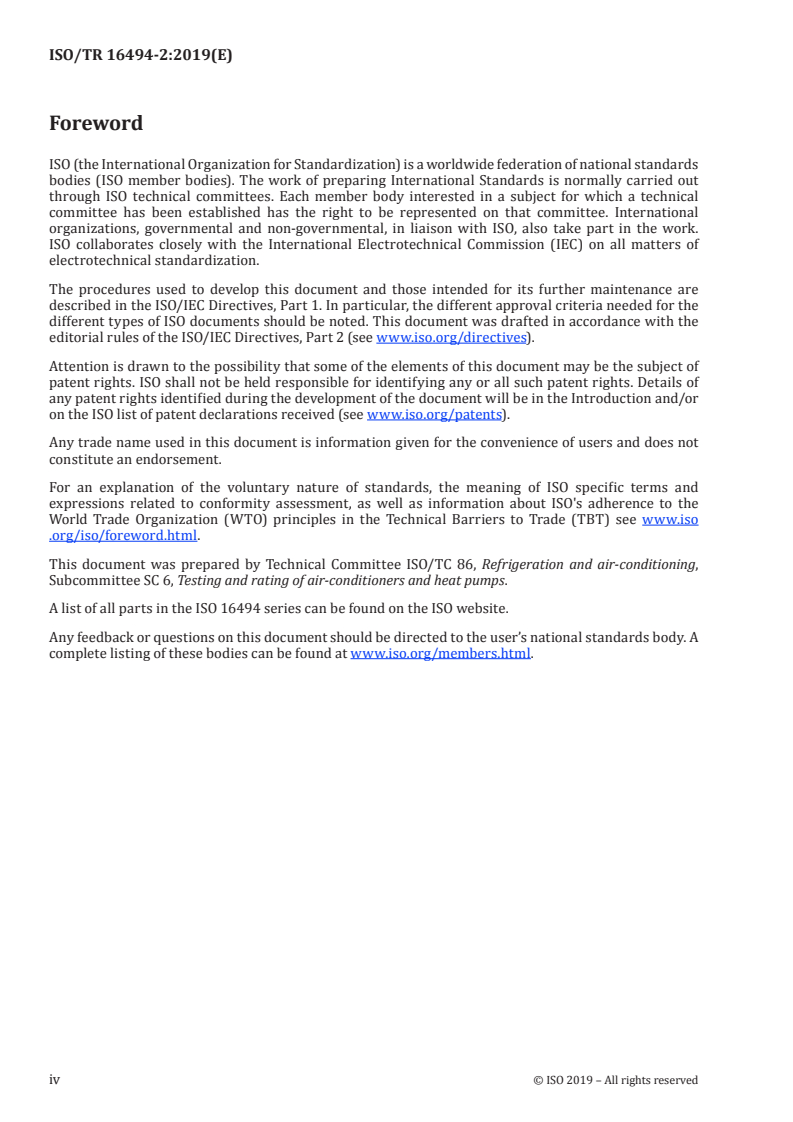

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso

.org/iso/foreword .html.

This document was prepared by Technical Committee ISO/TC 86, Refrigeration and air-conditioning,

Subcommittee SC 6, Testing and rating of air-conditioners and heat pumps.
A list of all parts in the ISO 16494 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TR 16494-2:2019(E)
Introduction

This document is intended to be a practical guide to assist laboratory personnel in evaluating the

uncertainties in the measurement of the performance of ventilators falling under the scope of

ISO 16494:2014. It contains a brief introduction to the theoretical basis for the calculations, and

contains examples of uncertainty budget sheets that can be used as a basis for the determination of the

uncertainty of measurement.
© ISO 2019 – All rights reserved v
---------------------- Page: 5 ----------------------
TECHNICAL REPORT ISO/TR 16494-2:2019(E)
Heat recovery ventilators and energy recovery
ventilators — Method of test for performance —
Part 2:
Assessment of measurement uncertainty of performance
parameters
1 Scope

This document provides guidance for practical applications of those principles in the measurement

of the performance of ventilators falling under the scope of ISO 16494:2014. The references listed in

the Bibliography give detailed information on the principles and theory of uncertainty as applied to

measurements.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 16494, Heat recovery ventilators and energy recovery ventilators — Method of test for performance

3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 16494 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at https: //www .iso .org/obp
3.1
calibration

operation that, under specified conditions, in a first step establishes a relation between the quantity

values with measurement uncertainties provided by measurement standards and corresponding

indications with associated measurement uncertainties and, in a second step, uses this information to

establish a relation for obtaining a measurement result from an indication
3.2
correction

modification applied to a measured quantity value to compensate for a known systematic effect

3.3
instrumental drift

continuous change in an indication, related neither to a change in the quantity being measured nor to a

change of any recognized influence quantity
© ISO 2019 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/TR 16494-2:2019(E)
3.4
resolution

smallest change in a quantity being measured that causes a perceptible change in the corresponding

indication

Note 1 to entry: In the case of a digital instrument, this value corresponds to the number of digits of the reading

of the instrument. This value might be different on the overall range of the instrument.

3.5
stability

ability of a measuring instrument or measuring system to maintain its metrological properties constant

with time
3.6 Type of evaluation of uncertainty
3.6.1
type A evaluation of standard uncertainty

evaluation of standard uncertainty based on any valid statistical method for treating data

Note 1 to entry: Examples are calculating the standard deviation of the mean of a series of independent

observations, using the method of least squares to fit a curve to data in order to evaluate the parameters of the

curve and their standard deviations, and carrying out an analysis of variance in order to identify and quantify

random effects in certain kinds of measurements. If the measurement situation is especially complicated, one

should consider obtaining the guidance of a statistician.
3.6.2
type B evaluation of standard uncertainty

evaluation of standard uncertainty that is usually based on scientific judgment using all the relevant

information available

Note 1 to entry: Relevant information can include previous measurement data, experience with, or general

knowledge of, the behaviour and property of relevant materials and instruments, manufacturer’s specifications,

data provided in calibration and other reports, and uncertainties assigned to reference data taken from

handbooks.
3.7
uncertainty due to the lack of homogeneity

component specific to air temperature measurements where several probes are used simultaneously

Note 1 to entry: In this case the air temperature value used is the mean of the measurements of the different probes.

4 Symbols

For the purposes of this document, the symbols defined in ISO 16494:2014 and the following apply.

Symbol Description Unit
A Nozzle throat area m
C Tracer gas concentrations at stations 1,2,3,4 10
1,2,3,4
NOTE
C Nozzle discharge coefficient 1
C Specific heat of dry air kJ/(kg K)
h Enthalpy kJ/kg
NSAR Net supply airflow ratio %
P Input power to any other electrical components in the ventilator W
aux
P Input power to all electric motors in the ventilator W
P Input power to ventilator W

NOTE Some quantities of dimension 1 are defined as ratios of two quantities of the same kind. The coherent derived unit

is the number 1. (ISO 80000-1:2009, 3.8).
2 © ISO 2019 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/TR 16494-2:2019(E)
Symbol Description Unit
ps Static pressure Pa
pv Velocity pressure Pa
P Nozzle Pressure Pa
P Power value of moving air W
vma
Q Gross airflow volume m /s

Airflow rate calculated using the data from test “I” as described in ISO 16494:2014

Q m /s
B.2.1.1 through B.2.2.2.
qm Air mass flow rate kg/s
Q Supply airflow m /s
Q Net supply airflow m /s
SANet
qm Net supply mass flow rate kg/s
2,net
t Time s
T Temperature K
V Air volume in test chamber m
v’ Specific Volume m /kg
Same as
U Expanded uncertainty of a measurement
measurand
Same as
u Standard uncertainty of a measurement
measurand
UEATR Unit exhaust air transfer ratio %
NOTE
COE Coefficient of Energy 1
EW Effective Work W
e Effectiveness Ratio
ρ Density kg/m

NOTE Some quantities of dimension 1 are defined as ratios of two quantities of the same kind. The coherent derived unit

is the number 1. (ISO 80000-1:2009, 3.8).
Subscript Description
sensible Indicates parameter refers to sensible energy
latent Indicates parameter refers to latent energy
total Indicates parameter refers to total (enthalpic) energy
ducted Indicates parameter refers to a ducted ventilator
unducted Indicates parameter refers to an unducted ventilator
1,2,3,4 Refers to station 1, 2, 3 or 4
SA Supply air
SANet Net supply air
5 Explanatory notes useful in laboratory application
5.1 Uncertainty

No measurement of a real quantity can be exact; there is always some uncertainty involved in the

measurement. Uncertainty may arise because of measuring instruments not being exact, because the

conditions of the test are not precise, or for many other reasons, including human error. Uncertainty

may be expressed as a range of test results (e.g. 10 kW ± 0,1 kW), or as a fraction or percentage of the

test result (e.g. 10 kW ± 1 %).
© ISO 2019 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/TR 16494-2:2019(E)
5.2 Confidence level

Confidence level refers to the probability that the true result of a measurement lies within the range

stated by the uncertainty. For example, if the measurement of a power is given as 10,0 kW ± 1 % at a

confidence level of 95 %, this means that there is not more than 5 % probability that the true value

of the power is outside the range 9,90 kW to 10,10 kW. A confidence level of 95 % is usually used for

engineering measurements; this provides a good compromise between reliability of measurements and

the cost of making those measurements.
5.3 Evaluation of uncertainties

Two types of uncertainty evaluation are recognized by ISO/IEC Guide 98-3. A type A evaluation involves

statistical methods of evaluation of the uncertainties, and may only be used where there are repeated

measurements of the same quantity. A type B evaluation is one using any other means, and may require

the use of knowledge of the measurement system, such as calibration certificates for instruments and

experience in determining what factors may produce uncertainties in the measurement.

5.4 Steps in evaluation of uncertainty in measurements

To evaluate the uncertainty in a measurement, it is necessary to follow a series of steps.

a) A mathematical model of the measurement system is developed, that lists all the factors that

contribute to the measurement.

b) Examination of this model will determine the magnitude of the contribution of each source of

uncertainty to the final measurement uncertainty.

c) In many cases the units of the final measurement will differ from the units of the various

measurements involved. For example, the measurement of the effective work of an energy-recovery

ventilator will involve measurements such as temperatures, pressures, and electrical power. In

these cases, it is necessary to determine weighting factors to describe the effect that uncertainties

in these measurements will have on the final measurement of capacity. These weighting factors are

known as sensitivity coefficients.

d) Once all the factors contributing to the final measurement are evaluated, together with their

sensitivity coefficients, they are combined to give the overall uncertainty in the final measurement.

5.5 Uncertainty of measurements
5.5.1 Uncertainty of individual measurements

The uncertainty of measurement of each individual measurement should take into account the different

components of uncertainties as described below, where appropriate.
4 © ISO 2019 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/TR 16494-2:2019(E)
Table 1 — Components of uncertainties for individual measurements
Value from
Coverage factor,
Source of un- Evaluation calibration Probability Standard
k (ISO/IEC Guide
certainty basis certificate or distribution uncertainty
99:2007, 2.38)
actual value
Calibration
Calibration U Normal 2
u =
certificate
Resolution Specifications U Rectangular u =
2 23× 2
23×
— —
Calibration (see 5.5.1 (see 5.5.1
Correction U (see 5.5.1
certificate NOTE 1 and NOTE 1 and
NOTE 1 and NOTE 2)
NOTE 2) NOTE 2)
Calibration
Drift U Rectangular u =
4 3 4
certificate
Standard devi-
Stability (in 5
s =
Mean S ation on a mean N
time)
value

Number larger than one by which a combined standard measurement uncertainty is multiplied to obtain an expanded

measurement uncertainty.
The expanded uncertainty, U, is thus calculated as follows.
a) If the calibration correction is applied:
 
2 2 2 22 5
 
Uu=×2 ++uu ++uu + (1)
1 2 3 4 i
 
 

NOTE 1 If the calibration correction value U is applied directly, then the evaluated value of u = 0. In case

3 3

that the averaged value of deviations at several calibration points is applied as correction factor, the value

of u arising from incomplete correction is evaluated from the variance of deviations remaining after the

correction value has been applied to each calibration data.
b) If the calibration correction is not applied:
 
2 2 22 5
 
Uu=×2 ++uu+ u + +U (2)
1 2 4 i 3
 
 

NOTE 2 Avoid calculating the expanded uncertainty without applying the correction. However, if the

correction value is small compared to the uncertainty, it could be decided that correction is not needed. If

the value of the calibration correction U is entered in Formula (2), then u = 0.
3 3
© ISO 2019 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/TR 16494-2:2019(E)
5.5.2 Uncertainty of a mean value from several measurements

If several sensors are used for determining a mean value, this mean value is calculated with the

following formula:
∑ i
i=1
T = (3)
where
T is the mean value;
T is the value measured by the sensor i;
N is the number of sensors.

The uncertainty of this mean value should be calculated from the uncertainty of each individual

measurement to which an additional component for homogeneity is added as follows, assuming the

individual measurements to be correlated:
 
∑  s 
 
i=1
uT = +
m  
 
 
 
 
leading to:
2 2
N N
   
2 2
uT UT
() ()
∑∑i   ii  
  s   s
i==1 i 1
UT =×22uT =× + =×2 + (4)
() ()
   
   
N 2×N
N N
   
   
   
where
u(T ) is the combined standard uncertainty on the mean value;

U(T ) is the expanded uncertainty on the mean value (k = 2, confidence level approximately 95 %);

u(T) is the standard measurement uncertainty of the sensor i, determined according to Table 1;

U(T) is the expanded measurement uncertainty of the sensor i, determined according to Table 1;

s is the standard deviation on the mean value (calculating from the N individual measurements, T).

NOTE 1 According to ISO/IEC Guide 98-3:2008, 5.2.2 NOTE 1, for the very special case where all of the input

estimates are correlated with correlation coefficients equal to +1, the uncertainty of measurements with the

following formula:
 
 
uy = cu x
() ()
ci i
 
i=1
 
N 2
 
 
 
i−1
∑ i
   
i−1
Leads to, for the mean value, T = =� (5)
 
N N
 
 

NOTE 2 See ISO 3534-1 for guidance in evaluating the uncertainty of the mean value obtained from repeated

measurements of the same parameter.
6 © ISO 2019 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/TR 16494-2:2019(E)
5.5.3 Uncertainty of a value obtained by using a smoothing curve

If a value, V(m), is determined from a measurement m and the use of a smoothing curve, then the term:

uV m
()()
should be replaced by:
 
 
 |mu⋅ mu+ Vm  (6)
() ()
ii smooth
 
 
 
 
where

u(m ) is the standard uncertainty on each measurement m (determined according to

i i
Table 1);

u (V(m)) is the standard uncertainty component due to the smoothing of the law. Usually,

smooth
this term is evaluated as the maximum deviation between the smoothing curve
and the experimental measurements;
|m is the derivative of the smoothing curve with respect to measurement m .
i i
6 Evaluation of uncertainty
6.1 Airflow performance
6.1.1 Air volume flow rate
6.1.1.1 Measured parameters affecting the measurement
— Discharge coefficient;
— Nozzle throat area;
— Nozzle pressure;
— Specific volume.
6.1.1.2 Air volume flow rate measurement
Air volume flow rate is calculated as follows:
QC= AP2'v (7)
Dv n
where
C is the nozzle(s) discharge coefficient (dimensionless);
A is the nozzle(s) throat area (m );
P is the nozzle pressure (Pa);
v’ is the specific volume (m /kg).
© ISO 2019 – All rights reserved 7
---------------------- Page: 12 ----------------------
ISO/TR 16494-2:2019(E)
6.1.1.3 Uncertainty calculation — Specific case

When the air volume flow rate is determined by using a nozzle chamber, the calculation of the relative

uncertainty of measurement is made as follows:
22 2 2
         
uQ uC uA up uv'
() () () () ()
D v n
  =  +  +  +  (8)
         
Q C A 2p 2v'
D v n
         

When the air volume flow rate is determined by using a nozzle chamber, the calculation of the absolute

uncertainty of measurement is made as follows:
uQ = uC Ap22vu''+ AC pv +
()() () ()
() ()
Dv nD vn
(9)
   
up CA 2pv' uv''CA 2pv
() ()
vD vn nD vn
  + 
   
2p 2v'
v n
   
6.1.2 Air mass flow rate
6.1.2.1 Measured parameters affecting the measurement
— Air volume flow rate;
— Air density.
6.1.2.2 Air mass flow rate

When mass flow rates are calculated, they can be determined from the relevant air volume flow rate by

the following formula:
qm =Q ρ (10)
ii i
where
qm is the relevant air volume flow rate i (m /s);
ρ is the density of air stream i (kg/m ).
6.1.2.3 Uncertainty calculation — General case
uqmu= Quρρ+ Q (11)
() ()() ()()
ii ii i
6.1.3 Static pressure differential
6.1.3.1 Measured parameters affecting the measurement
— Inlet pressure;
— Outlet pressure.
6.1.3.2 Static pressure differential
Static pressure differential is described by the following formulae:
ps =−ps ps (12)
21− 21
8 © ISO 2019 – All rights reserved
---------------------- Page: 13 ----------------------
ISO/TR 16494-2:2019(E)
ps =−ps ps (13)
43− 43
where ps is the static pressure at station n (Pa).
6.1.3.3 Uncertainty calculation — General case
2 2
upsu= ps + ups (14)
() () ()
() ()
21− 2 1
2 2
upsu= ps + ups (15)
() ()() ()()
43− 4 3
6.2 Unit exhaust air transfer ratio
6.2.1 Measured parameters affecting test results
— Tracer gas concentrations.
6.2.2 UEATR measurement
The unit exhaust air transfer ratio is calculated as follows:
CC−
UEATR= ×100 (16)
CC−
where
UEATR is the unit exhaust air transfer ratio (%);
C is the tracer gas concentration at entering supply air(station 1);
C is the tracer gas concentration at leaving supply air (station 2);
C is the tracer gas concentration at entering exhaust air (station 3).
6.2.3 Uncertainty calculation — General case
The uncertainty calculation is given by the general formula:
 
 
 
  CC−+uC
uC CC− ()()
() ()
2 21 1
2 21
 
 
uUEATR = ×100 + −− ×100 +
()  
 
CC−  CC−  
() () CC−+uC
  ()
31 31 ()
31 1
 
 
 
 
(17)
 
 
CC− CC−
() ()
21 21
 
 
− ×100
 
 C −C 
() Cu− CC−
()()
331
33 1
 
 
6.3 Net supply airflow
6.3.1 Net supply airflow ducted units
6.3.1.1 Measured parameters affecting test results
— UEATR;
— Supply airflow.
© ISO 2019 – All rights reserved 9
---------------------- Page: 14 ----------------------
ISO/TR 16494-2:2019(E)
6.3.1.2 NSAR measurement
Net supply airflow for ducted units is calculated as follows:
NSAR
Q =×Q (18)
SANetSA
100
where
Q is the net supply airflow (m /s);
SANet
Q is the supply airflow (m /s);
NSAR is the net supply airflow ratio (%).
where
NSAR=−100 EATR (19)
and
UEATR is the unit exhaust air transfer ratio (%).
6.3.1.3 Uncertainty calculation for ducted units — General case
2 2
   
uUEATR 100−UEATR
() ()
uQ = ×Q  + ×uQ  (20)
() ()
SANetSASA
   
100 100
   
6.3.2 Net supply airflow unducted ventilators
6.3.2.1 Measured parameters affecting test results
— Chamber volume;
— Tracer gas concentration;
— Time.
6.3.2.2 NSAR measurement
Net supply airflow for unducted ventilators is calculated as follows:
QQ=−Q (21)
SANet 12
where
CC−
Q = ln (22)
t CC−
10 © ISO 2019 – All rights reserved
---------------------- Page: 15 ----------------------
ISO/TR 16494-2:2019(E)
where, when corrected to standard temperature and density:
Q is the net supply airflow (m /s);
SANet
Q is the
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
