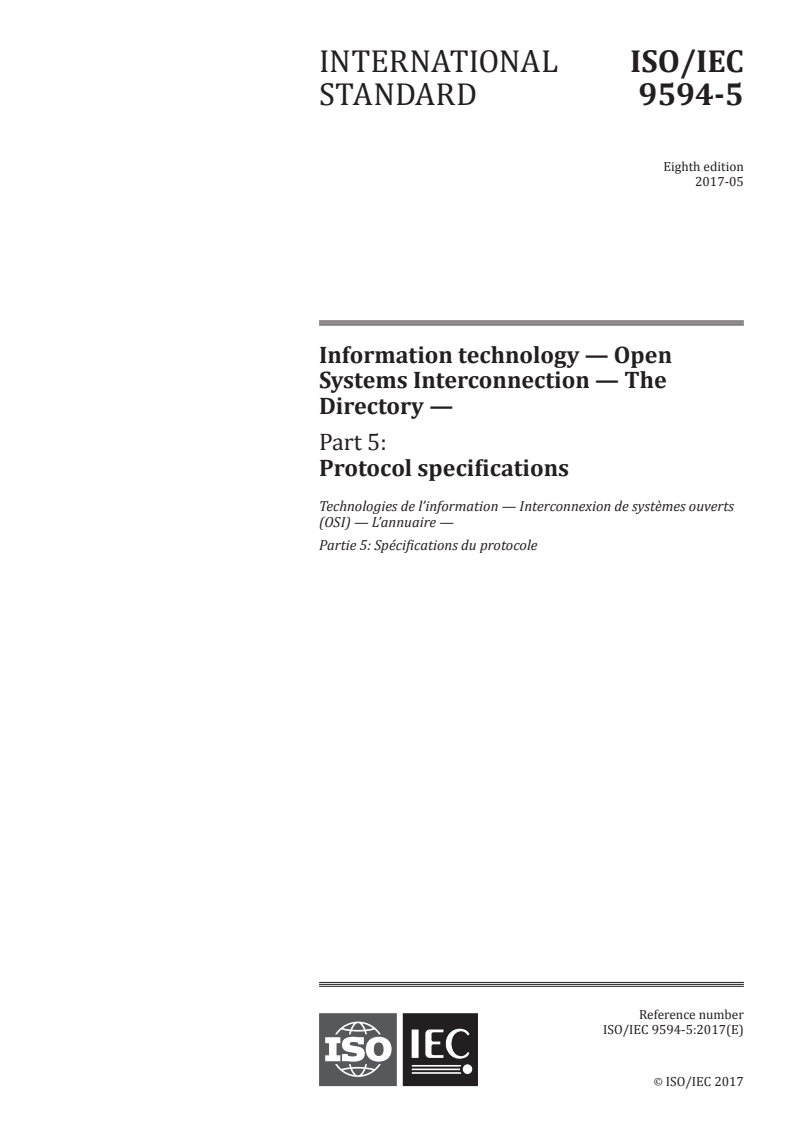

INTERNATIONAL ISO/IEC
STANDARD 9594-5
Eighth edition
2017-05
Information technology — Open
Systems Interconnection — The
Directory —
Part 5:
Protocol specifications
Technologies de l’information — Interconnexion de systèmes ouverts
(OSI) — L’annuaire —
Partie 5: Spécifications du protocole
Reference number
©
ISO/IEC 2017
© ISO/IEC 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO/IEC 2017 – All rights reserved

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non‐governmental, in liaison with ISO and IEC, also
take part in the work. In the field of information technology, ISO and IEC have established a joint
technical committee, ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent
rights. Details of any patent rights identified during the development of the document will be in the
Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does
not constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO's adherence to the World Trade Organization (WTO)
principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This eighth edition cancels and replaces the seventh edition (ISO/IEC 9594‐5:2014), which
has been technically revised.
This document was prepared by ISO/IEC JTC 1, Information technology, SC 6, Telecommunications
and information exchange between systems, in collaboration with ITU‐T. The identical text is
published as ITU‐T X.519 (10/2016).
A list of all parts in the ISO/IEC 9594 series, published under the general title Information technology
— Open Systems Interconnection — The Directory, can be found on the ISO website.
© ISO/IEC 2017 – All rights reserved ii-1

CONTENTS
Page
1 Scope . 1
2 References . 1
2.1 Normative references . 1
2.2 Non-normative references . 2
3 Definitions . 2
3.1 Basic Directory definitions . 2
3.2 Distributed Operation Definitions . 3
3.3 Protocol specification definitions . 3
4 Abbreviations . 4
5 Conventions . 4
6 Common protocol specification. 5
6.1 Directory associations and operations . 5
6.2 Specification for Directory operations . 6
6.3 Directory protocol overview . 7
6.4 Operation codes . 8
6.5 Error codes . 8
6.6 Abstract syntaxes . 9
7 Directory protocols using the OSI stack . 9
7.1 OSI-PDUs . 9
7.2 Directory PDU structure . 9
7.3 Session PDUs . 10
7.4 OSI addressing . 11
7.5 Procedure and sequencing . 11
7.6 Directory PDU specifications . 11
8 Directory protocol mapping onto OSI services . 26
8.1 Abstract syntaxes and transfer syntaxes . 26
8.2 Application-context . 26
8.3 Session Layer specification . 28
8.4 Use of transport service . 34
8.5 OSI Transport Layer on top of TCP . 34
9 IDM protocol . 48
9.1 IDM-PDUs . 48
9.2 Sequencing requirements . 50
9.3 Protocols . 51
9.4 Reject reasons. 51
9.5 Abort reasons . 52
9.6 Mapping onto TCP/IP . 52
9.7 Addressing . 53
9.8 Use of TLS . 53
10 Directory protocol mapping onto the IDM protocol . 54
10.1 DAP-IP protocol . 54
10.2 DSP-IP protocol . 54
10.3 DISP-IP protocol . 55
10.4 DOP-IP protocol . 55
11 Protocol stack coexistence . 55
11.1 Coexistence between OSI and IDM stacks . 55
11.2 Coexistence in the presence of LDAP . 56
11.3 Defining network addresses for Internet Protocol, version 4 support . 56
11.4 Definition of NSAP-like address for long addressing information . 57
12 Versions and the rules for extensibility . 57
12.1 Use of extension markers . 57
Rec. ITU-T X.519 (10/2016) iii

Page
12.2 DUA to DSA . 58
12.3 DSA to DSA . 58
12.4 Rules of extensibility for NSAP addresses . 59
12.5 Rules of extensibility for object classes . 60
12.6 Rules of extensibility for user attribute types . 60
13 Conformance . 60
13.1 Conformance by DUAs . 60
13.2 Conformance by DSAs. 61
13.3 Conformance by a shadow supplier . 64
13.4 Conformance by a shadow consumer . 65
Annex A – Common protocol specifications in ASN.1 . 66
Annex B – OSI Protocol in ASN.1 . 68
Annex C – Directory OSI Protocols in ASN.1 . 74
Annex D – IDM Protocol in ASN.1 . 77
Annex E – Directory IDM Protocols in ASN.1 . 80
Annex F – Directory operational binding types . 82
Annex G – Amendments and corrigenda . 83

iv Rec. ITU-T X.519 (10/2016)
Introduction
This Recommendation | International Standard, together with other Recommendations | International Standards, has been
produced to facilitate the interconnection of information processing systems to provide directory services. A set of such
systems, together with the directory information that they hold, can be viewed as an integrated whole, called the Directory.
The information held by the Directory, collectively known as the Directory Information Base (DIB), is typically used to
facilitate communication between, with or about objects such as application entities, people, terminals and distribution
lists.
The Directory plays a significant role in Open Systems Interconnection, whose aim is to allow, with a minimum of
technical agreement outside of the interconnection standards themselves, the interconnection of information processing
systems:
– from different manufacturers;
– under different managements;
– of different levels of complexity; and
– of different ages.
This Recommendation | International Standard specifies the application service elements and application contexts for two
protocols – the Directory Access Protocol (DAP) and the Directory System Protocol (DSP). The DAP provides for access
to the Directory to retrieve or modify Directory information. The DSP provides for the chaining of requests to retrieve or
modify Directory information to other parts of the distributed Directory System where the information may be held.
In addition, this Recommendation | International Standard specifies the application service elements and application
contexts for the Directory Information Shadowing Protocol (DISP) and the Directory Operational Binding Management
Protocol (DOP). The DISP provides for the shadowing of information held in one DSA to another DSA. The DOP
provides for the establishment, modification and termination of bindings between pairs of DSAs for the administration of
relationships between the DSAs (such as for shadowing or hierarchical relationships).
This Recommendation | International Standard provides the foundation frameworks upon which industry profiles can be
defined by other standards groups and industry forums. Many of the features defined as optional in these frameworks may
be mandated for use in certain environments through profiles. This eighth edition technically revises and enhances the
seventh edition of this Recommendation | International Standard.
This eighth edition specifies versions 1 and 2 of the Directory protocols.
The first and second editions specified only version 1. Most of the services and protocols specified in this edition are
designed to function under version 1. However some enhanced services and protocols, e.g., signed errors, will not function
unless all Directory entities involved in the operation have negotiated version 2. Whichever version has been negotiated,
differences between the services and between the protocols defined in the eight editions, except for those specifically
assigned to version 2, are accommodated using the rules of extensibility defined in this edition of Rec. ITU-T X.519 |
ISO/IEC 9594-5.
Annex A, which is an integral part of this Recommendation | International Standard, provides the ASN.1 module for the
common specifications for the Directory protocols.
Annex B, which is an integral part of this Recommendation | International Standard, provides the ASN.1 module for the
OSI protocol specification.
Annex C, which is an integral part of this Recommendation | International Standard, provides the ASN.1 module for the
Directory OSI protocols.
Annex D, which is an integral part of this Recommendation | International Standard, provides the ASN.1 module for the
IDM protocol specification.
Annex E, which is an integral part of this Recommendation | International Standard, provides the ASN.1 module for the
Directory IDM protocols.
Annex F, which is an integral part of this Recommendation | International Standard, provides the ASN.1 module which
contains all the ASN.1 object identifiers assigned to identify operational binding types in this series of Recommendations |
International Standards.
Annex G, which is not an integral part of this Recommendation | International Standard, lists the amendments and defect
reports that have been incorporated to form this edition of this Recommendation | International Standard.

Rec. ITU-T X.519 (10/2016) v
INTERNATIONAL STANDARD
RECOMMENDATION ITU-T
Information technology – Open Systems Interconnection – The Directory: Protocol
specifications
1 Scope
This Recommendation | International Standard specifies the Directory Access Protocol, the Directory System Protocol,
the Directory Information Shadowing Protocol, and the Directory Operational Binding Management Protocol which fulfil
the abstract services specified in Rec. ITU-T X.511 | ISO/IEC 9594-3, Rec. ITU-T X.518 | ISO/IEC 9594-4,
Rec. ITU-T X.525 | ISO/IEC 9594-9, and Rec. ITU-T X.501 | ISO/IEC 9594-2.
2 References
2.1 Normative references
The following Recommendations and International Standards contain provisions which, through reference in this text,
constitute provisions of this Recommendation | International Standard. At the time of publication, the editions indicated
were valid. All Recommendations and Standards are subject to revision, and parties to agreements based on this
Recommendation | International Standard are encouraged to investigate the possibility of applying the most recent edition
of the Recommendations and Standards listed below. Members of IEC and ISO maintain registers of currently valid
International Standards. The Telecommunication Standardization Bureau of the ITU maintains a list of currently valid
ITU-T Recommendations.
2.1.1 Identical Recommendations | International Standards
– Recommendation ITU-T X.200 (1994) | ISO/IEC 7498-1:1994, Information technology – Open Systems
Interconnection – Basic Reference Model: The basic model.
– Recommendation ITU-T X.213 (2001) | ISO/IEC 8348:2002, Information technology – Open Systems
Interconnection – Network service definition.
– Recommendation ITU-T X.214 (1995) | ISO/IEC 8072:1996, Information technology – Open Systems
Interconnection – Transport service definition.
– Recommendation ITU-T X.500 (2016) | ISO/IEC 9594-1:2017, Information technology – Open Systems
Interconnection – The Directory: Overview of concepts, models and services.
– Recommendation ITU-T X.501 (2016) | ISO/IEC 9594-2:2017, Information technology – Open Systems
Interconnection – The Directory: Models.
– Recommendation ITU-T X.509 (2016) | ISO/IEC 9594-8:2017, Information technology – Open Systems
Interconnection – The Directory: Public-key and attribute certificate frameworks.
– Recommendation ITU-T X.511 (2016) | ISO/IEC 9594-3:2017, Information technology – Open Systems
Interconnection – The Directory: Abstract service definition.
– Recommendation ITU-T X.518 (2016) | ISO/IEC 9594-4:2017, Information technology – Open Systems
Interconnection – The Directory: Procedures for distributed operation.
– Recommendation ITU-T X.520 (2016) | ISO/IEC 9594-6:2017, Information technology – Open Systems
Interconnection – The Directory: Selected attribute types.
– Recommendation ITU-T X.521 (2016) | ISO/IEC 9594-7:2017, Information technology – Open Systems
Interconnection – The Directory: Selected object classes.
– Recommendation ITU-T X.525 (2016) | ISO/IEC 9594-9:2017, Information technology – Open Systems
Interconnection – The Directory: Replication.
– Recommendation ITU-T X.690 (2015) | ISO/IEC 8825-1:2015, Information technology – ASN.1 encoding
rules: Specification of Basic Encoding Rules (BER), Canonical Encoding Rules (CER) and Distinguished
Encoding Rules (DER).
2.1.2 ISO/IEC Standards
– ISO/IEC 10646:2014, Information technology – Universal Multiple-Octet Coded Character Set (UCS).
Rec. ITU-T X.519 (10/2016) 1
2.1.3 Other references
– Recommendation ITU-T E.164 (2010), International operation – Numbering plan of the international
telephone service.
– Recommendation ITU-T X.121 (2000), International numbering plan for public data networks.
– Recommendation ITU-T X.680 (2015) | ISO/IEC 8824-1:2015, Information technology – Abstract Syntax
Notation One (ASN.1): Specification of basic notation.
– Recommendation ITU-T X.681 (2015) | ISO/IEC 8824-2:2015, Information technology – Abstract Syntax
Notation One (ASN.1): Information object specification.
– Recommendation ITU-T X.682 (2015) | ISO/IEC 8824-3:2015, Information technology – Abstract Syntax
Notation One (ASN.1): Constraint specification.
– Recommendation ITU-T X.683 (2015) | ISO/IEC 8824-4:2015, Information technology – Abstract Syntax
Notation One (ASN.1): Parameterization of ASN.1 specifications.
– IETF RFC 793 (1981), Transmission Control Protocol – DARPA Internet Program – Protocol
Specification.
– IETF RFC 1738 (1994), Uniform Resource Locators (URL).
– IETF RFC 2246 (1999), The TLS Protocol Version 1.0.
– IETF RFC 3546 (2003), Transport Layer Security (TLS) Extensions.
– IETF RFC 3986 (2005), Uniform Resource Identifier (URI): Generic Syntax.
2.2 Non-normative references
– Recommendation ITU-T X.217 (1995) | ISO/IEC 8649:1996, Information technology – Open Systems
Interconnection – Service definition for the Association Control Service Element.
– Recommendation ITU-T X.224 (1995) | ISO/IEC 8073:1997, Information technology – Open Systems
Interconnection – Protocol for providing the connection-mode transport service.
– Recommendation ITU-T X.225 (1995) | ISO/IEC 8327-1:1996, Information technology – Open Systems
Interconnection – Connection-oriented Session protocol: Protocol specification.
– Recommendation ITU-T X.226 (1994) | ISO/IEC 8823-1:1994, Information technology – Open Systems
Interconnection – Connection-oriented Presentation protocol: Protocol specification.
– Recommendation ITU-T X.227 (1995) | ISO/IEC 8650-1:1996, Information technology – Open Systems
Interconnection – Connection-oriented protocol for the Association Control Service Element: Protocol
specification.
– Recommendation ITU-T X.650 (1996) | ISO/IEC 7498-3:1997, Information technology – Open Systems
Interconnection – Basic Reference Model: Naming and addressing.
– Recommendation ITU-T X.881 (1994) | ISO/IEC 13712-2:1995, Information technology – Remote
Operations: OSI realizations – Remote Operations Service Element (ROSE) service definition.
– IETF RFC 896 (1984), Congestion Control in IP/TCP Internetworks.
– IETF RFC 1006 (1987), ISO Transport Service on top of the TCP Version: 3.
– IETF RFC 1277 (1991), Encoding Network Addresses to Support Operation over Non-OSI Lower Layers.
– IETF RFC 2126 (1997), ISO Transport Service on top of TCP (ITOT).
– IETF RFC 4511 (2006), Lightweight Directory Access Protocol (LDAP): The Protocol.
3 Definitions
For the purposes of this Recommendation | International Standard, the following definitions apply:
3.1 Basic Directory definitions
The following terms are defined in Rec. ITU-T X.501 | ISO/IEC 9594-2:
a) the Directory;
b) (Directory) user;
c) Directory System Agent (DSA);
2 Rec. ITU-T X.519 (10/2016)
d) Directory User Agent (DUA).
3.2 Distributed Operation Definitions
The following terms are defined in Rec. ITU-T X.518 | ISO/IEC 9594-4:
a) chaining;
b) performer;
c) referral.
3.3 Protocol specification definitions
The following terms are defined in this Recommendation | International Standard.
NOTE – The terms defined in this clause are generalized definitions to cover both the OSI and the TCP/IP case, except where
exceptions are indicated.
3.3.1 abstract syntax: The specification of data types and/or data values by using notation rules which are
independent of the encoding technique used to represent them.
3.3.2 application-association: A cooperative relationship between two application-entities established by the Bind
operation.
3.3.3 application-context: (OSI only definition); a set of rules commonly shared by two application-entities in order
to support an application-association.
3.3.4 application-context-name: An ASN.1 object identifier that identifies (names) an application-context.
3.3.5 application layer: The top layer of the OSI seven layer model representing the semantics of the communication.
3.3.6 application-entity: A representation of the external behaviour of an application process in the form of its
communication capabilities.
3.3.7 application-entity title: The Directory distinguished name of an application-entity, and in particular, an
application-entity representing a Directory application process.
3.3.8 application process: A process within a system which performs information processing for a particular
purpose, in particular processing Directory operations.
3.3.9 Bind operation: An operation type used for establishing an application-association.
3.3.10 Directory operation: An operation type for the exchange of Directory information.
3.3.11 directory protocol-data-unit: A unit of data for a Directory protocol consisting of control information and in
general, also application data as specified by Directory operations.
NOTE 1 – A Directory PDU in the OSI environment includes all the protocol elements of the OSI Presentation Layer and if
relevant, protocol elements of ACSE in addition to the Directory-specific protocol elements.
NOTE 2 – The term "application-protocol-data-unit (APDU)" is a unit of data defined by an OSI application protocol. This term is
not used for edition 5 and subsequent editions of these Directory Specifications. However, the abbreviation may appear in certain
ASN.1 elements.
3.3.12 initiator: The application process that initiates an application-association by issuing a Bind request.
3.3.13 local matter: A decision made by a system concerning its behaviour that is not subject to the requirements of
these Directory Specifications.
3.3.14 operation: An exchange between two application processes to perform a particular task. It consists of a request
from one application-process to the other one and the return of zero or more responses (result and/or errors). An operation
implies a certain process to be performed by the application process receiving the request.
3.3.15 protocol-data-unit: Comprised of the presentation protocol elements or the ACSE protocol elements of a
Directory protocol-data-unit.
3.3.16 presentation layer: The sixth layer of the OSI Reference Model.
3.3.17 protocol error: An unrecognized or unexpected protocol-data-unit or a protocol-data-unit with an unexpected
or invalid parameter is received.
3.3.18 responder: The application-process that receives a Bind request and either accepts or refuses the
application-association.
Rec. ITU-T X.519 (10/2016) 3
NOTE – Initiator and responder are defined with respect to a single transport-connection. The initiator is also the application
process that initiated the transport-connection (see clause 8.4). A DSA can be both an initiator and responder simultaneously.
3.3.19 session layer: The fifth layer of the OSI Reference Model.
3.3.20 session-protocol-data-unit: (OSI only definition); a unit of data at the OSI Session Layer consisting of control
information and in general, it also carries a Directory protocol-data-unit.
4 Abbreviations
For the purposes of this Recommendation | International Standard, the following abbreviations apply:
AC Application Context
ACSE Association Control Service Element
AE Application-Entity
AFI Authority and Format Identifier
APDU Application-Protocol-Data-Unit
DAP Directory Access Protocol
DISP Directory Information Shadowing Protocol
DOP Directory Operational Binding Management Protocol
DSA Directory System Agent
DSP Directory System Protocol
DSP Domain Specific Part
DUA Directory User Agent
EOT End of TSDU
IDI Initial Domain Identifier
IDM Internet Directly Mapped
IPv4 Internet Protocol, Version 4
IPv6 Internet Protocol, Version 6
ITOT ISO Transport Service on top of TCP
LDAP Lightweight Directory Access Protocol
LI Length Indicator
NSAP Network-Service-Access-Point
PDU Protocol-Data-Unit
PGI Parameter Group Identifier
PI Parameter Identifier
PPDU Presentation-Protocol-Data-Unit
PV Parameter Value
SI SPDU Identifier
SPDU Session-Protocol-Data-Unit
TCP/IP Transmission Control Protocol/Internet Protocol
TPDU Transport-Protocol-Data-Unit
TPKT Transport Packet
TSDU Transport-Service-Data-Unit
URI Uniform Resource Identifier
5 Conventions
The term "Directory Specification" (as in "this Directory Specification") shall be taken to mean Rec. ITU-T X.519 |
ISO/IEC 9594-5. The term "Directory Specifications" shall be taken to mean the X.500-series Recommendations and all
parts of ISO/IEC 9594.
4 Rec. ITU-T X.519 (10/2016)
This Directory Specification uses the term first edition systems to refer to systems conforming to the first edition of the
Directory Specifications, i.e., the 1988 edition of the series of CCITT X.500 Recommendations and the
ISO/IEC 9594:1990 edition.
This Directory Specification uses the term second edition systems to refer to systems conforming to the second edition of
the Directory Specifications, i.e., the 1993 edition of the series of ITU-T X.500 Recommendations and the
ISO/IEC 9594:1995 edition.
This Directory Specification uses the term third edition systems to refer to systems conforming to the third edition of the
Directory Specifications, i.e., the 1997 edition of the series of ITU-T X.500 Recommendations and the
ISO/IEC 9594:1998 edition.
This Directory Specification uses the term fourth edition systems to refer to systems conforming to the fourth edition of
the Directory Specifications, i.e., the 2001 editions of Recs ITU-T X.500, X.501, X.511, X.518, X.519, X.520, X.521,
X.525 and X.530, the 2000 edition of Rec. ITU-T X.509, and parts 1-10 of the ISO/IEC 9594:2001 edition.
This Directory Specification uses the term fifth edition systems to refer to systems conforming to the fifth edition of the
Directory Specifications, i.e., the 2005 edition of the series of ITU-T X.500 Recommendations and the
ISO/IEC 9594:2005 edition.
This Directory Specification uses the term sixth edition systems to refer to systems conforming to the sixth edition of the
Directory Specifications, i.e., the 2008 edition of the series of ITU-T X.500 Recommendations and the
ISO/IEC 9594:2008 edition.
This Directory Specification uses the term seventh edition systems to refer to systems conforming to the seventh edition
of the Directory Specifications, i.e., the 2012 edition of the ITU-T X.500-series Recommendations and the
ISO/IEC 9594:2014 edition.
This Directory Specification uses the term eighth edition systems to refer to systems conforming to the eighth edition of
the Directory Specifications, i.e., the 2016 edition of the ITU-T X.500-series Recommendations and the
ISO/IEC 9594:2017 edition.
This Directory Specification presents ASN.1 notation in the bold Courier New typeface. When ASN.1 types and values
are referenced in normal text, they are differentiated from normal text by presenting them in the bold Courier New
typeface. The names of procedures, typically referenced when specifying the semantics of processing, are differentiated
from normal text by displaying them in bold Times New Roman. Access control permissions are presented in italicized
Times New Roman.
If the items in a list are numbered (as opposed to using "–" or letters), then the items shall be considered steps in a
procedure.
The syntax of Open Systems Interconnection (OSI) addressing related terms follow the rules established by
Rec. ITU-T X.650 | ISO/IEC 7498-3. This syntax has been established to make a distinction between a term for a specific
purpose and a more general term. As an example, transport-address is hyphenated to signal it is a specific term used in an
OSI context, while transport address without a hyphen has a more general meaning.
6 Common protocol specification
6.1 Directory associations and operations
The protocols for these Directory Specifications are described as a set of operations. An operation is defined in terms of
a request sent from one system to another system expecting this other system to process the request, and if applicable, it
returns one or more replies constituting the result. An operation can either be a Bind operation or an operation invoked
to access Directory information (a Directory operation).
If exception conditions are encountered, one or more errors may be returned instead of or in addition to possible results.
NOTE 1 – The currently defined operations will return either one or more results or a single error.
Directory protocols defined by these Directory Specifications may use an OSI protocol stack, a TCP/IP protocol stack or
both. The specification provided by this clause is independent of the particular protocol stack. The OSI specific
specification is given in clauses 7 and 8, while the TCP/IP specific specification is given in clauses 9 and 10.
A process within a system that processes Directory operations is called an application process. An application-entity is
the reflection of the external behaviour of an application process.
Before Directory operations can be invoked between two Directory application processes, an application-association has
to be established between the corresponding application-entities. An application-association is a cooperative relationship
Rec. ITU-T X.519 (10/2016) 5
between two application-entities formed by the exchange of control information within the request and result of a Bind
operation and by the use of a common underlying service.
NOTE 2 – This is a modified definition of application-association as given by Rec. ITU-T X.217 | ISO/IEC 8649, and is intended
to cover both the use of an underlying OSI protocol stack and an underlying TCP/IP stack.
An application-association is terminated using an unbind exchange. The unbinding of an application-association is not
defined as an operation.
6.2 Specification for Directory operations
These Directory Specifications specify several operation types. An operation type is specified by the OPERATION ASN.1
information object class. Possible errors associated with an operation type are defined by the ERRORS ASN.1 information
object class.
OPERATION ::= CLASS {
&ArgumentType  OPTIONAL,
&ResultType   OPTIONAL,
&Errors     ERROR OPTIONAL,
&operationCode Code UNIQUE OPTIONAL }
WITH SYNTAX {
[ARGUMENT &ArgumentType]
[RESULT &ResultType]
[ERRORS &Errors]
[CODE &operationCode] }
ERROR ::= CLASS {
&ParameterType,
&errorCode   Code UNIQUE OPTIONAL }
WITH SYNTAX {
PARAMETER    &ParameterType
[CODE      &errorCode] }
Code ::= CHOICE {
local  INTEGER,
global OBJECT IDENTIFIER,
... }
The OPERATION information object class is a convenient way to express the syntax of Directory requests, results and
errors for a particular operation type.
This ASN.1 information object class has the following fields:
a) The &ArgumentType field specifies an open data type for the request part of an operation.
b) The &ResultType field specifies an open data type for one or more replies constituting the result of the
request. If this field is absent, there is no result associated with the operation.
c) The &Errors field specifies one or more errors that can occur as the result of processing the request. If
this field is absent, there is no error associated with the operation.
d) The &operationCode field specifies the type of Directory operation to be performed. This field is absent
for the Bind operation. See clause 6.4 for currently defined operation codes.
Directory operations may in principle be performed in two different modes:
a) if a Directory operation shall be completed before a new Directory operation may be invoked, the mode of
operation is synchronous; or
b) if several operations may be in progress at the same time, the mode of operation is asynchronous.
If all Directory operations defined for a particular type of application-association:
a) consist of both a request and one or more results and/or errors; and
b) are allowed only to be invoked by a designated system,
such operation may be executed in either synchronous or asynchronous mode. Otherwise, the mode of operation is always
asynchronous.
The OPERATION information object class does not in itself imply any sequencing. A Directory request may have no result
and/or error, or a request may have several results and/or errors. However, it does tie together a request with possible
responses (results and errors) by carrying the same operation code and the same invoke id (see below). However,
specification of a particular operation type may dictate sequencing restrictions.
6 Rec. ITU-T X.519 (10/2016)
An error is a report of the unsuccessful performance of an operation. An error is represented by the ERROR ASN.1
Information Object Class. The different fields are described below:
a) the &ParameterType field specifies the data type of the parameter of the error specifying the nature of
the error; and
b) the &errorCode field specifies the code that identifies the error (see clause 6.5 for the defined error codes).
Although not reflected by the OPERATION or the ERRORS information object classes, each invocation of a Directory
operation is assigned an InvokeId, which is carried in the protocol. This makes it possible to indicate to what Directory
operation a particular request, result or error belongs. The definition of the InvokeId is as follows:

InvokeId ::= CHOICE {
present INTEGER,
absent  NULL,
... }
If an operation type does not specify an &operationCode, operations of this type cannot have InvokeId assigned.
6.3 Directory protocol overview
6.3.1 Use of underlying services
When two application processes from different open systems interact, the application-association is realized as an
Application Layer protocol using either an OSI or a TCP/IP underlying service.
Details on the use of the OSI service are given in clause 8, while the details on the use of the TCP/IP service are given in
clause 10.
The OSI Transport Layer may either be supported using the service as defined in Rec. ITU-T X.214 | ISO/IEC 8072 or
by using the specification in clause 8.5. In this latter case, the OSI upper layer protocols stack are placed on top of a
TCP/IP protocol stack.
6.3.2 The Directory Access Protocol (DAP)
Before a DUA and a DSA from different open systems can interact, a Bind operation has to be invoked between them to
establish an application-association supporting a Directory protocol called the Directory Access Protocol (DAP).
The Bind operation (directoryBind) for establishing a DAP application-association is defined in clause 8 of
Rec. ITU-T X.511 | ISO/IEC 9594-3.
This edition and all previous editions of the Directory Specifications only allow a DUA to invoke a Bind operation and
to initiate subsequent Directory operations. If the OSI underlying stack is used, Directory operations may be invoked
either in synchronous mode or in asynchronous mode. If the TCP/IP underlying stack is used, Directory operations are
always invoked in asynchronous mode.
All Directory operations require either a single reply or a single error to be returned.
6.3.3 The Directory System Protocol (DSP)
Before a pair of DSAs from different open systems can interact, a Bind operation has to be invoked between them to
establish an application-association supporting a Directory protocol called the Directory System Protocol (DSP).
The Bind operation (dSABind) for establishing a DSP application-association is defined in clause 11 of Rec. ITU-T X.518
| ISO/IEC 9594-4.
Either DSA may invoke a Bind operation. Both the initiating and responding DSA may invoke subsequent Directory
operations. Directory operations are always invoked in asynchronous mode on the DSP.
All Directory operations require either a single reply or a single error to be returned.
6.3.4 The Directory Information Shadowing Protocol (DISP)
Before a pair of DSAs from different open systems can interact for the purpose of exchanging shadowing information, a
Bind operation has to be invoked between them to establish an application-association supporting a Directory protocol
called the Directory Information Shadowing Protocol (DISP).
The Bind operation (dSAShadowBind) for establishing a DISP application-association is defined in clause 7.4.1 of
Rec. ITU-T X.525 | ISO/IEC 9594-9.
Rec. ITU-T X.519 (10/2016) 7
If the OSI underlying stack is used, the mode of operation is synchronous or asynchronous depending on the application-
context selected for the Bind operation. If the TCP/IP underlying stack is used, Directory operations are always invoked
in asynchronous mode.
All Directory operations require either a single reply or a single error to be returned.
6.3.5 The Directory Operational Binding Management Protocol (DOP)
Before a pair of DSAs from different open systems can interact for the purpose of maintaining operational bindings, a
Bind operation has to be invoked to establish an application-association supporting a Directory protocol called the
Directory Operational Binding Management Protocol (DOP).
The DSA that may assume the role of initiator of the Bind operation depends on the DSA roles assigned for the operational
binding(s) to be managed using the Directory operations on the application-association. Only the initiator may invoke
Directory operations. More than one operational binding type may only be managed within this application-association if
the DSA roles for the distinct types are compatible (e.g., a DSA assumes Role A for each binding
...
