ISO 16300-4:2019

Automation systems and integration — Interoperability of capability units for manufacturing application solutions — Part 4: Capability unit assessment for the manufacturing application requirements

This document specifies the search methodology from software unit catalogues for acquiring candidate capability units which satisfy the manufacturing application requirements.

Systèmes d'automatisation et intégration — Interopérabilité des unités de capacité pour les solutions d'applications industrielles — Partie 4: Évaluation des unités de capacité pour les exigences relatives aux applications manufacturières

General Information

• Status: Published
• Publication Date: 01-Dec-2019
• ICS: 25.040.01 - Industrial automation systems in general
• Technical Committee: ISO/TC 184/SC 5 - Interoperability, integration, and architectures for enterprise systems and automation applications
• Drafting Committee: ISO/TC 184/SC 5/WG 4 - Manufacturing software and its environment
• Current Stage: 6060 - International Standard published
• Start Date: 02-Dec-2019
• Due Date: 23-Mar-2020
• Completion Date: 02-Dec-2019

Standards Content (Sample)

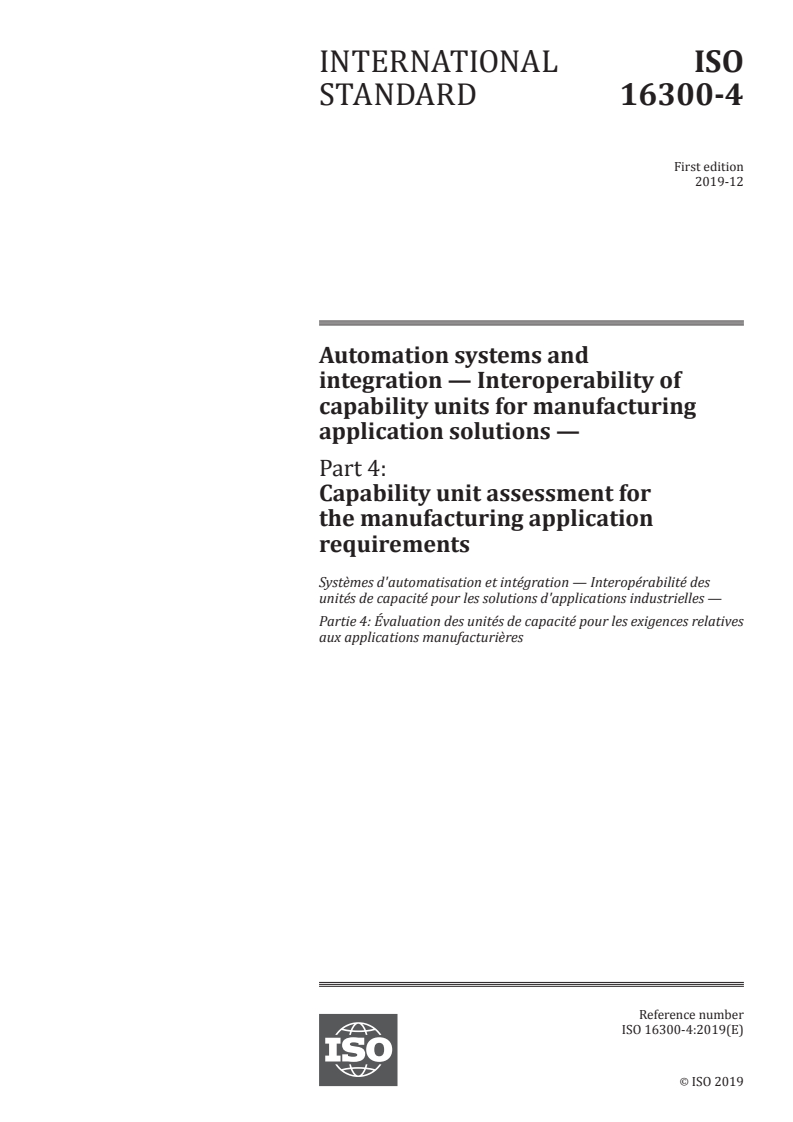

INTERNATIONAL ISO
STANDARD 16300-4
First edition
2019-12
Automation systems and
integration — Interoperability of
capability units for manufacturing
application solutions —
Part 4:
Capability unit assessment for
the manufacturing application
requirements
Systèmes d'automatisation et intégration — Interopérabilité des
unités de capacité pour les solutions d'applications industrielles —
Partie 4: Évaluation des unités de capacité pour les exigences relatives
aux applications manufacturières
Reference number
ISO 16300-4:2019(E)
©
ISO 2019

---------------------- Page: 1 ----------------------
ISO 16300-4:2019(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 16300-4:2019(E)

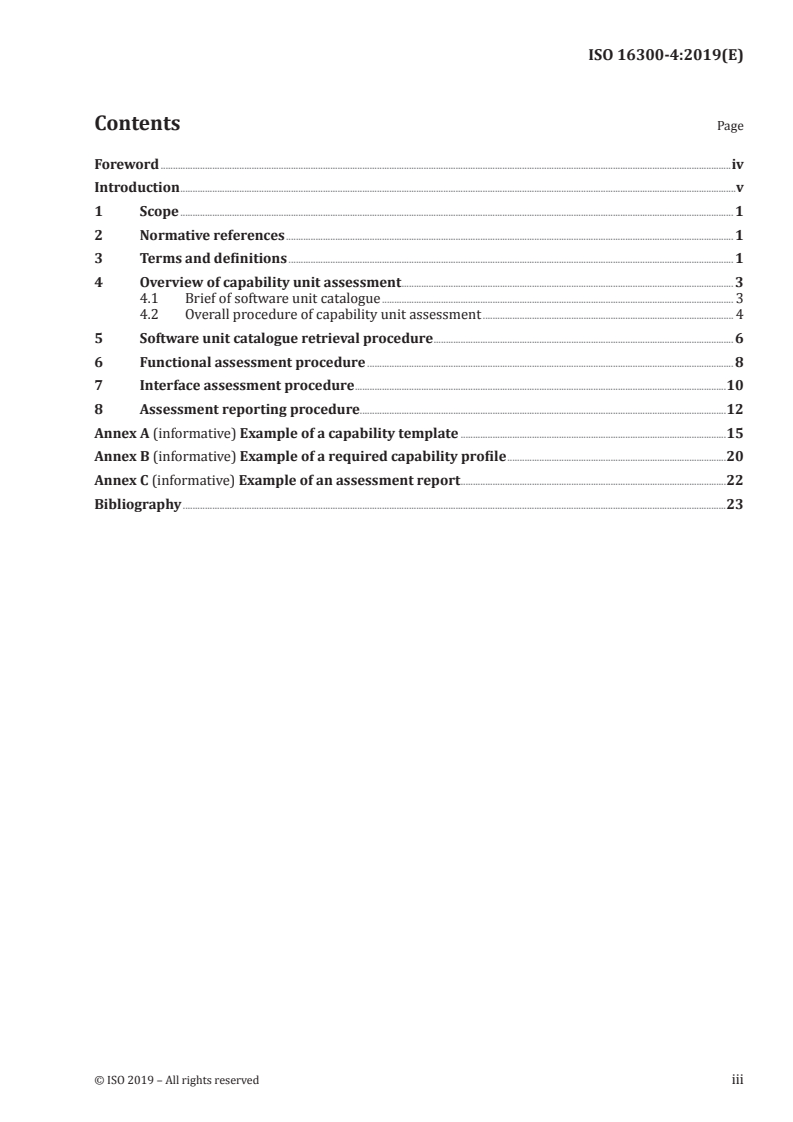

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Overview of capability unit assessment . 3
4.1 Brief of software unit catalogue . 3
4.2 Overall procedure of capability unit assessment . 4
5 Software unit catalogue retrieval procedure . 6
6 Functional assessment procedure . 8
7 Interface assessment procedure .10
8 Assessment reporting procedure.12
Annex A (informative) Example of a capability template .15
Annex B (informative) Example of a required capability profile .20
Annex C (informative) Example of an assessment report .22
Bibliography .23
© ISO 2019 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 16300-4:2019(E)

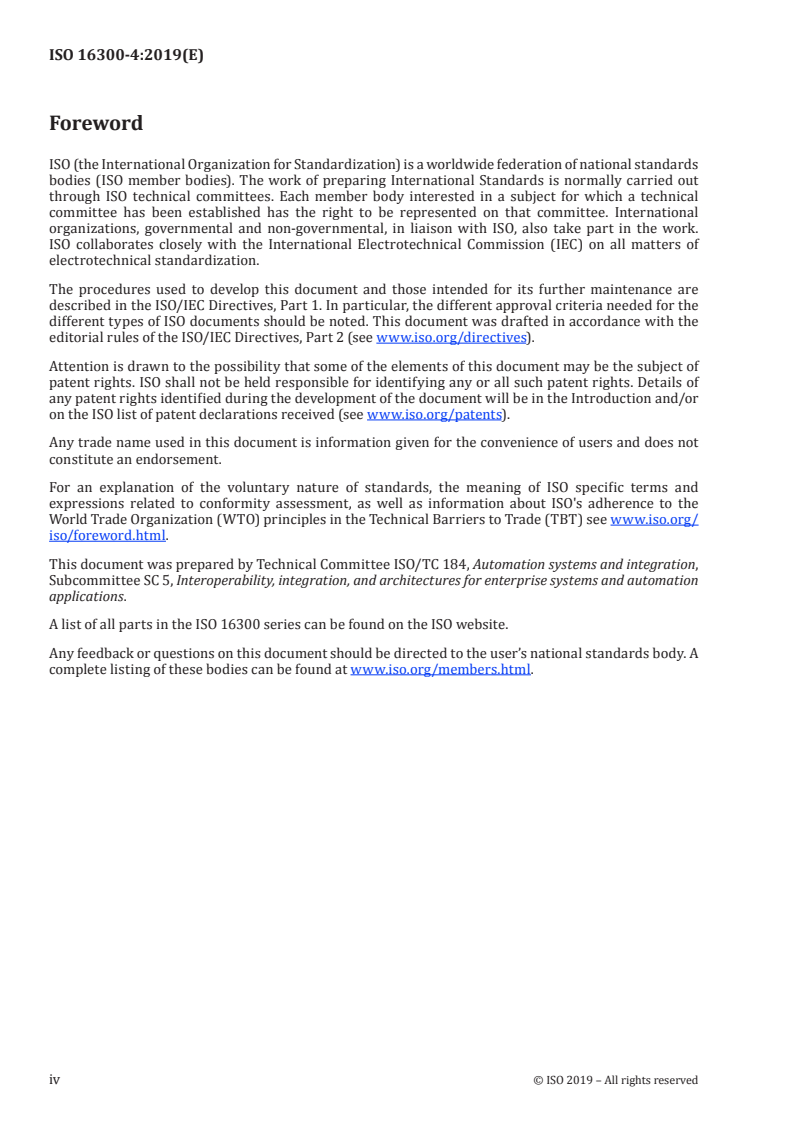

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 184, Automation systems and integration,
Subcommittee SC 5, Interoperability, integration, and architectures for enterprise systems and automation
applications.
A list of all parts in the ISO 16300 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2019 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 16300-4:2019(E)

Introduction
The ISO 16300 series addresses requirements of users and suppliers of manufacturing software
regarding the interoperability of software in the area of industrial automation.
User interoperability requirements include:
— integrating an automation application system by combining capabilities of a set of software
components provided by various sources;
— integrating the capability of a software unit from one resource system platform to another platform;
— validating and verifying the capability of a software unit to meet the automation application system
requirements.
Supplier requirements include:
— representing the set of capabilities provided by a software component used in a software unit;
— verifying software component capability as a part of a required software unit capability;
— cataloguing a software unit in terms of its capability for interoperability in an automation application
system to support wide distribution.
The ISO 16300 series also addresses software interoperability services, which include:
— access to the description of a software capability to enable interoperability assessment;
— enabling the search and location of candidate software units and components, preferably
automatically, using search engines;
— representing the dependencies between software components for an automation application hosted
on a particular system platform.
Software capability is first defined as a set of functions and services with a set of criteria for evaluating
the performance of a capability provider. It is then expressed and represented as facts about the
software, how and what it can do. The ISO 16100 series, which deals with manufacturing software
capability profiling for interoperability, was developed with the aim of providing a standardized
method to describe capabilities of manufacturing software in terms of the Manufacturing Software
Unit (MSU) capability profile. In the ISO 16100 series, the software component is included in the MSU.
The ISO 16100 series also provides a way to exchange an MSU’s capability as information by means
of a capability profile. Software capability profiling is the basis for providing the above-mentioned
software interoperability services. The ISO 16100 series is used and applied as the foundation for the
ISO 16300 series.
To establish the ISO 16300 series, a number of steps were required. The initial step shows what
interoperability services are enabled by using software capability profiles. The subsequent steps
develop concrete methods and mechanisms to provide these interoperability services. The resulting
output from ISO 16300 is divided into the following parts.
— ISO 16300-1 specifies a framework for describing an automation solution in terms of a set of
capabilities provided by a set of MSUs. The framework also defines a set of capability elements
and composition rules to represent the interoperability criteria in terms of the automation system
capability requirements of an enterprise application.
— ISO 16300-2 specifies the template definition to describe the capability of a software unit of an
automation solution that can be mapped to the functional requirements of a target manufacturing
application. This document also specifies mapping rules for composing the contents of a software
unit catalogue item in terms of the properties of the capability.
© ISO 2019 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO 16300-4:2019(E)

— ISO 16300-3 specifies the framework for verifying interoperability of capability units associated
with application requirements and system solutions.
— This document (ISO 16300-4) specifies the search methodology for acquiring candidate capability
units which satisfy the manufacturing application requirements from the software unit catalogues.
It also describes the structure of the report.
vi © ISO 2019 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 16300-4:2019(E)
Automation systems and integration — Interoperability of
capability units for manufacturing application solutions —
Part 4:
Capability unit assessment for the manufacturing
application requirements
1 Scope
This document specifies the search methodology from software unit catalogues for acquiring candidate
capability units which satisfy the manufacturing application requirements.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 16100-1:2009, Industrial automation systems and integration — Manufacturing software capability
profiling for interoperability — Part 1: Framework
ISO 16100-3, Industrial automation systems and integration — Manufacturing software capability
profiling for interoperability — Part 3: Interface services, protocols and capability templates
ISO 16100-5:2009, Industrial automation systems and integration — Manufacturing software capability
profiling for interoperability — Part 5: Methodology for profile matching using multiple capability class
structures
ISO 16100-6:2018, Industrial automation systems and integration — Manufacturing software capability
profiling for interoperability — Part 6: Interface services and protocols for matching profiles based on
multiple capability class structures
ISO 16300-1:2018, Automation systems and integration — Interoperability of capability units for
manufacturing application solutions — Part 1: Interoperability criteria of capability units per application
requirements
ISO 16300-2:2019, Automation systems and integration — Interoperability of capability units for
manufacturing application solutions — Part 2: Capability templates and software unit cataloguing
ISO 16300-3:2017, Automation systems and integration — Interoperability of capability units for
manufacturing application solutions — Part 3: Verification and validation of interoperability among
capability units
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 16100-1, ISO 16100-6,
ISO 16300-1, ISO 16300-2, ISO 16300-3 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
© ISO 2019 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO 16300-4:2019(E)

3.1
capability class
element within the capability profiling (3.5) method that represents capabilities with regard to the
capability unit’s role in a manufacturing activity
3.2
capability class structure
CCS
hierarchy of capability classes
Note 1 to entry: This structure is intended for modelling capability aggregation hierarchies in the target domains
of ISO 16100-1:2009, Figure 2.
[SOURCE: ISO 16100-6:2018, 3.2, modified — The abbreviated term "CCS" has been added.]
3.3
capability element
element used to indicate that a particular capability is supported by the entity or manufacturing
software unit to which the element belongs
[SOURCE: ISO 16300-1:2018, 3.3]
3.4
capability profile
instance of capability template filled with the concrete values corresponding to the target
manufacturing software unit
[SOURCE: ISO 16300-1:2018, 3.4]
3.5
capability profiling
selection of a set of offered services defined by a particular interface within a software interoperability
framework
[SOURCE: ISO 16100-1:2009, 3.5]
3.6
capability template
template
schema representing a capability class
[SOURCE: ISO 16300-1:2018, 3.6]
3.7
capability unit
unit of a type (i.e. mechanical, electrical, electronic, hardware, and/or software, etc.) intended to
support the execution of a particular task.
[SOURCE: ISO 16300-1:2018, 3.7]
3.8
manufacturing domain data
MDD
information about manufacturing resources, manufacturing activities, or items exchanged among
manufacturing resources within a particular manufacturing domain
[SOURCE: ISO 16300-2:2019, 3.9]
2 © ISO 2019 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 16300-4:2019(E)

3.9
manufacturing domain model
MDM
particular view of a manufacturing domain, consisting of manufacturing domain data and relationships
among them, corresponding to the domain's applications
[SOURCE: ISO 16100-5:2009, 3.5]
3.10
manufacturing software unit
MSU
class of software resource, consisting of one or more manufacturing software components, performing
a definite function or role within a manufacturing activity while supporting a common information
exchange mechanism with other units
Note 1 to entry: A software unit can be modelled using UML as a software object.
Note 2 to entry: In this document, “capability unit” stands for “manufacturing software unit (MSU)”.
[SOURCE: ISO 16100-1:2009, 3.18, modified — The abbreviated term "MSU" has been added and Note 2
to entry has been added.]
3.11
matched MSU capability profile
MSU capability profile which fulfils the capabilities defined in the required capability profile
3.12
software capability description dictionary
collection of manufacturing domain data in capability elements to describe the capability of software,
where all manufacturing domain data are uniquely identified
[SOURCE: ISO 16300-2:2019, 3.12]
3.13
software unit catalogue
collection of capability profiles using the same capability template representing one or more
manufacturing software units for the same manufacturing activity in the activity tree
[SOURCE: ISO 16300-2:2019, 3.13]
3.14
MSU provider
entity that provides the manufacturing software units (3.10) which are registered in the software unit
catalogue (3.13)
[SOURCE: ISO 16300-2:2019, 3.15]
3.15
MSU user
entity that uses the manufacturing software units (3.10) which are registered in the software unit
catalogue (3.13)
4 Overview of capability unit assessment
4.1 Brief of software unit catalogue
The software capability description dictionary is used to understand the semantics of capability
profiles in the software unit catalogue. The software capability description dictionary defines the
capability elements to describe the capabilities of the software.
© ISO 2019 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO 16300-4:2019(E)

Figure 1 shows the software unit catalogue defined in ISO 16300-2. The software unit catalogue refers
to the software capability description dictionary to translate the semantics of the capability template
and the capability profiles. Each MSU has one capability profile which belongs to one capability template
in the software unit catalogue. An example of a capability template is shown in Annex A.
Figure 1 — Software unit catalogue
The software unit catalogues enable MSUs to be reused when developing a new manufacturing
application. MSU users can retrieve appropriate MSUs through capability profiles in the software unit
catalogues.
For the capability unit assessment procedure using the software unit catalogue, the following are
required:
— capability profiles shall be described according to ISO 16100-3 and ISO 16100-5;
— capability profiles shall use the registered capability templates in the capability template repository;
— capability templates shall be described according to ISO 16300-2.
4.2 Overall procedure of capability unit assessment
Figure 2 shows the overall procedure of the capability unit assessment.
4 © ISO 2019 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 16300-4:2019(E)

Figure 2 — Overall procedure of capability unit assessment
Before performing the assessment procedure, MSU users shall do the following:
a) a manufacturing application requirement should be specified;
b) the requirement shall be decomposed as a set of activities.
For each required capability profile, the MSU capability profiles in the software unit catalogue shall be
assessed by the following four procedures:
a) Software unit catalogue retrieval procedure
This procedure supports the syntax matching and the semantic matching to recognize the
appropriate software unit catalogue through the capability template.
© ISO 2019 – All rights reserved 5

---------------------- Page: 11 ----------------------
ISO 16300-4:2019(E)

b) Functional assessment procedure
This procedure supports the functional matching of each required capability profile to the MSU
capability profiles in the software unit catalogue.
c) Interface assessment procedure
This procedure supports the interface matching of each required capability profile to the MSU
capability profiles in the software unit catalogue.
d) Assessment reporting procedure
This procedure supports the making of the assessment report including the result of the above
procedures.
If all application requirements are assessed, then the assessment reports are the output.
The capability unit assessment shall follow the software interoperability framework based on the
aspects as follows (see ISO 16300-3:2017, 5.2):
— syntax and semantics shared between MSUs;
— functional relationships between the MSUs;
— services, the interfaces and the protocols provided by the MSUs;
— ability to provide MSUs capability profiling.
5 Software unit catalogue retrieval procedure
The software unit catalogue retrieval procedure is shown in Figure 3.
6 © ISO 2019 – All rights reserved

---------------------- Page: 12 ----------------------
ISO 16300-4:2019(E)

Figure 3 — Software unit catalogue retrieval procedure
a) One activity is selected from a set of decomposed activities. Using the selected activity, the CCS and
capability class which support this activity can be selected.
b) After selecting the CCS and the capability class, a capability template can be found. Then the
software unit catalogue corresponding to the capability template can be found.
If a software unit catalogue is not found through the procedures above, then the capability unit
assessment is not possible.
© ISO 2019 – All rights reserved 7

---------------------- Page: 13 ----------------------
ISO 16300-4:2019(E)

6 Functional assessment procedure
The functional assessment procedure compares the capability elements in a required capability profile
with the capability elements in MSU capability profiles. Figure 4 represents the functional assessment
procedure.
The functional assessment procedure supports the functional matching of each required capability
profile to the MSU capability profiles in the software unit catalogue selected by the software unit
catalogue retrieval procedure defined in Clause 5.
a) When a capability template is selected by the software unit catalogue retrieval procedure, the
required capability profile(s) shall be created by filling out concrete values in the capability
template(s) to satisfy the manufacturing application requirement. Annex B shows an example of a
required capability profile.
b) One capability profile is selected from the set of MSU capability profiles in the software unit
catalogue which have not yet been assessed. Mandatory capability elements of the required
capability profile shall be matched to the capability elements of the selected MSU capability profile.
c) Are all mandatory capability elements matched?
1) If yes, go to step d).
2) If no, set matching result to “No match,” then go to the assessment reporting procedure (step b)).
d) Optional capability elements of the required capability profile shall be matched to the capability
elements of the selected MSU capability profile.
e) Are all optional capability elements matched?
1) If yes, set the matching result to “Complete match,” then go to step f).
2) If no, set the matching result to “All mandatory match,” then go to step f).
f) Are all MSU capability profiles matched in the software unit catalogue?
1) If yes, go to the interface assessment procedure defined in Clause 7.
2) If no, go to step b).
8 © ISO 2019 – All rights reserved

---------------------- Page: 14 ----------------------
ISO 16300-4:2019(E)

Figure 4 — Functional assessment procedure
© ISO 2019 – All rights reserved 9

---------------------- Page: 15 ----------------------
ISO 16300-4:2019(E)

7 Interface assessment procedure
The following interface assessment indicators shall be included in the capability template:
— communication protocol;
— data sharing method;
— data exchange method;
— service calling method.
The interface assessment indicators are compared between the required capability profile and the
matched MSU capability profile.
When all MSU capability profiles in the software unit catalogue are matched to each required capability
profile, the interface assessment procedure follows on the matched MSUs as shown in Figure 5.
a) One capability profile is selected from the set of MSU capability profiles which have not yet been
assessed. The interface assessment indicators of the required capability profile shall be matched to
the interface assessment indicators of the selected MSU capability profile.
b) Set the matching result to “Matched” or “Not_matched” for each interface assessment indicator.
c) Are all MSU capability profiles matched in terms of interface assessment?
1) If yes, go to the assessment reporting procedure defined in Clause 8.
2) If no, go to step a).
10 © ISO 2019 – All rights reserved

---------------------- Page: 16 ----------------------
ISO 16300-4:2019(E)

Figure 5 — Interface assessment procedure
© ISO 2019 – All rights reserved 11

---------------------- Page: 17 ----------------------
ISO 16300-4:2019(E)

8 Assessment reporting procedure
A manufacturing application requirement is analyzed as several required capability profiles. For each
required capability profile, the assessment report is provided. The assessment report shall contain the
following assessment results:
— Required Capability Profile ID
This profile contains the required capability for the functional assessment and the interface
assessment.
— Software Unit Catalogue ID
This catalogue contains the candidate MSU capability profiles which fulfil the required capabilities.
— List of MSU capability profile ID
This capability profile contains the capability elements for the required capability.
— Result of Functional Assessment
— List of the Required Capability Elements
— Capability element name
— List of the Parameters
— Parameter value
— Mandatory or Optional: Mandatory/Optional
— Matching Result: Matched/Not matched
— Final Matching result of Capability Elements: Complete match/All mandatory match/
No match
— Result of Interface Assessment
— Communication Protocol
— Value
EXAMPLE OPC-UA
— Matching result: Matched/Not matched
— Data Sharing
— Value
EXAMPLE DBMS
— Matching result: Matched/Not matched
— Data Exchange
— Value
EXAMPLE MTConnect
— Matching result: Matched/Not matched
— Service Calling
— Value
12 © ISO 2019 – All rights reserved

---------------------- Page: 18 ----------------------
ISO 16300-4:2019(E)

EXAMPLE REST
— Matching result: Matched/Not matched
Figure 6 shows the structure of the assessment report. Annex C shows an example of an assessment
report. An assessment report is an output for each required capability profile. An assessment report
contains one or more assessment result(s) for MSU capability profile(s).
Figure 6 — Structure of the assessment report
After the MSU capability profiles for all required capability profiles are assessed, the assessment
report shall be made. Figure 7 shows the assessment reporting procedure. The assessment reporting
procedure makes the assessment report by integrating the results of the software unit catalogue
retrieval procedure, the functional assessment procedure, and the interface assessment procedure as
follows.
a) The ID of each required capability profile is encoded in the header part of the report. In addition,
the ID of the software unit catalogue retrieved by the software unit catalogue retrieval procedure
is encoded in the header part of the report.
b) The results of the functional assessment for an MSU capability profile are described in the
assessment report.
c) The results of interface assessment for an MSU capability profile are described in the
assessment report.
© ISO 2019 – All rights reserved 13

---------------------- Page: 19 ----------------------
ISO 16300-4:2019(E)

d) Are all results for MSU capability profiles reported?
1) If yes, go to the next procedure.
2) If no, go to step b).
Figure 7 — Assessment reporting procedure
14 © ISO 2019 – All rights reserved

---------------------- Page: 20 ----------------------
ISO 16300-4:2019(E)

Annex A
(informative)

Example of a capability template
The MSU provider and the MSU user use capability templates which are described by XML schemas. An
example of the capability template is as follows.


















































...
