Standards Content (sample)

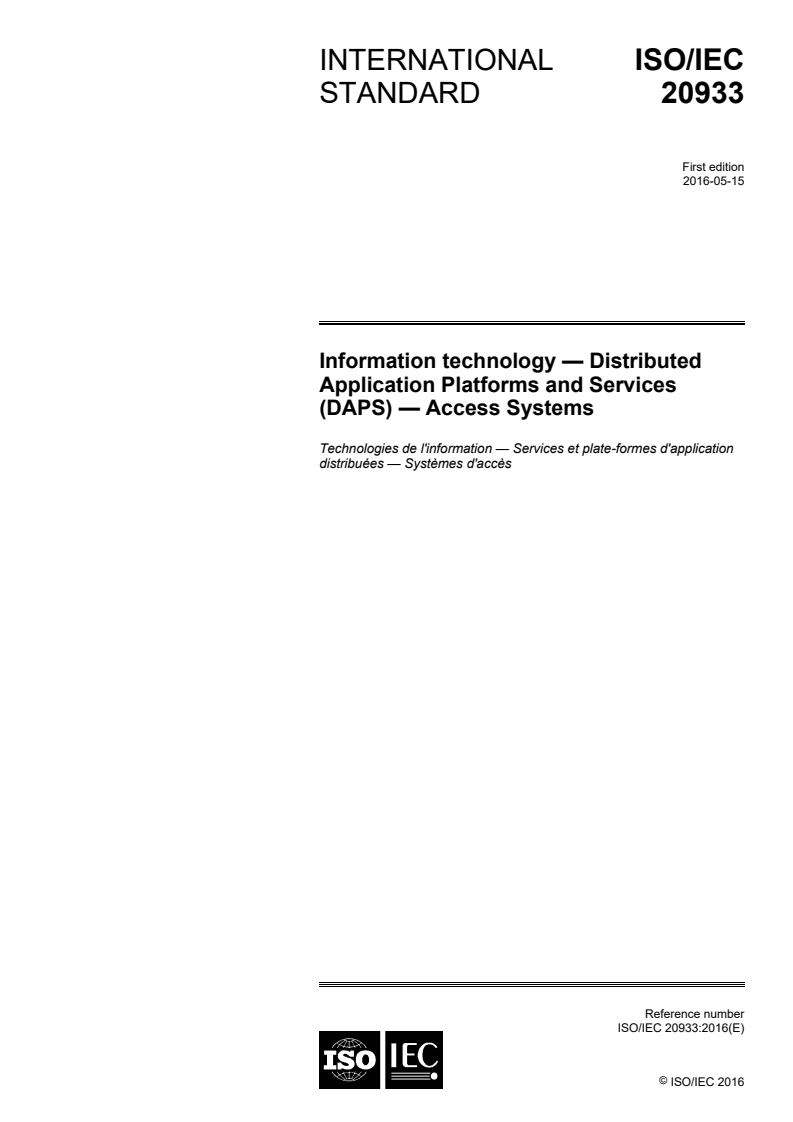

INTERNATIONAL ISO/IEC
STANDARD 20933
First edition
2016-05-15
Information technology — Distributed
Application Platforms and Services
(DAPS) — Access Systems
Technologies de l'information — Services et plate-formes d'application
distribuées — Systèmes d'accès
Reference number
ISO/IEC 20933:2016(E)
ISO/IEC 2016
---------------------- Page: 1 ----------------------
ISO/IEC 20933:2016(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2016

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form or by any

means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior written permission.

Permission can be requested from either ISO at the address below or ISO’s member body in the country of the requester.

ISO copyright office
Ch. de Blandonnet 8  CP 401
CH – 1214 Vernier, Geneva, Switzerland
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2016 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 20933:2016(E)

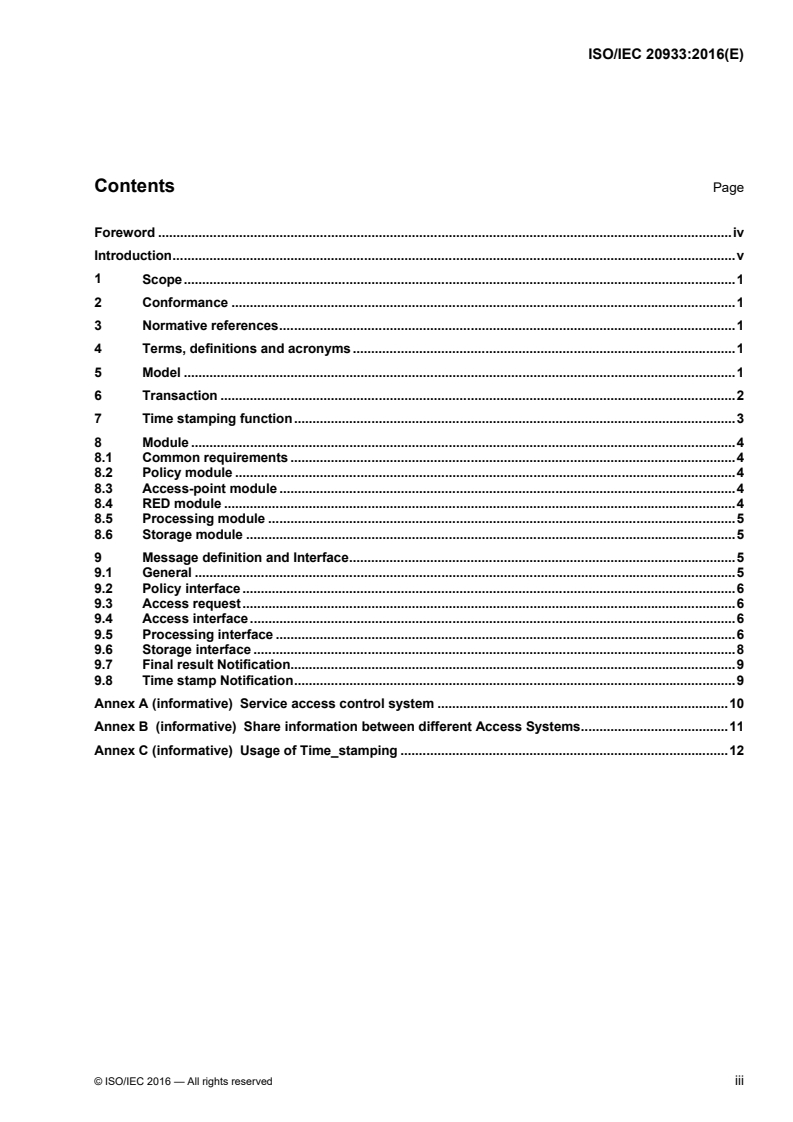

Contents Page

Foreword ............................................................................................................................................................ iv

Introduction ......................................................................................................................................................... v

1  Scope ...................................................................................................................................................... 1

2  Conformance ......................................................................................................................................... 1

3  Normative references ............................................................................................................................ 1

4  Terms, definitions and acronyms ........................................................................................................ 1

5  Model ...................................................................................................................................................... 1

6  Transaction ............................................................................................................................................ 2

7  Time stamping function ........................................................................................................................ 3

8  Module .................................................................................................................................................... 4

8.1  Common requirements ......................................................................................................................... 4

8.2  Policy module ........................................................................................................................................ 4

8.3  Access-point module ............................................................................................................................ 4

8.4  RED module ........................................................................................................................................... 4

8.5  Processing module ............................................................................................................................... 5

8.6  Storage module ..................................................................................................................................... 5

9  Message definition and Interface ......................................................................................................... 5

9.1  General ................................................................................................................................................... 5

9.2  Policy interface ...................................................................................................................................... 6

9.3  Access request ...................................................................................................................................... 6

9.4  Access interface .................................................................................................................................... 6

9.5  Processing interface ............................................................................................................................. 6

9.6  Storage interface ................................................................................................................................... 8

9.7  Final result Notification......................................................................................................................... 9

9.8  Time stamp Notification ........................................................................................................................ 9

Annex A (informative) Service access control system ............................................................................... 10

Annex B (informative) Share information between different Access Systems ........................................ 11

Annex C (informative) Usage of Time_stamping ......................................................................................... 12

© ISO/IEC 2016 — All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 20933:2016(E)
Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical

Commission) form the specialized system for worldwide standardization. National bodies that are

members of ISO or IEC participate in the development of International Standards through technical

committees established by the respective organization to deal with particular fields of technical activity.

ISO and IEC technical committees collaborate in fields of mutual interest. Other international

organizations, governmental and non‐governmental, in liaison with ISO and IEC, also take part in the

work. In the field of information technology, ISO and IEC have established a joint technical committee,

ISO/IEC JTC 1.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of document should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.

Details of any patent rights identified during the development of the document will be in the

Introduction and/or on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the meaning of ISO specific terms and expressions related to conformity

assessment, as well as information about ISO's adherence to the World Trade Organization (WTO)

principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.

ISO/IEC 20933 was prepared by Ecma International (as ECMA‐412) and was adopted, under a special “fast‐track

procedure”, by Joint Technical Committee ISO/IEC JTC 1, Information technology, in parallel with its approval by

national bodies of ISO and IEC.
iv © ISO/IEC 2016 — All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 20933:2016(E)
Introduction

Technology for real-time access control is widely used for many situations such as entrance gate of facilities

and service access control systems. Membership and settlement services also benefit from real-time access

control systems connected via networks and using database information.

Sophisticated cloud, virtualisation, database, networking technology and services and the evolution of

authentication technology such as biometrics, NFC, QR codes used in distributed and modular access control

systems enable previously underserved users and operators to innovate around new use cases.

Taking into account the many technologies, this International Standard specifies the reference model and

common control functions. It gives direction for ongoing innovation and development of technology and

system integration of distributed real-time access control system.
© ISO/IEC 2016 — All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 20933:2016(E)
Information technology — Distributed Application Platforms and
Services (DAPS) — Access Systems
1 Scope
This International Standard specifies:

1) an ID triggered modular access system, the functions of the modules and the messages they exchange,

and the sequence of messages, i.e. transitions of the transaction;

2) the system responsibility from receiving an access request until sending the result. i.e. a complete

transaction;

3) the responsibilities of the modules, including time stamping and responding to the requests they received;

and
4) the sequence and semantics of the messages and their elements.
2 Conformance

Conformant Access Systems progress transactions by evaluating the applicable rules. Conformant modules

implement the requests on their interfaces, the corresponding responses and time stamping as specified

herein.
3 Normative references
None.
4 Terms, definitions and acronyms

For the purposes of this document, the following terms, definitions and acronyms apply.

4.1
Identifier
4.2
RED
Rule Evaluation and Dispatching
4.3
transaction
request for access
5 Model
Figure 1 illustrates the Access System structure.
© ISO/IEC 2016 — All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC 20933:2016(E)

The Access System has 5 modules "Access-point, Policy, Processing, RED and Storage" and 4 interfaces

"Access-interface, Policy-interface, Processing-interface and Storage-interface".

Figure 1 — Access System

The Access System progresses a transaction by exchanging messages between modules and decides the

final result (grant or deny). A transaction starts when an Access-point module obtains Access_request and

completes when the RED module sends Final_Result_Notification. Each module shall have a time stamping

function. The message exchanging and the time stamping function are managed by the RED module

according to rules which are set by the Policy module.
6 Transaction

Transaction ID identifies a transaction. Transaction ID shall consist of Access ID, Access-point ID and time at

which the Access_request is obtained. Access ID is included in Access_request.
Figure 2 specifies the state machine of a transaction.

A transaction is generated at the time of Access_request acceptance by an Access-point module. After that

the transaction changes to on-going state by sending a Transaction_start_request including Transaction ID

from the Access-point module to the RED module.

At the on-going state, the RED module evaluates rules until final result is obtained. According to the result of

the evaluation, the RED module sends a request message to Processing or Storage module and receives a

response message.

When the RED module obtains the final result, it sends Final_Result_Notification and the transaction is

completed.
2 © ISO/IEC 2016 — All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 20933:2016(E)
Access_request
generated
Transaction_start_request
on-going
Final_Result_Notificatio
completed
Figure 2 — Transaction State Machine
7 Time stamping function

The purpose of Time stamping function is to measure the duration of transaction and request processing.

The Access-point modules shall set the Access_ID_obtained_time in the Transaction_start_request message.

For the other modules, time stamping shall be activated and deactivated through time stamping rules. Upon

evaluating of the time stamping rules, the RED module shall set the TimeStampingFlag value in the requests

to TRUE or FALSE according to the evaluation. Depending on the TimeStampingFlag value in the requests,

modules shall either time stamp the ReceivedTime and SendingTime or exclude those elements in the

corresponding response.

The RED module shall send the time stamping measurements by responding to the Time_stamp_Notification.

The RED module is able to measure following time.
1) transaction processing time
2) request processing time.

When the Time stamping function of each module is activated, the RED module shall measure the following

time.
3) module processing time.

The RED module shall measure the transaction processing time by calculating the difference between the

time that the RED module received Transaction_start_request and the time that Final_Result_Notification is

sent.

The RED module shall measure the request processing time by recording the sending time of the request and

the received time of the response, and calculating the difference between them.

Processing_response, Store_response and Retrieve_response have the information about the received time

of the corresponding request and the sending time of the response itself as long as the Time stamping

function is activated. By using them, the RED module is able to measure the module processing time. For

example, the module processing time of the Processing module for one request from the RED module is

measured by the difference between RecievedTime and SendingTime in the corresponding

Processing_response.
Annex C illustrates the usage of time stamping.
© ISO/IEC 2016 — All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/IEC 20933:2016(E)
8 Module
8.1 Common requirements
Modules shall have a time stamping function.
8.2 Policy module

The Policy module shall have the source of rules, and shall set the rules to the RED module. Each rule shall

be identified by its Rule ID. The rules shall define the progress of transactions and the edition of this

International Standard that the Access System modules conform with. And the rules shall identify the

receiver(s) of the Final_Result_Notification and the receiver(s) of the Time_stamp_Notification.

8.3 Access-point module

When an Access-point module obtains an Access_request, It shall generate a Transaction_start_request and

send it to the RED module.
The Access-point module shall have its own identifier as Access-point ID.
8.4 RED module
The RED module shall accept and hold rules that are set by the Policy module.

Rules are composed of procedure rules and branch rules, Figure 3 illustrates a procedure rule and Figure 4

illustrates a branch rule. A procedure rule determines the next execution. A branch rule selects the next rule

depending on the branch condition. At least one rule is linked to Access ID.
Procedure
Result is XXX
Figure 3 — procedure rule
rule
if XXX
then YYY else ZZZ
Figure 4 — branch rule

During a transaction, the RED module is driven by messages. When the RED module receives messages, It

sha
...

DRAFT INTERNATIONAL STANDARD ISO/IEC DIS 20933
Attributed to ISO/IEC JTC 1 by the Central Secretariat
Voting begins on Voting terminates on
2015-10-12 2016-01-12

INTERNATIONAL ORGANIZATION FOR STANDARDIZATION  МЕЖДУНАРОДНАЯ ОРГАНИЗАЦИЯ ПО СТАНДАРТИЗАЦИИ  ORGANISATION INTERNATIONALE DE NORMALISATION

INTERNATIONAL ELECTROTECHNICAL COMMISSION  МЕЖДУНАРОДНАЯ ЭЛЕКТРОТЕХНИЧЕСКАЯ КОММИСИЯ  COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE

FAST-TRACK PROCEDURE
Information technology — Distributed application platforms and
services (DAPS) — Access systems
ICS 35.100.05

This draft International Standard is submitted for JTC 1 national body vote under the “fast-track”

procedure.

In accordance with Resolution 30 of the JTC 1 Berlin Plenary 1993, the proposer of this document

recommends assignment of ISO/IEC JTC 1 to JTC 1.

The procedures used to develop this document are described in the ISO/IEC Directives, Part 1 -

Consolidated JTC 1 Supplement.

THIS DOCUMENT IS A DRAFT CIRCULATED FOR COMMENT AND APPROVAL. IT IS THEREFORE SUBJECT TO CHANGE AND MAY NOT BE

REFERRED TO AS AN INTERNATIONAL STANDARD UNTIL PUBLISHED AS SUCH.

IN ADDITION TO THEIR EVALUATION AS BEING ACCEPTABLE FOR INDUSTRIAL, TECHNOLOGICAL, COMMERCIAL AND USER PURPOSES,

DRAFT INTERNATIONAL STANDARDS MAY ON OCCASION HAVE TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL TO BECOME

STANDARDS TO WHICH REFERENCE MAY BE MADE IN NATIONAL REGULATIONS.

RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT, WITH THEIR COMMENTS, NOTIFICATION OF ANY RELEVANT PATENT RIGHTS OF WHICH

THEY ARE AWARE AND TO PROVIDE SUPPORTING DOCUMENTATION.
International Organization for Standardization, 2015
International Electrotechnical Commission, 2015
---------------------- Page: 1 ----------------------
ISO/IEC DIS 20933
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 20##

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form or by any

means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior written permission.

Permission can be requested from either ISO at the address below or ISO’s member body in the country of the requester.

ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2015 — All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC DIS xxxxx:2015(E)
Contents Page

Foreword ............................................................................................................................................................ iv

Introduction ......................................................................................................................................................... v

1  Scope ...................................................................................................................................................... 1

2  Conformance ......................................................................................................................................... 1

3  Normative references ............................................................................................................................ 1

4  Terms, definitions and acronyms ........................................................................................................ 1

5  Model ...................................................................................................................................................... 1

6  Transaction ............................................................................................................................................ 2

7  Time stamping function ........................................................................................................................ 3

8  Module .................................................................................................................................................... 4

8.1  Common requirements ......................................................................................................................... 4

8.2  Policy module ........................................................................................................................................ 4

8.3  Access-point module ............................................................................................................................ 4

8.4  RED module ........................................................................................................................................... 4

8.5  Processing module ............................................................................................................................... 5

8.6  Storage module ..................................................................................................................................... 5

9  Message definition and Interface ......................................................................................................... 5

9.1  General ................................................................................................................................................... 5

9.2  Policy interface ...................................................................................................................................... 6

9.3  Access request ...................................................................................................................................... 6

9.4  Access interface .................................................................................................................................... 6

9.5  Processing interface ............................................................................................................................. 6

9.6  Storage interface ................................................................................................................................... 8

9.7  Final result Notification......................................................................................................................... 9

9.8  Time stamp Notification ........................................................................................................................ 9

Annex A (informative) Service access control system ............................................................................... 10

Annex B (informative) Share information between different Access Systems ........................................ 11

Annex C (informative) Usage of Time_stamping ......................................................................................... 12

© ISO/IEC 2015 — All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC DIS xxxxx:2015(E)
Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical

Commission) form the specialized system for worldwide standardization. National bodies that are members of

ISO or IEC participate in the development of International Standards through technical committees

established by the respective organization to deal with particular fields of technical activity. ISO and IEC

technical committees collaborate in fields of mutual interest. Other international organizations, governmental

and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information

technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of the joint technical committee is to prepare International Standards. Draft International

Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as

an International Standard requires approval by at least 75 % of the national bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.

ISO/IEC xxxxx was prepared by Ecma International (as ECMA-412) and was adopted, under a special “fast-

track procedure”, by Joint Technical Committee ISO/IEC JTC 1, Information technology, in parallel with its

approval by national bodies of ISO and IEC.
iv © ISO/IEC 2015 — All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC DIS xxxxx:2015(E)
Introduction

Technology for real-time access control is widely used for many situations such as entrance gate of facilities

and service access control systems. Membership and settlement services also benefit from real-time access

control systems connected via networks and using database information.

Sophisticated cloud, virtualisation, database, networking technology and services and the evolution of

authentication technology such as biometrics, NFC, QR codes used in distributed and modular access control

systems enable previously underserved users and operators to innovate around new use cases.

Taking into account the many technologies, this International Standard specifies the reference model and

common control functions. It gives direction for ongoing innovation and development of technology and

system integration of distributed real-time access control system.
© ISO/IEC 2015 — All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC DIS xxxxx:2015(E)
Information technology — Distributed Application Platforms and
Services (DAPS) — Access Systems
1 Scope
This International Standard specifies:

1) an ID triggered modular access system, the functions of the modules and the messages they exchange,

and the sequence of messages, i.e. transitions of the transaction;

2) the system responsibility from receiving an access request until sending the result. i.e. a complete

transaction;

3) the responsibilities of the modules, including time stamping and responding to the requests they received;

and
4) the sequence and semantics of the messages and their elements.
2 Conformance

Conformant Access Systems progress transactions by evaluating the applicable rules. Conformant modules

implement the requests on their interfaces, the corresponding responses and time stamping as specified

herein.
3 Normative references
None.
4 Terms, definitions and acronyms

For the purposes of this document, the following terms, definitions and acronyms apply.

4.1
Identifier
4.2
RED
Rule Evaluation and Dispatching
4.3
transaction
request for access
5 Model
Figure 1 illustrates the Access System structure.
© ISO/IEC 2015 — All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC DIS xxxxx:2015(E)

The Access System has 5 modules "Access-point, Policy, Processing, RED and Storage" and 4 interfaces

"Access-interface, Policy-interface, Processing-interface and Storage-interface".

Figure 1 — Access System

The Access System progresses a transaction by exchanging messages between modules and decides the

final result (grant or deny). A transaction starts when an Access-point module obtains Access_request and

completes when the RED module sends Final_Result_Notification. Each module shall have a time stamping

function. The message exchanging and the time stamping function are managed by the RED module

according to rules which are set by the Policy module.
6 Transaction

Transaction ID identifies a transaction. Transaction ID shall consist of Access ID, Access-point ID and time at

which the Access_request is obtained. Access ID is included in Access_request.
Figure 2 specifies the state machine of a transaction.

A transaction is generated at the time of Access_request acceptance by an Access-point module. After that

the transaction changes to on-going state by sending a Transaction_start_request including Transaction ID

from the Access-point module to the RED module.

At the on-going state, the RED module evaluates rules until final result is obtained. According to the result of

the evaluation, the RED module sends a request message to Processing or Storage module and receives a

response message.

When the RED module obtains the final result, it sends Final_Result_Notification and the transaction is

completed.
2 © ISO/IEC 2015 — All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC DIS xxxxx:2015(E)
Access_request
generated
Transaction_start_request
on-going
Final_Result_Notificatio
completed
Figure 2 — Transaction State Machine
7 Time stamping function

The purpose of Time stamping function is to measure the duration of transaction and request processing.

The Access-point modules shall set the Access_ID_obtained_time in the Transaction_start_request message.

For the other modules, time stamping shall be activated and deactivated through time stamping rules. Upon

evaluating of the time stamping rules, the RED module shall set the TimeStampingFlag value in the requests

to TRUE or FALSE according to the evaluation. Depending on the TimeStampingFlag value in the requests,

modules shall either time stamp the ReceivedTime and SendingTime or exclude those elements in the

corresponding response.

The RED module shall send the time stamping measurements by responding to the Time_stamp_Notification.

The RED module is able to measure following time.
1) transaction processing time
2) request processing time.

When the Time stamping function of each module is activated, the RED module shall measure the following

time.
3) module processing time.

The RED module shall measure the transaction processing time by calculating the difference between the

time that the RED module received Transaction_start_request and the time that Final_Result_Notification is

sent.

The RED module shall measure the request processing time by recording the sending time of the request and

the received time of the response, and calculating the difference between them.

Processing_response, Store_response and Retrieve_response have the information about the received time

of the corresponding request and the sending time of the response itself as long as the Time stamping

function is activated. By using them, the RED module is able to measure the module processing time. For

example, the module processing time of the Processing module for one request from the RED module is

measured by the difference between RecievedTime and SendingTime in the corresponding

Processing_response.
Annex C illustrates the usage of time stamping.
© ISO/IEC 2015 — All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/IEC DIS xxxxx:2015(E)
8 Module
8.1 Common requirements
Modules shall have a time stamping function.
8.2 Policy module

The Policy module shall have the source of rules, and shall set the rules to the RED module. Each rule shall

be identified by its Rule ID. The rules shall define the progress of transactions and the edition of this

International Standard that the Access System modules conform with. And the rules shall identify the

receiver(s) of the Final_Result_Notification and the receiver(s) of the Time_stamp_Notification.

8.3 Access-point module

When an Access-point module obtains an Access_request, It shall generate a Transaction_start_request and

send it to the RED module.
The Access-point module shall have its own identifier as Access-point ID.
8.4 RED module
The RED module shall accept and hold rules that are set by the Policy module.
Rules are composed of procedure rules and branc
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
