ISO/IEC TR 18037:2008
(Main)Programming languages — C — Extensions to support embedded processors
Programming languages — C — Extensions to support embedded processors
ISO/IEC TR 18037:2008 specifies a series of extensions of the programming language C, which is specified by ISO/IEC 9899:1999. These extensions support embedded processors.
Langages de programmation — C — Extensions pour supporter les processeurs intégrés
General Information
Relations
Standards Content (Sample)
TECHNICAL ISO/IEC
REPORT TR
18037
Second edition
2008-06-15
Programming languages — C —
Extensions to support embedded
processors
Langages de programmation — C — Extensions pour supporter les
processeurs intégrés
Reference number
ISO/IEC TR 18037:2008(E)
©
ISO/IEC 2008
---------------------- Page: 1 ----------------------
ISO/IEC TR 18037:2008(E)

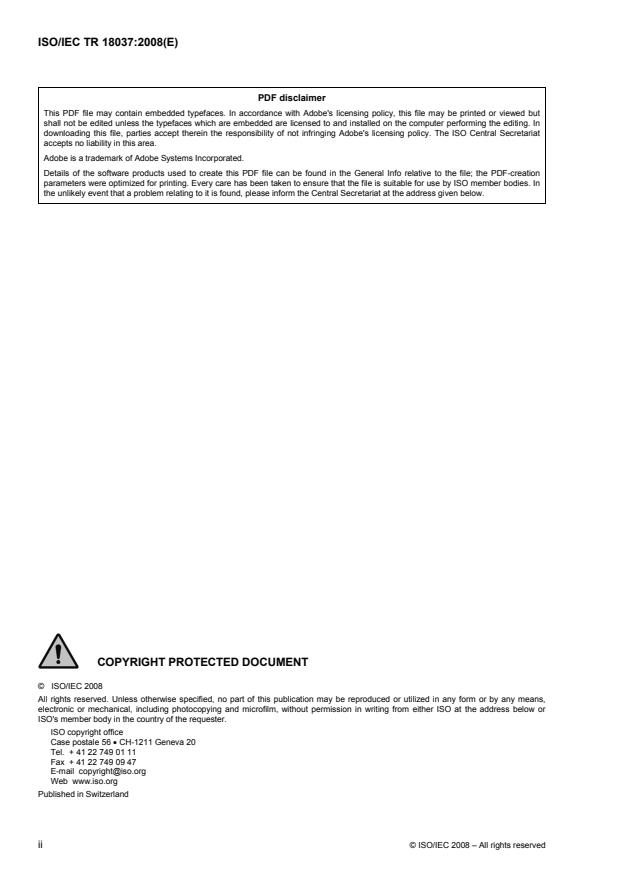

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2008
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2008 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC TR 18037:2008(E)
Contents Page
1 SCOPE.1
2 NORMATIVE REFERENCES.1
3 CONFORMANCE.1
4 FIXED-POINT ARITHMETIC.2
4.1 Overview and principles of the fixed-point data types .2
4.1.1 The data types .2
4.1.2 Spelling of the new keywords .3
4.1.3 Rounding and Overflow .4
4.1.4 Type conversion, usual arithmetic conversions.5
4.1.5 Fixed-point constants.6
4.1.6 Operations involving fixed-point types .7
4.1.7 Fixed-point functions.9
4.1.8 Fixed-point definitions .11
4.1.9 Formatted I/O functions for fixed-point arguments .11
4.2 Detailed changes to ISO/IEC 9899:1999.12
5 NAMED ADDRESS SPACES AND NAMED-REGISTER STORAGE CLASSES .37
5.1 Overview and principles of named address spaces .37
5.1.1 Additional address spaces.37
5.1.2 Address-space type qualifiers.37
5.1.3 Address space nesting and rules for pointers.38
5.1.4 Standard library support.39
5.2 Overview and principles of named-register storage classes .39
5.2.1 Access to machine registers.39
5.2.2 Named-register storage-class specifiers .39
5.2.3 Ensuring correct side effects via objects allocated in registers .41
5.2.4 Relationship between named registers and I/O-register designators.41
5.3 Detailed changes to ISO/IEC 9899:1999.41
6 BASIC I/O HARDWARE ADDRESSING.49
6.1 Rationale.49
6.1.1 Basic Standardization Objectives .49
6.2 Terminology .49
6.3 Basic I/O Hardware addressing header .51
6.3.1 Standardization principles.51
6.3.2 The abstract model .52
© ISO/IEC 2008 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC TR 18037:2008(E)

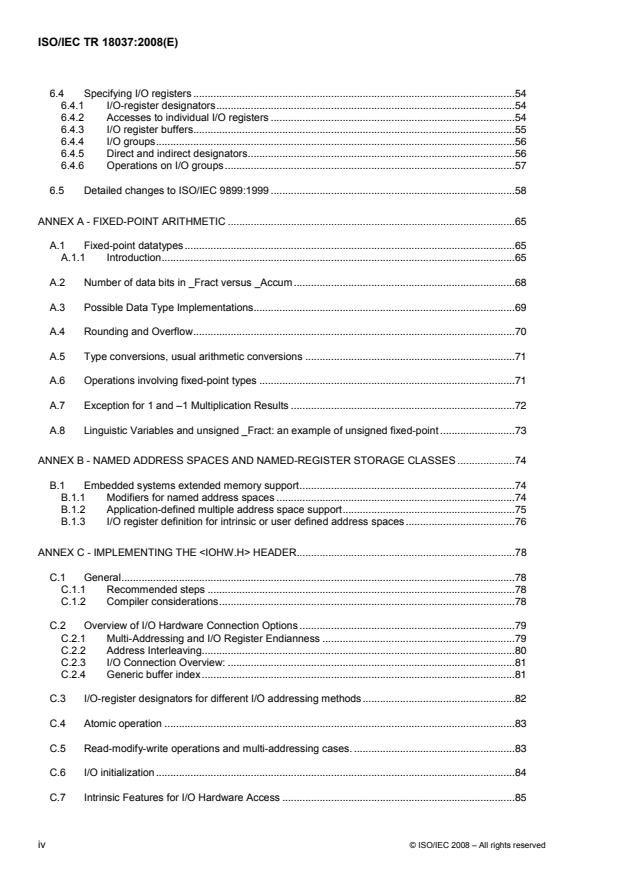

6.4 Specifying I/O registers .54
6.4.1 I/O-register designators.54
6.4.2 Accesses to individual I/O registers .54
6.4.3 I/O register buffers.55
6.4.4 I/O groups.56
6.4.5 Direct and indirect designators.56
6.4.6 Operations on I/O groups.57
6.5 Detailed changes to ISO/IEC 9899:1999 .58
ANNEX A - FIXED-POINT ARITHMETIC .65
A.1 Fixed-point datatypes.65
A.1.1 Introduction.65
A.2 Number of data bits in _Fract versus _Accum .68
A.3 Possible Data Type Implementations.69
A.4 Rounding and Overflow.70
A.5 Type conversions, usual arithmetic conversions .71
A.6 Operations involving fixed-point types .71
A.7 Exception for 1 and –1 Multiplication Results .72
A.8 Linguistic Variables and unsigned _Fract: an example of unsigned fixed-point .73
ANNEX B - NAMED ADDRESS SPACES AND NAMED-REGISTER STORAGE CLASSES .74
B.1 Embedded systems extended memory support.74
B.1.1 Modifiers for named address spaces .74
B.1.2 Application-defined multiple address space support.75
B.1.3 I/O register definition for intrinsic or user defined address spaces .76
ANNEX C - IMPLEMENTING THE HEADER.78
C.1 General.78
C.1.1 Recommended steps .78
C.1.2 Compiler considerations.78
C.2 Overview of I/O Hardware Connection Options .79
C.2.1 Multi-Addressing and I/O Register Endianness .79
C.2.2 Address Interleaving.80
C.2.3 I/O Connection Overview: .81
C.2.4 Generic buffer index .81
C.3 I/O-register designators for different I/O addressing methods.82
C.4 Atomic operation .83
C.5 Read-modify-write operations and multi-addressing cases. .83
C.6 I/O initialization .84
C.7 Intrinsic Features for I/O Hardware Access .85
iv © ISO/IEC 2008 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC TR 18037:2008(E)
ANNEX D - MIGRATION PATH FOR IMPLEMENTATIONS.86
D.1 Migration path for implementations.86
D.2 implementation based on C macros.86
D.2.1 The access specification method.86
D.2.2 An implementation technique.87
D.2.3 Features .87
D.2.4 The header .88
D.2.5 The user’s I/O-register designator definitions.91
D.2.6 The driver function .92
ANNEX E - FUNCTIONALITY NOT INCLUDED IN THIS TECHNICAL REPORT.93
E.1 Circular buffers.93
E.2 Complex data types .94
E.3 Consideration of BCD data types for Embedded Systems.94
E.4 Modwrap overflow.94
ANNEX F - C++ COMPATIBILITY AND MIGRATION ISSUES .96
F.1 Fixed-point Arithmetic .96
F.2 Multiple Address Spaces Support.96
F.3 Basic I/O Hardware Addressing.96
ANNEX G – UPDATES AND CHANGES IN THE SECOND EDITION OF TR 18037 .97
© ISO/IEC 2008 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/IEC TR 18037:2008(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
In exceptional circumstances, the joint technical committee may propose the publication of a Technical Report
of one of the following types:
— type 1, when the required support cannot be obtained for the publication of an International Standard,
despite repeated efforts;
— type 2, when the subject is still under technical development or where for any other reason there is the
future but not immediate possibility of an agreement on an International Standard;
— type 3, when the joint technical committee has collected data of a different kind from that which is
normally published as an International Standard (“state of the art”, for example).
Technical Reports of types 1 and 2 are subject to review within three years of publication, to decide whether
they can be transformed into International Standards. Technical Reports of type 3 do not necessarily have to
be reviewed until the data they provide are considered to be no longer valid or useful.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC TR 18037, which is a Technical Report of type 2, was prepared by Joint Technical Committee
ISO/IEC JTC 1, Information technology, Subcommittee SC 22, Programming languages, their environments,
and system software interfaces.
This second edition cancels and replaces the first edition (ISO/IEC TR 18037:2004), of which it constitutes a
minor revision. It includes a number of corrections and updates, based on implementation experiences.
vi © ISO/IEC 2008 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/IEC TR 18037:2008(E)
Introduction
In the fast growing market of embedded systems there is an increasing need to write application programs in
a high-level language such as C. Basically there are two reasons for this trend: programs for embedded
systems become more complex (and hence are difficult to maintain in assembly language), and processor
models for embedded systems have a decreasing lifespan (which implies more frequent re-adapting of
applications to new instruction sets). The code re-usability achieved by C-level programming is considered to
be a major step forward in addressing these issues.
Various technical areas have been identified where functionality offered by processors (such as DSPs) that
are used in embedded systems cannot easily be exploited by applications written in C. Examples are fixed-
point operations, usage of different memory spaces, low level I/O operations and others. The current proposal
addresses only a few of these technical areas.
Embedded processors are often used to analyze analogue signals and process these signals by applying
filtering algorithms to the data received. Typical applications can be found in all wireless devices. The
common data type used in filtering algorithms is the fixed-point data type, and in order to achieve the
necessary speed, embedded processors are often equipped with special hardware for fixed-point data. The C
language (as defined in ISO/IEC 9899:1999) does not provide support for fixed-point arithmetic operations,
currently leaving programmers with no option but to handcraft most of their algorithms in assembly language.
This Technical Report specifies a fixed-point data type for C, definable in a range of precision and saturation
options. Optimizing C compilers can generate highly efficient code for fixed-point data as easily as for integer
and floating-point data.
Many embedded processors have multiple distinct banks of memory and require that data be grouped in
different banks to achieve maximum performance. Ensuring the simultaneous flow of data and coefficient data
to the multiplier/accumulator of processors designed for FIR filtering, for example, is critical to their operation.
In order to allow the programmer to declare the memory space from which a specific data object must be
fetched, this Technical Report specifies basic support for multiple address spaces. As a result, optimizing
compilers can utilize the ability of processors that support multiple address spaces, for instance, to read data
from two separate memories in a single cycle to maximize execution speed.
As the C language has matured over the years, various extensions for accessing basic I/O hardware (iohw)
registers have been added to address deficiencies in the language. Today almost all C compilers for
freestanding environments and embedded systems support some method of direct access to iohw registers
from the C source level. However, these extensions have not been consistent across dialects.
This Technical Report provides an approach to codifying common practice and providing a single uniform
syntax for basic iohw register addressing.
The functional differences between the first edition of ISO/IEC TR 18037 and this version are detailed in
Annex G. Due to the different fonts used and the detailed lay-out, in a fully differences-marqued-up-document
these differences are blurred. If however such a version is necessary for a proper review, please visit
http://standards.iso.org/iso.
© ISO/IEC 2008 – All rights reserved vii
---------------------- Page: 7 ----------------------
TECHNICAL REPORT ISO/IEC TR 18037:2008(E)
Programming languages — C — Extensions to support embedded processors
1 Scope
This Technical Report specifies a series of extensions of the programming language C, which is
specified by ISO/IEC 9899:1999. These extensions support embedded processors.
Each clause in this Technical Report deals with a specific topic. The first subclauses of clauses 4, 5
and 6 contain a technical description of the features of the topic. These subclauses provide an
overview but do not contain all the fine details. The last subclause of each clause contains the
editorial changes to the standard necessary to fully specify the topic in the standard, and thereby
provides a complete definition. Additional explanation and rationale are provided in the Annexes.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of the
referenced document (including any amendments) applies.
ISO/IEC 9899:1999 – Programming languages — C
3 Conformance
This Technical Report presents in three separate clauses specifications for three, in principle
independent, sets of functionality (clause 4: fixed-point arithmetic, clause 5: named address spaces
and named-register storage classes, and clause 6: basic I/O hardware addressing). As this is a
Technical Report there are no conformance requirements and implementers are free to select those
specifications that they need. However, if functionality is implemented from one of the clauses,
implementers are strongly encouraged to implement that clause in full, and not just a part of it.
If, at a later stage, a decision is taken to incorporate some or all of the text of this Technical Report
into the C standard, then at that moment the conformance issues with respect to (parts of) this text
need to be addressed (conformance with respect to freestanding implementations etc.)
© ISO/IEC 2008 – All rights reserved 1
---------------------- Page: 8 ----------------------
ISO/IEC TR 18037:2008(E)
4 Fixed-point arithmetic
4.1 Overview and principles of the fixed-point data types
4.1.1 The data types
For the purpose of this Technical Report, fixed-point data values are either fractional data values
(with value between -1.0 and +1.0), or data values with an integral part and a fractional part. As the
position of the radix point is known implicitly, operations on the values of these data types can be
implemented with (almost) the same efficiency as operations on integral values. Typical usage of
fixed-point data values and operations can be found in applications that convert analogue values to
digital representations and subsequently apply some filtering algorithm. For more information of
fixed-point data types, see clause A.1.1 in the Annex of this Technical Report.
For the purpose of this Technical Report, two groups of fixed-point data types are added to the
C language: the fract types and the accum types. The data value of a fract type has no integral
part, hence values of a fract type are between -1.0 and +1.0. The value range of an accum type
depends on the number of integral bits in the data type.
The fixed-point data types are designated with the corresponding new keywords and type-specifiers
_Fract and _Accum. These type-specifiers can be used in combination with the existing type-
specifiers short, long, signed and unsigned to designate the following twelve fixed-point
types:
unsigned short _Fract unsigned short _Accum
unsigned _Fract unsigned _Accum
unsigned long _Fract unsigned long _Accum
signed short _Fract signed short _Accum
signed _Fract signed _Accum
signed long _Fract signed long _Accum
These twelve types are collectively called the primary fixed-point types. The fixed-point data types
short _Fract short _Accum
_Fract _Accum
long _Fract long _Accum
without either unsigned or signed are aliases for the corresponding signed fixed-point types.
For each primary fixed-point type there is a corresponding (but different) saturating fixed-point type,
designated with the type-specifier _Sat. The primary fixed-point types and the saturating fixed-
point types are collectively called the fixed-point types.
An implementation is required to support all above-mentioned twenty-four fixed-point data types.
Just as for integer types, there is no requirement that the types all have different formats.
2 © ISO/IEC 2008 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC TR 18037:2008(E)
The fixed-point types are assigned a fixed-point rank. The following types are listed in order of
increasing rank:
short _Fract, _Fract, long _Fract, short _Accum, _Accum, long _Accum
Each unsigned fixed-point type has the same size (in bytes) and the same rank as its corresponding
signed fixed-point type. Each saturating fixed-point type has the same representation and the same
rank as its corresponding primary fixed-point type.
The bits of an unsigned fixed-point type are divided into padding bits, fractional bits, and integral
bits. The bits of a signed fixed-point type are divided into padding bits, fractional bits, integral bits,
and a sign bit.
The fract fixed-point types have no integral bits; consequently, values of unsigned fract types are in
the range of 0 to 1, and values of signed fract types are in the range of -1 to 1. The minimal formats
for each type are:
signed short _Fract s.7 signed short _Accum s4.7
signed _Fract s.15 signed _Accum s4.15
signed long _Fract signed long _Accum
s.23 s4.23
unsigned short _Fract .7 unsigned short _Accum 4.7
unsigned _Fract .15 unsigned _Accum 4.15
unsigned long _Fract .23 unsigned long _Accum 4.23
(For the unsigned formats, the notation "x.y" means x integral bits and y fractional bits, for a total of
x + y non-padding bits. The added "s" in the signed formats denotes the sign bit.)
An implementation may give any of the fixed-point types more fractional bits, and may also give any
of the accum types more integral bits; the relevant restrictions are given in the text for the new
clause 6.2.5 (see clause 4.2 of this Technical Report).
For an example of unsigned fixed-point datatypes see A.8.
4.1.2 Spelling of the new keywords
The natural spelling of the newly introduced keywords _Fract, _Accum and _Sat, is fract,
accum and sat. However, in order to avoid nameclashes in existing programs the new keywords
are handled in the same way as the _Complex keyword in the ISO/IEC 9899:1999 standard: the
formal names of the new keywords start with an underscore, followed by a capital letter, and in the
for fixed-point arithmetic required header , these formal names are used to define the
natural spellings as aliases, and may be used to define other spellings, for instance, in an
environment with pre-existing fixed-point support.
© ISO/IEC 2008 – All rights reserved 3
---------------------- Page: 10 ----------------------
ISO/IEC TR 18037:2008(E)
In the code fragments in this Technical Report, the natural spelling will be used.
For information on the usage of the new keywords in a combined C/C++ environment, see Annex F.
4.1.3 Rounding and Overflow
Conversion of a real numeric value to a fixed-point type may require rounding and/or may overflow.
If the source value cannot be represented exactly by the fixed-point type, the source value is
rounded to either the closest fixed-point value greater than the source value (rounded up) or to the
closest fixed-point value less than the source value (rounded down).
When the source value does not fit within the range of the fixed-point type, the conversion
overflows. Of the two common approaches for fixed-point overflow handling (saturation and
modular wrap-around) only saturation is required by this Technical Report; for a description of
modular wrap-around, see Annex E.4. When calculating the saturated result on fixed-point
overflow, the source value is replaced by the closest available fixed-point value. (For unsigned
fixed-point types, this will be either zero or the maximal positive value of the fixed-point type. For
signed fixed-point types it will be the maximal negative or maximal positive value of the fixed-point
type.)
Overflow behavior is controlled in two ways:
- By using explicit saturating fixed-point types (e.g., _Sat _Fract).
- In the absence of an explicit saturating fixed-point type, overflow behavior is controlled by the
FX_FRACT_OVERFLOW and FX_ACCUM_OVERFLOW pragmas with SAT and DEFAULT as
possible states.
When the state of the FX_FRACT_OVERFLOW pragma is SAT, the overflow behavior on
_Fract types is saturation; otherwise, overflow on _Fract types has undefined behavior.
When the state of the FX_ACCUM_OVERFLOW pragma is SAT, the overflow behavior on
_Accum types is saturation; otherwise, overflow on _Accum types has undefined behavior.
The default state for the FX_FRACT_OVERFLOW and FX_ACCUM_OVERFLOW pragmas is
DEFAULT.
...
