ISO/IEC 11518-2:2000 - Information technology - High-Performance Parallel Interface - Part 2: Framing Protocol (HIPPI-FP) defines the data framing used on the HIPPI high-performance point-to-point interface. HIPPI-FP provides an efficient framing protocol for large block transfers between data-processing equipment, enabling high-throughput interconnections between computers, high-performance displays, and intelligent block-transfer peripherals. It is a simplex, connection-less (datagram) service that supports non-word-aligned and arbitrary byte counts and passes physical-layer error notifications up to upper layers.

Key topics and technical requirements

• Framing and packet structure
  • Packets are composed of one or more bursts (1–256 words per burst); bytes are packed into 32- or 64-bit words.
  • Logical framing areas (Header_Area, D1_Area, D2_Area) separate control and payload for early control delivery.
• Burst and byte formats
  • Supports short bursts and full bursts; byte packing rules and bit significance defined for ordered byte streams.
• Service primitives and interfaces
  • HIPPI-FP defines service primitives for data transfer and control/status interaction with upper layers (e.g., FP_TRANSFER, FPSM_CONTROL, FPSM_STATUS).
  • Upper-Layer Protocol (ULP) identifiers allow multiple protocols to coexist over HIPPI-FP.
• Error detection and limitations
  • Error mechanisms (e.g., byte parity, LLRC, packet length checks) are specified; HIPPI-FP does not guarantee protection against errors introduced by intermediate devices when multiple HIPPI-PHs are interconnected.
• Operational behavior
  • Connection control information (CCI) supports physical-layer switching; best-effort delivery semantics (datagram) are provided.
• Implementation guidance
  • Annexes include state transition pseudo-code and implementation observations for burst classes and flow control.

Applications and who uses it

• System architects and hardware designers building high-bandwidth point-to-point links between servers, storage arrays, and display controllers.
• Peripheral vendors implementing intelligent block-transfer devices requiring efficient framing and early control delivery.
• Network and interconnect engineers designing physical switching or fabric components that interoperate with HIPPI logical framing.
• Software developers implementing upper-layer protocol handlers that map to HIPPI-FP service primitives.

Practical uses include high-throughput data movement in compute clusters, visualization systems, and specialized I/O subsystems where low-latency, large-block transfers are critical.

Related standards

• ISO/IEC 11518-1 - HIPPI-PH (mechanical, electrical, signalling)
• ISO/IEC 11518-3 - HIPPI-LE (LLC encapsulation)
• Other parts under ISO/IEC 11518: HIPPI-IPI, HIPPI-MI, HIPPI-SC, HIPPI-ATM, HIPPI-Serial (see foreword for status)

Keywords: ISO/IEC 11518-2, HIPPI-FP, High-Performance Parallel Interface, framing protocol, data framing, HIPPI-PH, ULP, burst, packet, connection control information, datagram.

Standards Content (Sample)

INTERNATIONAL ISO/IEC
STANDARD
11518-2
Second edition
2000-10
Information technology –
High-Performance Parallel Interface –
Part 2:
Framing Protocol (HIPPI-FP)
Reference number
INTERNATIONAL ISO/IEC
STANDARD
11518-2
Second edition
2000-10
Information technology –
High-Performance Parallel Interface –
Part 2:
Framing Protocol (HIPPI-FP)
 ISO/IEC 2000
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without permission in writing from the publisher.
ISO/IEC Copyright Office Case postale 56 CH-1211 Genève 20 Switzerland
•
PRICE CODE
P
For price, see current catalogue

– 2 – 11518-2 © ISO/IEC:2000(E)

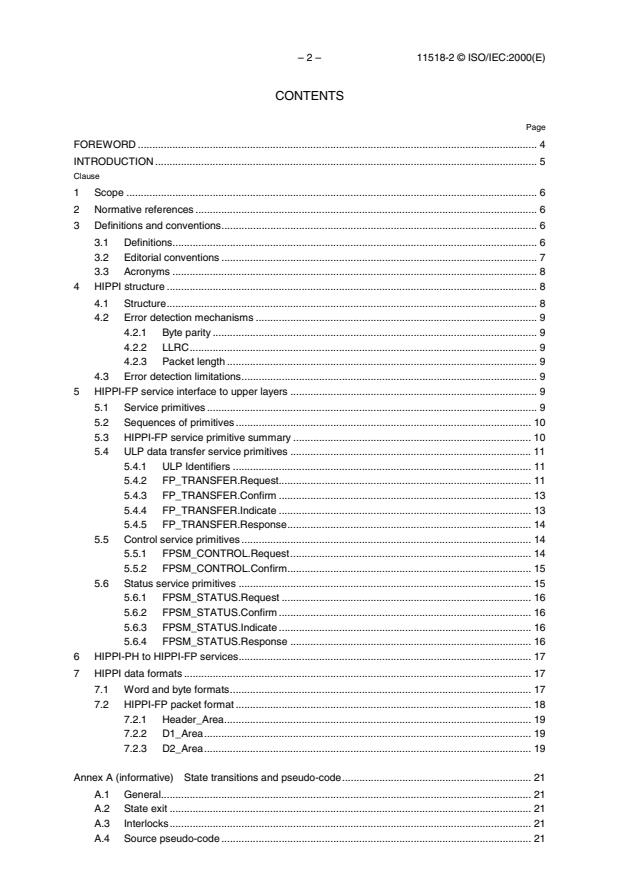

CONTENTS

Page
FOREWORD . 4
INTRODUCTION . 5
Clause
1 Scope . 6
2 Normative references . 6
3 Definitions and conventions. 6
3.1 Definitions. 6
3.2 Editorial conventions . 7
3.3 Acronyms . 8
4 HIPPI structure . 8
4.1 Structure. 8
4.2 Error detection mechanisms . 9
4.2.1 Byte parity . 9
4.2.2 LLRC. 9
4.2.3 Packet length . 9
4.3 Error detection limitations. 9
5 HIPPI-FP service interface to upper layers . 9
5.1 Service primitives . 9
5.2 Sequences of primitives . 10
5.3 HIPPI-FP service primitive summary . 10
5.4 ULP data transfer service primitives . 11
5.4.1 ULP Identifiers . 11
5.4.2 FP_TRANSFER.Request. 11
5.4.3 FP_TRANSFER.Confirm . 13
5.4.4 FP_TRANSFER.Indicate . 13
5.4.5 FP_TRANSFER.Response. 14
5.5 Control service primitives . 14
5.5.1 FPSM_CONTROL.Request. 14
5.5.2 FPSM_CONTROL.Confirm. 15
5.6 Status service primitives . 15
5.6.1 FPSM_STATUS.Request . 16
5.6.2 FPSM_STATUS.Confirm . 16
5.6.3 FPSM_STATUS.Indicate . 16
5.6.4 FPSM_STATUS.Response . 16
6 HIPPI-PH to HIPPI-FP services. 17
7 HIPPI data formats . 17
7.1 Word and byte formats. 17
7.2 HIPPI-FP packet format .18
7.2.1 Header_Area. 19
7.2.2 D1_Area. 19
7.2.3 D2_Area. 19
Annex A (informative) State transitions and pseudo-code. 21
A.1 General. 21
A.2 State exit . 21
A.3 Interlocks. 21
A.4 Source pseudo-code . 21

11518-2 © ISO/IEC:2000(E) – 3 –
A.4.1 S2000.21
A.4.2 S2010.21
A.4.3 S2020.22
A.4.4 S2030.22
A.4.5 S2040.22
A.4.6 S2050.23
A.4.7 S2060.23
A.4.8 S2070.23
A.4.9 S2080.23
A.4.10 S2090. 24
A.4.11 S2100. 24
A.4.12 S2110. 24
A.5 Destination pseudo-code.24
A.5.1 D2500 . 24
A.5.2 D2510 . 24
A.5.3 D2520 . 25
A.5.4 D2530 . 25
A.5.5 D2540 . 25
A.5.6 D2550 . 25
A.5.7 D2560 . 25
A.5.8 D2570 . 25
A.5.9 D2580 . 26
A.5.10 D2590 .26
A.5.11 D2600 .27
A.5.12 D2610 .27
Annex B (informative) Implementation observations . 28
B.1 Data transfer service primitive.28
B.2 Classes of packets. 28
B.2.1 Class 1, Single short burst. 28
B.2.2 Class 2, short burst with full burst(s). 29
B.2.3 Class 3, full burst(s) with short burst. 29
B.2.4 Class 4, full burst(s) . 30
Annex C (informative) Alphabetical index . 31
Figure 1 – Logical framing hierarchy . 8
Figure 2 – HIPPI-FP service interface . 10
Figure 3 – Data transfer service primitives . 11
Figure 4 – Control service primitives .14
Figure 5 – Status service primitives. 15
Figure 6 – Ordered byte stream to HIPPI-PH. 18
Figure 7 – Bit significance within a byte.18
Figure 8 – HIPPI-FP packet format . 20
Figure A.1 – Source flow diagram . 22
Figure A.2 – Destination flow diagram. 26
Figure B.1 – Class 1, single short burst. 29
Figure B.2 – Class 2, short burst with full burst(s). 29
Figure B.3 – Class 3, full burst(s) with short burst. 30
Figure B.4 – Class 4, full burst(s) . 30
Table 1 – Byte assignments . 18

– 4 – 11518-2 © ISO/IEC:2000(E)
INFORMATION TECHNOLOGY –
HIGH-PERFORMANCE PARALLEL INTERFACE –
Part 2: Framing protocol (HIPPI-FP)
FOREWORD
1) ISO (International Organization for Standardization) and IEC (International Electrotechnical Commission) form the
specialized system for worldwide standardization. National bodies that are members of ISO or IEC participate in the
development of International Standards through technical committees established by the respective organization to deal
with particular fields of technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other
international organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the work.
2) In the field of information technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC1. Draft
International Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
3) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
International Standard ISO/IEC 11518-2 was prepared by subcommittee 25: Interconnection of
information technology equipment, of ISO/IEC joint technical committee 1: Information technology.
This edition cancels and replaces the first edition published in 1996. This second edition was updated
as follows:
– the figure in the foreword was removed;
– a list of acronyms was added (see 3.3);
– the upper-layer protocol identifiers were updated (see 5.4.1).
This publication has been drafted in accordance with the ISO/IEC Directives, Part 3.
ISO/IEC 11518 consists of the following parts, under the general title Information technology – High-
Performance Parallel Interface:
– Part 1: Mechanical, electrical and signalling protocol specification (HIPPI-PH)
– Part 2: Framing Protocol (HIPPI-FP)
– Part 3: Encapsulation of ISO/IEC 8802-2 (IEEE Std 802.2) – Logical Link Control Protocol Data
Units (HIPPI-LE)
– Part 4: Mapping of HIPPI to IPI device generic command sets (HIPPI-IPI) (under consideration)
– Part 5: Memory Interface (HIPPI-MI) (under consideration)
– Part 6: Physical Switch Control (HIPPI-SC)
– Part 8: Mapping to Asynchronous Transfer Mode (HIPPI-ATM)
– Part 9: Serial Specification (HIPPI-Serial)
Annexes A, B and C are for information only.

11518-2 © ISO/IEC:2000(E) – 5 –
INTRODUCTION
This standard defines the data framing for an efficient simplex high-performance point-to-point
interface.
Characteristics of HIPPI-FP include:
– large block data transfers with framing to split the data into smaller bursts;
– separation of user control and data information, and early delivery of the control information;
– identifiers for multiple upper-layer protocols (ULPs);
– support for simplex topology;
– support for ULP non-word-aligned and an arbitrary number of byte transfers;
– error notifications, from the underlying physical layer, e.g. HIPPI-PH, are passed through this
framing protocol to notify the upper layers of damaged data;
– provides a connection-less data service;
– best effort delivery of data, i.e. datagram;
– connection control information, which may be used for physical layer switching, is supported.

– 6 – 11518-2 © ISO/IEC:2000(E)
INFORMATION TECHNOLOGY –
HIGH-PERFORMANCE PARALLEL INTERFACE –
Part 2: Framing protocol (HIPPI-FP)
1 Scope
This part of ISO/IEC 11518 provides data framing for a high-performance point-to-point interface
between data-processing equipment. This part of ISO/IEC 11518 does not protect against certain
errors that might be introduced by intermediate devices interconnecting multiple HIPPI-PHs.
The purpose of this part of ISO/IEC 11518 is to facilitate the development and use of the HIPPI in
computer systems by providing common data framing. It provides an efficient framing protocol for
interconnections between computers, high-performance display systems, and high-performance,
intelligent block-transfer peripherals.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute
provisions of this part of ISO/IEC 11518. For dated references, subsequent amendments to, or
revisions of, any of these publications do not apply. However, parties to agreements based on this part
of ISO/IEC 11518 are encouraged to investigate the possibility of applying the most recent edition of
the normative documents indicated below. For undated references, the latest edition of the normative
document referred to applies. Members of IEC and ISO maintain registers of currently valid
International Standards.
ISO/IEC 11518-1:1995, Information technology, High-Performance Parallel Interface – Part 1:
Mechanical, electrical, and signalling protocol specification (HIPPI-PH)
3 Definitions and conventions
3.1 Definitions
For the purposes of this part of ISO/IEC 11518, the following definitions apply.
3.1.1
burst
group of words sent by the Source to the Destination
Bursts contain 1 to 256 words. Bursts that contain less than 256 words are called short bursts. On a
32-bit HIPPI-PH, bursts contain an even number of 32-bit words.
3.1.2
byte
group of eight bits
Bytes are packed four per 32-bit word, or eight per 64-bit word.
3.1.3
connection
condition of the HIPPI-PH when data transfers from Source to Destination are possible

11518-2 © ISO/IEC:2000(E) – 7 –
3.1.4
connection control information (CCI)
parameter sent as part of the sequence of operations establishing a connection from a Source to a
Destination
NOTE ISO/IEC 11518-6 includes examples of CCIs and topologies.
3.1.5
destination
the equipment at the end of the interface that receives the data
3.1.6
optional
features that are not required by this part of ISO/IEC 11518
NOTE However, if any optional feature defined by this part of ISO/IEC 11518 is implemented, it must be implemented
according to this part of ISO/IEC 11518.
3.1.7
packet
data set sent from Source to Destination
A packet is composed of one or more bursts. The HIPPI specification does not limit the maximum
packet size, but a maximum size may be imposed by a given HIPPI implementation, or by a ULP. A
packet consists of a header, one or two optional ULP data sets, and optional fill.
3.1.8
service interface (SI)
connection points to the ULP
3.1.9
source
the equipment at the end of the interface that transmits the data
3.1.10
state
current condition of the interface, excluding transitions, as indicated by the control primitives
3.1.11
station management (SMT)
the supervisory entity that monitors and controls the HIPPI
3.1.12
ULP data set
data transferred between the ULP and the HIPPI-FP
3.1.13
upper-layer protocol (ULP)
protocol immediately above the HIPPI-FP service interface
3.1.14
word
a unit of information, consisting of (32 or 64) bits, matching the HIPPI-PH word size
Words contain an ordered set of four bytes or eight bytes
3.2 Editorial conventions
In this standard certain terms that are proper names of signals or similar terms are printed in
uppercase to avoid possible confusion with other uses of the same words (e.g., CLOCK). Any
lowercase uses of these words have the normal technical English meaning.

– 8 – 11518-2 © ISO/IEC:2000(E)
A number of conditions, sequence parameters, events, states, or similar terms are printed with the first
letter of each word in uppercase and the rest lowercase (e.g., In, Out, Enabled). Any lowercase uses of
these words have the normal technical English meaning.
3.3 Acronyms
CCI connection control information
FP Framing Protocol
FPSM Framing Protocol, Station Management
IPI Intelligent Peripheral Interface
LLRC Length-longitudinal redundancy check
SMT station management
ULP upper-layer protocol
4 HIPPI structure
4.1 Structure
The HIPPI-FP has been designed in a modular fashion to support simplex or dual simplex
configuration requirements.
A compliant HIPPI network shall maintain packet and burst structures from the original Source to the
final Destination.
Figure 1 shows the basic organization of the information on the HIPPI.
Connection Connection Connection
Established Established Established
Packet Packet Packet
Burst Burst Burst
256 words of 32 bits or 64 bits each
Figure 1 – Logical framing hierarchy
As specified in HIPPI-PH, once a connection is established, a packet (or multiple packets) can be sent
from the Source to the Destination. Each packet contains one or more bursts. Bursts contain (1 to 256)
words. Words contain four or eight bytes. Bursts that contain less than 256 words are called short
bursts. A packet contains no more than one short burst. A short burst may be either the first or last
burst of a multiburst packet. For error detection HIPPI-PH uses byte parity and a parity-based
checksum on each burst.
On a 32-bit HIPPI-PH, bursts shall contain an even number of 32-bit words. Words shall contain an
ordered set of bytes as specified in 7.1.

11518-2 © ISO/IEC:2000(E) – 9 –
4.2 Error detection mechanisms
4.2.1 Byte parity
The HIPPI physical layer (HIPPI-PH) uses bit-parallel word transfers, using 32-bit words for an
800 Mbit/s data rate and 64-bit words for a 1 600 Mbit/s data rate. An odd-parity bit is also transmitted
with each 8-bit byte of a word, i.e., four parity bits are transmitted with each 32-bit word. Hence an
undetected error in a word would require a 2-bit error, with both bits being in the same byte.
4.2.2 LLRC
The Length-Longitudinal Redundancy Check (LLRC) implements even parity across the individual bits
of multiple words in a burst. For example, bit 23 of the LLRC is the even parity of bit 23 of each word in
the burst. A burst is nominally 256 words in length (1 Kbyte or 2 Kbytes), but short bursts may contain
fewer words. Hence the LLRC would not detect errors where the same bit in an even number of words
was incorrect.
In addition, the LLRC calculation includes the length of the burst. Hence, the LLRC would detect cases
where a word was dropped or added, i.e., the length received was not the same as what was
transmitted.
4.2.3 Packet length
A packet is composed of one or more bursts. In HIPPI-FP a length field specifying the number of bytes
in the packet is specified. This length field provides a check for dropped or extra bursts. A special case
where the packet length is not used is provided for such things as video data to a frame buffer, data
collection from experimental equipment, etc.
4.3 Error detection limitations
The parity and LLRC will only fail on 4-bit errors in a rectangular pattern. That is, two bits in a byte must
fail (undetected by the byte parity check) and the same two bits must fail in another word of the burst
(undetected by the LLRC).
Use of the HIPPI-FP packet header length field permits the detection of lost bursts within a packet;
however, no mechanism of either HIPPI-FP or HIPPI-PH allows the detection of data corruption
caused by the substitution of one burst, with good parity and LLRC, for another burst of the same
length.
5 HIPPI-FP service interface to upper layers
This clause describes the services provided by HIPPI-FP. The intent is to provide the formalism
necessary to relate this interface to other HIPPI interfaces. How many of the services described herein
are chosen for a given implementation, and whether others may be required, is up to the implementor;
however, a set of HIPPI-FP services must be supplied sufficient to satisfy the ULP(s) being used. The
services as defined herein do not imply any particular implementation, or any interface.
In this part of ISO/IEC 11518 the ULP and station management protocol (SMT) are service users, and
the HIPPI-FP is the service provider to the ULP and SMT. The interfaces consist of the ULP primitives,
prefixed with FP_, and the SMT primitives, prefixed with FPSM_.
The HIPPI-FP is also the service user of the HIPPI-PH services, prefixed with PH_.
Figure 2 shows the relationship of the HIPPI-FP interfaces.
5.1 Service primitives
All of the primitives and parameters are considered as required except where explicitly stated
otherwise.
– 10 – 11518-2 © ISO/IEC:2000(E)
HIPPI service primitives are of four types.
– Request primitives are issued by a service user to initiate a service from the service provider. In
this part of ISO/IEC 11518, a second Request primitive of the same name shall not be issued until
the Confirm for the first request is received.
– Confirm primitives are issued by the service provider to acknowledge a Request.
– Indicate primitives are issued by the service provider to notify the service user of a local event. This
primitive is similar in nature to an unsolicited interrupt. Note that the local event may have been
caused by a service Request. In this part of ISO/IEC 11518, a second Indicate primitive of the
same name shall not be issued until the Response for the first Indicate is received.
– Response primitives are issued by a service user to acknowledge an Indicate.
Upper-Layer
Protocols
(ULPs)
(FP_.)
(FPSM_.)
HIPPI-FP
Station
Management
(PH_.)
(SMT)
(PHSM_.)
HIPPI-PH
Physical Layer
Figure 2 – HIPPI-FP service interface
5.2 Sequences of primitives
The order of execution of service primitives is not arbitrary. Logical and time sequence relationships
exist for all described service primitives. Time sequence diagrams, as in figure 3, are used to illustrate
a valid sequence. Other valid sequences may exist. The sequence of events between peer users
across the user/provider interface is illustrated. In the time sequence diagrams the HIPPI-FP users are
depicted on either side of the vertical bars while the service provider is in the centre. A ULP or SMT
implementation may present multiple requests for services, but the requests shall be serviced one at a
time and in the order presented.
5.3 HIPPI-FP service primitive summary
ULP Data Transfer
FP_TRANSFER.Request (CCI, ULP-id,
D1_Size, D1_Data_Set, D2_Size,
D2_Data_Set, Keep_Connection,
Start_D2_on_Burst_Boundary)
FP_TRANSFER.Confirm
FP_TRANSFER_D1.Indicate (ULP-id, CCI,
Status, D2_Size, D2_Offset,
D1_Area_Size, D1_Data_Set)
FP_TRANSFER_D2.Indicate (ULP-id, CCI,
Status, D2_Size, D2_Offset, D2_Data_Set)
FP_TRANSFER.Response
Control Link
FPSM_CONTROL.Request (Command,
Command_Parameter)
FPSM_CONTROL.Confirm (Status)
11518-2 © ISO/IEC:2000(E) – 11 –
Link Status
FPSM_STATUS.Request
FPSM_STATUS.Confirm (Status)
FPSM_STATUS.Indicate
FPSM_STATUS.Response
5.4 ULP data transfer service primitives
These primitives, as illustrated in figure 3, shall be used to transfer ULP data from the Source ULP to
the Destination ULP.
Sour ce Des tination
HIP PI-FP
ULP ULP
FP_TRANSFER
.Request
FP_TRANSFER_D1
FP_TRANSFER
.Indicate
.Confirm
FP_TRANSFER
.Response
FP_TRANSFER_D2
.Indicate
FP_TRANSFER
.Response
Figure 3 – Data transfer service primitives
5.4.1 ULP Identifiers
The ULP-id of the HIPPI-FP header designates the Destination ULP to which the data set is to be
delivered.
NOTE 1 Identifiers registered at the time this part of ISO/IEC 11518 was approved include the following (shown in binary
notation). Later registrations will be added as amendment to this part of ISO/IEC 11518.
Unlisted ULP-id values are reserved. Processing received packets with unlisted ULP-id values is
undefined.
00000100 = ISO 8802.2 Link Encapsulation
00000110 = IPI-3 Slave, i.e., IPI-3 Master to Slave
00000111 = IPI-3 Master, i.e., IPI-3 Slave to Master
00001000 = IPI-3 Peer
00001010 = HIPPI-FC map to Fibre Channel ULPs
00001100 = Scheduled Transfer
00001101 = HIPPI-6400 Encapsulation
1xxxxxxx = Locally assigned
5.4.2 FP_TRANSFER.Request
Issued by the Source ULP to request a data transfer. If a connection to the Destination specified by the
CCI does not currently exist, then a connection will be established. At the completion of the transfer the
connection may be broken unless Keep_Connection was specified. The packet format is defined in
7.2, and shown in figure 8.
– 12 – 11518-2 © ISO/IEC:2000(E)
Semantics – FP_TRANSFER.Request (
CCI,
ULP-id,
D1_Size,
D1_Data_Set,
D2_Size,
D2_Data_Set,
Keep_Connection,
Start_D2_on_Burst_Boundary)
The CCI is passed directly to the underlying HIPPI-PH.
The ULP-id identifies the Destination ULP. See 5.4.1.
D1_Size is the length, in bytes, of the ULP D1_Data_Set to be placed in the first burst of the packet.
The maximum D1_Size shall be 1 016 bytes. A value of D1_Size equal to zero indicates a null
D1_Data_Set and shall cause the FP header D1_Data_Set_Present bit to be set to 0. See 7.2.2.
D1_Data_Set is the ULP data set to be placed in the first burst, and delivered separately from the
D2_Data_Set. The D1_Data_Set is intended for control information.
D2_Size is the length, in bytes, of the ULP data set to be placed in the remainder of the packet. The
maximum determinate D2_Size is 4 294 967 294 bytes (2 – 2). A D2_Size of hexadecimal
FFFFFFFF shall mean that the length is indeterminate at the start of the transfer. Indeterminate length
packets may be longer or shorter than the maximum determinate size. See B.1 for suggestions on
transferring larger size, or indeterminate size, packets. The D2_Size shall be set to zero to indicate the
absence of the D2_Data_Set.
D2_Data_Set is the ULP data set to be sent. Placement of the D2_Data_Set shall be governed by the
Start_D2_on_Burst_Boundary parameter. The D2_Data_Set is intended for user data, or the whole
data set if separate control information is not used. A ULP may deliver the D2_Data_Set to HIPPI-FP in
multiple segments. To decrease latency and conserve buffers, implementations may start transmission
before receiving all of these segments.
Keep_Connection true says that another ULP data set with the same routing information is coming,
and the physical HIPPI-PH connection should be maintained if possible. When Keep_Connection is
false, the connection may be broken after this packet. Servicing FP_TRANSFER.Requests from other
ULPs may also cause the connection to be broken, e.g., requests to different Destinations, or requests
with Keep_Connection false. Keep_Connection is a local control parameter and is not passed to the
Destination.
Start_D2_on_Burst_Boundary controls the starting location for the D2_Area. If true, then the D2_Area
shall start at the beginning of the second HIPPI-PH burst. If false, then the D2_Area may start in the
first burst.
Issued – The Source ULP issues this primitive to the Source HIPPI-FP to request the transfer of the
ULP data set to the Destination.
Effect – The Source HIPPI-FP shall accept the ULP data set for transmission. The HIPPI-FP shall build
an HIPPI-FP header, as specified in 7.2, and send the packet as a series of bursts to the Destination. If
(1) the D1_Data_Set does not completely fill the first burst, and (2) Start_D2_on_Burst_Bound-
ary = true, and (3) the underlying HIPPI-PH supports short first bursts, then this HIPPI-FP shall use a
short first burst whose length is sufficient to completely contain the D1_Data_Set. If any of the above
conditions are not met, then a 256-word first burst shall be used.

11518-2 © ISO/IEC:2000(E) – 13 –
5.4.3 FP_TRANSFER.Confirm
This primitive acknowledges the FP_TRANSFER.Request from the Source ULP.
Semantics – FP_TRANSFER.Confirm (Status)
Status shall be:
– Accept – the HIPPI-PH has completed the connection and accepted the packet for transmission.
– Reject – the Destination has rejected the connection request, no bursts were transmitted.
– Timeout – the Destination did not respond to the connection request within the timeout period. No
bursts were transmitted. See A.4.7
Issued – The HIPPI-FP shall issue this primitive to the Source ULP to acknowledge the
FP_TRANSFER.Request.
Effect – Unspecified
5.4.4 FP_TRANSFER.Indicate
These primitives indicate to the Destination ULP that the D1_Data_Set, or D2_Data_Set, of a packet,
addressed to this particular ULP has been received from the Source.
Semantics –
FP_TRANSFER_D1.Indicate (
ULP-id,
CCI,
Status,
D2_Size,
D2_Offset,
D1_Area_Size,
D1_Area)
FP_TRANSFER_D2.Indicate (
ULP-id,
CCI,
Status,
D2_Size,
D2_Offset,
D2_Data_Set)
ULP-id is the ULP to receive the data. See 5.4.1.
CCI is the CCI for the current connection, i.e., received with the PH_RING.Indicate connection request.
Status denotes whether the data set being delivered was received with errors. Status includes, but is
not limited to, errors in the packet.
D2_Size is the length of the D2_Data_Set, in bytes, as received in the FP_Header. If D2_Size equals
hexadecimal FFFFFFFF, then it is up to the ULP to determine the validity and actual length of the
D2_Data_Set.
D2_Offset is the number of unused bytes from the start of the D2_Area to the first byte of the
D2_Data_Set. The D2_Offset is used by the Source and Destination to keep proper word alignment on
the D2_Data_Set so as to avoid shifting and copying the data to achieve alignment at the Destination.
The D2_Offset allows the Source memory image of the D2_Data_Set, even if it does not start on a
64-bit word boundary, to be reproduced at the Destination.

– 14 – 11518-2 © ISO/IEC:2000(E)
D1_Area_Size is the size of the D1_Area being passed to the ULP. The actual size of the
D1_Data_Set is self-defining within the D1_Area.
D1_Area contains the D1_Data_Set. It is up to the Destination ULP to determine the size of the
D1_Data_Set and extract it from the D1_Area. See 7.2.2.
The D2_Data_Set is the D2 ULP data being delivered to the ULP.
Issued – The Destination HIPPI-FP shall issue this primitive to the Destination ULP when a ULP data
set has been received. A packet containing both the D1_Data_Set and the D2_Data_Set shall
generate primitives for both the D1_Data_Set and the D2_Data_Set.
Effect – Unspecified
5.4.5 FP_TRANSFER.Response
This primitive acknowledges a FP_TRANSFER.Indicate for either the D1_Data_Set or the
D2_Data_Set.
Semantics – FP_TRANSFER.Response
Issued – The Destination ULP issues this primitive to acknowledge receipt of the
FP_TRANSFER.Indicate.
Effect – The Destination HIPPI-FP is enabled to issue another FP_TRANSFER.Indicate.
5.5 Control service primitives
These primitives, as illustrated in figure 4, shall be used to set parameters and control the interface.
Note that a Control primitive can be initiated from either the Source or Destination.
Sour ce or
O ther End
Des tination
HIP PI-FP
SMT
SMT
FPSM_CONTROL
.Request
FPSM_CONTROL
.Confirm
Figure 4 – Control service primitives
5.5.1 FPSM_CONTROL.Request
Issued by either the Source SMT or Destination SMT to set parameters, or otherwise control the local
HIPPI-FP. Several functions are specified and others are left to specific implementations.
Semantics – FPSM_CONTROL.Request (Command, Command_Parameter)
The Command specifies the function to be performed. The parameters are specific to each
function.
The Commands and Command_Parameters for the Source side include but are not limited to
Reset
Break Connection
Indicate Enable/Disable
Reset resets the HIPPI-FP, breaks any existing connections, and cancels any pending .Request
primitives.
Break Connection breaks any existing connections.
Indicate Enable/Disable allows/disallows issuance of FPSM_STATUS.Indicate primitives.

11518-2 © ISO/IEC:2000(E) – 15 –
The Commands and Command_Parameters for the Destination side include but are not limited to
Reset
Break Connection
Allow/Disallow/Reject Connection
Indicate Enable/Disable
Reset resets the HIPPI-FP, breaks any existing connections, and cancels any pending.
Request primitives.
Break Connection breaks any existing connections.
Allow/Disallow/Reject Connection. Sets Connection_Enable. Allow enables the Destination to
make a connection. Disallow instructs the Destination to ignore connection requests. Reject
instructs the Destination to respond to connection requests with rejected connection
sequences.
Indicate Enable/Disable allows/disallows the HIPPI-FP to issue FPSM_STATUS.Indicate primi-
tives.
Issued – The Source or Destination SMT issues this primitive to perform some control function over
the interface as a whole.
Effect – The HIPPI-FP shall perform the function specified.
5.5.2 FPSM_CONTROL.Confirm
This primitive acknowledges the FPSM_CONTROL.Request to the issuing SMT.
Semantics – FPSM_CONTROL.Confirm (Status)
Status reports the success or failure of the FPSM_CONTROL.Request commands.
Issued – The HIPPI-FP shall issue this primitive to the SMT when the command specified in the
FPSM_CONTROL.Request has been accepted.
Effect – Unspecified
5.6 Status service primitives
These primitives, as illustrated in figure 5, shall be used to obtain status information from the local
HIPPI-FP. Note that a Status primitive can be initiated from either the Source or Destination, and shall
only affect the local end of the interface.
Sour ce or
O ther End
Des tination
HIP PI-FP
SMT
SMT
FPSM_STATUS
.Request
FPSM_STATUS
.Confirm
FPSM_STATUS
.Indicate
FPSM_STATUS
.Response
Figure 5 – Status service primitives

– 16 – 11518-2 © ISO/IEC:2000(E)
5.6.1 FPSM_STATUS.Request
Issued by either the Source SMT or Destination SMT to request a status report.
Semantics – FPSM_STATUS.Request
Issued – The SMT issues this primitive to obtain the status of the HIPPI-FP.
Effect – The HIPPI-FP shall respond with a FPSM_STATUS.Confirm.
5.6.2 FPSM_STATUS.Confirm
This primitive replies to the previous FPSM_STATUS.Request with status information.
Semantics – FPSM_STATUS.Confirm (Status)
The Source side Status shall contain, but is not limited to
Errors
Current state of HIPPI connection
FPSM_STATUS.Indicates Enabled/Disabled
The Destination side Status shall contain, but is not limited to
Errors
Current state of HIPPI connection
Last CCI Received
Connections Allowed/Disallowed/Rejected
FPSM_STATUS.Indicates Enabled/Disabled
Issued – The HIPPI-FP shall issue this primitive to the SMT in response to a FPSM_STATUS.Request.
Effect – Unspecified
5.6.3 FPSM_STATUS.Indicate
This primitive informs the SMT entity that a major event has occurred that affects the operation of the
HIPPI-FP.
Semantics – FPSM_STATUS.Indicate
Issued – The HIPPI-FP, when enabled, shall issue this primitive to the SMT whenever a major event is
detected. Major events include but are not limited to
Detection of an illegal state transition
NOTE 2 If a FPSM_CONTROL.Request is accepted successfully but not completed, then an FPSM_STATUS.Indicate can be
used to indicate completion.
Effect – Unspecified
NOTE 3 Upon receipt of this primitive the local SMT entity should issue a FPSM_STATUS.Request to read status and
determine which event occurred.
5.6.4 FPSM_STATUS.Response
This primitive acknowledges the FPSM_STATUS.Indicate.
Semantics – FPSM_STATUS.Response
Issued – The SMT issues this primitive to acknowledge receipt of the FPSM_STATUS.Indicate.
Effect – The HIPPI-FP, if enabled, is allowed to issue another FPSM_STATUS.Indicate.

11518-2 © ISO/IEC:2000(E) – 17 –
6 HIPPI-PH to HIPPI-FP services
A summary of the primitives used to connect the HIPPI-FP to the HIPPI-PH is included here. The
complete specification of the primitives is contained in the HIPPI Mechanical, Electrical, and Signalling
Protocol Specification (HIPPI-PH) document (ISO/IEC 11518-1).
Initiate a Connection
PH_RING.Request (CCI)
PH_RING.Confirm
PH_RING.Indicate (CCI)
PH_RING.Response
Complete the Connection
PH_ANSWER.Request (Accept/Reject)
PH_ANSWER.Confirm
PH_ANSWER.Indicate (Accept/Reject)
PH_ANSWER.Response
Packet Control
PH_PACKET.Request (Begin/End)
PH_PACKET.Confirm (Accept/Reject)
PH_PACKET.Indicate (Begin/End,Status)
PH_PACKET.Response
Burst Transfer
PH_TRANSFER.Request (Length,Burst)
PH_TRANSFER.Confirm (Accept/Reject)
PH_TRANSFER.Indicate (Status,Length,Burst)
PH_TRANSFER.Response
Terminate the Connection
PH_HANGUP.Request
PH_HANGUP.Confirm
PH_HANGUP.Indicate
PH_HANGUP.Response
7 HIPPI data formats
7.1 Word and byte formats
The data transferred between the HIPPI-PH and the HIPPI-FP shall be 32-bit or 64-bit words. The
words shall consist of 32 signals or 64 signals labelled D00 through D31 or D00 through D63. The size
of the words shall match the HIPPI-PH.
NOTE 4 The HIPPI-PH defined in the HIPPI Mechanical, Electrical and Signalling Protocol Specification (HIPPI-PH)
(ISO/IEC 11518-1) uses 32-bit words for the 800 Mbit/s option and 64-bit words for the 1 600 Mbit/s option.
The data transferred between the HIPPI-FP and the ULP shall be an ordered byte stream. The byte
positions within the HIPPI words, for both the 32-bit and 64-bit HIPPI-PHs, shall be as shown in table 1.
Byte 0 is the first byte in the ordered byte stream, byte 1 is the second byte, etc.

– 18 – 11518-2 © ISO/IEC:2000(E)
Table 1 – Byte assignments
Byte Data signals on Data signals on
No. 32-bit HIPPI 64-bit HIPPI
0 D31-D24 D31-D24
1 D23-D16 D23-D16
2 D15-D08 D15-D08
3 D07-D00 D07-D00
4 D31-D24 D63-D56
5 D23-D16 D55-D48
6 D15-D08 D47-D40
7 D07-D00 D39-D32
Figure 6 shows the complete mapping of a 16-byte ordered byte stream on a 32-bit HIPPI-PH, and the
same ordered byte stream on a 64-bit HIPPI-PH. Byte 0 is the first byte of the byte stream.
(Cable-A)
word 0
0 1 2 3
32-bit 4 5 6 7 word 1
HIPPI-PH
8 9 10 11 word 2
12 13 14 15 word 3
D31 D00
(Cable-A) (Cable-B)
0 1 2 3 4 5 6 7 word 0
64-bit
HIPPI-PH
8 9 10 11 12 13 14 15 word 1
D31 D00 D63 D32
Figure 6 – Ordered byte stream to HIPPI-PH
Within each byte of the interface, the highest numbered signal shall be the most significant bit of the
byte. An example byte is shown in figure 7.
D31 D30 D29 D28 D27 D26 D25 D24
7 6 5 4 3 2 1 0
2 2 2 2 2 2 2 2
Figure 7 – Bit significance within a byte
7.2 HIPPI-FP packet format
The packet data presented by the Source ULP with a FP_TRANSFER.Request primitive shall be
transferred to the Destination with an HIPPI-FP header as shown in figure 8. The image is shown as it
would appear on Cable-A of a 32-bit HIPPI-PH. The most-significant bit of the individual fields shown in
figure 8 is at the left end of the field.
The HIPPI-FP packets shall be composed of three areas, (1) Header_Area, (2) D1_Area, and (3)
D2_Area, each starting and ending on a 64-bit boundary. If the D1_Data_Set is used as control
information, the D2_Data_Set is intended as the data associated with that control information. See B.2
for packet examples.
NOTE 5 Several implementations have failed due to ignoring the 64-bit boundaries specified above. Implementors should
take care to conform to the 64-bit boundary specification, as well as the other specifications in this standard.
