Information technology — Open systems interconnection — Part 7: The Directory: Selected object classes

This document defines a number of object classes and name forms which may be found useful across a range of applications of the Directory. The definition of an object class involves listing a number of attribute types which are relevant to objects of that class. The definition of a name form involves naming the object class to which it applies and listing the attributes to be used in forming names for objects of that class. These definitions are used by the administrative authority which is responsible for the management of the directory information. Any administrative authority can define its own object classes or subclasses and name forms for any purpose. NOTE 1 ? Those definitions may or may not use the notation specified in Rec. ITU-T X.501 | ISO/IEC 9594-2. NOTE 2 ? It is recommended that an object class defined in this Recommendation | International Standard, or a subclass derived from one, or a name form defined in this Recommendation | International Standard, be used in preference to the generation of a new one, whenever the semantics is appropriate for the application. Administrative authorities may support some or all the selected object classes and name forms, and may also add additional ones. All administrative authorities shall support the object classes which the directory uses for its own purpose (the top, alias and Directory system agent (DSA) object classes).

Technologies de l'information — Interconnexion de systèmes ouverts (OSI) — Partie 7: Titre manque

General Information

Status
Published
Publication Date
30-Nov-2020
Current Stage
6060 - International Standard published
Start Date
09-Nov-2020
Completion Date
01-Dec-2020
Ref Project

RELATIONS

Buy Standard

Standard
ISO/IEC 9594-7:Version 24-okt-2020 - Information technology -- Open systems interconnection
English language
30 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO/IEC 9594-7:2020 - Information technology -- Open systems interconnection
English language
30 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

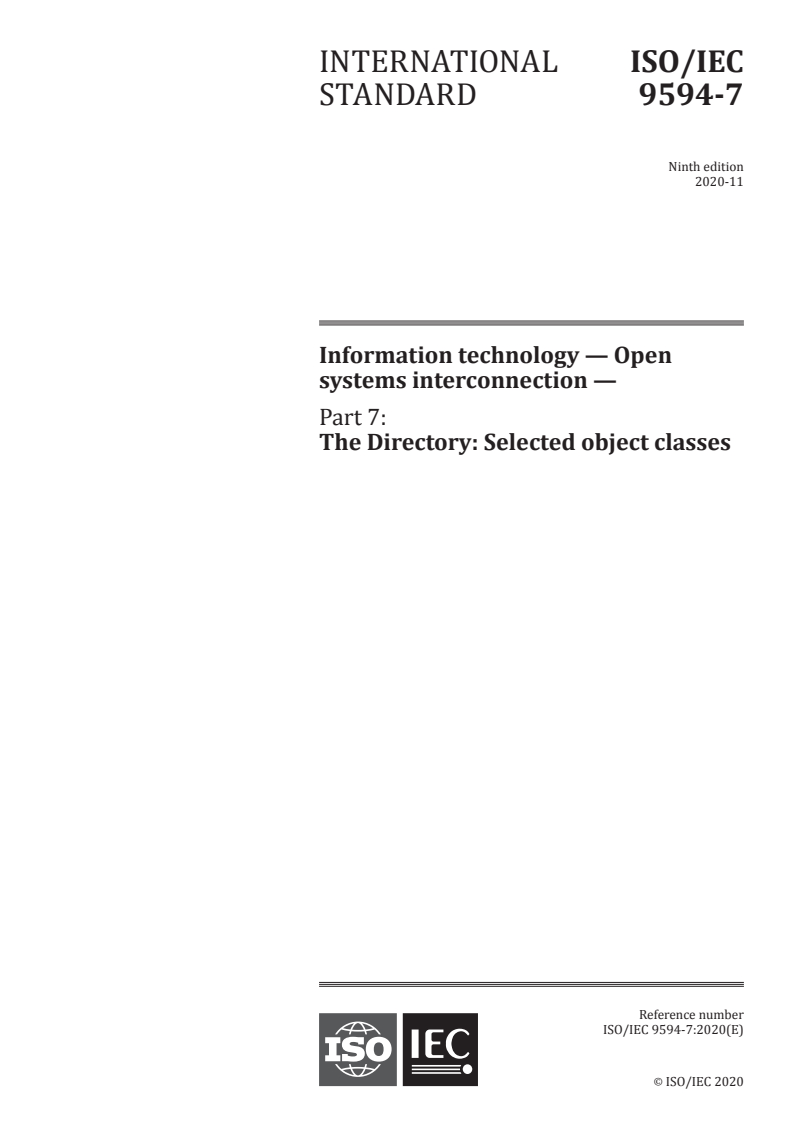

INTERNATIONAL ISO/IEC
STANDARD 9594-7
Ninth edition
Information technology — Open
systems interconnection —
Part 7:
The Directory: Selected object classes
PROOF/ÉPREUVE
Reference number
ISO/IEC 9594-7:2020(E)
ISO/IEC 2020
---------------------- Page: 1 ----------------------
ISO/IEC 9594-7:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii PROOF/ÉPREUVE © ISO/IEC 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 9594-7:2020(E)

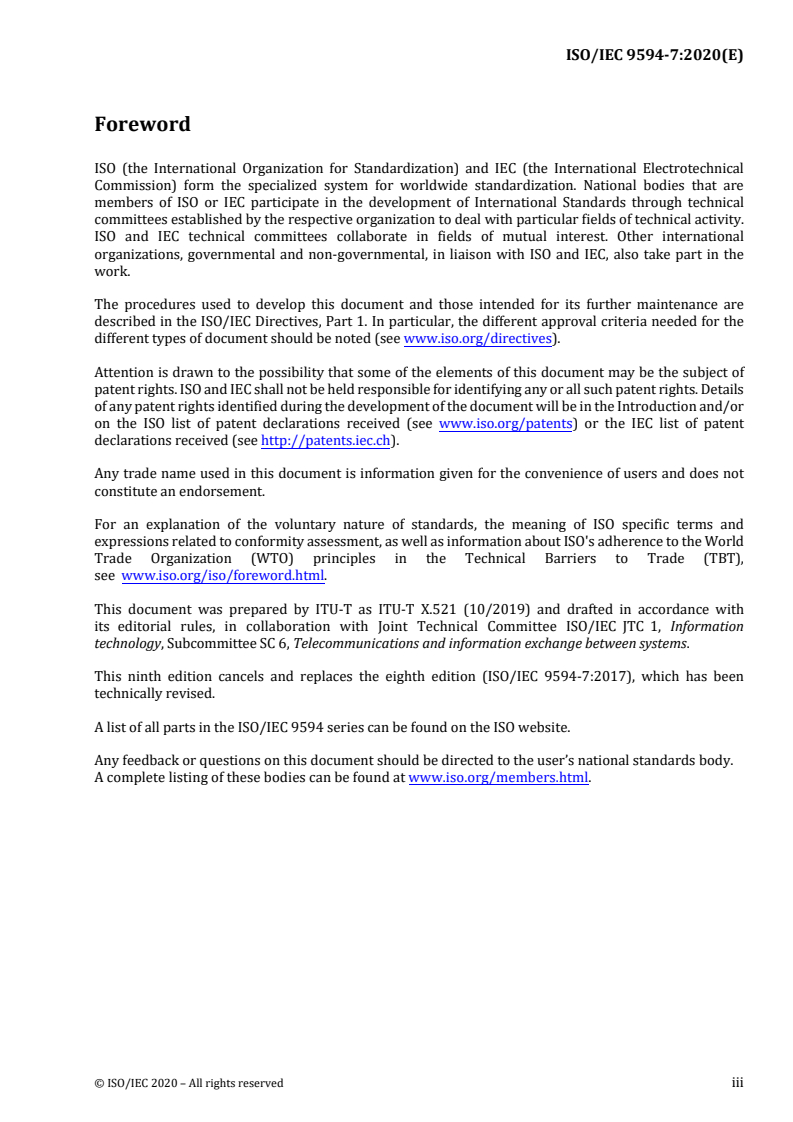

Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical

Commission) form the specialized system for worldwide standardization. National bodies that are

members of ISO or IEC participate in the development of International Standards through technical

committees established by the respective organization to deal with particular fields of technical activity.

ISO and IEC technical committees collaborate in fields of mutual interest. Other international

organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the

work.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of document should be noted (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights. Details

of any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents) or the IEC list of patent

declarations received (see http://patents.iec.ch).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the World

Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT),
see www.iso.org/iso/foreword.html.

This document was prepared by ITU-T as ITU-T X.521 (10/2019) and drafted in accordance with its

editorial rules. It was adopted by Joint Technical Committee ISO/IEC JTC 1, Information technology,

Subcommittee SC 6, Telecommunications and information exchange between systems.
A list of all parts in the ISO/IEC 9594 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www.iso.org/members.html.
© ISO/IEC 2020 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 9594-7:2020 (E)
CONTENTS
Page

SECTION 1 – GENERAL ......................................................................................................................................... 1

1 Scope .............................................................................................................................................................. 1

2 Normative references...................................................................................................................................... 1

2.1 Identical Recommendations | International Standards ........................................................................ 1

3 Definitions ...................................................................................................................................................... 2

3.1 Communication Model definitions ...................................................................................................... 2

3.2 Directory Model definitions ................................................................................................................ 2

4 Conventions .................................................................................................................................................... 2

SECTION 2 – SELECTED OBJECT CLASSES ...................................................................................................... 4

5 Definition of useful attribute sets ................................................................................................................... 4

5.1 Telecommunication attribute set ......................................................................................................... 4

5.2 Postal attribute set ............................................................................................................................... 4

5.3 Locale attribute set .............................................................................................................................. 4

5.4 Organizational attribute set ................................................................................................................. 5

6 Definition of selected object classes ............................................................................................................... 5

6.1 Country ................................................................................................................................................ 5

6.2 Locality ............................................................................................................................................... 5

6.3 Organization ........................................................................................................................................ 5

6.4 Organizational Unit ............................................................................................................................. 5

6.5 Person .................................................................................................................................................. 6

6.6 Organizational Person ......................................................................................................................... 6

6.7 Organizational Role............................................................................................................................. 6

6.8 Group Of Names ................................................................................................................................. 6

6.9 Group Of Unique Names ..................................................................................................................... 7

6.10 Residential Person ............................................................................................................................... 7

6.11 Application Process ............................................................................................................................. 7

6.12 Application Entity ............................................................................................................................... 7

6.13 DSA ..................................................................................................................................................... 8

6.14 Device ................................................................................................................................................. 8

6.15 Strong Authentication User ................................................................................................................. 8

6.16 User Security Information ................................................................................................................... 8

6.17 User Password ..................................................................................................................................... 9

6.18 Certification Authority ........................................................................................................................ 9

6.19 Certification Authority-V2 .................................................................................................................. 9

6.20 DMD ................................................................................................................................................... 9

6.21 OID Obj1 ............................................................................................................................................. 9

6.22 OID Obj2 ............................................................................................................................................. 10

6.23 OID ObjC ............................................................................................................................................ 10

6.24 OID root .............................................................................................................................................. 10

6.25 OID arc ................................................................................................................................................ 10

6.26 URN ObjC ........................................................................................................................................... 10

6.27 ISO Tag Information ........................................................................................................................... 10

6.28 ISO Tag Type ...................................................................................................................................... 11

6.29 EPC Tag Information object class ....................................................................................................... 11

6.30 EPC Tag Type Object Class ................................................................................................................ 11

SECTION 3 – SELECTED NAME FORMS ............................................................................................................ 12

7 Definition of selected name forms .................................................................................................................. 12

7.1 Country name form ............................................................................................................................. 12

7.2 Locality name form ............................................................................................................................. 12

7.3 State Or Province name form .............................................................................................................. 12

7.4 Organization name form ...................................................................................................................... 12

© ISO/IEC 2020 – All rights reserved
Rec. ITU-T X.521 (10/2019) v
---------------------- Page: 4 ----------------------
ISO/IEC 9594-7:2020 (E)
Page

7.5 Organizational Unit name form ........................................................................................................... 12

7.6 Person name form ............................................................................................................................... 13

7.7 Organizational Person name form ....................................................................................................... 13

7.8 Organizational Role name form .......................................................................................................... 13

7.9 Group Of Names name form ............................................................................................................... 13

7.10 Residential Person name form ............................................................................................................. 13

7.11 Application Process name form .......................................................................................................... 13

7.12 Application Entity name form ............................................................................................................. 13

7.13 DSA name form .................................................................................................................................. 14

7.14 Device name form ............................................................................................................................... 14

7.15 DMD name form ................................................................................................................................. 14

7.16 OIDC1 name form ............................................................................................................................... 14

7.17 OIDC2 name form ............................................................................................................................... 14

7.18 OIDC name form ................................................................................................................................. 14

7.19 URNC name form ............................................................................................................................... 14

7.20 OID root name form ............................................................................................................................ 15

7.21 OID arc name form ............................................................................................................................. 15

Annex A – Selected object classes and name forms in ASN.1 .................................................................................. 16

Annex B – Suggested name forms and Directory information tree (DIT) structures ................................................ 24

B.1 Country ................................................................................................................................................ 24

B.2 Organization ........................................................................................................................................ 25

B.3 Locality ............................................................................................................................................... 25

B.4 Organizational Unit ............................................................................................................................. 25

B.5 Organizational Person ......................................................................................................................... 26

B.6 Organizational Role............................................................................................................................. 26

B.7 Group of Names .................................................................................................................................. 26

B.8 Residential Person ............................................................................................................................... 27

B.9 Application Entity ............................................................................................................................... 27

B.10 Device ................................................................................................................................................. 27

B.11 Application Process ............................................................................................................................. 27

B.12 Alternative Structure Rule for Locality ............................................................................................... 27

Annex C – Amendments and corrigenda ................................................................................................................... 29

Bibliography .............................................................................................................................................................. 30

© ISO/IEC 2020 – All rights reserved
vi Rec. ITU-T X.521 (10/2019)
---------------------- Page: 5 ----------------------
ISO/IEC 9594-7:2020 (E)
Introduction

This Recommendation | International Standard, together with other Recommendations | International Standards, has been

produced to facilitate the interconnection of information processing systems to provide directory services. A set of such

systems, together with the directory information that they hold, can be viewed as an integrated whole, called the Directory.

The information held by the Directory, collectively known as the Directory Information Base (DIB), is typically used to

facilitate communication between, with or about objects such as application entities, people, terminals, and distribution

lists.

The Directory plays a significant role in Open Systems Interconnection, whose aim is to allow, with a minimum of

technical agreement outside of the interconnection standards themselves, the interconnection of information processing

systems:
– from different manufacturers;
– under different managements;
– of different levels of complexity; and
– of different ages.

This Recommendation | International Standard defines a number of attribute sets and object classes which may be found

useful across a range of applications of the Directory.

This Recommendation | International Standard provides the foundation frameworks upon which industry profiles can be

defined by other standards groups and industry forums. Many of the features defined as optional in these frameworks may

be mandated for use in certain environments through profiles. This ninth edition technically revises and enhances the

eighth edition of this Recommendation | International Standard.

Annex A, which is an integral part of this Recommendation | International Standard, provides an ASN.1 module

containing all of the type and value definitions which appear in this Recommendation | International Standard.

Annex B, which is not an integral part of this Recommendation | International Standard, provides some common naming

and structure rules which may or may not be used by administrative authorities.

Annex C, which is not an integral part of this Recommendation | International Standard, lists the amendments and defect

reports that have been incorporated to form this edition of this Recommendation | International Standard.

© ISO/IEC 2020 – All rights reserved
Rec. ITU-T X.521 (10/2019) vii
---------------------- Page: 6 ----------------------
ISO/IEC 9594-7:2020 (E)
INTERNATIONAL STANDARD
RECOMMENDATION ITU-T
Information technology – Open Systems Interconnection –
The Directory: Selected object classes
SECTION 1 – GENERAL
1 Scope

This Recommendation | International Standard defines a number of object classes and name forms which may be found

useful across a range of applications of the Directory. The definition of an object class involves listing a number of

attribute types which are relevant to objects of that class. The definition of a name form involves naming the object class

to which it applies and listing the attributes to be used in forming names for objects of that class. These definitions are

used by the administrative authority which is responsible for the management of the directory information.

Any administrative authority can define its own object classes or subclasses and name forms for any purpose.

NOTE 1 – Those definitions may or may not use the notation specified in Rec. ITU-T X.501 | ISO/IEC 9594-2.

NOTE 2 – It is recommended that an object class defined in this Recommendation | International Standard, or a subclass derived

from one, or a name form defined in this Recommendation | International Standard, be used in preference to the generation of a

new one, whenever the semantics is appropriate for the application.

Administrative authorities may support some or all the selected object classes and name forms, and may also add

additional ones.

All administrative authorities shall support the object classes which the directory uses for its own purpose (the top, alias

and Directory system agent (DSA) object classes).
2 Normative references

The following Recommendations and International Standards contain provisions which, through reference in this text,

constitute provisions of this Recommendation | International Standard. At the time of publication, the editions indicated

were valid. All Recommendations and Standards are subject to revision, and parties to agreements based on this

Recommendation | International Standard are encouraged to investigate the possibility of applying the most recent editions

of the Recommendations and Standards listed below. Members of IEC and ISO maintain registers of currently valid

International Standards. The Telecommunication Standardization Bureau of the ITU maintains a list of currently valid

ITU-T Recommendations.
2.1 Identical Recommendations | International Standards

– Recommendation ITU-T X.200 (1994) | ISO/IEC 7498-1:1994, Information technology – Open Systems

Interconnection – Basic Reference Model: The Basic Model.

– Recommendation ITU-T X.500 (2019) | ISO/IEC 9594-1:2020, Information technology – Open Systems

Interconnection – The Directory: Overview of concepts, models and services.

– Recommendation ITU-T X.501 (2019) | ISO/IEC 9594-2:2020, Information technology – Open Systems

Interconnection – The Directory: Models.

– Recommendation ITU-T X.509 (2019) | ISO/IEC 9594-8:2020, Information technology – Open Systems

Interconnection – The Directory: Public-key and attribute certificate frameworks.

– Recommendation ITU-T X.511 (2019) | ISO/IEC 9594-3:2020, Information technology – Open Systems

Interconnection – The Directory: Abstract service definition.

– Recommendation ITU-T X.518 (2019) | ISO/IEC 9594-4:2020, Information technology – Open Systems

Interconnection – The Directory: Procedures for distributed operation.

– Recommendation ITU-T X.519 (2019) | ISO/IEC 9594-5:2020, Information technology – Open Systems

Interconnection – The Directory: Protocol specifications.

– Recommendation ITU-T X.520 (2019) | ISO/IEC 9594-6:2020, Information technology – Open Systems

Interconnection – The Directory: Selected attribute types.

– Recommendation ITU-T X.525 (2019) | ISO/IEC 9594-9:2020, Information technology – Open Systems

Interconnection – The Directory: Replication.
© ISO/IEC 2020 – All rights reserved
Rec. ITU-T X.521 (10/2019) 1
---------------------- Page: 7 ----------------------
ISO/IEC 9594-7:2020 (E)

– Recommendation ITU-T X.680 (2015) | ISO/IEC 8824-1:2015, Information technology – Abstract Syntax

Notation One (ASN.1): Specification of basic notation.

– Recommendation ITU-T X.681 (2015) | ISO/IEC 8824-2:2015, Information technology – Abstract Syntax

Notation One (ASN.1): Information object specification.

– Recommendation ITU-T X.682 (2015) | ISO/IEC 8824-3:2015, Information technology – Abstract Syntax

Notation One (ASN.1): Constraint specification.

– Recommendation ITU-T X.683 (2015) | ISO/IEC 8824-4:2015, Information technology – Abstract Syntax

Notation One (ASN.1): Parameterization of ASN.1 specifications.

– Recommendation ITU-T X.690 (2015) | ISO/IEC 8825-1:2015, Information technology – ASN.1 encoding

rules: Specification of Basic Encoding Rules (BER), Canonical Encoding Rules (CER) and Distinguished

Encoding Rules (DER).
3 Definitions

For the purposes of this Recommendation | International Standard, the following definitions apply.

3.1 Communication Model definitions
The following terms are defined in Rec. ITU-T X.519 | ISO/IEC 9594-5:
a) application-entity;
b) application process.
3.2 Directory Model definitions
The following terms are defined in Rec. ITU-T X.501 | ISO/IEC 9594-2:
a) attribute;
b) attribute type;
c) Directory information tree (DIT);
d) Directory system agent (DSA);
e) attribute set;
f) entry;
g) name;
h) object class;
i) subclass;
j) name form;
k) structure rule.
4 Conventions

The term "Directory Specification" (as in "this Directory Specification") shall be taken to mean Rec. ITU-T X.521 |

ISO/IEC 9594-7. The term "Directory Specifications" shall be taken to mean the Rec. ITU-T X.500 | ISO/IEC 9594-1,

Rec. ITU-T X.501 | ISO/IEC 9594-2, Rec. ITU-T X.511 | ISO/IEC 9594-3, Rec. ITU-T X.518 | ISO/IEC 9594-4,

Rec. ITU-T X.519 | ISO/IEC 9594-5, Rec. ITU-T X.520 | ISO/IEC 9594-6, Rec. ITU-T X.521 | ISO/IEC 9594-7 and

Rec. ITU-T X.525 | ISO/IEC 9594-9.

If an International Standard or ITU-T Recommendation is referenced within normal text without an indication of the

edition, the edition shall be taken to be the latest one as specified in the normative references clause.

This Directory Specification makes extensive use of Abstract Syntax Notation One (ASN.1) for the formal specification

of data types and values, as it is specified in Rec. ITU-T X.680 | ISO/IEC 8824-1, ITU-T X.681 | ISO/IEC 8824-2, ITU-T

X.682 | ISO/IEC 8824-3, ITU-T X.683 | ISO/IEC 8824-4 and Rec. ITU-T X.690 | ISO/IEC 8825-1.

This Directory Specification presents ASN.1 notation in the bold Courier New typeface. When ASN.1 types and values

are referenced in normal text, they are differentiated from normal text by presenting them in the bold Courier New

typeface. The names of procedures, typically referenced when specifying the semantics of processing, are differentiated

© ISO/IEC 2020 – All rights reserved
2 Rec. ITU-T X.521 (10/2019)
---------------------- Page: 8 ----------------------
ISO/IEC 9594-7:2020 (E)

from normal text by displaying them in bold Times New Roman. Access control permissions are presented in italicized

Times New Roman.

Object classes and name forms are defined in this Directory Specification as values of the OBJECT-CLASS and

NAME-FORM information object classes defined in Rec. ITU-T X.501 | ISO/IEC 9594-2.

© ISO/IEC 2020 – All rights reserved
Rec. ITU-T X.521 (10/2019) 3
---------------------- Page: 9 ----------------------
ISO/IEC 9594-7:2020 (E)
SECTION 2 – SELECTED OBJECT CLASSES
5 Definition of useful attribute sets
5.1 Telecommunication attribute set

This set of attributes is used to define those which are commonly used for business communications.

TelecommunicationAttributeSet ATTRIBUTE ::=
{facsimileTelephoneNumber |
internationalISDNNumber |
telephoneNumber |
-- teletexTerminalIdentifier (Attribute type has been deleted)
-- teletexTerminalIdentifier | Attribute type has been deleted
telexNumber |
preferredDeliveryMethod |
destinationIndicator |
registeredAddress |
x121Address}
5.2 Postal attribute set

This set of attributes is used to define those which are directly associated with postal delivery.

PostalAttributeSet ATTRIBUTE ::=
{physicalDeliveryOfficeName |
postalAddress |
postalCode |
postOfficeBox |
streetAddress}
5.3 Locale attribute set

This set of attributes is used to define those which are commonly used for search purposes to indicate the locale of an

object.
LocaleAttributeSet ATTRIBUTE ::=
{localityName |
stateOrProvinceName |
streetAddress}
© ISO/IEC 2020 – All rights reserved
4 Rec. ITU-T X.521 (10/2019)
---------------------- Page: 10 ----------------------
ISO/IEC 9594-7:2020 (E)
5.4 Organizational attribute set

This set of attributes is used to define the attributes that an organization or organizational unit may typically possess.

OrganizationalAttributeSet ATTRIBUTE ::=
{description |
LocaleAttributeSet |
PostalAttributeSet |
TelecommunicationAttributeSet |
businessCategory |
seeAlso |
searchGuide |
userPassword}
6 Definition of selected object classes
6.1 Country
The345u country object class is used to define country entries in the DIT.
country OBJECT-CLASS ::= {
SUBCLASS OF {top}
MUST CONTAIN {countryName}
MAY CONTAIN {description |
searchGuide}
LDAP-NAME {"country"}
ID id-oc-country }
6.2 Locality
The locality object class is used to define locality in the DIT.
locality OBJECT-CLASS ::= {
SUBCLASS OF {top}
MAY CONTAIN {description |
searchGuide |
LocaleAttributeSet |
seeAlso}
LDAP-NAME {"locality"}
ID id-oc-locality }
At least one of Locality Name or State or Province Name shall be present.
6.3 Organization
The organization object class is used to define organization entries in the DIT.
organization OBJECT-CLASS ::= {
SUBCLASS OF {top}
MUST CONTAIN {organizationName}
MAY CONTAIN {OrganizationalAttributeSet}
LDAP-NAME {"organization"}
ID id-oc-organization }
6.4 Organizational Unit

The organizationalUnit object class is used to define entries representing subdivisions of organizations.

organizationalUnit OBJECT-CLASS ::= {
SUBCLASS OF {top}
MUST CONTAIN {organizationalUnitName}
MAY CONTAIN {OrganizationalAttributeSet}
LDAP-NAME {"organizationalUnit"}
ID id-oc-organizationalUnit }
© ISO/IEC 2020 – All rights reserved
Rec. ITU-T X.521 (10/2019) 5
---------------------- Page: 11 ----------------------
ISO/IEC 9594-7:2020 (E)
6.5 Person
The per
...

INTERNATIONAL ISO/IEC
STANDARD 9594-7
Ninth edition
2020-11
Information technology — Open
systems interconnection —
Part 7:
The Directory: Selected object classes
Reference number
ISO/IEC 9594-7:2020(E)
ISO/IEC 2020
---------------------- Page: 1 ----------------------
ISO/IEC 9594-7:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 9594-7:2020(E)
Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical

Commission) form the specialized system for worldwide standardization. National bodies that are

members of ISO or IEC participate in the development of International Standards through technical

committees established by the respective organization to deal with particular fields of technical activity.

ISO and IEC technical committees collaborate in fields of mutual interest. Other international

organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the

work.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of document should be noted (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights. Details

of any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents) or the IEC list of patent

declarations received (see http://patents.iec.ch).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the World

Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT),
see www.iso.org/iso/foreword.html.

This document was prepared by ITU-T as ITU-T X.521 (10/2019) and drafted in accordance with

its editorial rules, in collaboration with Joint Technical Committee ISO/IEC JTC 1, Information

technology, Subcommittee SC 6, Telecommunications and information exchange between systems.

This ninth edition cancels and replaces the eighth edition (ISO/IEC 9594-7:2017), which has been

technically revised.
A list of all parts in the ISO/IEC 9594 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body.

A complete listing of these bodies can be found at www.iso.org/members.html.
© ISO/IEC 2020 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 9594-7:2020 (E)
CONTENTS
Page

SECTION 1 – GENERAL ......................................................................................................................................... 1

1 Scope .............................................................................................................................................................. 1

2 Normative references...................................................................................................................................... 1

2.1 Identical Recommendations | International Standards ........................................................................ 1

3 Definitions ...................................................................................................................................................... 2

3.1 Communication Model definitions ...................................................................................................... 2

3.2 Directory Model definitions ................................................................................................................ 2

4 Conventions .................................................................................................................................................... 2

SECTION 2 – SELECTED OBJECT CLASSES ...................................................................................................... 4

5 Definition of useful attribute sets ................................................................................................................... 4

5.1 Telecommunication attribute set ......................................................................................................... 4

5.2 Postal attribute set ............................................................................................................................... 4

5.3 Locale attribute set .............................................................................................................................. 4

5.4 Organizational attribute set ................................................................................................................. 5

6 Definition of selected object classes ............................................................................................................... 5

6.1 Country ................................................................................................................................................ 5

6.2 Locality ............................................................................................................................................... 5

6.3 Organization ........................................................................................................................................ 5

6.4 Organizational Unit ............................................................................................................................. 5

6.5 Person .................................................................................................................................................. 6

6.6 Organizational Person ......................................................................................................................... 6

6.7 Organizational Role............................................................................................................................. 6

6.8 Group Of Names ................................................................................................................................. 6

6.9 Group Of Unique Names ..................................................................................................................... 7

6.10 Residential Person ............................................................................................................................... 7

6.11 Application Process ............................................................................................................................. 7

6.12 Application Entity ............................................................................................................................... 7

6.13 DSA ..................................................................................................................................................... 8

6.14 Device ................................................................................................................................................. 8

6.15 Strong Authentication User ................................................................................................................. 8

6.16 User Security Information ................................................................................................................... 8

6.17 User Password ..................................................................................................................................... 9

6.18 Certification Authority ........................................................................................................................ 9

6.19 Certification Authority-V2 .................................................................................................................. 9

6.20 DMD ................................................................................................................................................... 9

6.21 OID Obj1 ............................................................................................................................................. 9

6.22 OID Obj2 ............................................................................................................................................. 10

6.23 OID ObjC ............................................................................................................................................ 10

6.24 OID root .............................................................................................................................................. 10

6.25 OID arc ................................................................................................................................................ 10

6.26 URN ObjC ........................................................................................................................................... 10

6.27 ISO Tag Information ........................................................................................................................... 10

6.28 ISO Tag Type ...................................................................................................................................... 11

6.29 EPC Tag Information object class ....................................................................................................... 11

6.30 EPC Tag Type Object Class ................................................................................................................ 11

SECTION 3 – SELECTED NAME FORMS ............................................................................................................ 12

7 Definition of selected name forms .................................................................................................................. 12

7.1 Country name form ............................................................................................................................. 12

7.2 Locality name form ............................................................................................................................. 12

7.3 State Or Province name form .............................................................................................................. 12

7.4 Organization name form ...................................................................................................................... 12

© ISO/IEC 2020 – All rights reserved
Rec. ITU-T X.521 (10/2019) v
---------------------- Page: 4 ----------------------
ISO/IEC 9594-7:2020 (E)
Page

7.5 Organizational Unit name form ........................................................................................................... 12

7.6 Person name form ............................................................................................................................... 13

7.7 Organizational Person name form ....................................................................................................... 13

7.8 Organizational Role name form .......................................................................................................... 13

7.9 Group Of Names name form ............................................................................................................... 13

7.10 Residential Person name form ............................................................................................................. 13

7.11 Application Process name form .......................................................................................................... 13

7.12 Application Entity name form ............................................................................................................. 13

7.13 DSA name form .................................................................................................................................. 14

7.14 Device name form ............................................................................................................................... 14

7.15 DMD name form ................................................................................................................................. 14

7.16 OIDC1 name form ............................................................................................................................... 14

7.17 OIDC2 name form ............................................................................................................................... 14

7.18 OIDC name form ................................................................................................................................. 14

7.19 URNC name form ............................................................................................................................... 14

7.20 OID root name form ............................................................................................................................ 15

7.21 OID arc name form ............................................................................................................................. 15

Annex A – Selected object classes and name forms in ASN.1 .................................................................................. 16

Annex B – Suggested name forms and Directory information tree (DIT) structures ................................................ 24

B.1 Country ................................................................................................................................................ 24

B.2 Organization ........................................................................................................................................ 25

B.3 Locality ............................................................................................................................................... 25

B.4 Organizational Unit ............................................................................................................................. 25

B.5 Organizational Person ......................................................................................................................... 26

B.6 Organizational Role............................................................................................................................. 26

B.7 Group of Names .................................................................................................................................. 26

B.8 Residential Person ............................................................................................................................... 27

B.9 Application Entity ............................................................................................................................... 27

B.10 Device ................................................................................................................................................. 27

B.11 Application Process ............................................................................................................................. 27

B.12 Alternative Structure Rule for Locality ............................................................................................... 27

Annex C – Amendments and corrigenda ................................................................................................................... 29

Bibliography .............................................................................................................................................................. 30

© ISO/IEC 2020 – All rights reserved
vi Rec. ITU-T X.521 (10/2019)
---------------------- Page: 5 ----------------------
ISO/IEC 9594-7:2020 (E)
Introduction

This Recommendation | International Standard, together with other Recommendations | International Standards, has been

produced to facilitate the interconnection of information processing systems to provide directory services. A set of such

systems, together with the directory information that they hold, can be viewed as an integrated whole, called the Directory.

The information held by the Directory, collectively known as the Directory Information Base (DIB), is typically used to

facilitate communication between, with or about objects such as application entities, people, terminals, and distribution

lists.

The Directory plays a significant role in Open Systems Interconnection, whose aim is to allow, with a minimum of

technical agreement outside of the interconnection standards themselves, the interconnection of information processing

systems:
– from different manufacturers;
– under different managements;
– of different levels of complexity; and
– of different ages.

This Recommendation | International Standard defines a number of attribute sets and object classes which may be found

useful across a range of applications of the Directory.

This Recommendation | International Standard provides the foundation frameworks upon which industry profiles can be

defined by other standards groups and industry forums. Many of the features defined as optional in these frameworks may

be mandated for use in certain environments through profiles. This ninth edition technically revises and enhances the

eighth edition of this Recommendation | International Standard.

Annex A, which is an integral part of this Recommendation | International Standard, provides an ASN.1 module

containing all of the type and value definitions which appear in this Recommendation | International Standard.

Annex B, which is not an integral part of this Recommendation | International Standard, provides some common naming

and structure rules which may or may not be used by administrative authorities.

Annex C, which is not an integral part of this Recommendation | International Standard, lists the amendments and defect

reports that have been incorporated to form this edition of this Recommendation | International Standard.

© ISO/IEC 2020 – All rights reserved
Rec. ITU-T X.521 (10/2019) vii
---------------------- Page: 6 ----------------------
ISO/IEC 9594-7:2020 (E)
INTERNATIONAL STANDARD
RECOMMENDATION ITU-T
Information technology – Open Systems Interconnection –
The Directory: Selected object classes
SECTION 1 – GENERAL
1 Scope

This Recommendation | International Standard defines a number of object classes and name forms which may be found

useful across a range of applications of the Directory. The definition of an object class involves listing a number of

attribute types which are relevant to objects of that class. The definition of a name form involves naming the object class

to which it applies and listing the attributes to be used in forming names for objects of that class. These definitions are

used by the administrative authority which is responsible for the management of the directory information.

Any administrative authority can define its own object classes or subclasses and name forms for any purpose.

NOTE 1 – Those definitions may or may not use the notation specified in Rec. ITU-T X.501 | ISO/IEC 9594-2.

NOTE 2 – It is recommended that an object class defined in this Recommendation | International Standard, or a subclass derived

from one, or a name form defined in this Recommendation | International Standard, be used in preference to the generation of a

new one, whenever the semantics is appropriate for the application.

Administrative authorities may support some or all the selected object classes and name forms, and may also add

additional ones.

All administrative authorities shall support the object classes which the directory uses for its own purpose (the top, alias

and Directory system agent (DSA) object classes).
2 Normative references

The following Recommendations and International Standards contain provisions which, through reference in this text,

constitute provisions of this Recommendation | International Standard. At the time of publication, the editions indicated

were valid. All Recommendations and Standards are subject to revision, and parties to agreements based on this

Recommendation | International Standard are encouraged to investigate the possibility of applying the most recent editions

of the Recommendations and Standards listed below. Members of IEC and ISO maintain registers of currently valid

International Standards. The Telecommunication Standardization Bureau of the ITU maintains a list of currently valid

ITU-T Recommendations.
2.1 Identical Recommendations | International Standards

– Recommendation ITU-T X.200 (1994) | ISO/IEC 7498-1:1994, Information technology – Open Systems

Interconnection – Basic Reference Model: The Basic Model.

– Recommendation ITU-T X.500 (2019) | ISO/IEC 9594-1:2020, Information technology – Open Systems

Interconnection – The Directory: Overview of concepts, models and services.

– Recommendation ITU-T X.501 (2019) | ISO/IEC 9594-2:2020, Information technology – Open Systems

Interconnection – The Directory: Models.

– Recommendation ITU-T X.509 (2019) | ISO/IEC 9594-8:2020, Information technology – Open Systems

Interconnection – The Directory: Public-key and attribute certificate frameworks.

– Recommendation ITU-T X.511 (2019) | ISO/IEC 9594-3:2020, Information technology – Open Systems

Interconnection – The Directory: Abstract service definition.

– Recommendation ITU-T X.518 (2019) | ISO/IEC 9594-4:2020, Information technology – Open Systems

Interconnection – The Directory: Procedures for distributed operation.

– Recommendation ITU-T X.519 (2019) | ISO/IEC 9594-5:2020, Information technology – Open Systems

Interconnection – The Directory: Protocol specifications.

– Recommendation ITU-T X.520 (2019) | ISO/IEC 9594-6:2020, Information technology – Open Systems

Interconnection – The Directory: Selected attribute types.

– Recommendation ITU-T X.525 (2019) | ISO/IEC 9594-9:2020, Information technology – Open Systems

Interconnection – The Directory: Replication.
© ISO/IEC 2020 – All rights reserved
Rec. ITU-T X.521 (10/2019) 1
---------------------- Page: 7 ----------------------
ISO/IEC 9594-7:2020 (E)

– Recommendation ITU-T X.680 (2015) | ISO/IEC 8824-1:2015, Information technology – Abstract Syntax

Notation One (ASN.1): Specification of basic notation.

– Recommendation ITU-T X.681 (2015) | ISO/IEC 8824-2:2015, Information technology – Abstract Syntax

Notation One (ASN.1): Information object specification.

– Recommendation ITU-T X.682 (2015) | ISO/IEC 8824-3:2015, Information technology – Abstract Syntax

Notation One (ASN.1): Constraint specification.

– Recommendation ITU-T X.683 (2015) | ISO/IEC 8824-4:2015, Information technology – Abstract Syntax

Notation One (ASN.1): Parameterization of ASN.1 specifications.

– Recommendation ITU-T X.690 (2015) | ISO/IEC 8825-1:2015, Information technology – ASN.1 encoding

rules: Specification of Basic Encoding Rules (BER), Canonical Encoding Rules (CER) and Distinguished

Encoding Rules (DER).
3 Definitions

For the purposes of this Recommendation | International Standard, the following definitions apply.

3.1 Communication Model definitions
The following terms are defined in Rec. ITU-T X.519 | ISO/IEC 9594-5:
a) application-entity;
b) application process.
3.2 Directory Model definitions
The following terms are defined in Rec. ITU-T X.501 | ISO/IEC 9594-2:
a) attribute;
b) attribute type;
c) Directory information tree (DIT);
d) Directory system agent (DSA);
e) attribute set;
f) entry;
g) name;
h) object class;
i) subclass;
j) name form;
k) structure rule.
4 Conventions

The term "Directory Specification" (as in "this Directory Specification") shall be taken to mean Rec. ITU-T X.521 |

ISO/IEC 9594-7. The term "Directory Specifications" shall be taken to mean the Rec. ITU-T X.500 | ISO/IEC 9594-1,

Rec. ITU-T X.501 | ISO/IEC 9594-2, Rec. ITU-T X.511 | ISO/IEC 9594-3, Rec. ITU-T X.518 | ISO/IEC 9594-4,

Rec. ITU-T X.519 | ISO/IEC 9594-5, Rec. ITU-T X.520 | ISO/IEC 9594-6, Rec. ITU-T X.521 | ISO/IEC 9594-7 and

Rec. ITU-T X.525 | ISO/IEC 9594-9.

If an International Standard or ITU-T Recommendation is referenced within normal text without an indication of the

edition, the edition shall be taken to be the latest one as specified in the normative references clause.

This Directory Specification makes extensive use of Abstract Syntax Notation One (ASN.1) for the formal specification

of data types and values, as it is specified in Rec. ITU-T X.680 | ISO/IEC 8824-1, ITU-T X.681 | ISO/IEC 8824-2, ITU-T

X.682 | ISO/IEC 8824-3, ITU-T X.683 | ISO/IEC 8824-4 and Rec. ITU-T X.690 | ISO/IEC 8825-1.

This Directory Specification presents ASN.1 notation in the bold Courier New typeface. When ASN.1 types and values

are referenced in normal text, they are differentiated from normal text by presenting them in the bold Courier New

typeface. The names of procedures, typically referenced when specifying the semantics of processing, are differentiated

© ISO/IEC 2020 – All rights reserved
2 Rec. ITU-T X.521 (10/2019)
---------------------- Page: 8 ----------------------
ISO/IEC 9594-7:2020 (E)

from normal text by displaying them in bold Times New Roman. Access control permissions are presented in italicized

Times New Roman.

Object classes and name forms are defined in this Directory Specification as values of the OBJECT-CLASS and

NAME-FORM information object classes defined in Rec. ITU-T X.501 | ISO/IEC 9594-2.

© ISO/IEC 2020 – All rights reserved
Rec. ITU-T X.521 (10/2019) 3
---------------------- Page: 9 ----------------------
ISO/IEC 9594-7:2020 (E)
SECTION 2 – SELECTED OBJECT CLASSES
5 Definition of useful attribute sets
5.1 Telecommunication attribute set

This set of attributes is used to define those which are commonly used for business communications.

TelecommunicationAttributeSet ATTRIBUTE ::=
{facsimileTelephoneNumber |
internationalISDNNumber |
telephoneNumber |
-- teletexTerminalIdentifier (Attribute type has been deleted)
-- teletexTerminalIdentifier | Attribute type has been deleted
telexNumber |
preferredDeliveryMethod |
destinationIndicator |
registeredAddress |
x121Address}
5.2 Postal attribute set

This set of attributes is used to define those which are directly associated with postal delivery.

PostalAttributeSet ATTRIBUTE ::=
{physicalDeliveryOfficeName |
postalAddress |
postalCode |
postOfficeBox |
streetAddress}
5.3 Locale attribute set

This set of attributes is used to define those which are commonly used for search purposes to indicate the locale of an

object.
LocaleAttributeSet ATTRIBUTE ::=
{localityName |
stateOrProvinceName |
streetAddress}
© ISO/IEC 2020 – All rights reserved
4 Rec. ITU-T X.521 (10/2019)
---------------------- Page: 10 ----------------------
ISO/IEC 9594-7:2020 (E)
5.4 Organizational attribute set

This set of attributes is used to define the attributes that an organization or organizational unit may typically possess.

OrganizationalAttributeSet ATTRIBUTE ::=
{description |
LocaleAttributeSet |
PostalAttributeSet |
TelecommunicationAttributeSet |
businessCategory |
seeAlso |
searchGuide |
userPassword}
6 Definition of selected object classes
6.1 Country
The345u country object class is used to define country entries in the DIT.
country OBJECT-CLASS ::= {
SUBCLASS OF {top}
MUST CONTAIN {countryName}
MAY CONTAIN {description |
searchGuide}
LDAP-NAME {"country"}
ID id-oc-country }
6.2 Locality
The locality object class is used to define locality in the DIT.
locality OBJECT-CLASS ::= {
SUBCLASS OF {top}
MAY CONTAIN {description |
searchGuide |
LocaleAttributeSet |
seeAlso}
LDAP-NAME {"locality"}
ID id-oc-locality }
At least one of Locality Name or State or Province Name shall be present.
6.3 Organization
The organization object class is used to define organization entries in the DIT.
organization OBJECT-CLASS ::= {
SUBCLASS OF {top}
MUST CONTAIN {organizationName}
MAY CONTAIN {OrganizationalAttributeSet}
LDAP-NAME {"organization"}
ID id-oc-organization }
6.4 Organizational Unit

The organizationalUnit object class is used to define entries representing subdivisions of organizations.

organizationalUnit OBJECT-CLASS ::= {
SUBCLASS OF {top}
MUST CONTAIN {organizationalUnitName}
MAY CONTAIN {OrganizationalAttributeSet}
LDAP-NAME {"organizationalUnit"}
ID id-oc-organizationalUnit }
© ISO/IEC 2020 – All rights reserved
Rec. ITU-T X.521 (10/2019) 5
---
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
