INTERNATIONAL ISO/IEC
STANDARD 24713-2
First edition
2008-06-01
Information technology — Biometric
profiles for interoperability and data
interchange —
Part 2:
Physical access control for employees
at airports
Technologies de l'information — Profils biométriques pour
interopérabilité et échange de données —
Partie 2: Contrôle d'accès physique pour les employés aux aéroports
Reference number
ISO/IEC 24713-2:2008(E)
©
ISO/IEC 2008
---------------------- Page: 1 ----------------------
ISO/IEC 24713-2:2008(E)

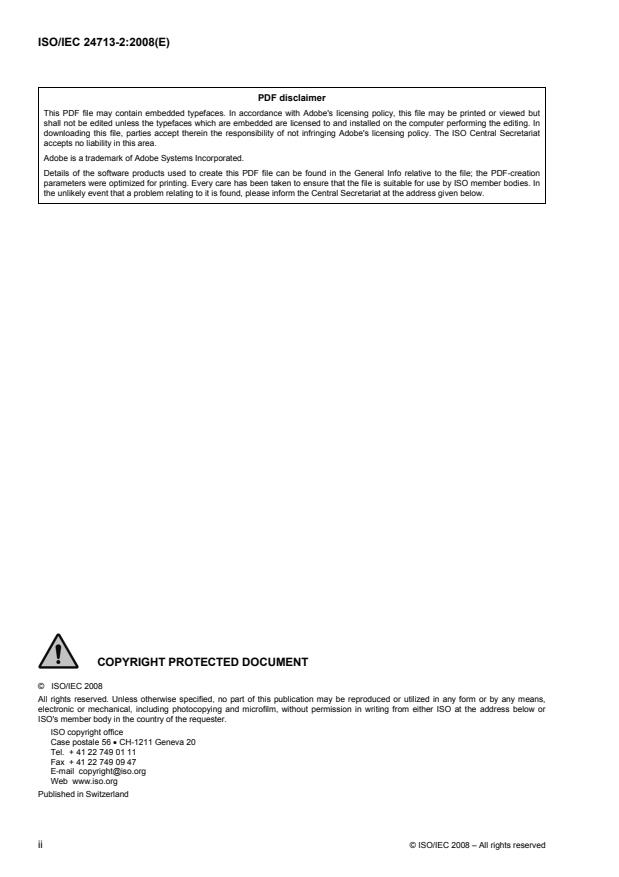

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2008
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2008 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 24713-2:2008(E)
Contents Page
Foreword. v
Introduction . vi
1 Scope. 1
2 Conformance. 1
3 Normative references. 2
4 Terms and definitions. 3
5 Environment. 6
5.1 Employees in the targeted environment . 6
5.2 Architecture. 6
5.3 Token. 6
5.4 Token management system. 7
5.5 Command and control system . 7
5.6 Command and control administration system . 8
5.7 Infrastructure system . 8
6 Process. 8
6.1 General. 8
6.2 Proofing. 8
6.3 Registration. 8
6.4 Issuance. 9
6.5 Activation to a local access control system . 9
6.6 Usage. 9
7 Security Considerations . 10
Annex A (normative) Requirements List. 12
A.1 General. 12
A.2 Relationship between RL and corresponding ICS proformas . 12
A.3 Profile Specific Implementation Conformance Statement . 13
A.4 Instruction for completing the ICS proforma. 13
A.4.1 General structure of the ICS proforma . 13
A.4.2 Additional Information. 13
A.4.3 Exception Information. 13
A.5 ICS proforma . 14
A.6 Interchange Formats . 15
A.6.1 Finger Image Data (ISO/IEC 19794-4:2005) . 15
A.6.2 Finger Minutiae Data (ISO/IEC 19794-2:2005) . 16
A.6.3 Finger Pattern Spectral Data (ISO/IEC 19794-3:2006) . 19
A.6.4 Face Image Data (ISO/IEC19794-5:2005) . 21
A.6.5 Iris Image Data (ISO/IEC 19794-6:2005) . 24
A.6.6 Signature/Sign Time Series Data (ISO/IEC 19794-7:2007) . 25
A.6.7 Finger Pattern Skeletal Data (ISO/IEC 19794-8:2006).27
A.6.8 Vascular Image Data (ISO/IEC 19794-9:2007) . 31
A.6.9 Hand Geometry Silhouette Data (ISO/IEC 19794-10:2007). 33
A.7 Technical Interface Standards. 34
A.7.1 BioAPI (ISO/IEC 19784-1:2006) . 34
A.7.2 CBEFF (ISO/IEC 19785-1:2006). 39
Annex B (informative) Additional information. 41
© ISO/IEC 2008 – All rights reserved iii
---------------------- Page: 3 ----------------------

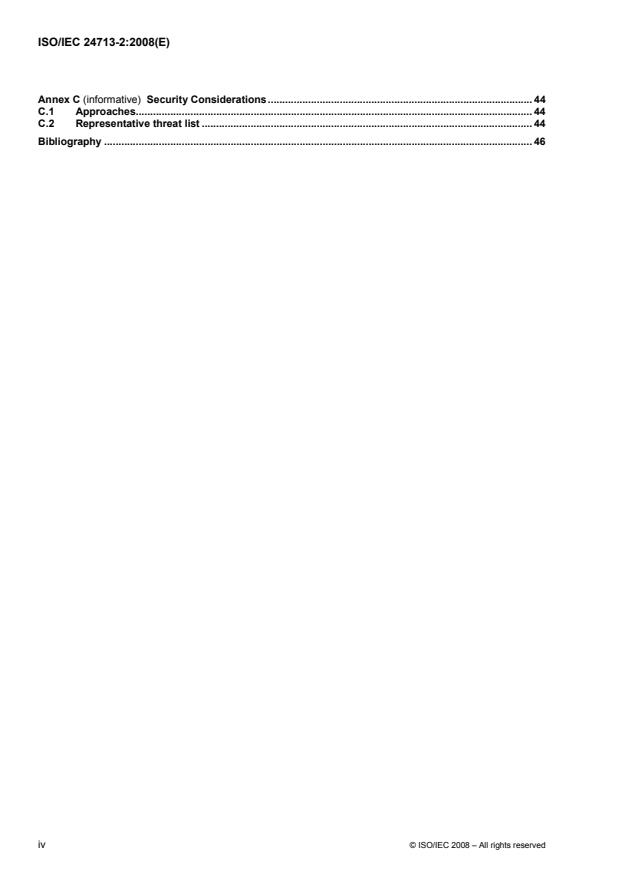

ISO/IEC 24713-2:2008(E)
Annex C (informative) Security Considerations . 44
C.1 Approaches. 44
C.2 Representative threat list . 44
Bibliography . 46
iv © ISO/IEC 2008 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 24713-2:2008(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 24713-2 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 37, Biometrics.
ISO/IEC 24713 consists of the following parts, under the general title Information technology — Biometric
profiles for interoperability and data interchange:
⎯ Part 1: Overview of biometric systems and biometric profiles
⎯ Part 2: Physical access control for employees at airports
⎯ Part 3: Biometrics-based verification and identification of seafarers
© ISO/IEC 2008 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/IEC 24713-2:2008(E)
Introduction
This part of ISO/IEC 24713 is one of a family of International Standards being developed by ISO/IEC
1)
JTC 1/SC 37 that support interoperability and data interchange among biometrics applications and systems.
This family of standards specifies requirements that solve the complexities of applying biometrics to a wide
variety of personal recognition applications, whether such applications operate in an open systems
environment or consist of a single, closed system.
Biometric data interchange format standards and biometric interface standards are both necessary to achieve
full data interchange and interoperability for biometric recognition in an open systems environment. The
ISO/IEC JTC 1/SC 37 biometric standards family includes a layered set of standards consisting of biometric
data interchange formats and biometric interfaces, as well as biometric profiles that describe the use of these
standards in specific application areas.
⎯ The biometric data interchange format standards specify biometric data interchange records for different
biometric modalities. Parties that agree in advance to exchange biometric data interchange records as
specified in a subset of the ISO/IEC JTC 1/SC 37 biometric data interchange format standards should be
able to perform biometric recognition with each other’s data. Parties should also be able to perform
biometric recognition even without advance agreement on the specific biometric data interchange format
standards to be used, provided they have built their systems on the layered ISO/IEC JTC 1/SC 37 family
of biometric standards.
⎯ The biometric interface standards include ISO/IEC 19785, the Common Biometric Exchange Formats
Framework (CBEFF) and ISO/IEC 19784, the Biometric Application Programming Interface (BioAPI).
These standards support exchange of biometric data within a system or among systems. ISO/IEC 19785
specifies the basic structure of a standardized Biometric Information Record (BIR) which includes the
biometric data interchange record with added metadata, such as when it was captured, its expiry date,
whether it is encrypted, etc. ISO/IEC 19784 specifies an open system API that supports communications
between software applications and underlying biometric technology services. BioAPI also specifies a
CBEFF BIR format for the storage and transmission of BioAPI-produced data.
The biometric profile standards facilitate implementations of the base standards (e.g. the ISO/IEC
JTC 1/SC 37 biometric data interchange format and biometric interface standards, and possibly non-biometric
standards) for defined applications. These profile standards define the functions of an application
(e.g. physical access control for employees at airports) and then specify use of options in the base standards
to ensure biometric interoperability.
1) Open systems are built on standards-based, publicly defined data formats, interfaces, and protocols to facilitate data
interchange and interoperability with other systems, which may include components of different design or manufacture. A
closed system may also be built on publicly defined standards, and may include components of different design or
manufacture, but inherently has no requirement for data interchange and interoperability with any other system.
vi © ISO/IEC 2008 – All rights reserved
---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO/IEC 24713-2:2008(E)
Information technology — Biometric profiles for interoperability
and data interchange —
Part 2:
Physical access control for employees at airports
1 Scope
This part of ISO/IEC 24713 specifies the biometric profile including necessary parameters and interfaces
between function modules (i.e. BioAPI based modules and an external interface) in support of token-based
biometric identification and verification of employees, at local access points (i.e. doors or other controlled
entrances) and across local boundaries within the defined area of control in an airport. The token is expected
to contain one or more biometric references.
This part of ISO/IEC 24713 does not specify a complete Access Control System for deployment at access
points within the secure area of an airport. It is assumed that such systems exist and that a biometric
component that is the subject of this part of ISO/IEC 24713 is being added to an existing system. It therefore
excludes such things as device features, and exception and incident reporting and handling. This information
is contained in Annex C for information only.
This part of ISO/IEC 24713 includes recommended practices for enrolment, watch list checking, duplicate
issuance prevention, and verification of the identity of employees at airports. It also describes architectures
and business processes appropriate to the support of token-based identity management in the secure
environment of an airport.
It is recommended that the confidentiality, integrity, and availability of biometric data be safeguarded in
accordance with local, regional, or national policy considerations.
This part of ISO/IEC 24713 does not preclude users building applications based on this part of ISO/IEC 24713
from being able to meet such privacy/data protection requirements as may apply to their application. The
specification of privacy/data protection requirements that may apply is outside the scope of this part of
ISO/IEC 24713.
2 Conformance
A system conforms to this part of ISO/IEC 24713 if it correctly performs all the mandatory capabilities defined
in the requirements list and supplies the profile specific Implementation Conformance Statement (ICS) in
Annex A. Note that more capabilities may be required than in the base standards.
© ISO/IEC 2008 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/IEC 24713-2:2008(E)
3 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC 19784-1:2006, Information technology — Biometric application programming interface — Part 1:
BioAPI specification
ISO/IEC 19785-1:2006, Information technology — Common Biometric Exchange Formats Framework —
Part 1: Data element specification
ISO/IEC 19785-3:2007, Information technology — Common Biometric Exchange Formats Framework —
Part 3: Patron format specifications
ISO/IEC 19794-2:2005, Information technology — Biometric data interchange formats — Part 2: Finger
minutiae data
ISO/IEC 19794-3:2006, Information technology — Biometric data interchange formats — Part 3: Finger
pattern spectral data
ISO/IEC 19794-4:2005, Information technology — Biometric data interchange formats — Part 4: Finger image
data
ISO/IEC 19794-5:2005, Information technology — Biometric data interchange formats — Part 5: Face image
data
ISO/IEC 19794-6:2005, Information technology — Biometric data interchange formats — Part 6: Iris image
data
ISO/IEC 19794-7:2007, Information technology — Biometric data interchange formats — Part 7:
Signature/sign time series data
ISO/IEC 19794-8:2006, Information technology — Biometric data interchange formats — Part 8: Finger
pattern skeletal data
ISO/IEC 19794-9:2007, Information technology — Biometric data interchange formats — Part 9: Vascular
image data
ISO/IEC 19794-10:2007, Information technology — Biometric data interchange formats — Part 10: Hand
geometry silhouette data
ISO/IEC 19795-1:2006, Information technology — Biometric performance testing and reporting — Part 1:
Principles and framework
ISO/IEC 19795-2;2007, Information technology — Biometric performance testing and reporting — Part 2:
Testing methodologies for technology and scenario evaluation
ISO/IEC 24713-1:2008, Information technology — Biometric profiles for interoperability and data interchange —
Part 1: Overview of biometric systems and biometric profiles
2 © ISO/IEC 2008 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/IEC 24713-2:2008(E)
4 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
4.1
application
program or piece of software designed to fulfil a particular purpose
4.2
base standard
standard that is part of a profile and from which options, subsets, and parameter values are selected if these
choices are left open in the standard
4.3
biometric
pertaining to biometrics
4.4
biometrics
automated recognition of individuals based on their behavioural and biological characteristics
4.5
biometric characteristic
measurable, physical characteristic or personal behavioural trait used to recognize the identity, or verify the
claimed identity, of an enrolee
4.6
biometric feature
concise representation of information extracted from an acquired or intermediate biometric sample by applying
a mathematical transformation
4.7
biometric profile
conforming subsets or combinations of base standards used to provide specific functions
NOTE Biometric profiles identify the use of particular options available in base standards, and provide a basis for the
interchange of data between applications and interoperability of systems.
4.8
biometric reference
one or more stored biometric samples, biometric templates or biometric models attributed to an individual and
used for comparison
4.9
biometric sample
raw data representing a biometric characteristic of an end-user as captured by a biometric system (for
example, the image of a fingerprint)
4.10
biometric system
automated system capable of:
⎯ capturing a biometric sample from an end-user;
⎯ extracting biometric data from that sample;
⎯ comparing the biometric data with that contained in one or more reference templates;
⎯ deciding how well they match, and indicating whether or not an identification or verification of identity has
been achieved
© ISO/IEC 2008 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/IEC 24713-2:2008(E)
4.11
biometric template
data that represents the biometric measurement of an enrolee
NOTE Used by a biometric system for comparison against submitted biometric samples.
4.12
capture
method of taking a biometric sample from an end-user
4.13
comparison
process of comparing a biometric sample with a previously stored reference template or templates
cf. identification and verification
4.14
claimant
person submitting a biometric sample for verification or identification whilst claiming a legitimate or false
identity
4.15
database
structured set of data held in a computer
4.16
end-user
person (employee) who interacts with a biometric system to enrol or have his/her identity checked
4.17
enrolee
person who has a biometric reference template on file
4.18
enrolment
process of collecting biometric samples from a person and the subsequent preparation and storage of
biometric reference templates representing that person's identity
4.19
extraction
process of converting a captured biometric sample into biometric data
4.20
false acceptance
〈biometric system〉 incorrect identification of an individual or incorrect verification of an impostor against a
claimed identity
4.21
false acceptance rate
FAR
proportion of verification transactions with wrongful claims of identity that are incorrectly confirmed
NOTE The false acceptance rate is estimated as the proportion of recorded zero-effort impostor transactions that
were incorrectly accepted (or weighted proportion, in case the number of recorded zero-effort impostor transactions is
different for individual crew members).
4.22
false rejection
when a biometric system fails to identify an enrolee or fails to verify the legitimate claimed identity of an
enrolee
4 © ISO/IEC 2008 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/IEC 24713-2:2008(E)
4.23
false rejection rate
FRR
proportion of verification transactions with truthful claims of identity that are incorrectly denied
NOTE The false rejection rate is estimated as the proportion of recorded genuine transactions that were incorrectly
denied (or weighted proportion, in case the number of recorded genuine transactions is different for individual test crew
members).
4.24
identifier
unique data string used as a key in the biometric system to associate a person’s biometric with a person’s
identity attributes
4.25
identification
identify
biometric system function that performs a one-to-many search of a submitted sample against all or part of the
enrolled database, and outputs a candidate list of zero, one or more identifiers for the stored templates found
to be similar to the submitted sample
4.26
match
matching
process of comparing (a) biometric sample(s) against (a) previously stored template(s) and scoring the level of
similarity
4.27
multiple biometric
biometric system that includes more than one biometric modality
4.28
population
set of end-users for the application
4.29
record
template and other information about the end-user
EXAMPLE Access permissions.
4.30
registration
process of making a person’s identity known to a biometric system, associating a unique identifier with that
identity, and collecting and recording the person’s relevant attributes into the system
4.31
token
physical device that contains information specific to the bearer (end-user) or issuer (user)
4.32
transaction
an attempt by an end-user to validate a claim of identity or non-identity by consecutively submitting one or
more samples, as allowed by the system decision policy
4.33
verification
verify
biometric system function that performs a one-to-one comparison of a submitted sample against a specified
stored template, and returns the matching score or matching decision
© ISO/IEC 2008 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO/IEC 24713-2:2008(E)
5 Environment
5.1 Employees in the targeted environment
The physical Access Control deployment requests that groups of employees shall be identified. Employees
are sets of people involved in airport activities with common characteristics.
Employees are targeted by this part of ISO/IEC 24713. Characteristics are:
⎯ individuals that access different restricted areas covered by the airport authorities;
⎯ individuals that have access to the restricted areas only under condition of professional objectives;
⎯ individuals subject to labour regulation.
For example, employees are receptionists, refuelling staff, maintenance staff, carrier, temporal road workers.
Employers maintain contractual links with employees. The contractual links are either employment contract or
commercial contract. Employers are responsible for requesting physical access control for employees to the
airport authorities. Employers shall be in charge of collecting all information requested by the airport
authorities, except biometric information.
For example, employers are the airport company, any sub-contractor companies, or airport authorities.
Airport authority is the unique legal authority in charge of granting access rights to restricted areas. This
shall include enrolment activities. The airport authority is solely responsible for proofing (see ISO/IEC 24713-1,
6.2.1). Registration and issuance (see ISO/IEC 24713-1, 6.2) could be either directly managed by airport
authority or only supervised by airport authority.
Privacy authority is an authority, strictly independent from airport authority, employers and also any
employees lobbying association. Privacy authority is responsible for the supervision of biometric data
protection in respect of the applicable laws or regulation. It should be noted that in some configurations,
privacy officers are employees with a dedicated mission from the privacy authority.
NOTE Privacy/data protection requirements are outside the scope of this part of ISO/IEC 24713. However, in some
jurisdictions a privacy authority may be put in place, dependent on local laws and regulations.
5.2 Architecture
The architecture of this specific employee profile can be broken down into four subsystems. The first is the
token, which is the physical component, used by the individual worker to gain physical access to secure areas
of the place of employment. The specification of the token is outside the scope of this part of ISO/IEC 24713.
The second is a Token Management System (TMS) to manage the inventory, distribution, and revocation of
the token. The third is the Command and Control System, which is the central database and security umbrella
for the employee system. The fourth is the Command and Control Administration System, which is used for
the administration of the operations. The infrastructure system to support the application binds the four
elements above.
NOTE There may be other architectures with a different structure of subsystems, i.e. one where the token contains
the biometric reference data and/or performs the verification (see ISO/IEC 7816-11).
5.3 Token
The token is the physical component that, in the possession of the Employee, shall provide authorized
physical access within the airport restricted area. The token may also support multiple memory technologies
including integrated circuit chip (ICC) memory, magnetic stripe, optical stripe and barcodes, as well as
processing capabilities as provided within an ICC microprocessor. The token shall contain a unique token ID
number. The biometric reference is typically stored in the token.
6 © ISO/IEC 2008 – All rights reserved
---------------------- Page: 12 ----------------------
ISO/IEC 24713-2:2008(E)
Depending on the command and control system design, the token is an element of security containing a
biometric. Appropriate security evaluation of the token shall be considered. Security requirements for the
token are out of the scope of this part of ISO/IEC 24713.
5.4 Token management system
The Token Management System is a system that handles the shipping, storage, printing, personalization,
loading, processing, and revoking of t
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
