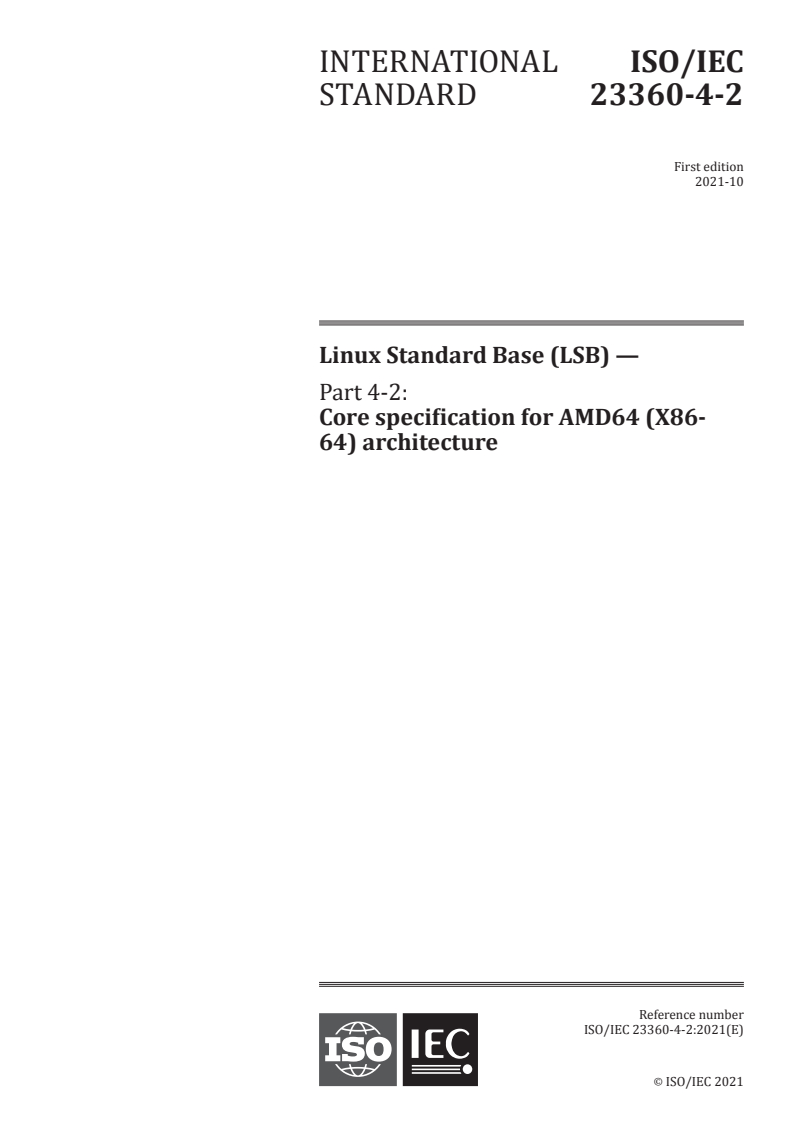

INTERNATIONAL ISO/IEC
STANDARD 23360-4-2
First edition
2021-10
Linux Standard Base (LSB) —
Part 4-2:
Core specification for AMD64 (X86-
64) architecture
Reference number
©
ISO/IEC 2021
© ISO/IEC 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2021 – All rights reserved

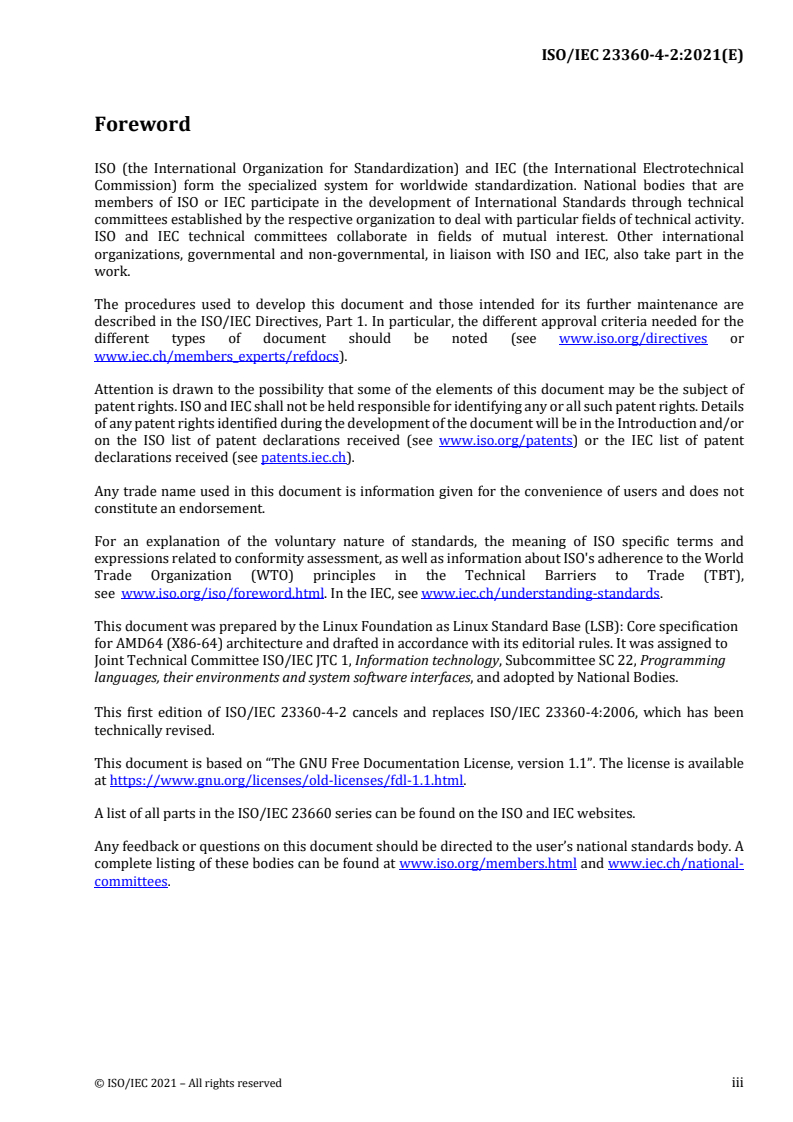

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical activity.
ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of document should be noted (see www.iso.org/directives or
www.iec.ch/members_experts/refdocs).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights. Details
of any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents) or the IEC list of patent
declarations received (see patents.iec.ch).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the World
Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT),
see www.iso.org/iso/foreword.html. In the IEC, see www.iec.ch/understanding-standards.
This document was prepared by the Linux Foundation as Linux Standard Base (LSB): Core specification
for AMD64 (X86-64) architecture and drafted in accordance with its editorial rules. It was assigned to
Joint Technical Committee ISO/IEC JTC 1, Information technology, Subcommittee SC 22, Programming
languages, their environments and system software interfaces, and adopted by National Bodies.
This first edition of ISO/IEC 23360-4-2 cancels and replaces ISO/IEC 23360-4:2006, which has been
technically revised.
This document is based on “The GNU Free Documentation License, version 1.1”. The license is available
at https://www.gnu.org/licenses/old-licenses/fdl-1.1.html.
A list of all parts in the ISO/IEC 23660 series can be found on the ISO and IEC websites.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html and www.iec.ch/national-
committees.
© ISO/IEC 2021 – All rights reserved iii

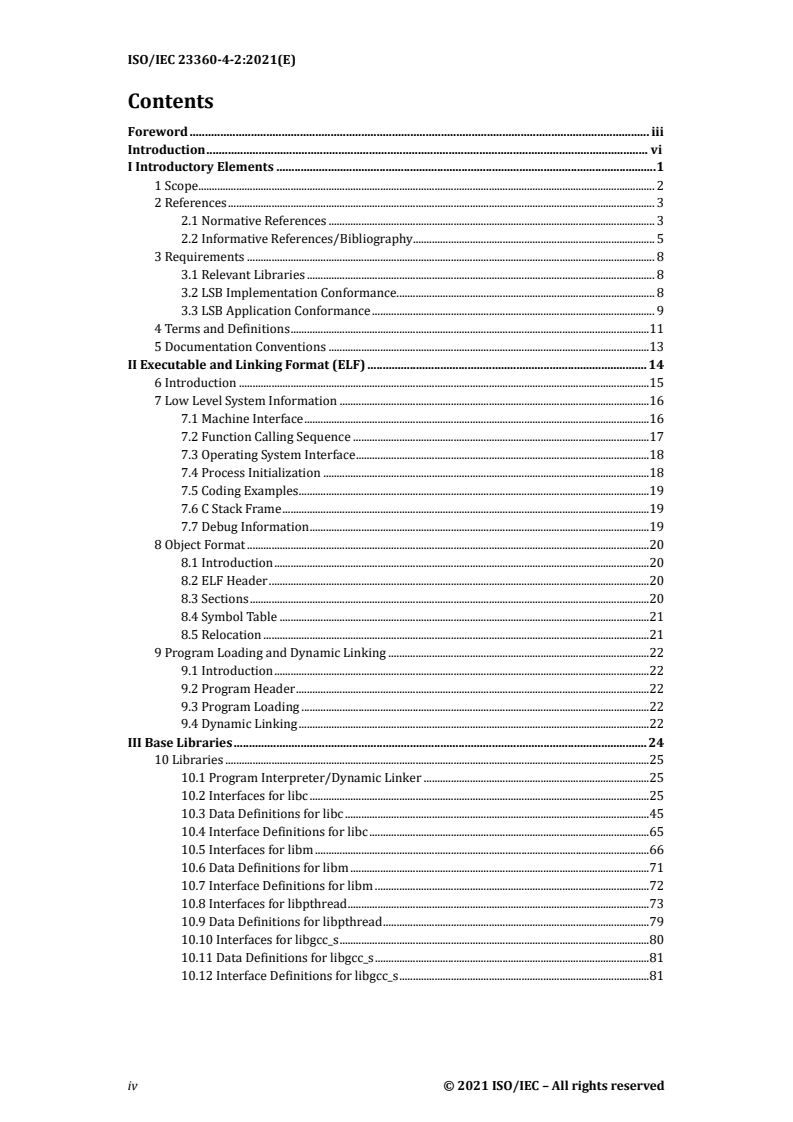

Contents
Foreword . iii
Introduction . vi
I Introductory Elements . 1
1 Scope. 2
2 References . 3
2.1 Normative References . 3
2.2 Informative References/Bibliography. 5
3 Requirements . 8
3.1 Relevant Libraries . 8
3.2 LSB Implementation Conformance. 8
3.3 LSB Application Conformance . 9
4 Terms and Definitions . 11
5 Documentation Conventions . 13
II Executable and Linking Format (ELF) . 14
6 Introduction . 15
7 Low Level System Information . 16
7.1 Machine Interface . 16
7.2 Function Calling Sequence . 17
7.3 Operating System Interface . 18
7.4 Process Initialization . 18
7.5 Coding Examples. 19
7.6 C Stack Frame . 19
7.7 Debug Information . 19
8 Object Format . 20
8.1 Introduction . 20
8.2 ELF Header . 20
8.3 Sections . 20
8.4 Symbol Table . 21
8.5 Relocation . 21
9 Program Loading and Dynamic Linking . 22
9.1 Introduction . 22
9.2 Program Header . 22
9.3 Program Loading . 22
9.4 Dynamic Linking . 22
III Base Libraries . 24
10 Libraries . 25
10.1 Program Interpreter/Dynamic Linker . 25
10.2 Interfaces for libc . 25
10.3 Data Definitions for libc . 45
10.4 Interface Definitions for libc . 65
10.5 Interfaces for libm . 66
10.6 Data Definitions for libm . 71
10.7 Interface Definitions for libm . 72
10.8 Interfaces for libpthread . 73
10.9 Data Definitions for libpthread . 79
10.10 Interfaces for libgcc_s . 80
10.11 Data Definitions for libgcc_s . 81
10.12 Interface Definitions for libgcc_s . 81
iv © 2021 ISO/IEC – All rights reserved
10.13 Interfaces for libdl . 82
10.14 Data Definitions for libdl. 83
10.15 Interfaces for libcrypt . 83
10.16 Data Definitions for libcrypt. 84
IV Utility Libraries . 85
11 Libraries . 86
11.1 Interfaces for libz . 86
11.2 Data Definitions for libz . 86
11.3 Interfaces for libncurses . 87
11.4 Data Definitions for libncurses . 87
11.5 Interfaces for libncursesw . 87
11.6 Data Definitions for libncursesw . 88
11.7 Interfaces for libutil . 88
V Base Libraries . 90
12 Libraries . 91
12.1 Interfaces for libstdcxx . 91
12.2 Interface Definitions for libstdcxx . 202
VI Package Format and Installation . 203
13 Software Installation. 204
13.1 Package Dependencies . 204
13.2 Package Architecture Considerations . 204
Annex A Alphabetical Listing of Interfaces by Library . 205
A.1 libc . 205
A.2 libcrypt . 220
A.3 libdl . 220
A.4 libgcc_s . 221
A.5 libm . 221
A.6 libpthread . 226
A.7 librt . 229
A.8 libutil . 230
© 2021 ISO/IEC – All rights reserved v
Introduction
The LSB defines a binary interface for application programs that are compiled
and packaged for LSB-conforming implementations on many different hardware
architectures. A binary specification must include information specific to the
computer processor architecture for which it is intended. To avoid the complexity
of conditional descriptions, the specification has instead been divided into
generic parts which are augmented by one of several architecture-specific parts,
depending on the target processor architecture; the generic part will indicate
when reference must be made to the architecture part, and vice versa.
This document should be used in conjunction with the documents it references.
This document enumerates the system components it includes, but descriptions
of those components may be included entirely or partly in this document, partly
in other documents, or entirely in other reference documents. For example, the
section that describes system service routines includes a list of the system
routines supported in this interface, formal declarations of the data structures
they use that are visible to applications, and a pointer to the underlying
referenced specification for information about the syntax and semantics of each
call. Only those routines not described in standards referenced by this document,
or extensions to those standards, are described in the detail. Information
referenced in this way is as much a part of this document as is the information
explicitly included here.
The specification carries a version number of either the form x.y or x.y.z. This
version number carries the following meaning:
1. The first number (x) is the major version number. Versions sharing the same
major version number shall be compatible in a backwards direction; that is,
a newer version shall be compatible with an older version. Any deletion of
a library results in a new major version number. Interfaces marked as
deprecated may be removed from the specification at a major version
change.
2. The second number (y) is the minor version number. Libraries and
individual interfaces may be added, but not removed. Interfaces may be
marked as deprecated at a minor version change. Other minor changes may
be permitted at the discretion of the LSB workgroup.
3. The third number (z), if present, is the editorial level. Only editorial changes
should be included in such versions.
Since this specification is a descriptive Application Binary Interface, and not a
source level API specification, it is not possible to make a guarantee of 100%
backward compatibility between major releases. However, it is the intent that
those parts of the binary interface that are visible in the source level API will
remain backward compatible from version to version, except where a feature
marked as "Deprecated" in one release may be removed from a future release.
Implementors are strongly encouraged to make use of symbol versioning to
permit simultaneous support of applications conforming to different releases of
this specification.
LSB is a trademark of the Linux Foundation. Developers of applications or
implementations interested in using the trademark should see the Linux
Foundation Certification Policy for details.
vi © 2021 ISO/IEC – All rights reserved
I Introductory Elements
© 2021 ISO/IEC – All rights reserved 1
1 Scope
The Linux Standard Base (LSB) defines a system interface for compiled
applications and a minimal environment for support of installation scripts. Its
purpose is to enable a uniform industry standard environment for high-volume
applications conforming to the LSB.
These specifications are composed of two basic parts: a common part describing
those parts of the interface that remain constant across all implementations of the
LSB, and an architecture-specific part describing the parts of the interface that
vary by processor architecture. Together, the common part and the relevant
architecture-specific part for a single hardware architecture provide a complete
interface specification for compiled application programs on systems that share
a common hardware architecture.
The LSB contains both a set of Application Program Interfaces (APIs) and
Application Binary Interfaces (ABIs). APIs may appear in the source code of
portable applications, while the compiled binary of that application may use the
larger set of ABIs. A conforming implementation provides all of the ABIs listed
here. The compilation system may replace (e.g. by macro definition) certain APIs
with calls to one or more of the underlying binary interfaces, and may insert calls
to binary interfaces as needed.
The LSB is primarily a binary interface definition. Not all of the source level APIs
available to applications may be contained in this specification.
This is the X86-64 architecture specific part of the Core module of the Linux
Standard Base (LSB). This part supplements the common part of the LSB Core
module with those interfaces that differ between architectures.
This part should be used in conjunction with LSB Core - Generic, the common
part. Whenever a section of the common part is supplemented by architecture-
specific information, the common part includes a reference to the architecture-
specific part. This part may also contain additional information that is not
referenced in the common part.
Interfaces described in this part of the LSB Core Specification are mandatory
except where explicitly listed otherwise. Interfaces described in the LSB Core
module are supplemented by other LSB modules. All other modules depend on
the presence of LSB Core.
2 © 2021 ISO/IEC – All rights reserved
2 References
2.1 Normative References
The following specifications are incorporated by reference into this specification.
For dated references, only the edition cited applies. For undated references, the
latest edition of the referenced specification (including any amendments) applies.
Note: Where copies of a referenced specification are available on the World Wide
Web, a Uniform Resource Locator (URL) is given, for informative purposes only.
Such URL might at any given time resolve to a more recent copy of the specification,
or be out of date (not resolve). Reference copies of specifications at the revision level
indicated may be found at the Linux Foundation's Reference Specifications
(http://refspecs.linuxbase.org) site.
Table 2-1 Normative References
Name Title URL
LSB Core - Generic Linux Standard Base - http://www.linuxbase.
Core Specification - org/spec/
Generic
AMD64 Architecture AMD64 Architecture http://www.amd.com
Programmer's Manual, Programmer's Manual, /us-
Volume 1 Volume 1: Application en/Processors/Develop
Programming 24592 WithAMD/
3.08
AMD64 Architecture AMD64 Architecture http://www.amd.com
Programmer's Manual, Programmer's Manual, /us-
Volume 2 Volume 2: System en/Processors/Develop
Programming 24593 WithAMD/
3.08
AMD64 Architecture AMD64 Architecture http://www.amd.com
Programmer's Manual, Programmer's Manual, /us-
Volume 3 Volume 3: General en/Processors/Develop
Purpose and System WithAMD/
Instructions 24594 3.03
AMD64 Architecture AMD64 Architecture http://www.amd.com
Programmer's Manual, Programmer's Manual, /us-
Volume 4 Volume 4: 128-bit en/Processors/Develop
Media Instructions WithAMD/
26568 3.04
AMD64 Architecture AMD64 Architecture http://www.amd.com
Programmer's Manual, Programmer's Manual, /us-
Volume 5 Volume 5: 64-bit Media en/Processors/Develop
and x87 Floating-Point WithAMD/
Instructions 26569 3.03
Filesystem Hierarchy Filesystem Hierarchy http://refspecs.linuxba
Standard Standard (FHS) 3.0 se.org/fhs
ISO C (1999) ISO/IEC 9899:1999 -
Programming
Languages -- C
© 2021 ISO/IEC – All rights reserved 3
Name Title URL
ISO/IEC 14882: 2003 ISO/IEC 14882: 2003
C++ Language Programming
languages --C++
Itanium™ C++ ABI Itanium™ C++ ABI http://refspecs.linuxfo
(Revision 1.86) undation.org/cxxabi-
1.86.html
Large File Support Large File Support http://www.UNIX-
systems.org/version2/
whatsnew/lfs20mar.ht
ml
Libncursesw API Libncursesw API http://invisible-
island.net/ncurses/ma
n/ncurses.3x.html
Libncursesw Libncursesw http://refspecs.linux-
Placeholder Specification foundation.org/libncur
Placeholder sesw/libncurses.html
POSIX 1003.1-2001 http://www.unix.org/
ISO/IEC 9945-1:2003
(ISO/IEC 9945-2003) version3/
Information technology
-- Portable Operating
System Interface
(POSIX) -- Part 1: Base
Definitions
ISO/IEC 9945-2:2003
Information technology
-- Portable Operating
System Interface
(POSIX) -- Part 2:
System Interfaces
ISO/IEC 9945-3:2003
Information technology
-- Portable Operating
System Interface
(POSIX) -- Part 3: Shell
and Utilities
ISO/IEC 9945-4:2003
Information technology
-- Portable Operating
System Interface
(POSIX) -- Part 4:
Rationale
Including Technical
Cor. 1: 2004
POSIX 1003.1-2008 Portable Operating http://www.unix.org/
(ISO/IEC 9945-2009) System Interface version4/
(POSIX®) 2008 Edition
/ The Open Group
Technical Standard
4 © 2021 ISO/IEC – All rights reserved
Name Title URL
Base Specifications,
Issue 7
CAE Specification, http://www.opengrou
SUSv2
January 1997, System p.org/publications/cat
Interfaces and Headers alog/un.htm
(XSH),Issue 5 (ISBN: 1-
85912-181-0, C606)
SVID Issue 3 American Telephone
and Telegraph
Company, System V
Interface Definition,
Issue 3; Morristown, NJ,
UNIX Press, 1989.
(ISBN 0201566524)
SVID Issue 4 System V Interface http://refspecs.linuxfo
Definition, Fourth undation.org/svid4/
Edition
System V ABI System V Application http://www.sco.com/
Binary Interface, developers/devspecs/g
Edition 4.1 abi41.pdf
System V ABI Update System V Application http://www.sco.com/
Binary Interface - developers/gabi/2003-
DRAFT - 17 December 12-17/contents.html
System V Application System V Application http://refspecs.linux-
Binary Interface Binary Interface foundation.org/elf/x86
AMD64 Architecture AMD64 Architecture _64-abi-0.95.pdf
Processor Supplement Processor Supplement,
Draft Version 0.95
X/Open Curses, Issue 7 X/Open Curses, Issue 7 https://www2.opengro
(ISBN: 1-931624-83-6, up.org/ogsys/catalog/
The Open Group, C094
November 2009)
2.2 Informative References/Bibliography
The documents listed below provide essential background information to
implementors of this specification. These references are included for information
only, and do not represent normative parts of this specification.
Table 2-2 Other References
Name Title URL
DWARF Debugging DWARF Debugging http://www.dwarfstd.
Information Format, Information Format, org/doc/DWARF4.pdf
Version 4 Version 4 (June 10,
2010)
© 2021 ISO/IEC – All rights reserved 5
Name Title URL
IEC 60559/IEEE 754 IEC 60559:1989 Binary http://www.ieee.org/
Floating Point floating-point
arithmetic for
microprocessor systems
ISO/IEC TR14652 ISO/IEC Technical
Report 14652:2002
Specification method
for cultural conventions
ITU-T V.42 International http://www.itu.int/rec
Telecommunication /recommendation.asp?t
Union ype=folders&lang=e&p
Recommendation V.42 arent=T-REC-V.42
(2002): Error-correcting
procedures for DCEs
using asynchronous-to-
synchronous
conversionITUV
Li18nux Globalization LI18NUX 2000 http://www.openi18n.
Specification Globalization org/docs/html/LI18N
Specification, Version UX-2000-amd4.htm
1.0 with Amendment 4
Linux Allocated Device LINUX ALLOCATED http://www.lanana.or
Registry DEVICES g/docs/device-
list/devices-2.6+.txt
Linux Assigned Names Linux Assigned Names http://www.lanana.or
And Numbers And Numbers g/
Authority Authority
Mozilla's NSS SSL Mozilla's NSS SSL http://www.mozilla.or
Reference Reference g/projects/security/pk
i/nss/ref/ssl/
Mozilla's NSPR http://refspecs.linuxfo
NSPR Reference
Reference undation.org/NSPR_A
PI_Reference/NSPR_A
PI.html
PAM Open Software http://www.opengrou
Foundation, Request p.org/tech/rfc/mirror-
For Comments: 86.0 , rfc/rfc86.0.txt
October 1995, V. Samar
& R.Schemers (SunSoft)
RFC 1321: The MD5 IETF RFC 1321: The http://www.ietf.org/rf
Message-Digest MD5 Message-Digest c/rfc1321.txt
Algorithm Algorithm
RFC 1833: Binding IETF RFC 1833: Binding http://www.ietf.org/rf
Protocols for ONC RPC Protocols for ONC RPC c/rfc1833.txt
Version 2 Version 2
6 © 2021 ISO/IEC – All rights reserved
Name Title URL
RFC 1950: ZLIB IETF RFC 1950: ZLIB http://www.ietf.org/rf
Compressed Data Compressed Data c/rfc1950.txt
Format Specication Format Specification
RFC 1951: DEFLATE IETF RFC 1951: http://www.ietf.org/rf
Compressed Data DEFLATE Compressed c/rfc1951.txt
Format Specification Data Format
Specification version 1.3
RFC 1952: GZIP File IETF RFC 1952: GZIP http://www.ietf.org/rf
Format Specification file format specification c/rfc1952.txt
version 4.3
RFC 2440: OpenPGP IETF RFC 2440: http://www.ietf.org/rf
Message Format OpenPGP Message c/rfc2440.txt
Format
RFC 2821:Simple Mail IETF RFC 2821: Simple http://www.ietf.org/rf
Transfer Protocol Mail Transfer Protocol c/rfc2821.txt
RFC 2822:Internet IETF RFC 2822: Internet http://www.ietf.org/rf
Message Format Message Format c/rfc2822.txt
RFC 5531/4506 RPC & IETF RFC 5531 & 4506 http://www.ietf.org/
XDR
RFC 791:Internet IETF RFC 791: Internet http://www.ietf.org/rf
Protocol Protocol Specification c/rfc791.txt
RPM Package Format RPM Package Format http://www.rpm.org/
V3.0 max-rpm/s1-rpm-file-
format-rpm-file-
format.html
zlib Manual zlib 1.2 Manual http://www.gzip.org/
zlib/
© 2021 ISO/IEC – All rights reserved 7
3 Requirements
3.1 Relevant Libraries
The libraries listed in Table 3-1 shall be available on x86-64 Linux Standard Base
systems, with the specified runtime names. These names override or supplement
the names specified in the generic LSB (LSB Core - Generic) specification. The
specified program interpreter, referred to as proginterp in this table, shall be used
to load the shared libraries specified by DT_NEEDED entries at run time.
Table 3-1 Standard Library Names
Library Runtime Name
libc libc.so.6
libcrypt libcrypt.so.1
libdl libdl.so.2
libgcc_s libgcc_s.so.1
libm libm.so.6
libncurses libncurses.so.5
libncursesw libncursesw.so.5
libpthread libpthread.so.0
libstdcxx libstdc++.so.6
libutil libutil.so.1
libz libz.so.1
proginterp /lib64/ld-lsb-x86-64.so.3
These libraries will be in an implementation-defined directory which the
dynamic linker shall search by default.
3.2 LSB Implementation Conformance
A conforming implementation is necessarily architecture specific, and must
provide the interfaces specified by both the generic LSB Core specification (LSB
Core - Generic) and the relevant architecture specific part of the LSB Core
Specification.
Rationale: An implementation must provide at least the interfaces specified in these
specifications. It may also provide additional interfaces.
A conforming implementation shall satisfy the following requirements:
• A processor architecture represents a family of related processors which may
not have identical feature sets. The architecture specific parts of the LSB Core
Specification that supplement this specification for a given target processor
architecture describe a minimum acceptable processor. The implementation
shall provide all features of this processor, whether in hardware or through
emulation transparent to the application.
8 © 2021 ISO/IEC – All rights reserved
• The implementation shall be capable of executing compiled applications
having the format and using the system interfaces described in this
specification.
• The implementation shall provide libraries containing the interfaces specified
by this specification, and shall provide a dynamic linking mechanism that
allows these interfaces to be attached to applications at runtime. All the
interfaces shall behave as specified in this specification.
• The map of virtual memory provided by the implementation shall conform to
the requirements of this specification.
• The implementation's low-level behavior with respect to function call linkage,
system traps, signals, and other such activities shall conform to the formats
described in this specification.
• The implementation shall provide all of the mandatory interfaces in their
entirety.
• The implementation may provide one or more of the optional interfaces. Each
optional interface that is provided shall be provided in its entirety. The product
documentation shall state which optional interfaces are provided.
• The implementation shall provide all files and utilities specified as part of this
specification in the format defined here and in other documents normatively
included by reference. All commands and utilities shall behave as required by
this specification. The implementation shall also provide all mandatory
components of an application's runtime environment that are included or
referenced in this specification.
• The implementation, when provided with standard data formats and values at
a named interface, shall provide the behavior defined for those values and data
formats at that interface. However, a conforming implementation may consist
of components which are separately packaged and/or sold. For example, a
vendor of a conforming implementation might sell the hardware, operating
system, and windowing system as separately packaged items.
• The implementation may provide additional interfaces with different names.
It may also provide additional behavior corresponding to data values outside
the standard ranges, for standard named interfaces.
3.3 LSB Application Conformance
A conforming application containing object files is necessarily architecture
specific, and must conform to both the generic LSB Core specification (LSB Core
- Generic) and the relevant architecture specific part of the LSB Core Specification.
A conforming application which contains no object files may be architecture
neutral. Architecture neutral applications shall conform only to the requirements
of the generic LSB Core specification (LSB Core - Generic).
A conforming application shall satisfy the following requirements:
• Executable files shall be either object files in the format defined in the Object
Format section of this specification, or script files in a scripting language where
the interpreter is required by this specification.
• Object files shall participate in dynamic linking as defined in the Program
Loading and Linking section of this specification.
• Object files shall employ only the instructions, traps, and other low-level
facilities defined as being for use by applications in the Low-Level System
Information section of this specification
© 2021 ISO/IEC – All rights reserved 9
• If the application requires any optional interface defined in this specification in
order to be installed or to execute successfully, the requirement for that
optional interface shall be stated in the application's documentation.
• The application shall not use any interface or data format that is not required
to be provided by a conforming implementation, unless such an interface or
data format is supplied by another application through direct invocation of that
application during execution. The other application must also be a conforming
application, and the use of such interface or data format, as well as its source
(in other words, the other conforming application), shall be identified in the
documentation of the application.
• The application shall not use any values for a named interface that are reserved
for vendor extensions.
A strictly conforming application shall not require or use any interface, facility,
or implementation-defined extension not defined in this specification in order to
be installed or to execute successfully.
10 © 2021 ISO/IEC – All rights reserved
4 Terms and Definitions
For the purposes of this document, the terms and definitions given in ISO/IEC
2382, ISO 80000–2, and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the
following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
4.1
archLSB
Some LSB specification documents have both a generic, architecture-neutral
part and an architecture-specific part. The latter describes elements whose
definitions may be unique to a particular processor architecture. The term
archLSB may be used in the generic part to refer to the corresponding section
of the architecture-specific part.
4.2
Binary Standard, ABI
The total set of interfaces that are available to be used in the compiled binary
code of a conforming application, including the run-time details such as
calling conventions, binary format, C++ name mangling, etc.
4.3
Implementation-defined
Describes a value or behavior that is not defined by this document but is
selected by an implementor. The value or behavior may vary among
implementations that conform to this document. An application should not
rely on the existence of the value or behavior. An application that relies on
such a value or behavior cannot be assured to be portable across conforming
implementations. The implementor shall document such a value or behavior
so that it can be used correctly by an application.
4.4
Shell Script
A file that is read by an interpreter (e.g., awk). The first line of the shell script
includes a reference to its interpreter binary.
© 2021 ISO/IEC – All rights reserved 11
4.5
Source Standard, API
The total set of interfaces that are available to be used in the source code of a
conforming application. Due to translations, the Binary Standard and the
Source Standard may contain some different interfaces.
4.6
Undefined
Describes the nature of a value or behavior not defined by this document
which results from use of an invalid program construct or invalid data input.
The value or behavior may vary among implementations that conform to this
document. An application should not rely on the existence or validity of the
value or behavior. An application that relies on any particular value or
behavior cannot be assured to be portable across conforming
implementations.
4.7
Unspecified
Describes the nature of a value or behavior not specified by this document
which results from use of a valid program construct or valid data input. The
value or behavior may vary among implementations that conform to this
document. An application should not rely on the existence or validity of the
value or behavior. An application that relies on any particular value or
behavior cannot be assured to be portable across conforming
implementations.
In addition, for the portions of this specification which build on IEEE Std 1003.1-
2001, the definitions given in IEEE Std 1003.1-2001, Base Definitions, Chapter 3
apply.
12 © 2021 ISO/IEC – All rights reserved
5 Documentation Conventions
Throughout this document, the following typographic conventions are used:
function()
the name of a function
command
the name of a command or utility
CONSTANT
a constant value
parameter
a parameter
variable
a variable
Throughout this specification, several tables of interfaces are presented. Each
entry in these tables has the following format:
name
the name of the interface
(symver)
An optional symbol version identifier, if required.
[refno]
A reference number indexing the table of referenced specifications that
follows this table.
For example,
forkpty(GLIBC_2.0) [SUSv4]
refers to the interface named forkpty() with symbol version GLIBC_2.0 that is
defined in the reference indicated by the tag SUSv4.
Note: For symbols with versions which differ between architectures, the symbol
versions are defined in the architecture specific parts of of this module specification
only. In the generic part, they will appear without symbol versions.
© 2021 ISO/IEC – All rights reserved 13
II Executable and Linking Format (ELF)
14 © 2021 ISO/IEC – All rights reserved
6 Introduction
Executable and Linking Format (ELF) defines the object format for compiled
applications. This specification supplements the information found in System V
ABI Update and System V Application Binary Interface AMD64 Architecture
Processor Supplement, and is intended to document additions made since the
publication of that document.
© 2021 ISO/IEC – All rights reserved 15
7 Low Level System Information
7.1 Machine Interface
7.1.1 Processor Architecture
The AMD64 Architecture is specified by the following documents
• AMD64 Architecture Programmer's Manual, Volume 1
• AMD64 Architecture Programmer's Manual, Volume 2
• AMD64 Architecture Programmer's Manual, Volume 3
• AMD64 Architecture Programmer's Manual, Volume 4
• AMD64 Architecture Programmer's Manual, Volume 5
• System V Application Binary Interface AMD64 Architecture Processor
Supplement
Applications conforming to this specification must provide feedback to the user
if a feature that is required for correct execution of the application is not present.
Applications conforming to this specification should attempt to execute in a
diminished capacity if a required instruction set feature is not present. In
particular, applications should not rely on the availability of the 3DNow!™
technology. In addition, a conforming application shall not use any instruction
from Table 7-1.
Note: While this specification carries the attribution "AMD64", it is intended to apply
to the entire x86_64 set of processors, including those based on Intel® 64 Architecture.
However, this specification defers to the AMD64 architecture specifications listed
above.
Table 7-1 Non Conforming Instructions
LAHF SAHF
SYSCALL SYSRET
SYSENTER SYSEXIT
CMPXCHG16B FFXSR
Conforming applications may use only instructions which do not require
elevated privileges.
Conforming applications shall not invoke the implementations underlying
system call interface directly. The interfaces in the implementation base libraries
shall be used instead.
Rationale: Implementation-supplied base libraries may use the system call interface
but applications must not assume any particular operating system or kernel version
is present.
This specfication does not provide any performance guarantees of a conforming
system. A system conforming to this specification may be implemented in either
hardware or software.
16 © 2021 ISO/IEC – All rights reserved
7.1.2 Data Representation
7.1.2.1 Introduction
LSB-conforming applications shall use the data representation as defined in
Section 3.1.2 of System V Application Binary Interface AMD64 Architecture
Processor Supplement.
Note: The System V Application Binary Interface AMD64 Architecture Processor
Supplement specification is itself layered on top of the System V Application Binary
Interface - Intel386™ Architecture Processor Supplement.
7.1.2.2 Byte Ordering
LSB-conforming applications shall use the byte o
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
