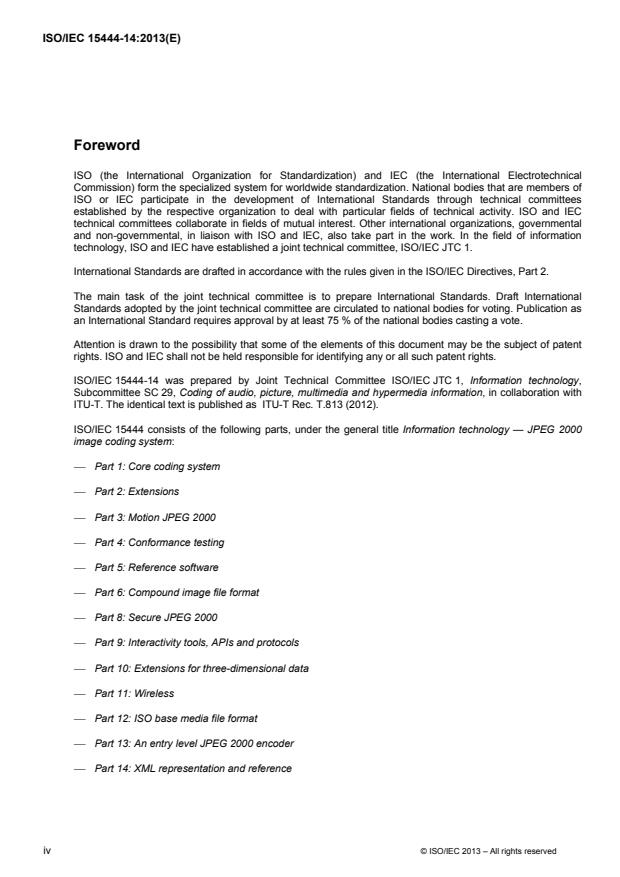

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 15444-14 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information, in collaboration with
ITU-T. The identical text is published as ITU-T Rec. T.813 (2012).
ISO/IEC 15444 consists of the following parts, under the general title Information technology — JPEG 2000
image coding system:
Part 1: Core coding system
Part 2: Extensions
Part 3: Motion JPEG 2000
Part 4: Conformance testing
Part 5: Reference software
Part 6: Compound image file format
Part 8: Secure JPEG 2000
Part 9: Interactivity tools, APIs and protocols
Part 10: Extensions for three-dimensional data
Part 11: Wireless
Part 12: ISO base media file format
Part 13: An entry level JPEG 2000 encoder
Part 14: XML representation and reference
iv © ISO/IEC 2013 – All rights reserved
INTERNATIONAL STANDARD
RECOMMENDATION ITU-T
Information technology – JPEG 2000 image coding system –
XML representation and reference
1 Scope
This Recommendation | International standard specifies an XML document, referred to as JPXML, which is designed
primarily for representing JPEG 2000 file format and marker segments in the codestream, and a re ferring method for
embedding internal data in a JPEG 2000 image.
This Recommendation | International Standard
– specifies JPXML conversion rules for general box file formats;
– specifies JPXML conversion rules for JPEG 2000 family file formats and codestream segments;
– specifies a complete referring location path to address to exact box or codestream data in an image;
– provides guidance on processes for converting source image data to an XML structural document;
– provides guidance on how to implement these processes in practice.
2 Normative references
The following Recommendations and International Standards contain provisions which, through reference in this text,
constitute provisions of this Recommendation | International Standard. At the time of publication, the editions indicated
were valid. All Recommendations and Standards are subject to revision, and parties to agreements based on this
Recommendation | International Standard are encouraged to investigate the possibility of applying the most recent
edition of the Recommendations and Standards listed below. Members of IEC and ISO maintain registers of currently
valid International Standards. The Telecommunication Standardization Bureau of the ITU maintains a list o f currently
valid ITU-T Recommendations.
2.1 Identical Recommendation | International Standards
– Recommendation ITU-T T.800 (2002) | ISO/IEC 15444-1:2004, Information technology – JPEG 2000
image coding system: Core coding system.
– Recommendation ITU-T T.801 (2002) | ISO/IEC 15444-2:2004, Information technology – JPEG 2000
image coding system: Extensions.
– Recommendation ITU-T T.802 (2005) | ISO/IEC 15444-3:2007, Information technology – JPEG 2000
image coding system: Motion JPEG 2000.
– Recommendation ITU-T T.805 (2012) | ISO/IEC 15444-6 (2013), Information technology – JPEG 2000
image coding system: Compound image file format.
– Recommendation ITU-T T.807 (2006) | ISO/IEC 15444-8:2007, Information technology – JPEG 2000
image coding system: Secure JPEG 2000.
– Recommendation ITU-T T.808 (2005) | ISO/IEC 15444-9:2005, Information technology – JPEG 2000
image coding system: Interactivity tools, APIs and protocols.
– Recommendation ITU-T T.809 (2011) | ISO/IEC 15444-10:2011, Information technology – JPEG 2000
image coding system: Extensions for three-dimensional data.
– Recommendation ITU-T T.810 (2006) | ISO/IEC 15444-11:2007, Information technology – JPEG 2000
image coding system: Wireless.
– Recommendation ITU-T T.812 (2007) | ISO/IEC 15444-13:2008, Information technology – JPEG 2000
image coding system: Wireless.
2.2 Paired Recommendations | International Standards equivalent in technical content
– Recommendation ITU-T T.832 (2009), Information technology – JPEG XR image coding system: An
entry level JPEG 2000 encoder.
ISO/IEC 29199-2:2009, Information technology – JPEG XR image coding system – Part 2: Image coding
specification.
Rec. ITU-T T.813 (06/2012) 1
– Recommendation ITU-T T.833 (2010), Information technology – JPEG XR image coding system –
Motion JPEG XR
ISO/IEC 29199-3:2010, Information technology – JPEG XR image coding system – Part 3: Motion JPEG
XR.
– ISO 12639:1998, Graphic technology – Prepress digital data exchange – Tag image file format for image
technology (TIFF/IT).
2.3 Additional references
– ISO/IEC 646:1991, Information technology – ISO 7-bit coded character set for information interchange.
– ISO/IEC 15444-12:2012, Information technology – JPEG 2000 image coding system – Part 12: ISO base
media file format.
– IETF RFC 2045 (1996), Multipurpose Internet Mail Extensions (MIME) Part One.
– IETF RFC 2279 (1998), UTF-8, A transformation format of ISO 10646.
– IETF RFC 4648 (2006), The Base16, Base32, and Base64 Data Encodings.
– W3C Recommendation (2009), Namespaces in XML 1.0 (Third Edition).
– W3C Recommendation (2008), Extensible Markup Language (XML), Version 1.0 (Fifth Edition).
– W3C Recommendation (2004), XML Schema Part 0: Primer.
– W3C Recommendation (2004), XML Schema Part 1: Structures.
– W3C Recommendation (2004), XML Schema Part 2: Datatypes.
– W3C Recommendation (2010), XML Path Language (XPath) 2.0.
3 Definitions
For the purposes of t his Recommendation | International Standard, the definitions given in Rec. ITU-T T.80 0 |
ISO/IEC 15444-1 and Rec. ITU-T T.801 | ISO/IEC 15444-2 and those listed below apply. Should there be any difference
between the definition given in this clause and the one given in one of the other Recommendation | International
Standard cited above, the one given in this clause prevails.
3.1 …: elision mark. This mark denotes that some words or characters are erased or abbreviated.
3.2 4CC: Four-character codes of the box type generally referred to by an ISO 646 character string translation of
the integer value. This value is used for a box type that specifies its contents.
3.3 absolute offset: Offset to internal image data from the start of an image file. By the JPXML converter, the
offset will be made with "length" attributes from the top to the target elements.
3.4 box: A sequence of byte blocks that contains its length, 4CC data type, and contents. Some boxes, such as the
"jp2c" box, contain an image codestream; other boxes contain image properties such as image width and height. This
data block is the atom of the JPEG 2000 and MPEG 4 image file format.
3.5 box-based format: A sequence of boxes that contains se veral image properties and expresses a n image file
format. This image format starts with a signature box and contains at least one codestream.
3.6 box element: A JPXML element for a box, and this element name is translated from the 4CC of the box type
by using conversion rules described in clause 7.
3.7 codestream: A sequence of bits contained in a sequence of bytes, created by an image code r. This data
sequence contains marker segments for holding image coding properties that are parsed by a decoder or translator. This
may be arranged so that the most significant bit of the first byte is the first b it of the codestream, the next most
significant bit of the first byte is the second bit of the codestream, and so on, to the least significant bytes.
3.8 fat representation: A JPXML document that contains whole image data on text nodes. This representation can
be translated to a genuine image without any additional image information because it contains whole image information.
However, because of translating whole chunk data into the XML format, this representation needs more data space than
was required for the original image. For more details, see 6.1.
3.9 fat-skeleton representation: A JPXML document that contains image properties excluding codestream chunk
data. This representation may have a location path to chunk image data by using the JPXML format. This represents a
box file format image structure. For more details, see 6.1.
2 Rec. ITU-T T.813 (06/2012)
3.10 JPXML converter: A converter that translates data between an image and a JPXML document. The JPXML
"forward" converter translates an image to a JPXML document, and the JPXML "inverse" converter translates the edited
document and codestream data to an image. These converters use rules of element name creation, defined container and
undefined chunk container conversions.
3.11 JPXML document: An XML document that corresponds to the box file format or codestream, categorized
according to included contents; skeleton, fat-skeleton and fat representations. For more details, see 6.1.
3.12 JPXML document structure: The structure of a JPXML ele ment in a JPXML document, which expresses an
image data structure. This structure is used for a location path using XPath expression.
3.13 JPXML element: An XML element represents a box file format or codestream structure, and is translated
from a box, marker, or its content. The 4CC box type, marker type, and the "content" are used as this element name. For
more details, see 6.2.
3.14 location path: The location of an internal image data using XPath expression with a JPXML document. This
expression represents the absolute offset value and the JPXML document structure.
3.15 marker element: A JPXML element for the marker segment. This element name is translated from the marker
type using the conversion rule described in 7.1 and 7.3.
3.16 marker segment: A binary data block in a codestream which contains the marker type and may contain
marker properties for coding information.
3.17 skeleton representation: A JPXML document which does not contains text nodes. This only represents the
structure of a box file format image. For more details, see 6.1.
4 Abbreviations and symbols
The abbreviations and symbols defined in Rec. ITU-T T.800 | ISO/IEC 15444-1, Rec. ITU-T T.801 | ISO/IEC 15444-2,
Rec. ITU-T T.805 | ISO/IEC 15444-6, Rec. ITU-T T.808 | ISO/IEC 15444-9, Rec. ITU-T T.810 | ISO/IEC 15444-11,
and Rec. ITU-T T.812 | ISO/IEC 15444-13 also apply to this Recommendation | International Standard.
4.1 Abbreviations
For the purposes of this Recommendation | International Standard, the following abbreviations apply:
JPXML Refers to this Recommendation | International Standard
MIME Multipurpose Internet Mail Extension
TIFF Tag Image File Format
XML eXtended Metadata Language
XSLT XML Stylesheet Language Transformation
5 Conventions
This Recommendation | International Standard consists of normative and informative text.
Normative text is that text which expresses mandatory requirements. The word "shall" is used to express mandatory
requirements strictly to be followed in order to conform to this Specification and from which no deviation is permitted.
A conforming implementation is one that fulfils all mandatory requirements.
Informative text is text that is potentially helpful to the user, but not indispensable and can be removed, changed or
added editorially without aff ecting interoperability. All text in this Recommendation | International Sta ndard is
normative, with the following exceptions: the Introduction, any parts of the text that are exp licitly labelled as
"informative", and statements appearing with the preamble "NOTE" and behaviour described using the word "should".
The word "should" is used to describe behaviour that is encouraged but is not required for conformance to this
Specification.
The keywords "may" and "need not" indicate a course of action that is permissible in a conforming implementation.
The keyword "reserved" indicates a provision that is not specified at this time, shall not be used, and may be specified in
the future. The keyword "forbidden" indicates "reserved" and in addition indicates that the provision will never be
specified in the future.
Rec. ITU-T T.813 (06/2012) 3
6 General description
The structural representation for the box-based format and the JPEG 2000 family codestreams is defined in this
Recommendation | In ternational Standard, which does not intend to make a new image file format. Th is image
description is described with XML, and this temporary XML document is created as an intermediate image description
for accessing internal data robustly and converting an image type. The following subclauses describe more details of this
document.
Figure 1 – Example of a JPXML document for a JPEG 2000 image
6.1 Structure of the JPXML document
The JPXML document is described with three elements; a JPXML element, its attribute, and its content value. The
JPXML element structure represents an image structure; box, marker segment, and content structure. This document
namespace shall be "http://www.iso.org/ jpeg/jpxml/1.0", and this document's root element name shall be 'jpxml'. The
JPXML element has two types; the first element is a container element which expresses a box or a marker segment itself,
and the second one is a content element which expresses a container's property or a box content. Some containers, such
as a superbox, contain other containers, and so a JPXML document will have a tree structure. Each JPXML element shall
have 'length' and 'type' attributes, and these attributes denote the byte length and data type of each data chunk,
respectively. The content value may be described with text, and its data type denoted with 'type' attribute. Figure 1 is an
example of a JPXML document for a JPEG 2000 file format.
The container element name, or the box or marker element name, shall be created with the 4CC box type or the segment
marker name, respectively, and the converting rules are described in clause 7. The container element may contain some
content elements, which are optional in the JPXML document. There may be only one content element even if a
container has several data containers, and this content element type attribute should be a "hexbyte" or "unknown" type.
This element name shall be "content" or a name predefined in this Recommendation | International Standard. The
attributes in the JPXML elements are used for creating an absolute offset from a location path for indicating chunk data
in the image. The detail of this process is described in 7.5.
The box described in Rec. ITU-T T.800 | ISO/IEC 15444-1 and the JPXML document for box format are illustrated in
Figure 2. Figures 2 (a), (b) and (c) are illustrations of box format structures; normal box, box with extended length and
superbox, and documents (d), (e) and (f) represent the (a), (b) and (c) box structure, respectively. The superbox element
shall have whole children box and superbox elements. All box elements with an extended length have a length element
for storing the actual box length.
4 Rec. ITU-T T.813 (06/2012)
(a) box (b) box with extended length (c) superbox
24
(d) JPXML document for (a) (e) JPXML document for (b) (f) JPXML document for (c)
Figure 2 – Examples of box format and JPXML documents
The JPXML document is generated from an image file format and/or codestreams, and its kind varies from none
property to including codestream data representations. When kinds of image property representation are included, the
JPXML document is categorized with three levels of representation: "skeleton", "fat-skeleton", and "fat" representations.
The first-level representation, the skeleton representation, shall express only the structure of the image itself, and may
contain an attribute for the absolute offset or the location path to the element block. The skeleton shall have no text node
in the JPXML elements. This representation is used for a location path that is comparatively robust for changing the box
structure of the image and/or marker segment structure of the codestream.
The second-level representation, the fat-skeleton representation, expresses the image structure and some variables of box
and/or marker contents. The fat skeleton is an intermediate representation between skeleton and fat representations.
Consequently, it also has the skeleton's attribute and the same text node value of JPXML elements, but no binary data
(such as a coded codestream). This representation is used for a location path and also some image transformation with
XSLT.
The third-and final level representation, the fat representation, expresses the image structure and whole image property
values. This whole property may represent a binarized format for use of some applications, such as secure purpose. The
binarized contents are translated with MIME's base64 encoding. As this representation requires more data space than the
original image data, it is unsuited for use in a storage file format for image data.
6.2 Creation of a JPXML document
A JPXML document is created from a box-based format and/or a JPEG 2000 codestream. This generation process may
consist of several steps. Figure 3 is an illustration of a block diagram of an image conversion system using the JPXML,
and includes forward and inverse JPXML generators. This example consists of a forward J PXML generator, an image
edit tool, and an inverse JPXML generator. The processes of forward and inverse JPXML generators may consist of two
modules: a JPXML document generator and a location path generator. The JPXML document generator converts
between a binary im age and an XML doc ument, and the locati on path generator converts between an absolute offset
number to target data and an XPath location path for a target element.
For creating a JPXML document, the forward JPXML document generator uses several rules: the common conversion
rule and the three element name rules. The common conversion rule is defined in 7.1. The document element name rules
are for a box form at, a marker segment, and a tagged image format. The inverse JPXML document generator uses the
inverse rules of the forward converter's rules.
The element name rule for t he box-based format creates an element name related to the four-character code (4CC)
identifying the box container type. Not all 4CC values are allowable for an XML element name, such as an 'xml' and
space character, and these 4CC values are modified for an XML element by using the conversion rules defined in 7.2.
The details of the box-based format and four-character code are defined in Rec. ITU-T T.800 | ISO/IEC 15444-1,
Rec. ITU-T T.801 | ISO/IEC 15444-2, Rec. ITU-T T.802 | ISO/IEC 15444-3, Rec. ITU-T T.805 | ISO/IEC 15444-6,
Rec. ITU-T T.807 | ISO/IEC 15444-8, Rec. ITU-T T.808 | ISO/IEC 15444-9, Rec. ITU-T T.833 | ISO/IEC 29199-3 and
ISO/IEC 15444-12. The element names are defined in Annex A.
The element name rule for the marker segment creates an element name related to a two-byte code or a marker segment
name identifying the marker segment which is defined in Rec. ITU-T T.800 | ISO/IEC 15444-1, Rec. ITU-T T.801 |
ISO/IEC 15444-2, Rec. ITU-T T.807 | ISO/IEC 15444-8, Rec. ITU-T T.809 | ISO/IEC 15444-10, and Rec. ITU-T T.810
| ISO/IEC 15444-11. The two-byte code, non-character and invisible value, is converted to a visible code value for use as
an XML element name by using conversion rules defined in 7.3. The details of these element names are defined in
Annex B.
Rec. ITU-T T.813 (06/2012) 5
The element name rule for the tagged image format creates an element name related to the two byte code of the tag value
identifying the tagged maker property which is defined in ISO 12639 and Rec. ITU-T T.832 | ISO/IEC 29199-2. The two
byte code, non-character and invisible value, used in the TIFF image and JPEG XR, is converted to a visible code value
for use as an XML element name by using conversion rules defined in 7.4.
JPXML
convert
rules
Colour image ' ' Grayscale
XML XML XML XML
small image
Rep. Rep. Rep. Rep.
Absolute Edit Relative ref.
Image to XML rep.
offset to convert to absolute
XML rep. to image
relative ref. etc. offset
Binary XML w/ XML w/ XML w/ Binary
JPEG 2000 absolute offset location address absolute offset JPEG 2000
T.813(12)_F03
Figure 3 – Block diagram of image converting with JPXML
''//boxtype/''
'
XML
Rep.
Add Extract
XPath
XML
offset absolute
offset: XX
engine
Rep.
attribute offset
XML doc w/ XML doc w/ Retrieved XML element w/ Absolute
location address absolute offset absolute offset offset
T.813(12)_F04
Figure 4 – Example of the process for converting between the XML location path and offset
6.3 Access with the JPXML document
The two location representations, an XML location path and an absolute offset, are used to access internal image data
with the JPXML document. The XML location path homologizes the target image data to identify the target element in
the JPXML document. The absolute offset corresponding to the target element identified by the location path is used for
locating the data chunk of the im age, and this value s hall be used for a binary data access. For converting between the
text location and the offset value, conversion rules defined in 8.1 are used.
An absolute offset can be generated from the target location path in several ways. One example of generating a target
offset process consists of three steps: 1) set each element's data chunk offset to its element offset attribute, 2) identify a
target element from a target location path by using XML tools, and 3) extract the target element offset attribute value as
an absolute offset. Figure 4 depicts an ex ample of this process. After this process, the generated absolute offset is t he
location of the target data chunk from the very start of an image.
A target location path can be generated from a target absolute offset by following three steps: 1) set each element's data
chunk offset to its element offset attribute, 2) identify a target element by comparing the element's offset attribute and the
target offset, and 3) create a location path from the selected target element. This process creates the location path which
identifies the target absolute offset, and this text representation will not suffer from binary data changes in the image.
These processes have the sa me offset generator for the JPXML document, and these generators use conversion rules
defined in 8.1. Figure 5 is an example of a JPXML document with offset calculated by this generator. As shown in this
example, the "box2" box offset is eight bytes because each box has eight bytes of data space for the box length and type
of storage, and the "box2" is the first child of "box1" box. By using this generated JPXML document, all image data
chunks described by the JPXML elements can be accessed by the XML location path.
(a) An example of part of a pseudo box-based format structure
6 Rec. ITU-T T.813 (06/2012)
1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
(b) Part of a pseudo JPXML document with an offset attribute for the (a) format
1:
2:
3:
(c) Another representation of the box3 element in the (b) document (single-content representation)
Figure 5 – Example of JPXML document accessing
7 Document creation rules
The conversion rules between the JPXML document and the im age consist of thr ee parts: the first part is a comm on
conversion rule for file formats and codestreams, the second part is a conversion rule between 4CC and XML element
names, and the third part is a conversion rule between marker segment names and XML element names.
7.1 Common rule
All JPXML forward converters shall use the following common forward rules for JPXML conversion. The boxes within
a superbox shall be represented in JPXML form when these rules are used for a file format forward conversion. An
'offset' attribute value shall be converted to a location path by using a JPXML document structure.
1) The namespace of the JPXML document shall be "http://www.iso.org/jpeg/jpxml/1.0".
2) The 'jpxml' shall be used for the JPXML root element, representing one file format or codestream.
3) The root element may have a 'name' attribute for identifying an image name.
4) All elements shall have 'length' and ' type' attributes, representing data byte length and type
respectively.
5) The 'type' attributes value for the box or marker element shall be 'box' or 'marker' respectively.
6) A box element with length=1 attribute shall have a length element, representing the data length in byte.
7) All element may have an 'offset' attribute, representing the absolute offset to the data chunk in byte.
8) The box element shall have several box elements when the original box has a box inside its content.
9) The element of a box or marker segment may have content elements for representing its properties.
10) The predefined element names defined in later annexes shall be used for element names.
11) The box or marker parameters may be represented in XML form, defined in later annexes, and stored in
the JPXML box or marker element.
12) The box or marker parameters may be represented as base64 binary, and stored in the box or marker
element.
All JPXML inverse converters shall use the following common inverse rules for JPXML conversion. A box element
having one or more box elements shall be converted to a superbox when reconstructing a file format. If an 'offset'
attribute value is the location path using a JPXML document structure, this location path shall be converted to an
absolute offset value, and stored in its element attribute.
1) The JPXML document shall have namespace of "http://www.iso.org/jpeg/jpxml/1.0".
2) The 'jpxml' root element shall be converted to one file format or codestream.
3) The 'name' attribute value in the root element shall be used for a file name.
4) The 'length' and 'type' attribute values shall be used for converted data length and type respectively.
5) The element having 'box' or 'marker' type shall be converted to a box or marker segment respectively.
Rec. ITU-T T.813 (06/2012) 7
6) The node value of the length element in the box elem ent with length=1 attribute shall be used for its
converted data chunk length.
7) The 'offset' attribute value may be used for its converted data chunk location in the image.
8) All box elements in the box shall be converted into the box content.
9) All child elements in a box or marker element shall be converted into internal contents of the data chunk.
10) All content element shall be combined to a binary data of the parent element.
11) The JPXML content elements defined in later annexes shall be converted to binary data and stored in one
of the parent contents of the box or maker.
12) The JPXML content in base64 binary shall be converted to a binary data with the base64 converter and
stored in one of the parent contents of the box or maker.
Table 1 – Example of 4CC box type conversions
Box name Box type Hex decimal JPXML element name
JPEG 2000 Signature box jP\040\040 0x6A50 2020 jp__
JP2 Header box jp2h 0x6A70 3268 jp2h
Resolution box url\040 0x7572 6C20 url_
URL box res\040 0x7265 7320 res_
XML box xml\040 0x786D 6C20 _xml_
7.2 Element name rule for box format
The JPXML forward converter for file formats translates a box-based format to a JPXML document, and shall use the
following forward conversion rule for the 4CC:
1) The JPXML element name shall use a 4CC box type.
2) The alphanumeric characters in 4CC box type shall be directly used for the element name.
3) The space, '\040' code, shall be represented with a '_' character for the JPXML element name.
4) The code '.HH' (H: hexadecimal character = 0, …, 9, A, …, F) shall be used for any other characters.
5) The '_' character at the first character of the element name shall be the escape character.
The JPXML inverse converter to file formats translates a JPXML document to a box-based format, and shall use the
following inverse conversion rule for the 4CC.
1) The JPXML element name shall be converted to a 4CC box type, and creates its type box.
2) The '_' character at the first character of the element name may not be removed from the 4CC box type.
3) The alphanumeric name shall be directly used for the 4CC box type.
4) The '_' character in the element name space shall be represented with a '\040' code for the 4CC.
5) The '.HH' string in the name shall be converted to a '0xHH' code character.
7.3 Element name rule for a tagged image format
The JPXML forward converter for tagged image file formats, translates a tag val ue in a directory entry to a J PXML
document element name and shall use the following forward conversion rule.
1) The two bytes tag value shall be rep resented as t he four characters hex st ring notation, 'HHHH'
(H: hexadecimal character = 0, …, 9, A, …, F).
2) The '_' character shall be placed at the front of the four character string, and creates a five characters
string ('_HHHH').
The JPXML inverse converter to tagged image file formats translates a JPXML document name to a tag val ue in a
directory entry, and shall use the following inverse conversion rule for the 4CC.
1) The first '_' character shall be removed from the five-character string, and shall create a four-character
string.
2) The four character-string, 'HHHH' shall be converted to a '0xHHHH' code value
8 Rec. ITU-T T.813 (06/2012)
7.4 Element name rule for a marker segment
The JPXML forward converter for marker segments translates JPEG 2000 marker segments to a JPXML document, and
shall use the following forward conversion rule.
1) The marker symbol name shall be used for a JPXML codestream element name, or th e forward
conversion rule for a tagged image file format shall be used for converting the marker symbol code to an
element name.
The JPXML inverse converter to marker segments translates a JPXML document to JPEG 2000 marker segments, and
shall use the following inverse conversion rule.
1) All elements named with its marker symbol name shall be converted to its named marker symbol code.
2) All elements with a name starting with a '_' character of the five-character string shall be converted to the
marker symbol code by using the inverse conversion rule for the tagged image file format.
Table 2 – Example of codestream marker conversions
Codestream marker name Symbol name Code JPXML element name
Start of codestream SOC 0xFF4F SOC
Start of tile-part SOT 0xFF90 SOT
Start of data SOD 0xFF93 SOD
End of codestream EOC 0xFFD9 EOC
Start of packet SOP 0xFF91 SOP
7.5 Element type attributes
All elements have a type attribute which identifies the data type of the element content data. This Recommendation |
International Standard defines uses of six data types: box, marker, fourcc, location, hexbyte, and integer and time. The
integer and time data types are used for the element content data type as integer and time types, respectively, and these
data types are defined in the XML schema Part 2 Recommendation. The box and marker data types are used to identify
the box element and the marker element, respectively. The fourcc data type indicates the element content data that shall
be the 4CC data type, and the 4CC value will not converted with the rules previously described. The location indicates
that the elements can have any location type value. The hexbyte indicates that the element data m ay be represented as a
hexadecimal value in big-endian order. The XML definitions for the box, marker, fourcc, location and hexbyte data types
can be defined by the following XML schema's simple type data type definitions:
Rec. ITU-T T.813 (06/2012) 9
8 Accessing image data
The XML location path and the JPXML document can be used to access internal binary chunk data in the image data.
The following three steps access the internal binary data: the first step identifies the target element by using the location
path and the JPXML document, the second step converts the target element to an absolute offset, and the third and final
step accesses the internal image data with the target absolute offset position. To achieve the second step, the following
rules are employed.
8.1 Rules for location conversion
The following conversion rules are for calculating an absolute offset of the target chunk from the location path point to
the target element, whic h corresponds to the offset. To comply with these rules, there may be two a pproaches for
calculation of the target absolute offset value; the target to root approach and the root to target approach.
1) The absolute offset shall be the sum of length attribute values between the top and the target elements,
except for the following elements.
2) For the superbox child elements, the value 8 shall be used for offset counting instead of the superbox
length attribute value.
3) The length of the child boxes contained in the parent box, ending at the beginning of the target box, will
not be used for offset counting, and the length of the parent box is used for counting.
Figures 6 and 7 are illustrations of two examples of an algorithm for calculating the absolute offset value from the target
element using these rules. In these al gorithms, the root el ement shall not be used as target element, because the root
element is not part of the image data. The first algorithm calculates all element nodes from the target t o the root
elements, and the second algorithm calculates all element nodes from the first child of the root to the target elements.
Figure 6 – Example 1 of an algorithm for calculating an offset value from the target element
10 Rec. ITU-T T.813 (06/2012)
Figure 7 – Example 2 of an algorithm for calculating an offset value from the target element
8.2 Example of location conversion
Figure 8 shows an example of offset calculations for a pseudo JPXML document. The third and fourth columns, labelled
"offset 1" and "offset 2", are the result of the target to root approach and the root to target approach, respectively. Their
values are calculated by the algorithms depicted in Figures 6 and 7, respectively. In this figure, the offset 1, a+b+d+8, for
the "BoxH" box is not the same as the offset 2, a+b+f+g+24. However, the "BoxD" box length, d, is the same as the
summation of its content and header lengths, f+g+16, and so these offsets have identical value.
Rec. ITU-T T.813 (06/2012) 11
Line Pseudo JPXM document offset 1 offset 2
2
0 0
3 a a
4 a+b a+b
5 a+b+8 a+b+8
6 a+b+16 a+b+16
7 a+b+24 a+b+24
8 a+b+f+24 a+b+f+24
10
11 a+b+d+8 a+b+f+g+24
12
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
