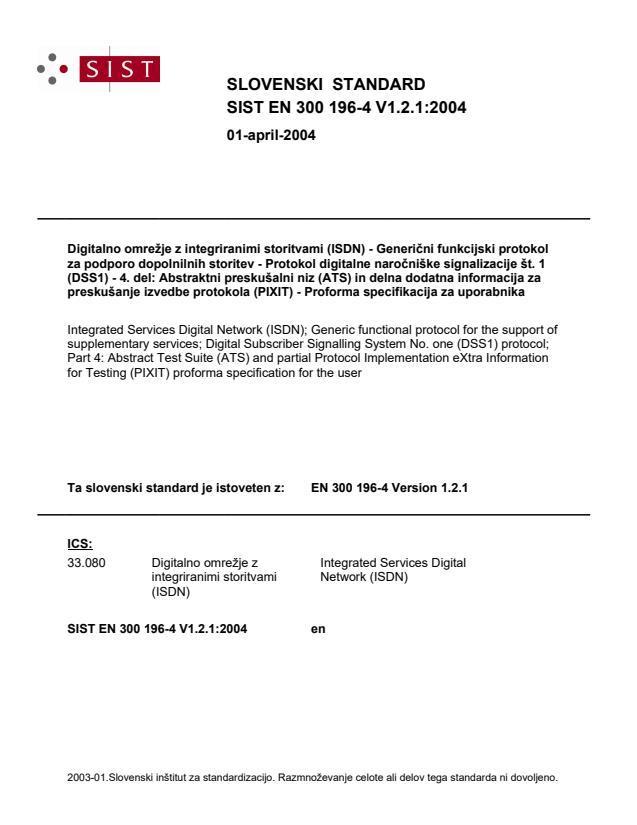

SIST EN 300 196-4 V1.2.1:2004

Integrated Services Digital Network (ISDN); Generic functional protocol for the support of supplementary services; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 4: Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT) proforma specification for the user

Test specification for RE/SPS-05135-1

Digitalno omrežje z integriranimi storitvami (ISDN) - Generični funkcijski protokol za podporo dopolnilnih storitev - Protokol digitalne naročniške signalizacije št. 1 (DSS1) - 4. del: Abstraktni preskušalni niz (ATS) in delna dodatna informacija za preskušanje izvedbe protokola (PIXIT) - Proforma specifikacija za uporabnika

General Information

• Status: Published
• Publication Date: 31-Mar-2004
• ICS: 33.080 - Integrated Services Digital Network (ISDN)
• Technical Committee: SPN - Services and Protocols for Networks
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Apr-2004
• Due Date: 01-Apr-2004
• Completion Date: 01-Apr-2004
• Ref Project: ETSI EN 300 196-4 V1.2.1 (2001-11) - Integrated Services Digital Network (ISDN); Generic functional protocol for the support of supplementary services; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 4: Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT) proforma specification for the user

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Integrated Services Digital Network (ISDN); Generic functional protocol for the support of supplementary services; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 4: Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT) proforma specification for the user33.080Digitalno omrežje z integriranimi storitvami (ISDN)Integrated Services Digital Network (ISDN)ICS:Ta slovenski standard je istoveten z:EN 300 196-4 Version 1.2.1SIST EN 300 196-4 V1.2.1:2004en01-april-2004SIST EN 300 196-4 V1.2.1:2004SLOVENSKI
STANDARD



SIST EN 300 196-4 V1.2.1:2004

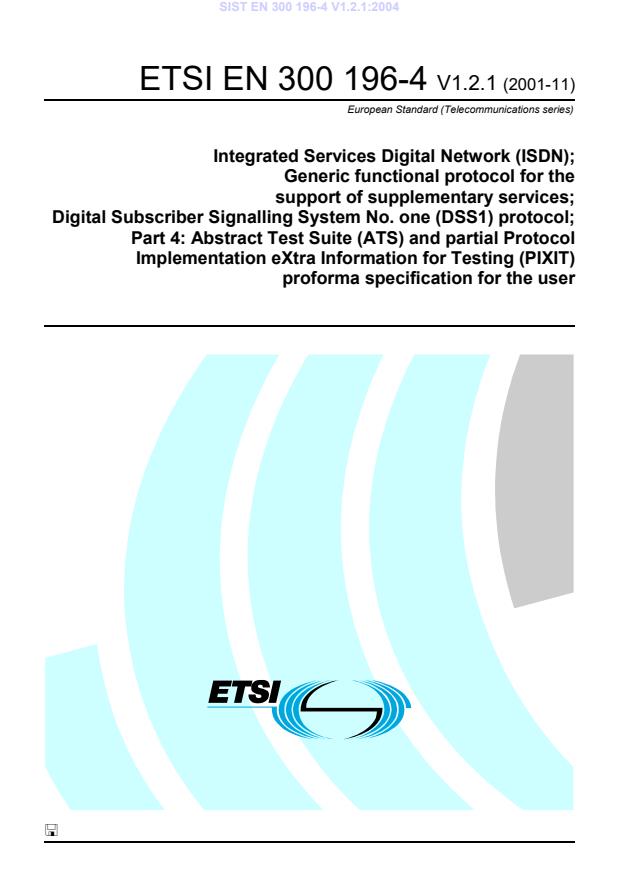

ETSI EN 300 196-4 V1.2.1 (2001-11)European Standard (Telecommunications series) Integrated Services Digital Network (ISDN);Generic functional protocol for thesupport of supplementary services;Digital Subscriber Signalling System No. one (DSS1) protocol;Part 4: Abstract Test Suite (ATS) and partial ProtocolImplementation eXtra Information for Testing (PIXIT)proforma specification for the userSIST EN 300 196-4 V1.2.1:2004



ETSI ETSI EN 300 196-4 V1.2.1 (2001-11) 2
Reference REN/SPAN-130135-4 Keywords ATS, DSS1, ISDN, PIXIT, supplementary service, testing, user ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: [phone]
Fax: [phone]
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, send your comment to: [e-mail] Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2001. All rights reserved.
SIST EN 300 196-4 V1.2.1:2004



ETSI ETSI EN 300 196-4 V1.2.1 (2001-11) 3 Contents Intellectual Property Rights.5 Foreword.5 1 Scope.6 2 References.6 3 Definitions and abbreviations.7 3.1 Definitions.7 3.2 Abbreviations.7 4 Abstract Test Method (ATM).8 5 Untestable test purposes.8 6 ATS conventions.9 6.1 Version of TTCN used.9 6.2 Use of ASN.1.9 6.2.1 Situations where ASN.1 is used.9 6.2.2 Specification of encoding rules.9 7 ATS to TP map.10 8 PCTR conformance.10 9 PIXIT conformance.10 10 ATS conformance.10 11 Configurations required in testing.11 Annex A (normative): Protocol Conformance Test Report (PCTR) proforma.12 A.1 Identification summary.12 A.1.1 Protocol conformance test report.12 A.1.2 IUT identification.12 A.1.3 Testing environment.12 A.1.4 Limits and reservations.13 A.1.5 Comments.13 A.2 IUT Conformance status.13 A.3 Static conformance summary.13 A.4 Dynamic conformance summary.13 A.5 Static conformance review report.14 A.6 Test campaign report.14 A.7 Observations.17 Annex B (normative): Partial PIXIT proforma.18 B.1 Identification summary.18 B.2 Abstract test suite summary.18 B.3 Test laboratory.18 B.4 Client (of the test laboratory).19 B.5 System Under Test (SUT).19 B.6 Protocol information.20 B.6.1 Protocol identification.20 SIST EN 300 196-4 V1.2.1:2004



ETSI ETSI EN 300 196-4 V1.2.1 (2001-11) 4 B.6.2 Parameter values.20 B.6.3 Actions required to provoke the IUT.20 B.6.4 Options supported by the IUT.21 B.6.5 Timer values.21 B.6.6 Information element codings.21 Annex C (normative): Abstract Test Suite (ATS).22 C.1 The TTCN Graphical form (TTCN.GR).22 C.2 The TTCN Machine Processable form (TTCN.MP).22 Annex D (informative): Bibliography.23 History.24
SIST EN 300 196-4 V1.2.1:2004



ETSI ETSI EN 300 196-4 V1.2.1 (2001-11) 5 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Services and Protocols for Advanced Networks (SPAN). The present document is part 4 of a multi-part deliverable covering the Integrated Services Digital Network (ISDN); Generic functional protocol for the support of supplementary services; Digital Subscriber Signalling System No. one (DSS1) protocol, as identified below: Part 1: "Protocol specification"; Part 2: "Protocol Implementation Conformance Statement (PICS) proforma specification"; Part 3: "Test Suite Structure and Test Purposes (TSS&TP) specification for the user"; Part 4: "Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT) proforma specification for the user"; Part 5: "Test Suite Structure and Test Purposes (TSS&TP) specification for the network"; Part 6: "Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT) proforma specification for the network".
National transposition dates Date of adoption of this EN: 9 November 2001 Date of latest announcement of this EN (doa): 28 February 2002 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 August 2002 Date of withdrawal of any conflicting National Standard (dow): 31 August 2002
This second edition contains additional test cases for the point-to-point transport mechanism (connection-oriented) for general signalling. SIST EN 300 196-4 V1.2.1:2004



ETSI ETSI EN 300 196-4 V1.2.1 (2001-11) 6 1 Scope The present document specifies the Abstract Test Suite (ATS) and partial Protocol Implementation eXtra Information for Testing (PIXIT) proforma for the User side of the T reference point or coincident S and T reference point (as defined in ITU-T Recommendation I.411 [10]) of implementations conforming to the stage three standard for the generic functional protocol for the support of supplementary services for the pan-European Integrated Services Digital Network (ISDN) by means of the Digital Subscriber Signalling System No. one (DSS1) protocol, EN 300 196-1 [1]. EN 300 196-3 [3] specifies the Test Suite Structure and Test Purposes (TSS&TP) related to this ATS and partial PIXIT proforma. Other parts specify the TSS&TP and the ATS and partial PIXIT proforma for the Network side of the T reference point or coincident S and T reference point of implementations conforming to EN 300 196-1 [1]. 2 References The following documents contain provisions which, through reference in this text, constitute provisions of the present document. • References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • For a non-specific reference, the latest version applies. [1] ETSI EN 300 196-1 (V1.3.2): "Integrated Services Digital Network (ISDN); Generic functional protocol for the support of supplementary services; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 1: Protocol specification". [2] ETSI EN 300 196-2 (V1.3.2): "Integrated Services Digital Network (ISDN); Generic functional protocol for the support of supplementary services; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 2: Protocol Implementation Conformance Statement (PICS) proforma specification". [3] ETSI EN 300 196-3 (V1.2.1): "Integrated Services Digital Network (ISDN); Generic functional protocol for the support of supplementary services; Digital Subscriber Signalling System No. one (DSS1) protocol; Part 3: Test Suite Structure and Test Purposes (TSS&TP) specification for the user". [4] Void. [5] ISO/IEC 9646-1: "Information technology - Open Systems Interconnection - Conformance testing methodology and framework - Part 1: General concepts". [6] ISO/IEC 9646-2: "Information technology - Open Systems Interconnection - Conformance testing methodology and framework - Part 2: Abstract test suite specification". [7] ISO/IEC 9646-3: "Information technology - Open Systems Interconnection - Conformance testing methodology and framework - Part 3: The Tree and Tabular Combined Notation (TTCN)". [8] ISO/IEC 9646-4: "Information technology - Open Systems Interconnection - Conformance testing methodology and framework - Part 4: Test realization". [9] ISO/IEC 9646-5: "Information technology - Open Systems Interconnection - Conformance testing methodology and framework - Part 5: Requirements on test laboratories and clients for the conformance assessment process". [10] ITU-T Recommendation I.411 (1993): "ISDN user-network interfaces - Reference configurations". [11] ITU-T Recommendation X.690 (1997): "Information technology - ASN.1 encoding rules: Specification of Basic Encoding Rules (BER), Canonical Encoding Rules (CER) and Distinguished Encoding Rules (DER)". SIST EN 300 196-4 V1.2.1:2004



ETSI ETSI EN 300 196-4 V1.2.1 (2001-11) 7 [12] ITU-T Recommendation X.209 (1988): "Specification of Basic Encoding Rules for Abstract Syntax Notation One (ASN.1)". 3 Definitions and abbreviations 3.1 Definitions For the purposes of the present document, the following terms and definitions apply: Abstract Test Suite (ATS): See ISO/IEC 9646-1 [5]. Implementation Under Test (IUT): See ISO/IEC 9646-1 [5]. Lower Tester (LT): See ISO/IEC 9646-1 [5]. Point of Control and Observation (PCO): See ISO/IEC 9646-1 [5]. Protocol Implementation Conformance Statement (PICS): See ISO/IEC 9646-1 [5]. PICS proforma: See ISO/IEC 9646-1 [5]. Protocol Implementation eXtra Information for Testing (PIXIT): See ISO/IEC 9646-1 [5]. PIXIT proforma: See ISO/IEC 9646-1 [5]. System Under Test (SUT): See ISO/IEC 9646-1 [5]. Upper Tester (UT): See ISO/IEC 9646-1 [5]. 3.2 Abbreviations For the purposes of the present document, the following abbreviations apply: ATM Abstract Test Method ATS Abstract Test Suite BER Basic Encoding Rules ExTS Executable Test Suite IUT Implementation Under Test LT Lower Tester
MOT Means Of Testing NCICS Networked Call Independent Connection-oriented Signalling PCO Point of Control and Observation PCTR Protocol Conformance Test Report PDU Protocol Data Unit PICS Protocol Implementation Conformance Statement PIXIT Protocol Implementation eXtra Information for Testing SUT System Under Test TCP Test Co-ordination Procedures TP Test Purpose TTCN Tree and Tabular Combined Notation UT Upper Tester SIST EN 300 196-4 V1.2.1:2004



ETSI ETSI EN 300 196-4 V1.2.1 (2001-11) 8 4 Abstract Test Method (ATM) The remote test method is applied for the GFP user ATS. A Point of Control and Observation (PCO) resides at the service access point between layers 2 and 3. This PCO is named "L" (for Lower). The L PCO is used to control and observe the behaviour of the Implementation Under Test (IUT) and test case verdicts are assigned depending on the behaviour observed at this PCO. A second "informal" PCO, called "O" (for Operator) is used to specify control but not observation above the IUT; events at this PCO are never used to generate test case verdicts. Messages sent by the tester at this PCO explicitly indicate to the operator actions which are to be performed on the SUT. This is regarded as a preferred alternative to the use of the implicit send event. Tester Informal test co-ordination by operator SUT
Upper layer(s) LT
IUT PCO L
Layer 2
Layer 2 Layer 1
Layer 1 Service provider
Figure 1: Remote test method with PCO O for test co-ordination 5 Untestable test purposes Only clauses 6.2.2 and 6.2.3.2.3.2.5 of EN 300 196-3 [3] contains testable test purposes. All other test purposes are too generic and parameterized. These test purposes rather provide a general example for the behaviour that should be tested in the ATSs for supplementary services which use the generic functional protocol. Some of the tests contained in clause 6.2.2 of EN 300 196-3 [3] are also untestable due to the fact that the call state in which the test should be performed is unstable. These are: GFP_U7_01_003, GFP_U7_02_003, GFP_U7_03_003, GFP_U7_04_003, GFP_U7_05_003, GFP_U7_07_017, GFP_U7_07_022, GFP_U7_09_017, GFP_U7_09_021. GFP_U7_09_021. SIST EN 300 196-4 V1.2.1:2004



ETSI ETSI EN 300 196-4 V1.2.1 (2001-11) 9 6 ATS conventions 6.1 Version of TTCN used The version of TTCN used is that defined in ISO/IEC 9646-3 [7]. 6.2 Use of ASN.1 6.2.1 Situations where ASN.1 is used ASN.1 has been used for three major reasons. First, types defined in ASN.1 can model problems that "pure" TTCN cannot. For instance, data structures modelling ordered or unordered sequences of data are preferably defined in ASN.1. Second, ASN.1 provides a better restriction mechanism for type definitions by using sub-type definitions. Third, it is necessary to use ASN.1 to reproduce the type definitions for remote operation components as specified in the base standards. 6.2.2 Specification of encoding rules There is a variation in the encoding rules applied to ASN.1 types and constraints specified in this ATS and therefore a mechanism is needed to differentiate the encoding rules. However the mechanism specified in ISO/IEC 9646-3 [7] does not facilitate definition of the encoding rules as needed for this ATS. A solution is therefore used which is broadly in the spirit of ISO/IEC 9646-3 [7] in which comment fields have been used as a means of encoding rules. For ASN.1 used in this ATS, two variations of encoding rules are used. One is the commonly known Basic Encoding Rules (BER) as specified in ITU-T Recommendation X.209 [12] and ITU-T Recommendation X.690 [11]. In the second case the encoding is according to ISDN, i.e. the ASN.1 data types are a representation of structures contained within the ISDN specification (basic call, Generic functional protocol or individual supplementary service). For example, if octets of an information element are specified in ASN.1 as a SEQUENCE then this should be encoded in an Executable Test Suite (ExTS) as any other ISDN information element specified using tabular TTCN. This ISDN encoding variation is the default encoding rule for this ATS. This means that all ASN.1 constraint tables are encoded using ISDN (non-BER) encoding unless stated otherwise. BER encoding should never be applied to an ASN.1 constraint where BER encoding has not been specified. For BER encoding, an indication is given in the comments field of the table header. For this ATS such indications appear in the ASN.1 type definitions tables only. In the table header comment field, the notation "ASN1_Encoding: BER" is used. BER coding according to ITU-T Recommendation X.690 [11]. shall be used for any type with this notation. Note that within BER, there are a number of variations for the encoding of lengths of fields. According to EN 300 196-1 [1], an IUT should be able to interpret all length forms within BER for received PDUs. When sending PDUs containing BER encoding, EN 300 196-1 [1] gives guidelines but makes no restrictions on the length forms within BER which an IUT may apply. Table 1: ASN.1 type constraint declaration showing use of encoding variation ASN.1 Type Constraint Declaration Constraint Name : Beg3PTYinv ASN.1 Type
: Component Derivation Path : Comments
: ASN1_Encoding: BER
Receive component: Begin3PTY invoke component Description begin3PTY_Components
begin3PTY_InvokeComp
{ invokeID
? ,
operation_value
localValue
4} Detailed comments :
SIST EN 300 196-4 V1.2.1:2004



ETSI ETSI EN 300 196-4 V1.2.1 (2001-11) 10 7 ATS to TP map The identifiers used for the TPs are reused as test case names. Thus there is a straightforward one-to-one mapping. 8 PCTR conformance A test laboratory, when requested by a client to produce a PCTR, is required, as specified in ISO/IEC 9646-5 [9], to produce a PCTR conformant with the PCTR template given in annex B of ISO/IEC 9646-5 [9]. Furthermore, a test laboratory, offering testing for the ATS specification contained in annex C, when requested by a client to produce a PCTR, is required to produce a PCTR conformant with the PCTR proforma contained in annex A of the present document. A PCTR which conforms to this PCTR proforma specification shall preserve the content and ordering of the clauses contained in annex A. Clause A.6 of the PCTR may contain additional columns. If included, these shall be placed to the right of the existing columns. Text in italics may be retained by the test laboratory. 9 PIXIT conformance A test realizer, producing an executable test suite for the ATS specification contained in annex C, is required, as specified in ISO/IEC 9646-4 [8], to produce an augmented partial PIXIT proforma conformant with this partial PIXIT proforma specification. An augmented partial PIXIT proforma which conforms to this partial PIXIT proforma specification shall, as a minimum, have contents which are technically equivalent to annex B. The augmented partial PIXIT proforma may contain additional questions that need to be answered in order to prepare the Means Of Testing (MOT) for a particular IUT. A test laboratory, offering testing for the ATS specification contained in annex C, is required, as specified in ISO/IEC 9646-5 [9], to further augment the augmented partial PIXIT proforma to produce a PIXIT proforma conformant with this partial PIXIT proforma specification. A PIXIT proforma which conforms to this partial PIXIT proforma specification shall, as a minimum, have contents which are technically equivalent to annex B. The PIXIT proforma may contain additional questions that need to be answered in order to prepare the test laboratory for a particular IUT. 10 ATS conformance The test realizer, producing MOT and ExTS for this ATS specification, shall comply with the requirements of ISO/IEC 9646-4 [8]. In particular, these concern the realization of an ExTS based on each ATS. The test realizer shall provide a statement of conformance of the MOT to this ATS specification. An ExTS which conforms to this ATS specification shall contain test groups and test cases which are technically equivalent to those contained in the ATS in annex C. All sequences of test events comprising an abstract test case shall be capable of being realized in the executable test case. Any further checking which the test system might be capable of performing is outside the scope of this ATS specification and shall not contribute to the verdict assignment for each test case. Test laboratories running conformance test services using this ATS shall comply with ISO/IEC 9646-5 [9]. A test laboratory which claims to conform to this ATS specification shall use an MOT which conforms to this ATS. SIST EN 300 196-4 V1.2.1:2004



ETSI ETSI EN 300 196-4 V1.2.1 (2001-11) 11 11 Configurations required in testing Some test cases require the IUT to be configured in special ways. These test cases and the special configurations are indicated in table 2 below. Except where indicated otherwise these special configurations should not be used for other test cases. Table 2: Special configurations Configuration PIXIT reference Test Suite Parameter Test cases Hold not permitted (as a responding entity) 2.3 PX_HOLD_NOT GFP_U7_07_24 - 29 Retrieve not permitted (as a responding entity) 2.4 PX_RET_NOT GFP_U7_09_35 - 40 NCICS connections rejected (see note) 2.8 PX_REJECT_NCICS GFP_U8_09_009 NOTE: If rejection of a NCICS connection can be provoked by use of a Called party number not matching the IUT no special configuration is necessary for this test case.
NOTE: Certain items in the GFP PICS (EN 300 196-2 [2]) assume that the ability of an implementation to act as a initiating or as a responding entity is a global characteristic. When this assumption is incorrect and the IUT can act as an initiating entity for the HOLD/RETRIEVE procedures and a responding entity for some other part of GFP, some test cases in the GFP_U07_03, GFP_U07_04, GFP_U07_07 and GFP_U07_09 groups can be selected that are not applicable to the IUT. Users of this ATS are therefore recommended to check that TPs in these groups are only selected if the behaviour being tested is actually supported by the IUT. SIST EN 300 196-4 V1.2.1:2004



ETSI ETSI EN 300 196-4 V1.2.1 (2001-11) 12 Annex A (normative): Protocol Conformance Test Report (PCTR) proforma Notwithstanding the provisions of the copyright clause related to the text of the present document, ETSI grants that users of the present document may freely reproduce the PCTR proforma in this annex so that it can be used for its intended purposes and may further publish the completed PCTR. A.1 Identification summary A.1.1 Protocol conformance test report PCTR number:
PCTR date:
Corresponding SCTR number:
Corresponding SCTR date:
Test laboratory identification:
Test laboratory manager:
Signature:
A.1.2 IUT identification Name:
Version:
Protocol specification: EN 300 196-1 PICS:
Previous PCTRs (if any)
A.1.3 Testing environment PIXIT reference number:
ATS specification: EN 300 196-4 Abstract test method: Remote test method (see ISO/IEC 9646-2) Means of testing identification:
Dates of testing:
Conformance log reference(s):
Retention date for log reference(s):
SIST EN 300 196-4 V1.2.1:2004



ETSI ETSI EN 300 196-4 V1.2.1 (2001-11) 13 A.1.4 Limits and reservations Additional information relevant to the technical contents or further use of the test report, or to the rights and obligations of the test laboratory and the client, may be given here. Such information may include restriction on the publication of the report. . . . . A.1.5 Comments Additional comments may be given by either the client or the test laboratory on any of the contents of the PCTR, for example, to note disagreement between the two parties. . .
...
