ASTM D4563-02(2015)

Standard Test Method for Determination by Atomic Absorption Spectroscopy of Titanium Dioxide Content of Pigments Recovered From Whole Paint

SIGNIFICANCE AND USE
4.1 This test method may be used in quality control laboratories when the repeated analysis of titanium dioxide in similar paints may be required. Reagents and time are kept to a minimum when this test method is used in place of wet chemical analysis such as in Test Methods D1394. However, reproducibility and repeatability are not as good as in Test Methods D1394.
SCOPE
1.1 This test method covers the atomic absorption (AA) analysis of titanium dioxide content in pigments recovered from whole paint. It is applicable to quality control situations where the same type of product is repeatedly analyzed.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use. Specific hazard statements are given in Section 7.

General Information

• Status: Historical
• Publication Date: 31-May-2015
• ICS: 87.060.10 - Pigments and extenders
• Technical Committee: D01 - Paint and Related Coatings, Materials, and Applications
• Drafting Committee: D01.21 - Chemical Analysis of Paints and Paint Materials

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information
Designation: D4563 − 02 (Reapproved 2015)
Standard Test Method for
Determination by Atomic Absorption Spectroscopy of
Titanium Dioxide Content of Pigments Recovered From
1
Whole Paint
This standard is issued under the fixed designation D4563; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope determined by atomic absorption spectroscopy using a speci-
men similar to that previously analyzed by the Aluminum
1.1 This test method covers the atomic absorption (AA)
Reduction Method in Test Methods D1394.
analysis of titanium dioxide content in pigments recovered
from whole paint. It is applicable to quality control situations 3.2 By utilizing the pigment analyzed in Test Methods
where the same type of product is repeatedly analyzed. D1394 as an atomic absorption standard, several hundred TiO
2
determinations can be made. TheAAtechnique is much faster
1.2 The values stated in SI units are to be regarded as
than the technique in Test Methods D1394 for multiple
standard. No other units of measurement are included in this
determinations and uses only acids. This keeps reagents and
standard.
time to a minimum.
1.3 This standard does not purport to address the safety
concerns, if any, associated with its use. It is the responsibility
4. Significance and Use
of the user of this standard to establish appropriate safety and
4.1 This test method may be used in quality control labo-
health practices and determine the applicability of regulatory
ratories when the repeated analysis of titanium dioxide in
limitations prior to use. Specific hazard statements are given in
similar paints may be required. Reagents and time are kept to
Section 7.
a minimum when this test method is used in place of wet
chemical analysis such as in Test Methods D1394. However,
2. Referenced Documents
2 reproducibility and repeatability are not as good as in Test
2.1 ASTM Standards:
Methods D1394.
D1193 Specification for Reagent Water
D1394 Test Methods for Chemical Analysis of White Tita-
5. Apparatus
nium Pigments
E180 Practice for Determining the Precision of ASTM 5.1 Atomic Absorption Spectrophotometer, consisting of
Methods for Analysis and Testing of Industrial and Spe- 5.1.1 Atomizer and nitrous oxide burner,
3
cialty Chemicals (Withdrawn 2009) 5.1.2 Gas-pressure regulator and metering devices for ni-
E288 Specification for Laboratory Glass Volumetric Flasks trous oxide and acetylene,
5.1.3 Titanium hollow cathode lamp with regulated
3. Summary of Test Method
constant-current supply,
5.1.4 Monochromator and associated optics,
3.1 The specimen is prepared for analysis by ashing at
5.1.5 Photosensitive detector connected to an electronic
450°Cfollowedbydigestionwithsulfuricacidandammonium
amplifier,
sulfate as in Test Methods D1394. The titanium content is
5.1.6 Readout device.
5.2 Muffle Furnace, capable of maintaining 450 6 25°C.
1
This test method is under the jurisdiction of ASTM Committee D01 on Paint
and Related Coatings, Materials, andApplications and is the direct responsibility of
5.3 Circulating Oven, maintained at 105 6 2°C.
Subcommittee D01.21 on Chemical Analysis of Paints and Paint Materials.
5.4 Porcelain Dishes, 90-mm diameter.
Current edition approved June 1, 2015. Published June 2015. Originally
approved in 1986. Last previous edition approved in 2008 as D4563 – 02 (2008).
5.5 Plastic Disposable Syringe, 10-mL capacity.
DOI: 10.1520/D4563-02R15.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
5.6 Agate Mortar and Pestle, 95-mm outside diameter.
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
Standards volume information, refer to the standard’s Document Summary page on 5.7 Wide-Mouth Erlenmeyer Flask, 500-mL capacity.
the ASTM website.
3
5.8 Hot Plate, with variable surface temperature control
The last approved version of this historical standard is referenced on
www.astm.org. from 10°C above ambient to 370°C accurate to within 65°C.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D4563 − 02 (2015)
5.9 Burner. 8. Calibration and Standardization
5.10 Volumetric Flask, 1000 mL, plastic (see Specification 8.1 Operational instructions for atomic absorption spectro-
E288). photometers vary with different models. Consult the manufac-
turer’s literature for establishing optimum conditions for the
5.11 Paint Shaker.
specific instrument used.
5.12 Weighing Bottles, wide-mouth, with an external-fitting
8.2 Turn the instrument on and set the wavelength t
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

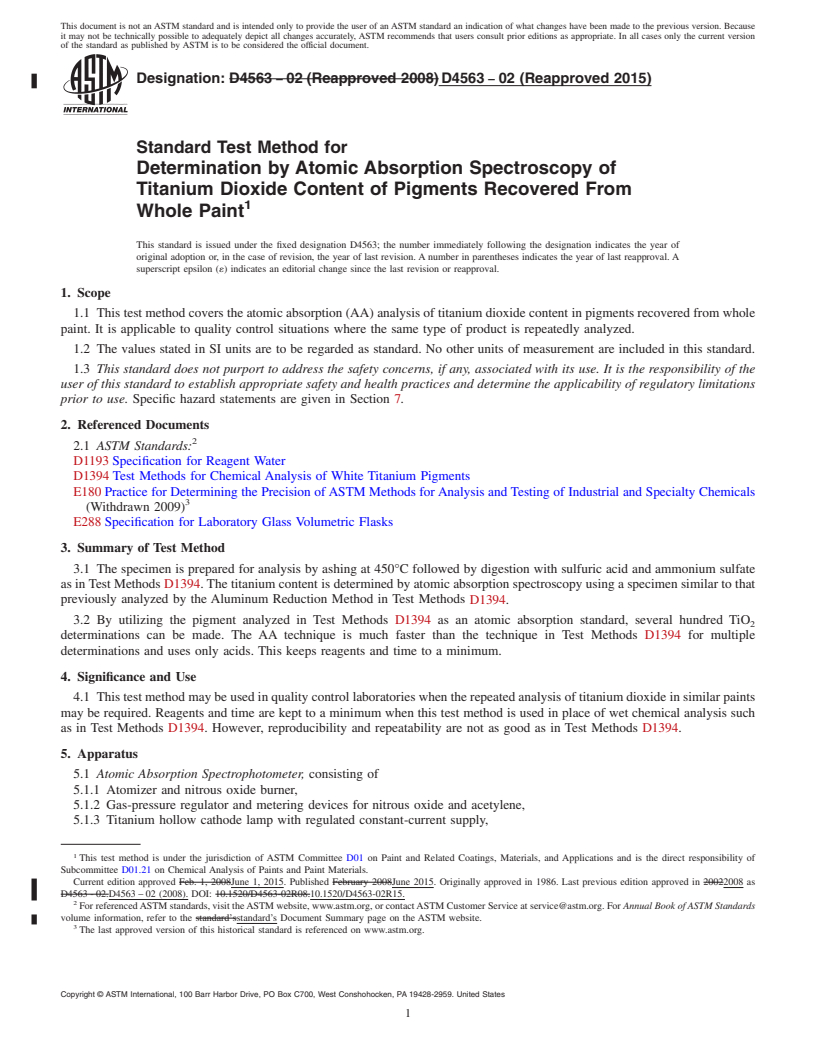

Designation: D4563 − 02 (Reapproved 2008) D4563 − 02 (Reapproved 2015)
Standard Test Method for
Determination by Atomic Absorption Spectroscopy of
Titanium Dioxide Content of Pigments Recovered From
1
Whole Paint
This standard is issued under the fixed designation D4563; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This test method covers the atomic absorption (AA) analysis of titanium dioxide content in pigments recovered from whole
paint. It is applicable to quality control situations where the same type of product is repeatedly analyzed.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address the safety concerns, if any, associated with its use. It is the responsibility of the
user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations
prior to use. Specific hazard statements are given in Section 7.
2. Referenced Documents
2
2.1 ASTM Standards:
D1193 Specification for Reagent Water
D1394 Test Methods for Chemical Analysis of White Titanium Pigments
E180 Practice for Determining the Precision of ASTM Methods for Analysis and Testing of Industrial and Specialty Chemicals
3
(Withdrawn 2009)
E288 Specification for Laboratory Glass Volumetric Flasks
3. Summary of Test Method
3.1 The specimen is prepared for analysis by ashing at 450°C followed by digestion with sulfuric acid and ammonium sulfate
as in Test Methods D1394. The titanium content is determined by atomic absorption spectroscopy using a specimen similar to that
previously analyzed by the Aluminum Reduction Method in Test Methods D1394.
3.2 By utilizing the pigment analyzed in Test Methods D1394 as an atomic absorption standard, several hundred TiO
2
determinations can be made. The AA technique is much faster than the technique in Test Methods D1394 for multiple
determinations and uses only acids. This keeps reagents and time to a minimum.
4. Significance and Use
4.1 This test method may be used in quality control laboratories when the repeated analysis of titanium dioxide in similar paints
may be required. Reagents and time are kept to a minimum when this test method is used in place of wet chemical analysis such
as in Test Methods D1394. However, reproducibility and repeatability are not as good as in Test Methods D1394.
5. Apparatus
5.1 Atomic Absorption Spectrophotometer, consisting of
5.1.1 Atomizer and nitrous oxide burner,
5.1.2 Gas-pressure regulator and metering devices for nitrous oxide and acetylene,
5.1.3 Titanium hollow cathode lamp with regulated constant-current supply,
1
This test method is under the jurisdiction of ASTM Committee D01 on Paint and Related Coatings, Materials, and Applications and is the direct responsibility of
Subcommittee D01.21 on Chemical Analysis of Paints and Paint Materials.
Current edition approved Feb. 1, 2008June 1, 2015. Published February 2008June 2015. Originally approved in 1986. Last previous edition approved in 20022008 as
D4563 - 02.D4563 – 02 (2008). DOI: 10.1520/D4563-02R08.10.1520/D4563-02R15.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’sstandard’s Document Summary page on the ASTM website.
3
The last approved version of this historical standard is referenced on www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D4563 − 02 (2015)
5.1.4 Monochromator and associated optics,
5.1.5 Photosensitive detector connected to an electronic amplifier,
5.1.6 Readout device.
5.2 Muffle Furnace, capable of maintaining 450 6 25°C.
5.3 Circulating Oven, maintained at 105 6 2°C.
5.4 Porcelain Dishes, 90-mm diameter.
5.5 Plastic Disposable Syringe, 10-mL capacity.
5.6 Agate Mortar and Pestle, 95-mm outside diameter.
5.7 Wide-Mouth Erlenmeyer Flask, 500-mL capacity.
5.8 Hot Plate, with variable surface temperature control from 10°C above ambient to 370°C accurate to within 65°C.
5.9 Burner.
5.10 Volumetric Flask, 1000 mL, plastic (see Specification E
...
