ASTM F2783-20

Standard Practice for Design, Manufacture, Operation, Maintenance, and Inspection of Amusement Rides and Devices, in Canada

SIGNIFICANCE AND USE
4.1 The purpose of this practice is to adopt the ASTM F24 Committee Standards for Amusement Rides and Devices for use in Canada.
4.2 This practice provides guidance for use of additional codes and standards in Canada.
4.3 In cases where conflicts exist between this practice and local codes, local codes would prevail.
SCOPE
1.1 This practice applies to the terminology, design, manufacture, operation, maintenance, and inspection of amusement rides and devices in Canada.
1.2 This practice adopts ASTM Committee F24 Standards listed under subsections 2.2, 2.3 and 2.4. The adoption of the standards in 2.2, 2.3 and 2.4 in whole or part is at the sole discretion of the Authority Having Jurisdiction.
1.3 This practice includes an annex (mandatory), which provides additional information (for example, rationale, background, interpretations, drawings, commentary, etc.) related to the application of the criteria presented in this practice.
1.4 This practice includes an appendix (non-mandatory), which provides additional information (for example, rationale, background, interpretations, drawings, commentary, and so forth) to improve the user’s understanding and application of the criteria presented in this practice.
1.5 It is the responsibility of the users of this practice and other ASTM Standards to judge their suitability for a particular purpose.
1.6 This practice includes the following sections:
Title
Section
Scope
1
Referenced Documents
2
ASTM Committee F24 Core Standards
for Amusement Rides and Devices
2.2
ASTM Committee F24 Supporting Standards
for Amusement Rides and Devices
2.3
ASTM Committee F24 Standards for
Specific Classification of Amusement Rides
and Devices
2.4
Other Standards
2.5
Reference Codes, Standards, Specifications,
and Handbooks
2.6
Terminology
3
Significance and Use
4
Design
5
General
5.1
Substitution of Referenced Documents in
Practice F2291 with Alternate Documents
5.2
General
5.2.1
Canadian Standards
5.2.2
Exceptions from Practice F2291
5.3
Additional Requirements
5.4
Manufacture
6
Ownership, Operation, Maintenance, and Inspection
7
Exceptions from Practice F770
7.3
Additional Requirements
7.4
Auditing of Amusement Rides and Devices
8
Recognized Certification Marks
Annex A1
Significance and Use
Appendix X1
Hardness Measurement of Patron Seat and Restraint Padding
Appendix X2
Applicable Code(s) used for Amusement Ride or Device Evaluation at Time of Request for Approval within a Jurisdiction
Appendix X3
1.7 For a glossary of terms that includes the meaning and intent of words such as shall, should, may, will, standard, practice, guide, classification, specification, etc. used in ASTM standards, please refer to “Form and Style for ASTM Standards,” which is available at www.astm.org.
1.8 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.9 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 31-Mar-2020
• ICS: 97.200.99 - Other equipment for entertainment
• Technical Committee: F24 - Amusement Rides and Devices
• Drafting Committee: F24.80 - Harmonization

Relations

• Replaces: ASTM F2783-17 - Standard Practice for Design, Manufacture, Operation, Maintenance, and Inspection of Amusement Rides and Devices, in Canada
• Effective Date: 01-Apr-2020
• Refers: ASTM F2137-19 - Standard Practice for Measuring the Dynamic Characteristics of Amusement Rides and Devices
• Effective Date: 15-Oct-2019
• Refers: ASTM F2460-19 - Standard Practice for Special Requirements for Bumper Boats
• Effective Date: 15-Oct-2019
• Refers: ASTM F2291-19 - Standard Practice for Design of Amusement Rides and Devices
• Effective Date: 15-May-2019
• Refers: ASTM F2974-19 - Standard Practice for Auditing Amusement Rides and Devices
• Effective Date: 01-Jan-2019
• Refers: ASTM F3133-18 - Standard Practice for Classification, Design, Manufacture, Construction, Maintenance, and Operation of Stationary Wave Systems
• Effective Date: 01-Nov-2018
• Refers: ASTM F2007-18 - Standard Practice for Design, Manufacture, and Operation of Concession Go-Karts and Facilities
• Effective Date: 01-Nov-2018
• Refers: ASTM F770-18 - Standard Practice for Ownership, Operation, Maintenance, and Inspection of Amusement Rides and Devices
• Effective Date: 01-Jun-2018
• Refers: ASTM F1193-18 - Standard Practice for Quality, Manufacture, and Construction of Amusement Rides and Devices
• Effective Date: 15-May-2018
• Refers: ASTM F2970-17 - Standard Practice for Design, Manufacture, Installation, Operation, Maintenance, Inspection and Major Modification of Trampoline Courts
• Effective Date: 01-Dec-2017
• Refers: ASTM F3099-17a - Standard Practices for Parasailing
• Effective Date: 15-Oct-2017
• Refers: ASTM F3099-17 - Standard Practices for Parasailing
• Effective Date: 01-Jul-2017
• Refers: ASTM F2291-17 - Standard Practice for Design of Amusement Rides and Devices
• Effective Date: 01-Jun-2017
• Refers: ASTM F770-17 - Standard Practice for Ownership, Operation, Maintenance, and Inspection of Amusement Rides and Devices
• Effective Date: 01-May-2017
• Refers: ASTM F2974-17a - Standard Guide for Auditing Amusement Rides and Devices
• Effective Date: 01-May-2017

Overview

ASTM F2783-20 is the Standard Practice for the Design, Manufacture, Operation, Maintenance, and Inspection of Amusement Rides and Devices in Canada, published by ASTM International. This standard adopts and tailors the ASTM F24 Committee's family of standards to meet Canadian requirements, providing an organized framework for ensuring amusement ride safety across the country. By replacing the former CAN/CSA Z267 standard, ASTM F2783-20 delivers harmonized criteria for inspectors, designers, manufacturers, operators, and regulators in Canada’s amusement devices industry.

Key Topics

ASTM F2783-20 covers the entire lifecycle of amusement rides and devices, focusing on the critical processes necessary to maintain safety and compliance. Key areas addressed in the standard include:

• Terminology: Provides consistent definitions for terms used across ASTM F24 standards, ensuring clear communication between stakeholders.
• Design: Outlines essential requirements and references the use of Practice F2291 for amusement ride design. It also provides mechanisms for substitution with Canadian-specific standards and addresses additional requirements unique to Canada.
• Manufacture: Sets expectations for quality procedures and documentation in manufacturing, referencing related ASTM and Canadian standards where applicable.
• Operation, Maintenance, and Inspection: Specifies protocols for safe operation, regular maintenance, and thorough inspection to ensure ongoing safety and reliability.
• Auditing: Addresses systematic auditing of amusement rides and devices to verify compliance.
• Cross-reference and Substitution: Provides clear guidance for substituting equivalent local, national, or international codes and standards in the Canadian context when required.
• Annexes and Appendices: Includes both mandatory and non-mandatory annexes for background, rationale, commentary, and practical interpretation, supporting effective application of the standard.
• Certification: Recognizes required certification marks and regulatory approvals relevant in Canadian jurisdictions.

Applications

ASTM F2783-20 is intended for a broad range of stakeholders within the Canadian amusement industry, including:

• Designers and Engineers: Use this standard to ensure that all design work aligns with both ASTM and Canadian regulatory requirements.
• Manufacturers: Reference manufacturing procedures and quality controls mandated by ASTM F2783-20 to produce compliant amusement rides and devices.
• Owners and Operators: Apply operation, maintenance, and inspection protocols outlined in the standard to minimize safety risk and maximize uptime.
• Inspectors and Auditors: Conduct consistent inspections and audits according to harmonized criteria, supporting ride safety and regulatory requirements.
• Regulators and Authorities Having Jurisdiction: Utilize the standard as a reference point for provincial and territorial adoption and enforcement, while respecting local codes that may take precedence in case of conflicts.

By standardizing procedures from design to ongoing operation, ASTM F2783-20 enhances public safety, encourages uniformity, and streamlines regulatory compliance in the Canadian amusement sector.

Related Standards

ASTM F2783-20 integrates and refers to a comprehensive network of other standards, notably:

• ASTM F24 Committee Core Standards: Including F747 (Terminology), F770 (Ownership, Operation, Maintenance, and Inspection), F1193 (Quality, Manufacture, Construction), F2291 (Design), F2974 (Auditing).
• Supporting Standards: Such as F1957 (Composite Foam Hardness), F2137 (Dynamic Characteristics), and F2375 (Climbing Nets).
• Standards for Specific Ride Types: Including F2007 (Go-Karts), F2374 (Inflatables), F2460 (Bumper Boats), F2959 (Aerial Adventure Courses), and others tailored to specialized equipment.
• Other Referenced Standards: Canadian Building Codes, electrical and welding standards (e.g., CSA, NBCC), as well as relevant ISO, IEC, and EN documents for specific components or applications.

For comprehensive compliance, users should always consult the latest edition of ASTM F2783-20 and the referenced supporting standards as applicable to their operations.

---

Keywords: ASTM F2783-20, amusement ride safety, Canadian amusement device standards, ASTM F24, amusement ride inspection, amusement ride design, amusement ride maintenance, amusement ride operation, Canadian standards, amusement ride regulation.

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

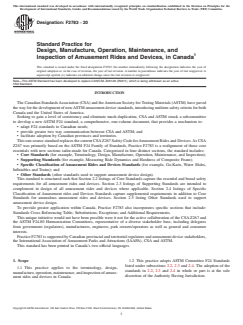

Designation: F2783 − 20
Standard Practice for
Design, Manufacture, Operation, Maintenance, and
Inspection of Amusement Rides and Devices, in Canada
This standard is issued under the fixed designation F2783; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
Note—This ASTM Standard has been developed to replace CAN/CSA Z267-00 (R2011), which is being withdrawn as an active
CSA Standard.
INTRODUCTION
The Canadian StandardsAssociation (CSA) and theAmerican Society for Testing Materials (ASTM) have paved
thewayforthedevelopmentofnewASTMamusementdevicestandards,introducinguniformsafetycriteriaforboth
Canada and the United States of America.
Seeking to gain a level of consistency and eliminate much duplication, CSA and ASTM struck a subcommittee
to develop a new ASTM F24 standard, a comprehensive, one-volume document, that provides a mechanism to:
• adapt F24 standards to Canadian needs;
• provide greater two way communication between CSA and ASTM; and
• facilitate adoption by Canadian provinces and territories.
Thisone-sourcestandardreplacesthecurrentCSAZ267SafetyCodeforAmusementRidesandDevices.AsCSA
Z267 was primarily based on the ASTM F24 Family of Standards, Practice F2783 is a realignment of those core
essentials with new sections tailor-made for Canada. Categorized in four distinct sections, the standard includes:
• Core Standards (for example, Terminology, Design, Manufacture, Operation, Maintenance, and Inspection);
• Supporting Standards (for example, Measuring Ride Dynamics and Hardness of Composite Foam);
• Specific Classification of Amusement Rides and Devices Standards (for example, Go-Karts, Water Slides,
Inflatables and Trains); and
• Other Standards (other standards used to support amusement device design).
This standard is structured such that Section 2.2 listings of Core Standards capture the essential and broad safety
requirements for all amusement rides and devices. Section 2.3 listings of Supporting Standards are intended to
complement in design of all amusement rides and devices where applicable. Section 2.4 listings of Specific
Classification of Amusement rides and Devices Standards capture supplemental requirements in addition to Core
Standards for anomalous amusement rides and devices. Section 2.5 listing Other Standards used to support
amusement device design.
To provide greater application within Canada, Practice F2783 also incorporates specific sections that include:
Standards Cross Referencing Table; Substitutions; Exceptions; and Additional Requirements.
This unique initiative would not have been possible were it not for the active collaboration of the CSAZ267 and
the ASTM F24.80 Harmonization Committees, representative of a diverse stakeholder base, including delegates
from government (regulators), manufacturers, engineers, park owners/operators as well as general and consumer
interests.
Practice F2783 is supported by Canadian provincial and territorial regulators and amusement device stakeholders,
the International Association of Amusement Parks and Attractions (IAAPA), CSA and ASTM.
This standard has been printed in Canada’s two official languages.
1. Scope 1.2 This practice adopts ASTM Committee F24 Standards
listed under subsections 2.2, 2.3 and 2.4. The adoption of the
1.1 This practice applies to the terminology, design,
standards in 2.2, 2.3 and 2.4 in whole or part is at the sole
manufacture,operation,maintenance,andinspectionofamuse-
discretion of the Authority Having Jurisdiction.
ment rides and devices in Canada.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F2783 − 20

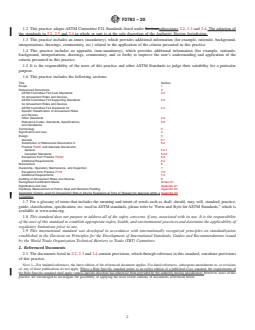

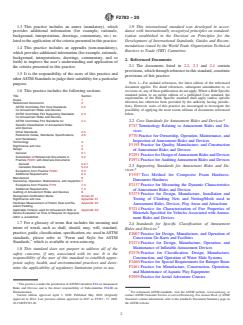

1.3 This practice includes an annex (mandatory), which 1.9 This international standard was developed in accor-
provides additional information (for example, rationale, dance with internationally recognized principles on standard-
background, interpretations, drawings, commentary, etc.) re- ization established in the Decision on Principles for the
lated to the application of the criteria presented in this practice. Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical
1.4 This practice includes an appendix (non-mandatory),
Barriers to Trade (TBT) Committee.
which provides additional information (for example, rationale,
background, interpretations, drawings, commentary, and so
2. Referenced Documents
forth) to improve the user’s understanding and application of
2.1 The documents listed in 2.2, 2.3 and 2.4 contain
the criteria presented in this practice.
provisions, which through reference in this standard, constitute
1.5 It is the responsibility of the users of this practice and
provisions of this practice.
otherASTM Standards to judge their suitability for a particular
NOTE 1—For undated references, the latest edition of the referenced
purpose.
document applies. For dated references, subsequent amendments to, or
1.6 This practice includes the following sections: revisionsof,anyofthesepublicationsdonotapply.WhereaRideSpecific
standard points to an earlier edition of a published Core standard, the
Title Section
requirements of the Ride Specific standard shall apply (unless specific
Scope 1
direction has otherwise been provided by the authority having jurisdic-
Referenced Documents 2
tion). However, users of this practice are encouraged to investigate the
ASTM Committee F24 Core Standards 2.2
possibility of applying the most recent editions of documents referenced
for Amusement Rides and Devices
ASTM Committee F24 Supporting Standards 2.3
below.
for Amusement Rides and Devices
ASTM Committee F24 Standards for 2.4
2.2 Core Standards for Amusement Rides and Devices:
Specific Classification of Amusement Rides
F747 Terminology Relating to Amusement Rides and De-
and Devices
vices
Other Standards 2.5
Reference Codes, Standards, Specifications, 2.6
F770 Practice for Ownership, Operation, Maintenance, and
and Handbooks
Inspection of Amusement Rides and Devices
Terminology 3
F1193 Practice for Quality, Manufacture, and Construction
Significance and Use 4
Design 5
of Amusement Rides and Devices
General 5.1
F2291 PracticeforDesignofAmusementRidesandDevices
Substitution of Referenced Documents in 5.2
F2974 Practice for Auditing Amusement Rides and Devices
Practice F2291 with Alternate Documents
General 5.2.1
2.3 Supporting Standards for Amusement Rides and De-
Canadian Standards 5.2.2
vices:
Exceptions from Practice F2291 5.3
Additional Requirements 5.4
F1957 Test Method for Composite Foam Hardness-
Manufacture 6
Durometer Hardness
Ownership, Operation, Maintenance, and Inspection 7
F2137 Practice for Measuring the Dynamic Characteristics
Exceptions from Practice F770 7.3
Additional Requirements 7.4
of Amusement Rides and Devices
Auditing of Amusement Rides and Devices 8
F2375 Practice for Design, Manufacture, Installation and
Recognized Certification Marks Annex A1
Significance and Use Appendix X1 Testing of Climbing Nets and Netting/Mesh used in
Hardness Measurement of Patron Seat and Re- Appendix X2
Amusement Rides, Devices, Play Areas and Attractions
straint Padding
F3214 Practice for Characterization of Fire Properties of
Applicable Code(s) used for Amusement Ride or Appendix X3
Device Evaluation at Time of Request for Approval Materials Specified for Vehicles Associated with Amuse-
within a Jurisdiction
ment Rides and Devices
1.7 For a glossary of terms that includes the meaning and
2.4 Standards for Specific Classification of Amusement
intent of words such as shall, should, may, will, standard,
Rides and Devices:
practice, guide, classification, specification, etc. used inASTM
F2007 Practice for Design, Manufacture, and Operation of
standards, please refer to “Form and Style for ASTM
Concession Go-Karts and Facilities
Standards,” which is available at www.astm.org.
F2374 Practice for Design, Manufacture, Operation, and
Maintenance of Inflatable Amusement Devices
1.8 This standard does not purport to address all of the
F2376 Practice for Classification, Design, Manufacture,
safety concerns, if any, associated with its use. It is the
Construction, and Operation of Water Slide Systems
responsibility of the user of this standard to establish appro-
F2460 Practice for Special Requirements for Bumper Boats
priate safety, health, and environmental practices and deter-
F2461 Practice for Manufacture, Construction, Operation,
mine the applicability of regulatory limitations prior to use.
and Maintenance of Aquatic Play Equipment
F2959 Practice for Aerial Adventure Courses
This practice is under the jurisdiction ofASTM Committee F24 on Amusement
Rides and Devices and is the direct responsibility of Subcommittee F24.80 on
Harmonization. For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Current edition approved April 1, 2020. Published May 2020. Originally contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
approved in 2014. Last previous edition approved in 2017 as F2783 – 17. DOI: Standards volume information, refer to the standard’s Document Summary page on
10.1520/F2783-20. the ASTM website.
F2783 − 20
F2960 Practice for Permanent Amusement Railway Ride 5. Design
Tracks and Related Devices
5.1 General—Amusement rides and devices shall be de-
F2970 Practice for Design, Manufacture, Installation,
signed in accordance with Practice F2291.
Operation, Maintenance, Inspection and Major Modifica-
5.1.1 The significance and use of Practice F2291 are ex-
tion of Trampoline Courts
plained in Appendix X1.1.
F3054 Practice for Operations of Amusement Railway
5.2 Substitution of Referenced Documents in Practice
Rides, Devices, and Facilities
F2291 with Alternate Documents:
F3099 Practices for Parasailing
5.2.1 General:
F3133 Practice for Classification, Design, Manufacture,
5.2.1.1 Subsection 2.6 lists substitution of referenced docu-
Construction, Maintenance, and Operation of Stationary
ments in Practice F2291 with acceptable alternate documents
Wave Systems
for their applicability in Canada.
F3158 Practice for Patron Transportation Conveyors Used
5.2.1.2 Amusementridesanddevicesshallmeettherequire-
with a Water Related Amusement Ride or Device
ments specified in Sections 5.2.2 and 5.2.3.
2.5 Other Standards:
5.2.2 Canadian Standards:
D785 Test Method for Rockwell Hardness of Plastics and
5.2.2.1 All electrical apparatus and wiring in amusement
Electrical Insulating Materials
rides and devices shall conform to the requirements CSA
D2240 Test Method for Rubber Property—Durometer Hard-
C22.1.
ness
5.2.2.2 All references to NFPA 70 (the National Electrical
F1159 Practice for Design ofAmusement Rides and Devices
Code) in Practice F2291 shall have substituted the applicable
that are Outside the Purview of Other F24 Design Stan-
rules of CSA C22.1, Canadian Electrical Code.
dards
5.2.2.3 Where electrical equipment used in an amusement
2.6 Reference Codes, Standards, Specifications, and Hand-
ride or device is not certified or listed, and marked or labeled
books:
to the pertinent standard in Part II of the Canadian Electrical
NOTE 2—Table 1 provides cross-references of document(s) acceptable
Code, it shall be field evaluated and labeled or marked to the
in lieu of specific editions of codes, standards, specifications, and
requirements of CSA SPE-1000, Model Code for the Field
handbooks referenced in standards from ASTM Committee F24 on
Evaluation of Electrical Equipment.
Amusement Rides and Devices. Only that portion of the codes, standards,
specifications and handbooks as specified by the requirements of this
NOTE 3—Carnival and traveling show owners or operators, where
standard is applicable.
required by the local jurisdiction, should arrange to have installation and
connection of electrical equipment on amusement rides or devices
3. Terminology
inspected at every event to ensure they meet the safety standards defined
in the adopted Electrical Safety Code. Annex A1 provides a listing of
3.1 Terms that are meant to have common meaning among
certification agencies acceptable by authorities having jurisdiction.
the ASTM Committee F24 standards referenced in Section 2
5.2.2.4 Overhead Utilities—Amusement rides or devices
are defined in Terminology F747.
shall not be located in proximity to overhead electric supply
3.2 Terms that are meant to have specific meaning within
and communication utility systems unless the overhead system
the ASTM Committee F24 standards are defined in those
meets the requirements of CAN/CSA-C22.3 No. 1.
standards referenced in Section 2.
NOTE 4—Proximity as defined in CAN/CSA-C22.3 No. 1 means that
3.3 engineer, n—an engineer as defined by and licensed in
lines are so located that the failure of a conductor or any part of the
accordance with the applicable provincial or territorial statute.
overhead system (such as overturning at the ground line) would interfere
with the normal use, operation, or maintenance of an amusement ride or
3.4 Clarification of Terminology in ASTM Committee F24
device by contact or encroachment on minimum clearance requirements
Standards:
by the conductor or structure.
3.4.1 The term “attractions” used in the ASTM F24 Com-
5.2.2.5 Clearances to Structures—Clearances between an
mittee Standards for Amusement Rides and Devices hold the
amusementrideordeviceandstructuresnotformingpartofthe
same meaning as “amusement rides or devices” defined in
amusement device shall meet the requirements of the National
Terminology F747.
Fire Code of Canada (NFCC).
3.4.2 Theterm“English”usedintheASTMF24Committee
5.2.2.6 Fixed Amusement Rides or Devices Foundation—
Standards for Amusement Rides and Devices means “English
Foundations for fixed amusement rides or devices shall be
and French” for the purpose of this Standard.
designed in accordance with the National Building Code of
Canada (NBCC).
4. Significance and Use
5.2.2.7 Amusement Rides or Devices Structure—Wind,
4.1 The purpose of this practice is to adopt the ASTM F24
snow, ice, and earthquake loads on amusement rides or devices
Committee Standards for Amusement Rides and Devices for
structure shall be calculated in accordance with requirements
use in Canada.
specified in the NBCC.
4.2 This practice provides guidance for use of additional
5.2.3 Specific References within Canadian Standards:
codes and standards in Canada.
5.2.3.1 With respect to electrical grounding, reference to
4.3 In cases where conflicts exist between this practice and NFPA 70, Section 525-Ca in Practice F2291 may be under-
local codes, local codes would prevail. stood to refer to CSA C22.1, Section 66.
F2783 − 20
TABLE 1 Cross-References of Documents
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
ACI Standards:
ACI 301 F2291 Specifications for Structural Con- NBCC (NRCC) National Building Code of Canada See also 5.2.2.6.
crete
ACI 318 F2291 Building Code Requirements for NBCC (NRCC) National Building Code of Canada See also 5.2.2.6.
Structural Concrete (318) and
Commentary (318R)
AF&PA American Wood Council Standards:
NDS 2005 F2291 National Design Specification for O86 (CSA) Consolidation – Engineering de-
Wood Construction sign in wood
AISC Manuals:
AISC 316 F2291 Manual of Steel Construction, Al- (CISC) & Handbook of Steel Construction – AISC 316, the CISC Handbook, and CSA
F2970 lowable Stress Design (ASD) S16 (CSA) Ninth Edition; and Design of Steel S16 are to be used in conjunction with the
Structures section on loads and strengths in Practice
F2291.
AISC 360-05 F2291 Specifications for Structural Steel (CISC) & Limit States Design in Structural AISC 360, the CISC LSD publication, and
Buildings S16 (CSA) Steel Eighth Edition, and Design CSA S16 are to be used in conjunction with
of steel structures the section on loads and strengths in Practice
F2291.
AISC M015 F2291 Manual on Steel Construction, (CISC) & Limit States Design in Structural AISC M015, the CISC LSD publication, and
F2970 Load & Resistance Factor Design S16 (CSA) Steel Ninth Edition, and Design of CSA S16 are to be used in conjunction with
(LRFD) steel structures the section on loads and strengths in Practice
F2291.
ANSI Standards:
ANSI B11.TR3 F2291 Risk Assessment and Risk Re- None None This technical report is intended to comple-
duction–A Guide to Estimate, ment the topic about Ride Analysis covered in
Evaluate, and Reduce Risks As- Practice F2291.
sociated with Machine Tools
ANSI B77.1 F2291 Passenger Ropeways–Aerial Z98 (CSA) Passenger ropeways and passen- See also 5.3.3.
F2959 Tramways, Aerial Lifts, Surface ger conveyors
F3158 Lifts, Tows and Conveyors–Safety
Requirements
ANSI B77.2 F3054 Funiculars - Safety Requirements Z98 (CSA) Passenger ropeways and passen- None
ger conveyors
ANSI Y32.10 F2291 Graphic Symbols for Fluid Power None None None
Diagrams
ANSI Z359 F2959 Fall Protection Code None None See also provincial Occupational Health and
Safety requirements related to Fall Protection
ANSI A10.11 F2461 Personal and Debris Nets None None None
ANSI/IAF-9 F2461 American National Standard for None None Refer to Provincial pool safety standards as
Aquatic Recreation Facilities required. Also known as APSP-9.
APSP (Association of Pool & Spa Professionals) Document:
ANSI/APSP-16 F3133 Suction Fittings for Use in Swim- None None Refer to Provincial pool safety standards as
ming Pools, Wading Pools, Spas required
and Hot Tubs
AREMA (American Railway Engineering and Maintenance-of-Way Association):
Manual for Railway Engi- F2960 Manual for Railway Engineering None None None
neering (AREMA)
F2783 − 20
TABLE 1 Continued
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
ASCE Standards:
ASCE 7 F2291 Minimum Design Loads for Build- NBCC (NRCC) National Building Code of Canada ASCE 7 and the NBCC are to be used in
ings and Other Structures conjunction with the section on loads and
strengths in Practice F2291.
ASCE 16 F2291 Standard for Load and Resistance O86 (CSA) Consolidation – Engineering de-
Factor Design (LRFD) for Engi- sign in wood
neered Wood Construction
ASM Documents:
Atlas of Fatigue Curves F2291 ASM Atlas of Fatigue Curves None None The ASM Atlas and the ASM Handbook are
intended to complement the topic about fa-
tigue strength of mechanical and structural
components.
ASM Handbook Volume F2291 ASM Handbook Volume 19: Fa- None None The ASM Atlas and the ASM Handbook are
19: Fatigue and Fracture tigue and Fracture intended to complement the topic about fa-
tigue strength of mechanical and structural
components.
ASME Standards:
ASME A17.1/CSA B44 F2291 Safety Code for Elevators and ASME A17.1/CSA B44 Safety code for elevators and es- This standard may be applicable where el-
F3158 Escalators (ASME/CSA) calators evator and escalator technology is used in
the design of amusement rides or devices.
ASME B15.1 F2291 Safety Standards for Mechanical None None None
Power Transmission Apparatus
ASME B20.1 F3158 Safety Standard for Conveyors A17.1/B44 (ASME) Safety code for Elevators and Es- Requirements of B20.1 may be subject to
and Related Equipment calators Provincial adoption
ASME BPVC F2291 ASME Boiler and Pressure Vessel B51 (CSA) Boiler, pressure vessel, and pres- Accumulators shall be constructed in accor-
Code sure piping code. dance with Section 8, Division 1 of the ASME
Boiler and Pressure Vessel Code for unfired
pressure vessels, or equivalent.
ASNT Document:
ASNT SNT-TC-1A F1193 Topical Outlines for Qualification 48.9712 / ISO 9712 Nondestructive Testing; Qualifica- For all NDT Personnel:
of Nondestructive Testing Person- (CGSB) tion and Certification of Personnel Natural Resources Canada (NRCan), through
nel the CANMET Materials Technology Labora-
tory (MTL), is the Certifying Agency for the
Canadian Non-Destructive Testing (NDT) Per-
sonnel Certification Program. NRCan certifies
individuals according to the Canadian Gen-
eral Standards Board Standard CAN/CGSB-
48.9712 (Qualification and Certification of
Non-Destructive Testing Personnel).
For NDT of Welding to CSA W47.1:
In Canada, the CWB (Canadian Welding Bu-
reau) is the Certification Body for the admin-
istration of CSA Standard W178:
1) NDT shall be conducted by organization
certified to W178.1-08 – Certification of Weld-
ing Inspection Organizations.
2) NDT shall be conducted by individual certi-
fied to W178.2-08 – Certification of Welding
Inspectors.
F2783 − 20
TABLE 1 Continued
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
ASTM Standards:
ASTM D737 F2970 Test Method for Air Permeability None None None
of Textile Fabrics
ASTM D3574 F2970 Test Methods for Flexible Cellular None None None
Materials—Slab, Bonded, and
Molded Urethane Foams
ASTM D3786 F2970 Test Method for Bursting Strength None None None
of Textile Fabrics— Diaphragm
Bursting Strength Tester Method
ASTM D3787 F2970 Test Method for Bursting Strength None None None
of Textiles— Constant-Rate-of-
Traverse (CRT) Ball Burst Test
ASTM D4533 F2970 Test Method for Trapezoid Tearing None None None
Strength of Geotextiles
ASTM D4632 F2970 Test Method for Grab Breaking None None None
Load and Elongation of Geotex-
tiles
ASTM D4833 F2970 Test Method for Index Puncture None None None
Resistance of Geomembranes
and Related Products
ASTM D5034 F2970 Test Method for Breaking Strength None None None
and Elongation of Textile Fabrics
(Grab Test)
ASTM D5672 F2970 Test Method for Testing Flexible None None None
Cellular Materials Measurement of
Indentation Force Deflection Us-
ing a 25 mm [1 in.] Deflection
Technique
ASTM D6413 F2970 Test Method for Flame Resistance None None None
of Textiles (Vertical Test)
ASTM E84 F2970 Test Method for Surface Burning None None None
F3214 Characteristics of Building Materi-
als
ASTM E136 F3214 Test Method for Behavior of Mate- None None None
rials in a Vertical Tube Furnace at
750°C
ASTM E162 F3214 Test Method for Surface flamma- None None None
bility of Materials Using Radiant
Heat Energy Source
F2783 − 20
TABLE 1 Continued
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
ASTM E543 F1193 Standard Specification for Agen- 48.9712 / ISO 9712 Nondestructive Testing; Qualifica- For all NDT Personnel:
cies Performing Nondestructive (CGSB) tion and Certification of Personnel Natural Resources Canada (NRCan), through
Testing the CANMET Materials Technology Labora-
tory (MTL), is the Certifying Agency for the
Canadian Non-Destructive Testing (NDT) Per-
sonnel Certification Program. NRCan certifies
individuals according to the Canadian Gen-
eral Standards Board Standard CAN/CGSB-
48.9712 (Qualification and Certification of
Non-Destructive Testing Personnel).
For NDT of Welding to CSA W47.1:
In Canada, the CWB (Canadian Welding Bu-
reau) is the Certification Body for the admin-
istration of CSA Standard W178:
1) NDT shall be conducted by organization
certified to W178.1-08 – Certification of Weld-
ing Inspection Organizations.
2) NDT shall be conducted by individual certi-
fied to W178.2-08 – Certification of Welding
Inspectors.
ASTM E648 F2970 Test Method for Critical Radiant None None None
Flux of Floor- Covering Systems
Using a Radiant Heat Energy
Source
ASTM E662 F3214 Test Method for Specific Optical None None None
Density of Smoke Generated by
Solid Materials
ASTM E1354 F3214 Test Method for Heat and Visible None None None
Smoke Release Rates for Materi-
als and Products Using Oxygen
Consumption Calorimeter
ASTM F355 F2970 Test Method for Impact Attenua- None None None
tion of Playing Surface Systems
and Materials
ASTM F1148 F2461 Consumer Safety Performance None None None
Specification for Home Play-
ground Equipment
ASTM F1292 F2461 Specification for Impact Attenua- None None None
tion of Surfacing Materials Within
the Use Zone of Playground
Equipment
ASTM F1487 F2959 Consumer Safety Performance CAN/CSA-Z614 Children’s playspaces and equip- None
F2461 Specification for Playground ment
Equipment for Public Use
ASTM F1772 F2959 Specification for Harnesses for CAN/CSAZ259.10 Full body harness See ASTM requirements where not ad-
Rescue, Safety, and Sport Activi- dressed by the CSA Standard
ties
ASTM F1918 F2461 Safety Performance Specification None None None
for Soft Contained Play Equip-
ment
ASTM F2650 F2970 Terminology Relating to Impact None None None
Testing of Sports Surfaces and
Equipment
ASTM Technical Publication:
F2783 − 20
TABLE 1 Continued
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
ASTM STP-1330 F2291 Composite Materials: Fatigue and None None Publication STP-1330 contains papers pre-
Fracture, 7th Volume sented at the Seventh Symposium on Com-
posite Materials, and Fatigue and Fracture.
AWPA (American Wood Preserver’s Association) Standard:
AWPA U1 F2960 Use Category System None None None
AWS Standards:
AWS D1.1/D1.1M F1193 Structural Welding Code - Steel W47.1 Certification of Companies for Fu- Refer to 5.3.4 for additional information.
F2291 W59 sion Welding of Steel CSA W47.1 and CSA W59 together are ac-
F2970 Welded Steel Construction (Metal ceptable to ANSI D1.1
Arc Welding)
AWS D1.1/D1.1M F2291 Structural Welding Code – Steel W178.1 (CSA) Certification of welding inspection See also 5.3.4.
F2970 W178.2 (CSA) organizations
Certification of welding inspectors
AWS D14.4 F2291 Specification for Welded Joints in W59 (CSA) Welded steel construction (metal See also 5.3.4.
F2970 Machinery and Equipment arc welding)
BSI Standards:
BS EN 1907 F2960 Safety Requirements for Cable- None None None
F3054 way Installations Designed to
Carry Persons—Terminology
BS 5400-10 F2291 Steel, Concrete and Composite None None BS 5400 is intended to complement the topic
Bridges–Code of Practice for Fa- about fatigue strength of mechanical and
tigue structural components.
BS 7608 F2291 Code of Practice for Fatigue De- None None BS 7608 is intended to complement the topic
sign and Assessment of Steel about fatigue strength of mechanical and
Structures structural components.
BS EN 12277 F2959 Mountaineering equipment – Har- None None None
nesses – Safety requirements and
test methods
California Technical Bulletin:
California Technical Bulletin F2970 Requirements, Test Procedure None None None
117 and Apparatus for Testing the
Flame Retardance of Resilient
Filling Materials
CDC (Center of Disease Control):
Growth Charts F2291 Basic Body Measurements None None
CFR (Code of Federal Regulations):
OSHA 29 CFR F1159 Fall Protection Systems Criteria None None Refer to provincial Occupational Health and
and Practices Safety requirements related to Fall Protection
46 CFR Part 16 F3099 46 CFR Part 16 Chemical Testing None None Relates to chemical and drug testing of indi-
viduals. Refer to Provincial or Federal regula-
tions as appropriate for waterways
DIN Standards:
DIN 1055 F2291 Actions on structures, Parts 1–7 NBCC (NRCC) National Building Code of Canada DIN 1055 and DIN 1055-100 are to be used
in conjunction with the section on loads and
strengths in Practice F2291.
DIN 1055-100 F2291 Load combinations NBCC (NRCC) National Building Code of Canada DIN 1055 and DIN 1055-100 are to be used
in conjunction with the section on loads and
strengths in Practice F2291.
F2783 − 20
TABLE 1 Continued
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
DIN 4102 F3214 Fire Behavior of building materials None None None
and building components
DIN 15018-1 F2291 Cranes; Steel Structures; Verifica- None None DIN 15018-1 is not specifically referenced in
tion and Analyses Data Practice F2291. It is up to designer/engineer
to determine its relevance in Practice F2291.
EN Standards:
EN 280 F2291 Mobile Elevating Work Platforms- B29.100 (ANSI/ASME) Precision Power Transmission, None
–Design Calculations, Stability Double-Pitch Power Transmission,
Criteria, Construction, Safety, and Double-Pitch Conveyor Roller
Examinations, and Tests Chains, Attachments and Sprock-
ets
EN 954-1 F2291 Safety of Machinery–Safety Re- ISO 13849-1 (ISO) Safety of machinery–Safety- ISO 13849 is intended to complement the
lated Parts of Control Systems- related parts of control systems topic of electrical, electronic, and program-
–General Principles for Design –Part 1: General principles for mable electronic systems covered in Practice
design F2291.
EN 1021-1 F3214 Assessment of Ignitability of Up- None None None
holstered Furniture
EN 1050 F2291 Safety of Machinery–Principles for 12100 (ISO) Safety of machinery – General EN 1050 and ISO 12100 are intended to
Risk Assessment principles for design – Risk as- complement the topic of ride analysis covered
sessment and risk reduction in Practice F2291.
EN 1991 F2291 Eurocode 1: Actions on structures NBCC (NRCC) National National Building Code of Canada The Eurocodes 1 to 5 and the NBCC are to
EN 1992 Eurocode 2: Design of concrete Building Code of Canada be used in conjunction with the section on
EN 1993 Eurocode 3: Design of steel struc- loads and strengths in Practice F2291.
EN 1994 tures
EN 1995 Eurocode 4: Design of composite
steel and concrete structures
Eurocode 5: Design of timber
structures
EN 60947-1 F2291 Low-Voltage Switchgear and Con- 60947-1 (IEC) Low-voltage switchgear and con- None
trol gear trol gear–Part 1: General rules
F:
Fatigue Strength of Welded F2291 Fatigue Strength of Welded None None Fatigue Strength of Welded Structures is in-
Structures (Abington Structures, Maddox, S.J., 1993 tended to complement the topic on fatigue of
Publishing, Cambridge, welded structures as referenced in Practice
England) F2291.
Factory Mutual Standard:
FM 6930 F2291 Flammability Classification of In- None None None
dustrial Fluids
H:
Handbook of Mechanical F2291 Handbook of Mechanical None None The Handbook of Mechanical Engineering is
Engineering (Springer Engineering, Beitz, W., Heinrich, intended to complement the topic on fatigue
Verlag, Berlin, Germany) D., and Kuttner, K.H., 1994 behavior due to surface finish and other ma-
terial conditions as referenced in Practice
F2291.
Human Scale 4/5/6 F2291 Human Scale 4/5/6, Bardagjy, J., None None Human Scale 4/5/6 and 7/8/9 books are no
(The MIT Press, Diffrient, N., and Tilley, A., 1981 longer published.
Cambridge, MA, USA) Human Scale 7/8/9, Bardagjy, J.,
Human Scale 7/8/9 Diffrient, N., and Tilley, A., 1982
(The MIT Press,
Cambridge, MA, USA)
F2783 − 20
TABLE 1 Continued
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
ICC (International Code Council):
ICC A117.1 F2461 Accessible and Usable Buildings None None Refer to Provincial accessibility standards as
and Facilities required
International Building Code F2291 International Building Code Chap- NBCC (NRCC) National Building Code of Canada The International Building Code and the
ter 16, “Structural Design” NBCC are to be used in conjunction with the
section on loads and strengths in Practice
F2291.
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: F2783 − 17 F2783 − 20
Standard Practice for
Design, Manufacture, Operation, Maintenance, and
Inspection of Amusement Rides and Devices, in Canada
This standard is issued under the fixed designation F2783; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
Note—This ASTM Standard has been developed to replace CAN/CSA Z267-00 (R2011), which is being withdrawn as an active
CSA Standard.
INTRODUCTION
The Canadian Standards Association (CSA) and the American Society for Testing Materials (ASTM) have paved
the way for the development of new ASTM amusement device standards, introducing uniform safety criteria for both
Canada and the United States of America.
Seeking to gain a level of consistency and eliminate much duplication, CSA and ASTM struck a subcommittee
to develop a new ASTM F24 standard, a comprehensive, one-volume document, that provides a mechanism to:
• adapt F24 standards to Canadian needs;
• provide greater two way communication between CSA and ASTM; and
• facilitate adoption by Canadian provinces and territories.
This one-source standard replaces the current CSA Z267 Safety Code for Amusement Rides and Devices. As CSA
Z267 was primarily based on the ASTM F24 Family of Standards, Practice F2783 is a realignment of those core
essentials with new sections tailor-made for Canada. Categorized in four distinct sections, the standard includes:
• Core Standards (for example, Terminology, Design, Manufacture, Operation, Maintenance, and Inspection);
• Supporting Standards (for example, Measuring Ride Dynamics and Hardness of Composite Foam);
• Specific Classification of Amusement Rides and Devices Standards (for example, Go-Karts, Water Slides,
Inflatables and Trains); and
• Other Standards (other standards used to support amusement device design).
This standard is structured such that Section 2.2 listings of Core Standards capture the essential and broad safety
requirements for all amusement rides and devices. Section 2.3 listings of Supporting Standards are intended to
complement in design of all amusement rides and devices where applicable. Section 2.4 listings of Specific
Classification of Amusement rides and Devices Standards capture supplemental requirements in addition to Core
Standards for anomalous amusement rides and devices. Section 2.5 listing Other Standards used to support
amusement device design.
To provide greater application within Canada, Practice F2783 also incorporates specific sections that include:
Standards Cross Referencing Table; Substitutions; Exceptions; and Additional Requirements.
This unique initiative would not have been possible were it not for the active collaboration of the CSA Z267 and
the ASTM F24.80 Harmonization Committees, representative of a diverse stakeholder base, including delegates
from government (regulators), manufacturers, engineers, park owners/operators as well as general and consumer
interests.
Practice F2783 is supported by Canadian provincial and territorial regulators and amusement device stakeholders,
the International Association of Amusement Parks and Attractions (IAAPA), CSA and ASTM.
This standard has been printed in Canada’s two official languages.
1. Scope
1.1 This practice applies to the terminology, design, manufacture, operation, maintenance, and inspection of amusement rides
and devices in Canada.
This practice is under the jurisdiction of ASTM Committee F24 on Amusement Rides and Devices and is the direct responsibility of Subcommittee F24.80 on
Harmonization.
Current edition approved Oct. 1, 2017April 1, 2020. Published November 2017May 2020. Originally approved in 2014. Last previous edition approved in 20142017 as
F2783 – 14.F2783 – 17. DOI: 10.1520/F2783-17.10.1520/F2783-20.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F2783 − 20
1.2 This practice adopts ASTM Committee F24 Standards listed under Sectionssubsections 2.2, 2.3 and 2.4. The adoption of
the standards in 2.2, 2.3 and 2.4 in whole or part is at the sole discretion of the Authority Having Jurisdiction.
1.3 This practice includes an annex (mandatory), which provides additional information (for example, rationale, background,
interpretations, drawings, commentary, etc.) related to the application of the criteria presented in this practice.
1.4 This practice includes an appendix (non-mandatory), which provides additional information (for example, rationale,
background, interpretations, drawings, commentary, and so forth) to improve the user’s understanding and application of the
criteria presented in this practice.
1.5 It is the responsibility of the users of this practice and other ASTM Standards to judge their suitability for a particular
purpose.
1.6 This practice includes the following sections:
Title Section
Scope 1
Referenced Documents 2
ASTM Committee F24 Core Standards 2.2
for Amusement Rides and Devices
ASTM Committee F24 Supporting Standards 2.3
for Amusement Rides and Devices
ASTM Committee F24 Standards for 2.4
Specific Classification of Amusement Rides
and Devices
Other Standards 2.5
Reference Codes, Standards, Specifications, 2.6
and Handbooks
Terminology 3
Significance and Use 4
Design 5
General 5.1
Substitution of Referenced Documents in 5.2
Practice F2291 with Alternate Documents
General 5.2.1
Canadian Standards 5.2.2
Exceptions from Practice F2291 5.3
Additional Requirements 5.4
Manufacture 6
Ownership, Operation, Maintenance, and Inspection 7
Exceptions from Practice F770 7.3
Additional Requirements 7.4
Auditing of Amusement Rides and Devices 8
Recognized Certification Marks Annex A1
Significance and Use Appendix X1
Hardness Measurement of Patron Seat and Restraint Padding Appendix X2
Applicable Code(s) used for Amusement Ride or Device Evaluation at Time of Request for Approval within a Appendix X3
Jurisdiction
1.7 For a glossary of terms that includes the meaning and intent of words such as shall, should, may, will, standard, practice,
guide, classification, specification, etc. used in ASTM standards, please refer to “Form and Style for ASTM Standards,” which is
available at www.astm.org.
1.8 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.9 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 The documents listed in 2.2, 2.3 and 2.4 contain provisions, which through reference in this standard, constitute provisions
of this practice.
NOTE 1—For undated references, the latest edition of the referenced document applies. For dated references, subsequent amendments to, or revisions
of, any of these publications do not apply. Where a Ride Specific standard points to an earlier edition of a published Core standard, the requirements of
the Ride Specific standard shall apply (unless specific direction has otherwise been provided by the authority having jurisdiction). However, users of this
practice are encouraged to investigate the possibility of applying the most recent editions of documents referenced below.
F2783 − 20
2.2 Core Standards for Amusement Rides and Devices:
F747 Terminology Relating to Amusement Rides and Devices
F770 Practice for Ownership, Operation, Maintenance, and Inspection of Amusement Rides and Devices
F1193 Practice for Quality, Manufacture, and Construction of Amusement Rides and Devices
F2291 Practice for Design of Amusement Rides and Devices
F2974 Practice for Auditing Amusement Rides and Devices
2.3 Supporting Standards for Amusement Rides and Devices:
F1957 Test Method for Composite Foam Hardness-Durometer Hardness
F2137 Practice for Measuring the Dynamic Characteristics of Amusement Rides and Devices
F2375 Practice for Design, Manufacture, Installation and Testing of Climbing Nets and Netting/Mesh used in Amusement Rides,
Devices, Play Areas and Attractions
F3214 Practice for Characterization of Fire Properties of Materials Specified for Vehicles Associated with Amusement Rides and
Devices
2.4 Standards for Specific Classification of Amusement Rides and Devices:
F2007 Practice for Design, Manufacture, and Operation of Concession Go-Karts and Facilities
F2374 Practice for Design, Manufacture, Operation, and Maintenance of Inflatable Amusement Devices
F2376 Practice for Classification, Design, Manufacture, Construction, and Operation of Water Slide Systems
F2460 Practice for Special Requirements for Bumper Boats
F2461 Practice for Manufacture, Construction, Operation, and Maintenance of Aquatic Play Equipment
F2959 Practice for Aerial Adventure Courses
F2960 Practice for Permanent Amusement Railway Ride Tracks and Related Devices
F2970 Practice for Design, Manufacture, Installation, Operation, Maintenance, Inspection and Major Modification of
Trampoline Courts
F3054 Practice for Operations of Amusement Railway Rides, Devices, and Facilities
F3099 Practices for Parasailing
F3133 Practice for Classification, Design, Manufacture, Construction, Maintenance, and Operation of Stationary Wave Systems
F3158 Practice for Patron Transportation Conveyors Used with a Water Related Amusement Ride or Device
2.5 Other Standards:
D785 Test Method for Rockwell Hardness of Plastics and Electrical Insulating Materials
D2240 Test Method for Rubber Property—Durometer Hardness
F1159 Practice for Design of Amusement Rides and Devices that are Outside the Purview of Other F24 Design Standards
2.6 Reference Codes, Standards, Specifications, and Handbooks:
NOTE 2—Table 1 provides cross-references of document(s) acceptable in lieu of specific editions of codes, standards, specifications, and handbooks
referenced in standards from ASTM Committee F24 on Amusement Rides and Devices. Only that portion of the codes, standards, specifications and
handbooks as specified by the requirements of this standard is applicable.
3. Terminology
3.1 Terms that are meant to have common meaning among the ASTM Committee F24 standards referenced in Section 2 are
defined in Terminology F747.
3.2 Terms that are meant to have specific meaning within the ASTM Committee F24 standards are defined in those standards
referenced in Section 2.
3.3 engineer, n—an engineer as defined by and licensed in accordance with the applicable provincial or territorial statute.
3.4 Clarification of Terminology in ASTM Committee F24 Standards:
3.4.1 The term “attractions” used in the ASTM F24 Committee Standards for Amusement Rides and Devices hold the same
meaning as “amusement devicesrides or rides”devices” defined in Terminology F747.
3.4.2 The term “English” used in the ASTM F24 Committee Standards for Amusement Rides and Devices means “English and
French” for the purpose of this Standard.
4. Significance and Use
4.1 The purpose of this practice is to adopt the ASTM F24 Committee Standards for Amusement Rides and Devices for use in
Canada.
4.2 This practice provides guidance for use of additional codes and standards in Canada.
4.3 In cases where conflicts exist between this practice and local codes, local codes would prevail.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
F2783 − 20
TABLE 1 Cross-References of Documents
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
ACI Standards:
ACI 301 F2291 Specifications for Structural Con- NBCC (NRCC) National Building Code of Canada See also 5.2.2.6.
crete
ACI 318 F2291 Building Code Requirements for NBCC (NRCC) National Building Code of Canada See also 5.2.2.6.
Structural Concrete (318) and
Commentary (318R)
AF&PA American Wood Council Standards:
NDS 2005 F2291 National Design Specification for O86 (CSA) Consolidation – Engineering de-
Wood Construction sign in wood
AISC Manuals:
AISC 316 F2291 Manual of Steel Construction, Al- (CISC) & Handbook of Steel Construction – AISC 316, the CISC Handbook, and CSA
F2970 lowable Stress Design (ASD) S16 (CSA) Ninth Edition; and Design of Steel S16 are to be used in conjunction with the
Structures section on loads and strengths in Practice
F2291.
AISC 360-05 F2291 Specifications for Structural Steel (CISC) & Limit States Design in Structural AISC 360, the CISC LSD publication, and
Buildings S16 (CSA) Steel Eighth Edition, and Design CSA S16 are to be used in conjunction with
of steel structures the section on loads and strengths in Practice
F2291.
AISC M015 F2291 Manual on Steel Construction, (CISC) & Limit States Design in Structural AISC M015, the CISC LSD publication, and
F2970 Load & Resistance Factor Design S16 (CSA) Steel Ninth Edition, and Design of CSA S16 are to be used in conjunction with
(LRFD) steel structures the section on loads and strengths in Practice
F2291.
ANSI Standards:
ANSI B11.TR3 F2291 Risk Assessment and Risk Re- None None This technical report is intended to comple-
duction–A Guide to Estimate, ment the topic about Ride Analysis covered in
Evaluate, and Reduce Risks As- Practice F2291.
sociated with Machine Tools
ANSI B77.1 F2291 Passenger Ropeways–Aerial Z98 (CSA) Passenger ropeways and passen- See also 5.3.3.
F2959 Tramways, Aerial Lifts, Surface ger conveyors
F3158 Lifts, Tows and Conveyors–Safety
Requirements
ANSI B77.2 F3054 Funiculars - Safety Requirements Z98 (CSA) Passenger ropeways and passen- None
ger conveyors
ANSI Y32.10 F2291 Graphic Symbols for Fluid Power None None None
Diagrams
ANSI Z359 F2959 Fall Protection Code None None See also provincial Occupational Health and
Safety requirements related to Fall Protection
ANSI A10.11 F2461 Personal and Debris Nets None None None
ANSI/IAF-9 F2461 American National Standard for None None Refer to Provincial pool safety standards as
Aquatic Recreation Facilities required. Also known as APSP-9.
APSP (Association of Pool & Spa Professionals) Document:
ANSI/APSP-16 F3133 Suction Fittings for Use in Swim- None None Refer to Provincial pool safety standards as
ming Pools, Wading Pools, Spas required
and Hot Tubs
AREMA (American Railway Engineering and Maintenance-of-Way Association):
Manual for Railway Engi- F2960 Manual for Railway Engineering None None None
neering (AREMA)
F2783 − 20
TABLE 1 Continued
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
ASCE Standards:
ASCE 7 F2291 Minimum Design Loads for Build- NBCC (NRCC) National Building Code of Canada ASCE 7 and the NBCC are to be used in
ings and Other Structures conjunction with the section on loads and
strengths in Practice F2291.
ASCE 16 F2291 Standard for Load and Resistance O86 (CSA) Consolidation – Engineering de-
Factor Design (LRFD) for Engi- sign in wood
neered Wood Construction
ASM Documents:
Atlas of Fatigue Curves F2291 ASM Atlas of Fatigue Curves None None The ASM Atlas and the ASM Handbook are
intended to complement the topic about fa-
tigue strength of mechanical and structural
components.
ASM Handbook Volume F2291 ASM Handbook Volume 19: Fa- None None The ASM Atlas and the ASM Handbook are
19: Fatigue and Fracture tigue and Fracture intended to complement the topic about fa-
tigue strength of mechanical and structural
components.
ASME Standards:
ASME A17.1/CSA B44 F2291 Safety Code for Elevators and ASME A17.1/CSA B44 Safety code for elevators and es- This standard may be applicable where el-
F3158 Escalators (ASME/CSA) calators evator and escalator technology is used in
the design of amusement rides or devices.
ASME B15.1 F2291 Safety Standards for Mechanical None None None
Power Transmission Apparatus
ASME B20.1 F3158 Safety Standard for Conveyors A17.1/B44 (ASME) Safety code for Elevators and Es- Requirements of B20.1 may be subject to
and Related Equipment calators Provincial adoption
ASME BPVC F2291 ASME Boiler and Pressure Vessel B51 (CSA) Boiler, pressure vessel, and pres- Accumulators shall be constructed in accor-
Code sure piping code. dance with Section 8, Division 1 of the ASME
Boiler and Pressure Vessel Code for unfired
pressure vessels, or equivalent.
ASNT Document:
ASNT SNT-TC-1A F1193 Topical Outlines for Qualification 48.9712 / ISO 9712 Nondestructive Testing; Qualifica- For all NDT Personnel:
of Nondestructive Testing Person- (CGSB) tion and Certification of Personnel Natural Resources Canada (NRCan), through
nel the CANMET Materials Technology Labora-
tory (MTL), is the Certifying Agency for the
Canadian Non-Destructive Testing (NDT) Per-
sonnel Certification Program. NRCan certifies
individuals according to the Canadian Gen-
eral Standards Board Standard CAN/CGSB-
48.9712 (Qualification and Certification of
Non-Destructive Testing Personnel).
For NDT of Welding to CSA W47.1:
In Canada, the CWB (Canadian Welding Bu-
reau) is the Certification Body for the admin-
istration of CSA Standard W178:
1) NDT shall be conducted by organization
certified to W178.1-08 – Certification of Weld-
ing Inspection Organizations.
2) NDT shall be conducted by individual certi-
fied to W178.2-08 – Certification of Welding
Inspectors.
F2783 − 20
TABLE 1 Continued
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
ASTM Standards:
ASTM D737 F2970 Test Method for Air Permeability None None None
of Textile Fabrics
ASTM D3574 F2970 Test Methods for Flexible Cellular None None None
Materials—Slab, Bonded, and
Molded Urethane Foams
ASTM D3786 F2970 Test Method for Bursting Strength None None None
of Textile Fabrics— Diaphragm
Bursting Strength Tester Method
ASTM D3787 F2970 Test Method for Bursting Strength None None None
of Textiles— Constant-Rate-of-
Traverse (CRT) Ball Burst Test
ASTM D4533 F2970 Test Method for Trapezoid Tearing None None None
Strength of Geotextiles
ASTM D4632 F2970 Test Method for Grab Breaking None None None
Load and Elongation of Geotex-
tiles
ASTM D4833 F2970 Test Method for Index Puncture None None None
Resistance of Geomembranes
and Related Products
ASTM D5034 F2970 Test Method for Breaking Strength None None None
and Elongation of Textile Fabrics
(Grab Test)
ASTM D5672 F2970 Test Method for Testing Flexible None None None
Cellular Materials Measurement of
Indentation Force Deflection Us-
ing a 25 mm [1 in.] Deflection
Technique
ASTM D6413 F2970 Test Method for Flame Resistance None None None
of Textiles (Vertical Test)
ASTM E84 F2970 Test Method for Surface Burning None None None
F3214 Characteristics of Building Materi-
als
ASTM E136 F3214 Test Method for Behavior of Mate- None None None
rials in a Vertical Tube Furnace at
750°C
ASTM E162 F3214 Test Method for Surface flamma- None None None
bility of Materials Using Radiant
Heat Energy Source
ASTM E543 F1193 Standard Specification for Agen- 48.9712 / ISO 9712 Nondestructive Testing; Qualifica- For all NDT Personnel:
cies Performing Nondestructive (CGSB) tion and Certification of Personnel Natural Resources Canada (NRCan), through
Testing the CANMET Materials Technology Labora-
tory (MTL), is the Certifying Agency for the
Canadian Non-Destructive Testing (NDT) Per-
sonnel Certification Program. NRCan certifies
individuals according to the Canadian Gen-
eral Standards Board Standard CAN/CGSB-
48.9712 (Qualification and Certification of
Non-Destructive Testing Personnel).
For NDT of Welding to CSA W47.1:
In Canada, the CWB (Canadian Welding Bu-
reau) is the Certification Body for the admin-
istration of CSA Standard W178:
1) NDT shall be conducted by organization

F2783 − 20
TABLE 1 Continued
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
certified to W178.1-08 – Certification of Weld-
ing Inspection Organizations.
2) NDT shall be conducted by individual certi-
fied to W178.2-08 – Certification of Welding
Inspectors.
ASTM E648 F2970 Test Method for Critical Radiant None None None
Flux of Floor- Covering Systems
Using a Radiant Heat Energy
Source
ASTM E662 F3214 Test Method for Specific Optical None None None
Density of Smoke Generated by
Solid Materials
ASTM E1354 F3214 Test Method for Heat and Visible None None None
Smoke Release Rates for Materi-
als and Products Using Oxygen
Consumption Calorimeter
ASTM F355 F2970 Test Method for Impact Attenua- None None None
tion of Playing Surface Systems
and Materials
ASTM F1148 F2461 Consumer Safety Performance None None None
Specification for Home Play-
ground Equipment
ASTM F1292 F2461 Specification for Impact Attenua- None None None
tion of Surfacing Materials Within
the Use Zone of Playground
Equipment
ASTM F1487 F2959 Consumer Safety Performance CAN/CSA-Z614 Children’s playspaces and equip- None
F2461 Specification for Playground ment
Equipment for Public Use
ASTM F1772 F2959 Specification for Harnesses for CAN/CSAZ259.10 Full body harness See ASTM requirements where not ad-
Rescue, Safety, and Sport Activi- dressed by the CSA Standard
ties
ASTM F1918 F2461 Safety Performance Specification None None None
for Soft Contained Play Equip-
ment
ASTM F2650 F2970 Terminology Relating to Impact None None None
Testing of Sports Surfaces and
Equipment
ASTM Technical Publication:
ASTM STP-1330 F2291 Composite Materials: Fatigue and None None Publication STP-1330 contains papers pre-
Fracture, 7th Volume sented at the Seventh Symposium on Com-
posite Materials, and Fatigue and Fracture.
AWPA (American Wood Preserver’s Association) Standard:
AWPA U1 F2960 Use Category System None None None
AWS Standards:
AWS D1.1/D1.1M F1193 Structural Welding Code - Steel W47.1 Certification of Companies for Fu- Refer to 5.3.4 for additional information.
F2291 W59 sion Welding of Steel CSA W47.1 and CSA W59 together are ac-
F2970 Welded Steel Construction (Metal ceptable to ANSI D1.1
Arc Welding)
AWS D1.1/D1.1M F2291 Structural Welding Code – Steel W178.1 (CSA) Certification of welding inspection See also 5.3.4.
F2970 W178.2 (CSA) organizations
Certification of welding inspectors

F2783 − 20
TABLE 1 Continued
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
AWS D14.4 F2291 Specification for Welded Joints in W59 (CSA) Welded steel construction (metal See also 5.3.4.
F2970 Machinery and Equipment arc welding)
BSI Standards:
BS EN 1907 F2960 Safety Requirements for Cable- None None None
F3054 way Installations Designed to
Carry Persons—Terminology
BS 5400-10 F2291 Steel, Concrete and Composite None None BS 5400 is intended to complement the topic
Bridges–Code of Practice for Fa- about fatigue strength of mechanical and
tigue structural components.
BS 7608 F2291 Code of Practice for Fatigue De- None None BS 7608 is intended to complement the topic
sign and Assessment of Steel about fatigue strength of mechanical and
Structures structural components.
BS EN 12277 F2959 Mountaineering equipment – Har- None None None
nesses – Safety requirements and
test methods
California Technical Bulletin:
California Technical Bulletin F2970 Requirements, Test Procedure None None None
117 and Apparatus for Testing the
Flame Retardance of Resilient
Filling Materials
CDC (Center of Disease Control):
Growth Charts F2291 Basic Body Measurements None None
CFR (Code of Federal Regulations):
OSHA 29 CFR F1159 Fall Protection Systems Criteria None None Refer to provincial Occupational Health and
and Practices Safety requirements related to Fall Protection
46 CFR Part 16 F3099 46 CFR Part 16 Chemical Testing None None Relates to chemical and drug testing of indi-
viduals. Refer to Provincial or Federal regula-
tions as appropriate for waterways
DIN Standards:
DIN 1055 F2291 Actions on structures, Parts 1–7 NBCC (NRCC) National Building Code of Canada DIN 1055 and DIN 1055-100 are to be used
in conjunction with the section on loads and
strengths in Practice F2291.
DIN 1055-100 F2291 Load combinations NBCC (NRCC) National Building Code of Canada DIN 1055 and DIN 1055-100 are to be used
in conjunction with the section on loads and
strengths in Practice F2291.
DIN 4102 F3214 Fire Behavior of building materials None None None
and building components
DIN 15018-1 F2291 Cranes; Steel Structures; Verifica- None None DIN 15018-1 is not specifically referenced in
tion and Analyses Data Practice F2291. It is up to designer/engineer
to determine its relevance in Practice F2291.
EN Standards:
EN 280 F2291 Mobile Elevating Work Platforms- B29.100 (ANSI/ASME) Precision Power Transmission, None
–Design Calculations, Stability Double-Pitch Power Transmission,
Criteria, Construction, Safety, and Double-Pitch Conveyor Roller
Examinations, and Tests Chains, Attachments and Sprock-
ets
EN 954-1
F2291 Safety of Machinery–Safety Re- ISO 13849-1 (ISO) Safety of machinery–Safety- ISO 13849 is intended to complement the
lated Parts of Control Systems- related parts of control systems topic of electrical, electronic, and program-
–General Principles for Design –Part 1: General principles for mable electronic systems covered in Practice

F2783 − 20
TABLE 1 Continued
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
design F2291.
EN 1021-1 F3214 Assessment of Ignitability of Up- None None None
holstered Furniture
EN 1050 F2291 Safety of Machinery–Principles for 12100 (ISO) Safety of machinery – General EN 1050 and ISO 12100 are intended to
Risk Assessment principles for design – Risk as- complement the topic of ride analysis covered
sessment and risk reduction in Practice F2291.
EN 1991 F2291 Eurocode 1: Actions on structures NBCC (NRCC) National National Building Code of Canada The Eurocodes 1 to 5 and the NBCC are to
EN 1992 Eurocode 2: Design of concrete Building Code of Canada be used in conjunction with the section on
EN 1993 Eurocode 3: Design of steel struc- loads and strengths in Practice F2291.
EN 1994 tures
EN 1995 Eurocode 4: Design of composite
steel and concrete structures
Eurocode 5: Design of timber
structures
EN 60947-1 F2291 Low-Voltage Switchgear and Con- 60947-1 (IEC) Low-voltage switchgear and con- None
trol gear trol gear–Part 1: General rules
F:
Fatigue Strength of Welded F2291 Fatigue Strength of Welded None None Fatigue Strength of Welded Structures is in-
Structures (Abington Structures, Maddox, S.J., 1993 tended to complement the topic on fatigue of
Publishing, Cambridge, welded structures as referenced in Practice
England) F2291.
Factory Mutual Standard:
FM 6930 F2291 Flammability Classification of In- None None None
dustrial Fluids
H:
Handbook of Mechanical F2291 Handbook of Mechanical None None The Handbook of Mechanical Engineering is
Engineering (Springer Engineering, Beitz, W., Heinrich, intended to complement the topic on fatigue
Verlag, Berlin, Germany) D., and Kuttner, K.H., 1994 behavior due to surface finish and other ma-
terial conditions as referenced in Practice
F2291.
Human Scale 4/5/6 F2291 Human Scale 4/5/6, Bardagjy, J., None None Human Scale 4/5/6 and 7/8/9 books are no
(The MIT Press, Diffrient, N., and Tilley, A., 1981 longer published.
Cambridge, MA, USA) Human Scale 7/8/9, Bardagjy, J.,
Human Scale 7/8/9 Diffrient, N., and Tilley, A., 1982
(The MIT Press,
Cambridge, MA, USA)
ICC (International Code Council):
ICC A117.1 F2461 Accessible and Usable Buildings None None Refer to Provincial accessibility standards as
and Facilities required
International Building Code F2291 International Building Code Chap- NBCC (NRCC) National Building Code of Canada The International Building Code and the
ter 16, “Structural Design” NBCC are to be used in conjunction with the
section on loads and strengths in Practice
F2291.
IEC Documents:
IEC 60204-1 F2291 Safety of Machinery–Electrical None None NFPA 79 is also used for these devices.
Equipment of Machines–Part 1:
General Requirements
IEC 61496-1 F2291 Safety of Machinery–Electro- E61496-1 (CSA) Safety of machinery - electro- CAN/CSA-E61496-1 adopted IEC-61496-1
sensitive Protective Equipment sensitive protective equipment – with Canadian deviations.
–General Requirements and Tests Part 1: General requirements and

F2783 − 20
TABLE 1 Continued
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
tests
IEC 61508-1 F2291 Functional Safety of Electrical/ None None IEC 61508-1 is Part 1 of a series of stan-
Electronic/Programmable Elec- dards on safety related control systems. It is
tronic Safety-Related Systems used commonly for testing and certification of
–General Requirements electrical, electronic, and programmable elec-
tronic systems.
IEC 61511 F2291 Functional Safety: Safety Instru- None None IEC 61511 relates primarily to instrumentation
mented Systems for the Process used in the process industry sector.
Industry Sector
IEC 62061 F2291 Safety of Machinery-Functional None None IEC 62061 plays an increasing role in the
Safety–Electrical, Electronic, and achievement of overall machine safety as a
Programmable Electronic Control result of automation, demand for increased
Systems production and reduced operator physical ef-
fort.
ISO Standards:
ISO 4113 F2291 Road Vehicles – Calibration Fluid None None See 8.2.2.7 of ISO 4113.
for Diesel Injection Equipment
ISO 4413 F2291 Hydraulic fluid power – General None None See 8.2.2.7 of ISO 4113.
rules relating to systems
ISO 4414 F2291 Pneumatic Fluid Power General None None None
Rules Relating to Systems
ISO 4406 F2291 Particle Count Chart None None None
ISO 5660-1 F3214 Fire tests – Reaction to fire – Part None None None
1: Rate of heat release from build-
ing products – (Cone calorimeter
method)
ISO 5660-2 F3214 Reaction-to-fire tests – Heat None None None
release, smoke production and
mass loss rate, Part 2: Smoke
production rate (dynamic mea-
surement)
ISO 6149-1 F2291 Connections for hydraulic fluid None None None
power and general use – Ports
and stud ends with ISO 261 met-
ric threads and O-ring sealing –
Part 1: Ports with truncated hous-
ing for O-ring seal
M:
Mechanical Engineering F2291 Mechanical Engineering Design, None None Mechanical Engineering Design is intended to
Design (McGraw-Hill, New Budynas, R., Mischke, C., and complement the topic on fatigue behavior due
York, NY) Shigley, J., 1988 to surface finish and other material conditions
as referenced in Practice F2291.
MUTCD F2960 Manual on Uniform Traffic Control MUTCDC (Transportation Manual on Uniform Traffic Control None
Devices for Streets and Highways Association of Canada) Devices for Canada
MIL Standards:
MIL 17 F2291 The Composite Materials Hand- None None None
book
MIL 882C F2291 System Safety Program Require- None None MIL 882C is intended to complement the
ments topic of ride analysis covered in Practice
F2291.
NEMA Standards:
F2783 − 20
TABLE 1 Continued
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
NEMA 250 F2291 Enclosures for Electrical Equip- C22.2 NO. 94 (CSA) Special purpose enclosures None
ment
NFPA (National Fire Protection Association) Standards:
NFPA 70 F2291 National Electric Code (NEC) C22.1 (CSA) Canadian electrical code, part I, See also 5.2.2 and 5.2.3
F2970 safety standard for electrical in-
F2461 stallations
NFPA 79 F2291 Electrical Standard for Industrial C22.2 NO. 14 (CSA) Industrial control equipment None
Machinery
NFPA 101 F2291 Life Safety Code None None None
NFPA 130 F3214 Standard for Fixed Guideway None None None
Transit and Passenger Rail Sys-
tems
NFPA 260 F3214 Standard Methods of Tests and None None None
Classification System for Cigarette
Ignition, Resistance of Compo-
nents of Upholstered Furniture
NFPA 701 F2970 Standard Methods of Fire Tests None None None
for Flame Propagation of Textiles
and Films
NFPA 705 F2970 Recommended Practice for a None None None
Field Flame Test for Textiles and
Films
NFPA 1983 F2959 Standard on Life Safety Rope and None None None
Equipment for Emergency Ser-
vices
NFPA (National Fluid Power Association) Standards:
NFPA B93.114M F2291 Pneumatic Fluid Power–Systems 4414:2010 (ISO) Pneumatic fluid power – General None
Standard for Industrial Machinery rules and safety requirements for
(was NFPA/JIC T2.25.1M) systems and their components
NFPA T2.24.1 F2291 Hydraulic fluid power–Systems None None None
standard for stationary industrial
machinery–Supplement to ISO
4413:1998–Hydraulic fluid power
–General rules relating to systems
NFPA T2.25.1M F2291 Pneumatic Fluid Power–Systems T2.25.1(NFPA/JIC) Pneumatic fluid power - Systems ANSI/(NFPA) T2.25.1 is based upon the pro-
Standard for Industrial Machinery 4414:2010 (ISO) Standard for industrial machinery visions of ISO 4414:1998, with certain excep-
- Supplement to ISO 4414:1998 - tions as described in ANSI/(NFPA)T2.25.1.
Pneumatic fluid power - General The user of ANSI/(NFPA) T2.25.1 will require
rules relating to systems both of these standards for use on a pneu-
Pneumatic fluid power – General matic systems application.
rules and safety requirements for
systems and their components
NSPI (National Spa and Pool Institute):
NSPI-1 F2461 American National Standard for None None Refer to Provincial pool safety standards as
Public Swimming Pools required
Also known as APSP-1
NSPI-5 F2461 American National Standard for None None Refer to Provincial pool safety standards as
Residential Inground Swimming required
Pools Also known as APSP-5
OIPEEC:
F2783 − 20
TABLE 1 Continued
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
International Journal of F2291 The International Journal of Rope None None OIPEEC is also known as International Orga-
Rope Science and Science and Technology nization for the Study of the Endurance of
Technology Ropes.
The International Journal of Rope Science
and Technology is intended to complement
the testing of wire ropes to validate rope fa-
tigue and life calculations covered in Practice
F2291.
S:
Standard Handbook of Ma- F2291 Standard Handbook of Machine None None The Standard Handbook of Machine Design
chine Design (McGraw-Hill, Design, Mischke, C., and Shigley, is useful general reference for design and
New York, NY) J., 1996 manufacture of amusement rides or devices
covered in Practice F2291.
SAE Standards:
SAE HS 4000 F2291 Fastener Standards None None SAE HS 4000 is intended to complement the
topic of fasteners covered in Practice F2291.
SAE J-211 F2291 Instrumentation for Impact Test None None SAE J211 provides guidelines and recom-
–Electronic Instrumentation mendations for the techniques of measure-
ment used in impact tests. The aim is to
achieve uniformity in instrumentation practice
and in reporting test results. Use of this rec-
ommended practice will provide a basis for
meaningful comparisons of test results from
different sources.
SAE J517 F2291 Hydraulic Hose None None None
SAE J518 F2291 Hydraulic Flanged Tube, Pipe, None None None
and Hose Connections, Four-Bolt
Split Flange Type
SAE J833 F2291 Human Physical Dimensions ISO 3411 (ISO) Earth-moving machinery – Physi- SAE J833 has been superseded by ISO
cal dimensions of operators and 3411.
minimum operator space enve-
lope.
SAE J1171 F2460 External Ignition Protection of Ma- None None None
rine Electrical Devices
SAE J1926 F2291 Connections for General Use and None None None
Fluid Power- Ports and Stud Ends
with ASME B1.1 Threads and
O-Ring Sealing Part 3: Light- Duty
(L-Series) Stud Ends
SIA Standards:
SIA 260 F2291 Basics of Planning Structural De- NBCC (NRCC) National Building Code of Canada SIA 260, SIA 261, and NBCC are to be used
sign Projects in conjunction with the section on loads and
strengths in Practice F2291.
SIA 261 F2291 Actions on Structures NBCC (NRCC) National Building Code of Canada SIA 260, SIA 261, and NBCC are to be used
in conjunction with the section on loads and
strengths in Practice F2291.
UIAA Document:
UIAA 105 F2959 Mountaineering and Climbing None None None
Equipment: Harnesses
UL Standards:
F2783 − 20
TABLE 1 Continued
Reference Documents in ASTM F24 Committee Standards Alternate Acceptable Documents in Canada
Designation
Comments
ASTM Standards Designation
(Listed by Authoring Title Title
Reference Source (Publisher)
Organization)
UL 508 F2291 Industrial Control Equipment C22.2 NO. 14 (CSA) Industrial control equipment None
UL 508A F2291 Industrial Control Panels C22.2 NO. 14 (CSA) Industrial control equipment None
USDA (US Department of Agriculture):
USDA-72 F2291 The Wood Handbook – Wood As O86 (CSA) Consolidation – Engineering de-
An Engineering Material, Forest sign in wood
Service, Forest Products Labora-
tory
F2783 − 20
5. Design
5.1 General—Amusement devicesrides and ridesdevices shall be designed in accordance with Practice F2291.
5.1.1 The significance and use of Practice F2291 are explained in Appendix X1.1.
5.2 Substitution of Referenced Documents in Practice F2291 with Alternate Documents:
5.2.1 General:
5.2.1.1 Subsection 2.6 lists substitution of referenced documents in Practice F2291 with acceptable alternate documents for their
applicability in Canada.
5.2.1.2 Amusement rides and devices shall meet the requirements specified in Sections 5.2.2 and 5.2.3.
5.2.2 Canadian Standards:
5.2.2.1 All electrical apparatus and wiring in amusement rides and devices shall conform to the requirements CSA C22.1.
5.2.2.2 All references to NFPA 70 (the National Electrical Code) in Practice F2291 shall have substituted the applicable rules
of CSA C22.1, Canadian Electrical Code.
5.2.2.3 Where electrical equipment used in an amusement ride or device is not certified or listed, and marked or labeled to the
pertinent standard in Part II of the Canadian Electrical Code, it shall be field evaluated and labeled or marked to the requirements
of CSA SPE-1000, Model Code for the Field Evaluation of Electrical Equipment.
NOTE 3—Carnival and traveling show owners or operators, where required by the local jurisdiction, should arrange to have installation and connection
of electrical equipment on amusement rides or devices inspected at every event to ensure they meet the safety standards defined in the adopted Electrical
Safety Code. Annex A1 provides a listing of certification agencies acceptable by authorities having jurisdiction.
5.2.2.4 Overhead Utilities—Amusement devicesrides or ridesdevices shall not be located in proximity to overhead electric
supply and communication utility systems unless the overhead system meets the requirements of CAN/CSA-C22.3 No. 1.
NOTE 4—Proximity as defined in CAN/CSA-C22.3 No. 1 means that lines are so located that the failure of a conductor or any part of the overhead
system (such as overturning at the ground line) would interfere with the normal use, operation, or maintenance of an amusement deviceride or ridedevice
by contact or encroachment on minimum clearance requirements by the conductor or structure.
5.2.2.5 Clearances to Structures—Clearances between an amusement deviceride or ridedevice and structures not forming part
of the amusement device shall meet the requirements of the National Fire Code of Canada (NFCC).
5.2.2.6 Fixed Amusement DevicesRides or RidesDevices Foundation—Foundations for fixed amusement devicesrides or
ridesdevices shall be designed in accordance with the National Building Code of Canada (NBCC).
5.2.2.7 Amusement DevicesRides or RidesDevices Structure—Wind, snow, ice, and earthquake loads on amusement devices-
rides or ridesdevices structure shall be calculated in accordance with requirements specified in the NBCC.
5.2.3 Specific References within Canadian Standards:
5.2.3.1 With respect to electrical grounding, reference to NFPA 70, Section 525-Ca in Practice F2291 may be understood to refer
to CSA C22.1, Section 66.
5.2.3.2 With respect to wet areas, reference to NFPA 70, Section 680 in Practice F2291 shall mean CSA C22.1, Section 68.
5.3 Exceptions from Practice F2291:
5.3.1 Subsection 1.2.10 of Practice F2291—Subsection 1.2.10 of Practice F2291 shall not apply. This practice does not apply
to the pre-existing design of amusement rides or devices or major modifications designed in the five years preceding the effective
date of publication of this practice provided the manufacturer can demonstrate to the satisfaction of the authority having
jurisdiction (AHJ) the following:
5.3.1.1 Historical summary of the amusement ride or device showing the date of the initial design, and any changes to design
and operation including any major modifications recommended and performed by the manufacturer between the date of the initial
design and current day.
5.3.1.2 A list of all significant design-related failures, significant design-related safety issues, and incidents resulting in death
or serious injury during operation or use of the amusement ride or device.
5.3.1.3 Details for each items listed under 5.3.1.2 mitigated in accordance with the ASTM Committee F24 on Amusement Rides
and Devices in place at the time of the mitigation.
5.3.1.4 A list of all bulletins issued by the manufacturer pertaining to the amusement ride or device.
5.3.2 Sections 1.2.8 and 1.2.9 of Practice F2291—The exclusion of Sections 1.2.8 and 1.2.9 from the scope of Practice F2291
shall be determined by ride analysis in accordance with Section 5.1 of Practice F2291.
5.3.3 Section 13.3.3 of Practice F2291—Subsection 13.3.3 of Practice F2291 shall not apply. Aerial tramways and aerial lifts
shall comply with CSA Z98, Passenger ropeways and Passenger conveyors.
5.3.4 Section 15.2 and 15.3 of Practice F2291—Subsection 15.2 and 15.3 of Practice F2291 shall not apply. Welding performed
and inspected in accordance with standards other than those referenced in Practice F2291 or this practice (refer Section 2) shall
be acceptable if:
5.3.4.1 Standards are suitably referenced in the amusement rides and devices code of the country of origin of the structure or
component, and the requirements in the Standards meet or exceed the requirements of Practice F2291 or this practice;
5.3.4.2 Qualifications of all welders performing the work and the welding procedures are in accordance with the class of
welding being performed; and
F2783 − 20
5.3.4.3 Welds are inspected by a qualified welding inspector and a statement confirming compliance is provided.
5.
...
