ASTM D7362-14

(Guide)

Standard Guide for Rapid Screening of Vegetation for Radioactive Strontium Aerial Deposition (Withdrawn 2023)

Standard Guide for Rapid Screening of Vegetation for Radioactive Strontium Aerial Deposition (Withdrawn 2023)

SIGNIFICANCE AND USE
5.1 Strontium-90 is a major component of nuclear waste and is also a potential radioisotope for use as a weapon of mass destruction in a radiological dispersal device. It is a beta-emitting radioisotope with moderate half-life (~30 years). Strontium-89 is also a beta emitting radionuclide, but with a half-life of only ~50 days it is not usually present in significant quantities. If ingested the radiostrontium may deposit in the bone of an individual and thus can contribute a significant radiological dose to an affected person.
5.2 Following an explosion in which radioactive material was present, the potential exists for the material to become airborne. It will quickly attach to atmospheric particles and be deposited on surfaces as the plume passes. This guide provides a rapid procedure by which vegetation can be screened to determine if radiostrontium is present and to provide a conservative estimate of its deposition on vegetation.
5.3 This guide is intended to be used in a field portable lab, or if needed, can be performed completely in the field; therefore no hazardous chemicals are required to complete the analysis. However, an option for the use of acid in certain steps is documented in this guide.
5.4 This guide is not intended to be used for screening food products or animal feed following an accident or incident.
SCOPE
1.1 This guide provides a rapid procedure by which vegetation samples may be screened for surface contamination of radioactive strontium (89Sr and 90Sr, collectively referred to as radiostrontium) following an airborne radioactive dispersal event. It provides a conservative estimate of radiostrontium deposition that can be used by decision makers for immediate actions prior to obtaining definitive results from a fixed laboratory asset.
1.2 Insoluble forms of radiostrontium, such as the strontium (90Sr) titanate (SrTiO3) used in radio-isotope thermal-electric generators (RTGs), will not be measured by this method.
1.3 Non-SI units are used in the calculations of this guide for ease of use during the emergency phase of an event. The instrumentation used typically provides count rates in counts per minute (cpm) rather than per second (s–1, the SI unit), thus activity is expressed in dpm (decays per minute) rather than Bq. Additionally, US EPA protective guidelines for surface contamination are expressed in dpm/100 cm2.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.
WITHDRAWN RATIONALE
This guide provides a rapid procedure by which vegetation samples may be screened for surface contamination of radioactive strontium (89Sr and 90Sr, collectively referred to as radiostrontium) following an airborne radioactive dispersal event. It provides a conservative estimate of radiostrontium deposition that can be used by decision makers for immediate actions prior to obtaining definitive results from a fixed laboratory asset.
Formerly under the jurisdiction of Committee D19 on Water, this guide was withdrawn in January 2023 in accordance with section 10.6.3 of the Regulations Governing ASTM Technical Committees, which requires that standards shall be updated by the end of the eighth year since the last approval date.

General Information

Status
Withdrawn
Publication Date
31-Oct-2014
Withdrawal Date
11-Jan-2023
ICS
17.240 - Radiation measurements
Technical Committee
D19 - Water
Drafting Committee
D19.04 - Methods of Radiochemical Analysis
Current Stage
Ref Project

Buy Standard

ASTM D7362-14 - Standard Guide for Rapid Screening of Vegetation for Radioactive Strontium Aerial Deposition (Withdrawn 2023)ASTM D7362-14 - Standard Guide for Rapid Screening of Vegetation for Radioactive Strontium Aerial Deposition (Withdrawn 2023)
PreviousNext
Guide
ASTM D7362-14 - Standard Guide for Rapid Screening of Vegetation for Radioactive Strontium Aerial Deposition (Withdrawn 2023)
English language
4 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

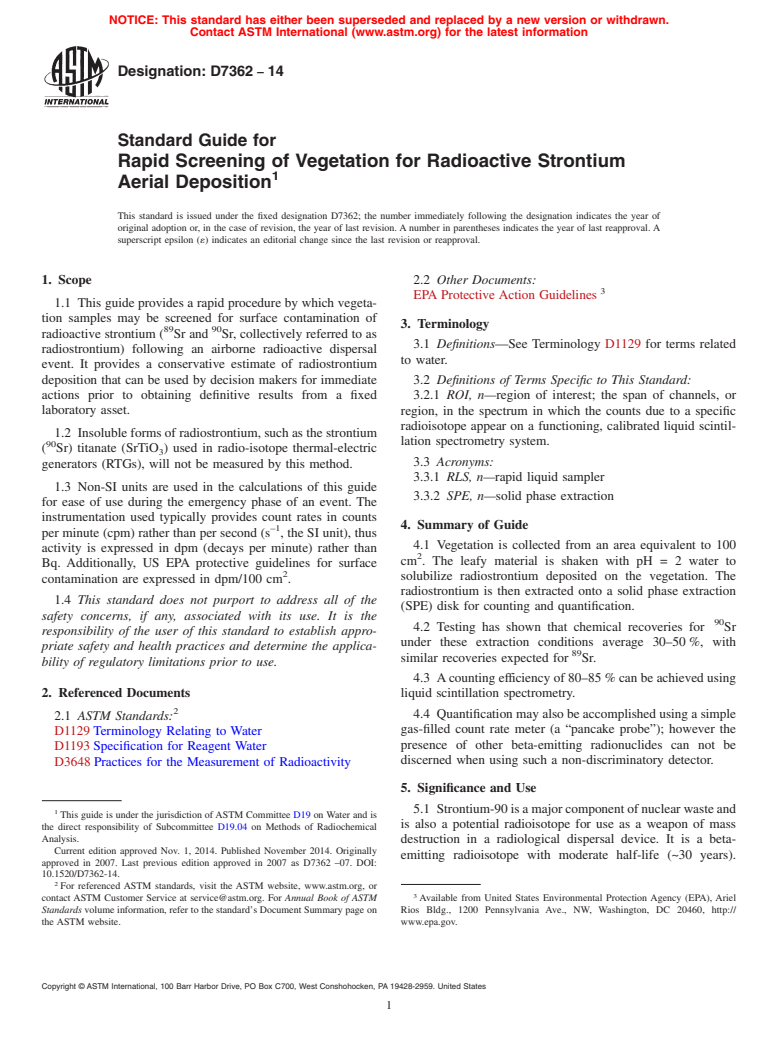

Designation: D7362 − 14
Standard Guide for
Rapid Screening of Vegetation for Radioactive Strontium
1
Aerial Deposition
This standard is issued under the fixed designation D7362; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2.2 Other Documents:
3
EPA Protective Action Guidelines
1.1 This guide provides a rapid procedure by which vegeta-
tion samples may be screened for surface contamination of
3. Terminology
89 90
radioactive strontium ( Sr and Sr, collectively referred to as
3.1 Definitions—See Terminology D1129 for terms related
radiostrontium) following an airborne radioactive dispersal
to water.
event. It provides a conservative estimate of radiostrontium
deposition that can be used by decision makers for immediate 3.2 Definitions of Terms Specific to This Standard:
actions prior to obtaining definitive results from a fixed
3.2.1 ROI, n—region of interest; the span of channels, or
laboratory asset. region, in the spectrum in which the counts due to a specific
radioisotope appear on a functioning, calibrated liquid scintil-
1.2 Insoluble forms of radiostrontium, such as the strontium
lation spectrometry system.
90
( Sr) titanate (SrTiO ) used in radio-isotope thermal-electric
3
3.3 Acronyms:
generators (RTGs), will not be measured by this method.
3.3.1 RLS, n—rapid liquid sampler
1.3 Non-SI units are used in the calculations of this guide
3.3.2 SPE, n—solid phase extraction
for ease of use during the emergency phase of an event. The
instrumentation used typically provides count rates in counts
4. Summary of Guide
–1
per minute (cpm) rather than per second (s , the SI unit), thus
4.1 Vegetation is collected from an area equivalent to 100
activity is expressed in dpm (decays per minute) rather than
2
cm . The leafy material is shaken with pH = 2 water to
Bq. Additionally, US EPA protective guidelines for surface
2
solubilize radiostrontium deposited on the vegetation. The
contamination are expressed in dpm/100 cm .
radiostrontium is then extracted onto a solid phase extraction
1.4 This standard does not purport to address all of the
(SPE) disk for counting and quantification.
safety concerns, if any, associated with its use. It is the
90
4.2 Testing has shown that chemical recoveries for Sr
responsibility of the user of this standard to establish appro-
under these extraction conditions average 30–50 %, with
priate safety and health practices and determine the applica-
89
similar recoveries expected for Sr.
bility of regulatory limitations prior to use.
4.3 Acounting efficiency of 80–85 % can be achieved using
2. Referenced Documents liquid scintillation spectrometry.
2
4.4 Quantification may also be accomplished using a simple
2.1 ASTM Standards:
gas-filled count rate meter (a “pancake probe”); however the
D1129 Terminology Relating to Water
presence of other beta-emitting radionuclides can not be
D1193 Specification for Reagent Water
discerned when using such a non-discriminatory detector.
D3648 Practices for the Measurement of Radioactivity
5. Significance and Use
5.1 Strontium-90isamajorcomponentofnuclearwasteand
1
This guide is under the jurisdiction ofASTM Committee D19 on Water and is
is also a potential radioisotope for use as a weapon of mass
the direct responsibility of Subcommittee D19.04 on Methods of Radiochemical
Analysis.
destruction in a radiological dispersal device. It is a beta-
Current edition approved Nov. 1, 2014. Published November 2014. Originally
emitting radioisotope with moderate half-life (~30 years).
approved in 2007. Last previous edition approved in 2007 as D7362 –07. DOI:
10.1520/D7362-14.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
3
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Available from United States Environmental Protection Agency (EPA), Ariel
Standards volume information, refer to the standard’s Document Summary page on Rios Bldg., 1200 Pennsylvania Ave., NW, Washington, DC 20460, http://
the ASTM website. www.epa.gov.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D7362 − 14
Strontium-89 is also a beta emitting radionuclide, but with a should allow the option of looking at the entire counting
half-life of only ~50 days it is not usually present in significant spectrum so that evaluation of other interferences may be
quantities. If ingested the radiostrontium may deposit in the completed. Automatic discrimination of alpha and beta par-
bone of an individual and thus can co
...
