ASTM F2019-20

Standard Practice for Rehabilitation of Existing Pipelines and Conduits by the Pulled in Place Installation of Glass Reinforced Plastic Cured-in-Place (GRP-CIPP) Using the UV-Light Curing Method

SIGNIFICANCE AND USE
4.1 This practice is for use by designers and specifiers, regulatory agencies, owners and inspection organizations who are involved in the rehabilitation of conduits through the use of a resin-impregnated glass fiber tube, pulled in place through an existing pipe or conduit, subsequently inflated and then cured by a designed exposure to UV-light. As for any standard practice, modifications may be required for specific job conditions.
SCOPE
1.1 This practice covers the procedures for the reconstruction of pipelines and conduits (4 to 72 in. (100 to 1830 mm) diameter) by the pulled-in place installation of a resin-impregnated, glass fiber tube into an existing pipe or conduit followed by its inflation with compressed air pressure (see Fig. 1) to expand it firmly against the wall surface of the host structure. The photo-initiated resin system in the tube is then cured by exposure to ultraviolet (UV) light. When cured, the finished cured-in-place pipe will be a continuous and tight fitting pipe within a pipe. This type of reconstruction process can be used in a variety of gravity flow applications such as sanitary sewers, storm sewers, process piping, electrical conduits, and ventilation systems.
FIG. 1 UV Cured-In-Place Pipe Installation Method (Air/Steam)
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Historical
• Publication Date: 31-Dec-2019
• ICS: 23.040.20 - Plastics pipes
• Technical Committee: F17 - Plastic Piping Systems
• Drafting Committee: F17.67 - Trenchless Plastic Pipeline Technology

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information
Designation: F2019 − 20
Standard Practice for
Rehabilitation of Existing Pipelines and Conduits by the
Pulled in Place Installation of Glass Reinforced Plastic
Cured-in-Place (GRP-CIPP) Using the UV-Light Curing
1
Method
This standard is issued under the fixed designation F2019; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope* 2. Referenced Documents
2
1.1 This practice covers the procedures for the reconstruc- 2.1 ASTM Standards:
tion of pipelines and conduits (4 to 72 in. (100 to 1830 mm) D543Practices for Evaluating the Resistance of Plastics to
diameter) by the pulled-in place installation of a resin- Chemical Reagents
impregnated, glass fiber tube into an existing pipe or conduit D578Specification for Glass Fiber Strands
followedbyitsinflationwithcompressedairpressure(seeFig. D790Test Methods for Flexural Properties of Unreinforced
1) to expand it firmly against the wall surface of the host and Reinforced Plastics and Electrical Insulating Materi-
structure. The photo-initiated resin system in the tube is then als
cured by exposure to ultraviolet (UV) light. When cured, the D1600TerminologyforAbbreviatedTermsRelatingtoPlas-
finished cured-in-place pipe will be a continuous and tight tics
fitting pipe within a pipe. This type of reconstruction process D2990Test Methods forTensile, Compressive, and Flexural
can be used in a variety of gravity flow applications such as Creep and Creep-Rupture of Plastics
sanitary sewers, storm sewers, process piping, electrical D3567PracticeforDeterminingDimensionsof“Fiberglass”
conduits, and ventilation systems. (Glass-Fiber-Reinforced Thermosetting Resin) Pipe and
Fittings
1.2 The values stated in inch-pound units are to be regarded
D5813 Specification for Cured-In-Place Thermosetting
as standard. The values given in parentheses are mathematical
Resin Sewer Piping Systems
conversions to SI units that are provided for information only
F412Terminology Relating to Plastic Piping Systems
and are not considered standard.
F1216Practice for Rehabilitation of Existing Pipelines and
1.3 This standard does not purport to address all of the
Conduits by the Inversion and Curing of a Resin-
safety concerns, if any, associated with its use. It is the
Impregnated Tube
responsibility of the user of this standard to establish appro-
F1417Practice for Installation Acceptance of Plastic Non-
priate safety, health, and environmental practices and deter-
pressure Sewer Lines Using Low-Pressure Air
mine the applicability of regulatory limitations prior to use.
3
2.2 ISO Standards:
1.4 This international standard was developed in accor-
11296-4Plastics piping systems for renovation of under-
dance with internationally recognized principles on standard-
ground non-pressure drainage and sewerage networks –
ization established in the Decision on Principles for the
Part 4: Lining with cured-in-place pipes
Development of International Standards, Guides and Recom-
7685Plastics piping systems – Glass-reinforced thermoset-
mendations issued by the World Trade Organization Technical
ting plastics (GRP) pipes – Determination of initial
Barriers to Trade (TBT) Committee.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
1
This practice is under the jurisdiction of ASTM Committee F17 on Plastic contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
Piping Systems and is the direct responsibility of Subcommittee F17.67 on Standards volume information, refer to the standard’s Document Summary page on
Trenchless Plastic Pipeline Technology. the ASTM website.
3
Current edition approved Jan. 1, 2020. Published March 2020. Originally Available from International Organization for Standardization (ISO), ISO
approved in 2000. Last previous edition approved in 2011 as F2019–11. DOI: Central Secretariat, BIBC II, Chemin de Blandonnet 8, CP 401, 1214 Vernier,
10.1520/F2019-20. Geneva, Switzerland, http://www.iso.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
F2019 − 20
FIG. 1 UV Cured-In-Place Pipe Installation Method (Air/Steam)
2

---------------------- Page: 2 ----------------------
F2019 − 20

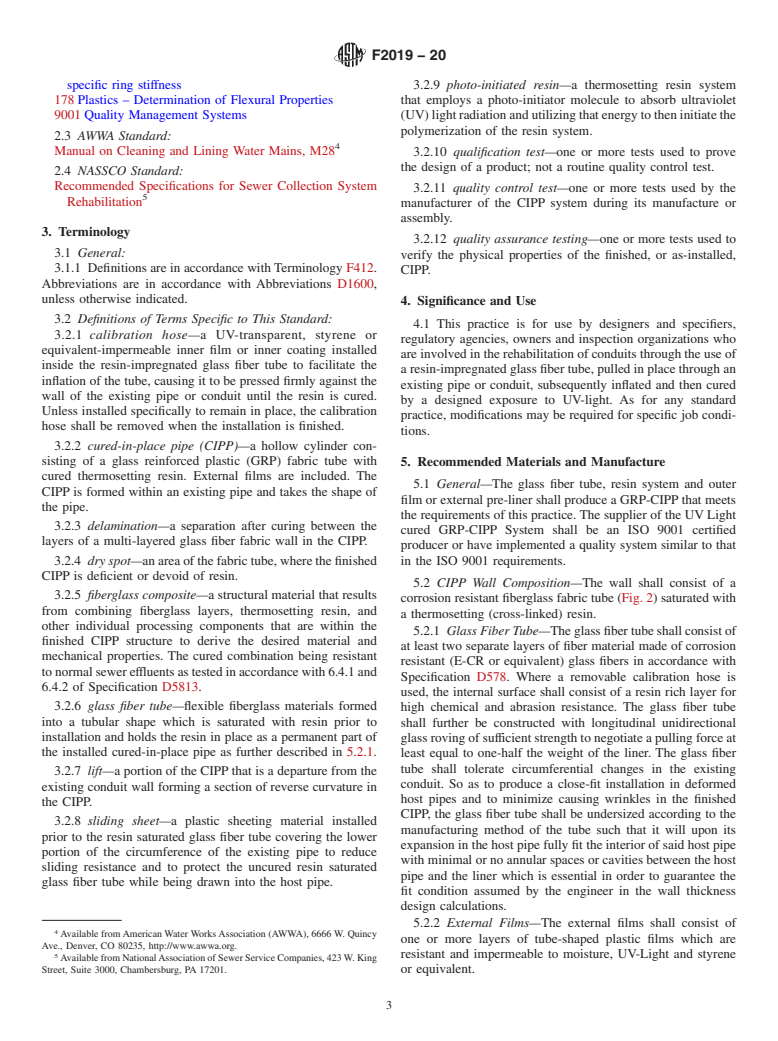

specific ring stiffness 3.2.9 photo-initiated resin—a thermosetting resin system
178Plastics – Determination of Flexural Properties that employs a photo-initiator molecule to absorb ultraviolet
9001Quality Management Systems (UV)lightradiationandutilizingthatenergytotheniniti
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: F2019 − 11 F2019 − 20
Standard Practice for
Rehabilitation of Existing Pipelines and Conduits by the
Pulled in Place Installation of Glass Reinforced Plastic
(GRP) Cured-in-Place Thermosetting Resin Pipe
(CIPP)Cured-in-Place (GRP-CIPP) Using the UV-Light Curing
1
Method
This standard is issued under the fixed designation F2019; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope*
1.1 This practice covers the procedures for the reconstruction of pipelines and conduits (4 to 6072 in. (100 to 15001830 mm)
diameter) by the pulled-in place installation of a resin-impregnated, flexible fabricglass fiber tube into an existing pipe or conduit
followed by its inflation with compressed air pressure (see Fig. 1). The resin/fabric tube can be cured by either the flow through
the fabric tube of mixed air and steam or hot water or by use of ultraviolet ) to expand it firmly against the wall surface of the
host structure. The photo-initiated resin system in the tube is then cured by exposure to ultraviolet (UV) light. When cured, the
finished cured-in-place pipe will be a continuous and tight fitting. This fitting pipe within a pipe. This type of reconstruction process
can be used in a variety of gravity flow applications such as sanitary sewers, storm sewers, process piping, electrical conduits,
ventilation systems, and pressure applications.and ventilation systems.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
D543 Practices for Evaluating the Resistance of Plastics to Chemical Reagents
D578 Specification for Glass Fiber Strands
D638 Test Method for Tensile Properties of Plastics
D790 Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
D1600 Terminology for Abbreviated Terms Relating to Plastics
D3039/D3039MD2990 Test Method for Tensile Properties of Polymer Matrix Composite MaterialsMethods for Tensile,
Compressive, and Flexural Creep and Creep-Rupture of Plastics
D3567 Practice for Determining Dimensions of “Fiberglass” (Glass-Fiber-Reinforced Thermosetting Resin) Pipe and Fittings
D5813 Specification for Cured-In-Place Thermosetting Resin Sewer Piping Systems
F412 Terminology Relating to Plastic Piping Systems
F1216 Practice for Rehabilitation of Existing Pipelines and Conduits by the Inversion and Curing of a Resin-Impregnated Tube
F1417 Practice for Installation Acceptance of Plastic Non-pressure Sewer Lines Using Low-Pressure Air
1
This practice is under the jurisdiction of ASTM Committee F17 on Plastic Piping Systems and is the direct responsibility of Subcommittee F17.67 on Trenchless Plastic
Pipeline Technology.
Current edition approved Sept. 1, 2011Jan. 1, 2020. Published September 2011March 2020. Originally approved in 2000. Last previous edition approved in 20092011 as
F2019 – 03F2019 – 11.R09. DOI: 10.1520/F2019-11.10.1520/F2019-20.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
F2019 − 20
FIG. 1 UV Cured-In-Place Pipe Installation Method (Air/Steam)
2

---------------------- Page: 2
...
