ASTM D6262-17

Standard Specification for Extruded, Compression Molded, and Injection Molded Basic Shapes of Poly(aryl ether ketone) (PAEK)

ABSTRACT
This specification covers requirements and methods of test for the material, dimensions, and workmanship, and the properties of extruded, compression molded, and injection molded PAEK sheet, plate, rod, and tubular bar manufactured from PAEK. The type of PAEK extruded, compression molded, and injection molded product may be categorized by type, grade and class depending on resin and filler compositions. Every type of PAEK shape may be categorized into one of several grades as follows: Grade 1 (general purpose) which is extruded, compression molded or injection molded product made using only 100% virgin PAEK resin and Grade 2 (recycle grade) which is extruded, compression molded or injection molded product made using any amount up to 100% of recycled thermoplastic PAEK. The type, class and grade is further differentiated based on dimensional stability. Different tests shall be conducted in order to determine the following properties of PAEK: tensile stress at break, elongation at break, tensile modulus, dimensional stability, lengthwise camber and widthwise bow, squareness, flexural modulus, and Izod impact.
SCOPE
1.1 This specification covers requirements and methods of test for the material, dimensions, and workmanship, and the properties of extruded, compression molded, and injection molded PAEK sheet, plate, rod, and tubular bar manufactured from PAEK.
1.2 The properties included in this specification are those required for the compositions covered. Requirements necessary to identify particular characteristics important to specialized applications are described by using the classification system given in Section 4.
1.3 This specification allows the use of key clad plastics (see Section 4).
1.4 The values are stated in inch-pound units and are regarded as the standard in all property and dimensional tables. For reference purposes, SI units are also included in Table 1.
1.5 The following precautionary caveat pertains only to the test method portion Section 11, of this specification. This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
Note 1: There is no known ISO equivalent to this standard.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Historical
• Publication Date: 14-Dec-2017
• ICS: 83.140.99 - Other rubber and plastics products
• Technical Committee: D20 - Plastics
• Drafting Committee: D20.15 - Thermoplastic Materials

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

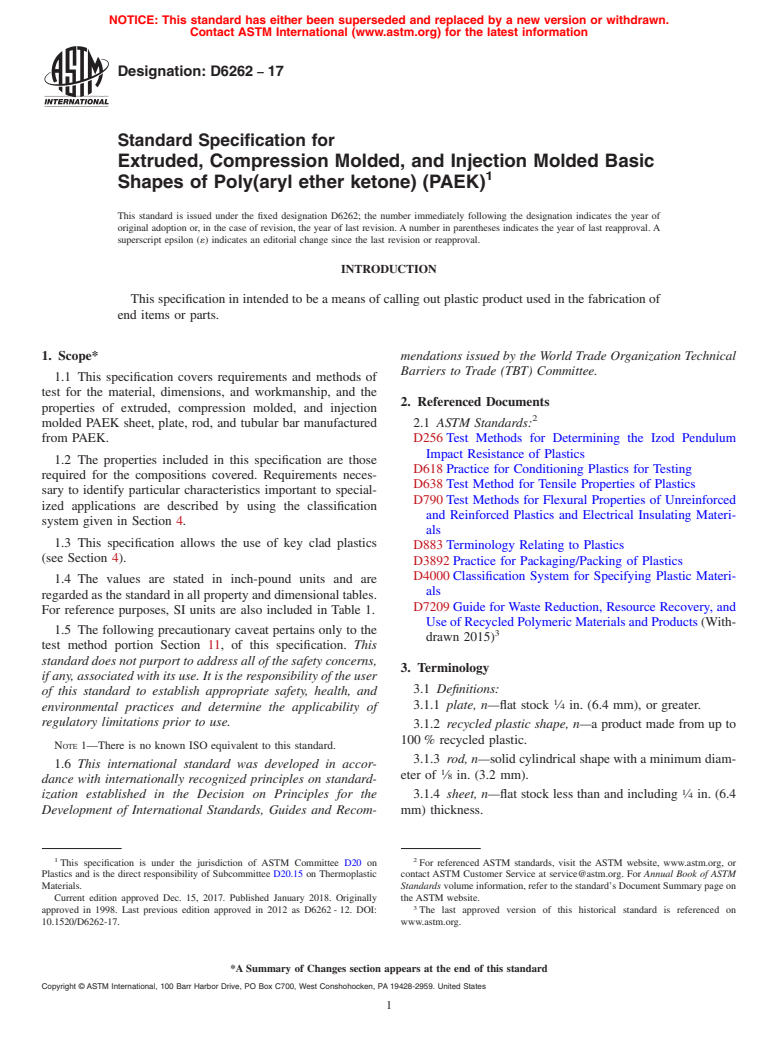

Designation: D6262 − 17
Standard Specification for
Extruded, Compression Molded, and Injection Molded Basic
1
Shapes of Poly(aryl ether ketone) (PAEK)
This standard is issued under the fixed designation D6262; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
INTRODUCTION
This specification in intended to be a means of calling out plastic product used in the fabrication of
end items or parts.
1. Scope* mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
1.1 This specification covers requirements and methods of
test for the material, dimensions, and workmanship, and the
2. Referenced Documents
properties of extruded, compression molded, and injection
2
molded PAEK sheet, plate, rod, and tubular bar manufactured 2.1 ASTM Standards:
from PAEK. D256 Test Methods for Determining the Izod Pendulum
Impact Resistance of Plastics
1.2 The properties included in this specification are those
D618 Practice for Conditioning Plastics for Testing
required for the compositions covered. Requirements neces-
D638 Test Method for Tensile Properties of Plastics
sary to identify particular characteristics important to special-
D790 Test Methods for Flexural Properties of Unreinforced
ized applications are described by using the classification
and Reinforced Plastics and Electrical Insulating Materi-
system given in Section 4.
als
1.3 This specification allows the use of key clad plastics
D883 Terminology Relating to Plastics
(see Section 4).
D3892 Practice for Packaging/Packing of Plastics
D4000 Classification System for Specifying Plastic Materi-
1.4 The values are stated in inch-pound units and are
als
regarded as the standard in all property and dimensional tables.
D7209 Guide for Waste Reduction, Resource Recovery, and
For reference purposes, SI units are also included in Table 1.
Use of Recycled Polymeric Materials and Products (With-
1.5 The following precautionary caveat pertains only to the
3
drawn 2015)
test method portion Section 11, of this specification. This
standard does not purport to address all of the safety concerns,
3. Terminology
if any, associated with its use. It is the responsibility of the user
3.1 Definitions:
of this standard to establish appropriate safety, health, and
1
3.1.1 plate, n—flat stock ⁄4 in. (6.4 mm), or greater.
environmental practices and determine the applicability of
regulatory limitations prior to use.
3.1.2 recycled plastic shape, n—a product made from up to
100 % recycled plastic.
NOTE 1—There is no known ISO equivalent to this standard.
3.1.3 rod, n—solid cylindrical shape with a minimum diam-
1.6 This international standard was developed in accor-
1
eter of ⁄8 in. (3.2 mm).
dance with internationally recognized principles on standard-
1
ization established in the Decision on Principles for the 3.1.4 sheet, n—flat stock less than and including ⁄4 in. (6.4
Development of International Standards, Guides and Recom- mm) thickness.
1 2
This specification is under the jurisdiction of ASTM Committee D20 on For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Plastics and is the direct responsibility of Subcommittee D20.15 on Thermoplastic contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
Materials. Standards volume information, refer to the standard’s Document Summary page on
Current edition approved Dec. 15, 2017. Published January 2018. Originally the ASTM website.
3
approved in 1998. Last previous edition approved in 2012 as D6262 - 12. DOI: The last approved version of this historical standard is referenced on
10.1520/D6262-17. www.astm.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D6262 − 17
3.1.5 tubular bar, n—annular shapes with minimum inside
Tolerance
3 1 Symbol Material (Based on the Total
diameter of ⁄8 in. (9.5 mm) and minimum wall thickness of ⁄16
Mass);
in. (1.6 mm).
C Carbon and graphite fiber ±2 %
3.1.6 virgin plastic shape, n—product that is produced from
G Glass ± 2 %
100 % plastic resin that has not been subjected to subsequent
L Lubricants (for example, PTFE, graphite, ± 2 %
melt processing. silicone and molybdenum disulfide)
M Mineral ± 2 %
3.2 Definitions of Terms Specific to This Standard:
R Combinations of reinforcements by ± 3 %
agreement between supplier a and the
3.2.1 For definitions of other technical terms pertaining to
user for the total reinforcement or fillers,
plast
...

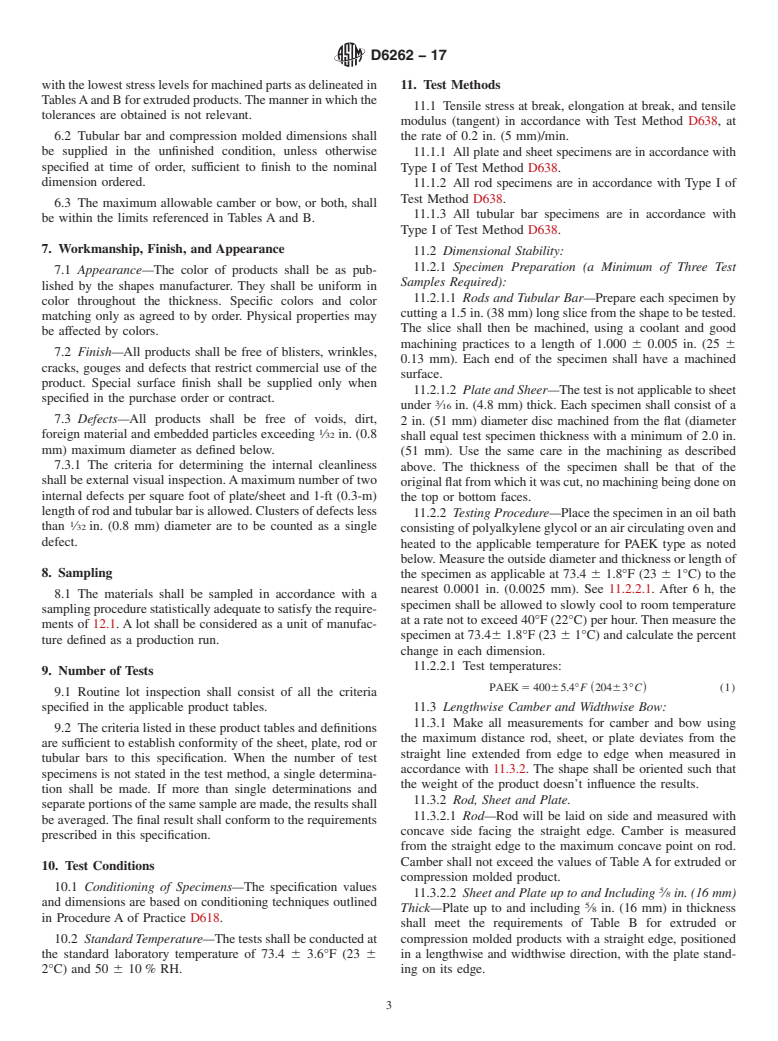

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

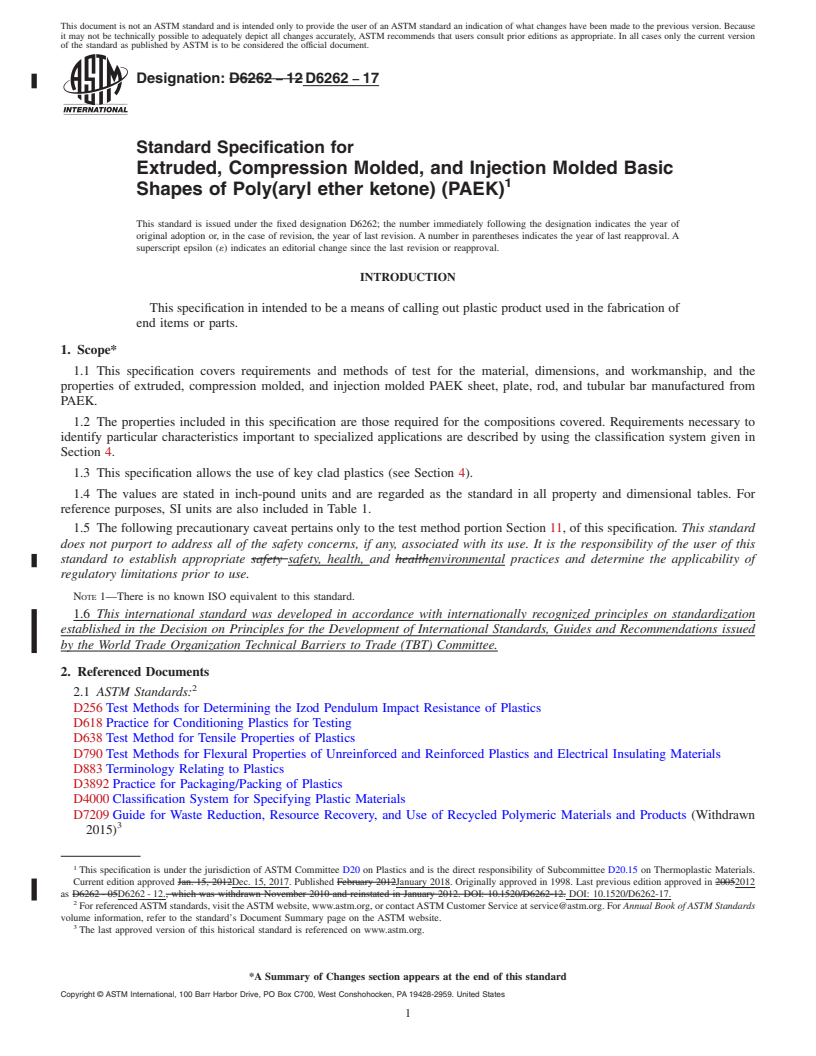

Designation: D6262 − 12 D6262 − 17
Standard Specification for
Extruded, Compression Molded, and Injection Molded Basic
1
Shapes of Poly(aryl ether ketone) (PAEK)
This standard is issued under the fixed designation D6262; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
INTRODUCTION
This specification in intended to be a means of calling out plastic product used in the fabrication of
end items or parts.
1. Scope*
1.1 This specification covers requirements and methods of test for the material, dimensions, and workmanship, and the
properties of extruded, compression molded, and injection molded PAEK sheet, plate, rod, and tubular bar manufactured from
PAEK.
1.2 The properties included in this specification are those required for the compositions covered. Requirements necessary to
identify particular characteristics important to specialized applications are described by using the classification system given in
Section 4.
1.3 This specification allows the use of key clad plastics (see Section 4).
1.4 The values are stated in inch-pound units and are regarded as the standard in all property and dimensional tables. For
reference purposes, SI units are also included in Table 1.
1.5 The following precautionary caveat pertains only to the test method portion Section 11, of this specification. This standard
does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this
standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the applicability of
regulatory limitations prior to use.
NOTE 1—There is no known ISO equivalent to this standard.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
D256 Test Methods for Determining the Izod Pendulum Impact Resistance of Plastics
D618 Practice for Conditioning Plastics for Testing
D638 Test Method for Tensile Properties of Plastics
D790 Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
D883 Terminology Relating to Plastics
D3892 Practice for Packaging/Packing of Plastics
D4000 Classification System for Specifying Plastic Materials
D7209 Guide for Waste Reduction, Resource Recovery, and Use of Recycled Polymeric Materials and Products (Withdrawn
3
2015)
1
This specification is under the jurisdiction of ASTM Committee D20 on Plastics and is the direct responsibility of Subcommittee D20.15 on Thermoplastic Materials.
Current edition approved Jan. 15, 2012Dec. 15, 2017. Published February 2012January 2018. Originally approved in 1998. Last previous edition approved in 20052012
as D6262 - 05D6262 - 12., which was withdrawn November 2010 and reinstated in January 2012. DOI: 10.1520/D6262-12. DOI: 10.1520/D6262-17.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
3
The last approved version of this historical standard is referenced on www.astm.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
D6262 − 17
3. Terminology
3.1 Definitions:
1
3.1.1 plate, n—flat stock ⁄4 in. (6.4 mm), or greater.
3.1.2 recycled plastic shape, n—a product made from up to 100 % recycled plastic.
1
3.1.3 rod, n—solid cylindrical shape with a minimum diameter of ⁄8 in. (3.2 mm).
1
3.1.4 sheet, n—flat stock less than and including ⁄4 in. (6.4 mm) thickness.
3 1
3.1.5 tubular bar, n—annular shapes with minimum inside diameter of ⁄8 in. (3.5(9.5 mm) and minimum wall thickness of ⁄16
in. (1.6 mm).
3.1.6 virgin plastic shape, n—product that is produced from 100 % plastic resin that has not been subjected to subsequent melt
processing.
3.2 Definitions of Terms Specific to T
...
