ASTM D6153-97(2007)
(Specification)Standard Specification for Materials for Bridge Deck Waterproofing Membrane Systems
Standard Specification for Materials for Bridge Deck Waterproofing Membrane Systems
ABSTRACT
This specification covers three types of deck waterproofing membrane systems designed for use on bridge decks which will receive an asphaltic concrete overlay. Type I are cold liquid-applied chemically curing membrane materials that that require a membrane protection course. Type II, on the other hand, are hot applied elastomeric membrane systems that also require a membrane protection course. And finally, Type III are preformed sheet membrane systems. All types are applied to a bridge deck to prevent the passage of water from the bituminous surface course to or through the bridge deck. Membrane systems shall be sampled as appropriate for each type, and shall conform to performance requirements and physical properties as to permeability, and pliability.
SCOPE
1.1 This specification covers deck waterproofing membrane systems designed for use on bridge decks which will receive an asphaltic concrete overlay.
1.2 The values stated in SI units are to be regarded as the standard. The inch-pound units given in parentheses are for information only.
General Information
Relations
Standards Content (Sample)
NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

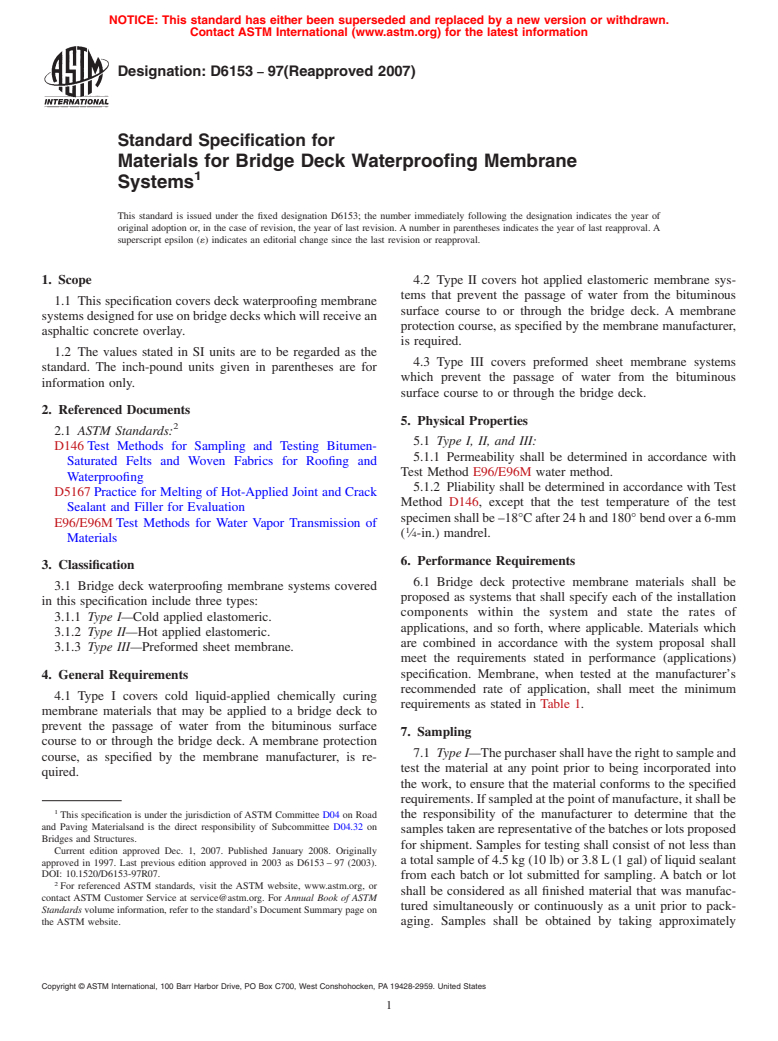

Designation:D6153 −97(Reapproved 2007)
Standard Specification for
Materials for Bridge Deck Waterproofing Membrane
Systems
This standard is issued under the fixed designation D6153; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 4.2 Type II covers hot applied elastomeric membrane sys-
tems that prevent the passage of water from the bituminous
1.1 This specification covers deck waterproofing membrane
surface course to or through the bridge deck. A membrane
systems designed for use on bridge decks which will receive an
protection course, as specified by the membrane manufacturer,
asphaltic concrete overlay.
is required.
1.2 The values stated in SI units are to be regarded as the
4.3 Type III covers preformed sheet membrane systems
standard. The inch-pound units given in parentheses are for
which prevent the passage of water from the bituminous
information only.
surface course to or through the bridge deck.
2. Referenced Documents
5. Physical Properties
2.1 ASTM Standards:
5.1 Type I, II, and III:
D146 Test Methods for Sampling and Testing Bitumen-
5.1.1 Permeability shall be determined in accordance with
Saturated Felts and Woven Fabrics for Roofing and
Test Method E96/E96M water method.
Waterproofing
5.1.2 Pliability shall be determined in accordance with Test
D5167 Practice for Melting of Hot-Applied Joint and Crack
Method D146, except that the test temperature of the test
Sealant and Filler for Evaluation
specimen shall be –18°C after 24 h and 180° bend over a 6-mm
E96/E96M Test Methods for Water Vapor Transmission of
( ⁄4-in.) mandrel.
Materials
6. Performance Requirements
3. Classification
6.1 Bridge deck protective membrane materials shall be
3.1 Bridge deck waterproofing membrane systems covered
proposed as systems that shall specify each of the installation
in this specification include three types:
components within the system and state the rates of
3.1.1 Type I—Cold applied elastomeric.
applications, and so forth, where applicable. Materials which
3.1.2 Type II—Hot applied elastomeric.
are combined in accordance with the system proposal shall
3.1.3 Type III—Preformed sheet membrane.
meet the requirements stated in performance (applications)
specification. Membrane, when tested at the manufacturer’s
4. General Requirements
recommended rate of application, shall meet the minimum
4.1 Type I covers cold liquid-applied chemically curing
requirements as stated in Table 1.
membrane materials that may be applied to a bridge deck to
prevent the passage of water from the bituminous surface
7. Sampling
course to or through the bridge deck. A membrane protection
7.1 TypeI—Thepurchasershallhavetherighttosampleand
course, as specified by the membrane manufacturer, is re-
test the material at any point prior to being incorporated into
quired.
the work, to ensure that the material conforms to the specified
requirements. If sampled at the point of manufacture, it shall be
This specification is under the jurisdiction of ASTM Committee D04 on Road
the responsibility of the manufacturer to determine that the
and Paving Materialsand is the direct responsibility of Subcommittee D04.32 on
samplestakenarerepresentativeofthebatchesorlotsproposed
Bridges and Structures.
for shipment. Samples for testing shall consist of not less than
Current edition approved Dec. 1, 2007. Published January 2008. Originally
a total sample of 4.5 kg (10 lb) or 3.8 L(1 gal) of liquid sealant
approved in 1997. Last previous edition approved in 2003 as D6153 – 97 (2003).
DOI: 10.1520/D6153-97R07.
from each batch or lot submitted for sampling. A batch or lot
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
shall be considered as all finished material that was manufac-
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
tured simultaneously or continuously as a unit prior to pack-
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. aging. Samples shall be obtained by taking approximately
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D6153−97 (2007)
TABLE 1 Physical Requirements for Membrane
fabricated material to provide
...
