ASTM B121/B121M-16

Standard Specification for Leaded Brass Plate, Sheet, Strip, and Rolled Bar

ABSTRACT
This specification establishes the requirements leaded brass plates, sheets, strips, and rolled bars made from UNS C33500, C34000, C34200, C34000, C35000, C35300, or C35600 copper-zinc-lead alloys. Each product should be manufactured by hot or cold working, and annealed if required, to produce a uniform wrought structure that meets the specified temper properties. This specification also contains information on the standard tempers of rolled and annealed materials as well as the required tensile strength, Rockwell hardness, and grain sizes. The Rockwell hardness test can be used to test for general conformity to the specification requirements for temper, tensile strength and grain size.
SCOPE
1.1 This specification establishes the requirements for leaded brass plate, sheet, strip, and rolled bar. The following alloys are covered:
Nominal Composition, %
Copper Alloy
Previously Used
UNS No.2
Designation
Copper
Zinc
Lead
Iron
C33500
2
63.5
36.0
0.5
...
C34000
3
63.5
35.5
1.0
...
C34200
5
63.5
34.5
2.0
...
C35000
...
61.5
37.4
1.1
...
C35300
4
61.5
36.7
1.8
...
C35600
6
61.5
36.0
2.5
...
1.2 Units—Values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, SI units are shown in brackets. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.

General Information

• Status: Historical
• Publication Date: 31-Mar-2016
• ICS: 77.150.30 - Copper products
• Technical Committee: B05 - Copper and Copper Alloys
• Drafting Committee: B05.01 - Plate, Sheet, and Strip

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

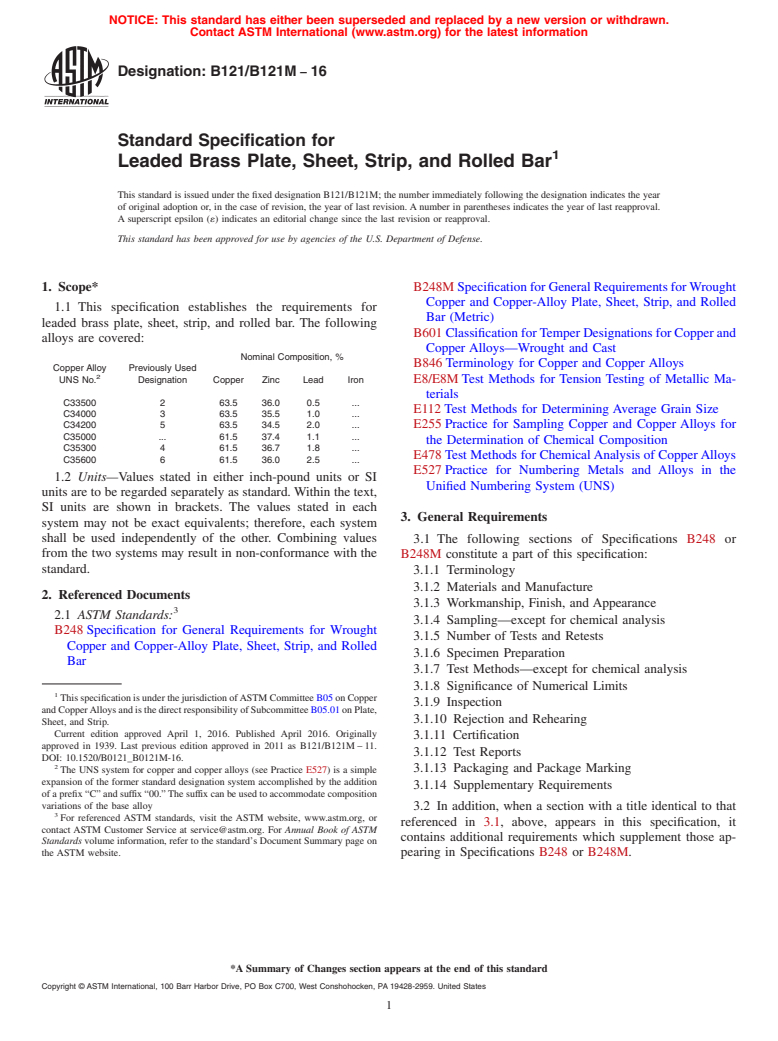

Designation: B121/B121M − 16
Standard Specification for
1
Leaded Brass Plate, Sheet, Strip, and Rolled Bar
This standard is issued under the fixed designation B121/B121M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope* B248M Specification for General Requirements for Wrought
Copper and Copper-Alloy Plate, Sheet, Strip, and Rolled
1.1 This specification establishes the requirements for
Bar (Metric)
leaded brass plate, sheet, strip, and rolled bar. The following
B601 Classification for Temper Designations for Copper and
alloys are covered:
Copper Alloys—Wrought and Cast
Nominal Composition, %
B846 Terminology for Copper and Copper Alloys
Copper Alloy Previously Used
2
UNS No. Designation Copper Zinc Lead Iron E8/E8M Test Methods for Tension Testing of Metallic Ma-
terials
C33500 2 63.5 36.0 0.5 .
E112 Test Methods for Determining Average Grain Size
C34000 3 63.5 35.5 1.0 .
C34200 5 63.5 34.5 2.0 . E255 Practice for Sampling Copper and Copper Alloys for
C35000 . 61.5 37.4 1.1 .
the Determination of Chemical Composition
C35300 4 61.5 36.7 1.8 .
E478 Test Methods for Chemical Analysis of Copper Alloys
C35600 6 61.5 36.0 2.5 .
E527 Practice for Numbering Metals and Alloys in the
1.2 Units—Values stated in either inch-pound units or SI
Unified Numbering System (UNS)
units are to be regarded separately as standard. Within the text,
SI units are shown in brackets. The values stated in each
3. General Requirements
system may not be exact equivalents; therefore, each system
shall be used independently of the other. Combining values 3.1 The following sections of Specifications B248 or
from the two systems may result in non-conformance with the
B248M constitute a part of this specification:
standard.
3.1.1 Terminology
3.1.2 Materials and Manufacture
2. Referenced Documents
3.1.3 Workmanship, Finish, and Appearance
3
2.1 ASTM Standards:
3.1.4 Sampling—except for chemical analysis
B248 Specification for General Requirements for Wrought
3.1.5 Number of Tests and Retests
Copper and Copper-Alloy Plate, Sheet, Strip, and Rolled
3.1.6 Specimen Preparation
Bar
3.1.7 Test Methods—except for chemical analysis
3.1.8 Significance of Numerical Limits
1
This specification is under the jurisdiction of ASTM Committee B05 on Copper
3.1.9 Inspection
and Copper Alloys and is the direct responsibility of Subcommittee B05.01 on Plate,
3.1.10 Rejection and Rehearing
Sheet, and Strip.
Current edition approved April 1, 2016. Published April 2016. Originally
3.1.11 Certification
approved in 1939. Last previous edition approved in 2011 as B121/B121M – 11.
3.1.12 Test Reports
DOI: 10.1520/B0121_B0121M-16.
2
The UNS system for copper and copper alloys (see Practice E527) is a simple 3.1.13 Packaging and Package Marking
expansion of the former standard designation system accomplished by the addition
3.1.14 Supplementary Requirements
of a prefix “C” and suffix “00.” The suffix can be used to accommodate composition
variations of the base alloy
3.2 In addition, when a section with a title identical to that
3
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
referenced in 3.1, above, appears in this specification, it
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
contains additional requirements which supplement those ap-
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. pearing in Specifications B248 or B248M.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
B121/B121M − 16
4. Terminology 7. Chemical Composition
7.1 The material shall conform to the composition require-
4.1 For definitions of terms related to copper and copper
ments in Table 1 for the copper [alloy] UNS No. designation
alloys, refer to Terminology B846.
specified in the ordering information.
5. Ordering Information
7.2 These composition limits do not preclude the presence
of other elements. By agreement between the manufacturer and
5.1 Include the following specified choices when placing
purchaser, limits may be established and analysis required for
orders for product under this specification, as applicable:
unnamed elements.
5.1.1 ASTM designation and year of issue,
7.3 For alloys in which zinc is listed as “remainder,” either
5.1.2 Copper [Alloy] UNS No. designation,
copper or
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

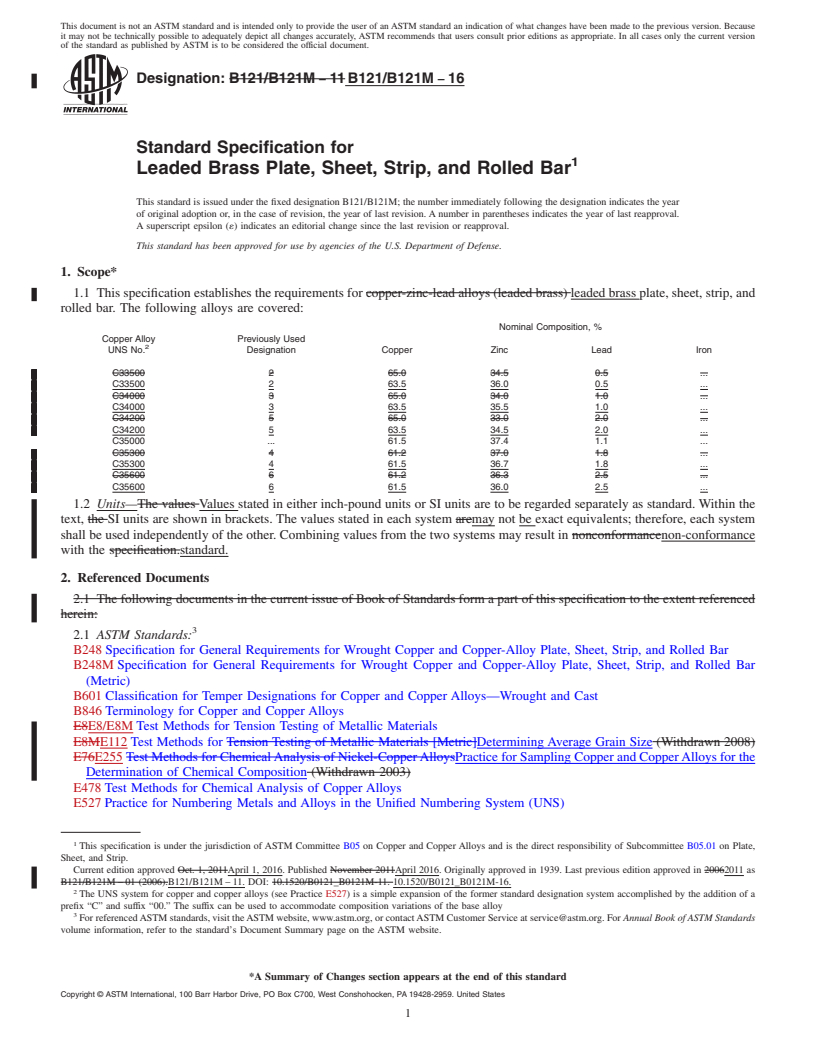

Designation: B121/B121M − 11 B121/B121M − 16
Standard Specification for
1
Leaded Brass Plate, Sheet, Strip, and Rolled Bar
This standard is issued under the fixed designation B121/B121M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope*
1.1 This specification establishes the requirements for copper-zinc-lead alloys (leaded brass) leaded brass plate, sheet, strip, and
rolled bar. The following alloys are covered:
Nominal Composition, %
Copper Alloy Previously Used
2
UNS No. Designation Copper Zinc Lead Iron
C33500 2 65.0 34.5 0.5 .
C33500 2 63.5 36.0 0.5 .
C34000 3 65.0 34.0 1.0 .
C34000 3 63.5 35.5 1.0 .
C34200 5 65.0 33.0 2.0 .
C34200 5 63.5 34.5 2.0 .
C35000 . 61.5 37.4 1.1 .
C35300 4 61.2 37.0 1.8 .
C35300 4 61.5 36.7 1.8 .
C35600 6 61.2 36.3 2.5 .
C35600 6 61.5 36.0 2.5 .
1.2 Units—The values Values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the
text, the SI units are shown in brackets. The values stated in each system aremay not be exact equivalents; therefore, each system
shall be used independently of the other. Combining values from the two systems may result in nonconformancenon-conformance
with the specification.standard.
2. Referenced Documents
2.1 The following documents in the current issue of Book of Standards form a part of this specification to the extent referenced
herein:
3
2.1 ASTM Standards:
B248 Specification for General Requirements for Wrought Copper and Copper-Alloy Plate, Sheet, Strip, and Rolled Bar
B248M Specification for General Requirements for Wrought Copper and Copper-Alloy Plate, Sheet, Strip, and Rolled Bar
(Metric)
B601 Classification for Temper Designations for Copper and Copper Alloys—Wrought and Cast
B846 Terminology for Copper and Copper Alloys
E8E8/E8M Test Methods for Tension Testing of Metallic Materials
E8ME112 Test Methods for Tension Testing of Metallic Materials [Metric]Determining Average Grain Size (Withdrawn 2008)
E76E255 Test Methods for Chemical Analysis of Nickel-Copper AlloysPractice for Sampling Copper and Copper Alloys for the
Determination of Chemical Composition (Withdrawn 2003)
E478 Test Methods for Chemical Analysis of Copper Alloys
E527 Practice for Numbering Metals and Alloys in the Unified Numbering System (UNS)
1
This specification is under the jurisdiction of ASTM Committee B05 on Copper and Copper Alloys and is the direct responsibility of Subcommittee B05.01 on Plate,
Sheet, and Strip.
Current edition approved Oct. 1, 2011April 1, 2016. Published November 2011April 2016. Originally approved in 1939. Last previous edition approved in 20062011 as
B121/B121M – 01 (2006).B121/B121M – 11. DOI: 10.1520/B0121_B0121M-11. 10.1520/B0121_B0121M-16.
2
The UNS system for copper and copper alloys (see Practice E527) is a simple expansion of the former standard designation system accomplished by the addition of a
prefix “C” and suffix “00.” The suffix can be used to accommodate composition variations of the base alloy
3
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
B121/B121M − 16
3. General Requirements
3.1 The following sections of SpecificationSpecifications B248 or B248M constitute a part of this specification:
3.1.1 Terminology—Definitions,Terminology
3.1.2 Materials and Manufacture,Manufacture
3.1.3 Workmanship, Finish, and Appearance,Appearance
3.1.4 Sampling—except for chemical analysis,analysis
3.1.5 Number of Tests and Retests,Retests
3.1.6 Specimen Preparation,Preparation
3.1.7 Test Methods—except for chemical analysis,analysis
3.1.8 Significance of Numerical Limits,Limits
3.1.9 Inspection,Inspection
3.1.10 Rejection and Rehearing,Rehearing
3.1.11 Certification,Certification
3.1.12 Test Reports (Mill),
3.1.13 Packaging and Package Marking, andMarking
3.1.14 Supplementary Requiremen
...
