EN 4652-001:2015

Aerospace series - Connectors, coaxial, radio frequency - Part 001: Technical specification

This European Standard specifies the required characteristics, test methods, qualification and acceptance conditions of coaxial, radio frequency connectors used with flexible radio frequency cables in accordance with EN 4604 001 and semi-rigid coaxial cables.
This family of connectors is derived from MIL-PRF-39012. Front face dimensions are identical and products are fully intermateable.
Cables usable with present specification are listed in TR 6058.

Luft- und Raumfahrt - Koaxiale Hochfrequenz-Steckverbinder - Teil 001: Technische Lieferbedingungen

Série aérospatiale - Connecteurs coaxiaux pour radio fréquences - Partie 001: Spécification technique

Aeronavtika - Konektorji, koaksialni, radiofrekvenčni - 001. del: Tehnična specifikacija

Ta evropski standard določa zahtevane lastnosti, preskusne metode ter pogoje kvalifikacije in sprejemljivosti koaksialnih radiofrekvenčnih konektorjev, ki se uporabljajo z gibkimi radiofrekvenčnimi kabli v skladu s standardom EN 4604 001 in poltogimi koaksialnimi kabli.
Ta skupina konektorjev izhaja iz MIL-PRF-39012. Dimenzije sprednje strani so enake in izdelke je mogoče spojiti med sabo. Kabli, ki se uporabljajo s to specifikacijo, so navedeni v standardu TR 6058

General Information

• Status: Published
• Publication Date: 26-May-2015
• Withdrawal Date: 29-Nov-2015
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 2 - Electrical
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 27-May-2015
• Completion Date: 27-May-2015
• Ref Project: SIST EN 4652-001:2015 - Aerospace series - Connectors, coaxial, radio frequency - Part 001: Technical specification

Standards Content (Sample)

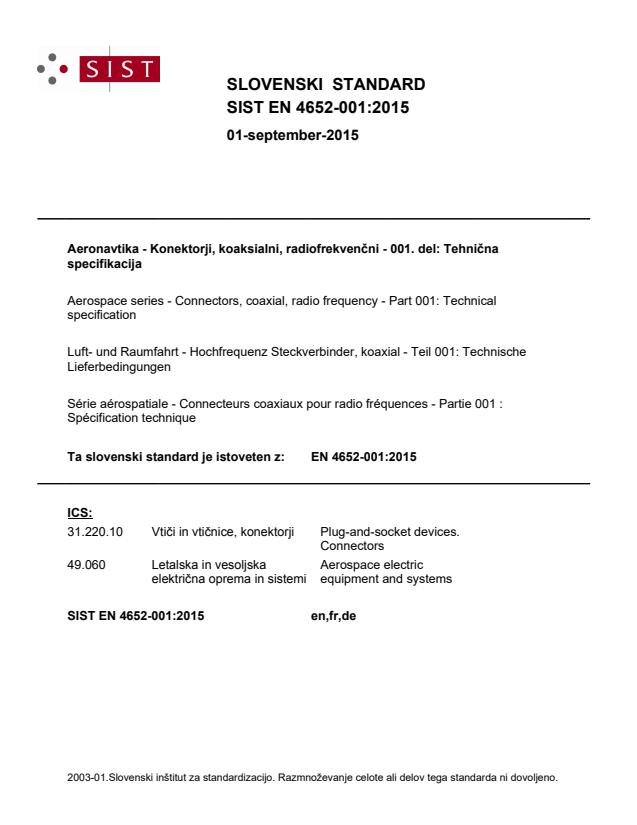

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.VSHFLILNDFLMDLuft- und Raumfahrt - Hochfrequenz Steckverbinder, koaxial - Teil 001: Technische LieferbedingungenSérie aérospatiale - Connecteurs coaxiaux pour radio fréquences - Partie 001 : Spécification techniqueAerospace series - Connectors, coaxial, radio frequency - Part 001: Technical specification49.060Aerospace electric equipment and systems31.220.10Plug-and-socket devices. ConnectorsICS:Ta slovenski standard je istoveten z:EN 4652-001:2015SIST EN 4652-001:2015en,fr,de01-september-2015SIST EN 4652-001:2015SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM

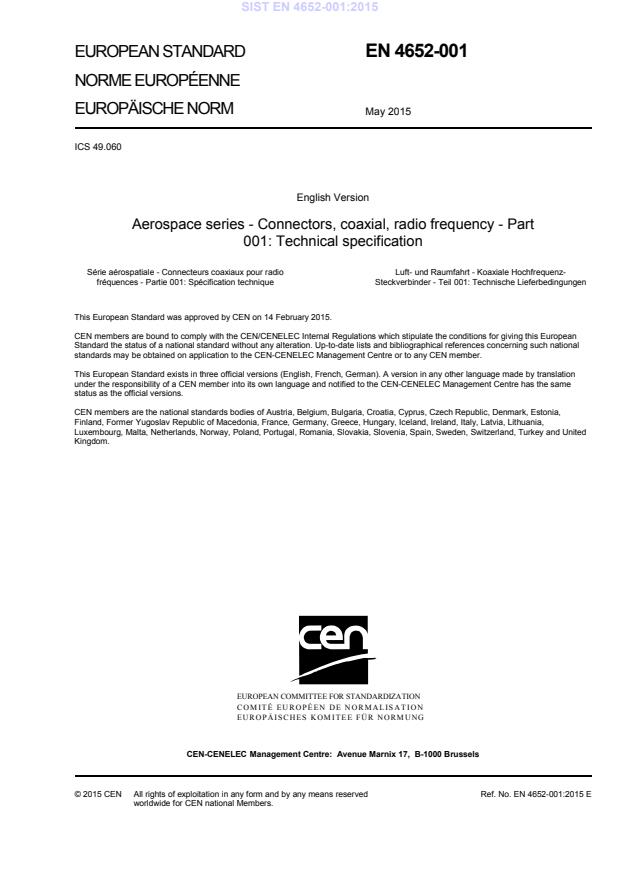

EN 4652-001
May 2015 ICS 49.060 English Version
Aerospace series - Connectors, coaxial, radio frequency - Part 001: Technical specification
Série aérospatiale - Connecteurs coaxiaux pour radio fréquences - Partie 001: Spécification technique
Luft- und Raumfahrt - Koaxiale Hochfrequenz-Steckverbinder - Teil 001: Technische Lieferbedingungen This European Standard was approved by CEN on 14 February 2015.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 4652-001:2015 ESIST EN 4652-001:2015

1) All parts quoted in this European Standard. 2) Published by: DoD National (US) Mil. Department of Defense. http://www.defenselink.mil/ 3) Published as ASD-STAN Technical Report at the date of publication of this European Standard. http://www.asd-stan.org/ SIST EN 4652-001:2015

— -on coupling. — -on coupling. —
— -on coupling — -on coupling 4.2 Models of connectors Models of connectors are defined in this European Standard. — Model code 0: straight plug. — Model code 1: right angle plug. — Model code 2: square flange receptacle. — Model code 3: bulkhead receptacle. — Model code 4: adaptor. 4.3 Technologies of assembly Cable and connector assemblies are defined in this European Standard. — Code 0: solder type. — Code 1: clamp type. — Code 2: crimp type. 4.3.1 Solder technology The core and the braid of the cable are soldered to the connector. 4.3.2 Clamp technology The core of the cable is plugged into the centre contact. A clamp nut fixes the braid of the cable onto the body of the connector (see product standard). SIST EN 4652-001:2015

See Figure 1 and Table 1. SIST EN 4652-001:2015

Key 1 REF. Plane Figure 1 — BNC plug interface Table 1 — BNC plug dimensions Dimensions in millimetres
Ø A Ø B Ø C Ø D E F H K L M Ø N P Q S T Ø U V min. 9,78 − 4,83 1,32 5,33 0,15 11,76 2,31 0,08 179° − 5,28 1,98 0,46 4,57 3,15 14,5° max. 9,91 8,31 − 1,37 5,84 − 12,01 2,46 − 181° 0,64 5,79 − 0,56 4,67 − 15,5° NOTE Slotted and flared to meet electrical and mechanical performance. 5.2.1.2
See Figure 2 and Table 2. SIST EN 4652-001:2015

Key 1 REF. Plane Figure 2 — BNC receptacle interface Table 2 — BNC receptacle dimensions Dimensions in millimetres
Ø A Ø B Ø C Ø D Ø E F G Ø H J L Ø M Ø N P Ø Q R S T U min. 10,97 9,60 8,31 8,10 − 5,18 8,31 1,91 4,72 4,95 2,06 8,79 − − 0,38 10,52 4,78 179° max. 11,07 9,70 8,46 8,15 4,72 5,28 8,51 2,06 5,23 − 2,21 9,04 0,15 6,5 0,76 − 5,28 181° NOTE 1 Q dimension applies to that portion (if applicable) of the dielectric which protrudes beyond the metal shoulder (or reference plane) by dimension P. NOTE 2 Clearance for mating connector coupling nut. SIST EN 4652-001:2015

Key 1 REF. Plane Figure 3a — TNC plug style A interface Table 3a — TNC plug style A dimensions Dimensions in millimetres
Ø A Ø B Ø C Ø D F G H J K L M P Ø Q Ø R min. 1,32 4,83 − 11,18 3,96 5,28 − 0,15 0,08 5,33 1,60 1,98 − − max. 1,37 − 8,31 − − 5,79 1,98 − 1,02 5,84 − − 8,18 0,64 NOTE Flared to meet electrical and mechanical performance. SIST EN 4652-001:2015

See Figure 3b and Table 3b. Dimensions in millimetres
Key 1 REF. Plane Figure 3b — TNC plug style B interface Table 3b — TNC plug style B dimensions Dimensions in millimetres
Ø A Ø B Ø C Ø D F G H K L M P Ø R min. 1,32 6,05 − 11,18 3,96 5,28 − 0,08 5,33 1,60 1,98 − max. 1,37 6,15 8,09 − − 5,79 1,98 1,02 5,84 − − 0,64 SIST EN 4652-001:2015

See Figure 3c and Table 3c. Dimensions in millimetres
Key 1 REF. Plane Figure 3c — TNC plug style C interface Table 3c — TNC plug style C dimensions Dimensions in millimetres
Ø A Ø B Ø C Ø D F G H J K L M P Ø Q Ø R min. 1,32 4,83 − 11,18 3,96 5,28 − 0,15 0,08 5,33 1,60 1,98 − − max. 1,37 − 8,09 − − 5,79 1,98 − 1,02 5,84 − − 8,18 0,64 SIST EN 4652-001:2015

See Figure 4 and Table 4. Dimensions in millimetres
Key 1 REF. Plane Figure 4 — TNC receptacle interface Table 4 — TNC receptacle dimensions Dimensions in millimetres
Ø A Ø B Ø C Ø D Ø E Ø F G H J K L M N P Ø Q R min. − 8,10 8,31 8,79 9,60 2,06 8,31 1,73 − 4,72 4,78 4,75 0,38 10,52 − 4,95 max. 4,72 8,15 8,46 9,04 9,68 2,21 8,51 2,24 0,15 5,23 5,28 − 0,76 − 6,50 − NOTE 1 Q dimension applies to that portion (if applicable) of the dielectric which protrudes beyond the metal shoulder (or reference plane) by dimension J. NOTE 2 Clearance for mating connector coupling nut. SIST EN 4652-001:2015

See Figure 5 and Table 5. Dimensions in millimetres
Key 1 REF. Plane Figure 5 — N plug interface Table 5 — N plug dimensions Dimensions in millimetres
A B C D E F G Ø H Ø J Ø K Ø M Ø N min. 0,08 2,79 5,33 0,41 4,50 4,01 10,11 7,98 16,0 20,90 1,60 − max. 1,03 3,56 5,84 1,52 − 4,27 10,46 8,38 − 21,7 1,68 0,25 NOTE 1 Slots optional (flared to meet electrical and mechanical performance). NOTE 2 Compensating ring optional. NOTE 3 Radius or chamfer, shape of tip optional. SIST EN 4652-001:2015

See Figure 6 and Table 6. Dimensions in millimetres
Key 1 REF. Plane Figure 6 — N receptacle interface Table 6 — N receptacle dimensions Dimensions in millimetres
A B C D E F Ø G Ø H Ø J Ø K Ø L M min. 9,04 4,75 1,19 4,37 6,76 10,72 − 8,03 8,53 − 3,02 5,33 max. 9,19 5,26 1,96 5,13 − − 7,06 8,13 8,74 15,93 3,15 − NOTE Clearance for mating connector coupling nut. SIST EN 4652-001:2015

See Figure 7 and Table 7. Dimensions in millimetres
Key 1 REF. Plane Figure 7 — C plug interface SIST EN 4652-001:2015

Ø A Ø B Ø C Ø E Ø F G H J K N min. 13,79 7,01 4,93 2,29 − 0,18 7,80 7,85 4,85 7,54 max. 13,94 − − 2,34 1,27 − 8,56 − 6,38 7,72
Ø P Ø Q R S Ø T U V W X Ø Y min. − − 44,5° 179,5° 3,33 14,5° 2,62 0,25 2,64 15,54 max. 19,84 11,18 45,5° 180,5° 3,58 15,5° 2,87 0,41 2,90 − 5.2.4.2
See Figure 8 and Table 8. Dimensions in millimetres
Key 1 REF. Plane Figure 8 — C receptacle interface SIST EN 4652-001:2015

Ø A Ø B Ø C Ø D Ø E Ø F Ø G Ø H Ø J min. 14,99 13,46 12,32 11,18 10,44 − − − 3,02 max. 15,24 13,72 12,57 11,43 10,54 9,50 6,91 4,83 3,15
K L Ø M N P Q R S T min. 8,43 7,80 2,24 − 7,62 179° 6,93 − 12,57 max. 8,59 7,95 2,49 0,18 − 181° 7,70 7,85 − NOTE Clearance for mating connector coupling nut. 5.2.5 Type 5 connectors HN interface 5.2.5.1
See Figure 9 and Table 9. Dimensions in millimetres
Key 1 REF. Plane Figure 9 — HN plug interface SIST EN 4652-001:2015
...
