prEN 16031

Adjustable telescopic aluminium props - Product specifications, design and assessment by calculation and tests

This European Standard specifies materials, design requirements, corrosion protection alternatives together with assessment methods using both calculation and testing for open thread and covered thread adjustable telescopic aluminium props which are intended for use on construction sites.

Baustützen aus Aluminium mit Ausziehvorrichtung - Produktfestlegungen, Bemessung und Nachweis durch Berechnung und Versuche

Diese Europäische Norm legt für Baustützen aus Aluminium mit Ausziehvorrichtung, die für die Verwendung auf Baustellen bestimmt sind, Werkstoffe, Konstruktion, Bezeichnung, Korrosionsschutzalternativen sowie Nachweisverfahren durch Berechnung und Versuch fest. Das Innen  und Außenrohr der Baustützen wird aus Aluminium oder aus Aluminium und Stahl hergestellt.
Diese Europäische Norm legt fünf Klassen nominell festgelegter Werte der Tragfähigkeit für Baustützen aus Aluminium mit Ausziehvorrichtung fest. Jede Klasse hat eine Reihe maximaler Auszugslängen.

Etais télescopiques réglables en aluminium - Spécifications du produit, conception et évaluation par calculs et essais

La présente Norme Européenne spécifie les matériaux, les exigences de conception, la désignation, les différentes protections contre la corrosion, ainsi que les méthodes d’évaluation utilisant les calculs et les essais pour les étais télescopiques réglables en aluminium qui sont prévus pour une utilisation sur des chantiers de construction. Le tube intérieur et extérieur des étais est fabriqué en aluminium ou en aluminium et en acier.
La présente Norme spécifie onze classes de résistance caractéristique nominale pour les étais télescopiques réglables en aluminium, chacune ayant une série de longueurs d’extension maximale.

Nastavljive aluminijaste teleskopske podpore - Specifikacije izdelka, oblikovanje in ocena z izračunom in preskusi

General Information

• Status: Not Published
• Publication Date: 04-Oct-2011
• Withdrawal Date: 04-Apr-2012
• ICS: 91.220 - Construction equipment
• Technical Committee: CEN/TC 53 - Temporary works equipment
• Drafting Committee: CEN/TC 53/WG 8 - Specifications for telescopic props
• Current Stage: 4098 - Decision to abandon - Enquiry
• Start Date: 07-Feb-2011
• Completion Date: 07-Feb-2011
• Ref Project: oSIST prEN 16031:2010 - Adjustable telescopic aluminium props - Product specifications, design and assessment by calculation and tests

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2010
1DVWDYOMLYHDOXPLQLMDVWHWHOHVNRSVNHSRGSRUH6SHFLILNDFLMHL]GHONDREOLNRYDQMHLQ
RFHQD]L]UDþXQRPLQSUHVNXVL
Adjustable telescopic aluminium props - Product specifications, design and assessment
by calculation and tests
Baustützen aus Aluminium mit Ausziehvorrichtung - Produktfestlegungen, Bemessung
und Nachweis durch Berechnung und Versuche
Etais télescopiques réglables en aluminium - Spécifications du produit, conception et
évaluation par calculs et essais
Ta slovenski standard je istoveten z: prEN 16031
ICS:
91.220 Gradbena oprema Construction equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2009
ICS
English Version
Adjustable telescopic aluminium props - Product specifications,
design and assessment by calculation and tests
Etais télescopiques réglables en aluminium - Spécifications Baustützen aus Aluminium mit Ausziehvorrichtung -
du produit, conception et évaluation par calculs et essais Produktfestlegungen, Bemessung und Nachweis durch
Berechnung und Versuche
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 53.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the
same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 16031:2009: E
worldwide for CEN national Members.

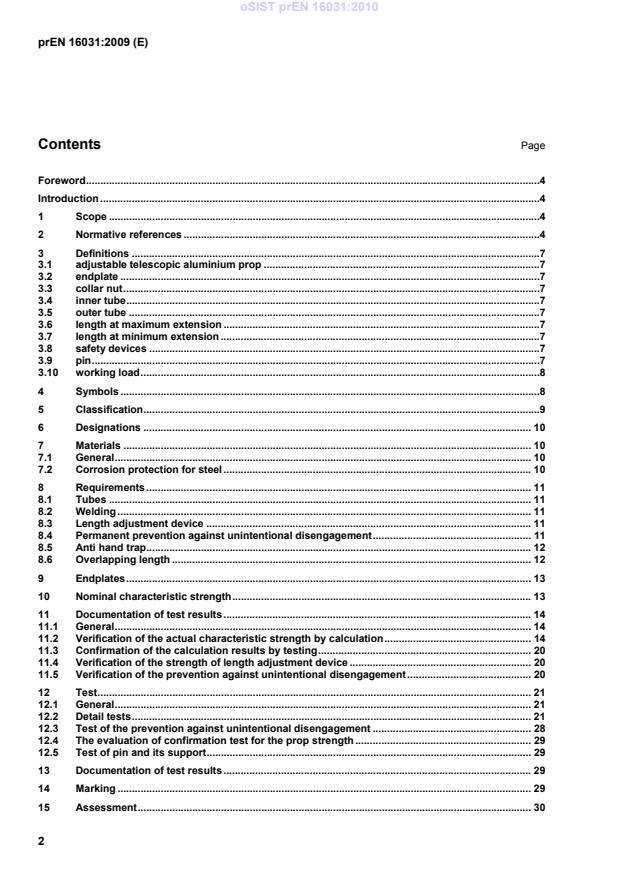

Contents Page
Foreword .4
Introduction .4
1 Scope .4
2 Normative references .4
3 Definitions .7
3.1 adjustable telescopic aluminium prop .7
3.2 endplate .7
3.3 collar nut .7
3.4 inner tube .7
3.5 outer tube .7
3.6 length at maximum extension .7
3.7 length at minimum extension .7
3.8 safety devices .7
3.9 pin .7
3.10 working load .8
4 Symbols .8
5 Classification .9
6 Designations . 10
7 Materials . 10
7.1 General . 10
7.2 Corrosion protection for steel . 10
8 Requirements . 11
8.1 Tubes . 11
8.2 Welding . 11
8.3 Length adjustment device . 11
8.4 Permanent prevention against unintentional disengagement . 11
8.5 Anti hand trap . 12
8.6 Overlapping length . 12
9 Endplates . 13
10 Nominal characteristic strength . 13
11 Documentation of test results . 14
11.1 General . 14
11.2 Verification of the actual characteristic strength by calculation . 14
11.3 Confirmation of the calculation results by testing . 20
11.4 Verification of the strength of length adjustment device . 20
11.5 Verification of the prevention against unintentional disengagement . 20
12 Test . 21
12.1 General . 21
12.2 Detail tests . 21
12.3 Test of the prevention against unintentional disengagement . 28
12.4 The evaluation of confirmation test for the prop strength . 29
12.5 Test of pin and its support . 29
13 Documentation of test results . 29
14 Marking . 29
15 Assessment . 30
16 User manual . 30
Annex A (normative) Equations for the calculations of structural properties of tubes . 31
Annex B (normative) Calculation of resistance for pin connections . 33
B.1 Calculate the shear resistance per shear plane R using the following equation: . 33
s,p
B.2 Calculate the bearing resistance of the tube R using the following equation: . 33
b,t
Annex C (informative) Ongoing production control . 34

Foreword
This document (prEN 16031:2009) has been prepared by Technical Committee CEN/TC 53 “Temporary works
equipment”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
Introduction
Whilst this European Standard deals with the more common types of adjustable telescopic aluminium props in
use, it is not intended to prevent development of other types of props. For example, props may have hinged
ends or other length adjustment devices or be made of other materials. Whilst such props cannot comply with
this European Standard it is recommended that the principals of this European Standard should be considered
in the design and assessment of such props.
This European Standard is a product standard primarily for use in the field of falsework and formwork
standardized in EN 12812.
The specified values for load bearing capacity listed in this European Standard are figures for classification.
For site use γ and γ can be found in EN 12812
F m
1 Scope
This European Standard specifies materials, design requirements, designation, corrosion protection
alternatives, together with assessment methods using both calculations and testing for adjustable telescopic
aluminium props which are intended for use on construction sites . Inner and outer tube of props are made in
aluminium or aluminium and steel
It specifies eleven classes of nominal specified values for strengths for adjustable telescopic aluminium props
each having a series of maximum extended lengths.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
