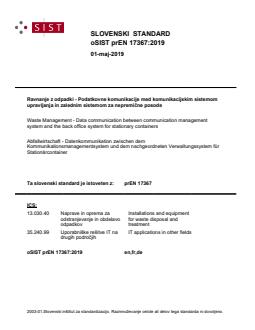

SLOVENSKI STANDARD
oSIST prEN 17367:2019
01-maj-2019
5DYQDQMH]RGSDGNL3RGDWNRYQHNRPXQLNDFLMHPHGNRPXQLNDFLMVNLPVLVWHPRP
XSUDYOMDQMDLQ]DOHGQLPVLVWHPRP]DQHSUHPLþQHSRVRGH
Waste Management - Data communication between communication management
system and the back office system for stationary containers
Abfallwirtschaft - Datenkommunikation zwischen dem
Kommunikationsmanagementsystem und dem nachgeordneten Verwaltungssystem für
Stationärcontainer
Ta slovenski standard je istoveten z: prEN 17367
ICS:
13.030.40 Naprave in oprema za Installations and equipment
odstranjevanje in obdelavo for waste disposal and
odpadkov treatment
35.240.99 8SRUDEQLãNHUHãLWYH,7QD IT applications in other fields
GUXJLKSRGURþMLK
oSIST prEN 17367:2019 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 17367:2019
---------------------- Page: 2 ----------------------
oSIST prEN 17367:2019

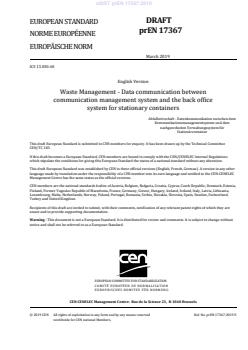

DRAFT
EUROPEAN STANDARD
prEN 17367
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2019
ICS 13.030.40
English Version
Waste Management - Data communication between
communication management system and the back office
system for stationary containers
Abfallwirtschaft - Datenkommunikation zwischen dem
Kommunikationsmanagementsystem und dem
nachgeordneten Verwaltungssystem für
Stationärcontainer

This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee

CEN/TC 183.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations

which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC

Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are

aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without

notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 17367:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 17367:2019
prEN 17367:2019 (E)

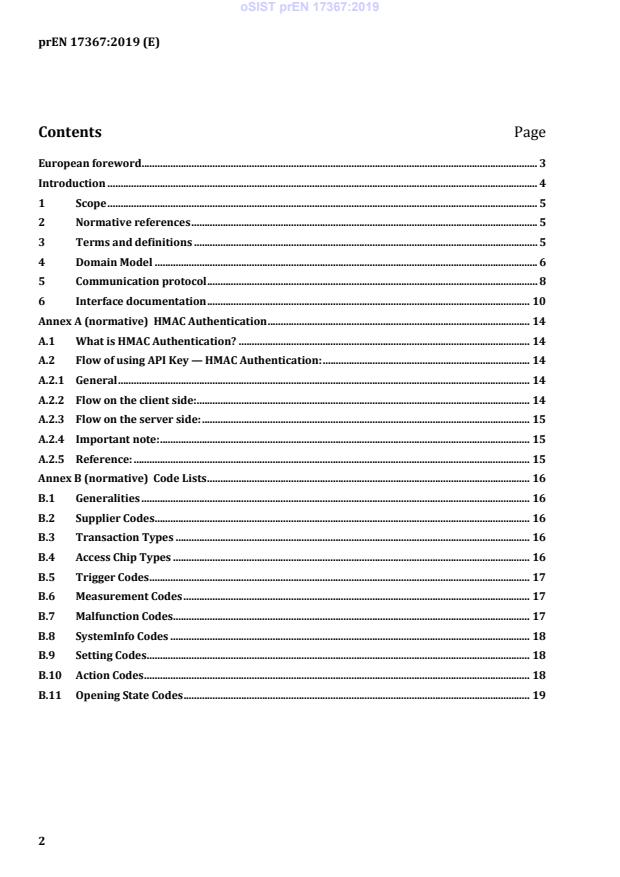

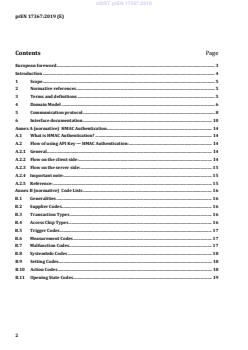

Contents Page

European foreword ....................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 5

2 Normative references .................................................................................................................................... 5

3 Terms and definitions ................................................................................................................................... 5

4 Domain Model .................................................................................................................................................. 6

5 Communication protocol .............................................................................................................................. 8

6 Interface documentation ........................................................................................................................... 10

Annex A (normative) HMAC Authentication .................................................................................................... 14

A.1 What is HMAC Authentication? ............................................................................................................... 14

A.2 Flow of using API Key — HMAC Authentication: ............................................................................... 14

A.2.1 General ............................................................................................................................................................. 14

A.2.2 Flow on the client side: ............................................................................................................................... 14

A.2.3 Flow on the server side: ............................................................................................................................. 15

A.2.4 Important note: ............................................................................................................................................. 15

A.2.5 Reference: ....................................................................................................................................................... 15

Annex B (normative) Code Lists ........................................................................................................................... 16

B.1 Generalities .................................................................................................................................................... 16

B.2 Supplier Codes ............................................................................................................................................... 16

B.3 Transaction Types ....................................................................................................................................... 16

B.4 Access Chip Types ........................................................................................................................................ 16

B.5 Trigger Codes ................................................................................................................................................. 17

B.6 Measurement Codes .................................................................................................................................... 17

B.7 Malfunction Codes ........................................................................................................................................ 17

B.8 SystemInfo Codes ......................................................................................................................................... 18

B.9 Setting Codes .................................................................................................................................................. 18

B.10 Action Codes ................................................................................................................................................... 18

B.11 Opening State Codes .................................................................................................................................... 19

---------------------- Page: 4 ----------------------
oSIST prEN 17367:2019
prEN 17367:2019 (E)
European foreword

This document (prEN 17367:2019) has been prepared by Technical Committee CEN/TC 183 “Waste

management”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
---------------------- Page: 5 ----------------------
oSIST prEN 17367:2019
prEN 17367:2019 (E)
Introduction

The waste processing industry has been exchanging digital information for quite some years now.

Besides, the use of chips to recognize access chips and containers also has a history in this industry. The

waste processing companies are experiencing the advantages of exchanging information electronically

and recognizing containers and access chips, but are also experiencing that exchanging information, or

recognizing containers and access chips based on different specifications is not optimal: it requires

quite some work, time and money to exchange or receive information from other parties.

To change the current situation to a flexible situation in which the identification of cards and containers

can be used with different systems and different suppliers, and to make it possible to exchange

information between the different systems it is necessary to define standards. With these standards

interoperability in the industry can be achieved, leading to easier coupling of systems and increased

interoperability between different systems. In terms of market access for buyers and final customers,

this standard is aimed to open the market thanks to the compatibility between the access control server

and the third-party management software.
---------------------- Page: 6 ----------------------
oSIST prEN 17367:2019
prEN 17367:2019 (E)
1 Scope

This document defines the standard for implementing a standard inter-vendors interface aimed at

exchanging stationary waste container information and configuration.

This document defines the way to exchange data between the “Communication Management Systems”

and the “Back-Office Systems”.

The exchange of data between the “Collection Container Systems” and the “Communication

Management Systems” or the “Back-Office Systems” is excluded.

This document targets two streams of information in the waste processing industry:

— The processing of information from the deposit of waste, between communication management

systems and the back office systems.

— The processing of configuration information, between the back-office systems and the

communication management systems.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
Communication Management System
CMS

application that connects to the controller, depth sensor or in general, an electronic registration device

installed in a container
3.2
Back-Office System
BOS

application(s) that the customer uses to manage authorization, registration and invoicing of waste

deposits, etc.
3.3
reader

device, placed on a collection container, capable of reading the information contained on a chip

3.4
controller

device capable of interaction with a reader and transferring the information from a chip to reusable

information
---------------------- Page: 7 ----------------------
oSIST prEN 17367:2019
prEN 17367:2019 (E)
3.5
chip
device carrying data, which can be recognized by a reading device
3.6
access chip (e.g. Card or Tag)

device (like a credit card) capable of carrying a chip. Also assimilated are the Tags or any other way of

identifying a user for the access control
3.7
collection container
reservoir capable of containing waste for more than one household or building
3.8
collection container system

reservoir capable of containing waste for more than one household or building together with all its

electronics to manage the system
3.9
black list

authorization list that contains identification numbers that when read should be refused by the system

using the register
3.10
white list

authorization list that contains identification numbers that when read should be handled by the system

using the register
3.11
authorisation list

register containing identification numbers that should be refused or handled by the system using the

register
3.12
management and configuration system

system provided by the supplier of a system to manage and configure the collection container system or

the system
3.13
waste processing back office

systems that the waste processing companies use to manage the collection of waste, containers and all

other relevant internal processes
4 Domain Model
4.1 General

This chapter describes the models on which the standard is based. Overview of the systems and activity

diagrams.
4.2 Overview of the systems
Figure 1 exposes the context in which the standard interface is useful.
---------------------- Page: 8 ----------------------
oSIST prEN 17367:2019
prEN 17367:2019 (E)
Figure 1 — Overview of the systems
4.3 Activity diagrams

Figures 2 and 3 shows the activity diagrams that define the processes in which the standard is used.

Figure 2 — Activities from CMS to BOS
---------------------- Page: 9 ----------------------
oSIST prEN 17367:2019
prEN 17367:2019 (E)
Figure 3 — Activities from BOS to CMS
5 Communication protocol
5.1 General

This section describes the standard rules for the implementation of the communication protocol.

To comply with the standard, all definitions shall be implemented and supported by the protocol.

Other standards and conventions shall be respected when they are mentioned in this document.

Recommendations should be supported by the implementation of the protocol.
5.2 Definitions (SHALL)
5.2.1 Communication is done through RESTful web-services

Restful web-services are the industry standard for building efficient interfaces between distributed

systems. There is a large number of resources to assist the developers in almost any available

programming language.
5.2.2 Transport is secured with SSL

Always use SSL. No exceptions. Today, your web APIs can get accessed from anywhere there is internet

(like libraries, coffee shops, airports among others). Not all of these are secure. Many don't encrypt

communications at all, allowing for easy eavesdropping or impersonation if authentication credentials

are hijacked.
---------------------- Page: 10 ----------------------
oSIST prEN 17367:2019
prEN 17367:2019 (E)

Another advantage of always using SSL is that guaranteed encrypted communications simplifies

authentication efforts — you can get away with simple access tokens instead of having to sign each API

request.

One thing to watch out for is non-SSL access to API URLs. Do not redirect these to their SSL

counterparts. Throw a hard error instead! The last thing you want is for poorly configured clients to

send requests to an unencrypted end point, just to be silently redirected to the actual encrypted end

point.
5.2.3 Authentication is done using an API Key/Secret and HMAC

It is a mechanism for calculating a message authentication code using a hash function in combination

with a shared secret key between the two parties involved in sending and receiving the data (Front-end

client and Back-end HTTP service). The main use for HMAC to verify the integrity, authenticity, and the

identity of the message sender.
See Annex A.
5.2.4 API versioning

Versioning SHALL be done in the URL to ensure browser explorability of the resources across versions.

For instance:
— “/store/api/v1”
— “/store/api/v2”
5.3 Conventions (SHALL)
5.3.1 The standard data format is JSON

In order to minimize overhead, the type of data are usually JSON in RESTful web-services. However, a

majority of implementations support both data formats. The type of data in the body (JSON or XML)

SHALL be specified in the header of the request using the “Content-Type” tag.
5.3.2 Dates and Times are following the ISO 8601
The common format for dates is “YYYY-MM-DDTHH:mm:ssZ”
The common format for time is “HH:mm:ssZ”
5.3.3 HTTP Verbs

As the standard only defines PUSH behaviour, the only accepted HTTP Verb is POST.

5.3.4 HTTP Status Codes
The standard HTTP status codes SHALL be used. In particular:
— 200 — OK: The request has succeeded.

— 400 — Bad Request: The request could not be understood by the server due to malformed syntax.

The client SHOULD NOT repeat the request without modifications.
— 401 — Unauthorized: When no or invalid authentication details are provided.

— 500 — Internal Server Error: The server encountered an unexpected condition which prevented it

from fulfilling the request.

— 501 — Not Implemented: The server does not support the functionality required to fulfill the

request. This is the appropriate response when the server does not recognize the request method

and is not capable of s
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
