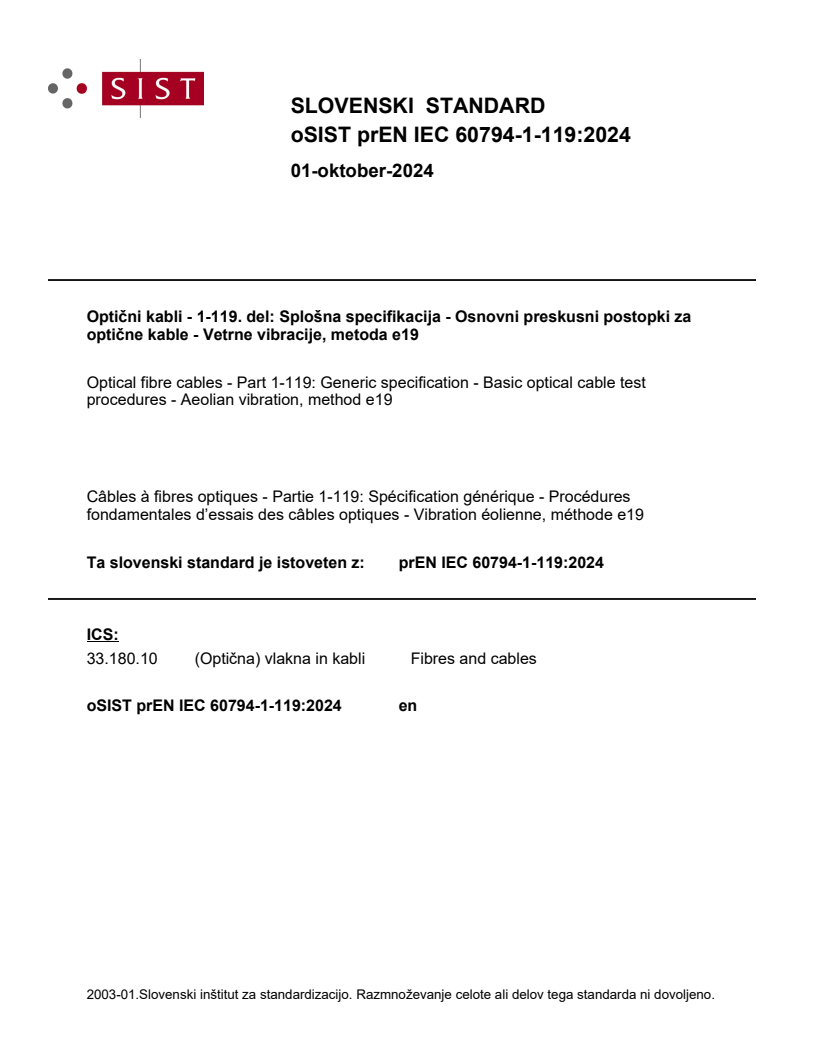

SLOVENSKI STANDARD
oSIST prEN IEC 60794-1-119:2024
01-oktober-2024
Optični kabli - 1-119. del: Splošna specifikacija - Osnovni preskusni postopki za
optične kable - Vetrne vibracije, metoda e19
Optical fibre cables - Part 1-119: Generic specification - Basic optical cable test
procedures - Aeolian vibration, method e19
Câbles à fibres optiques - Partie 1-119: Spécification générique - Procédures
fondamentales d’essais des câbles optiques - Vibration éolienne, méthode e19
Ta slovenski standard je istoveten z: prEN IEC 60794-1-119:2024
ICS:
33.180.10 (Optična) vlakna in kabli Fibres and cables
oSIST prEN IEC 60794-1-119:2024 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
oSIST prEN IEC 60794-1-119:2024
oSIST prEN IEC 60794-1-119:2024

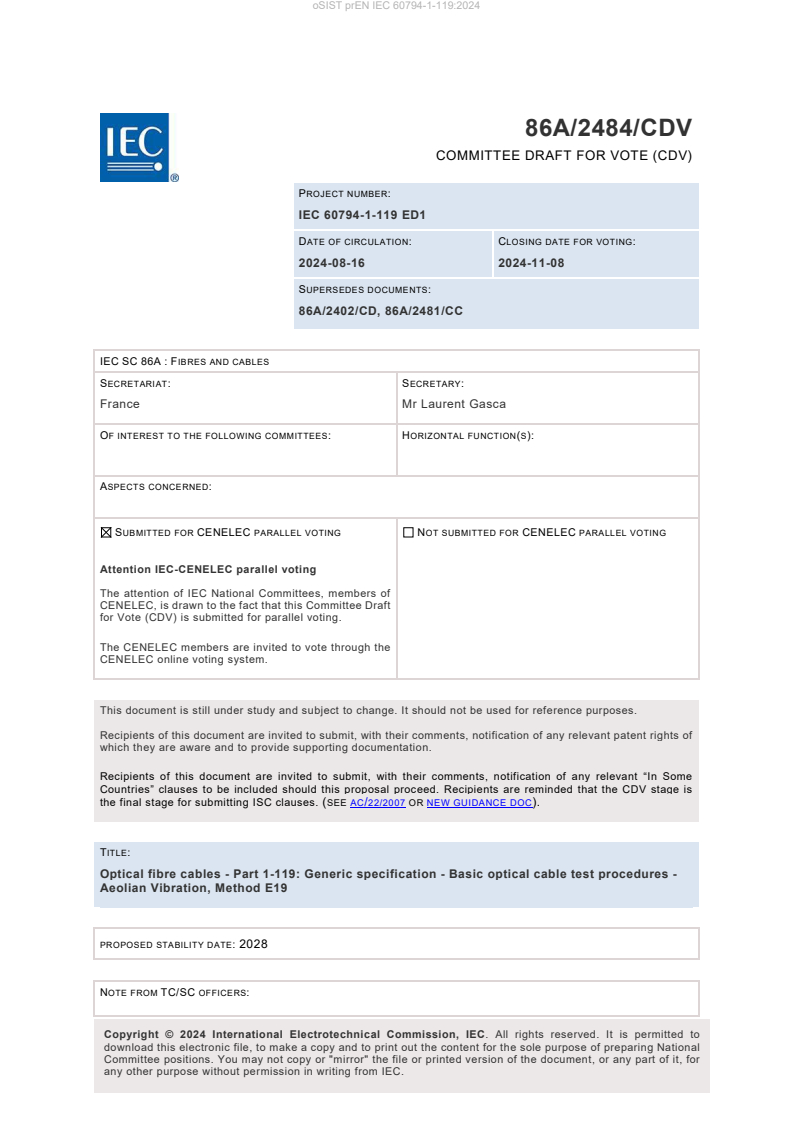

86A/2484/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 60794-1-119 ED1
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2024-08-16 2024-11-08
SUPERSEDES DOCUMENTS:
86A/2402/CD, 86A/2481/CC
IEC SC 86A : FIBRES AND CABLES
SECRETARIAT: SECRETARY:
France Mr Laurent Gasca
OF INTEREST TO THE FOLLOWING COMMITTEES: HORIZONTAL FUNCTION(S):
ASPECTS CONCERNED:
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some
Countries” clauses to be included should this proposal proceed. Recipients are reminded that the CDV stage is
the final stage for submitting ISC clauses. (SEE AC/22/2007 OR NEW GUIDANCE DOC).
TITLE:
Optical fibre cables - Part 1-119: Generic specification - Basic optical cable test procedures -
Aeolian Vibration, Method E19
PROPOSED STABILITY DATE: 2028
NOTE FROM TC/SC OFFICERS:
download this electronic file, to make a copy and to print out the content for the sole purpose of preparing National
Committee positions. You may not copy or "mirror" the file or printed version of the document, or any part of it, for
any other purpose without permission in writing from IEC.
oSIST prEN IEC 60794-1-119:2024
IEC CDV 60794-1-119 Ed1 © IEC 2024 -2- 86A/2402/CDV
1 CONTENTS
2 CONTENTS . 2
3 FOREWORD . 3
4 1 Scope . 6
5 2 Normative references . 6
6 3 Terms and definitions . 6
7 4 Method E19: Aeolian vibration . 6
8 4.1 Object . 6
9 4.2 Sample . 7
10 4.3 Apparatus . 7
11 4.4 Procedure . 7
12 4.5 Requirements . 8
13 4.6 Details to be specified . 9
14 4.7 Details to be reported . 9
15 Annex A . 10
16 Bibliography . 11
18 Figure 1 – Aeolian vibration test . 7
19 Figure 2 – Standing wave vibration . 10
oSIST prEN IEC 60794-1-119:2024
IEC CDV 60794-1-119 Ed1 © IEC 2024 -3- 86A/2484/CDV
22 INTERNATIONAL ELECTROTECHNICAL COMMISSION
23 ______________
25 OPTICAL FIBRE CABLES –
27 Part 1-119: Generic specification –
28 Basic optical cable test procedures –
29 Mechanical test methods – Aeolian Vibration, Method E19
31 FOREWORD
32 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
33 all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
34 co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
35 in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
36 Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
37 preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
38 may participate in this preparatory work. International, governmental and non-governmental organizations liaising
39 with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
40 Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
41 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
42 consensus of opinion on the relevant subjects since each technical committee has representation from all
43 interested IEC National Committees.
44 3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
45 Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
46 Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
47 misinterpretation by any end user.
48 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
49 transparently to the maximum extent possible in their national and regional publications. Any divergence between
50 any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
51 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
52 assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
53 services carried out by independent certification bodies.
54 6) All users should ensure that they have the latest edition of this publication.
55 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
56 members of its technical committees and IEC National Committees for any personal injury, property damage or
57 other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
58 expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
59 Publications.
60 8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
61 indispensable for the correct application of this publication.
62 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
63 rights. IEC shall not be held responsible for identifying any or all such patent rights.
64 IEC 60794-1-119 has been prepared by subcommittee 86A: Fibres and cables, of IEC technical
65 committee 86: Fibre optics. It is an international Standard.
66 This first edition of IEC 60794-1-119 cancels and replaces test method E19 of the first edition
67 of IEC 60794-1-21 published in 2015.
68 This edition includes a few editorial changes to improve the content and the following significant
69 technical changes with respect to the previous edition:
70 a) the mechanical tests contained in IEC 60794-1-21: 2020 will now be individually
71 numbered in the IEC 60794-1-1xx series. Each test method is now considered to be an
72 individual document rather than part of a multi-test method compendium. Full cross-
73 reference details are given in IEC 60794-1-2.
74 b) A system to maintain a constant cable tension during the duration of the test as well as
75 means to measure the free loop antinode amplitude have been added to the Apparatus.
oSIST prEN IEC 60794-1-119:2024
IEC CDV 60794-1-119 Ed1 © IEC 2024 -4- 86A/2484/CDV
76 c) Cable load is fixed to 25 % of the rated tensile strength for OPGW/OPPC, or to the
77 maximum installation tension (MIT) for ADSS cable.
78 d) The target free loop peak-to-peak antinode amplitude is now defined in the procedure.
79 The quality of the aeolian vibration motion is done through the average antinode peak
80 velocity.
81 e) Fatigue damage and ovality changes of the optical core are included in the
82 Requirements clause.
84 The text of this standard is based on the following documents:
FDIS Report on voting
86A/XXXX/FDIS 86A/XXXX/RVD
oSIST prEN IEC 60794-1-119:2024
IEC CDV 60794-1-119 Ed1 © IEC 2024 -5- 86A/2484/CDV
86 Full information on the voting for its approval can be found in the report on voting indicated in
87 the above table.
88 The language used for the development of this International Standard is English
89 This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
90 accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
91 at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
92 described in greater detail at www.iec.ch/standardsdev/publications
93 The committee has decided that the contents of this publication will remain unchanged until the
94 stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to
95 the specific publication. At this date, the publication will be
96 • reconfirmed,
97 • withdrawn,
98 • replaced by a revised edition, or
99 • amended
oSIST prEN IEC 60794-1-119:2024
IEC CDV 60794-1-119 Ed1 © IEC 2024 -6- 86A/2484/CDV
101 OPTICAL FIBRE CABLES –
103 Part 1-119: Generic specification –
104 Basic optical cable test procedures –
105 Mechanical test methods – Aeolian Vibration, Method E19
107 1 Scope
108 This part of IEC 60794 applies to aerial optical fibre cables like ADSS, OPGW and OPPC that
109 might be exposed to aeolian vibrations.
110 The object of this standard is to define test procedures to be used in establishing uniform
111 requirements for mechanical performance – aeolian vibration.
112 See IEC 60794-1-2 for general requirements and definitions and for a complete reference guide
113 to test methods of all types.
114 2 Normative references
115 The following documents, in whole or in part, are normatively referenced in this document and
116 are indispensable for its application. For dated references, only the edition cited applies. For
117 undated references, the latest edition of the referenced document (including any amendments)
118 applies.
119 IEC 60794-1-1, Optical fibre cables - Part 1-1: Generic specification - General.
120 IEC 60794-1-2, Optical fibre cables – Part 1-2: Generic specification – Basic optical cable test
121 procedures - General guidance
122 IEC 60793-1-46, Optical fibres – Part 1-46: Measurement methods and test procedures –
123 Monitoring of changes in attenuation
124 3 Terms and definitions
125 No terms and definitions are listed in this document.
126 ISO and IEC maintain terminological databases for use in standardization at the following
127 addresses:
128 • IEC Electropedia: available at http://www.electropedia.org/
129 • ISO Online browsing platform: available at http://www.iso.org/obp
130 4 Method E19: Aeolian vibration
131 4.1 Object
132 The purpose of the test is to expose aerial optical cables and their support hardware to dynamic
133 stresses similar to those imposed by laminar wind-flow-induced vibrations in overhead lines.
134 The method is intended to assess the fatigue performance of the aerial cable and the optical
135 performance of the optical fibres under such conditions.
oSIST prEN IEC 60794-1-119:2024
IEC CDV 60794-1-119 Ed1 © IEC 2024 -7- 86A/2484/CDV
136 4.2 Sample
137 Unless otherwise specified, the cable sample under test shall be unaged. The minimum length
138 of the test sample shall be 50 m or as given in the detail specification.
139 4.3 Apparatus
140 The laboratory test span for aeolian vibration testing is generally built indoors in still air areas
141 where the variation of ambient temperature is minimal and can be suitably controlled.
142 The test apparatus shall consist of
143 – the test span (a typical arrangement is shown in Figure 1),
144 – an electronically controlled shaker,
145 – a dynamometer, load cell, calibrated beam or other device to measure cable tension,
146 – a system of maintaining a constant cable tension during the duration of the test,
147 – a laser micrometre or other suitable means to measure the free loop antinode ampli
...
Questions, Comments and Discussion
