ETSI TR 103 061-3 V1.1.1 (2012-11)

Intelligent Transport Systems (ITS); Testing; Part 3: Conformance test specification for Geographical addressing and forwarding for point-to-point and point-to-multipoint communications; GeoNetworking validation report

DTR/ITS-0030020

General Information

• Status: Published
• Publication Date: 07-Nov-2012
• Technical Committee: ITS WG3 - Transport and Network
• Current Stage: 12 - Completion
• Due Date: 23-Nov-2012
• Completion Date: 08-Nov-2012
• Mandate: M/453

Standards Content (Sample)

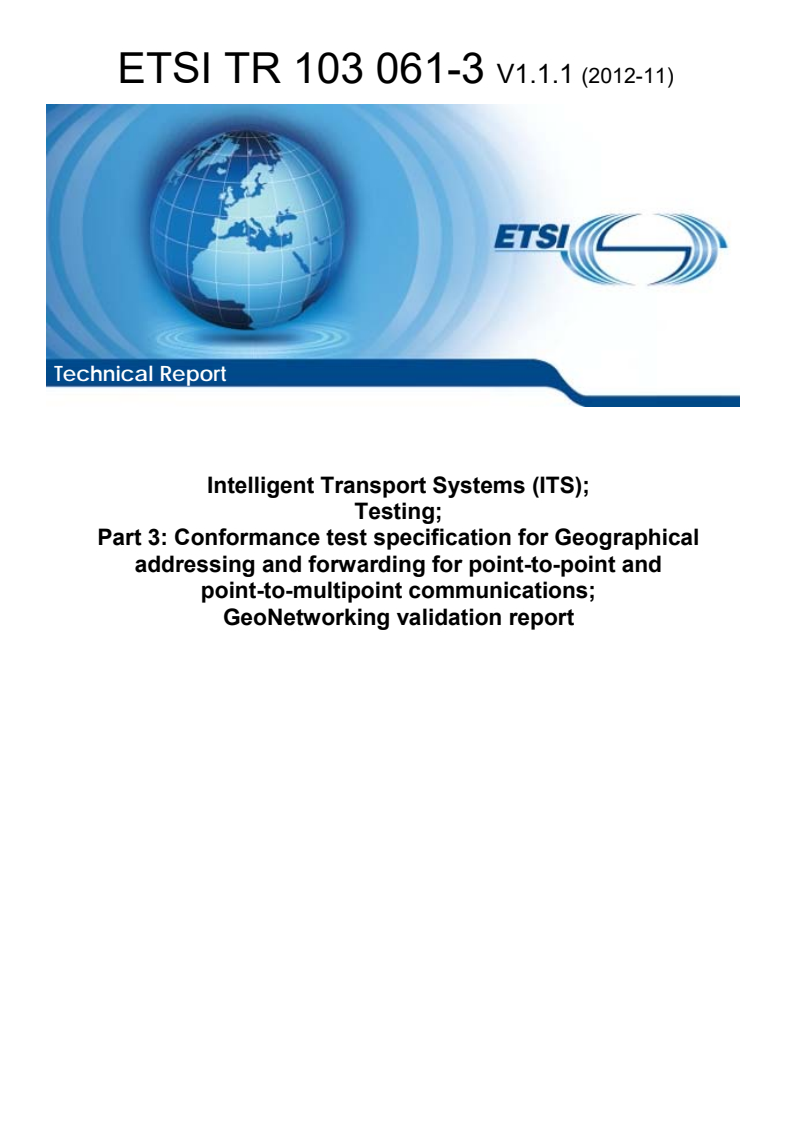

Technical Report
Intelligent Transport Systems (ITS);
Testing;
Part 3: Conformance test specification for Geographical
addressing and forwarding for point-to-point and
point-to-multipoint communications;
GeoNetworking validation report

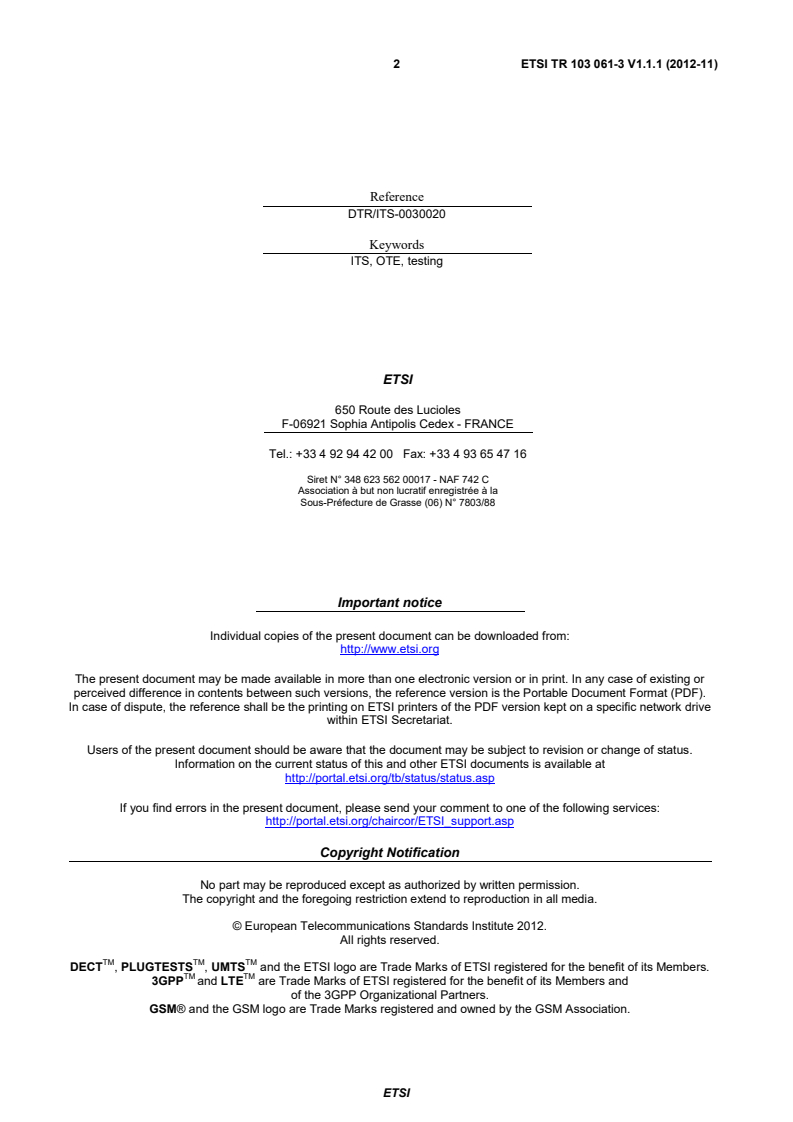

2 ETSI TR 103 061-3 V1.1.1 (2012-11)

Reference
DTR/ITS-0030020
Keywords
ITS, OTE, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2012.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM TM
3GPP and LTE are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI TR 103 061-3 V1.1.1 (2012-11)
Contents
Intellectual Property Rights . 4
Foreword . 4
Introduction . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.1 Informative references . 5
3 Abbreviations . 5
4 Validation report . 6
4.1 Validation level . 6
4.2 Source code evaluation . 6
4.2.1 TTCN-3 version . 6
4.2.2 TTCN-3 tools used for compilation . 6
4.3 Validation Process . 7
4.3.1 Validation method . 7
4.3.2 Test Platforms . 7
4.3.3 SUTs . 7
4.3.4 Validation Status . 7
4.4 Feedback to standardization process . 9
4.4.1 Base standard issues. 9
4.4.2 Test specification issues . 10
4.4.3 Typical SUT issues . 10
Annex A: Bibliography . 11
History . 13

ETSI
4 ETSI TR 103 061-3 V1.1.1 (2012-11)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Technical Report (TR) has been produced by ETSI Technical Committee Intelligent Transport System (ITS).
The present document is part 3 of a multi-part deliverable. Full details of the entire series can be found in part 1 [i.2].
Introduction
In response to EC mandate M/453, ETSI Technical Committee ITS has standardized base and test specifications for ITS
protocols. In a next step a prototype TTCN-3 test system was built and validated. The present document and its related
TR 103 099 [i.1] (Architecture of Conformance Validation Framework), describe the validation and design of the
prototype TTCN-3 test system.
The action described in the present document has supported the implementation of ITS standards by:
• Making available validated and standardized test specifications and thus enabling the application of reliable
certification schemes.
• Executing conformance validation framework against real Implementations Under Test (IUTs) from industry
and thus providing these companies a conformance assessment of their implementations. During the lifetime
of this action, the conformance validation framework was as well provided at ITS Cooperative Mobility
Services Interoperability events.
• Releasing all software as open source and thus allowing industry to build and run their own conformance
validation framework.
ETSI
5 ETSI TR 103 061-3 V1.1.1 (2012-11)
1 Scope
The present document is the validation report of the GeoNetworking conformance tests and it provides statistics of
executed and validated GeoNetworking conformance tests. The information provided has been produced by validation
against two prototype implementations from industry.
Furthermore, identified base specifications and test specification issues are listed in the present document.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
Not applicable.
2.1 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TR 103 099 (V1.1.1): "Intelligent Transport Systems (ITS); Architecture of conformance
validation framework".
[i.2] ETSI TR 103 061-1: "Intelligent Transport Systems (ITS); Testing; Part 1: Conformance test
specification for Co-operative Awareness Messages (CAM); CAM validation report".
[i.3] ETSI EG 201 015 (V1.1.1): "Methods for Testing and Specification (MTS); Specification of
protocols and services; Validation methodology for standards using SDL; Handbook".
3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ATS Abstract Test Suite
BTP Basic Transport Protocol
CAM Co-operative Awareness Message
DAD Duplicate Address Detection
DENM Decentralized Environmental Notification Basic Service
EC European Commission
GAC Geographically-Scoped Anycast
GN GeoNetworking
INCONC Test Case Verdict Inconclusive
ITS Intelligent Transportation Systems
IUT Implementation Under Test
MAC Media Access Control
ETSI
6 ETSI TR 103 061-3 V1.1.1 (2012-11)
MAC Medium Access Control
MIB Management Information Base
MID MAC ID
PICS Protocol Implementation Conformance Statement
SHB Single Hop Broadcast
SUT Implementation Under Test
TC Test cases
TP Test Purposes
TSB Topology Scoped Broadcast
TTCN Testing and Test Control Notation (TTCN-3)
TTCN-3 Testing and Test Control Notation 3
4 Validation report
4.1 Validation level
Level 3 (Rigorous) abstract test suite validation has been performed, according to the validation handbook [i.3]:
• the test suite has been compiled on more than one TTCN-3 tool;
• the complete suite of tests has been implemented and executed on more than one test platform;
• the complete suite of tests have been executed against SUTs from a range of different suppliers;
• the operation and output traces of all the tests have been validated.
4.2 Source code evaluation
4.2.1 TTCN-3 version
The GeoNetworking abstract test suite is based on TTCN-3 edition 4.2.1 (TTCN3:2010).
4.2.2 TTCN-3 tools used for compilation
The test suite has been compiled using three different TTCN-3 tools, as detailed in table 1.
Table 1: TTCN-3 t
...
