ETSI TS 102 859-3 V1.1.1 (2011-03)

Intelligent Transport Systems (ITS); Testing; Conformance test specifications for Transmission of IP packets over GeoNetworking; Part 3: Abstract Test Suite (ATS) and Protocol Implementation eXtra Information for Testing (PIXIT)

DTS/ITS-0030016

General Information

• Status: Published
• Publication Date: 29-Mar-2011
• Technical Committee: ITS WG3 - Transport and Network
• Current Stage: 12 - Completion
• Due Date: 30-Mar-2011
• Completion Date: 30-Mar-2011
• Mandate: M/453

Standards Content (Sample)

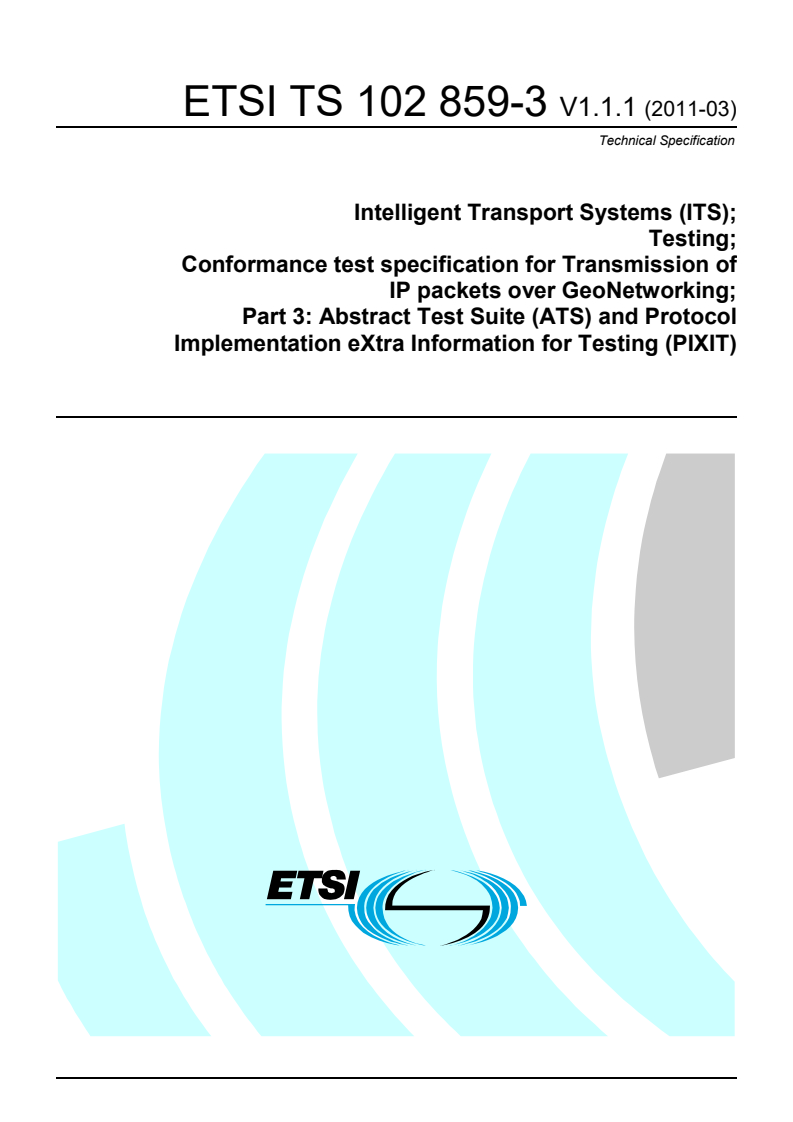

Technical Specification
Intelligent Transport Systems (ITS);
Testing;
Conformance test specification for Transmission of
IP packets over GeoNetworking;
Part 3: Abstract Test Suite (ATS) and Protocol
Implementation eXtra Information for Testing (PIXIT)

2 ETSI TS 102 859-3 V1.1.1 (2011-03)

Reference
DTS/ITS-0030016
Keywords
ATS, ITS, network, PIXIT, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI TS 102 859-3 V1.1.1 (2011-03)
Contents
Intellectual Property Rights . 5
Foreword . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 7
3 Definitions and abbreviations . 7
3.1 Definitions . 7
3.2 Abbreviations . 7
4 Abstract Test Method (ATM) . 8
4.1 Abstract protocol tester . 8
4.2 Test Configuration . 8
4.3 Test architecture . 9
4.4 Ports and ASPs (Abstract Services Primitives) . 10
4.4.1 Primitives of the geoNetworkingPort . 10
4.4.2 Primitives of the ipv6OverGeoNetworkingPort. 10
4.4.3 Primitives of the utPort . 10
4.4.4 Primitives of the taPort . 10
5 Untestable Test Purposes. 10
6 ATS conventions . 11
6.1 Testing conventions . 11
6.1.1 Testing states . 11
6.1.1.1 Initial state . 11
6.1.1.2 Final state . 11
6.2 Naming conventions . 11
6.2.1 General guidelines . 11
6.2.2 ITS specific TTCN-3 naming conventions . 12
6.2.3 Usage of Log statements . 13
6.2.2 Test Case (TC) identifier . 14
6.3 On line documentation . 14
Annex A (normative): TTCN-3 library modules . 15
A.1 Electronic annex, zip file with TTCN-3 code . 15
A.2 Electronic annex, zip file with HTML documentation . 15
Annex B (normative): Partial PIXIT proforma for IPV6overGEONET . 16
B.1 Identification summary. 16
B.2 ATS summary . . 16
B.3 Test laboratory . 16
B.4 Client identification . 17
B.5 SUT . 17
B.6 Protocol layer information. 17
B.6.1 Protocol identification . 17
B.6.2 IUT information . 18
Annex C (normative): PCTR Proforma for IPv6overGEONET . 19
C.1 Identification summary. 19
ETSI
4 ETSI TS 102 859-3 V1.1.1 (2011-03)
C.1.1 Protocol conformance test report . 19
C.1.2 IUT identification . 19
C.1.3 Testing environment . 19
C.1.4 Limits and reservation . 20
C.1.5 Comments. 20
C.2 IUT Conformance status . 20
C.3 Static conformance summary . 20
C.4 Dynamic conformance summary . 21
C.5 Static conformance review report . 21
C.6 Test campaign report . 22
C.7 Observations . 22
Annex D (informative): Bibliography . 23
History . 24

ETSI
5 ETSI TS 102 859-3 V1.1.1 (2011-03)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Technical Specification (TS) has been produced by ETSI Technical Committee Intelligent Transport System (ITS).
The present document is part 3 of a multi-part deliverable covering Conformance test specifications for Transmission of
IP packets over GeoNetworking as identified below:
Part 1: "Test requirements and Protocol Implementation Conformance Statement (PICS) proforma";
Part 2: "Test Suite Structure and Test Purposes (TSS&TP)";
Part 3: "Abstract Test Suite (ATS) and Protocol Implementation eXtra Information for Testing (PIXIT)".
ETSI
6 ETSI TS 102 859-3 V1.1.1 (2011-03)
1 Scope
The present document contains the Abstract Test Suite (ATS) for Transmission of IP packets over Geonetworking as
defined in TS 102 636-6-1 [1] in compliance with the relevant requirements and in accordance with the relevant
guidance given in ISO/IEC 9646-7 [5].
The objective of the present document is to provide a basis for conformance tests for Transmission of IP packets over
Geonetworking equipment giving a high probability of inter-operability between different manufacturer's equipment.
The ISO standard for the methodology of conformance testing (ISO/IEC 9646-1 [2] and ISO/IEC 9646-2 [3]) as well as
the ETSI rules for conformance testing (ETS 300 406 [6]) are used as a basis for the test methodology.
Annex A provides the Tree and Tabular Combined Notation (TTCN) part of the ATS.
Annex B provides the Partial Protocol Implementation Extra Information for Testing (PIXIT) Proforma of the ATS.
Annex C provides the Protocol Conformance Test Report (PCTR) Proforma of the ATS.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI TS 102 636-6-1 (V1.1.1): "Intelligent Transport Systems (ITS); Vehicular Communications;
GeoNetworking; Part 6: Internet Integration; Sub-part 1: Transmission of IPv6 Packets over
GeoNetworking Protocols".
[2] ISO/IEC 9646-1 (1994): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 1: General concepts".
[3] ISO/IEC 9646-2 (1994): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 2: Abstract Test Suite specification".
[4] ISO/IEC 9646-6 (1994): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 6: Protocol profile test specification".
[5] ISO/IEC 9646-7 (1995): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 7: Implementation Conformance Statements".
[6] ETSI ETS 300 406 (1995): "Methods for testing and Specification (MTS); Protocol and profile
conformance testing specifications; Standardization methodology".
[7] ETSI ES 201 873-1: "Methods for Testing and Specification (MTS); The Testing and Test Control
Notation version 3; Part 1: TTCN-3 Core Language".
[8] ETSI TS 102 859-1: "Intelligent Transport Systems (ITS); Testing; Conformance test
specifications for Transmission of IP packets over GeoNetworking; Part 1: Test requirements and
Protocol Implementation Conformance Statement (PICS) proforma".
ETSI
7 ETSI TS 102 859-3 V1.1.1 (2011-03)
[9] ETSI TS 102 859-2: "Intelligent Transport Systems (ITS); Testing; Conformance test
specifications for Transmission of IP packets over GeoNetworking; Part 2: Test Suite Structure
and Test Purposes (TSS&TP)".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI EG 202 798: "Intelligent Transport Systems (ITS); Testing; Framework for conformance and
interoperability testing".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
• terms given in TS 102 636-6-1 [1];
• terms given in ISO/IEC 9646-1 [2] and in ISO/IEC 9646-7 [5].
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ATM Abstract Test Method
ATS Abstract Test Suite
BI Invalid behavior
BV Valid behavior
EVI Expired virtual interfaces
GVL Geographical Virtual Link
IPv6 Internet Protocol version 6
ITS Intelligent Transportation Systems
IUT Implementation Under Test
MG Message Generation
MR Message Reception
MTC Main Test Component
NVI New virtual interfaces
PA Platform Adaptor
PCTR Protocol Conformance Test Report
PIXIT Partial Protocol Implementation Extra Information for Testing
SA System Adaptor
SAP Service Access Point
SCS System Conformance Statement
SUT System Under Test
SUT System Under Test
TC Test Case
TP Test Purposes
TTCN Tree and Tabular Combined Notation
TVL Topological Virtual Link
VM Virtual Interface Management
ETSI
8 ETSI TS 102 859-3 V1.1.1 (2011-03)
4 Abstract Test Method (ATM)
This clause describes the ATM used to test the Transmission of IP packets over Geonetworking.
4.1 Abstract protocol tester
The abstract protocol tester used by the IPv6OverGeonetworking test suite is described in figure 1. The test system will
simulate valid and invalid protocol behaviour, and will analyse the reaction of the IUT.
Test System SUT
IPv6
SDUs
IPv6Over
GeoNetworking
PDUs
IUT
ITS-G5 ITS-G5
Lower tester
Figure 1: Abstract protocol tester - IPv6OverGeonetworking
4.2 Test Configuration
The IPv6OverGeonetworking test suite uses a unique test configuration in order to cover the different test scenarios. In
this configuration, the tester simulates one ITS station implementing the IPv6OverGeonetworking protocol.
ItsNodeA
IUT
GVL_AREA3
GVL_AREA2
GVL_AREA1
Figure 2: Test configuration CF01
Both IUT and Test sytem are located in the GeoAreas associated with the three predefined GVLs. Each GVL is
associated with an IPv6 prefix which can be parametrised using module parameters.
ETSI
Adpt_Ctlr
control port
UTport
control port
9 ETSI TS 102 859-3 V1.1.1 (2011-03)
Table 1: Association between IPv6 prefixes and GVLs
GVL IPv6 Prefix
GVL1 PX_GN6_PREFIX_1
GVL2 PX_GN6_PREFIX_2
GVL3 PX_GN6_PREFIX_3
4.3 Test architecture
This ITS IPv6OverGeonetworking test specification implements the general TTCN-3 test architecture described in
EG 202 798 [i.1], clause 6.3.2.
Figure 3 shows the TTCN-3 test architecture used in for the Geonetworking ATS. The IPv6OverGeonetworking test
component requires using only the Main Test Component (MTC). The MTC communicates with the
IPv6OverGeonetworking SUT over the ipv6OverGeoNetworkingPort and eoNetworkingPort. The
ipv6OverGeoNetworkingPort port is used to exchange IPv6 protocol messages between the test component and the
IUT. The geoNetworkingPort port is used to exchange GeoNetworking protocol messages between the test component
and the IUT.
The Upper tester entity in the SUT enables triggering IPv6OverGeonetworking functionalities by simulating primitives
from applications. It is required to trigger the IPv6OverGeonetworking layer in the SUT to send
IPv6OverGeonetworking messages, which are resulting from upper layer primitives. Furthermore, receiving
IPv6OverGeonetworking messages may result for the IPv6OverGeonetworking layer in sending primitives to the upper
layer.
ITS TTCN-3 test execution
ItsNt (MTC)
NT2
ipv6OverGeoNetworking
geoNetworking
Port
Port
NT
CODECS
ITS Test Adaptor
Upper tester
ITS lower layers stack
External
transport
functions
System adaptor
Platform adaptor
(SA)
(PA)
SUT SUT
Group of TTCN-3 ports TTCN-3 ports TTCN-3 external functions

Figure 3: test system architecture
ETSI
10 ETSI TS 102 859-3 V1.1.1 (2011-03)
4.4 Ports and ASPs (Abstract Services Primitives)
Three ports are used by the IPv6OverGeonetworking ATS:
• The geoNetworkingPort, of type GeoNetworkingPort.
• The ipv6OverGeoNetworkingPort, of type Ipv6OverGeoNetworkingPort.
• The utPort of type UpperTesterPort.
4.4.1 Primitives of the geoNetworkingPort
Two types of primitives are used in the geoNetworkingPort:
• The geoNetworkingInd primitive used to receive messages of type GeoNetworkingPacket.
• The geoNetworkingReq primitive used to send messages of type GeoNetworkingPacket.
4.4.2 Primitives of the ipv6OverGeoNetworkingPort
Two types of primitives are used in the geoNetworkingPort:
• The Ipv6OverGeoNetworkingInd primitive used to receive messages of type IPv6.
• The Ipv6OvergeoNetworkingReq primitive used to send messages of type IPv6.
4.4.3 Primitives of the utPort
This port uses two types of primitives:
• The UtInitialize primitive used to initialise IUT.
• The UtTrigger primitive used trigger upper layer events in IUT.
4.4.4 Primitives of the taPort
This port uses the following primitives to trigger special behaviour in Test Adapter:
• AcGn6InterfaceInfoList used to retrieve the list of IUT’s link-layer interfaces with their configured IPv6
adresses.
• AcGetLongPosVector used to retrieve IUT’s position (extracted from IUT’s beacon messages).
5 Untestable Test Purposes
This clause gives a list of TP, which are not implemented in the ATS due to the chosen ATM or other restrictions.
Table 2: Untestable TP
Test purpose Reason
ETSI
11 ETSI TS 102 859-3 V1.1.1 (2011-03)
6 ATS conventions
The ATS conventions are intended to give a better understanding of the ATS but they also describe the conventions
made for the development of the ATS. These conventions shall be considered during any later maintenance or further
development of the ATS.
The ATS conventions contain two clauses, the naming conventions and the implementation conventions. The naming
conventions describe the structure of the naming of all ATS elements. The implementation conventions describe the
functional structure of the ATS.
To define the ATS, the guidelines of the document ETS 300 406 [6] was considered.
6.1 Testing conventions
6.1.1 Testing states
6.1.1.1 Initial state
All test cases start with the function f_prInitialState. This function brings the IUT in an "initialized" state by invoking
the upper tester primitive UtInitialize.
6.1.1.2 Final state
All test cases end with the function f_poDefault. This function brings the IUT back in an "idle" state. As no specific
actions are required for the idle state in the base standard, the function f_ poDefault does not invoke any action.
As necessary, further actions may be included in the f_poDefault function.
6.2 Naming conventions
...
