ETSI TS 102 859-1 V1.1.1 (2011-03)

Intelligent Transport Systems (ITS); Testing; Conformance test specifications for Transmission of IP packets over GeoNetworking; Part 1: Test requirements and Protocol Implementation Conformance Statement (PICS) proforma

DTS/ITS-0030017

General Information

• Status: Published
• Publication Date: 29-Mar-2011
• Technical Committee: ITS WG3 - Transport and Network
• Current Stage: 12 - Completion
• Due Date: 30-Mar-2011
• Completion Date: 30-Mar-2011
• Mandate: M/453

Standards Content (Sample)

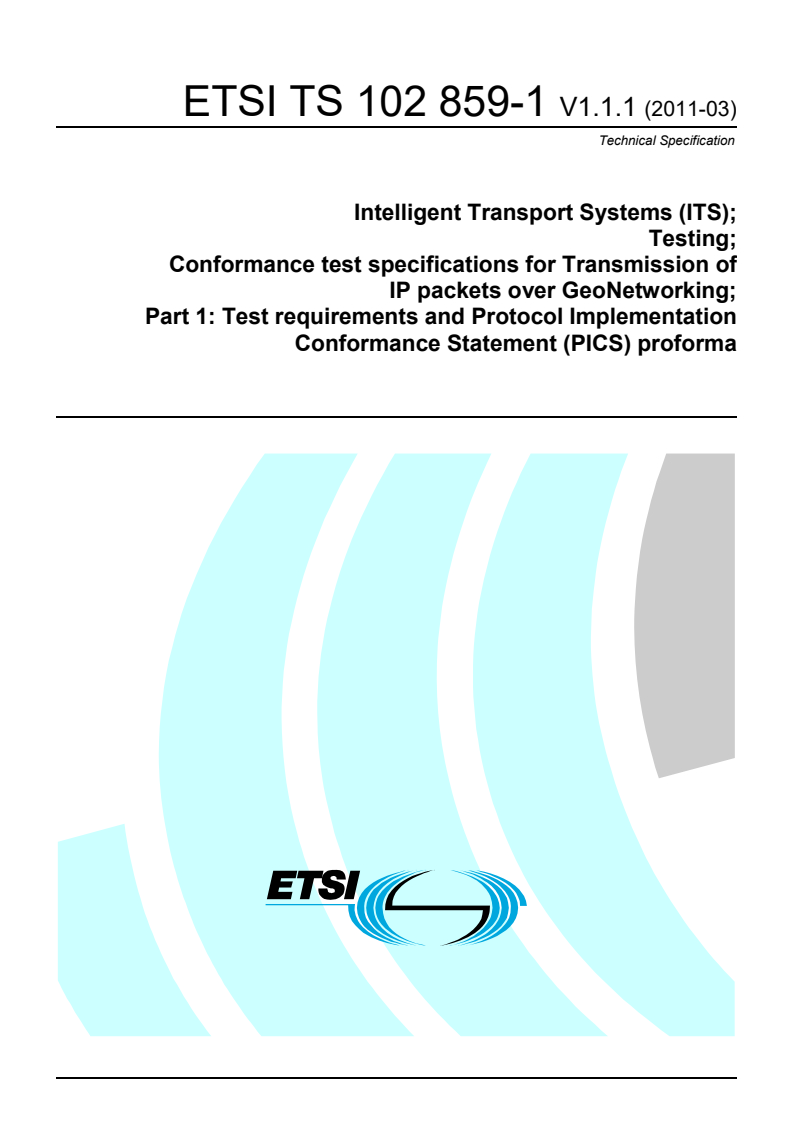

Technical Specification
Intelligent Transport Systems (ITS);
Testing;
Conformance test specifications for Transmission of
IP packets over GeoNetworking;
Part 1: Test requirements and Protocol Implementation
Conformance Statement (PICS) proforma

2 ETSI TS 102 859-1 V1.1.1 (2011-03)

Reference
DTS/ITS-0030017
Keywords
ITS, network, PICS, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI TS 102 859-1 V1.1.1 (2011-03)
Contents
Intellectual Property Rights . 4
Foreword . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Definitions and abbreviations . 6
3.1 Definitions . 6
3.2 Abbreviations . 6
4 Conformance requirement concerning PICS . 6
Annex A (normative): IPV6overGEONETW PICS Proforma . 7
A.1 Guidance for completing the ICS proforma . 7
A.1.1 Purposes and structure . 7
A.1.2 Abbreviations and conventions . 7
A.1.3 Instructions for completing the ICS proforma . 9
A.2 Identification of the implementation . 9
A.2.1 Date of the statement . 9
A.2.2 Implementation Under Test (IUT) identification . 9
A.2.3 System Under Test (SUT) identification . 10
A.2.4 Product supplier . 10
A.2.5 Client (if different from product supplier) . 11
A.2.6 ICS contact person. 11
A.3 Identification of the protocol . 12
A.4 Global statement of conformance . 12
A.5 Tables . 12
A.5.1 ITS Station type . 12
A.5.1.1 IPv6OverGeonetW sub layer . 12
A.5.2 Virtual links . 13
A.5.3 Virtual network interfaces . 13
A.5.4 Primitives Associated . 13
A.5.5 Packet Delivery . 13
A.5.6 IPv6 multicast . 14
A.5.6.1 Legacy IPv6 multicast . 14
A.5.7 Protocol parameters . 14
A.5.7.1 itsgn6aslVLEntry . 14
Annex B (informative): Bibliography . 15
History . 16

ETSI
4 ETSI TS 102 859-1 V1.1.1 (2011-03)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Technical Specification (TS) has been produced by ETSI Technical Committee Intelligent Transport System (ITS).
The present document is part 1 of a multi-part deliverable covering Conformance test specifications for Transmission of
IP packets over GeoNetworking as identified below:
Part 1: "Test requirements and Protocol Implementation Conformance Statement (PICS) proforma";
Part 2: "Test Suite Structure and Test Purposes (TSS&TP)";
Part 3: "Abstract Test Suite (ATS) and Protocol Implementation eXtra Information for Testing (PIXIT)".
ETSI
5 ETSI TS 102 859-1 V1.1.1 (2011-03)
1 Scope
The present document provides the Protocol Implementation Conformance Statement (PICS) proforma for
Conformance test specifications for Geonetworking Basic Transport Protocol as defined in TS 102 636-6-1 [1] in
compliance with the relevant requirements and in accordance with the relevant guidance given in ISO/IEC 9646-7 [3].
The supplier of an implementation which is claimed to conform to TS 102 636-6-1 [1] is required to complete a copy of
the PICS proforma provided in the annex A of the present document.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI TS 102 636-6-1 (V1.1.1): "Intelligent Transport Systems (ITS); Vehicular Communications;
GeoNetworking; Part 6: Internet Integration; Sub-part 1: Transmission of IPv6 Packets over
GeoNetworking Protocols".
[2] ISO/IEC 9646-1 (1994): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 1: General concepts".
[3] ISO/IEC 9646-7 (1995): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 7: Implementation Conformance Statements".
[4] IEEE 802.3:2005: "IEEE Standard for Information Technology - Telecommunications and
information exchange between systems-Local and metropolitan area networks - Specific
requirements - Part 3: Carrier Sense Multiple Access with Collision Detection (CSMA/CD)
Access Method and Physical Layer Specifications".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
Not applicable.
ETSI
6 ETSI TS 102 859-1 V1.1.1 (2011-03)
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
• terms given in TS 102 636-6-1 [1];
• terms given in ISO/IEC 9646-1 [2] and in ISO/IEC 9646-7 [3].
In particular, the following terms given in ISO/IEC 9646-1 [2] apply:
Implementation Conformance Statement (ICS): statement made by the supplier of an implementation or system
claimed to conform to a given specification, stating which capabilities have been implemented. The ICS can take
several forms: protocol ICS, profile ICS, profile specific ICS, information object ICS, etc.
ICS proforma: document, in the form of a questionnaire, which when completed for an implementation or system
becomes an ICS
Protocol ICS (PICS): PICS for an implementation or system claimed to conform to a given protocol specification
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
GVL Geographical Virtual Link
ICS Implementation Conformance Statement
IPv6 Internet Protocol version 6
ITS Intelligent Transportation Systems
IUT Implementation Under Test
LAN Local Area Network
NBMA Non-Broadcast Multi-Access
NDMA Non-Broadcast Multi-Access
PDU Protocol Data Unit
PICS Protocol Implementation Conformance Statement
SUT System Under Test
TVL Topological Virtual Link
4 Conformance requirement concerning PICS
If it claims to conform to the present document, the actual PICS proforma to be filled in by a supplier shall be
technically equivalent to the text of the PICS proforma given in annex A, and shall preserve the numbering/naming and
ordering of the proforma items.
An ICS which conforms to the present document shall be a conforming PICS proforma completed in accordance with
the instructions for completion given in clause A.1.
ETSI
7 ETSI TS 102 859-1 V1.1.1 (2011-03)
Annex A (normative):
IPV6overGEONETW PICS Proforma
Notwithstanding the provisions of the copyright clause related to the text of the present document, ETSI grants that
users of the present document may freely reproduce the IPV6overGEONETW PICS proforma in this annex so that it
can be used for its intended purposes and may further publish the completed IPV6overGEONETW PICS.
A.1 Guidance for completing the ICS proforma
A.1.1 Purposes and structure
The purpose of this PICS proforma is to provide a mechanism whereby a supplier of an implementation of the
requirements defined in TS 102 636-6-1 [1] may provide information about the implementation in a standardized
manner.
The PICS proforma is subdivided into clauses for the following categories of information:
• guidance for completing the ICS proforma;
• identification of the implementation;
• identification of the TS 102 636-6-1 [1];
• global statement of conformance;
• PICS proforma tables.
A.1.2 Abbreviations and conventions
The ICS proforma contained in this annex is comprised of information in tabular form in accordance with the guidelines
presented in ISO/IEC 9646-7 [3].
Item column
The item column contains a number which identifies the item in the table.
Item description column
The item description column describes in free text each respective item (e.g. parameters, timers, etc.). It implicitly
means "is supported by the implementation?".
ETSI
8 ETSI TS 102 859-1 V1.1.1 (2011-03)
Status column
The following notations, defined in ISO/IEC 9646-7 [3], are used for the status column:
m mandatory - the capability is required to be supported.
o optional - the capability may be supported or not.
n/a not applicable - in the given context, it is impossible to use the capability.
x prohibited (excluded) - there is a requirement not to use this capability in the given context.
o.i qualified optional - for mutually exclusive or selectable options from a set. "i" is an integer which
identifies an unique group of related optional items and the logic of their selection which is
defined immediately following the table.
ci conditional - the requirement on the capability ("m", "o", "x" or "n/a") depends on the support of
other optional or conditional items. "i" is an integer identifying an unique conditional status
expression which is defined immediately following the table.
i irrelevant (out-of-scope) - capability outside the scope of the reference specification. No answer is
requested from the supplier.
NOTE 1: This use of "i" status is not to be confused with the suffix "i" to the "o" and "c" statuses above.
Reference column
The reference column makes reference to TS 102 636-6-1 [1], except where explicitly stated otherwise.
Support column
...
