ETSI EN 301 908-14 V5.2.1 (2011-05)
IMT cellular networks; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive; Part 14: Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)
IMT cellular networks; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive; Part 14: Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)
REN/MSG-TFES-008-14
Celična omrežja IMT - Harmonizirani EN, ki zajema bistvene zahteve člena 3.2 direktive R&TTE - 14. del: Bazne postaje za razviti prizemni radijski dostop za UMTS (E-UTRA)
Peta izdaja EN bo zajemala vse značilnosti E-UTRA do izdaje 9 3GPP in vključno z njo. To delo prav tako zajema vključitev pasu 800 MHz za E-UTRA. Ta EN bo zajemal osnovne zahteve člena 3.2 direktive R&TTE za ULTRA BS kot dodatek preostalim splošnim zahtevam 1. dela.
General Information
Standards Content (Sample)
Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 14: Evolved Universal Terrestrial Radio Access (E-UTRA)
Base Stations (BS)

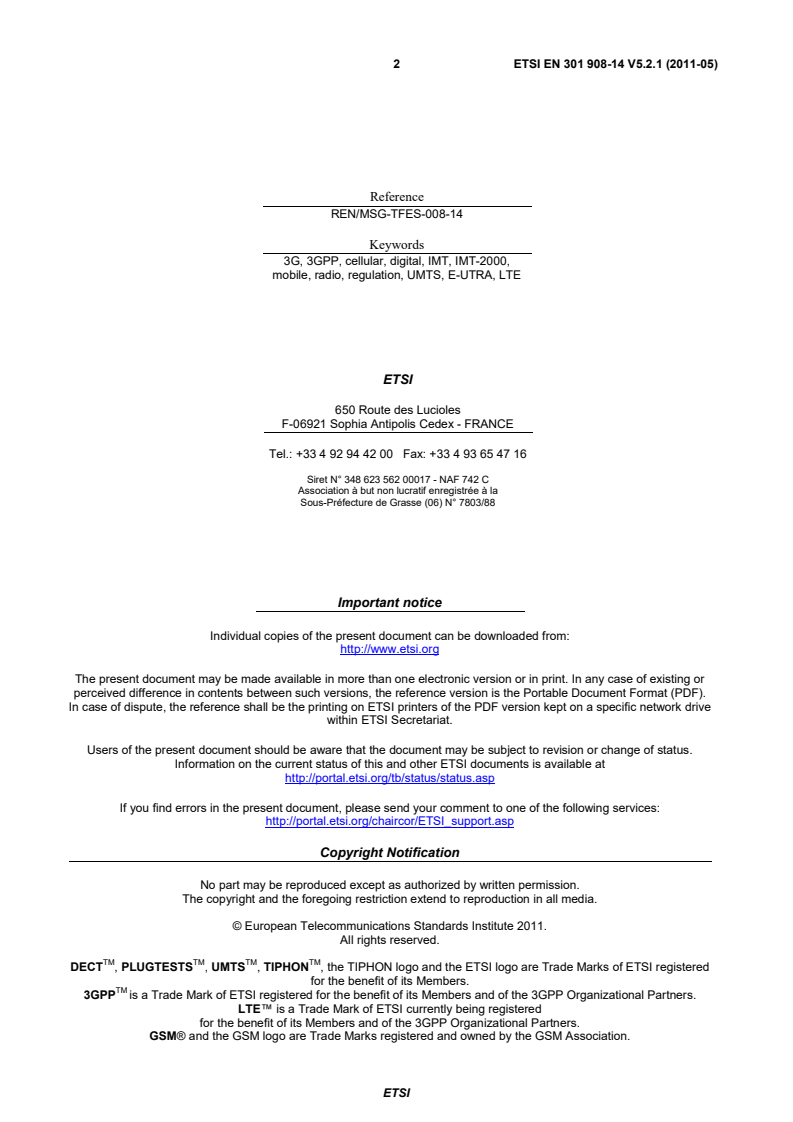

2 ETSI EN 301 908-14 V5.2.1 (2011-05)
Reference
REN/MSG-TFES-008-14
Keywords
3G, 3GPP, cellular, digital, IMT, IMT-2000,
mobile, radio, regulation, UMTS, E-UTRA, LTE
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 301 908-14 V5.2.1 (2011-05)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 7
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 9
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 11
3.3 Abbreviations . 12
4 Technical requirements specifications . 13
4.1 Environmental profile . 13
4.2 Conformance requirements . 13
4.2.1 Introduction. 13
4.2.2 Operating band unwanted emissions . 14
4.2.2.1 Definition . 14
4.2.2.2 Limits . 15
4.2.2.2.1 Limits for Wide Area BS (Bands 1, 3, 8, 33 and 34) . 15
4.2.2.2.2 Limits for Wide Area BS (Bands 7 and 38). 16
4.2.2.2.3 Limits for Wide Area BS (Band 20) . 17
4.2.2.2.4 Limits for Local Area BS . 17
4.2.2.2.5 Limits for Home BS . 18
4.2.2.2.6 Limits for protection of DTT . 19
4.2.2.2.7 Limits for protection of adjacent band services . 19
4.2.2.3 Conformance . 19
4.2.3 Adjacent Channel Leakage power Ratio (ACLR) . 20
4.2.3.1 Definition . 20
4.2.3.2 Limits . 20
4.2.3.3 Conformance . 21
4.2.4 Transmitter spurious emis sions . 21
4.2.4.1 Definition . 21
4.2.4.2 Limits . 22
4.2.4.2.1 Spurious emissions . 22
4.2.4.2.2 Co-existence with other systems . 22
4.2.4.2.3 Protection of the BS receiver of own or different BS . 24
4.2.4.2.4 Co-existence with Home BS operating in other bands . 24
4.2.4.3 Conformance . 24
4.2.5 Base Station maximum output power . 24
4.2.5.1 Definition . 24
4.2.5.2 Limit . 24
4.2.5.3 Conformance . 25
4.2.6 Transmitter intermodulation . 25
4.2.6.1 Definition . 25
4.2.6.2 Limit . 25
4.2.6.3 Conformance . 26
4.2.7 Receiver spurious emissions . 26
4.2.7.1 Definition . 26
4.2.7.2 Limit . 26
4.2.7.3 Conformance . 26
4.2.8 Blocking characteristics . 26
4.2.8.1 Definition . 26
4.2.8.2 Limit . 27
ETSI
4 ETSI EN 301 908-14 V5.2.1 (2011-05)
4.2.8.3 Conformance . 28
4.2.9 Receiver intermodulation characteristics . 28
4.2.9.1 Definition . 28
4.2.9.2 Limit . 29
4.2.9.3 Conformance . 31
4.2.10 Adjacent Channel Selectivity (ACS) and narrow-band blocking . 31
4.2.10.1 Definition . 31
4.2.10.2 Limit . 31
4.2.10.3 Conformance . 34
4.2.11 Home BS output power for adjacent UTRA channel protection. 34
4.2.11.1 Definition . 34
4.2.11.2 Limit . 34
4.2.11.3 Conformance . 35
4.2.12 Home BS output power for adjacent E-UTRA channel protection . 35
4.2.12.1 Definition and applicability . 35
4.2.12.2 Limit . 35
4.2.12.3 Conformance . 36
5 Testing for compliance with technical requirements . 36
5.1 Environmental conditions for testing . 36
5.2 Interpretation of the measurement results . 37
5.3 Essential radio test suites . 38
5.3.1 Operating band unwanted emissions . 38
5.3.1.1 Initial conditions . 38
5.3.1.2 Procedure . 38
5.3.2 Adjacent Channel Leakage power Ratio (ACLR) . 38
5.3.2.1 Initial conditions . 38
5.3.2.2 Procedure . 39
5.3.3 Transmitter spurious emis sions . 39
5.3.3.1 Initial conditions . 39
5.3.3.2 Procedure . 39
5.3.4 Base Station maximum output power . 39
5.3.4.1 Initial conditions . 39
5.3.4.2 Procedure . 40
5.3.5 Transmitter intermodulation . 40
5.3.5.1 Initial conditions . 40
5.3.5.2 Procedures . 40
5.3.6 Receiver spurious emissions . 41
5.3.6.1 Initial conditions . 41
5.3.6.2 Procedure . 41
5.3.7 Blocking characteristics . 41
5.3.7.1 Initial conditions . 41
5.3.7.2 Procedure . 42
5.3.8 Receiver intermodulation characteristics . 42
5.3.8.1 Initial conditions . 42
5.3.8.2 Procedures . 42
5.3.9 Adjacent Channel Selectivity (ACS) and narrow-band blocking . 42
5.3.9.1 Initial conditions . 42
5.3.9.2 Procedure for Adjacent Channel Selectivity . 43
5.3.9.3 Procedure for narrow-band blocking . 43
5.3.10 Home BS output power for adjacent channel protection . 43
5.3.10.1 Initial conditions . 43
5.3.10.2 Procedure . 43
5.3.11 Home BS output power for adjacent E-UTRA channel protection . 44
5.3.11.1 Initial conditions . 44
5.3.11.2 Procedure . 44
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 46
Annex B (normative): Base Station configurations . 48
B.1 Receiver diversity . 48
ETSI
5 ETSI EN 301 908-14 V5.2.1 (2011-05)
B.2 Duplexers . 48
B.3 Power supply options . 48
B.4 Ancillary RF amplifiers . 49
B.5 BS using antenna arrays . 49
B.5.1 Receiver tests . 50
B.5.2 Transmitter tests . 50
B.6 Transmit diversity and MIMO transmission . 50
B.7 BS with integrated Iuant BS modem . 51
Annex C (informative): Environmental profile specification . 52
Annex D (informative): The EN title in the official languages . 53
Annex E (informative): Bibliography . 54
History . 55
ETSI
6 ETSI EN 301 908-14 V5.2.1 (2011-05)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group
(MSG).
The present document has been produced by ETSI in response to mandate M/284 from the European Commission
issued under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information
in the field of technical standards and regulations.
The title and reference to the present document are intended to be included in the publication in the Official Journal of
the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonised Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.
The present document is part 14 of a multi-part deliverable covering the essential requirements under article 3.2 of
Directive 1999/5/EC [i.2] (R&TTE Directive) for Base Stations (BS), Repeaters and User Equipment (UE) for IMT
cellular networks, as identified below:
Part 1: "Introduction and common requirements";
Part 2: "CDMA Direct Spread (UTRA FDD) User Equipment (UE)";
Part 3: "CDMA Direct Spread (UTRA FDD) Base Stations (BS)";
Part 4: "CDMA Multi-Carrier (cdma2000) User Equipment (UE)";
Part 5: "CDMA Multi-Carrier (cdma2000) Base Stations (BS)";
Part 6: "CDMA TDD (UTRA TDD) User Equipment (UE)";
Part 7: "CDMA TDD (UTRA TDD) Base Stations (BS)";
Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of
the R&TTE Directive";
Part 11: "CDMA Direct Spread (UTRA FDD) (Repeaters)";
Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 13: "Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)";
ETSI
7 ETSI EN 301 908-14 V5.2.1 (2011-05)
Part 14: "Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)";
Part 15: "Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD Repeaters)";
Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 18: "E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Station (BS)";
Part 19: "OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)";
Part 20: "OFDMA TDD WMAN (Mobile WiMAX) TDD Base Station (BS)";
Part 21: "OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)";
Part 22: "OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)".
National transposition dates
Date of adoption of this EN: 12 April 2011
Date of latest announcement of this EN (doa): 31 July 2011
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 January 2012
Date of withdrawal of any conflicting National Standard (dow): 31 January 2013
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
8 ETSI EN 301 908-14 V5.2.1 (2011-05)
1 Scope
The present document applies to the following radio equipment type:
• Base Station for Evolved Universal Terrestrial Radio Access (E-UTRA).
This radio equipment type is capable of operating in all or any part of the operating bands given in table 1-1.
Table 1-1: E-UTRA Base Station operating bands
E-UTRA band Direction of transmission E-UTRA Base Station operating bands
1 Transmit 2 110 MHz to 2 170 MHz
Receive 1 920 MHz to 1 980 MHz
3 Transmit 1 805 MHz to 1 880 MHz
Receive 1 710 MHz to 1 785 MHz
7 Transmit 2 620 MHz to 2 690 MHz
Receive 2 500 MHz to 2 570 MHz
8 Transmit 925 MHz to 960 MHz
Receive 880 MHz to 915 MHz
20 Transmit 791 MHz to 821 MHz
Receive 832 MHz to 862 MHz
33 Transmit and Receive 1 900 MHz to 1 920 MHz
34 Transmit and Receive 2 010 MHz to 2 025 MHz
38 Transmit and Receive 2 570 MHz to 2 620 MHz
The present document covers requirements for E-UTRA Base Stations for Release 8 and 9.
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), article 3.2,
which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 908-1 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common
requirements".
[2] ETSI TS 136 141 (V9.6.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base
Station (BS) conformance testing (3GPP TS 36.141 version 9.6.0 Release 9)".
ETSI
9 ETSI EN 301 908-14 V5.2.1 (2011-05)
[3] Void.
[4] ITU-R Recommendation SM.329-10 (2003): "Unwanted emissions in the spurious domain".
[5] ETSI TS 125 104 (V9.6.0): "Universal Mobile Telecommunications System (UMTS); Base
Station (BS) radio transmission and reception (FDD) (3GPP TS 25.104 version 9.6.0 Release 9)".
[6] ETSI TS 125 105 (V9.2.0): "Universal Mobile Telecommunications System (UMTS); Base
Station (BS) radio transmission and reception (TDD) (3GPP TS 25.105 version 9.2.0 Release 9)".
[7] ETSI TS 136 104 (V9.6.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base
Station (BS) radio transmission and reception (3GPP TS 36.104 version 9.6.0 Release 9)".
[8] ETSI TS 125 141 (V9.6.0): "Universal Mobile Telecommunications System (UMTS); Base
Station (BS) conformance testing (FDD) (3GPP TS 25.141 version 9.6.0 Release 9)".
[9] ETSI EN 301 908-18 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 18: E-UTRA, UTRA and GSM/EDGE
Multi-Standard Radio (MSR) Base Station (BS)".
[10] ETSI TS 136 211 (V9.1.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA);
Physical channels and modulation (3GPP TS 36.211 version 9.1.0 Release 9)".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Recommended approach, and possible limits for measurement uncertainty for the measurement of
radiated electromagnetic fields above 1 GHz".
[i.5] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
Base Station class: wide area Base Station, local Area Base Station or home Base Station, as declared by the
manufacturer
carrier: modulated waveform conveying the E-UTRA or UTRA (WCDMA) physical channels
ETSI
10 ETSI EN 301 908-14 V5.2.1 (2011-05)
channel bandwidth: RF bandwidth supporting a single E-UTRA RF carrier with the transmission bandwidth
configured in the uplink or downlink of a cell
NOTE: The channel bandwidth is measured in MHz and is used as a reference for transmitter and receiver RF
requirements.
channel edge: lowest and highest frequency of the E-UTRA carrier, separated by the channel bandwidth
downlink operating band: part of the operating band designated for downlink (BS transmit)
Downlink Reference Symbol (DL RS) power: resource element power of Downlink Reference Symbol
home Base Station: Base Stations characterized by requirements derived from femtocell scenarios with a BS to UE
minimum coupling loss equal to 45 dB
local area Base Station: Base Stations characterized by requirements derived from picocell scenarios with a BS to UE
minimum coupling loss equal to 45 dB
maximum output power: mean power level per carrier of the Base Station measured at the antenna connector in a
specified reference condition
maximum throughput: maximum achievable throughput for a reference measurement channel
mean power: when applied to E-UTRA transmission this is the power measured in the channel bandwidth of the carrier
where the period of measurement shall be at least one subframe (1 ms), unless otherwise stated
multi-carrier transmission configuration: set of one or more contiguous carriers that a BS is able to transmit
simultaneously according to the manufacturer's specification
operating band: frequency range (paired or unpaired) that is defined with a specific set of technical requirements, in
which E-UTRA operates
NOTE: The operating band(s) for an E-UTRA BS is declared by the manufacturer according to the designations
in table 1-1. Operating bands for E-UTRA are designated with Arabic numerals, while the corresponding
operating bands for UTRA are designated with Roman numerals.
output power: mean power of one carrier of the Base Station, delivered to a load with resistance equal to the nominal
load impedance of the transmitter
rated output power: rated output power of the Base Station is the mean power level per carrier that the manufacturer
has declared to be available at the antenna connector
resource block: a physical resource consisting of a number of symbols in the time domain and a number of consecutive
subcarriers spanning 180 kHz in the frequency domain
throughput: number of payload bits successfully received per second for a reference measurement channel in a
specified reference condition
transmission bandwidth: bandwidth of an instantaneous transmission from a UE or BS, measured in Resource Block
units
transmission bandwidth configuration: highest transmission bandwidth allowed for uplink or downlink in a given
channel bandwidth, measured in Resource Block units
transmitter OFF period: time period during which the BS transmitter is not allowed to transmit
transmitter ON period: time period during which the BS transmitter is transmitting data and/or reference symbols,
i.e. data subframes or DwPTS
transmitter transient period: time period during which the transmitter is changing from the OFF period to the ON
period or vice versa
uplink operating band: part of the operating band designated for uplink (BS receive)
ETSI
11 ETSI EN 301 908-14 V5.2.1 (2011-05)
wide area Base Station: Base Stations characterized by requirements derived from Macro Cell scenarios with a BS to
UE minimum coupling loss equal to 70 dB
NOTE: This Base Station class has the same requirements as the general purpose Base Station in 3GPP Release 8.
Channel Bandwidth [MHz]
Transmission Bandwidth Configuration [RB]
Transmission
Bandwidth [RB]
Channel edge Channel edge
Center subcarrier is not transmitted
In downlink
Active Resource Blocks
Figure 3.1-1: Definition of Channel Bandwidth and Transmission Bandwidth Configuration
for one E-UTRA carrier
3.2 Symbols
For the purposes of the present document, the following symbols apply:
BW Channel bandwidth
Channel
BW Transmission bandwidth configuration, expressed in MHz, where BW = N × 180 kHz in
Config Config RB
the uplink and BWConfig = 15 kHz + N × 180 kHz in the downlink
RB
CPICH Êc Common Pilot Channel code power (on the adjacent channel)
CRS Êc Reference Signal received power per resource element
f Frequency
Δf Separation between the channel edge frequency and the nominal -3 dB point of the measuring
filter closest to the carrier frequency
Δf The largest value of Δf used for defining the requirement
max
F Carrier centre frequency
C
F Filter centre frequency
filter
f Centre frequency of the interfering signal
interferer
f_offset Separation between the channel edge frequency and the centre of the measuring filter
f_offset The maximum value of f_offset used for defining the requirement
max
F The lowest frequency of the downlink operating band
DL_low
F The highest frequency of the downlink operating band
DL_high
F The lowest frequency of the uplink operating band (see table 1-1)
UL_low
F The highest frequency of the uplink operating band (see table 1-1)
UL_high
Ioh Total received power density excluding own Home BS signal
Iuant E-Node B internal logical interface between the implementation specific O&M function and the
RET antennas and TMAs control unit function of the E-Node B
N Transmission bandwidth configuration, expressed in units of Resource Blocks
RB
DL
N The number of downlink resource blocks in the downlink
RB
RB RB
N The number of subcarriers in a resource block, N = 12
sc sc
ETSI
Resource block
12 ETSI EN 301 908-14 V5.2.1 (2011-05)
p Antenna port number
(P ) Power of the signal at antenna connector i
i
(P ) Sum of the power for all antenna connectors
s
P Maximum output Power in 10 MHz
10MHz
P Declared emission level for channel N
EM,N
Pmax Maximum output power
P Reference sensitivity power level
REFSENS
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage Ratio
ACS Adjacent Channel Selectivity
AWGN Additive White Gaussian Noise
B Bottom RF channel
NOTE: For testing purposes.
BS Base Station
BTS Base Transceiver Station
NOTE: For GSM.
BW Bandwidth
CW Continuous Wave
DC Direct Current
DwPTS Downlink part of the special subframe
NOTE: For TDD operation.
DTT Digital Terrestrial Television
EARFCN E-UTRA Absolute Radio Frequency Channel Number
E-TM E-UTRA Test Model
EUT Equipment Under Test
E-UTRA Evolved UMTS Terrestrial Radio Access
ERM EMC and Radio Spectrum Matters
FDD Frequency Division Duplex
FRC Fixed Reference Channel
ITU-R International Telecommunication Union - Radiocommunication
M Middle RF channel
NOTE: For testing purposes.
LTE Long Term Evolution
NOTE: Also known as E-UTRA.
MIMO Multiple Input Multiple Output
MS Mobile Station
NOTE: For GSM.
MSG Mobile Standards Group
MSR Multi-Standard Radio
RB Resource Block
RF Radio Frequency
RMS Root Mean Square
RRC Root Raised Cosine
RX Receive
ETSI
13 ETSI EN 301 908-14 V5.2.1 (2011-05)
T Top RF channel
NOTE: For testing purposes.
TFES Task Force for European Standards for IMT
TDD Time Division Duplex
TX Transmit
UE User Equipment
UMTS Universal Mobile Telecommunications System
UTRA UMTS Terrestrial Radio Access
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
For guidance on how a supplier can declare the environmental profile, see annex C.
4.2 Conformance requirements
The requirements in the present document are based on the assumption that the operating band (see table 1-1) is shared
between systems of the IMT-2000 family (for band 3 and 8 also GSM) or systems having compatible characteristics.
4.2.1 Introduction
To meet the essential requirement under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for IMT Base
Stations (BS), seven essential parameters in addition to those in EN 301 908-1 [1] have been identified. Table 4.2.1-1
provides a cross reference between these seven essential parameters and the corresponding eleven technical
requirements for equipment within the scope of the present document.
Table 4.2.1-1: Cross references
Essential parameter Corresponding technical requirements
Spectrum emissions mask 4.2.2 Operating band unwanted emissions
4.2.3 Adjacent Channel Leakage power Ratio (ACLR)
4.2.11 Home BS output power for adjacent UTRA
channel protection
4.2.12 Home BS output power for adjacent E-UTRA
channel protection
Conducted spurious emissions from the transmitter 4.2.4 Transmitter spurious emissions
antenna connector
Accuracy of maximum output power 4.2.5 Base Station maximum output power
Intermodulation attenuation of the transmitter 4.2.6 Transmit intermodulation
Conducted spurious emissions from the receiver 4.2.7 Receiver spurious emissions
antenna connector
Impact of interference on receiver performance 4.2.8 Blocking characteristics
4.2.9 Receiver intermodulation characteristics
Receiver adjacent channel selectivity 4.2.10 Adjacent Channel Selectivity (ACS) and
narrow-band blocking
ETSI
14 ETSI EN 301 908-14 V5.2.1 (2011-05)
The supplier shall declare the Base Station class and operating band(s) for the Base Station. The technical requirements
in the present document apply for Base Stations supporting E-UTRA, for the declared Base Station class and operating
band(s) as outlined for each requirement. For a Base Station supporting more than one operating band, conformance
testing for each technical requirement in clause 5 shall be performed for each operating band.
The technical requirements also apply to the BS configurations described in annex B.
For an E-UTRA Wide Area BS additionally conforming to EN 301 908-18 [9], conformance with the technical
requirements listed in table 4.2.1-1 can equally be demonstrated through the corresponding technical requirements and
test suites in EN 301 908-18 [9], as listed in table 4.2.1-2.
When conformance is demonstrated through the test suites in EN 301 908-18 [9] for these technical requirement, the
corresponding test suites in the present document need not be performed.
Table 4.2.1-2: Alternative technical requirements and test suites in EN 301 908-18 [9] that can equally
be used for demonstrating conformance for Wide Area BS
Technical requirement in Corresponding technical requirements Corresponding test suites
the present document in EN 301 908-18 [9] in EN 301 908-18 [9]
4.2.2 Operating band unwanted 4.2.2 Operating band unwanted 5.3.1 Operating band unwanted
emissions emissions emissions
4.2.3 Adjacent Channel Leakage (See note) (See note)
power Ratio (ACLR)
4.2.4 Transmitter spurious 4.2.4 Transmitter spurious emissions 5.3.3 Transmitter spurious
emissions emissions
4.2.5 Base Station maximum output 4.2.5 Base station maximum output 5.3.4 Base station maximum output
power power power
4.2.6 Transmit intermodulation 4.2.6 Transmit intermodulation 5.3.5 Transmit intermodulation
4.2.7 Receiver spurious emissions 4.2.7 Receiver spurious emissions 5.3.6 Receiver spurious emissions
4.2.8 Blocking characteristics 4.2.8 In-band blocking 5.3.7 In-band blocking
4.2.9 Out-of-band blocking 5.3.8 Out-of-band blocking
4.2.9 Receiver intermodulation 4.2.10 Receiver intermodulation 5.3.9 Receiver intermodulation
characteristics characteristics characteristics
4.2.10 Adjacent Channel Selectivity 4.2.11 Narrowband blocking 5.3.10 Narrowband blocking
(ACS) and narrow-band
blocking
NOTE: Conformance with the E-UTRA ACLR requirement is for an MSR BS d
...
Final draft ETSI EN 301 908-14 V5.2.1 (2011-02)
Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 14: Evolved Universal Terrestrial Radio Access (E-UTRA)
Base Stations (BS)
2 Final draft ETSI EN 301 908-14 V5.2.1 (2011-02)
Reference
REN/MSG-TFES-008-14
Keywords
3G, 3GPP, cellular, digital, IMT, IMT-2000,
mobile, radio, regulation, UMTS, E-UTRA, LTE
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Final draft ETSI EN 301 908-14 V5.2.1 (2011-02)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 7
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 9
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 11
3.3 Abbreviations . 12
4 Technical requirements specifications . 13
4.1 Environmental profile . 13
4.2 Conformance requirements . 13
4.2.1 Introduction. 13
4.2.2 Operating band unwanted emissions . 14
4.2.2.1 Definition . 14
4.2.2.2 Limits . 15
4.2.2.2.1 Limits for Wide Area BS (Bands 1, 3, 8, 33 and 34) . 15
4.2.2.2.2 Limits for Wide Area BS (Bands 7 and 38). 16
4.2.2.2.3 Limits for Wide Area BS (Band 20) . 17
4.2.2.2.4 Limits for Local Area BS . 17
4.2.2.2.5 Limits for Home BS . 18
4.2.2.2.6 Limits for protection of DTT . 19
4.2.2.2.7 Limits for protection of adjacent band services . 19
4.2.2.3 Conformance . 19
4.2.3 Adjacent Channel Leakage power Ratio (ACLR) . 20
4.2.3.1 Definition . 20
4.2.3.2 Limits . 20
4.2.3.3 Conformance . 21
4.2.4 Transmitter spurious emis sions . 21
4.2.4.1 Definition . 21
4.2.4.2 Limits . 22
4.2.4.2.1 Spurious emissions . 22
4.2.4.2.2 Co-existence with other systems . 22
4.2.4.2.3 Protection of the BS receiver of own or different BS . 24
4.2.4.2.4 Co-existence with Home BS operating in other bands . 24
4.2.4.3 Conformance . 24
4.2.5 Base Station maximum output power . 24
4.2.5.1 Definition . 24
4.2.5.2 Limit . 24
4.2.5.3 Conformance . 25
4.2.6 Transmitter intermodulation . 25
4.2.6.1 Definition . 25
4.2.6.2 Limit . 25
4.2.6.3 Conformance . 26
4.2.7 Receiver spurious emissions . 26
4.2.7.1 Definition . 26
4.2.7.2 Limit . 26
4.2.7.3 Conformance . 26
4.2.8 Blocking characteristics . 26
4.2.8.1 Definition . 26
4.2.8.2 Limit . 27
ETSI
4 Final draft ETSI EN 301 908-14 V5.2.1 (2011-02)
4.2.8.3 Conformance . 28
4.2.9 Receiver intermodulation characteristics . 28
4.2.9.1 Definition . 28
4.2.9.2 Limit . 29
4.2.9.3 Conformance . 31
4.2.10 Adjacent Channel Selectivity (ACS) and narrow-band blocking . 31
4.2.10.1 Definition . 31
4.2.10.2 Limit . 31
4.2.10.3 Conformance . 34
4.2.11 Home BS output power for adjacent UTRA channel protection. 34
4.2.11.1 Definition . 34
4.2.11.2 Limit . 34
4.2.11.3 Conformance . 35
4.2.12 Home BS output power for adjacent E-UTRA channel protection . 35
4.2.12.1 Definition and applicability . 35
4.2.12.2 Limit . 35
4.2.12.3 Conformance . 36
5 Testing for compliance with technical requirements . 36
5.1 Environmental conditions for testing . 36
5.2 Interpretation of the measurement results . 37
5.3 Essential radio test suites . 38
5.3.1 Operating band unwanted emissions . 38
5.3.1.1 Initial conditions . 38
5.3.1.2 Procedure . 38
5.3.2 Adjacent Channel Leakage power Ratio (ACLR) . 38
5.3.2.1 Initial conditions . 38
5.3.2.2 Procedure . 39
5.3.3 Transmitter spurious emis sions . 39
5.3.3.1 Initial conditions . 39
5.3.3.2 Procedure . 39
5.3.4 Base Station maximum output power . 39
5.3.4.1 Initial conditions . 39
5.3.4.2 Procedure . 40
5.3.5 Transmitter intermodulation . 40
5.3.5.1 Initial conditions . 40
5.3.5.2 Procedures . 40
5.3.6 Receiver spurious emissions . 41
5.3.6.1 Initial conditions . 41
5.3.6.2 Procedure . 41
5.3.7 Blocking characteristics . 41
5.3.7.1 Initial conditions . 41
5.3.7.2 Procedure . 42
5.3.8 Receiver intermodulation characteristics . 42
5.3.8.1 Initial conditions . 42
5.3.8.2 Procedures . 42
5.3.9 Adjacent Channel Selectivity (ACS) and narrow-band blocking . 42
5.3.9.1 Initial conditions . 42
5.3.9.2 Procedure for Adjacent Channel Selectivity . 43
5.3.9.3 Procedure for narrow-band blocking . 43
5.3.10 Home BS output power for adjacent channel protection . 43
5.3.10.1 Initial conditions . 43
5.3.10.2 Procedure . 43
5.3.11 Home BS output power for adjacent E-UTRA channel protection . 44
5.3.11.1 Initial conditions . 44
5.3.11.2 Procedure . 44
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 46
Annex B (normative): Base Station configurations . 48
B.1 Receiver diversity . 48
ETSI
5 Final draft ETSI EN 301 908-14 V5.2.1 (2011-02)
B.2 Duplexers . 48
B.3 Power supply options . 48
B.4 Ancillary RF amplifiers . 49
B.5 BS using antenna arrays . 49
B.5.1 Receiver tests . 50
B.5.2 Transmitter tests . 50
B.6 Transmit diversity and MIMO transmission . 50
B.7 BS with integrated Iuant BS modem . 51
Annex C (informative): Environmental profile specification . 52
Annex D (informative): The EN title in the official languages . 53
Annex E (informative): Bibliography . 54
History . 55
ETSI
6 Final draft ETSI EN 301 908-14 V5.2.1 (2011-02)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group
(MSG), and is now submitted for the Vote phase of the ETSI standards Two-step Approval Procedure.
The present document has been produced by ETSI in response to mandate M/284 from the European Commission
issued under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information
in the field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Union referencing the Directive 1999/5/EC [i.2] of the European Parliament and of the
Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition
of their conformity ("the R&TTE Directive").
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.
The present document is part 14 of a multi-part deliverable covering the essential requirements under article 3.2 of
Directive 1999/5/EC [i.2] (R&TTE Directive) for Base Stations (BS), Repeaters and User Equipment (UE) for IMT
cellular networks, as identified below:
Part 1: "Introduction and common requirements";
Part 2: "CDMA Direct Spread (UTRA FDD) User Equipment (UE)";
Part 3: "CDMA Direct Spread (UTRA FDD) Base Stations (BS)";
Part 4: "CDMA Multi-Carrier (cdma2000) User Equipment (UE)";
Part 5: "CDMA Multi-Carrier (cdma2000) Base Stations (BS)";
Part 6: "CDMA TDD (UTRA TDD) User Equipment (UE)";
Part 7: "CDMA TDD (UTRA TDD) Base Stations (BS)";
Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of
the R&TTE Directive";
Part 11: "CDMA Direct Spread (UTRA FDD) (Repeaters)";
Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 13: "Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)";
ETSI
7 Final draft ETSI EN 301 908-14 V5.2.1 (2011-02)
Part 14: "Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)";
Part 15: "Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD Repeaters)";
Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 18: "E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Station (BS)";
Part 19: "OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)";
Part 20: "OFDMA TDD WMAN (Mobile WiMAX) TDD Base Station (BS)";
Part 21: "OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)";
Part 22: "OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
8 Final draft ETSI EN 301 908-14 V5.2.1 (2011-02)
1 Scope
The present document applies to the following radio equipment type:
• Base Station for Evolved Universal Terrestrial Radio Access (E-UTRA).
This radio equipment type is capable of operating in all or any part of the operating bands given in table 1-1.
Table 1-1: E-UTRA Base Station operating bands
E-UTRA band Direction of transmission E-UTRA Base Station operating bands
1 Transmit 2 110 MHz to 2 170 MHz
Receive 1 920 MHz to 1 980 MHz
3 Transmit 1 805 MHz to 1 880 MHz
Receive 1 710 MHz to 1 785 MHz
7 Transmit 2 620 MHz to 2 690 MHz
Receive 2 500 MHz to 2 570 MHz
8 Transmit 925 MHz to 960 MHz
Receive 880 MHz to 915 MHz
20 Transmit 791 MHz to 821 MHz
Receive 832 MHz to 862 MHz
33 Transmit and Receive 1 900 MHz to 1 920 MHz
34 Transmit and Receive 2 010 MHz to 2 025 MHz
38 Transmit and Receive 2 570 MHz to 2 620 MHz
The present document covers requirements for E-UTRA Base Stations for Release 8 and 9.
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), article 3.2,
which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 908-1 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common
requirements".
[2] ETSI TS 136 141 (V9.6.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base
Station (BS) conformance testing (3GPP TS 36.141 version 9.6.0 Release 9)".
ETSI
9 Final draft ETSI EN 301 908-14 V5.2.1 (2011-02)
[3] Void.
[4] ITU-R Recommendation SM.329-10 (2003): "Unwanted emissions in the spurious domain".
[5] ETSI TS 125 104 (V9.6.0): "Universal Mobile Telecommunications System (UMTS); Base
Station (BS) radio transmission and reception (FDD) (3GPP TS 25.104 version 9.6.0 Release 9)".
[6] ETSI TS 125 105 (V9.2.0): "Universal Mobile Telecommunications System (UMTS); Base
Station (BS) radio transmission and reception (TDD) (3GPP TS 25.105 version 9.2.0 Release 9)". .
[7] ETSI TS 136 104 (V9.6.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base
Station (BS) radio transmission and reception (3GPP TS 36.104 version 9.6.0 Release 9)". .
[8] ETSI TS 125 141 (V9.6.0): "Universal Mobile Telecommunications System (UMTS); Base
Station (BS) conformance testing (FDD) (3GPP TS 25.141 version 9.6.0 Release 9)".
[9] ETSI EN 301 908-18 (V5.1.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 18: E-UTRA, UTRA and GSM/EDGE
Multi-Standard Radio (MSR) Base Station (BS)".
[10] ETSI TS 136 211 (V9.1.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA);
Physical channels and modulation (3GPP TS 36.211 version 9.1.0 Release 9)".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Recommended approach, and possible limits for measurement uncertainty for the measurement of
radiated electromagnetic fields above 1 GHz".
[i.5] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
Base Station class: wide area Base Station, local Area Base Station or home Base Station, as declared by the
manufacturer
carrier: modulated waveform conveying the E-UTRA or UTRA (WCDMA) physical channels
ETSI
10 Final draft ETSI EN 301 908-14 V5.2.1 (2011-02)
channel bandwidth: RF bandwidth supporting a single E-UTRA RF carrier with the transmission bandwidth
configured in the uplink or downlink of a cell
NOTE: The channel bandwidth is measured in MHz and is used as a reference for transmitter and receiver RF
requirements.
channel edge: lowest and highest frequency of the E-UTRA carrier, separated by the channel bandwidth
downlink operating band: part of the operating band designated for downlink (BS transmit)
Downlink Reference Symbol (DL RS) power: resource element power of Downlink Reference Symbol
home Base Station: Base Stations characterized by requirements derived from femtocell scenarios with a BS to UE
minimum coupling loss equal to 45 dB
local area Base Station: Base Stations characterized by requirements derived from picocell scenarios with a BS to UE
minimum coupling loss equal to 45 dB
maximum output power: mean power level per carrier of the Base Station measured at the antenna connector in a
specified reference condition
maximum throughput: maximum achievable throughput for a reference measurement channel
mean power: when applied to E-UTRA transmission this is the power measured in the channel bandwidth of the carrier
where the period of measurement shall be at least one subframe (1 ms), unless otherwise stated
multi-carrier transmission configuration: set of one or more contiguous carriers that a BS is able to transmit
simultaneously according to the manufacturer's specification
operating band: frequency range (paired or unpaired) that is defined with a specific set of technical requirements, in
which E-UTRA operates
NOTE: The operating band(s) for an E-UTRA BS is declared by the manufacturer according to the designations
in table 1-1. Operating bands for E-UTRA are designated with Arabic numerals, while the corresponding
operating bands for UTRA are designated with Roman numerals.
output power: mean power of one carrier of the Base Station, delivered to a load with resistance equal to the nominal
load impedance of the transmitter
rated output power: rated output power of the Base Station is the mean power level per carrier that the manufacturer
has declared to be available at the antenna connector
resource block: a physical resource consisting of a number of symbols in the time domain and a number of consecutive
subcarriers spanning 180 kHz in the frequency domain
throughput: number of payload bits successfully received per second for a reference measurement channel in a
specified reference condition
transmission bandwidth: bandwidth of an instantaneous transmission from a UE or BS, measured in Resource Block
units
transmission bandwidth configuration: highest transmission bandwidth allowed for uplink or downlink in a given
channel bandwidth, measured in Resource Block units
transmitter OFF period: time period during which the BS transmitter is not allowed to transmit
transmitter ON period: time period during which the BS transmitter is transmitting data and/or reference symbols,
i.e. data subframes or DwPTS
transmitter transient period: time period during which the transmitter is changing from the OFF period to the ON
period or vice versa
uplink operating band: part of the operating band designated for uplink (BS receive)
ETSI
11 Final draft ETSI EN 301 908-14 V5.2.1 (2011-02)
wide area Base Station: Base Stations characterized by requirements derived from Macro Cell scenarios with a BS to
UE minimum coupling loss equal to 70 dB
NOTE: This Base Station class has the same requirements as the general purpose Base Station in 3GPP Release 8.
Channel Bandwidth [MHz]
Transmission Bandwidth Configuration [RB]
Transmission
Bandwidth [RB]
Channel edge Channel edge
Center subcarrier is not transmitted
In downlink
Active Resource Blocks
Figure 3.1-1: Definition of Channel Bandwidth and Transmission Bandwidth Configuration
for one E-UTRA carrier
3.2 Symbols
For the purposes of the present document, the following symbols apply:
BW Channel bandwidth
Channel
BW Transmission bandwidth configuration, expressed in MHz, where BW = N × 180 kHz in
Config Config RB
the uplink and BWConfig = 15 kHz + N × 180 kHz in the downlink
RB
CPICH Êc Common Pilot Channel code power (on the adjacent channel)
CRS Êc Reference Signal received power per resource element
f Frequency
Δf Separation between the channel edge frequency and the nominal -3 dB point of the measuring
filter closest to the carrier frequency
Δf The largest value of Δf used for defining the requirement
max
F Carrier centre frequency
C
F Filter centre frequency
filter
f Centre frequency of the interfering signal
interferer
f_offset Separation between the channel edge frequency and the centre of the measuring filter
f_offset The maximum value of f_offset used for defining the requirement
max
F The lowest frequency of the downlink operating band
DL_low
F The highest frequency of the downlink operating band
DL_high
F The lowest frequency of the uplink operating band (see table 1-1)
UL_low
F The highest frequency of the uplink operating band (see table 1-1)
UL_high
Ioh Total received power density excluding own Home BS signal
Iuant E-Node B internal logical interface between the implementation specific O&M function and the
RET antennas and TMAs control unit function of the E-Node B
N Transmission bandwidth configuration, expressed in units of Resource Blocks
RB
DL
N The number of downlink resource blocks in the downlink
RB
RB RB
N The number of subcarriers in a resource block, N = 12
sc sc
ETSI
Resource block
12 Final draft ETSI EN 301 908-14 V5.2.1 (2011-02)
p Antenna port number
(P ) Power of the signal at antenna connector i
i
(P ) Sum of the power for all antenna connectors
s
P Maximum output Power in 10 MHz
10MHz
P Declared emission level for channel N
EM,N
Pmax Maximum output power
P Reference sensitivity power level
REFSENS
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage Ratio
ACS Adjacent Channel Selectivity
AWGN Additive White Gaussian Noise
B Bottom RF channel
NOTE: For testing purposes.
BS Base Station
BTS Base Transceiver Station
NOTE: For GSM.
BW Bandwidth
CW Continuous Wave
DC Direct Current
DwPTS Downlink part of the special subframe
NOTE: For TDD operation.
DTT Digital Terrestrial Television
EARFCN E-UTRA Absolute Radio Frequency Channel Number
E-TM E-UTRA Test Model
EUT Equipment Under Test
E-UTRA Evolved UMTS Terrestrial Radio Access
ERM EMC and Radio Spectrum Matters
FDD Frequency Division Duplex
FRC Fixed Reference Channel
ITU-R International Telecommunication Union - Radiocommunication
M Middle RF channel
NOTE: For testing purposes.
LTE Long Term Evolution
NOTE: Also known as E-UTRA.
MIMO Multiple Input Multiple Output
MS Mobile Station
NOTE: For GSM.
MSG Mobile Standards Group
MSR Multi-Standard Radio
RB Resource Block
RF Radio Frequency
RMS Root Mean Square
RRC Root Raised Cosine
RX Receive
T Top RF channel
ETSI
13 Final draft ETSI EN 301 908-14 V5.2.1 (2011-02)
NOTE: For testing purposes.
TFES Task Force for European Standards for IMT
TDD Time Division Duplex
TX Transmit
UE User Equipment
UMTS Universal Mobile Telecommunications System
UTRA UMTS Terrestrial Radio Access
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
For guidance on how a supplier can declare the environmental profile, see annex C.
4.2 Conformance requirements
The requirements in the present document are based on the assumption that the operating band (see table 1-1) is shared
between systems of the IMT-2000 family (for band 3 and 8 also GSM) or systems having compatible characteristics.
4.2.1 Introduction
To meet the essential requirement under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for IMT Base
Stations (BS), seven essential parameters in addition to those in EN 301 908-1 [1] have been identified. Table 4.2.1-1
provides a cross reference between these seven essential parameters and the corresponding eleven technical
requirements for equipment within the scope of the present document.
Table 4.2.1-1: Cross references
Essential parameter Corresponding technical requirements
Spectrum emissions mask 4.2.2 Operating band unwanted emissions
4.2.3 Adjacent Channel Leakage power Ratio (ACLR)
4.2.11 Home BS output power for adjacent UTRA
channel protection
4.2.12 Home BS output power for adjacent E-UTRA
channel protection
Conducted spurious emissions from the transmitter 4.2.4 Transmitter spurious emissions
antenna connector
Accuracy of maximum output power 4.2.5 Base Station maximum output power
Intermodulation attenuation of the transmitter 4.2.6 Transmit intermodulation
Conducted spurious emissions from the receiver 4.2.7 Receiver spurious emissions
antenna connector
Impact of interference on receiver performance 4.2.8 Blocking characteristics
4.2.9 Receiver intermodulation characteristics
Receiver adjacent channel selectivity 4.2.10 Adjacent Channel Selectivity (ACS) and
narrow-band blocking
The supplier shall declare the Base Station class and operating band(s) for the Base Station. The technical requirements
in the present document apply for Base Stations supporting E-UTRA, for the declared Base Station class and operating
band(s) as outlined for each requirement. For a Base Station supporting more than one operating band, conformance
testing for each technical requirement in clause 5 shall be performed for each operating band.
The technical requirements also apply to the BS configurations described in annex B.
ETSI
14 Final draft ETSI EN 301 908-14 V5.2.1 (2011-02)
For an E-UTRA Wide Area BS additionally conforming to EN 301 908-18 [9], conformance with the technical
requirements listed in table 4.2.1-1 can equally be demonstrated through the corresponding technical requirements and
test suites in EN 301 908-18 [9], as listed in table 4.2.1-2.
When conformance is demonstrated through the test suites in EN 301 908-18 [9] for these technical requirement, the
corresponding test suites in the present document need not be performed.
Table 4.2.1-2: Alternative technical requirements and test suites in EN 301 908-18 [9] that can equally
be used for demonstrating conformance for Wide Area BS
Technical requirement in Corresponding technical requirements Corresponding test suites
the present document in EN 301 908-18 [9] in EN 301 908-18 [9]
4.2.2 Operating band unwanted 4.2.2 Operating band unwanted 5.3.1 Operating band unwanted
emissions emissions emissions
4.2.3 Adjacent Channel Leakage (See note) (See note)
power Ratio (ACLR)
4.2.4 Transmitter spurious 4.2.4 Transmitter spurious emissions 5.3.3 Transmitter spurious
emissions emissions
4.2.5 Base Station maximum output 4.2.5 Base station maximum output 5.3.4 Base station maximum output
power power power
4.2.6 Transmit intermodulation 4.2.6 Transmit intermodulation 5.3.5 Transmit intermodulation
4.2.7 Receiver spurious emissions 4.2.7 Receiver spurious emissions 5.3.6 Receiver spurious emissions
4.2.8 Blocking characteristics 4.2.8 In-band blocking 5.3.7 In-band blocking
4.2.9 Out-of-band blocking 5.3.8 Out-of-band blocking
4.2.9 Receiver intermodulation 4.2.10 Receiver intermodulation 5.3.9 Receiver intermodulation
characteristics characteristi
...
Draft ETSI EN 301 908-14 V5.1.1 (2010-07)
Harmonized European Standard (Telecommunications series)
Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Base Stations (BS), Repeaters and User Equipment (UE)
for IMT-2000 Third-Generation cellular networks;
Part 14: Harmonized EN for IMT-2000,
Evolved Universal Terrestrial Radio Access (E-UTRA) (BS)
covering the essential requirements
of article 3.2 of the R&TTE Directive
2 Draft ETSI EN 301 908-14 V5.1.1 (2010-07)
Reference
REN/ERM-TFES-008-14
Keywords
3G, 3GPP, cellular, digital, IMT-2000, mobile,
radio, regulation, UMTS, E-UTRA, LTE
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Draft ETSI EN 301 908-14 V5.1.1 (2010-07)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 7
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 9
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 11
3.3 Abbreviations . 12
4 Technical requirements specifications . 13
4.1 Environmental profile . 13
4.2 Conformance requirements . 13
4.2.1 Introduction. 13
4.2.2 Operating band unwanted emissions . 14
4.2.2.1 Definition . 14
4.2.2.2 Limits . 14
4.2.2.2.1 Limits for Wide Area BS (Bands 1, 3, 8, 33 and 34) . 15
4.2.2.2.2 Limits for Wide Area BS (Bands 7 and 38). 16
4.2.2.2.3 Limits for Wide Area BS (Band 20) . 17
4.2.2.2.4 Limits for Local Area BS . 17
4.2.2.2.5 Limits for Home BS . 18
4.2.2.2.6 Limits for protection of DTT . 19
4.2.2.2.7 Limits for protection of adjacent band services . 19
4.2.2.3 Conformance . 19
4.2.3 Adjacent Channel Leakage power Ratio (ACLR) . 19
4.2.3.1 Definition . 19
4.2.3.2 Limits . 20
4.2.3.3 Conformance . 21
4.2.4 Transmitter spurious emis sions . 21
4.2.4.1 Definition . 21
4.2.4.2 Limits . 22
4.2.4.2.1 Spurious emissions . 22
4.2.4.2.2 Co-existence with other systems . 22
4.2.4.2.3 Protection of the BS receiver of own or different BS . 24
4.2.4.2.4 Co-existence with Home BS operating in other bands . 24
4.2.4.3 Conformance . 24
4.2.5 Base Station maximum output power . 24
4.2.5.1 Definition . 24
4.2.5.2 Limit . 24
4.2.5.3 Conformance . 25
4.2.6 Transmitter intermodulation . 25
4.2.6.1 Definition . 25
4.2.6.2 Limit . 25
4.2.6.3 Conformance . 26
4.2.7 Receiver spurious emissions . 26
4.2.7.1 Definition . 26
4.2.7.2 Limit . 26
4.2.7.3 Conformance . 26
4.2.8 Blocking characteristics . 26
4.2.8.1 Definition . 26
4.2.8.2 Limit . 27
ETSI
4 Draft ETSI EN 301 908-14 V5.1.1 (2010-07)
4.2.8.3 Conformance . 28
4.2.9 Receiver intermodulation characteristics . 28
4.2.9.1 Definition . 28
4.2.9.2 Limit . 29
4.2.9.3 Conformance . 31
4.2.10 Adjacent Channel Selectivity (ACS) and narrow-band blocking . 31
4.2.10.1 Definition . 31
4.2.10.2 Limit . 31
4.2.10.3 Conformance . 34
4.2.11 Home BS output power for adjacent channel protection . 34
4.2.11.1 Definition . 34
4.2.11.2 Limit . 34
4.2.11.3 Conformance . 35
5 Testing for compliance with technical requirements . 35
5.1 Environmental conditions for testing . 35
5.2 Interpretation of the measurement results . 35
5.3 Essential radio test suites . 36
5.3.1 Operating band unwanted emissions . 36
5.3.1.1 Initial conditions . 37
5.3.1.2 Procedure . 37
5.3.2 Adjacent Channel Leakage power Ratio (ACLR) . 37
5.3.2.1 Initial conditions . 37
5.3.2.2 Procedure . 37
5.3.3 Transmitter spurious emis sions . 38
5.3.3.1 Initial conditions . 38
5.3.3.2 Procedure . 38
5.3.4 Base Station maximum output power . 38
5.3.4.1 Initial conditions . 38
5.3.4.2 Procedure . 38
5.3.5 Transmitter intermodulation . 39
5.3.5.1 Initial conditions . 39
5.3.5.2 Procedures . 39
5.3.6 Receiver spurious emissions . 39
5.3.6.1 Initial conditions . 40
5.3.6.2 Procedure . 40
5.3.7 Blocking characteristics . 40
5.3.7.1 Initial conditions . 40
5.3.7.2 Procedure . 40
5.3.8 Receiver intermodulation characteristics . 41
5.3.8.1 Initial conditions . 41
5.3.8.2 Procedures . 41
5.3.9 Adjacent Channel Selectivity (ACS) and narrow-band blocking . 41
5.3.9.1 Initial conditions . 41
5.3.9.2 Procedure for Adjacent Channel Selectivity . 41
5.3.9.3 Procedure for narrow-band blocking . 42
5.3.10 Home BS output power for adjacent channel protection . 42
5.3.10.1 Initial conditions . 42
5.3.10.2 Procedure . 42
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 43
Annex B (normative): Base Station configurations . 45
B.1 Receiver diversity . 45
B.2 Duplexers . 45
B.3 Power supply options . 45
B.4 Ancillary RF amplifiers . 46
B.5 BS using antenna arrays . 46
ETSI
5 Draft ETSI EN 301 908-14 V5.1.1 (2010-07)
B.5.1 Receiver tests . 47
B.5.2 Transmitter tests . 47
B.6 Transmit diversity and MIMO transmission . 47
B.7 BS with integrated Iuant BS modem . 48
Annex C (informative): Environmental profile specification . 49
Annex D (informative): The EN title in the official languages . 50
Annex E (informative): Bibliography . 51
History . 52
ETSI
6 Draft ETSI EN 301 908-14 V5.1.1 (2010-07)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM), and is now submitted for the Public Enquiry phase
of the ETSI standards Two-step Approval Procedure.
The present document has been produced by ETSI in response to mandate M/284 from the European Commission
issued under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information
in the field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Union referencing the Directive 1999/5/EC [i.2] of the European Parliament and of the
Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition
of their conformity ("the R&TTE Directive").
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.
The present document is part 14 of a multi-part deliverable covering the Base Stations (BS), Repeaters and User
Equipment (UE) for IMT-2000 Third-Generation cellular networks, as identified below:
Part 1: "Harmonized EN for IMT-2000, introduction and common requirements, covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 2: "Harmonized EN for IMT-2000, CDMA Direct Spread (UTRA FDD and E-UTRA FDD) (UE) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 3: "Harmonized EN for IMT-2000, CDMA Direct Spread (UTRA FDD and E-UTRA FDD) (BS) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 4: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) and Evolved CDMA Multi-Carrier
Ultra Mobile Broadband (UMB) (UE) covering the essential requirements of article 3.2 of the R&TTE
Directive";
Part 5: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) and Evolved CDMA Multi-Carrier
Ultra Mobile Broadband (UMB) (BS) covering the essential requirements of article 3.2 of the R&TTE
Directive";
Part 6: "Harmonized EN for IMT-2000, CDMA TDD (UTRA TDD and E-UTRA TDD) (UE) covering the
essential requirements of article 3.2 of the R&TTE Directive";
Part 7: "Harmonized EN for IMT-2000, CDMA TDD (UTRA TDD and E-UTRA TDD) (BS) covering the
essential requirements of article 3.2 of the R&TTE Directive";
Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements
of article 3.2 of the R&TTE Directive";
ETSI
7 Draft ETSI EN 301 908-14 V5.1.1 (2010-07)
Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of
the R&TTE Directive";
Part 11: "Harmonized EN for IMT-2000, CDMA Direct Spread (UTRA FDD and E-UTRA FDD) (Repeaters)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 13: "Harmonized EN for IMT-2000, Evolved Universal Terrestrial Radio Access (E-UTRA) (UE) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 14: "Harmonized EN for IMT-2000, Evolved Universal Terrestrial Radio Access (E-UTRA) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 15: "Harmonized EN for IMT-2000, Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD
Repeaters) covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 18: "Harmonized EN for E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Station (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 19: "Harmonized EN for IMT-2000, OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 20: "Harmonized EN for IMT-2000, OFDMA TDD WMAN (Mobile WiMAX) TDD Base Station (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 21: "Harmonized EN for IMT-2000, OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 22: "Harmonized EN for IMT-2000, OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
8 Draft ETSI EN 301 908-14 V5.1.1 (2010-07)
1 Scope
The present document applies to the following radio equipment type:
• Base Stations for Evolved Universal Terrestrial Radio Access (E-UTRA).
This radio equipment type is capable of operating in all or any part of the operating bands given in table 1-1.
Table 1-1: E-UTRA Base Station operating bands
E-UTRA band Direction of transmission E-UTRA Base Station operating bands
1 Transmit 2 110 MHz to 2 170 MHz
Receive 1 920 MHz to 1 980 MHz
3 Transmit 1 805 MHz to 1 880 MHz
Receive 1 710 MHz to 1 785 MHz
7 Transmit 2 620 MHz to 2 690 MHz
Receive 2 500 MHz to 2 570 MHz
8 Transmit 925 MHz to 960 MHz
Receive 880 MHz to 915 MHz
20 Transmit 791 MHz to 821 MHz
Receive 832 MHz to 862 MHz
33 Transmit and Receive 1 900 MHz to 1 920 MHz
34 Transmit and Receive 2 010 MHz to 2 025 MHz
38 Transmit and Receive 2 570 MHz to 2 620 MHz
The present document covers requirements for E-UTRA Base Stations for Release 8 and 9.
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), article 3.2,
which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 908-1 (V5.2.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Base Stations (BS), Repeaters and User Equipment (UE) for IMT-2000 Third-Generation cellular
networks; Part 1: Harmonized EN for IMT-2000, introduction and common requirements,
covering the essential requirements of article 3.2 of the R&TTE Directive".
ETSI
9 Draft ETSI EN 301 908-14 V5.1.1 (2010-07)
[2] ETSI TS 136 141 (V9.4.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base
Station (BS) conformance testing (3GPP TS 36.141 version 9.4.0 Release 9)".
[3] Void.
[4] ITU-R Recommendation SM.329-10 (2003): "Unwanted emissions in the spurious domain".
[5] ETSI TS 125 104 (V9.4.0): "Universal Mobile Telecommunications System (UMTS); Base
Station (BS) radio transmission and reception (FDD) (3GPP TS 25.104 version 9.4.0 Release 9)".
[6] ETSI TS 125 105 (V9.1.0): "Universal Mobile Telecommunications System (UMTS); Base
Station (BS) radio transmission and reception (TDD) (3GPP TS 25.105 version 9.1.0 Release 9)".
[7] ETSI TS 136 104 (V9.4.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base
Station (BS) radio transmission and reception (3GPP TS 36.104 version 9.4.0 Release 9)".
[8] ETSI TS 125 141 (V9.4.0): ): "Universal Mobile Telecommunications System (UMTS); Base
Station (BS) conformance testing (FDD) (3GPP TS 25.141 version 9.4.0 Release 9)".
[9] ETSI EN 301 908-18 (V5.2.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Base Stations (BS), Repeaters and User Equipment (UE) for IMT-2000 Third-Generation
cellular networks; Part 18: Harmonized EN for E-UTRA, UTRA and GSM/EDGE Multi-Standard
Radio (MSR) Base Station (BS) covering the essential requirements of article 3.2 of the R&TTE
Directive;".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Recommended approach, and possible limits for measurement uncertainty for the measurement of
radiated electromagnetic fields above 1 GHz".
[i.5] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
Base Station class: wide area Base Station, local Area Base Station or home Base Station, as declared by the
manufacturer
carrier: modulated waveform conveying the E-UTRA or UTRA (WCDMA) physical channels
ETSI
10 Draft ETSI EN 301 908-14 V5.1.1 (2010-07)
channel bandwidth: RF bandwidth supporting a single E-UTRA RF carrier with the transmission bandwidth
configured in the uplink or downlink of a cell
NOTE: The channel bandwidth is measured in MHz and is used as a reference for transmitter and receiver RF
requirements.
channel edge: lowest and highest frequency of the E-UTRA carrier, separated by the channel bandwidth
downlink operating band: part of the operating band designated for downlink (BS transmit)
Downlink Reference Symbol (DL RS) power: resource element power of Downlink Reference Symbol
home Base Station: Base Stations characterized by requirements derived from femtocell scenarios
maximum output power: mean power level per carrier of the Base Station measured at the antenna connector in a
specified reference condition
maximum throughput: maximum achievable throughput for a reference measurement channel
mean power: when applied to E-UTRA transmission this is the power measured in the channel bandwidth of the carrier
where the period of measurement shall be at least one subframe (1 ms), unless otherwise stated
local area Base Station: Base Stations characterized by requirements derived from picocell scenarios with a BS to UE
minimum coupling loss equal to 45 dB
multi-carrier transmission configuration: set of one or more contiguous carriers that a BS is able to transmit
simultaneously according to the manufacturer's specification
operating band: frequency range (paired or unpaired) that is defined with a specific set of technical requirements, in
which E-UTRA operates
NOTE: The operating band(s) for an E-UTRA BS is declared by the manufacturer according to the designations
in table 1-1. Operating bands for E-UTRA are designated with Arabic numerals, while the corresponding
operating bands for UTRA are designated with Roman numerals.
output power: mean power of one carrier of the Base Station, delivered to a load with resistance equal to the nominal
load impedance of the transmitter
rated output power: rated output power of the Base Station is the mean power level per carrier that the manufacturer
has declared to be available at the antenna connector
resource block: a physical resource consisting of a number of symbols in the time domain and a number of consecutive
subcarriers spanning 180 kHz in the frequency domain
throughput: number of payload bits successfully received per second for a reference measurement channel in a
specified reference condition
transmission bandwidth: bandwidth of an instantaneous transmission from a UE or BS, measured in Resource Block
units
transmission bandwidth configuration: highest transmission bandwidth allowed for uplink or downlink in a given
channel bandwidth, measured in Resource Block units
transmitter OFF period: time period during which the BS transmitter is not allowed to transmit
transmitter ON period: time period during which the BS transmitter is transmitting data and/or reference symbols,
i.e. data subframes or DwPTS
transmitter transient period: time period during which the transmitter is changing from the OFF period to the ON
period or vice versa
uplink operating band: part of the operating band designated for uplink (BS receive)
wide area Base Station: Base Stations characterized by requirements derived from Macro Cell scenarios with a BS to
UE minimum coupling loss equal to 70 dB
NOTE: This Base Station class has the same requirements as the general purpose Base Station in 3GPP Release 8.
ETSI
11 Draft ETSI EN 301 908-14 V5.1.1 (2010-07)
Channel Bandwidth [MHz]
Transmission Bandwidth Configuration [RB]
Transmission
Bandwidth [RB]
Channel edge
Channel edge
Center subcarrier is not transmitted
In downlink
Active Resource Blocks
Figure 3.1-1: Definition of Channel Bandwidth and Transmission Bandwidth Configuration
for one E-UTRA carrier
3.2 Symbols
For the purposes of the present document, the following symbols apply:
BW Channel bandwidth
Channel
BW Transmission bandwidth configuration, expressed in MHz, where BW = N × 180 kHz in
Config Config RB
the uplink and BWConfig = 15 kHz + N × 180 kHz in the downlink
RB
f Frequency
Δf Separation between the channel edge frequency and the nominal -3 dB point of the measuring
filter closest to the carrier frequency
The largest value of Δf used for defining the requirement
Δf
max
CPICH Êc Common Pilot Channel code power (on the adjacent channel)
F Carrier centre frequency
C
F Filter centre frequency
filter
F Centre frequency of the interfering signal
interferer
f_offset Separation between the channel edge frequency and the centre of the measuring filter
f_offset The maximum value of f_offset used for defining the requirement
max
F The lowest frequency of the downlink operating band
DL_low
F The highest frequency of the downlink operating band
DL_high
F The lowest frequency of the uplink operating band (see table 1-1)
UL_low
F The highest frequency of the uplink operating band (see table 1-1)
UL_high
Ioh Total received power density excluding own Home BS signal
Iuant E-Node B internal logical interface between the implementation specific O&M function and the
RET antennas and TMAs control unit function of the E-Node B
N Transmission bandwidth configuration, expressed in units of Resource Blocks
RB
p Antenna port number
(P ) Power of the signal at antenna connector i
i
(P ) Sum of the power for all antenna connectors
s
P Declared emission level for channel N
EM,N
Pmax Maximum output power
P Reference sensitivity power level
REFSENS
ETSI
Resource block
12 Draft ETSI EN 301 908-14 V5.1.1 (2010-07)
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage Ratio
ACS Adjacent Channel Selectivity
AWGN Additive White Gaussian Noise
B Bottom RF channel
NOTE: For testing purposes.
BS Base Station
BTS Base Transceiver Station
NOTE: For GSM.
BW Bandwidth
CW Continuous Wave
DC Direct Current
DwPTS Downlink part of the special subframe
NOTE: For TDD operation.
DTT Digital Terrestrial Television
EARFCN E-UTRA Absolute Radio Frequency Channel Number
E-TM E-UTRA Test Model
EUT Equipment Under Test
E-UTRA Evolved UMTS Terrestrial Radio Access
FDD Frequency Division Duplex
FRC Fixed Reference Channel
ITU-R International Telecommunication Union - Radiocommunication
M Middle RF channel
NOTE: For testing purposes.
LTE Long Term Evolution, also known as E-UTRA
MIMO Multiple Input Multiple Output
MS Mobile Station
NOTE: For GSM.
RB Resource Block
RF Radio Frequency
RMS Root Mean Square
RRC Root Raised Cosine
RX Receive
T Top RF channel
NOTE: For testing purposes.
TDD Time Division Duplex
TX Transmit
UE User Equipment
UMTS Universal Mobile Telecommunications System
UTRA UMTS Terrestrial Radio Access
ETSI
13 Draft ETSI EN 301 908-14 V5.1.1 (2010-07)
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
For guidance on how a supplier can declare the environmental profile, see annex C.
4.2 Conformance requirements
The requirements in the present document are based on the assumption that the operating band (see table 1-1) is shared
between systems of the IMT-2000 family (for band 3 and 8 also GSM) or systems having compatible characteristics.
4.2.1 Introduction
To meet the essential requirement under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for IMT-2000 Base
Stations (BS), seven essential parameters in addition to those in EN 301 908-1 [1] have been identified. Table 4.2.1-1
provides a cross reference between these seven essential parameters and the corresponding nine technical requirements
for equipment within the scope of the present document.
Table 4.2.1-1: Cross references
Essential parameter Corresponding technical requirements
Spectrum emissions mask 4.2.2 Operating band unwanted emissions
4.2.3 Adjacent Channel Leakage power Ratio (ACLR)
4.2.11 Home BS output power for adjacent channel
protection
Conducted spurious emissions from the transmitter 4.2.4 Transmitter spurious emissions
antenna connector
Accuracy of maximum output power 4.2.5 Base Station maximum output power
Intermodulation attenuation of the transmitter 4.2.6 Transmit intermodulation
Conducted spurious emissions from the receiver 4.2.7 Receiver spurious emissions
antenna connector
Impact of interference on receiver performance 4.2.8 Blocking characteristics
4.2.9 Receiver intermodulation characteristics
Receiver adjacent channel selectivity 4.2.10 Adjacent Channel Selectivity (ACS) and
narrow-band blocking
The supplier shall declare the Base Station class and operating band(s) for the Base Station. The technical requirements
in the present document apply for Base Stations supporting E-UTRA, for the declared Base Station class and operating
band(s) as outlined for each requirement. For a Base Station supporting more than one operating band, conformance
testing for each technical requirement in clause 5 shall be performed for each operating band.
The technical requirements also apply to the BS configurations described in annex B.
For an E-UTRA Wide Area BS additionally conforming to EN 301 908-18 [9], conformance with the technical
requirements listed in table 4.2.1-1 can equally be demonstrated through the corresponding technical requirements and
test suites in EN 301 908-18 [9], as listed in table 4.2.1-2.
When conformance is demonstrated through the test suites in EN 301 908-18 [9] for these technical requirement, the
corresponding test suites in the present document need not be performed.
ETSI
14 Draft ETSI EN 301 908-14 V5.1.1 (2010-07)
Table 4.2.1-2: Alternative technical requirements and test suites in EN 301 908-18 [9] that can equally
be used for demonstrating conformance for Wide Area BS
Technical requirement in Corresponding technical requirements Corresponding test suites
the present document in EN 301 908-18 [9] in EN 301 908-18 [9]
4.2.2 Operating band unwanted 4.2.2 Operating band unwanted 5.3.1 Operating band unwanted
emissions emissions emissions
4.2.3 Adjacent Channel Leakage (See note) (See note)
power Ratio (ACLR)
4.2.4 Transmitter spurious 4.2.4 Transmitter spurious emissions 5.3.3 Transmitter spurious
emissions emissions
4.2.5 Base Station maximum output 4.2.5 Base station maximum output 5.3.4 Base station maximum output
power power power
4.2.6 Transmit intermodulation 4.2.6 Transmit intermodulation 5.3.5 Transmit intermodulation
4.2.7 Receive
...
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.8076(875$IMT cellular networks - Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive - Part 14: Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.060.99Druga oprema za radijske komunikacijeOther equipment for radiocommunicationsICS:Ta slovenski standard je istoveten z:EN 301 908-14 Version 5.2.1SIST EN 301 908-14 V5.2.1:2011en01-junij-2011SIST EN 301 908-14 V5.2.1:2011SLOVENSKI
STANDARD
ETSI ETSI EN 301 908-14 V5.2.1 (2011-05)2
Reference REN/MSG-TFES-008-14 Keywords 3G, 3GPP, cellular, digital, IMT, IMT-2000, mobile, radio, regulation, UMTS, E-UTRA, LTE ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM, TIPHONTM, the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. LTE™ is a Trade Mark of ETSI currently being registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 301 908-14 V5.2.1:2011
ETSI ETSI EN 301 908-14 V5.2.1 (2011-05)3 Contents Intellectual Property Rights . 6 Foreword . 6 Introduction . 7 1 Scope . 8 2 References . 8 2.1 Normative references . 8 2.2 Informative references . 9 3 Definitions, symbols and abbreviations . 9 3.1 Definitions . 9 3.2 Symbols . 11 3.3 Abbreviations . 12 4 Technical requirements specifications . 13 4.1 Environmental profile . 13 4.2 Conformance requirements . 13 4.2.1 Introduction. 13 4.2.2 Operating band unwanted emissions . 14 4.2.2.1 Definition . 14 4.2.2.2 Limits . 15 4.2.2.2.1 Limits for Wide Area BS (Bands 1, 3, 8, 33 and 34) . 15 4.2.2.2.2 Limits for Wide Area BS (Bands 7 and 38). 16 4.2.2.2.3 Limits for Wide Area BS (Band 20) . 17 4.2.2.2.4 Limits for Local Area BS . 17 4.2.2.2.5 Limits for Home BS . 18 4.2.2.2.6 Limits for protection of DTT . 19 4.2.2.2.7 Limits for protection of adjacent band services . 19 4.2.2.3 Conformance . 19 4.2.3 Adjacent Channel Leakage power Ratio (ACLR) . 20 4.2.3.1 Definition . 20 4.2.3.2 Limits . 20 4.2.3.3 Conformance . 21 4.2.4 Transmitter spurious emissions . 21 4.2.4.1 Definition . 21 4.2.4.2 Limits . 22 4.2.4.2.1 Spurious emissions . 22 4.2.4.2.2 Co-existence with other systems . 22 4.2.4.2.3 Protection of the BS receiver of own or different BS . 24 4.2.4.2.4 Co-existence with Home BS operating in other bands . 24 4.2.4.3 Conformance . 24 4.2.5 Base Station maximum output power . 24 4.2.5.1 Definition . 24 4.2.5.2 Limit . 24 4.2.5.3 Conformance . 25 4.2.6 Transmitter intermodulation . 25 4.2.6.1 Definition . 25 4.2.6.2 Limit . 25 4.2.6.3 Conformance . 26 4.2.7 Receiver spurious emissions . 26 4.2.7.1 Definition . 26 4.2.7.2 Limit . 26 4.2.7.3 Conformance . 26 4.2.8 Blocking characteristics . 26 4.2.8.1 Definition . 26 4.2.8.2 Limit . 27 SIST EN 301 908-14 V5.2.1:2011
ETSI ETSI EN 301 908-14 V5.2.1 (2011-05)4 4.2.8.3 Conformance . 28 4.2.9 Receiver intermodulation characteristics . 28 4.2.9.1 Definition . 28 4.2.9.2 Limit . 29 4.2.9.3 Conformance . 31 4.2.10 Adjacent Channel Selectivity (ACS) and narrow-band blocking . 31 4.2.10.1 Definition . 31 4.2.10.2 Limit . 31 4.2.10.3 Conformance . 34 4.2.11 Home BS output power for adjacent UTRA channel protection. 34 4.2.11.1 Definition . 34 4.2.11.2 Limit . 34 4.2.11.3 Conformance . 35 4.2.12 Home BS output power for adjacent E-UTRA channel protection . 35 4.2.12.1 Definition and applicability . 35 4.2.12.2 Limit . 35 4.2.12.3 Conformance . 36 5 Testing for compliance with technical requirements . 36 5.1 Environmental conditions for testing . 36 5.2 Interpretation of the measurement results . 37 5.3 Essential radio test suites . 38 5.3.1 Operating band unwanted emissions . 38 5.3.1.1 Initial conditions . 38 5.3.1.2 Procedure . 38 5.3.2 Adjacent Channel Leakage power Ratio (ACLR) . 38 5.3.2.1 Initial conditions . 38 5.3.2.2 Procedure . 39 5.3.3 Transmitter spurious emissions . 39 5.3.3.1 Initial conditions . 39 5.3.3.2 Procedure . 39 5.3.4 Base Station maximum output power . 39 5.3.4.1 Initial conditions . 39 5.3.4.2 Procedure . 40 5.3.5 Transmitter intermodulation . 40 5.3.5.1 Initial conditions . 40 5.3.5.2 Procedures . 40 5.3.6 Receiver spurious emissions . 41 5.3.6.1 Initial conditions . 41 5.3.6.2 Procedure . 41 5.3.7 Blocking characteristics . 41 5.3.7.1 Initial conditions . 41 5.3.7.2 Procedure . 42 5.3.8 Receiver intermodulation characteristics . 42 5.3.8.1 Initial conditions . 42 5.3.8.2 Procedures . 42 5.3.9 Adjacent Channel Selectivity (ACS) and narrow-band blocking . 42 5.3.9.1 Initial conditions . 42 5.3.9.2 Procedure for Adjacent Channel Selectivity . 43 5.3.9.3 Procedure for narrow-band blocking . 43 5.3.10 Home BS output power for adjacent channel protection . 43 5.3.10.1 Initial conditions . 43 5.3.10.2 Procedure . 43 5.3.11 Home BS output power for adjacent E-UTRA channel protection . 44 5.3.11.1 Initial conditions . 44 5.3.11.2 Procedure . 44 Annex A (normative): HS Requirements and conformance Test specifications Table (HS-RTT) . 46 Annex B (normative): Base Station configurations . 48 B.1 Receiver diversity . 48 SIST EN 301 908-14 V5.2.1:2011
ETSI ETSI EN 301 908-14 V5.2.1 (2011-05)5 B.2 Duplexers . 48 B.3 Power supply options . 48 B.4 Ancillary RF amplifiers . 49 B.5 BS using antenna arrays . 49 B.5.1 Receiver tests . 50 B.5.2 Transmitter tests . 50 B.6 Transmit diversity and MIMO transmission . 50 B.7 BS with integrated Iuant BS modem . 51 Annex C (informative): Environmental profile specification . 52 Annex D (informative): The EN title in the official languages . 53 Annex E (informative): Bibliography . 54 History . 55
ETSI ETSI EN 301 908-14 V5.2.1 (2011-05)6 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group (MSG). The present document has been produced by ETSI in response to mandate M/284 from the European Commission issued under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information in the field of technical standards and regulations. The title and reference to the present document are intended to be included in the publication in the Official Journal of the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2]. See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonised Standards or parts thereof the references of which have been published in the Official Journal of the European Union. The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A. The present document is part 14 of a multi-part deliverable covering the essential requirements under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for Base Stations (BS), Repeaters and User Equipment (UE) for IMT cellular networks, as identified below: Part 1: "Introduction and common requirements"; Part 2: "CDMA Direct Spread (UTRA FDD) User Equipment (UE)"; Part 3: "CDMA Direct Spread (UTRA FDD) Base Stations (BS)"; Part 4: "CDMA Multi-Carrier (cdma2000) User Equipment (UE)"; Part 5: "CDMA Multi-Carrier (cdma2000) Base Stations (BS)"; Part 6: "CDMA TDD (UTRA TDD) User Equipment (UE)"; Part 7: "CDMA TDD (UTRA TDD) Base Stations (BS)"; Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements of article 3.2 of the R&TTE Directive"; Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements of article 3.2 of the R&TTE Directive"; Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of the R&TTE Directive"; Part 11: "CDMA Direct Spread (UTRA FDD) (Repeaters)"; Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential requirements of article 3.2 of the R&TTE Directive"; Part 13: "Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)"; SIST EN 301 908-14 V5.2.1:2011
ETSI ETSI EN 301 908-14 V5.2.1 (2011-05)7 Part 14: "Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)"; Part 15: "Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD Repeaters)"; Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE) covering the essential requirements of article 3.2 of the R&TTE Directive"; Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS) covering the essential requirements of article 3.2 of the R&TTE Directive"; Part 18: "E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Station (BS)"; Part 19: "OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)"; Part 20: "OFDMA TDD WMAN (Mobile WiMAX) TDD Base Station (BS)"; Part 21: "OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)"; Part 22:
"OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)".
National transposition dates Date of adoption of this EN: 12 April 2011 Date of latest announcement of this EN (doa): 31 July 2011 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 January 2012 Date of withdrawal of any conflicting National Standard (dow): 31 January 2013
Introduction The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The modular structure is shown in EG 201 399 [i.3]. SIST EN 301 908-14 V5.2.1:2011
ETSI ETSI EN 301 908-14 V5.2.1 (2011-05)8 1 Scope The present document applies to the following radio equipment type: • Base Station for Evolved Universal Terrestrial Radio Access (E-UTRA). This radio equipment type is capable of operating in all or any part of the operating bands given in table 1-1. Table 1-1: E-UTRA Base Station operating bands E-UTRA band Direction of transmission E-UTRA Base Station operating bands 1 Transmit
2 110 MHz to 2 170 MHz Receive
1 920 MHz to 1 980 MHz 3 Transmit
1 805 MHz to 1 880 MHz
Receive
1 710 MHz to 1 785 MHz
7 Transmit
2 620 MHz to 2 690 MHz
Receive
2 500 MHz to 2 570 MHz
8 Transmit
925 MHz to 960 MHz
Receive
880 MHz to 915 MHz
20 Transmit
791 MHz to 821 MHz Receive
832 MHz to 862 MHz 33 Transmit and Receive 1 900 MHz to 1 920 MHz 34 Transmit and Receive 2 010 MHz to 2 025 MHz 38 Transmit and Receive 2 570 MHz to 2 620 MHz
The present document covers requirements for E-UTRA Base Stations for Release 8 and 9. The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), article 3.2, which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/space radio communications and orbital resources so as to avoid harmful interference". In addition to the present document, other ENs that specify technical requirements in respect of essential requirements under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present document. NOTE: A list of such ENs is included on the web site http://www.newapproach.org. 2 References References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the reference document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee their long term validity. 2.1 Normative references The following referenced documents are necessary for the application of the present document. [1] ETSI EN 301 908-1 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common requirements". [2] ETSI TS 136 141 (V9.6.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base Station (BS) conformance testing (3GPP TS 36.141 version 9.6.0 Release 9)". SIST EN 301 908-14 V5.2.1:2011
ETSI ETSI EN 301 908-14 V5.2.1 (2011-05)9 [3] Void. [4] ITU-R Recommendation SM.329-10 (2003): "Unwanted emissions in the spurious domain". [5] ETSI TS 125 104 (V9.6.0): "Universal Mobile Telecommunications System (UMTS); Base Station (BS) radio transmission and reception (FDD) (3GPP TS 25.104 version 9.6.0 Release 9)". [6] ETSI TS 125 105 (V9.2.0): "Universal Mobile Telecommunications System (UMTS); Base Station (BS) radio transmission and reception (TDD) (3GPP TS 25.105 version 9.2.0 Release 9)". [7] ETSI TS 136 104 (V9.6.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base Station (BS) radio transmission and reception (3GPP TS 36.104 version 9.6.0 Release 9)". [8] ETSI TS 125 141 (V9.6.0): "Universal Mobile Telecommunications System (UMTS); Base Station (BS) conformance testing (FDD) (3GPP TS 25.141 version 9.6.0 Release 9)". [9] ETSI EN 301 908-18 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive; Part 18: E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Station (BS)". [10] ETSI TS 136 211 (V9.1.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Physical channels and modulation (3GPP TS 36.211 version 9.1.0 Release 9)". 2.2 Informative references The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a procedure for the provision of information in the field of technical standards and regulations. [i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity (R&TTE Directive). [i.3] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to the production of Harmonized Standards for application under the R&TTE Directive". [i.4] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Recommended approach, and possible limits for measurement uncertainty for the measurement of radiated electromagnetic fields above 1 GHz". [i.5] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics". 3 Definitions, symbols and abbreviations 3.1 Definitions For the purposes of the present document, the following terms and definitions apply: Base Station class: wide area Base Station, local Area Base Station or home Base Station, as declared by the manufacturer carrier: modulated waveform conveying the E-UTRA or UTRA (WCDMA) physical channels SIST EN 301 908-14 V5.2.1:2011
ETSI ETSI EN 301 908-14 V5.2.1 (2011-05)10 channel bandwidth: RF bandwidth supporting a single E-UTRA RF carrier with the transmission bandwidth configured in the uplink or downlink of a cell NOTE: The channel bandwidth is measured in MHz and is used as a reference for transmitter and receiver RF requirements. channel edge: lowest and highest frequency of the E-UTRA carrier, separated by the channel bandwidth downlink operating band: part of the operating band designated for downlink (BS transmit) Downlink Reference Symbol (DL RS) power: resource element power of Downlink Reference Symbol home Base Station: Base Stations characterized by requirements derived from femtocell scenarios with a BS to UE minimum coupling loss equal to 45 dB local area Base Station: Base Stations characterized by requirements derived from picocell scenarios with a BS to UE minimum coupling loss equal to 45 dB maximum output power: mean power level per carrier of the Base Station measured at the antenna connector in a specified reference condition maximum throughput: maximum achievable throughput for a reference measurement channel mean power: when applied to E-UTRA transmission this is the power measured in the channel bandwidth of the carrier where the period of measurement shall be at least one subframe (1 ms), unless otherwise stated multi-carrier transmission configuration: set of one or more contiguous carriers that a BS is able to transmit simultaneously according to the manufacturer's specification operating band: frequency range (paired or unpaired) that is defined with a specific set of technical requirements, in which E-UTRA operates NOTE: The operating band(s) for an E-UTRA BS is declared by the manufacturer according to the designations in table 1-1. Operating bands for E-UTRA are designated with Arabic numerals, while the corresponding operating bands for UTRA are designated with Roman numerals. output power: mean power of one carrier of the Base Station, delivered to a load with resistance equal to the nominal load impedance of the transmitter rated output power: rated output power of the Base Station is the mean power level per carrier that the manufacturer has declared to be available at the antenna connector resource block: a physical resource consisting of a number of symbols in the time domain and a number of consecutive subcarriers spanning 180 kHz in the frequency domain
throughput: number of payload bits successfully received per second for a reference measurement channel in a specified reference condition transmission bandwidth: bandwidth of an instantaneous transmission from a UE or BS, measured in Resource Block units transmission bandwidth configuration: highest transmission bandwidth allowed for uplink or downlink in a given channel bandwidth, measured in Resource Block units transmitter OFF period: time period during which the BS transmitter is not allowed to transmit transmitter ON period: time period during which the BS transmitter is transmitting data and/or reference symbols, i.e. data subframes or DwPTS transmitter transient period: time period during which the transmitter is changing from the OFF period to the ON period or vice versa uplink operating band: part of the operating band designated for uplink (BS receive) SIST EN 301 908-14 V5.2.1:2011
ETSI ETSI EN 301 908-14 V5.2.1 (2011-05)11 wide area Base Station: Base Stations characterized by requirements derived from Macro Cell scenarios with a BS to UE minimum coupling loss equal to 70 dB NOTE: This Base Station class has the same requirements as the general purpose Base Station in 3GPP Release 8.
Transmission Bandwidth [RB]Transmission Bandwidth Configuration [RB] Channel Bandwidth [MHz] Resource block Channel edge Channel edge Center subcarrier is not transmitted In downlink Active Resource Blocks
Figure 3.1-1: Definition of Channel Bandwidth and Transmission Bandwidth Configuration for one E-UTRA carrier 3.2 Symbols For the purposes of the present document, the following symbols apply: BWChannel Channel bandwidth BWConfig Transmission bandwidth configuration, expressed in MHz, where BWConfig = NRB × 180 kHz in the uplink and BWConfig = 15 kHz + NRB × 180 kHz in the downlink CPICH Êc Common Pilot Channel code power (on the adjacent channel) CRS Êc Reference Signal received power per resource element
f Frequency Δf Separation between the channel edge frequency and the nominal -3 dB point of the measuring filter closest to the carrier frequency Δfmax The largest value of Δf used for defining the requirement FC Carrier centre frequency Ffilter Filter centre frequency finterferer Centre frequency of the interfering signal f_offset Separation between the channel edge frequency and the centre of the measuring filter f_offsetmax The maximum value of f_offset used for defining the requirement FDL_low The lowest frequency of the downlink operating band FDL_high The highest frequency of the downlink operating band FUL_low The lowest frequency of the uplink operating band (see table 1-1) FUL_high The highest frequency of the uplink operating band (see table 1-1) Ioh Total received power density excluding own Home BS signal Iuant E-Node B internal logical interface between the implementation specific O&M function and the RET antennas and TMAs control unit function of the E-Node B NRB Transmission bandwidth configuration, expressed in units of Resource Blocks DLRBN
The number of downlink resource blocks in the downlink RBscN
The number of subcarriers in a resource block, 12=RBscN SIST EN 301 908-14 V5.2.1:2011
ETSI ETSI EN 301 908-14 V5.2.1 (2011-05)12 p Antenna port number (Pi) Power of the signal at antenna connector i (Ps) Sum of the power for all antenna connectors P10MHz Maximum output Power in 10 MHz PEM,N Declared emission level for channel N Pmax Maximum output power
PREFSENS Reference sensitivity power level 3.3 Abbreviations For the purposes of the present document, the following abbreviations apply: ACLR Adjacent Channel Leakage Ratio
ACS Adjacent Channel Selectivity AWGN Additive White Gaussian Noise B Bottom RF channel NOTE: For testing purposes. BS Base Station BTS Base Transceiver Station NOTE: For GSM. BW Bandwidth CW Continuous Wave DC Direct Current DwPTS Downlink part of the special subframe NOTE: For TDD operation. DTT Digital Terrestrial Television EARFCN E-UTRA Absolute Radio Frequency Channel Number E-TM E-UTRA Test Model EUT Equipment Under Test E-UTRA Evolved UMTS Terrestrial Radio Access ERM EMC and Radio Spectrum Matters FDD Frequency Division Duplex FRC Fixed Reference Channel ITU-R International Telecommunication Union - Radiocommunication M Middle RF channel NOTE: For testing purposes. LTE Long Term Evolution NOTE: Also known as E-UTRA. MIMO Multiple Input Multiple Output MS Mobile Station NOTE: For GSM. MSG Mobile Standards Group MSR Multi-Standard Radio RB Resource Block RF Radio Frequency RMS Root Mean Square RRC Root Raised Cosine RX Receive SIST EN 301 908-14 V5.2.1:2011
ETSI ETSI EN 301 908-14 V5.2.1 (2011-05)13 T Top RF channel NOTE: For testing purposes. TFES Task Force for European Standards for IMT TDD Time Division Duplex TX Transmit UE User Equipment UMTS Universal Mobile Telecommunications System UTRA UMTS Terrestrial Radio Access 4 Technical requirements specifications 4.1 Environmental profile The technical requirements of the present document apply under the environmental profile for operation of the equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of the present document at all times when operating within the boundary limits of the declared operational environmental profile. For guidance on how a supplier can declare the environmental profile, see annex C. 4.2 Conformance requirements The requirements in the present document are based on the assumption that the operating band (see table 1-1) is shared between systems of the IMT-2000 family (for band 3 and 8 also GSM) or systems having compatible characteristics. 4.2.1 Introduction To meet the essential requirement under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for IMT Base Stations (BS), seven essential parameters in addition to those in EN 301 908-1 [1] have been identified. Table 4.2.1-1 provides a cross reference between these seven essential parameters and the corresponding eleven technical requirements for equipment within the scope of the present document. Table 4.2.1-1: Cross references Essential parameter Corresponding technical requirements Spectrum emissions mask 4.2.2 Operating band unwanted emissions 4.2.3 Adjacent Channel Leakage power Ratio (ACLR) 4.2.11 Home BS output power for adjacent UTRA channel protection 4.2.12 Home BS output power for adjacent E-UTRA channel protection Conducted spurious emissions from the transmitter antenna connector 4.2.4 Transmitter spurious emissions Accuracy of maximum output power 4.2.5 Base Station maximum output power Intermodulation attenuation of the transmitter 4.2.6 Transmit intermodulation Conducted spurious emissions from the receiver antenna connector 4.2.7 Receiver spurious emissions Impact of interference on receiver performance 4.2.8 Blocking characteristics 4.2.9 Receiver intermodulation characteristics Receiver adjacent channel selectivity 4.2.10 Adjacent Channel Selectivity (ACS) and narrow-band blocking
ETSI ETSI EN 301 908-14 V5.2.1 (2011-05)14 The supplier shall declare the Base Station class and operating band(s) for the Base Station. The technical requirements in the present document apply for Base Stations supporting E-UTRA, for the declared Base Station class and operating band(s) as outlined for each requirement. For a Base Station supporting more than one operating band, conformance testing for each technical requirement in clause 5 shall be performed for each operating band.
The technical requirements also apply to the BS configurations described in annex B. For an E-UTRA Wide Area BS additionally conforming to EN 301 908-18 [9], conformance with the technical requirements listed in table 4.2.1-1 can equally be demonstrated through the corresponding technical requirements and test suites in EN 301 908-18 [9], as listed in table 4.2.1-2. When conformance is demonstrated through the test suites in EN 301 908-18 [9] for these technical requirement, the corresponding test suites in the present document need not be performed. Table 4.2.1-2: Alternative technical requirements and test suites in EN 301 908-18 [9] that can equally be used for demonstrating conformance for Wide Area BS Technical requirement in
the present document Corresponding technical requirements
in EN 301 908-18 [9] Corresponding test suites
in EN 301 908-18 [9] 4.2.2 Operating band unwanted emissions 4.2.2 Operating band unwanted emissions 5.3.1 Operating band unwanted emissions 4.2.3 Adjacent Channel Leakage power Ratio (ACLR) (See note) (See note) 4.2.4 Transmitter spurious emissions 4.2.4 Transmitter spurious emissions 5.3.3 Transmitter spurious emissions 4.2.5 Base Station maximum output power 4.2.5 Base station maximum output power 5.3.4 Base station maximum output power 4.2.6 Transmit intermodulation 4.2.6 Transmit intermodulation 5.3.5 Transmit intermodulation 4.2.7 Receiver spurious emissions 4.2.7 Receiver spurious emissions 5.3.6 Receiver spurious emissions 4.2.8 Blocking characteristics 4.2.8 In-band blocking 5.3.7 In-band blocking 4.2.9 Out-of-band blocking 5.3.8 Out-of-band blocking 4.2.9 Receiver intermodulation characteristics 4.2.10 Receiver intermodulation characteristics 5.3.9 Receiver intermodulation characteristics 4.2.10 Adjacent Channel Selectivity (ACS) and narrow-band blocking 4.2.11 Narrowband blocking 5.3.10 Narrowband blocking NOTE: Conformance with the E-UTRA ACLR requirement is for an MSR BS demonstrated through the requirement in clause 4.2.3 of the present document and the corresponding test suite in clause 5.3.2.
For a BS declared to support Band 20, the manufacturer shall additionally declare the following quantities associated with the applic
...
