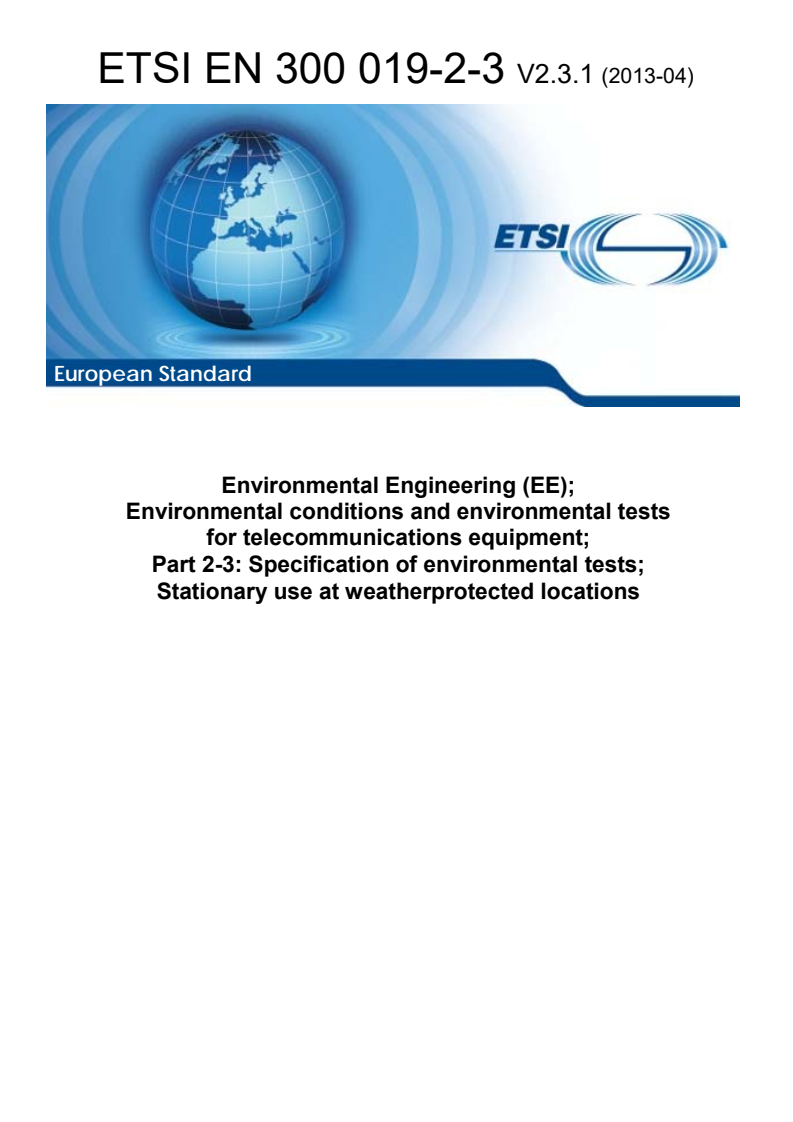

Draft ETSI EN 300 019-2-3 V2.3.1 (2012-12)

European Standard
Environmental Engineering (EE);
Environmental conditions and environmental tests
for telecommunications equipment;
Part 2-3: Specification of environmental tests;
Stationary use at weatherprotected locations

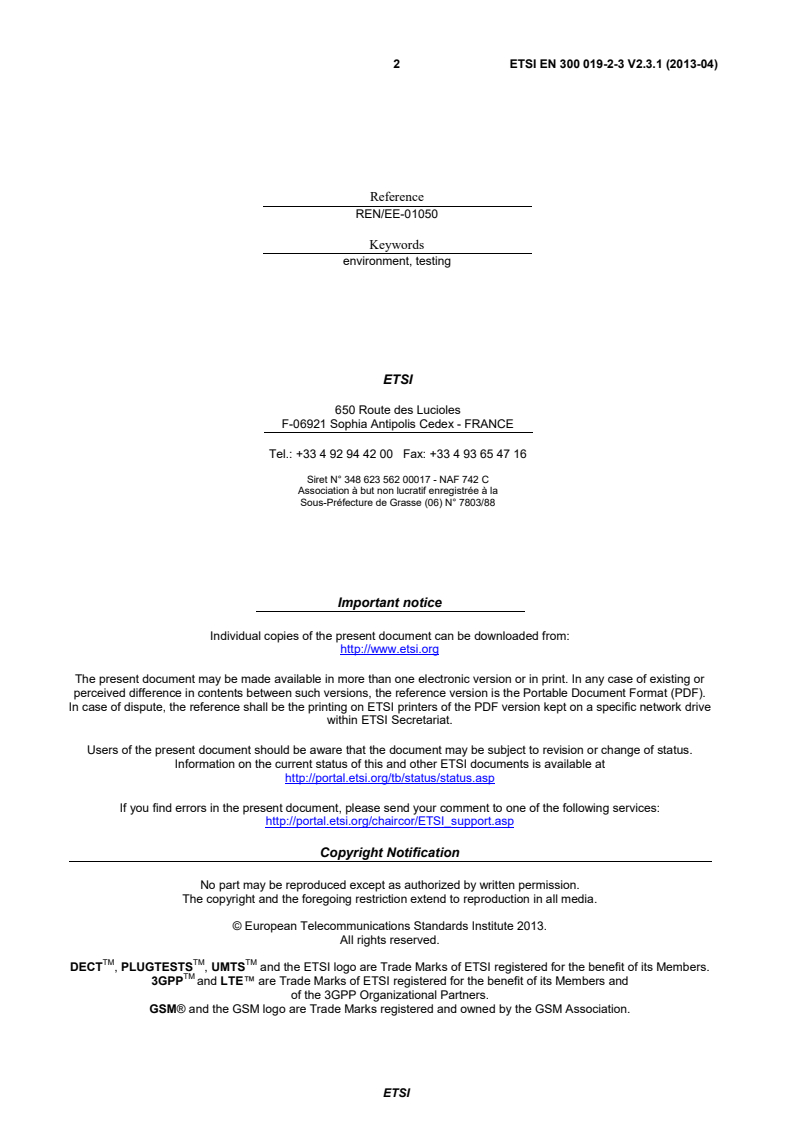

2 Draft ETSI EN 300 019-2-3 V2.3.1 (2012-12)

Reference
REN/EE-01050
Keywords
environment, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2012.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Draft ETSI EN 300 019-2-3 V2.3.1 (2012-12)
Contents
Intellectual Property Rights . 4
Foreword . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 6
3 Environmental test specifications . 6
3.1 Specifications T 3.1 and T 3.1E: Temperature-controlled locations . 7
3.2 Specification T 3.2: Partly temperature-controlled locations . 10
3.3 Specification T 3.3: Not temperature-controlled locations . 13
3.4 Specification T 3.4: Sites with heat-trap . 16
3.5 Specification T 3.5: Sheltered locations . 19
3.6 Specifications T 3.6: Control room locations . 22
4 Earthquake test specification . 25
4.1 Vibration response investigation . 25
4.2 Test conditioning . 26
5 Notes to tables . 27
5.1 General note . 27
5.2 Notes to tables 1 to 12 . 28
Annex A (informative): Bibliography . 30
History . 31

ETSI
4 Draft ETSI EN 300 019-2-3 V2.3.1 (2012-12)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)
which are, or may be, or may become, essential to the present document.
Foreword
This draft European Standard (EN) has been produced by ETSI Technical Committee Environmental Engineering (EE),
and is now submitted for the combined Public Enquiry and Vote phase of the ETSI standards EN Approval Procedure.
The present document is part 2, sub-part 3 of a multi-part deliverable. Full details of the entire series can be found in
part 2, sub-part 0 [3].
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 6 months after doa

ETSI
5 Draft ETSI EN 300 019-2-3 V2.3.1 (2012-12)
1 Scope
The present document specifies test severities and methods for the verification of the required resistibility of equipment
according to the relevant environmental class.
The tests in the present document apply to stationary use of equipment at weatherprotected locations covering the
environmental conditions stated in EN 300 019-1-3 [1].
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 300 019-1-3: "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 1-3: Classification of environmental
conditions; Stationary use at weatherprotected locations".
[2] IEC 60068-2-1 (03/2007): "Environmental testing, Part 2-1: Tests - Test A: Cold".
[3] ETSI EN 300 019-2-0: "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 2-0: Specification of environmental
tests; Introduction".
[4] IEC 60721-3-3: "Classification of environmental conditions - Part 3: Classification of groups of
environmental parameters and their severities - Section 3: Stationary use at weatherprotected
locations".
[5] Void.
[6] IEC 60068-2-2 (07/2007): "Environmental testing, Part 2-2: Tests - Test B: Dry heat".
[7] IEC 60068-2-14 (01/2009): "Environmental testing - Part 2-14: Tests - Test N: Change of
temperature".
[8] IEC 60068-2-78 (08/2001): "Environmental testing - Part 2-78: Tests - Test Cab: Damp heat,
steady state".
[9] IEC 60068-2-30 (08/2005): "Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic
(12 h + 12 h cycle)".
[10] IEC 60068-2-64 (04/2008): "Environmental testing - Part 2-64: Tests - Test Fh: Vibration,
broadband random and guidance".
[11] IEC 60068-2-27 (02/2008): "Environmental testing - Part 2-27: Tests - Test Ea and guidance:
Shock".
[12] IEC 60068-2-6 (12/2007): "Environmental testing - Part 2-6: Tests - Test Fc: Vibration
(sinusoidal)".
ETSI
6 Draft ETSI EN 300 019-2-3 V2.3.1 (2012-12)
[13] IEC 60068-2-57 (11/1999): "Environmental testing - Part 2-57: Tests - Test Ff: Vibration - Time-
history method".
[14] IEC 60068-2-68 (8/1994): "Environmental testing - Part 2: Tests - Test L: Dust and sand".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
Not applicable.
3 Environmental test specifications
The detailed descriptions of the environmental conditions are in clauses 4 and 5 of EN 300 019-1-3 [1].
EN 300 019-2-0 [3] forms a general overview of part 2 of the present document.
The equipment under test is assumed to be in its operational state throughout the test conditions described in this part
unless otherwise stated. The required performance before, during and after the test needs to be specified in the product
specification. Input and load conditions of the equipment shall be chosen to obtain full utilization of the equipment
under test. The heat dissipation shall be maximized, except for the steady state, low temperature test, where it shall be
minimized.
ETSI
7 Draft ETSI EN 300 019-2-3 V2.3.1 (2012-12)
3.1 Specifications T 3.1 and T 3.1E: Temperature-controlled locations
Specification T 3.1: Temperature-controlled locations - normal operating conditions.
This specification applies to permanently temperature-controlled enclosed locations where humidity is usually not controlled. See tables 1 and 2.
Table 1: Test specification T 3.1: Temperature-controlled locations - climatic tests
Environmental parameter Environmental Environmental test specification T3.1: In-use,
Class 3.1 Temperature-controlled locations
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity
Low (°C) +5 +5 16 h IEC 60068-2-1 [2] Ab/Ad: Cold 1
High (°C) +40 +40 or +50 16 h IEC 60068-2-2 [6] Bb/Bd: Dry heat 2
Air temperature
Change (°C) +25/+40 half cycle IEC 60068-2-14 [7] Nb: Change of 3
(°C/min) 0,5 0,5 t = 3 h temperature
low (%) 5 none  4
high (%) 85 85 4 d IEC 60068-2-78 [8] Cab: Damp heat 5
Relative
(°C) +30 steady state
Humidity
condensation no
1 none  4
low (g/m )
Absolute
25   7
high (g/m )
low (kPa) 70 none  8
Pressure
Air high (kPa) 106 none  8
Speed (m/s) 5,0 none  4
intensity no
Rain
low temperature no
Water
Other sources no
Icing & frosting no
Solar 700   10
(W/m )
Radiation
Heat 600   11
(W/m )
ETSI
8 Draft ETSI EN 300 019-2-3 V2.3.1 (2012-12)
Environmental parameter Environmental Environmental test specification T3.1: In-use,
Class 3.1 Temperature-controlled locations
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity (see clause 5)
0,3/1,0 none  12
SO (mg/m )
Sulphur
0,1/0,5 none  12
HS (mg/m )
salt mist sea and road salt none  12
0,1/0,3 none  12
Chlorine Cl (mg/m )
0,1/0,5 none  12
HCI (mg/m )
Chemically active substances
0,5/1,0 none  12
NO (mg/m )
x
Nitrogen
1,0/3,0 none  12
NH (mg/m )
3 0,01/0,03 none  12
Hydrogen fluoride HF
(mg/m )
Ozone O 3
0,05/0,1 none  12
3 (mg/m )
sedimentation 1,5 none  12
Dust (mg/(m h))
Mechanically active substances
0,2 none  13
suspension (mg/m )
Sand 30 none  13
(mg/m )
Micro organisms negligible
Flora and fauna
Rodents, insects negligible
NOTE 1: no = this condition does not occur in this class.
NOTE 2: none = verification is required only in special cases.
NOTE 3: n = number of note, see clause 5.

Table 2: Test specification T 3.1: Temperature-controlled locations - mechanical tests
Environmental parameter Environmental Environmental test specification T 3.1: In-use,
Class 3.1 Temperature-controlled locations
Type Parameter Detail Characteristic Test severity Duration Reference Method Notes
parameter severity
Vibration Sinusoidal displacement (mm) 0,3   15
1,0 none
acceleration (m/s )
2-9 9-200
frequency range (Hz)
axes of vibration
Shocks Shocks shock spectrum Type L half sine IEC 60068-2-27 Ea: Shock 18
duration (ms) 22 11 [11]
40 30
acceleration (m/s )
3 in each
number of shocks
6 direction
direction of shocks
NOTE 1: none = verification is required only in special cases.
NOTE 2: n = number of note, see clause 5.

ETSI
9 Draft ETSI EN 300 019-2-3 V2.3.1 (2012-12)
Specification T 3.1E: Temperature-controlled locations - exceptional operating conditions.
This specification applies to permanently temperature-controlled locations where humidity is usually not controlled. The reference class is the same as for T 3.1, but the test
specification relates to reduced performance requirements. See table 3.
Table 3: Test specification T 3.1E: Temperature-controlled locations, exceptional operating conditions - climatic tests
Environmental parameter Environmental Environmental test specification T 3.1E: In-use,
Condition 3.1E Temperature-controlled locations - Exceptional.
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity
Low (°C) -5 -5 16 h IEC 60068-2-1 [2] Ab/Ad: Cold 1
High (°C) +45 +45 or +55 16 h IEC 60068-2-2 [6] Bb/Bd: Dry heat 2
Air
Change (°C) +25/+45 half cycle IEC 60068-2-14 [7] Nb: Change of 3
temperature
(°C/min) 0,5 0,5 t = 3 h temperature
low (%) 5 none  4
high (%) 90 93 4 d IEC 60068-2-78 [8] Cab: Damp heat 5
Relative
(°C) +30 steady state
Humidity
condensation no
1 none  4
low (g/m )
Absolute
3 25   7
high (g/m )
Solar 700   10
(W/m )
Radiation
Heat 600   11
(W/m )
NOTE 1: no = this condition does not occur in this class.
NOTE 2: none = verification is required only in special cases.
NOTE 3: n = number of note, see clause 5.

ETSI
10 Draft ETSI EN 300 019-2-3 V2.3.1 (2012-12)
3.2 Specification T 3.2: Partly temperature-controlled locations
This specification applies to enclosed locations having neither temperature nor humidity control, but where heating may be used to avoid low temperatures. The building
construction avoids extremely high temperatures. See tables 4 and 5.
Table 4: Test specification T 3.2: Partly temperature-controlled locations - climatic tests
Environmental parameter Environmental Environmental test specification T3.2: In-use,
Class 3.2 Partly temperature-controlled locations
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity
Low (°C) -5 -5 16 h IEC 60068-2-1 [2] Ab/Ad: Cold 1
High (°C) +45 +45 or +55 16 h IEC 60068-2-2 [6] Bb/Bd: Dry heat 2
Air
(°C) +25/+55 or half cycle IEC 60068-2-14 [7] Nb: Change of 3
temperature
Change  +25/+45 t = 3 h temperature
(°C/min) 0,5 0,5
low (%) 5 none  4
high (%) 95 93 4 d IEC 60068-2-78 [8] Cab: Damp 5
(°C) +30 steady state heat
Relative
condensation yes  IEC 60068-2-30 [9] Db: Damp heat 6
Humidity
(°C) +30° 1 cycle cyclic
(%) 90-100 Variant 1
1 none  4
low (g/m )
Absolute
29   7
high (g/m )
low (kPa) 70 none  8
Pressure
Air high (kPa) 106 none  8
Speed (m/s) 5,0 none  4
intensity no
Rain
low temperature no
Water
Other sources no
Icing & frosting yes   4
2 700   10
Solar
(W/m )
Radiation
600   11
Heat
(W/m )
ETSI
11 Draft ETSI EN 300 019-2-3 V2.3.1 (2012-12)
Environmental parameter Environmental Environmental test specification T3.2: In-use,
Class 3.2 Partly temperature-controlled locations
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity
0,3/1,0 none  12
SO (mg/m )
Sulphur
0,1/0,5 none  12
HS (mg/m )
salt mist sea and road salt none  12
0,1/0,3 none  12
Chlorine Cl (mg/m )
Chemically
0,1/0,5 none  12
HCl (mg/m )
active
0,5/5,0 none  12
NO (mg/m )
substances
x
Nitrogen
1,0/3,0 none  12
NH (mg/m )
Hydrogen fluoride 3 0,01/0,03 none  12
(mg/m )
HF
Ozone O 0,05/0,1 none  12
(mg/m )
sedimentation 15   13
Mechanically 2
(mg/(m h))
Dust
active
0,4   13
suspension (mg/m )
substances
3 300   13
Sand
(mg/m )
Flora and Micro organisms mould, fungus, etc. none  14
fauna
Rodents, insects rodents, etc. none  14
NOTE 1: no = this condition does not occur in this class.
NOTE 2: none = verification is required only in special cases.
NOTE 3: n = number of note, see clause 5.

ETSI
12 Draft ETSI EN 300 019-2-3 V2.3.1 (2012-12)
Table 5: Test specification T 3.2: Partly temperature-controlled locations - mechanical tests
Environmental parameter Environmental Environmental test specification T 3.2: In-use,
Class 3.2 Partly temperature-controlled locations
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity
velocity (mm/s) 5 IEC 60068-2-6 [12] Fc: Vibration 16
displacement (mm) 1,5  (sinusoidal)
2     5         2
Sinusoidal
acceleration (m/s )
2-9 9-200 5-62 62-200 3 x 5 sweep cycles
frequency range (Hz)
axes of vibration
Vibration
2 3
no 0,02 IEC 60068-2-64 [10] Fh: Vibration, 17
ASD (m /s )
+12 -12 3 x 30 minutes broad-band

(dB/oct)
5-10 10-50 50-100 random
Random
frequency range (Hz)
3 (digital control)
axes of vibration
shock spectrum Type L half sine IEC 60068-2-27 [11] Ea: Shock 18
duration (ms) 22 11
40 30
Shocks Shocks
acceleration (m/s )
3 in each direction
number of shocks
directions of shocks
NOTE: n = number of note, see clause 5.

ETSI
13 Draft ETSI EN 300 019-2-3 V2.3.1 (2012-12)
3.3 Specification T 3.3: Not temperature-controlled locations
This specification applies to weatherprotected or partially weatherprotected locations having neither temperature nor humidity control. See tables 6 and 7.
Table 6: Test specification T 3.3: Not temperature-controlled locations - climatic tests
Environmental parameter Environmental Environmental test specification T3.3: In-use,
Class 3.3 Not temperature-controlled locations
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity
Low (°C) -25 -25 16 h IEC 60068-2-1 [2] Ab/Ad: Cold 1
High (°C) +55 +55 or +70 16 h IEC 60068-2-2 [6] Bb/Bd: Dry heat 2
Air
(°C) -5/+45 1 cycle IEC 60068-2-14 [7] Nb: Change of 3
temperature
Change
(°C/min) 0,5 0,5 t = 3 h temperature
low (%) 10 none  4
high (%) 100 93 4 d IEC 60068-2-78 [8] Cab: Damp heat 5
(°C) +30 steady state
Relative
condensation yes  IEC 60068-2-30 [9] Db: Damp heat 6

(%) 90-100 2 cycles cyclic Variant 1
Humidity
(°C) +30
0,5 none  4
low (g/m )
Absolute
29   7
high (g/m )
low (kPa) 70 none  8
Pressure
Air high (kPa) 106 none  8
Speed (m/s) 5,0 none  4
intensity wind driven   9
Rain
low temperature no
Water
Other sources dripping water   4
Icing & frosting yes   4
1 200   10
Solar
(W/m )
Radiation
600   11
Heat
(W/m )
ETSI
14 Draft ETSI EN 300 019-2-3 V2.3.1 (2012-12)
Environmental parameter Environmental Environmental test specification T3.3: In-use,
Class 3.3 Not temperature-controlled locations
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity
0,3/1,0 none  12
SO (mg/m )
Sulphur
0,1/0,5 none  12
HS (mg/m )
salt mist sea and road salt none  12
0,1/0,3 none  12
Chlorine Cl (mg/m )
Chemically
0,1/0,5 none  12
HCl (mg/m )
active
0,5/1,0 none  12
NO (mg/m )
substances
x
Nitrogen
1,0/3,0 none  12
NH (mg/m )
Hydrogen fluoride 3 0,01/0,03 none  12
(mg/m )
HF
Ozone O 0,05/0,1 none  12
(mg/m )
15   13
sedimentation (mg/(m h))
Mechanically
Dust
0,4   13
active
suspension (mg/m )
substances
300   13
Sand
(mg/m )
Micro organisms mould, fungus, etc. none  14
Flora and
fauna Rodents, insects rodents, etc. none  14
NOTE 1: no = this condition does not occur in this class.
NOTE 2: none = verification is required only in special cases.
NOTE 3: n = number of note, see clause 5.

ETSI
15 Draft ETSI EN 300 019-2-3 V2.3.1 (2012-12)
Table 7: Test specification T 3.3: Not temperature-controlled locations - mechanical tests
Environmental parameter Environmental Environmental test specification T 3.3: In-use,
Class 3.3 Not temperature-controlled locations
Type Parameter Detail Characteristic Test severity Duration Reference Method Notes
parameter severity
velocity (mm/s) 5 IEC 60068-2-6 [12] Fc: Vibration 16
displacement (mm) 1,5  (sinusoidal)
2        5           2
Vibration Sinusoidal
acceleration (m/s )
2-9 9-200 5-62 62-200 3 x 5 sweep
frequency range (Hz)
3 cycles
axes of vibration
2 3
no 0,02 IEC 60068-2-64 Fh: Vibration, 17
ASD (m /s )
+12 -12 3 x 30 minutes [10] broad-band
(dB/oct)
Random 5-10 10-50 50-100 random
frequency range (Hz)
3 (digital
axes of vibration
control)
sho
...

ETSI EN 300 019-2-3 V2.3.1 (2013-04)

European Standard
Environmental Engineering (EE);
Environmental conditions and environmental tests
for telecommunications equipment;
Part 2-3: Specification of environmental tests;
Stationary use at weatherprotected locations

2 ETSI EN 300 019-2-3 V2.3.1 (2013-04)

Reference
REN/EE-01050
Keywords
environment, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2013.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 300 019-2-3 V2.3.1 (2013-04)
Contents
Intellectual Property Rights . 4
Foreword . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 6
3 Environmental test specifications . 6
3.1 Specifications T 3.1 and T 3.1E: Temperature-controlled locations . 7
3.2 Specification T 3.2: Partly temperature-controlled locations . 10
3.3 Specification T 3.3: Not temperature-controlled locations . 13
3.4 Specification T 3.4: Sites with heat-trap . 16
3.5 Specification T 3.5: Sheltered locations . 19
3.6 Specifications T 3.6: Control room locations . 22
4 Earthquake test specification . 25
4.1 Vibration response investigation . 25
4.2 Test conditioning . 26
5 Notes to tables . 27
5.1 General note . 27
5.2 Notes to tables 1 to 12 . 28
Annex A (informative): Bibliography . 30
History . 31

ETSI
4 ETSI EN 300 019-2-3 V2.3.1 (2013-04)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)
which are, or may be, or may become, essential to the present document.
Foreword
This European Standard (EN) has been produced by ETSI Technical Committee Environmental Engineering (EE).
The present document is part 2, sub-part 3 of a multi-part deliverable. Full details of the entire series can be found in
part 2, sub-part 0 [3].
National transposition dates
Date of adoption of this EN: 9 April 2013
Date of latest announcement of this EN (doa): 31 July 2013
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 January 2014
Date of withdrawal of any conflicting National Standard (dow): 31 January 2014

ETSI
5 ETSI EN 300 019-2-3 V2.3.1 (2013-04)
1 Scope
The present document specifies test severities and methods for the verification of the required resistibility of equipment
according to the relevant environmental class.
The tests in the present document apply to stationary use of equipment at weatherprotected locations covering the
environmental conditions stated in EN 300 019-1-3 [1].
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 300 019-1-3: "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 1-3: Classification of environmental
conditions; Stationary use at weatherprotected locations".
[2] IEC 60068-2-1 (03/2007): "Environmental testing, Part 2-1: Tests - Test A: Cold".
[3] ETSI EN 300 019-2-0: "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 2-0: Specification of environmental
tests; Introduction".
[4] IEC 60721-3-3: "Classification of environmental conditions - Part 3: Classification of groups of
environmental parameters and their severities - Section 3: Stationary use at weatherprotected
locations".
[5] Void.
[6] IEC 60068-2-2 (07/2007): "Environmental testing, Part 2-2: Tests - Test B: Dry heat".
[7] IEC 60068-2-14 (01/2009): "Environmental testing - Part 2-14: Tests - Test N: Change of
temperature".
[8] IEC 60068-2-78 (08/2001): "Environmental testing - Part 2-78: Tests - Test Cab: Damp heat,
steady state".
[9] IEC 60068-2-30 (08/2005): "Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic
(12 h + 12 h cycle)".
[10] IEC 60068-2-64 (04/2008): "Environmental testing - Part 2-64: Tests - Test Fh: Vibration,
broadband random and guidance".
[11] IEC 60068-2-27 (02/2008): "Environmental testing - Part 2-27: Tests - Test Ea and guidance:
Shock".
[12] IEC 60068-2-6 (12/2007): "Environmental testing - Part 2-6: Tests - Test Fc: Vibration
(sinusoidal)".
ETSI
6 ETSI EN 300 019-2-3 V2.3.1 (2013-04)
[13] IEC 60068-2-57 (11/1999): "Environmental testing - Part 2-57: Tests - Test Ff: Vibration - Time-
history method".
[14] IEC 60068-2-68 (8/1994): "Environmental testing - Part 2: Tests - Test L: Dust and sand".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
Not applicable.
3 Environmental test specifications
The detailed descriptions of the environmental conditions are in clauses 4 and 5 of EN 300 019-1-3 [1].
EN 300 019-2-0 [3] forms a general overview of part 2 of the present document.
The equipment under test is assumed to be in its operational state throughout the test conditions described in this part
unless otherwise stated. The required performance before, during and after the test needs to be specified in the product
specification. Input and load conditions of the equipment shall be chosen to obtain full utilization of the equipment
under test. The heat dissipation shall be maximized, except for the steady state, low temperature test, where it shall be
minimized.
ETSI
7 ETSI EN 300 019-2-3 V2.3.1 (2013-04)
3.1 Specifications T 3.1 and T 3.1E: Temperature-controlled locations
Specification T 3.1: Temperature-controlled locations - normal operating conditions.
This specification applies to permanently temperature-controlled enclosed locations where humidity is usually not controlled. See tables 1 and 2.
Table 1: Test specification T 3.1: Temperature-controlled locations - climatic tests
Environmental parameter Environmental Environmental test specification T3.1: In-use,
Class 3.1 Temperature-controlled locations
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity
Low (°C) +5 +5 16 h IEC 60068-2-1 [2] Ab/Ad: Cold 1
High (°C) +40 +40 or +50 16 h IEC 60068-2-2 [6] Bb/Bd: Dry heat 2
Air temperature
Change (°C) +25/+40 half cycle IEC 60068-2-14 [7] Nb: Change of 3
(°C/min) 0,5 0,5 t = 3 h temperature
low (%) 5 none  4
high (%) 85 85 4 d IEC 60068-2-78 [8] Cab: Damp heat 5
Relative
(°C) +30 steady state
Humidity
condensation no
1 none  4
low (g/m )
Absolute
25   7
high (g/m )
low (kPa) 70 none  8
Pressure
Air high (kPa) 106 none  8
Speed (m/s) 5,0 none  4
intensity no
Rain
low temperature no
Water
Other sources no
Icing & frosting no
Solar 700   10
(W/m )
Radiation
Heat 600   11
(W/m )
ETSI
8 ETSI EN 300 019-2-3 V2.3.1 (2013-04)
Environmental parameter Environmental Environmental test specification T3.1: In-use,
Class 3.1 Temperature-controlled locations
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity (see clause 5)
0,3/1,0 none  12
SO (mg/m )
Sulphur
0,1/0,5 none  12
HS (mg/m )
salt mist sea and road salt none  12
0,1/0,3 none  12
Chlorine Cl (mg/m )
0,1/0,5 none  12
HCI (mg/m )
Chemically active substances
0,5/1,0 none  12
NO (mg/m )
x
Nitrogen
1,0/3,0 none  12
NH (mg/m )
3 0,01/0,03 none  12
Hydrogen fluoride HF
(mg/m )
Ozone O 3
0,05/0,1 none  12
3 (mg/m )
sedimentation 1,5 none  12
Dust (mg/(m h))
Mechanically active substances
0,2 none  13
suspension (mg/m )
Sand 30 none  13
(mg/m )
Micro organisms negligible
Flora and fauna
Rodents, insects negligible
NOTE 1: no = this condition does not occur in this class.
NOTE 2: none = verification is required only in special cases.
NOTE 3: n = number of note, see clause 5.

Table 2: Test specification T 3.1: Temperature-controlled locations - mechanical tests
Environmental parameter Environmental Environmental test specification T 3.1: In-use,
Class 3.1 Temperature-controlled locations
Type Parameter Detail Characteristic Test severity Duration Reference Method Notes
parameter severity
Vibration Sinusoidal displacement (mm) 0,3   15
1,0 none
acceleration (m/s )
2-9 9-200
frequency range (Hz)
axes of vibration
Shocks Shocks shock spectrum Type L half sine IEC 60068-2-27 [11] Ea: Shock 18
duration (ms) 22 11
40 30
acceleration (m/s )
3 in each
number of shocks
6 direction
direction of shocks
NOTE 1: none = verification is required only in special cases.
NOTE 2: n = number of note, see clause 5.

ETSI
9 ETSI EN 300 019-2-3 V2.3.1 (2013-04)
Specification T 3.1E: Temperature-controlled locations - exceptional operating conditions.
This specification applies to permanently temperature-controlled locations where humidity is usually not controlled. The reference class is the same as for T 3.1, but the test
specification relates to reduced performance requirements. See table 3.
Table 3: Test specification T 3.1E: Temperature-controlled locations, exceptional operating conditions - climatic tests
Environmental parameter Environmental Environmental test specification T 3.1E: In-use,
Condition 3.1E Temperature-controlled locations - Exceptional.
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity
Low (°C) -5 -5 16 h IEC 60068-2-1 [2] Ab/Ad: Cold 1
High (°C) +45 +45 or +55 16 h IEC 60068-2-2 [6] Bb/Bd: Dry heat 2
Air
Change (°C) +25/+45 half cycle IEC 60068-2-14 [7] Nb: Change of 3
temperature
(°C/min) 0,5 0,5 t = 3 h temperature
low (%) 5 none  4
high (%) 90 93 4 d IEC 60068-2-78 [8] Cab: Damp heat 5
Relative
(°C) +30 steady state
Humidity
condensation no
1 none  4
low (g/m )
Absolute
3 25   7
high (g/m )
Solar 700   10
(W/m )
Radiation
Heat 600   11
(W/m )
NOTE 1: no = this condition does not occur in this class.
NOTE 2: none = verification is required only in special cases.
NOTE 3: n = number of note, see clause 5.

ETSI
10 ETSI EN 300 019-2-3 V2.3.1 (2013-04)
3.2 Specification T 3.2: Partly temperature-controlled locations
This specification applies to enclosed locations having neither temperature nor humidity control, but where heating may be used to avoid low temperatures. The building
construction avoids extremely high temperatures. See tables 4 and 5.
Table 4: Test specification T 3.2: Partly temperature-controlled locations - climatic tests
Environmental parameter Environmental Environmental test specification T3.2: In-use,
Class 3.2 Partly temperature-controlled locations
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity
Low (°C) -5 -5 16 h IEC 60068-2-1 [2] Ab/Ad: Cold 1
High (°C) +45 +45 or +55 16 h IEC 60068-2-2 [6] Bb/Bd: Dry heat 2
Air
(°C) +25/+55 or half cycle IEC 60068-2-14 [7] Nb: Change of 3
temperature
Change  +25/+45 t = 3 h temperature
(°C/min) 0,5 0,5
low (%) 5 none  4
high (%) 95 93 4 d IEC 60068-2-78 [8] Cab: Damp 5
(°C) +30 steady state heat
Relative
condensation yes  IEC 60068-2-30 [9] Db: Damp heat 6
Humidity
(°C) +30° 1 cycle cyclic
(%) 90-100 Variant 1
1 none  4
low (g/m )
Absolute
29   7
high (g/m )
low (kPa) 70 none  8
Pressure
Air high (kPa) 106 none  8
Speed (m/s) 5,0 none  4
intensity no
Rain
low temperature no
Water
Other sources no
Icing & frosting yes   4
2 700   10
Solar
(W/m )
Radiation
600   11
Heat
(W/m )
ETSI
11 ETSI EN 300 019-2-3 V2.3.1 (2013-04)
Environmental parameter Environmental Environmental test specification T3.2: In-use,
Class 3.2 Partly temperature-controlled locations
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity
0,3/1,0 none  12
SO (mg/m )
Sulphur
0,1/0,5 none  12
HS (mg/m )
salt mist sea and road salt none  12
0,1/0,3 none  12
Chlorine Cl (mg/m )
Chemically
0,1/0,5 none  12
HCl (mg/m )
active
0,5/5,0 none  12
NO (mg/m )
substances
x
Nitrogen
1,0/3,0 none  12
NH (mg/m )
Hydrogen fluoride 3 0,01/0,03 none  12
(mg/m )
HF
Ozone O 0,05/0,1 none  12
(mg/m )
sedimentation 15   13
Mechanically 2
(mg/(m h))
Dust
active
0,4   13
suspension (mg/m )
substances
3 300   13
Sand
(mg/m )
Flora and Micro organisms mould, fungus, etc. none  14
fauna
Rodents, insects rodents, etc. none  14
NOTE 1: no = this condition does not occur in this class.
NOTE 2: none = verification is required only in special cases.
NOTE 3: n = number of note, see clause 5.

ETSI
12 ETSI EN 300 019-2-3 V2.3.1 (2013-04)
Table 5: Test specification T 3.2: Partly temperature-controlled locations - mechanical tests
Environmental parameter Environmental Environmental test specification T 3.2: In-use,
Class 3.2 Partly temperature-controlled locations
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity
velocity (mm/s) 5 IEC 60068-2-6 [12] Fc: Vibration 16
displacement (mm) 1,5  (sinusoidal)
2     5         2
Sinusoidal
acceleration (m/s )
2-9 9-200 5-62 62-200 3 x 5 sweep cycles
frequency range (Hz)
axes of vibration
Vibration
2 3
no 0,02 IEC 60068-2-64 [10] Fh: Vibration, 17
ASD (m /s )
+12 -12 3 x 30 minutes broad-band

(dB/oct)
5-10 10-50 50-100 random
Random
frequency range (Hz)
3 (digital control)
axes of vibration
shock spectrum Type L half sine IEC 60068-2-27 [11] Ea: Shock 18
duration (ms) 22 11
40 30
Shocks Shocks
acceleration (m/s )
3 in each direction
number of shocks
directions of shocks
NOTE: n = number of note, see clause 5.

ETSI
13 ETSI EN 300 019-2-3 V2.3.1 (2013-04)
3.3 Specification T 3.3: Not temperature-controlled locations
This specification applies to weatherprotected or partially weatherprotected locations having neither temperature nor humidity control. See tables 6 and 7.
Table 6: Test specification T 3.3: Not temperature-controlled locations - climatic tests
Environmental parameter Environmental Environmental test specification T3.3: In-use,
Class 3.3 Not temperature-controlled locations
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity
Low (°C) -25 -25 16 h IEC 60068-2-1 [2] Ab/Ad: Cold 1
High (°C) +55 +55 or +70 16 h IEC 60068-2-2 [6] Bb/Bd: Dry heat 2
Air
(°C) -5/+45 1 cycle IEC 60068-2-14 [7] Nb: Change of 3
temperature
Change
(°C/min) 0,5 0,5 t = 3 h temperature
low (%) 10 none  4
high (%) 100 93 4 d IEC 60068-2-78 [8] Cab: Damp heat 5
(°C) +30 steady state
Relative
condensation yes  IEC 60068-2-30 [9] Db: Damp heat 6

(%) 90-100 2 cycles cyclic Variant 1
Humidity
(°C) +30
0,5 none  4
low (g/m )
Absolute
29   7
high (g/m )
low (kPa) 70 none  8
Pressure
Air high (kPa) 106 none  8
Speed (m/s) 5,0 none  4
intensity wind driven   9
Rain
low temperature no
Water
Other sources dripping water   4
Icing & frosting yes   4
1 200   10
Solar
(W/m )
Radiation
600   11
Heat
(W/m )
ETSI
14 ETSI EN 300 019-2-3 V2.3.1 (2013-04)
Environmental parameter Environmental Environmental test specification T3.3: In-use,
Class 3.3 Not temperature-controlled locations
Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes
severity
0,3/1,0 none  12
SO (mg/m )
Sulphur
0,1/0,5 none  12
HS (mg/m )
salt mist sea and road salt none  12
0,1/0,3 none  12
Chlorine Cl (mg/m )
Chemically
0,1/0,5 none  12
HCl (mg/m )
active
0,5/1,0 none  12
NO (mg/m )
substances
x
Nitrogen
1,0/3,0 none  12
NH (mg/m )
Hydrogen fluoride 3 0,01/0,03 none  12
(mg/m )
HF
Ozone O 0,05/0,1 none  12
(mg/m )
15   13
sedimentation (mg/(m h))
Mechanically
Dust
0,4   13
active
suspension (mg/m )
substances
300   13
Sand
(mg/m )
Micro organisms mould, fungus, etc. none  14
Flora and
fauna Rodents, insects rodents, etc. none  14
NOTE 1: no = this condition does not occur in this class.
NOTE 2: none = verification is required only in special cases.
NOTE 3: n = number of note, see clause 5.

ETSI
15 ETSI EN 300 019-2-3 V2.3.1 (2013-04)
Table 7: Test specification T 3.3: Not temperature-controlled locations - mechanical tests
Environmental parameter Environmental Environmental test specification T 3.3: In-use,
Class 3.3 Not temperature-controlled locations
Type Parameter Detail Characteristic Test severity Duration Reference Method Notes
parameter severity
velocity (mm/s) 5 IEC 60068-2-6 [12] Fc: Vibration 16
displacement (mm) 1,5  (sinusoidal)
2        5           2
Vibration Sinusoidal
acceleration (m/s )
2-9 9-200 5-62 62-200 3 x 5 sweep
frequency range (Hz)
3 cycles
axes of vibration
2 3
no 0,02 IEC 60068-2-64 [10] Fh: Vibration, 17
ASD (m /s )
+12 -12 3 x 30 minutes broad-band
(dB/oct)
Random
5-10 10-50 50-100 random
frequency range (Hz)
3 (digital control)
axes of vibration
shock spectrum Type L half sine IEC 60068-2-27 [11] Ea: Shock 18
dur
...

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Environmental Engineering (EE) - Environmental conditions and environmental tests for telecommunications equipment - Part 2-3: Specification of environmental tests - Stationary use at weatherprotected locations33.050.01Telekomunikacijska terminalska oprema na splošnoTelecommunication terminal equipment in general19.040Preskušanje v zvezi z okoljemEnvironmental testingICS:Ta slovenski standard je istoveten z:EN 300 019-2-3 Version 2.3.1SIST EN 300 019-2-3 V2.3.1:2013en01-julij-2013SIST EN 300 019-2-3 V2.3.1:2013SLOVENSKI
STANDARD
ETSI EN 300 019-2-3 V2.3.1 (2013-04) Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 2-3: Specification of environmental tests; Stationary use at weatherprotected locations
European Standard SIST EN 300 019-2-3 V2.3.1:2013

ETSI ETSI EN 300 019-2-3 V2.3.1 (2013-04)2
Reference REN/EE-01050 Keywords environment, testing ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: [phone]
Fax: [phone]
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2013. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 300 019-2-3 V2.3.1:2013

ETSI ETSI EN 300 019-2-3 V2.3.1 (2013-04)3 Contents Intellectual Property Rights . 4 Foreword . 4 1 Scope . 5 2 References . 5 2.1 Normative references . 5 2.2 Informative references . 6 3 Environmental test specifications . 6 3.1 Specifications T 3.1 and T 3.1E: Temperature-controlled locations . 7 3.2 Specification T 3.2: Partly temperature-controlled locations . 10 3.3 Specification T 3.3: Not temperature-controlled locations . 13 3.4 Specification T 3.4: Sites with heat-trap . 16 3.5 Specification T 3.5: Sheltered locations . 19 3.6 Specifications T 3.6: Control room locations . 22 4 Earthquake test specification . 25 4.1 Vibration response investigation . 25 4.2 Test conditioning . 26 5 Notes to tables . 27 5.1 General note . 27 5.2 Notes to tables 1 to 12 . 28 Annex A (informative): Bibliography . 30 History . 31
ETSI ETSI EN 300 019-2-3 V2.3.1 (2013-04)4 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://ipr.etsi.org). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (EN) has been produced by ETSI Technical Committee Environmental Engineering (EE). The present document is part 2, sub-part 3 of a multi-part deliverable. Full details of the entire series can be found in part 2, sub-part 0 [3].
National transposition dates Date of adoption of this EN: 9 April 2013 Date of latest announcement of this EN (doa): 31 July 2013 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 January 2014 Date of withdrawal of any conflicting National Standard (dow): 31 January 2014
ETSI ETSI EN 300 019-2-3 V2.3.1 (2013-04)5 1 Scope The present document specifies test severities and methods for the verification of the required resistibility of equipment according to the relevant environmental class. The tests in the present document apply to stationary use of equipment at weatherprotected locations covering the environmental conditions stated in EN 300 019-1-3 [1]. 2 References References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the reference document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. 2.1 Normative references The following referenced documents are necessary for the application of the present document. [1] ETSI EN 300 019-1-3: "Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 1-3: Classification of environmental conditions; Stationary use at weatherprotected locations". [2] IEC 60068-2-1 (03/2007): "Environmental testing, Part 2-1: Tests - Test A: Cold". [3] ETSI EN 300 019-2-0: "Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 2-0: Specification of environmental tests; Introduction". [4] IEC 60721-3-3: "Classification of environmental conditions - Part 3: Classification of groups of environmental parameters and their severities - Section 3: Stationary use at weatherprotected locations". [5] Void. [6] IEC 60068-2-2 (07/2007): "Environmental testing, Part 2-2: Tests - Test B: Dry heat". [7] IEC 60068-2-14 (01/2009): "Environmental testing - Part 2-14: Tests - Test N: Change of temperature". [8] IEC 60068-2-78 (08/2001): "Environmental testing - Part 2-78: Tests - Test Cab: Damp heat, steady state". [9] IEC 60068-2-30 (08/2005): "Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic (12 h + 12 h cycle)". [10] IEC 60068-2-64 (04/2008): "Environmental testing - Part 2-64: Tests - Test Fh: Vibration, broadband random and guidance". [11] IEC 60068-2-27 (02/2008): "Environmental testing - Part 2-27: Tests - Test Ea and guidance: Shock". [12] IEC 60068-2-6 (12/2007): "Environmental testing - Part 2-6: Tests - Test Fc: Vibration (sinusoidal)". SIST EN 300 019-2-3 V2.3.1:2013

ETSI ETSI EN 300 019-2-3 V2.3.1 (2013-04)6 [13] IEC 60068-2-57 (11/1999): "Environmental testing - Part 2-57: Tests - Test Ff: Vibration - Time-history method". [14] IEC 60068-2-68 (8/1994): "Environmental testing - Part 2: Tests - Test L: Dust and sand". 2.2 Informative references The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. Not applicable. 3 Environmental test specifications The detailed descriptions of the environmental conditions are in clauses 4 and 5 of EN 300 019-1-3 [1]. EN 300 019-2-0 [3] forms a general overview of part 2 of the present document. The equipment under test is assumed to be in its operational state throughout the test conditions described in this part unless otherwise stated. The required performance before, during and after the test needs to be specified in the product specification. Input and load conditions of the equipment shall be chosen to obtain full utilization of the equipment under test. The heat dissipation shall be maximized, except for the steady state, low temperature test, where it shall be minimized.SIST EN 300 019-2-3 V2.3.1:2013

ETSI ETSI EN 300 019-2-3 V2.3.1 (2013-04)7 3.1 Specifications T 3.1 and T 3.1E: Temperature-controlled locations Specification T 3.1: Temperature-controlled locations - normal operating conditions. This specification applies to permanently temperature-controlled enclosed locations where humidity is usually not controlled. See tables 1 and 2. Table 1: Test specification T 3.1: Temperature-controlled locations - climatic tests Environmental parameter Environmental Class 3.1 Environmental test specification T3.1: In-use, Temperature-controlled locations Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes Air temperature Low
(°C) +5 +5 16 h IEC 60068-2-1 [2] Ab/Ad: Cold 1 High
(°C) +40 +40 or +50 16 h IEC 60068-2-2 [6] Bb/Bd: Dry heat 2 Change
(°C)
(°C/min)
0,5 +25/+40 0,5 half cycle t1 = 3 h IEC 60068-2-14 [7] Nb: Change of temperature 3 Humidity Relative low (%) 5 none
4 high (%)
(°C) 85 85 +30 4 d IEC 60068-2-78 [8] Cab: Damp heat steady state 5 condensation no
Absolute low (g/m2) 1 none
4 high (g/m2) 25
7 Air Pressure low (kPa) 70 none
8 high (kPa) 106 none
8 Speed
(m/s) 5,0 none
4 Water Rain intensity no
low temperature no
Other sources
no
Icing & frosting
no
Radiation Solar
(W/m2) 700
10 Heat
(W/m2) 600
ETSI ETSI EN 300 019-2-3 V2.3.1 (2013-04)8 Environmental parameter
Environmental Class 3.1 Environmental test specification T3.1: In-use, Temperature-controlled locations Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes (see clause 5) Chemically active substances Sulphur SO2 (mg/m3) 0,3/1,0 none
12 H2S (mg/m3) 0,1/0,5 none
12 Chlorine salt mist sea and road salt none
12 Cl (mg/m3) 0,1/0,3 none
12 HCI (mg/m3) 0,1/0,5 none
12 Nitrogen NOx (mg/m3) 0,5/1,0 none
12 NH3 (mg/m3) 1,0/3,0 none
12 Hydrogen fluoride HF
(mg/m3) 0,01/0,03 none
12 Ozone O3
(mg/m3) 0,05/0,1 none
12 Mechanically active substances Dust sedimentation
(mg/(m2h)) 1,5 none
12 suspension (mg/m3) 0,2 none
13 Sand
(mg/m3) 30 none
13 Flora and fauna Micro organisms negligible
Rodents, insects negligible
NOTE 1: no = this condition does not occur in this class. NOTE 2: none = verification is required only in special cases. NOTE 3: n = number of note, see clause 5.
Table 2: Test specification T 3.1: Temperature-controlled locations - mechanical tests Environmental parameter Environmental Class 3.1 Environmental test specification T 3.1: In-use, Temperature-controlled locations Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes Vibration
Sinusoidal displacement (mm) acceleration (m/s2) frequency range (Hz) axes of vibration 0,3
1,0 2-9 9-200
none
15 Shocks Shocks shock spectrum duration (ms) acceleration (m/s2) number of shocks direction of shocks Type L 22 40 half sine 11 30
3 in each direction IEC 60068-2-27 [11] Ea: Shock 18 NOTE 1: none = verification is required only in special cases. NOTE 2: n = number of note, see clause 5.
ETSI ETSI EN 300 019-2-3 V2.3.1 (2013-04)9 Specification T 3.1E: Temperature-controlled locations - exceptional operating conditions. This specification applies to permanently temperature-controlled locations where humidity is usually not controlled. The reference class is the same as for T 3.1, but the test specification relates to reduced performance requirements. See table 3. Table 3: Test specification T 3.1E: Temperature-controlled locations, exceptional operating conditions - climatic tests Environmental parameter Environmental Condition 3.1E Environmental test specification T 3.1E: In-use, Temperature-controlled locations - Exceptional. Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes Air temperature Low
(°C) -5 -5 16 h IEC 60068-2-1 [2] Ab/Ad: Cold 1 High
(°C) +45 +45 or +55 16 h IEC 60068-2-2 [6] Bb/Bd: Dry heat 2 Change
(°C)
(°C/min)
0,5 +25/+45 0,5 half cycle t1 = 3 h IEC 60068-2-14 [7] Nb: Change of temperature 3 Humidity Relative low (%) 5 none
4 high (%)
(°C) 90 93 +30 4 d IEC 60068-2-78 [8] Cab: Damp heat steady state 5 condensation no
Absolute low (g/m3) 1 none
4 high (g/m3) 25
7 Radiation Solar
(W/m2) 700
10 Heat
(W/m2) 600
11 NOTE 1: no = this condition does not occur in this class. NOTE 2: none = verification is required only in special cases. NOTE 3: n = number of note, see clause 5.
ETSI ETSI EN 300 019-2-3 V2.3.1 (2013-04)10 3.2 Specification T 3.2: Partly temperature-controlled locations This specification applies to enclosed locations having neither temperature nor humidity control, but where heating may be used to avoid low temperatures. The building construction avoids extremely high temperatures. See tables 4 and 5. Table 4: Test specification T 3.2: Partly temperature-controlled locations - climatic tests Environmental parameter Environmental Class 3.2 Environmental test specification T3.2: In-use, Partly temperature-controlled locations Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes Air temperature Low
(°C) -5 -5 16 h IEC 60068-2-1 [2] Ab/Ad: Cold 1 High
(°C) +45 +45 or +55 16 h IEC 60068-2-2 [6] Bb/Bd: Dry heat 2 Change
(°C)
(°C/min)
0,5 +25/+55 or
+25/+45 0,5 half cycle t1 = 3 h IEC 60068-2-14 [7] Nb: Change of temperature 3 Humidity Relative low (%) 5 none
4 high (%)
(°C) 95 93 +30 4 d steady state IEC 60068-2-78 [8] Cab: Damp heat 5 condensation
(°C)
(%) yes
+30° 90-100
1 cycle IEC 60068-2-30 [9] Db: Damp heat cyclic Variant 1 6 Absolute low (g/m3) 1 none
4 high (g/m3) 29
7 Air Pressure low (kPa) 70 none
8 high (kPa) 106 none
8 Speed
(m/s) 5,0 none
4 Water Rain intensity no
low temperature no
Other sources
no
Icing & frosting
yes
4 Radiation Solar
(W/m2) 700
10 Heat
(W/m2) 600
ETSI ETSI EN 300 019-2-3 V2.3.1 (2013-04)11 Environmental parameter Environmental
Class 3.2 Environmental test specification T3.2: In-use, Partly temperature-controlled locations Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes Chemically active substances Sulphur SO2 (mg/m3) 0,3/1,0 none
12 H2S (mg/m3) 0,1/0,5 none
12 Chlorine salt mist sea and road salt none
12 Cl (mg/m3) 0,1/0,3 none
12 HCl (mg/m3) 0,1/0,5 none
12 Nitrogen NOx (mg/m3) 0,5/5,0 none
12 NH3 (mg/m3) 1,0/3,0 none
12 Hydrogen fluoride HF
(mg/m3) 0,01/0,03 none
12 Ozone O3
(mg/m3) 0,05/0,1 none
12 Mechanically active substances Dust sedimentation
(mg/(m2h)) 15
13 suspension (mg/m3) 0,4
13 Sand
(mg/m3) 300
13 Flora and fauna Micro organisms mould, fungus, etc. none
14 Rodents, insects rodents, etc. none
14 NOTE 1: no = this condition does not occur in this class. NOTE 2: none = verification is required only in special cases. NOTE 3: n = number of note, see clause 5.
ETSI ETSI EN 300 019-2-3 V2.3.1 (2013-04)12 Table 5: Test specification T 3.2: Partly temperature-controlled locations - mechanical tests Environmental parameter Environmental Class 3.2 Environmental test specification T 3.2: In-use, Partly temperature-controlled locations Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes Vibration Sinusoidal velocity (mm/s) displacement (mm) acceleration (m/s2) frequency range (Hz) axes of vibration
1,5
5 2-9 9-200 5
2 5-62 62-200 3
3 x 5 sweep cycles IEC 60068-2-6 [12] Fc: Vibration (sinusoidal) 16
Random ASD (m2/s3)
(dB/oct) frequency range (Hz) axes of vibration no 0,02 [phone]-100 3
3 x 30 minutes IEC 60068-2-64 [10] Fh: Vibration, broad-band random (digital control) 17 Shocks Shocks shock spectrum duration (ms) acceleration (m/s2) number of shocks directions of shocks Type L 22 40 half sine 11 30
3 in each direction IEC 60068-2-27 [11] Ea: Shock 18 NOTE: n = number of note, see clause 5.
ETSI ETSI EN 300 019-2-3 V2.3.1 (2013-04)13 3.3 Specification T 3.3: Not temperature-controlled locations This specification applies to weatherprotected or partially weatherprotected locations having neither temperature nor humidity control. See tables 6 and 7. Table 6: Test specification T 3.3: Not temperature-controlled locations - climatic tests Environmental parameter Environmental Class 3.3 Environmental test specification T3.3: In-use, Not temperature-controlled locations Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes Air temperature Low
(°C) -25 -25 16 h IEC 60068-2-1 [2] Ab/Ad: Cold 1 High
(°C) +55 +55 or +70 16 h IEC 60068-2-2 [6] Bb/Bd: Dry heat 2 Change
(°C)
(°C/min)
0,5 -5/+45 0,5 1 cycle t1 = 3 h IEC 60068-2-14 [7] Nb: Change of temperature 3
Humidity
Relative low (%) 10 none
4 high (%)
(°C) 100 93 +30 4 d IEC 60068-2-78 [8] Cab: Damp heat steady state 5 condensation
(%)
(°C) yes
90-100 +30
2 cycles IEC 60068-2-30 [9] Db: Damp heat cyclic Variant 1 6 Absolute low (g/m3) 0,5 none
4 high (g/m3) 29
7 Air Pressure low (kPa) 70 none
8 high (kPa) 106 none
8 Speed
(m/s) 5,0 none
4 Water Rain intensity wind driven
9 low temperature no
Other sources
dripping water
4 Icing & frosting
yes
4 Radiation Solar
(W/m2) 1 200
10 Heat
(W/m2) 600
ETSI ETSI EN 300 019-2-3 V2.3.1 (2013-04)14 Environmental parameter Environmental Class 3.3 Environmental test specification T3.3: In-use, Not temperature-controlled locations Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes Chemically active substances Sulphur SO2 (mg/m3) 0,3/1,0 none
12 H2S (mg/m3) 0,1/0,5 none
12 Chlorine salt mist sea and road salt none
12 Cl (mg/m3) 0,1/0,3 none
12 HCl (mg/m3) 0,1/0,5 none
12 Nitrogen NOx (mg/m3) 0,5/1,0 none
12 NH3 (mg/m3) 1,0/3,0 none
12 Hydrogen fluoride HF
(mg/m3) 0,01/0,03 none
12 Ozone O3
(mg/m3) 0,05/0,1 none
12 Mechanically active substances Dust sedimentation (mg/(m2h)) 15
13 suspension (mg/m3) 0,4
13 Sand
(mg/m3) 300
13 Flora and fauna Micro organisms mould, fungus, etc. none
14 Rodents, insects rodents, etc. none
14 NOTE 1: no = this condition does not occur in this class. NOTE 2: none = verification is required only in special cases. NOTE 3: n = number of note, see clause 5.
ETSI ETSI EN 300 019-2-3 V2.3.1 (2013-04)15 Table 7: Test specification T 3.3: Not temperature-controlled locations - mechanical tests Environmental parameter Environmental Class 3.3 Environmental test specification T 3.3: In-use, Not temperature-controlled locations Type Parameter Detail parameter Characteristic severity Test severity Duration Referen
...
