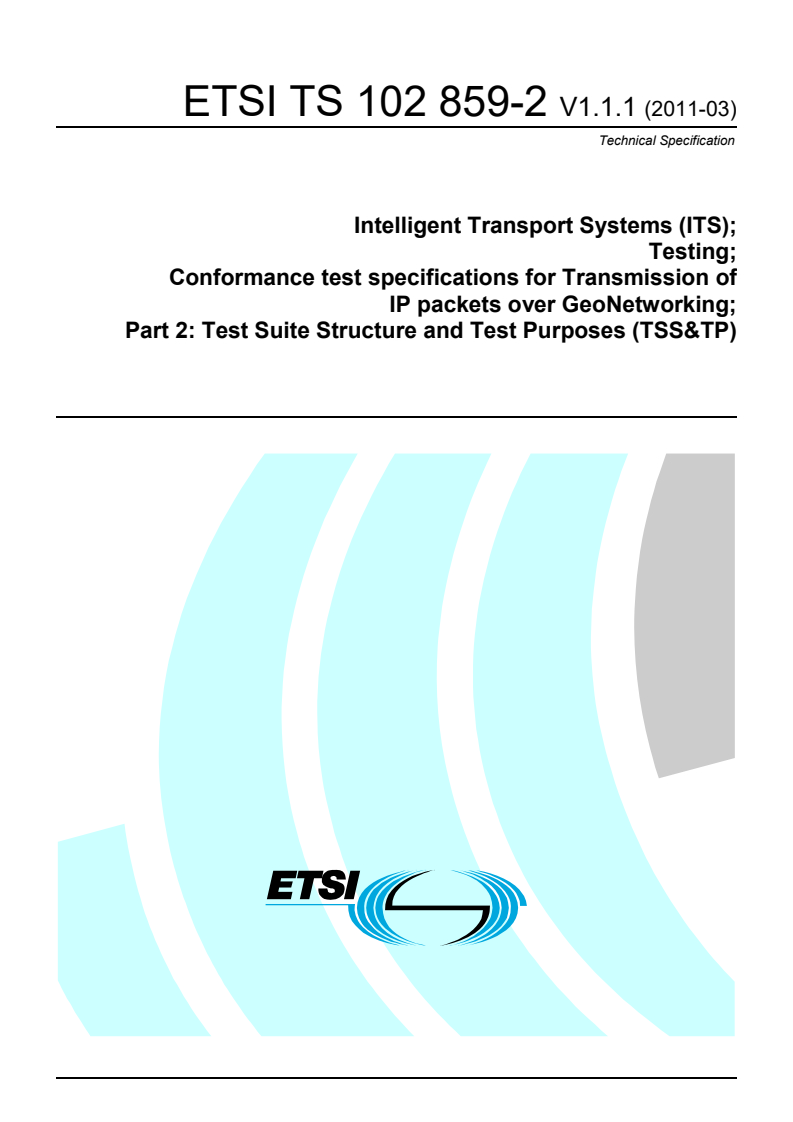

ETSI TS 102 859-2 V1.1.1 (2011-03)

Intelligent Transport Systems (ITS); Testing; Conformance test specifications for Transmission of IP packets over GeoNetworking; Part 2: Test Suite Structure and Test Purposes (TSS&TP)

DTS/ITS-0030009

General Information

• Status: Published
• Publication Date: 29-Mar-2011
• Technical Committee: ITS WG3 - Transport and Network
• Current Stage: 12 - Completion
• Due Date: 30-Mar-2011
• Completion Date: 30-Mar-2011
• Mandate: M/453

Standards Content (Sample)

Technical Specification
Intelligent Transport Systems (ITS);
Testing;
Conformance test specifications for Transmission of
IP packets over GeoNetworking;
Part 2: Test Suite Structure and Test Purposes (TSS&TP)

2 ETSI TS 102 859-2 V1.1.1 (2011-03)

Reference
DTS/ITS-0030009
Keywords
ITS, network, TSS&TP, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI TS 102 859-2 V1.1.1 (2011-03)
Contents
Intellectual Property Rights . 4
Foreword . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Definitions and abbreviations . 6
3.1 Definitions . 6
3.2 Abbreviations . 6
4 Test Suite Structure (TSS) . 6
4.1 Structure for IPV6overGEONET tests . 6
4.2 Test groups . 7
4.2.1 Root . 7
4.2.2 Groups . 7
4.2.3 Sub-groups . 7
4.2.4 Categories . 7
5 Test Purposes (TP) . 7
5.1 Introduction . 7
5.1.1 TP definition conventions . 7
5.1.2 TP Identifier naming conventions . 8
5.1.3 Rules for the behaviour description . 8
5.1.4 Sources of TP definitions . 8
5.2 Test purposes for IPV6overGEONET . 9
5.2.1 Message Generation . 9
5.2.1.1 GVL . 9
5.2.1.2 TVL . 15
5.2.2 Message Reception . 19
5.2.2.1 GVL . 19
5.2.2.2 TVL . 24
5.2.3 Virtual Interface Management . 25
5.2.3.1 New virtual interfaces . 25
5.2.3.2 Expired virtual interfaces . 26
Annex A (informative): Bibliography . 27
History . 28

ETSI
4 ETSI TS 102 859-2 V1.1.1 (2011-03)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Technical Specification (TS) has been produced by ETSI Technical Committee Intelligent Transport System (ITS).
The present document is part 2 of a multi-part deliverable covering Conformance test specifications for Transmission of
IP packets over GeoNetworking as identified below:
Part 1: "Test requirements and Protocol Implementation Conformance Statement (PICS) proforma";
Part 2: "Test Suite Structure and Test Purposes (TSS&TP)";
Part 3: "Abstract Test Suite (ATS) and Protocol Implementation eXtra Information for Testing (PIXIT)".
ETSI
5 ETSI TS 102 859-2 V1.1.1 (2011-03)
1 Scope
The present document provides the Test Suite Structure and Test Purposes (TSS&TP) for Transmission of IP packets
over Geonetworking as defined in TS 102 636-6-1 [1] in compliance with the relevant requirements and in accordance
with the relevant guidance given in ISO/IEC 9646-7 [5].
The ISO standard for the methodology of conformance testing (ISO/IEC 9646-1 [2] and ISO/IEC 9646-2 [3]) as well as
the ETSI rules for conformance testing (ETS 300 406 [6]) are used as a basis for the test methodology.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI TS 102 636-6-1 (V1.1.1): "Intelligent Transport Systems (ITS); Vehicular Communications;
GeoNetworking; Part 6: Internet Integration; Sub-part 1: Transmission of IPv6 Packets over
GeoNetworking Protocols".
[2] ISO/IEC 9646-1 (1994): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 1: General concepts".
[3] ISO/IEC 9646-2 (1994): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 2: Abstract Test Suite specification".
[4] ISO/IEC 9646-6 (1994): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 6: Protocol profile test specification".
[5] ISO/IEC 9646-7 (1995): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 7: Implementation Conformance Statements".
[6] ETSI ETS 300 406 (1995): "Methods for testing and Specification (MTS); Protocol and profile
conformance testing specifications; Standardization methodology".
[7] IEEE 802.3:2005: "IEEE Standard for Information Technology - Telecommunications and
information exchange between systems-Local and metropolitan area networks - Specific
requirements - Part 3: Carrier Sense Multiple Access with Collision Detection (CSMA/CD)
Access Method and Physical Layer Specifications".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI EG 202 798: "Intelligent Transport Systems (ITS); Testing; Framework for conformance and
interoperability testing".
ETSI
6 ETSI TS 102 859-2 V1.1.1 (2011-03)
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
• terms given in TS 102 636-6-1 [1];
• terms given in ISO/IEC 9646-6 [4] and in ISO/IEC 9646-7 [5].
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
BI Invalid Behaviour
BV Valid Behaviour
EVI Expired virtual interfaces
GVL Geographical Virtual Link
HT Header Type
IPv6 Internet Protocol version 6
ITS Intelligent Transportation Systems
IUT Implementation Under Test
LT Lifetime
MG Message Generation
MR Message Reception
NH Next Header
NVI New virtual interfaces
RA Router Advertisment
SAP Service Access Point
TP Test Purposes
TSS Test Suite Structure
TVL Topological Virtual Link
VM Virtual Interface Management
4 Test Suite Structure (TSS)
4.1 Structure for IPV6overGEONET tests
Table 1 shows the IPV6overGEONET Test Suite Structure (TSS) including its subgroups defined for conformance
testing.
Table 1: TSS for IPV6overGEONET
Root Group category
IPv6GEO Message Generation GVL Valid behaviour
TVL Valid behaviour
Message Reception GVL Valid behaviour
TVL Valid behaviour
Virtual Interface Management New virtual interfaces Valid behaviour
Expired virtual interfaces Valid behaviour

The test suite is structured as a tree with the root defined as IPv6GEO. The tree is of rank 3 with the first rank a Group,
the second a Sub-group and the third a Category. The third rank is the standard ISO conformance test categories.
ETSI
7 ETSI TS 102 859-2 V1.1.1 (2011-03)
4.2 Test groups
4.2.1 Root
The root identify the Transmission of IP packets over Geonetworking given in TS 102 636-6-1 [1].
4.2.2 Groups
This level contains three functional areas identified as: Message Generation, Message Reception, and Virtual Interface
Management.
4.2.3 Sub-groups
This level contains four sub-functional areas identified as: GVL, TVL, New virtual interfaces , and Expired virtual
interfaces.
4.2.4 Categories
This level contains the standard ISO conformance test categories limited to the valid behaviour.
5 Test Purposes (TP)
5.1 Introduction
5.1.1 TP definition conventions
The TPs are defined by the rules shown in table 2.
Table 2: TP definition rules
TP Header
TP ID The TP ID is a unique identifier. It shall be specified according to the TP naming
conventions defined in clause 5.1.2.
Test objective Short description of test purpose objective according to the requirements from the base
standard.
Reference The reference indicates the sub-clauses of the reference standard specifications in which
the conformance requirement is expressed.
PICS Selection Reference to the PICS statement involved for selection of the TP. Contains a Boolean
expression.
TP Behaviour
Initial conditions The initial conditions defines in which initial state the IUT has to be to apply the actual TP.
In the corresponding Test Case, when the execution of the initial condition does not
succeed, it leads to the assignment of an Inconclusive verdict.
Expected behaviour (TP body) Definition of the events, which are parts of the TP objective, and the IUT are expected to
perform in order to conform to the base specification. In the corresponding Test Case,
Pass or Fail verdicts can be assigned there.
Final conditions Definition of the events that the IUT is expected to perform or shall not perform, according
to the base standard and following the correct execution of the actions in the expected
behaviour above. In the corresponding Test Case, the execution of the final conditions is
evaluated for the assignment of the final verdict.

ETSI
8 ETSI TS 102 859-2 V1.1.1 (2011-03)
5.1.2 TP Identifier naming conventions
The identifier of the TP is built according to table 3.
Table 3: TP naming convention
Identifier: TP/////
= root IPv6GEO IPv6 over Geonetworking
= group MG Message Generation
MR Message Reception
VM Virtual Interface Management
= subgroup GVL GVL
TVL TVL
NVI New virtual interfaces
EVI Expired virtual interfaces
= type of testing BV Valid Behavior tests
BI Invalid Syntax or Behavior Tests
= sequential number 01 to 99

5.1.3 Rules for the behaviour description
The description of the TP is built according to EG 202 798 [i.1].
5.1.4 Sources of TP definitions
All TPs are specified according to TS 102 636-6-1 [1].
ETSI
9 ETSI TS 102 859-2 V1.1.1 (2011-03)
5.2 Test purposes for IPV6overGEONET
5.2.1 Message Generation
5.2.1.1 GVL
TP Id
TP/IPv6GEO/MG/GVL/BV/01
Test objective Checks that an IPv6 multicast message is carried out over a GeoBroadcast message into the
correct geographical area, with a GVL manually configured
Reference
TS 102 636-6-1 [1], clauses 5.2.2, 5.3.3.1, 8.2.1 and 9.1.2
PICS Selection
PICS_GVL and PICS_Ethernet and PICS_MIB_ManualAssigned
Initial conditions
with {
the IUT having a manually configured GVL (GVL1) and,
the IUT's Upper Layer being manually configured to use the virtual interface associated with GVL1
}
Expected behaviour
ensure that {
when {
the IUT receives an IPV6 packet from the Upper Layer
containing destination address
indicating a multicast IPv6 address
}
then {
the IUT sends a valid GeoNetworking GeoBroadcast message
containing the geographical Destination area corresponding to GVL1
containing NH field
indicating value '2'
containing HT field
indicating value'4'
containing LT field
indicating value '0'
containing TC field
indicating a value derived from the IPv6 packet's Priority field (see note)
carrying the IPv6 packet received from Upper Layer as payload
}
}
NOTE: See table 1 of TS 102 636-6-1 [1] for derivation mapping.

ETSI
10 ETSI TS 102 859-2 V1.1.1 (2011-03)
TP Id TP/IPv6GEO/MG/GVL/BV/02
Test objective Checks that an IPv6 multicast message is carried out over a GeoBroadcast message into the
correct geographical area, with a GVL derived from a RA message
Reference TS 102 636-6-1 [1], clauses 5.2.2, 5.3.3.1, 8.2.1 and 9.1.2
PICS Selection PICS_GVL and PICS_Ethernet and PICS_MIB_RAAssigned
Initial conditions
with {
the IUT having received a GeoBroadcast message
containing an ICMPv6 Router Advertisment (RA) message
the IUT having automatically configured a GVL (GVL1) derived from the received RA and,
the IUT's Upper Layer being automatically configured to use the virtual interface associated with GVL1
}
Expected behaviour
ensure that {
when {
the IUT receives an IPV6 packet from the Upper Layer
containing destination address
indicating a multicast IPv6 address
}
then {
the IUT sends a valid GeoNetworking GeoBroadcast message
containing the geographical Destination area corresponding to GVL1
containing NH field
indicating value '2'
containing HT field
indicating value'4'
containing LT field
indicating value '0'
containing TC field
indicating a value derived from the IPv6 packet's Priority field (see note)
carrying the IPv6 packet received from Upper Layer as payload
}
}
NOTE: See table 1 of TS 102 636-6-1 [1] for derivation mapping.

ETSI
11 ETSI TS 102 859-2 V1.1.1 (2011-03)
TP Id TP/IPv6GEO/MG/GVL/BV/03
Test objective Checks that an IPv6 anycast message is carried out over a GeoAnycast message into the
correct geographical area, with a GVL link manually configured
Reference TS 102 636-6-1 [1], clauses 5.2.2, 5.3.3.1, 8.2.1 and 9.1.2
PICS Selection PICS_GVL and PICS_Ethernet and PICS_MIB_ManualAssigned
Initial conditions
with {
the IUT having a manually configured GVL (GVL1) and,
the IUT's Upper Layer being manually configured to use the virtual interface associated with GVL1
}
Expected behaviour
ensure that {
when {
the IUT receives an IPV6 packet from the Upper Layer
containing destination address
indicating a anycast IPv6 address
}
then {
the IUT sends a valid GeoNetworking GeoAnycast message
containing the geographical Destination area corresponding to GVL1
containing NH field
indicating value '2'
containing HT field
indicating value'3'
containing LT field
indicating value '0'
containing TC field
indicating a value derived from the IPv6 packet's Priority field (see note)
carrying the IPv6 packet received from Upper Layer as payload
}
}
NOTE: See table 1 of TS 102 636-6-1 [1] for derivation mapping.

ETSI
12 ETSI TS 102 859-2 V1.1.1 (2011-03)
TP Id TP/IPv6GEO/MG/GVL/BV/04
Test objective Checks that an IPv6 anycast message is carried out over a GeoAnycast message into the
correct geographical area, with a GVL link derived from a RA message
Reference TS 102 636-6-1 [1], clauses 5.2.2, 5.3.3.1, 8.2.1 and 9.1.2
PICS Selection PICS_GVL and PICS_Ethernet and PICS_MIB_RAAssigned
Initial conditions
with {
the IUT having received a GeoBroadcast message
containing an ICMPv6 Router Advertisment (RA) message
the IUT having automatically configured a GVL (GVL1) derived from the received RA and,
the IUT's Upper Layer being automatically configured to use the virtual interface associated with GVL1
}
Expected behaviour
ensure that {
when {
the IUT receives an IPV6 packet from the Upper Layer
containing destination address
indicating a anycast IPv6 address
}
then {
the IUT sends a valid GeoNetworking GeoAnycast message
containing the geographical Destination area corresponding to GVL1
containing NH field
indicating value '2'
containing HT field
indicating value'3'
containing LT field
indicating value '0'
containing TC field
indicating a value derived from the IPv6 packet's Priority field (see note)
carrying the IPv6 packet received from Upper Layer as payload
}
}
NOTE: See table 1 of TS 102 636-6-1 [1] for derivation mapping.

ETSI
13 ETSI TS 102 859-2 V1.1.1 (2011-03)
TP Id TP/IPv6GEO/MG/GVL/BV/05
Test objective Checks that an IPv6 unicast message is carried out over a GeoUnicast when using a GVL
associated to an Ethernet V2.0/IEEE 802.3 LAN type virtual interface with address resolution
Reference TS 102 636-6-1 [1], clauses 5.2.2, 5.3.3.1, 8.2.1 and 9.1.2
PICS Selection PICS_GVLand PICS_Ethernet
Initial conditions
with {
the IUT having a configured GVL (GVL1) and,
the IUT's Upper Layer being configured to use the virtual interface associated with GVL1
the IUT being configured with MIB attribute itsgn6aslVIResolAddr set to true
}
Expected behaviour
ensure that {
when {
the IUT receives an IPV6 packet from the Upper Layer
containing destination address
indicating unicast IPv6 address of the Tester
}
then {
the IUT sends a valid GeoUnicast message
containing DEPV field
containing GN_ADDR field
indicating value derived from the unicast IPv6 address IID
containing NH field
indicating value '2'
containing HT field
indicating value'2'
containing LT field
indicating value '0'
containing TC field
indicating a value derived from the IPv6 packet's Priority field (see note)
carrying the IPv6 packet received from Upper Layer as payload
}
}
NOTE: See table 1 of TS 102 636-6-1 [1] for derivation mapping.

ETSI
14 ETSI TS 102 859-2 V1.1.1 (2011-03)
TP Id TP/IPv6GEO/MG/GVL/BV/06
Test objective Checks that an IPv6 unicast message is carried out over a GeoUnicast when using a GVL
associated to an Ethernet V2.0/IEEE 802.3 [7] LAN type
...
